Description

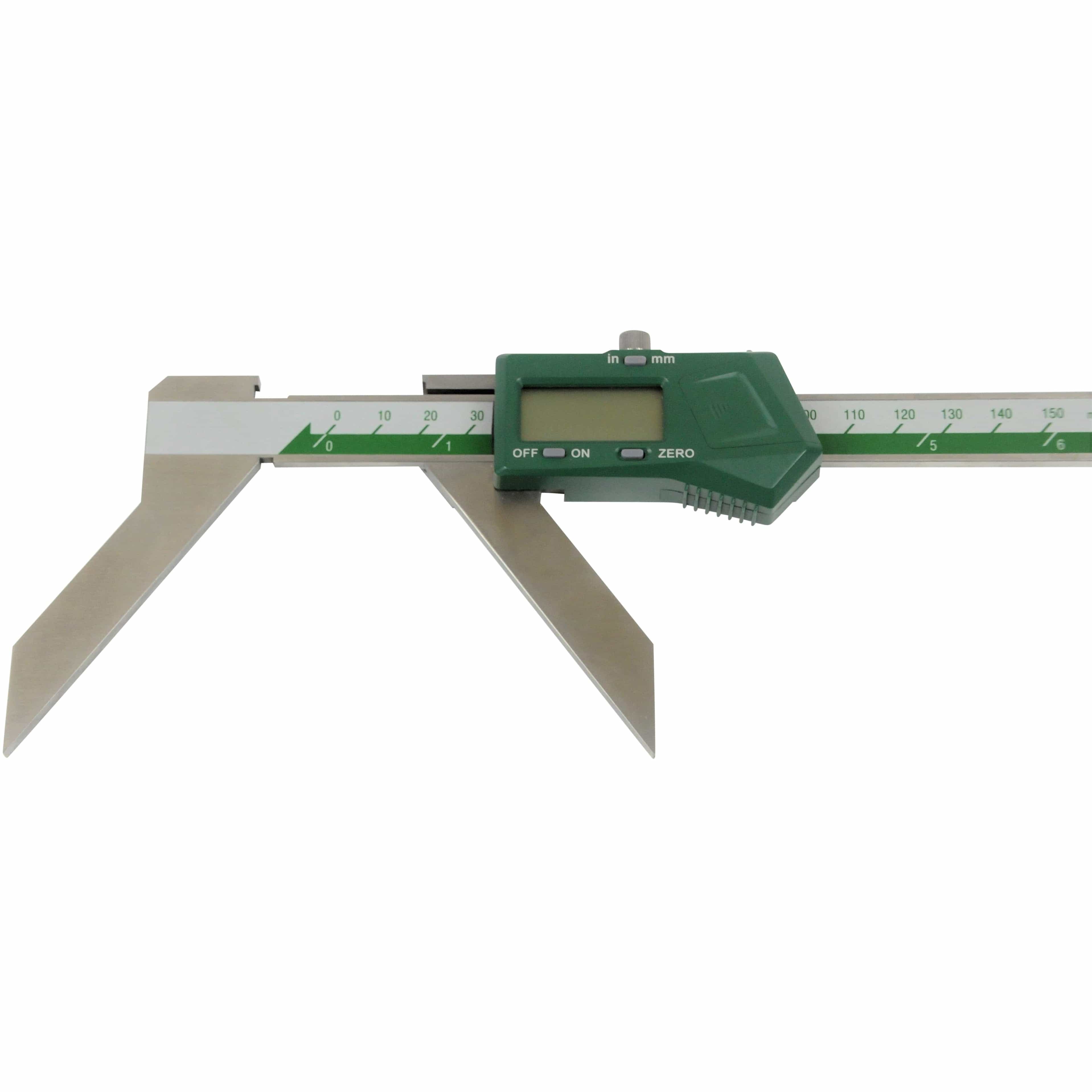

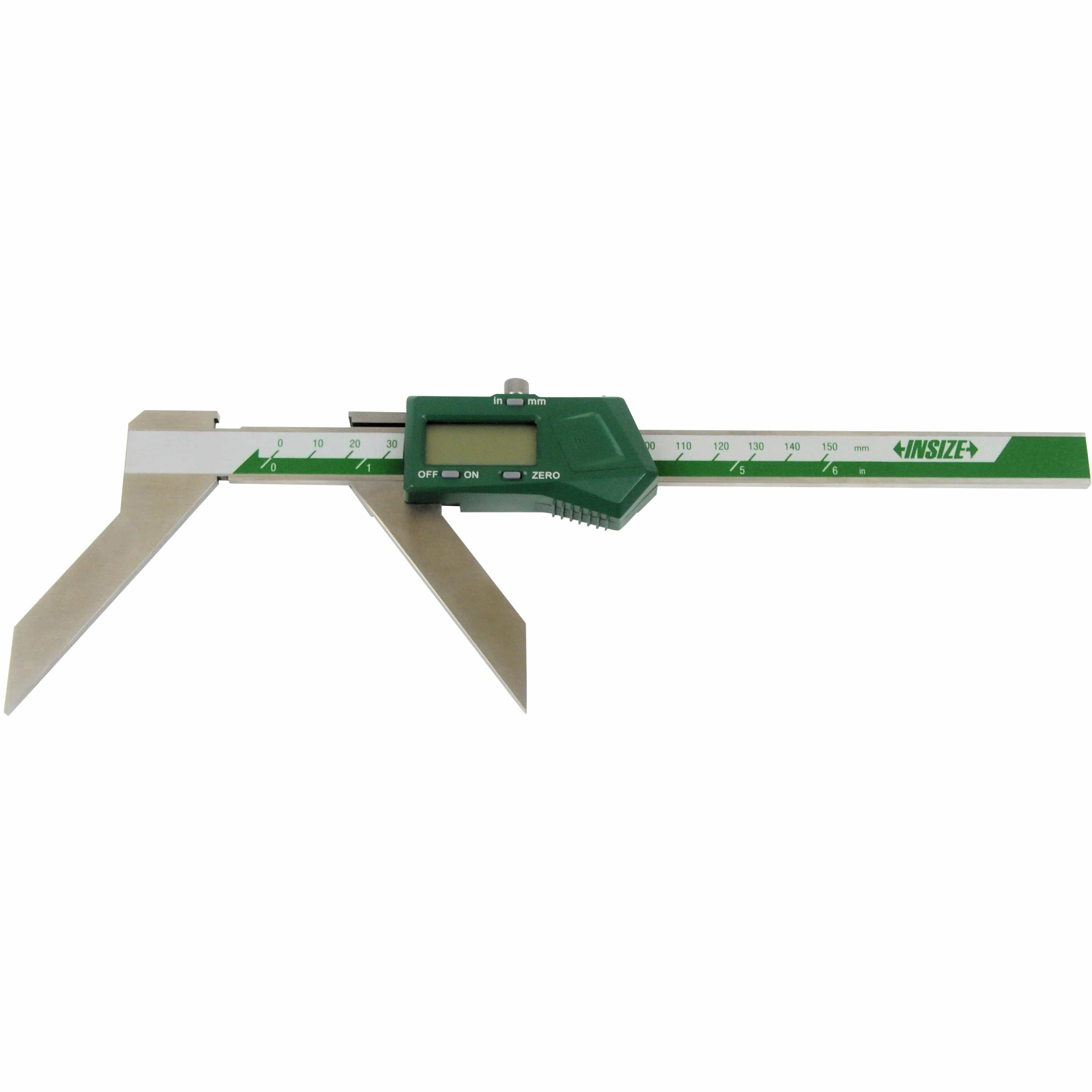

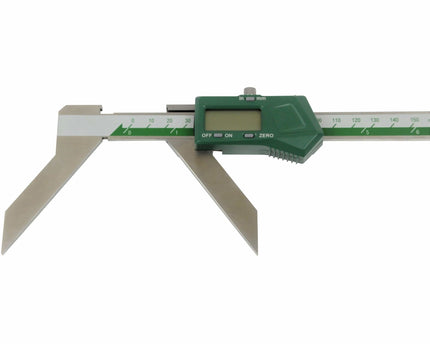

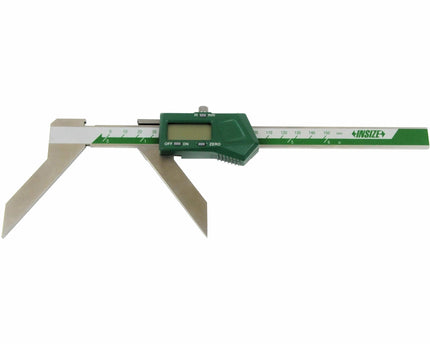

Insize 5–200 mm / 0.2–8" Digital Arc Radius Caliper
A precision digital caliper designed specifically for measuring arc radii smaller than a half-round profile. Manufactured from stainless steel, this tool provides smooth travel, excellent stability, and reliable digital readout accuracy for workshop, inspection, and machining applications.

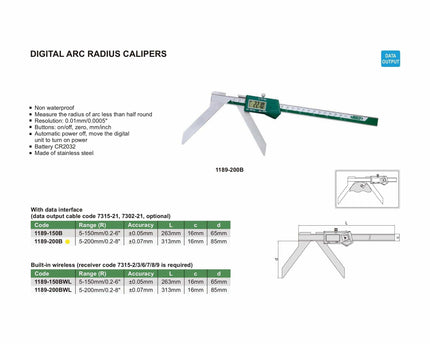

Specifications:
- Part No: 1189-200B
- Accuracy: ±0.05 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 5–200 mm / 0.2–8"

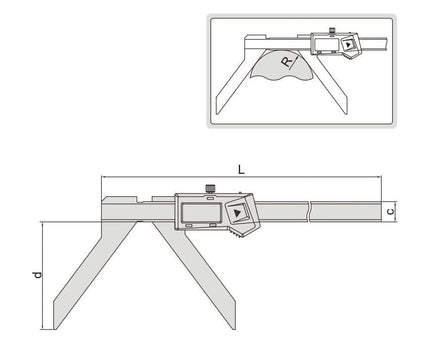

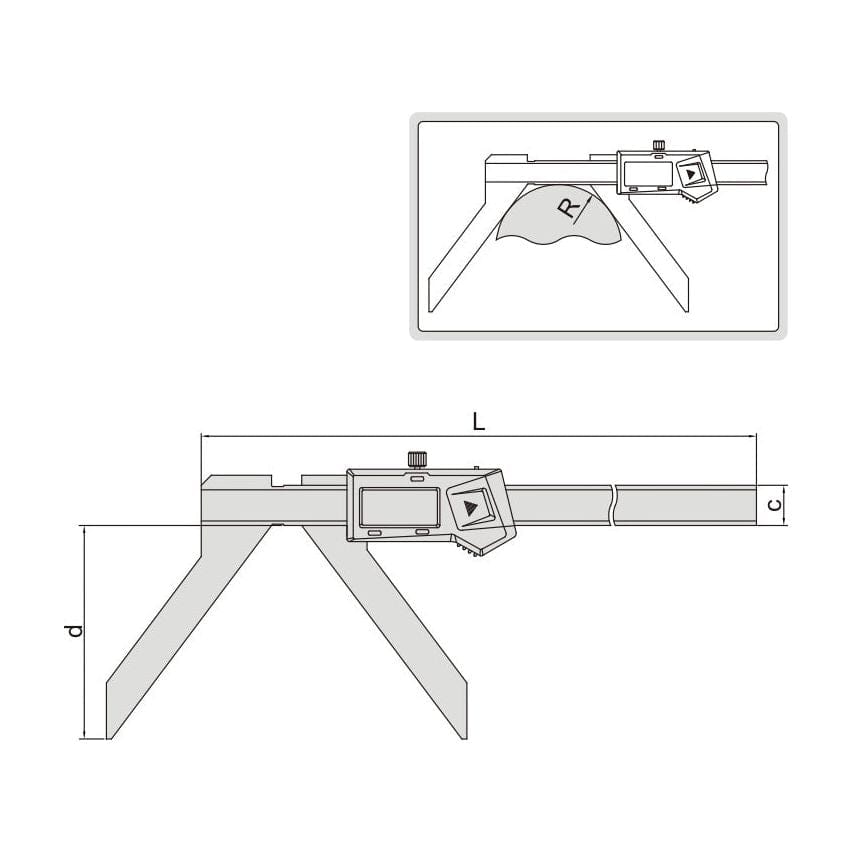

- L: 263 mm
- C: 16 mm
- D: 65 mm
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Off: Wakes by movement
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A)
Well-designed and durable, this high-precision instrument is ideal for accurately measuring arc radii in machining, fabrication, and inspection tasks. Easy to use and adjust, it provides dependable performance in both workshop and professional environments.
