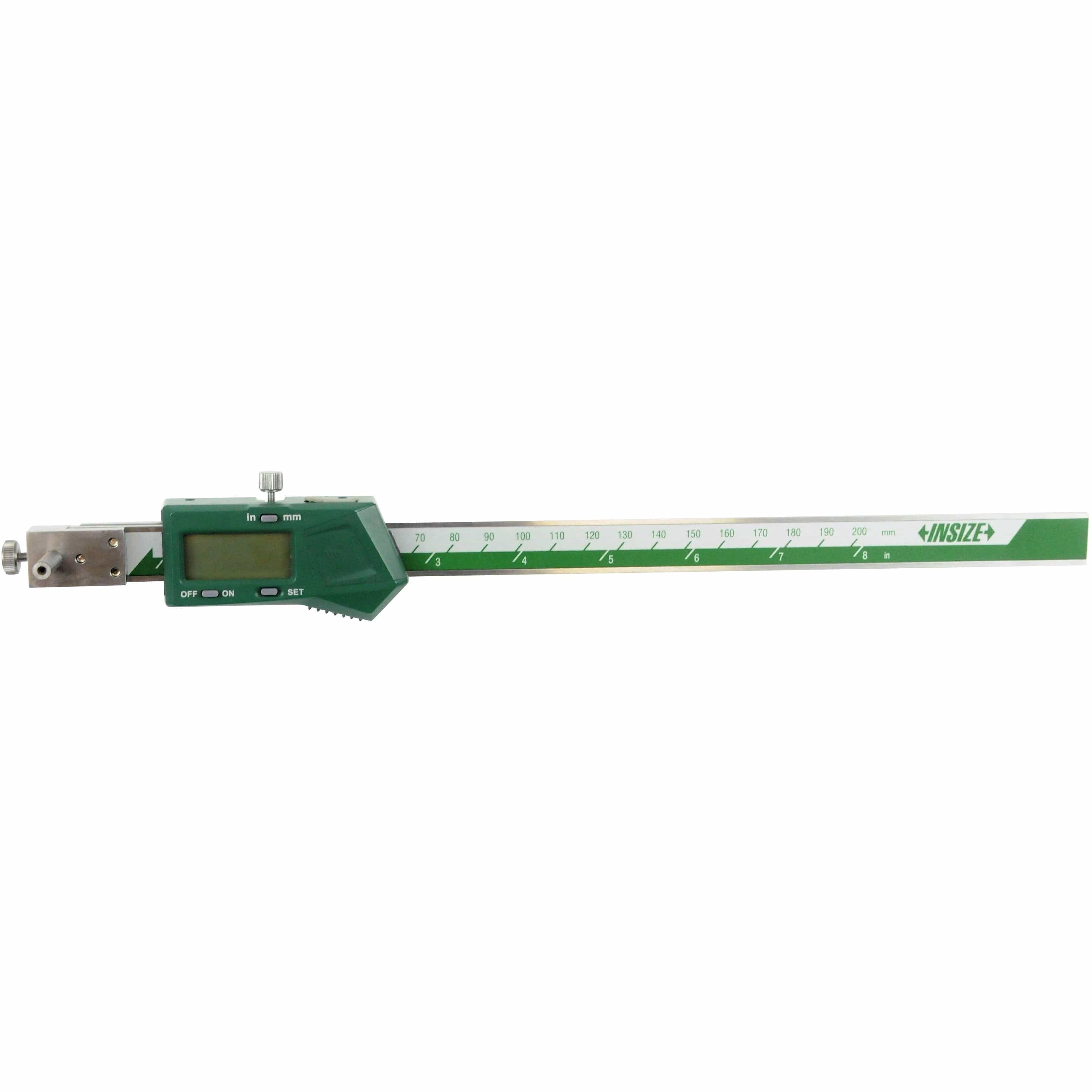

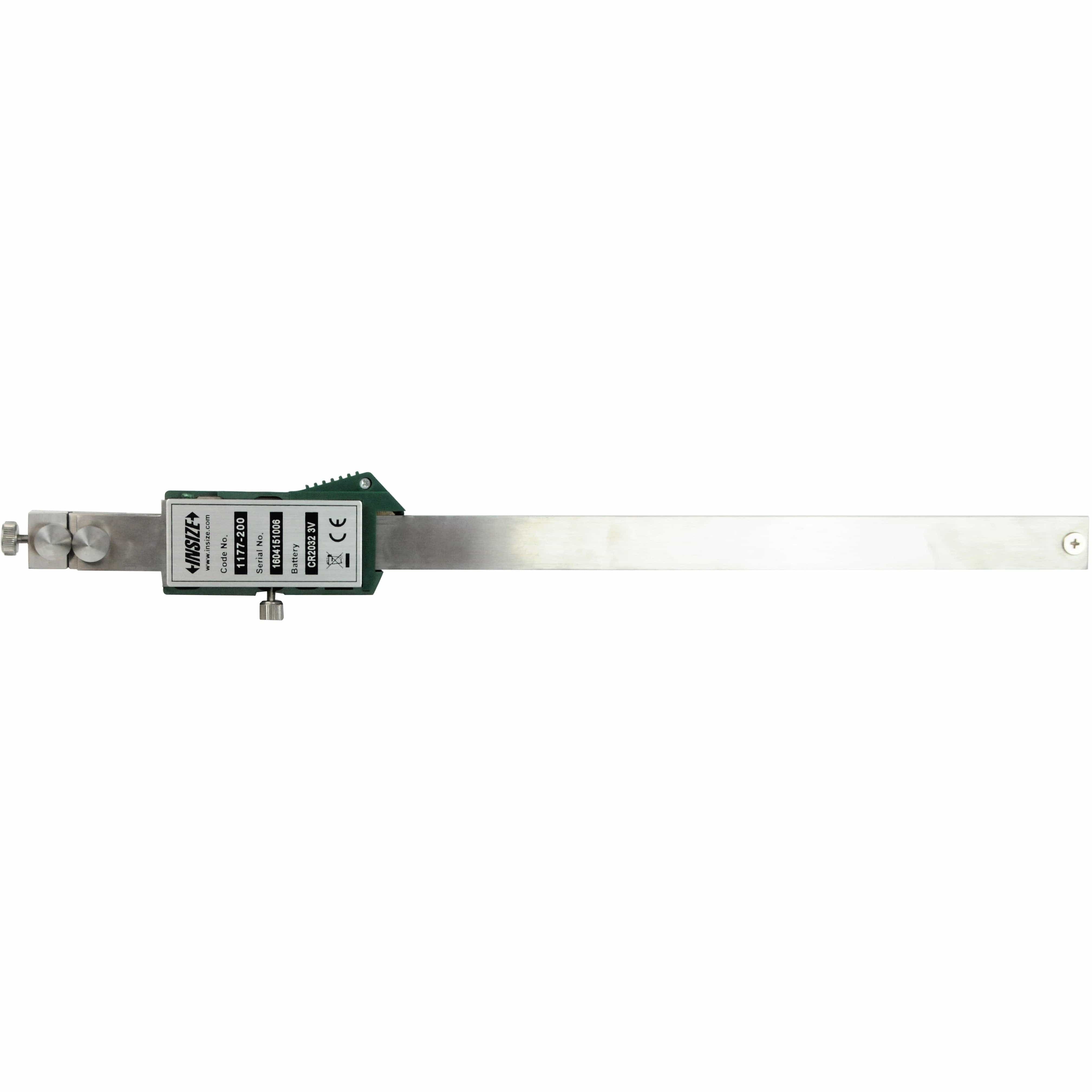

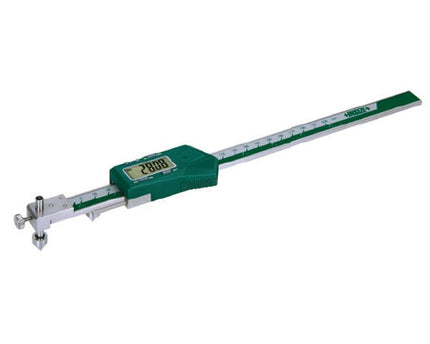

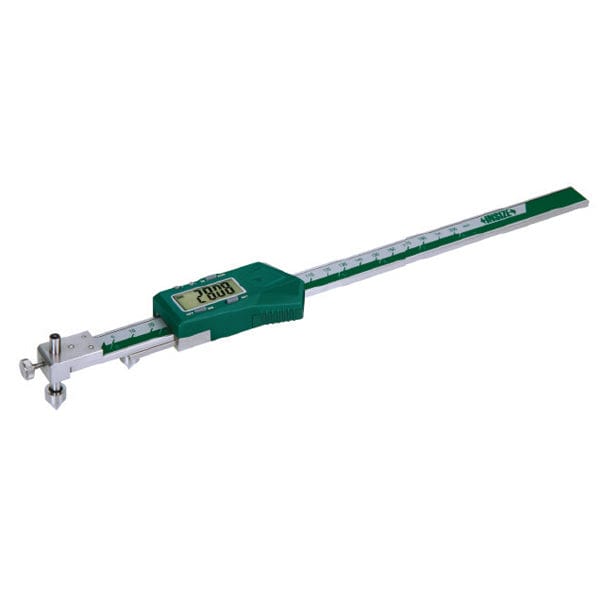

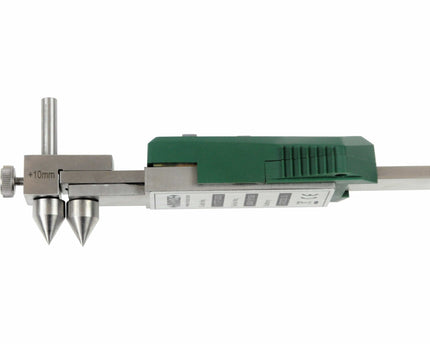

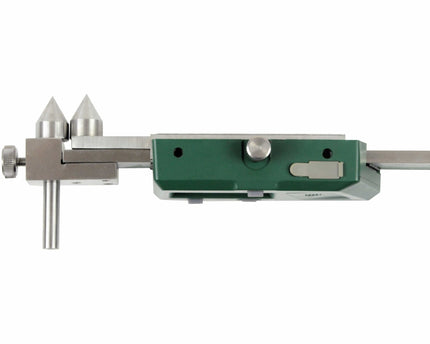

Insize Digital Back-Jaw Caliper 10–200 mm / 0.4–8"

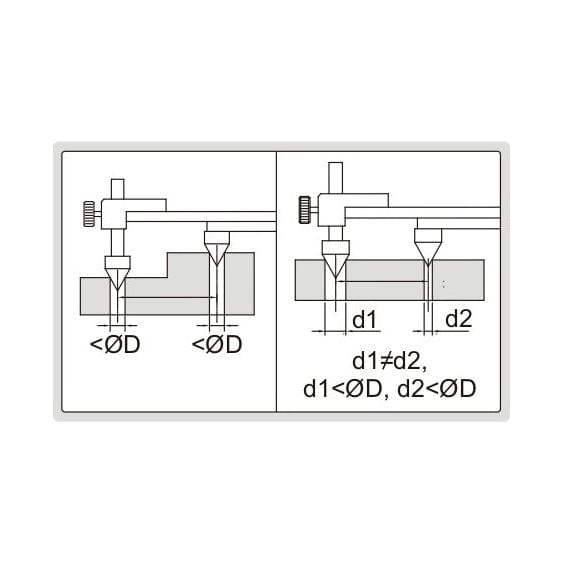

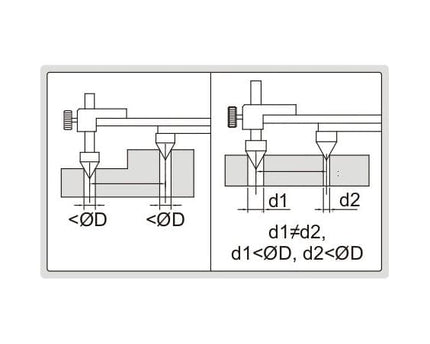

A precision digital back-jaw caliper designed for accurate measurement of hole centre distances on the same or offset planes. Manufactured from stainless steel and engineered for smooth, reliable movement, it delivers consistent performance for workshop, inspection, and machining environments.

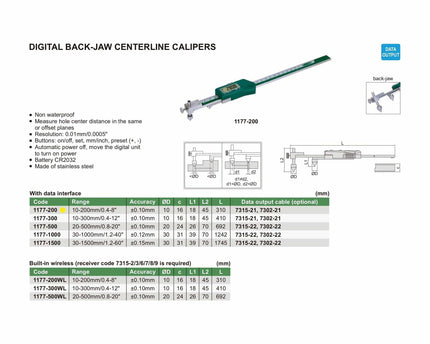

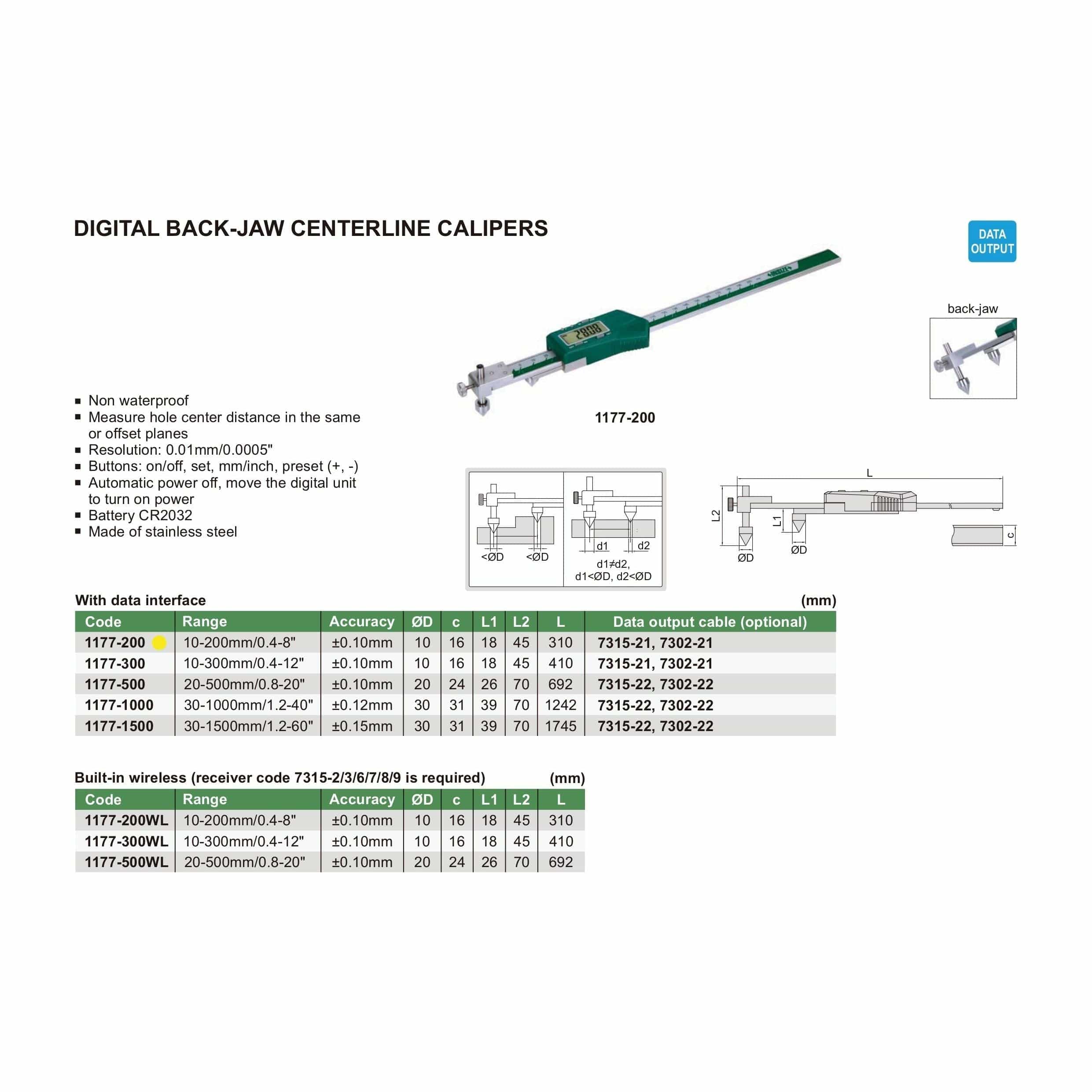

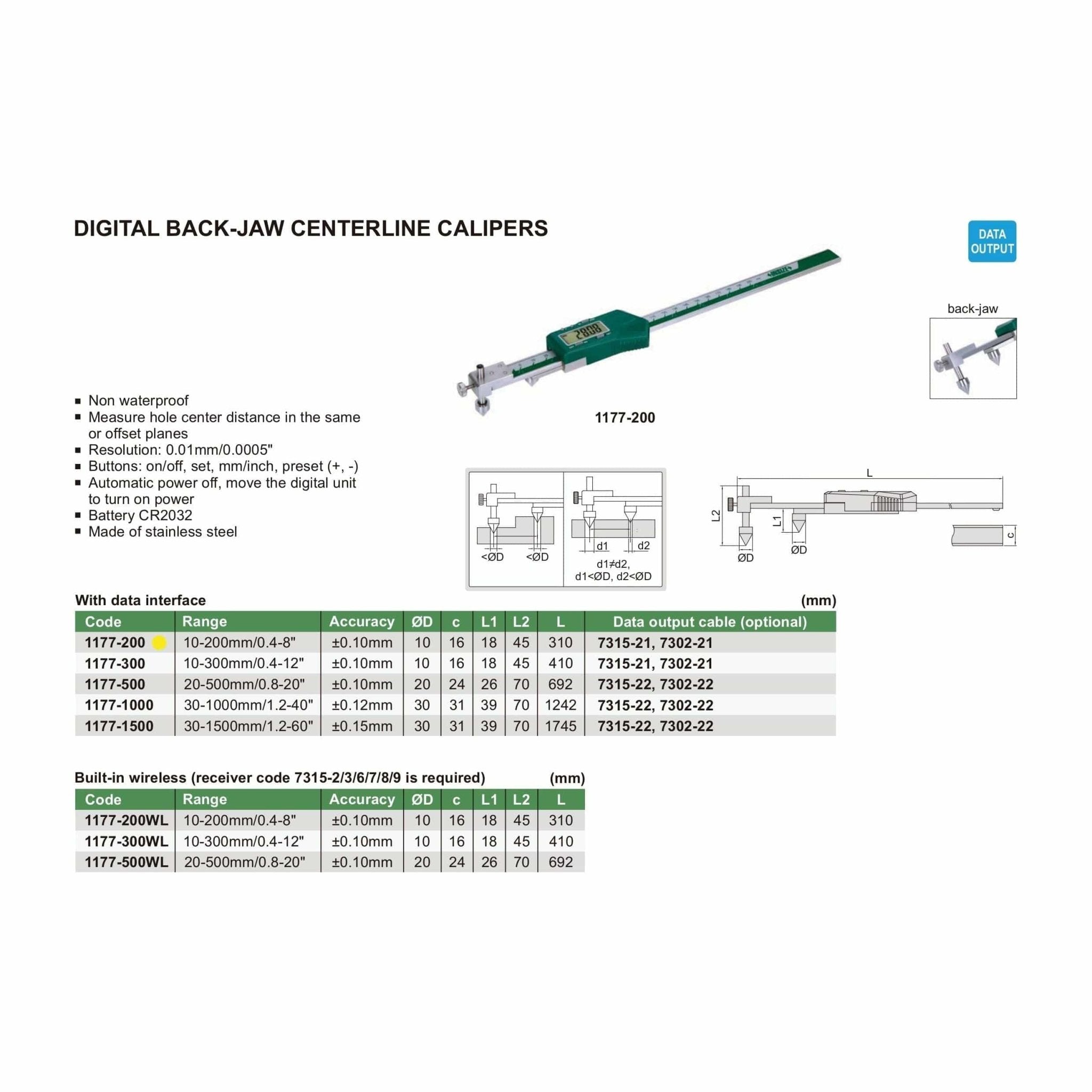

Specifications:
- Part No: 1177-200
- Accuracy: ±0.10 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 10–200 mm / 0.4–8"

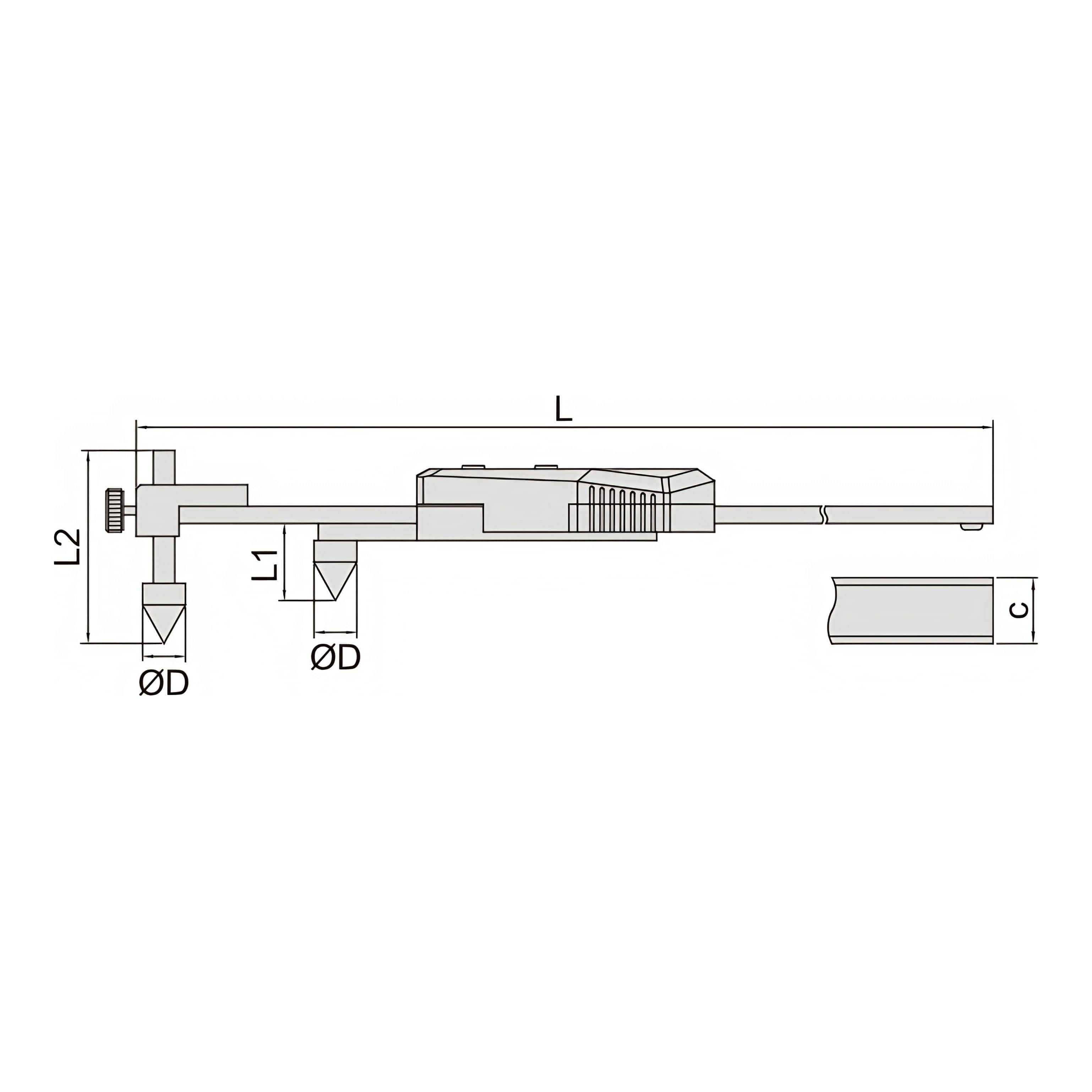

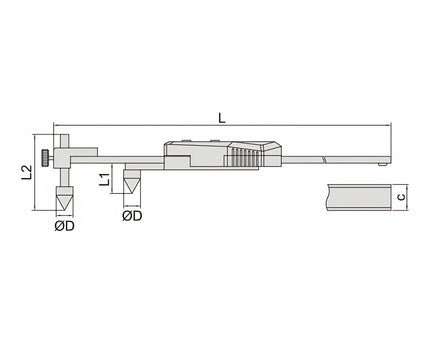

- C: 16 mm
- L1: 18 mm
- L2: 45 mm
- L: 310 mm

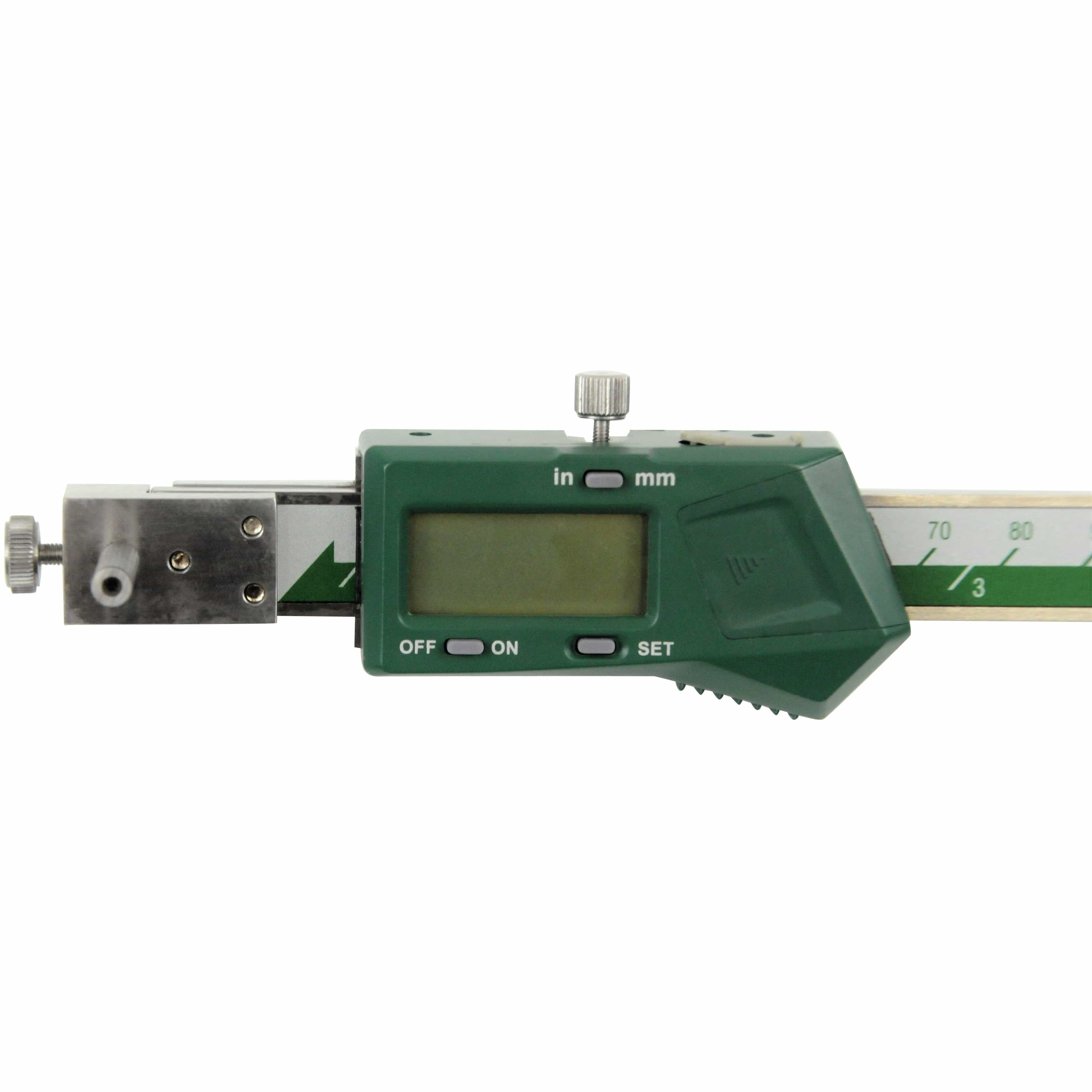

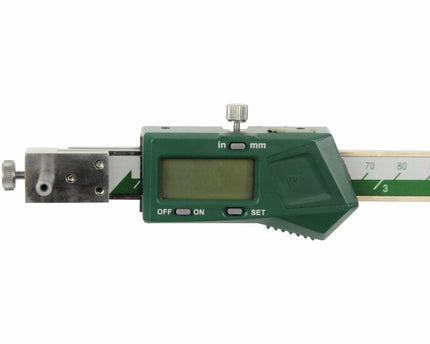

- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset

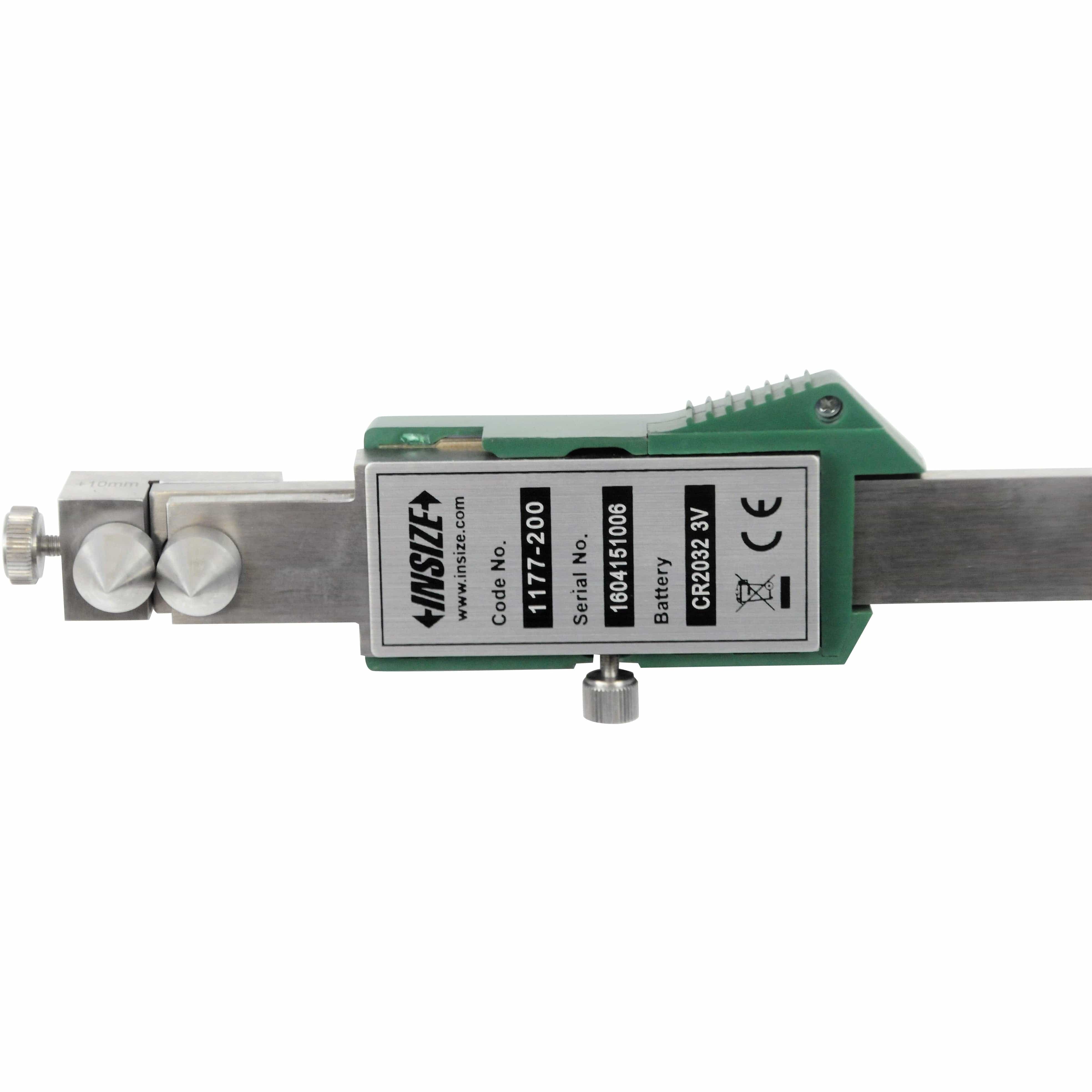

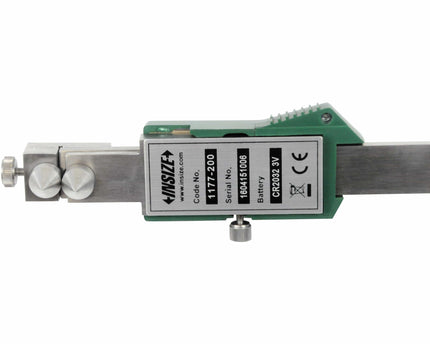

- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A)
Well-designed and built for precision, this digital back-jaw caliper is ideal for accurately measuring centre distances and specialised dimensional features. Easy to operate and highly durable, it provides dependable measurement performance in both professional and workshop applications.
