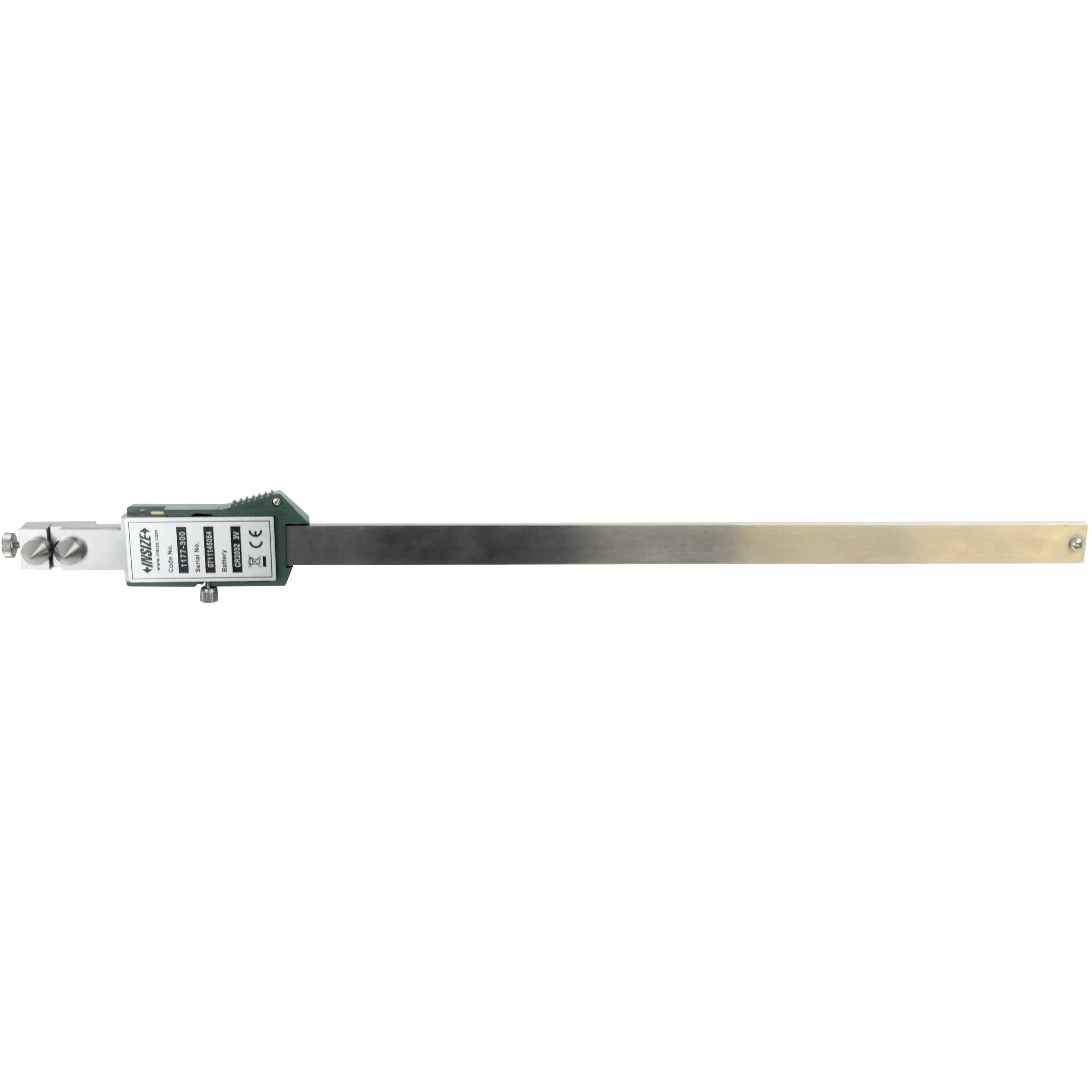

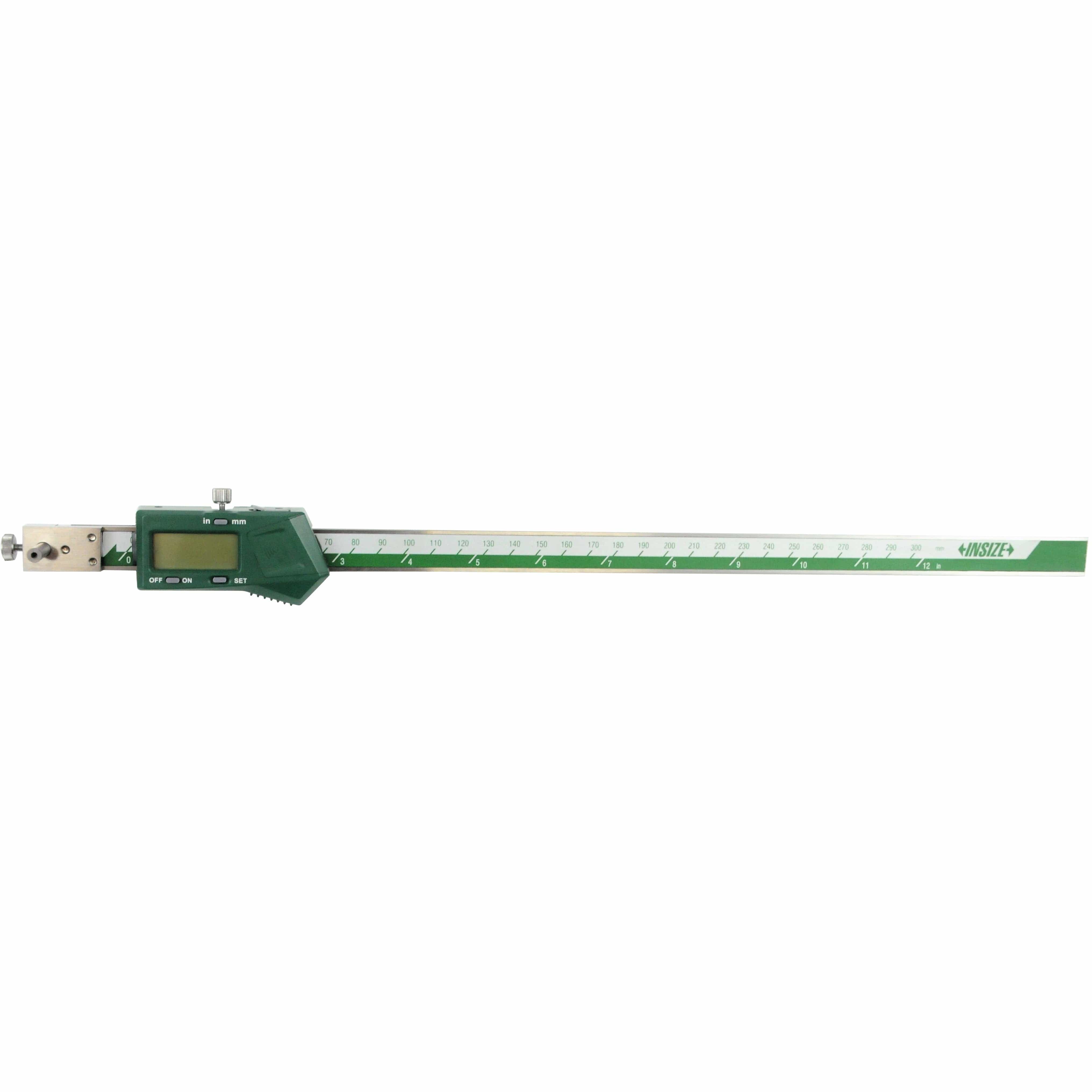

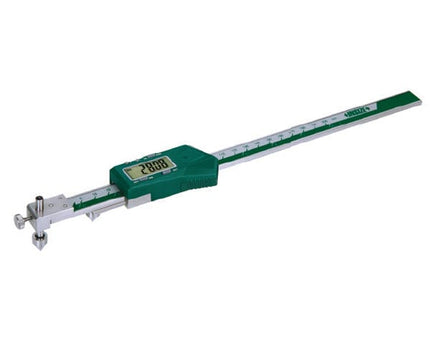

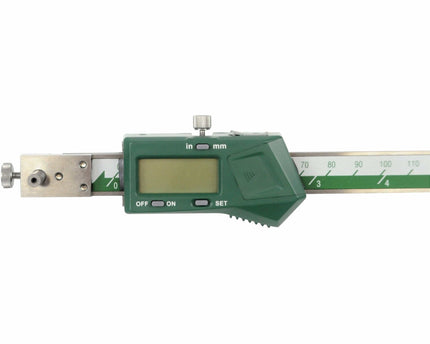

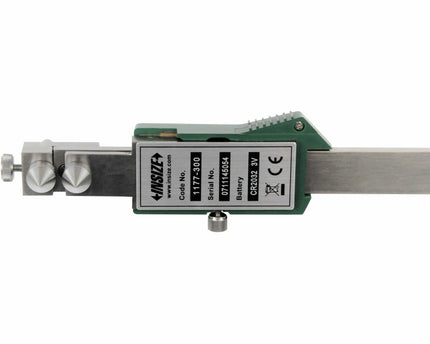

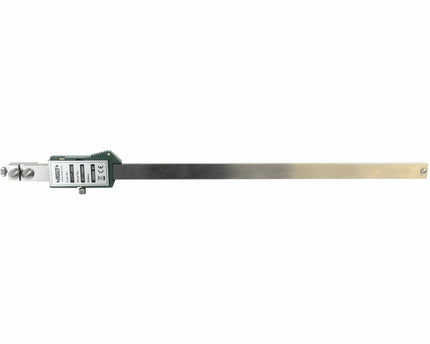

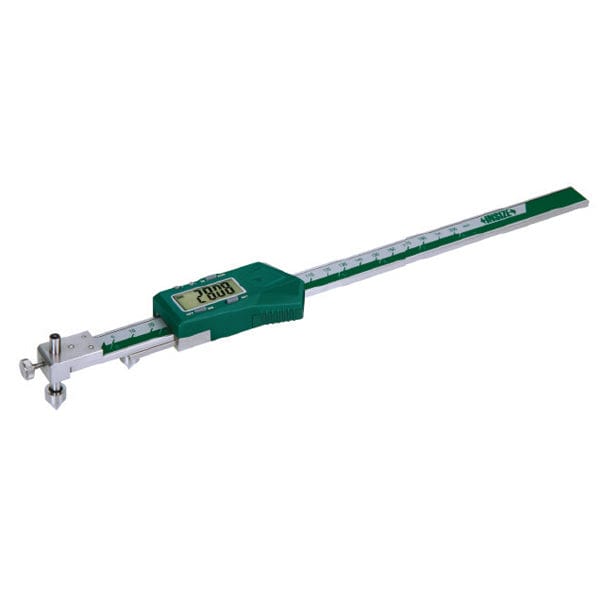

Insize Digital Back-Jaw Caliper 10–300 mm / 0.4–12"

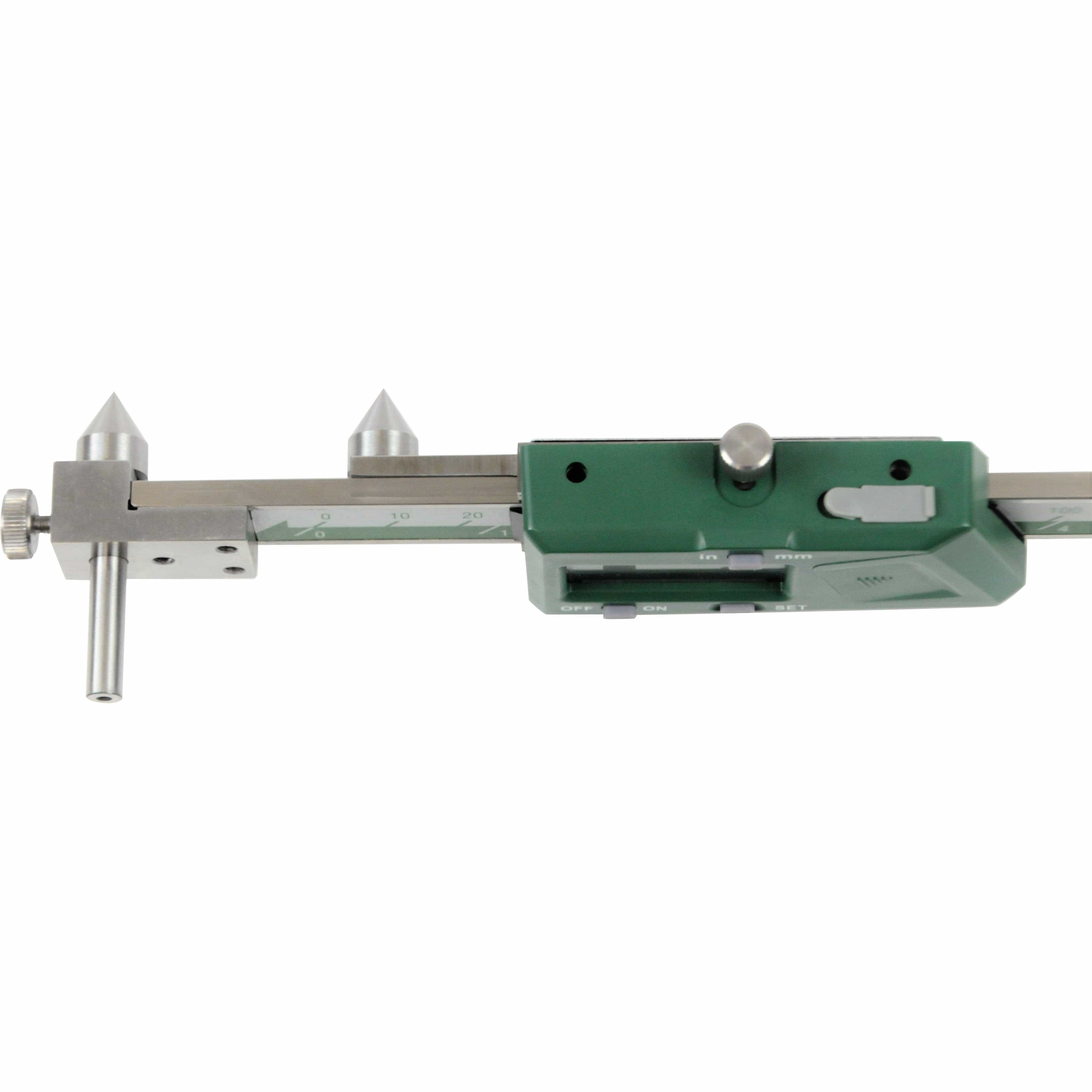

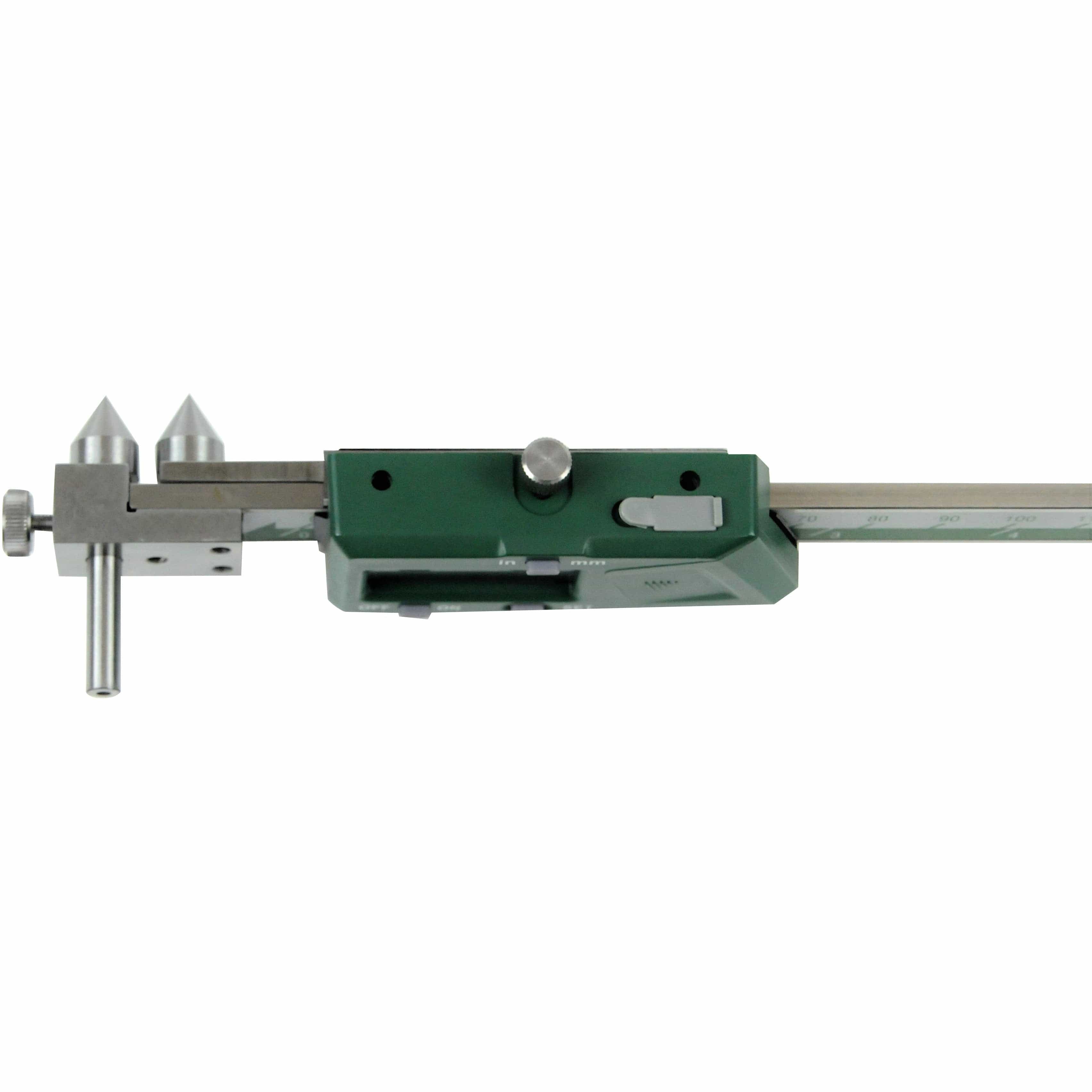

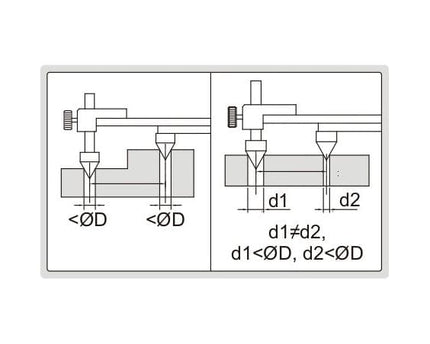

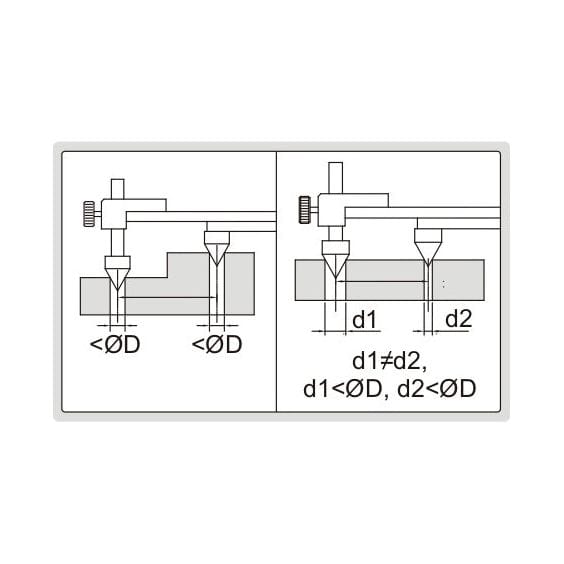

A high-precision digital back-jaw caliper designed for accurately measuring hole centre distances on the same or offset planes. Built from stainless steel for durability and engineered for consistent measurement performance, it provides smooth operation and clear readability through a large digital display.

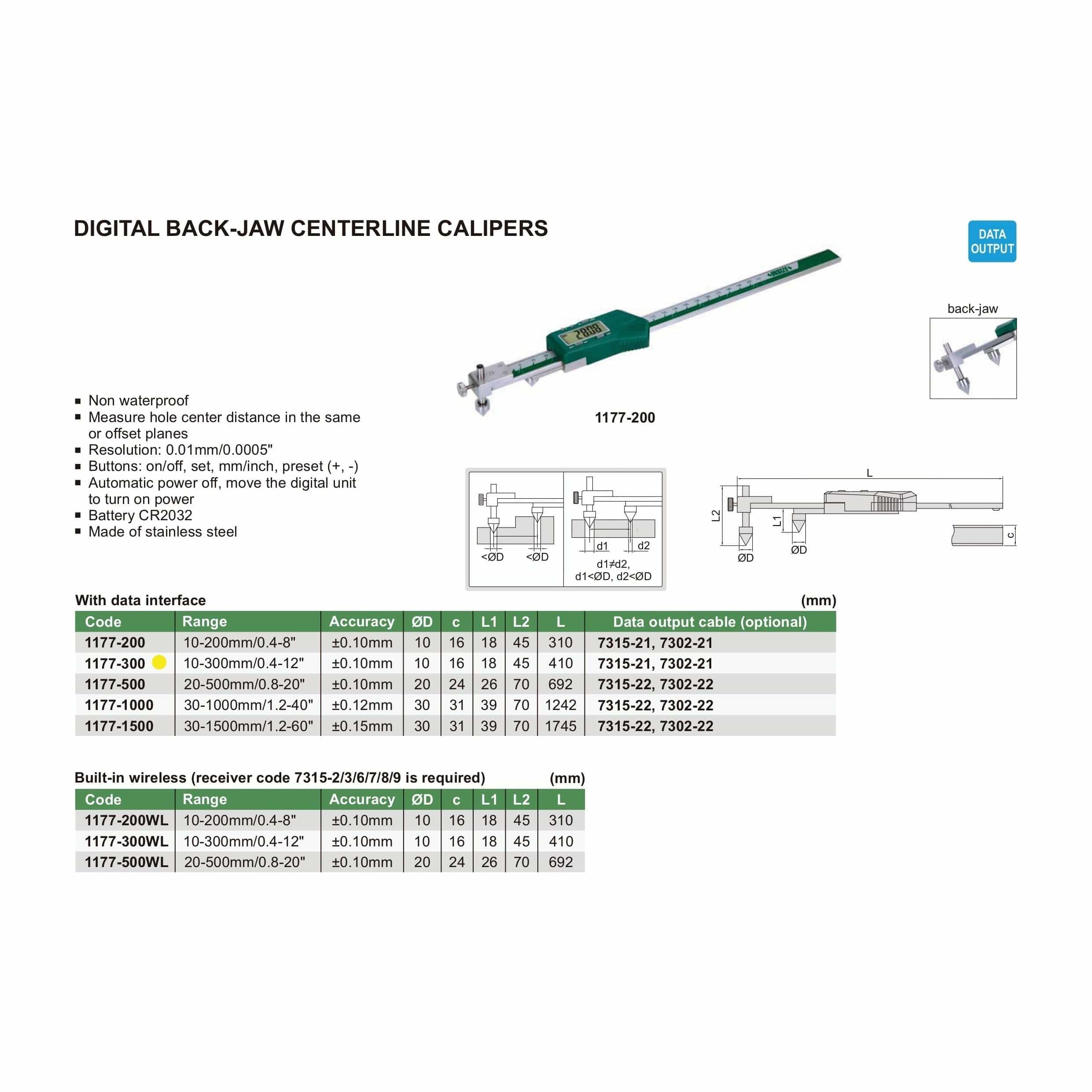

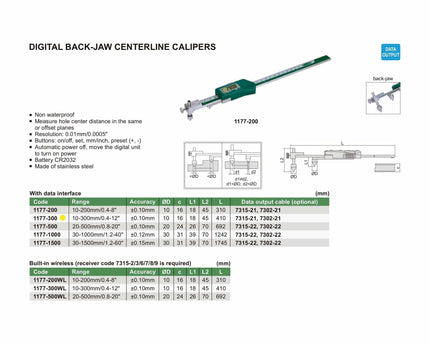

Specifications:
- Part No: 1177-300
- Accuracy: ±0.10 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 10–300 mm / 0.4–12"

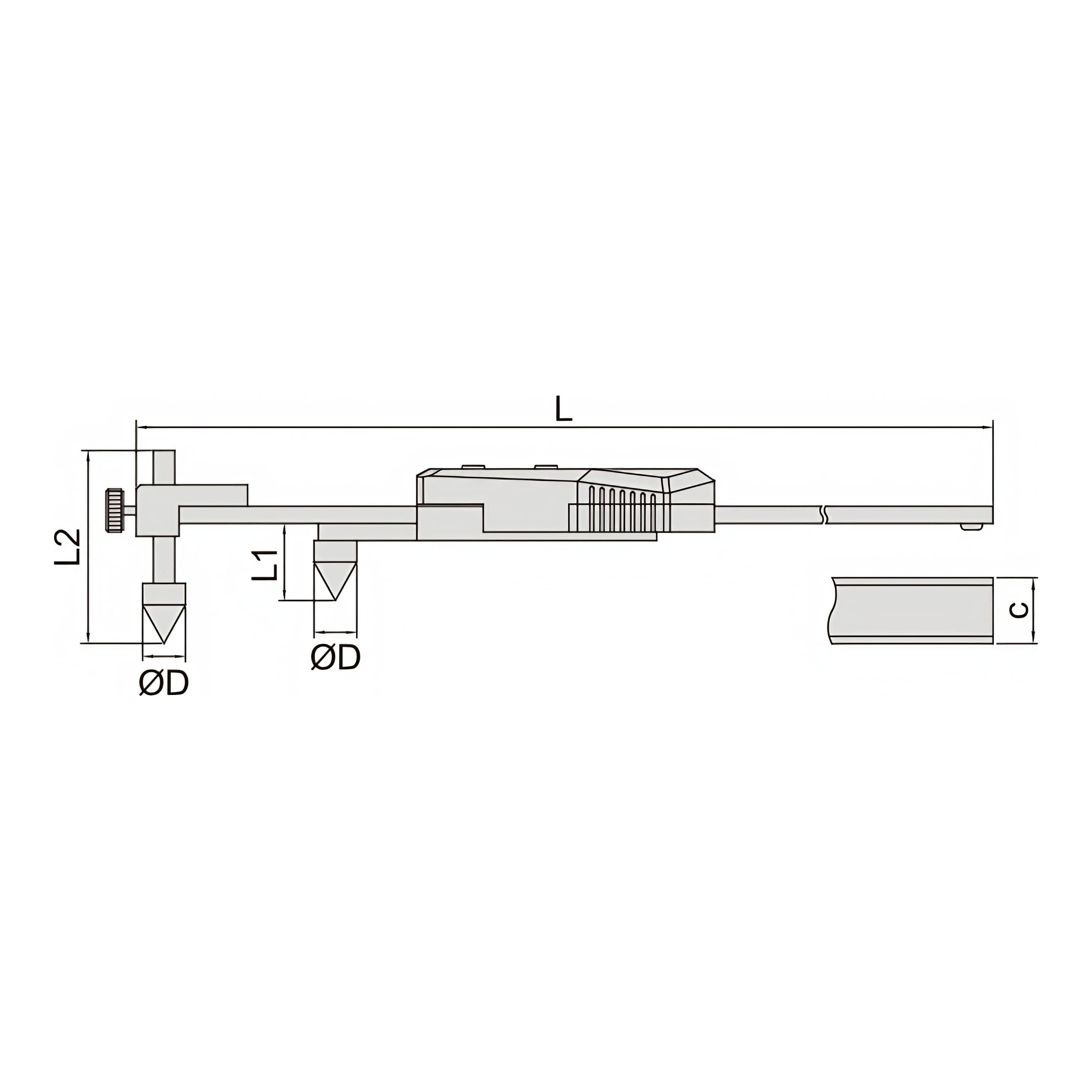

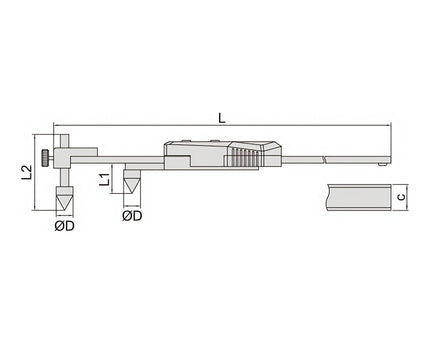

- C: 16 mm
- L1: 18 mm
- L2: 45 mm
- L: 410 mm

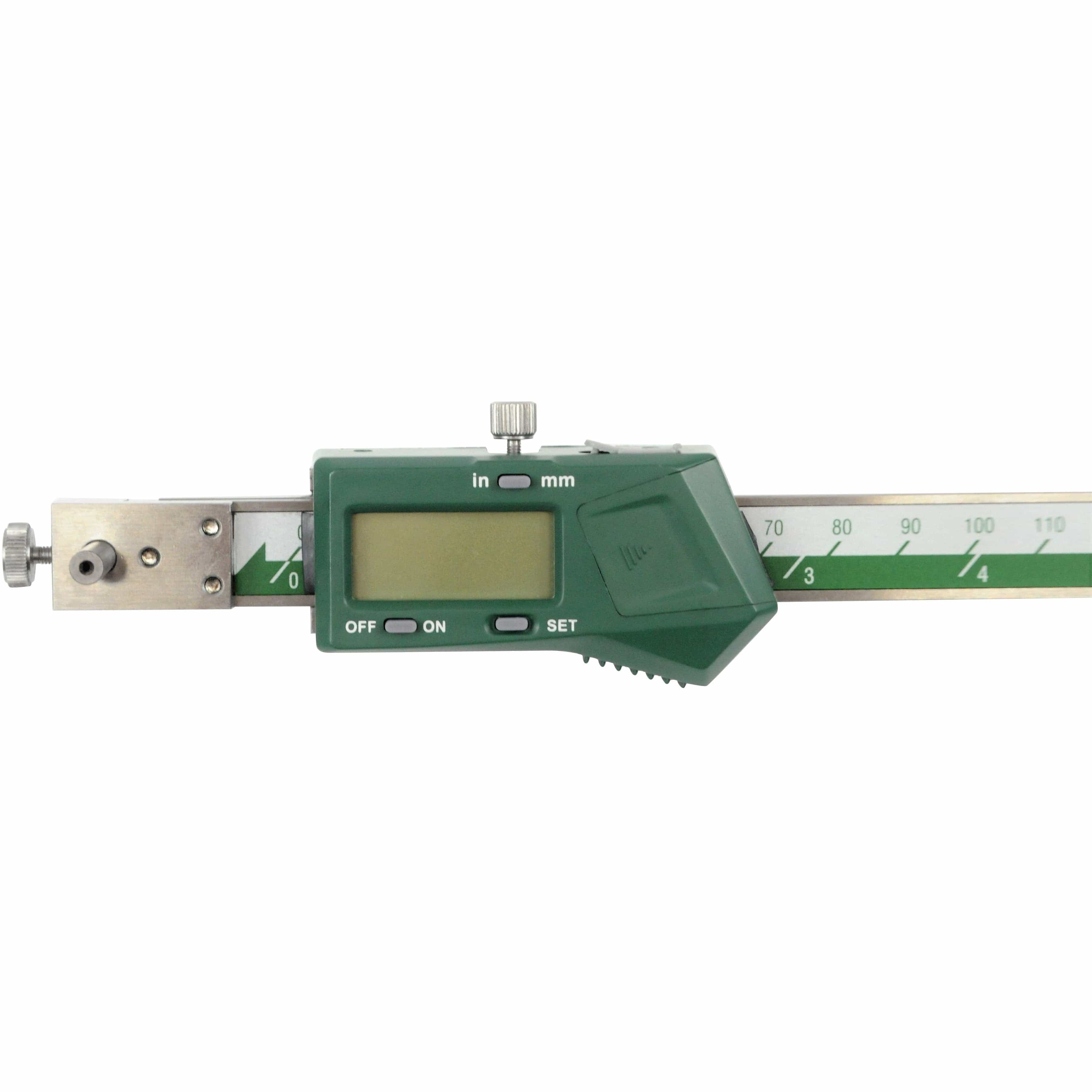

- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset

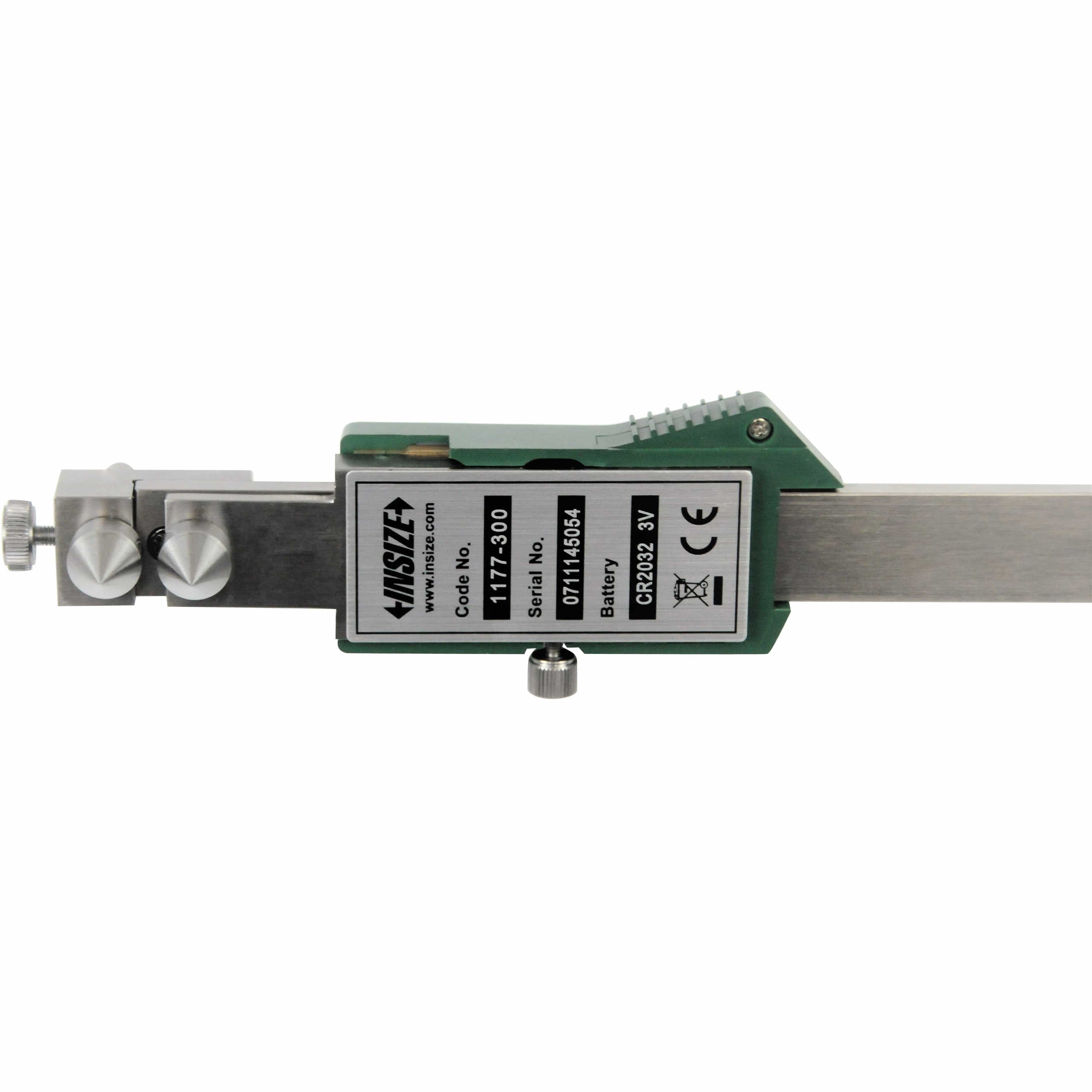

- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC5A/SPC5B, 7305-SPC2A)
Well-designed and built for accuracy, this digital back-jaw caliper is ideal for precisely measuring hole centre distances in a wide range of engineering and machining applications. Easy to use and adjust, it delivers reliable performance for workshop and inspection tasks.
