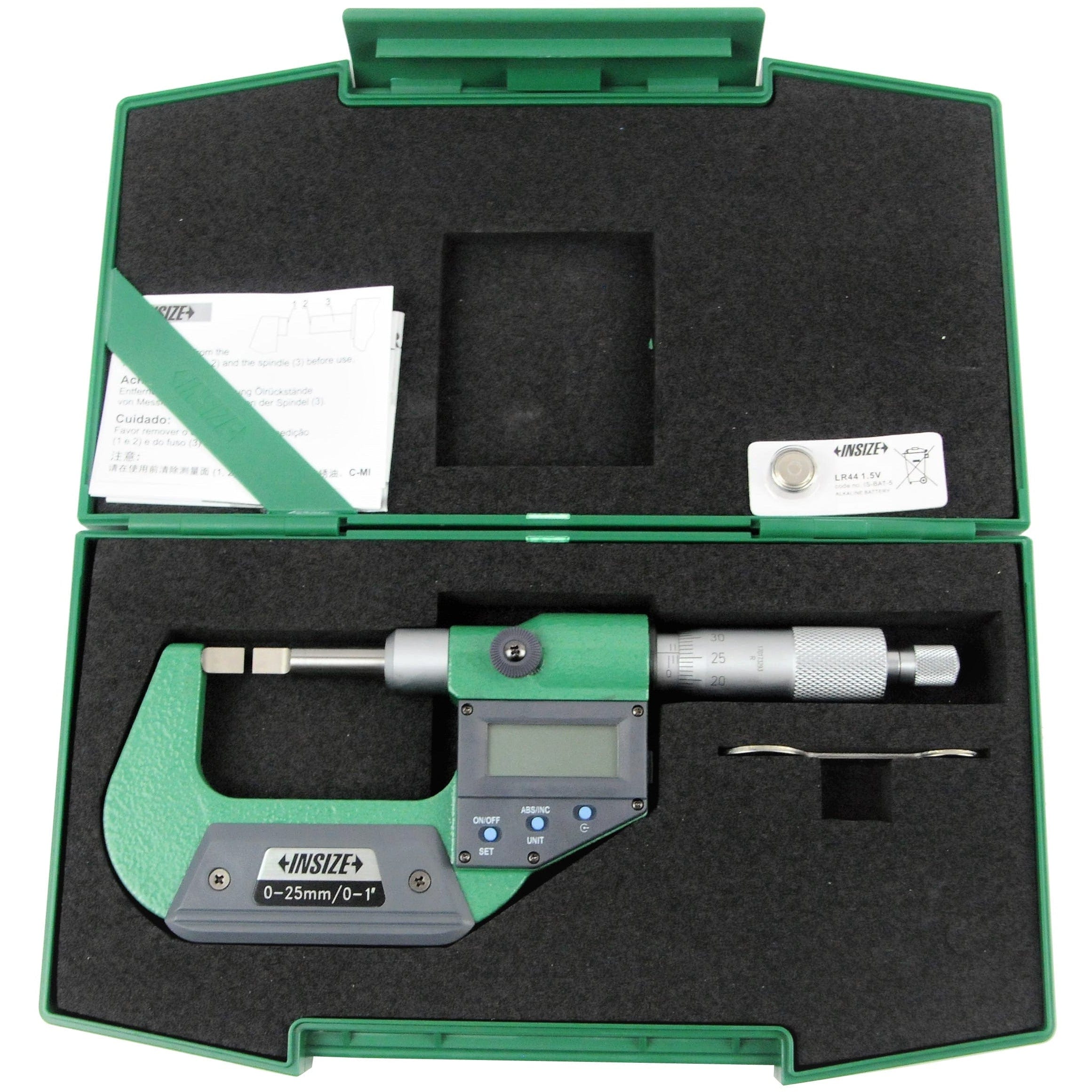

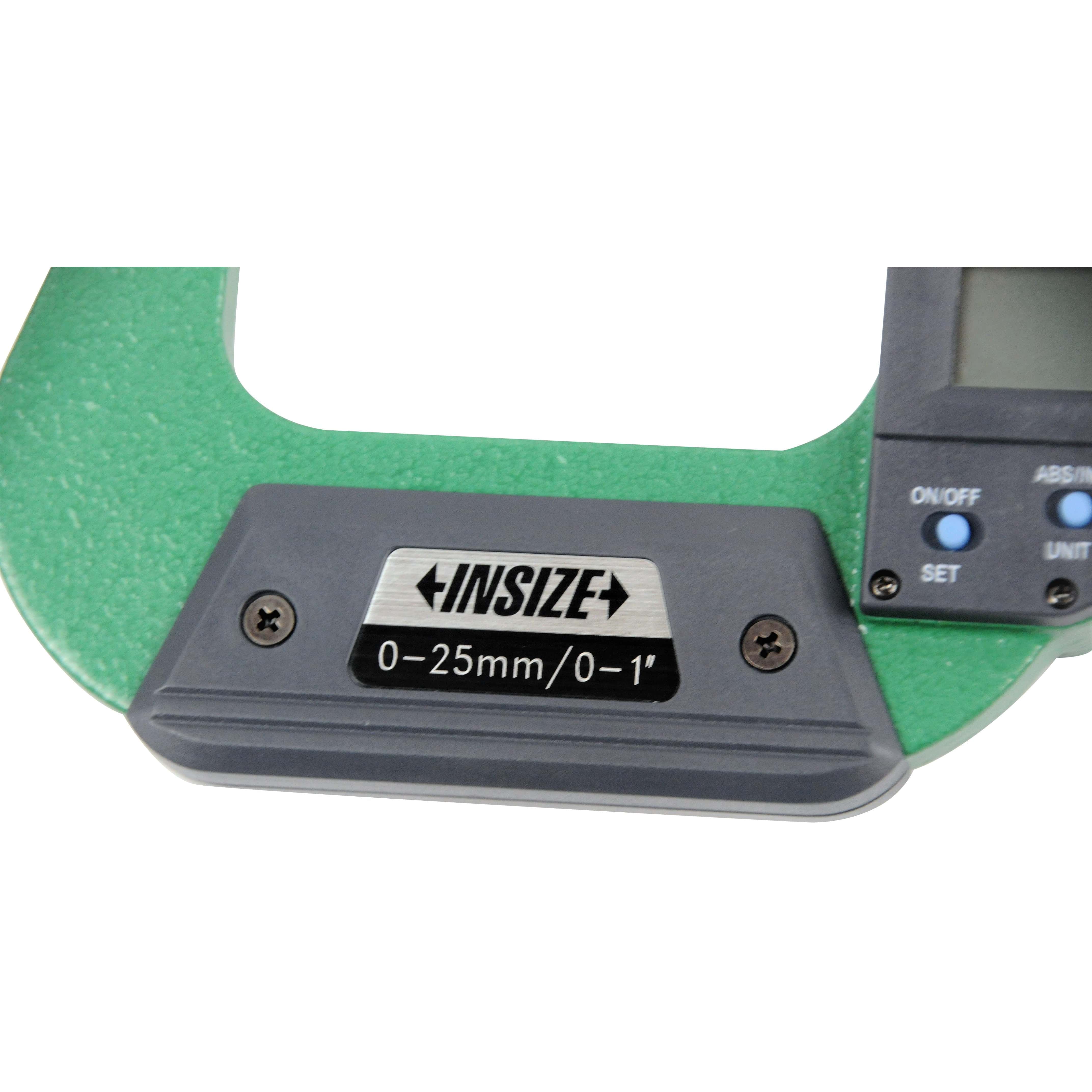

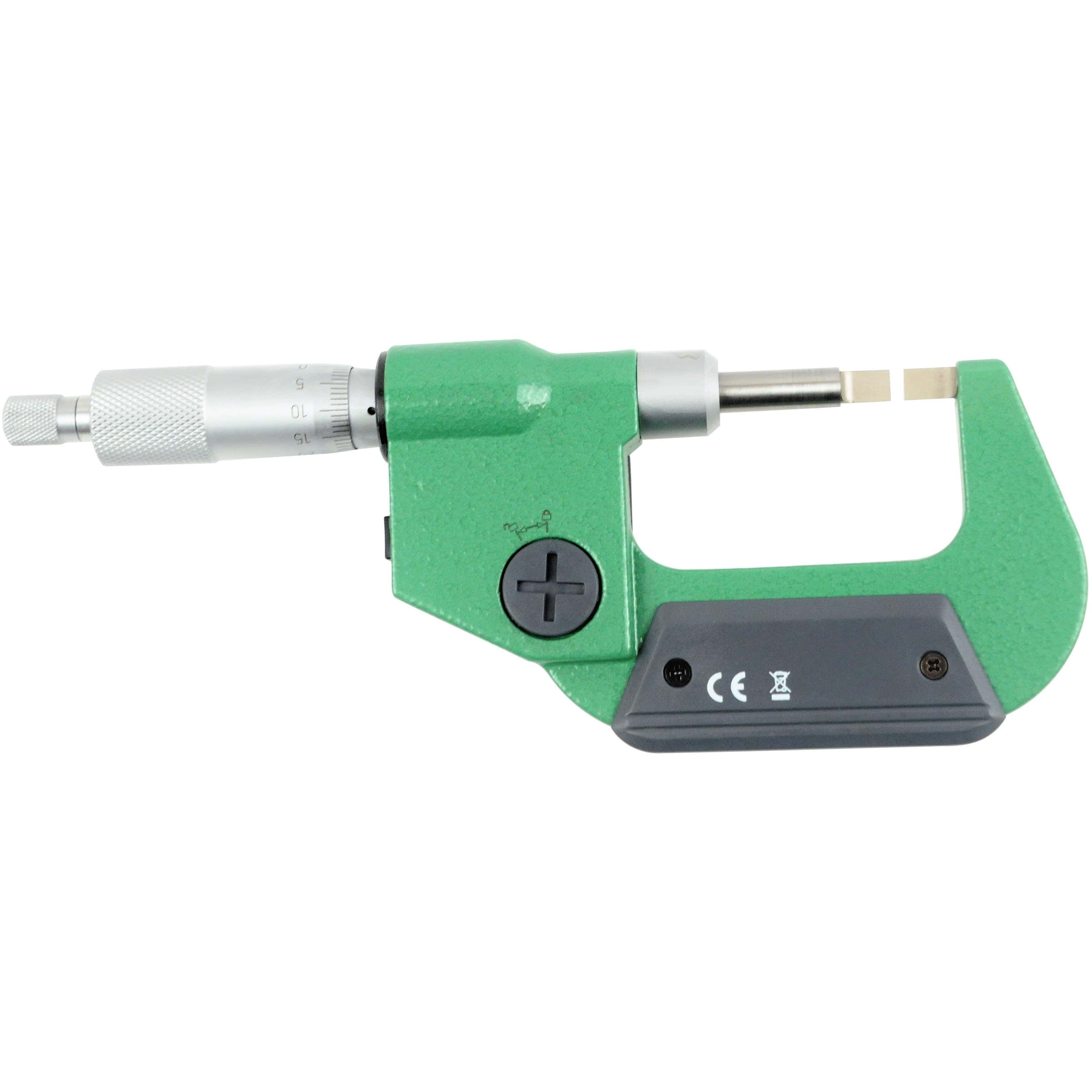

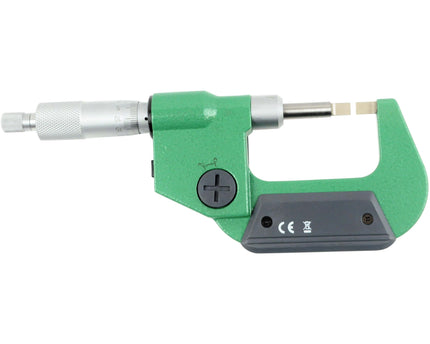

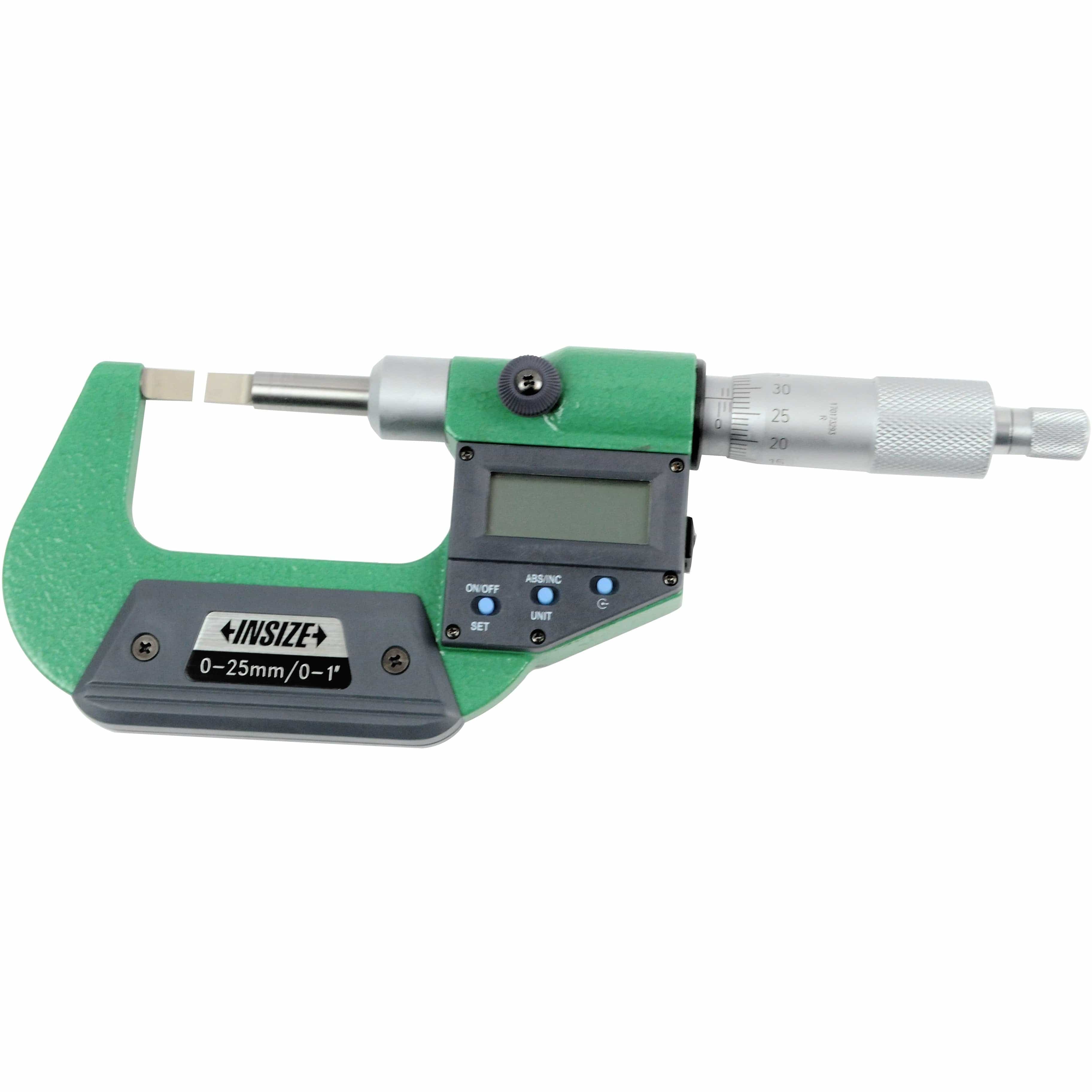

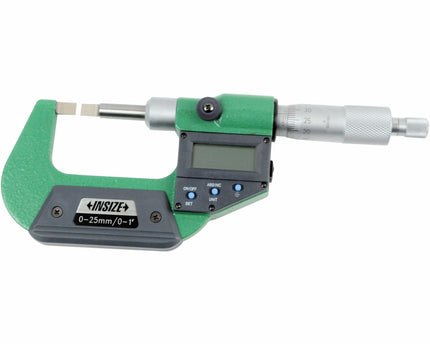

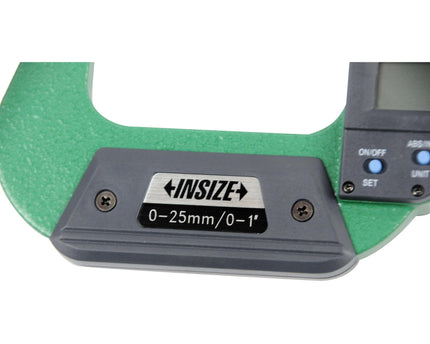

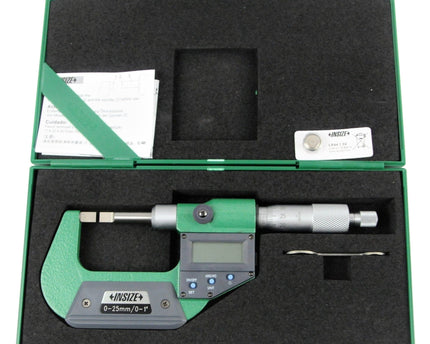

Insize Indicating Micrometer with Support 0–25mm
The Insize Indicating Micrometer with Support 0–25mm is a precision measuring instrument designed for accurate dimensional measurement of grooves, shafts, and keyways. Featuring a supported frame and high-resolution digital micrometer head, it allows consistent, repeatable measurements in machining, inspection, and quality control applications.

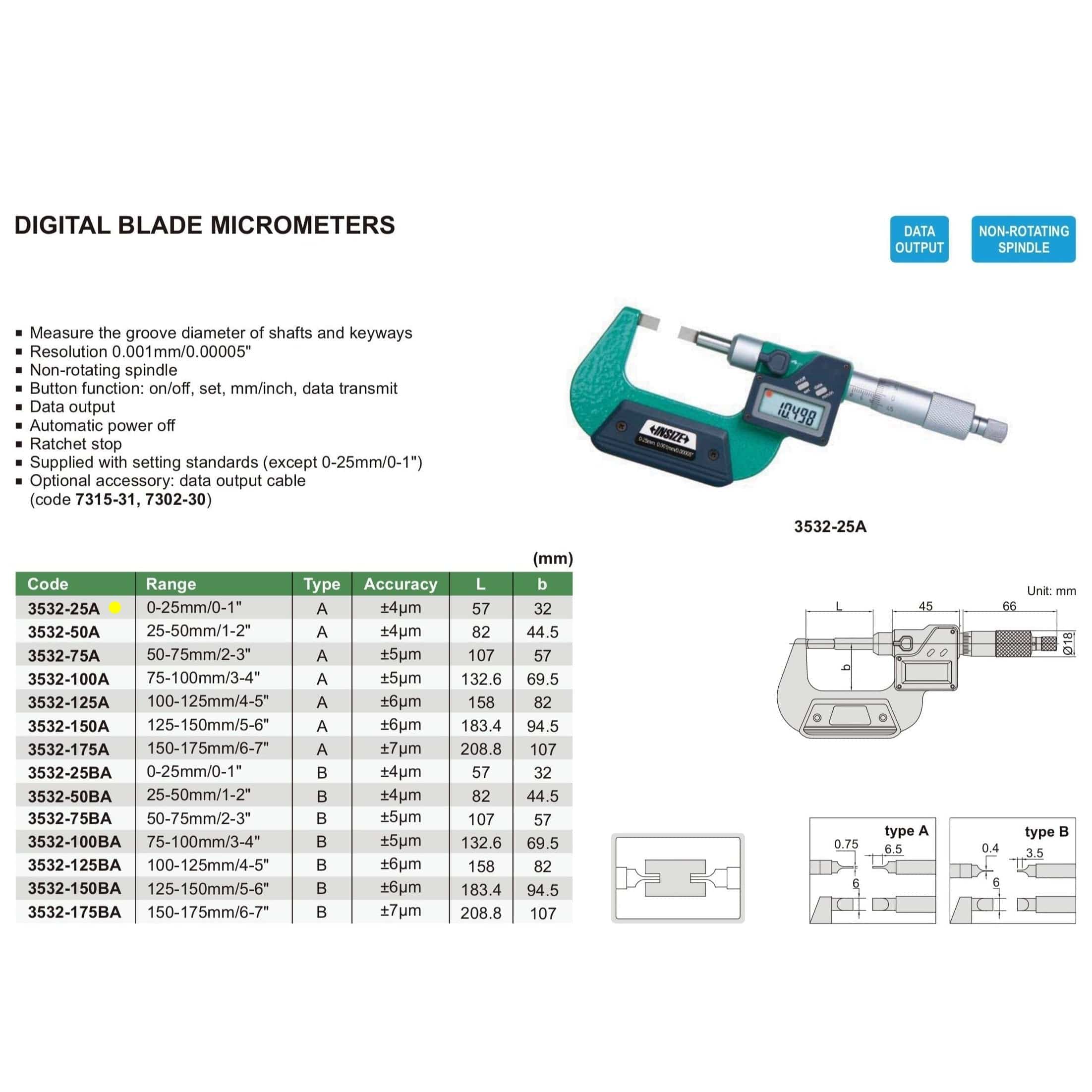

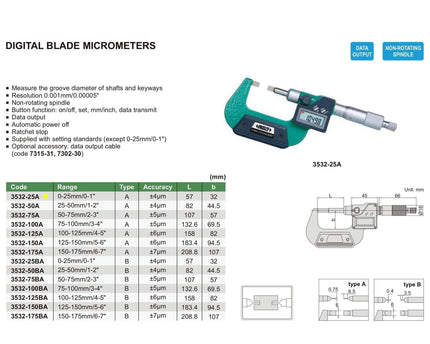

Specifications:
-
Part Number: 3532-25A
-
Type: A
-
Measuring Range: 0–25mm / 0–1"
-
Resolution: 0.001mm / 0.00005"
-

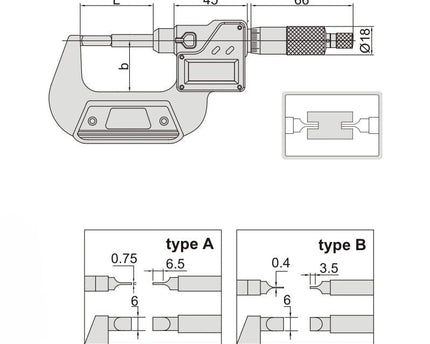

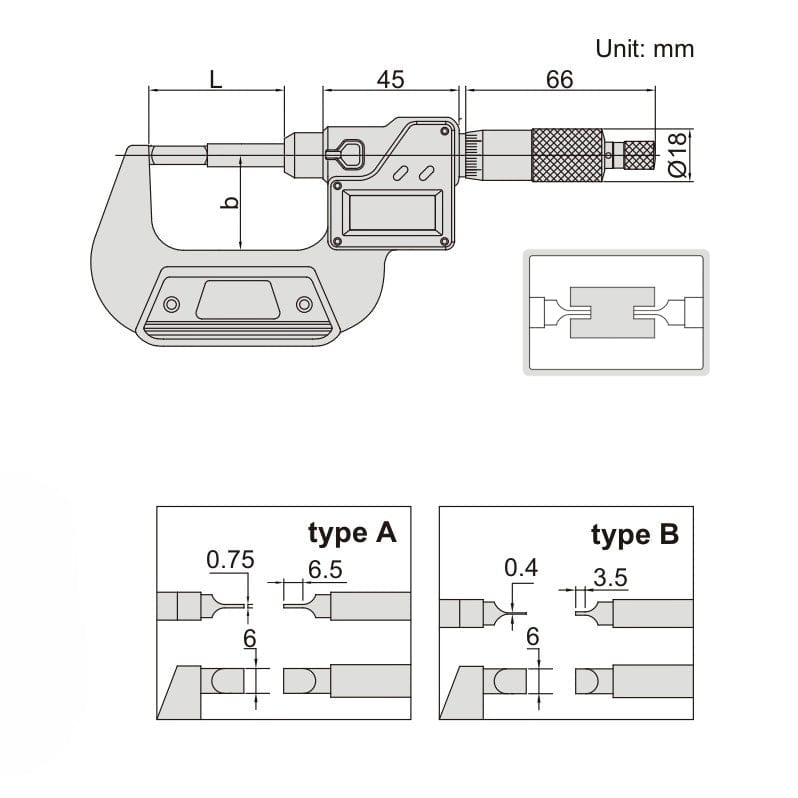

Dimensions: L: 57mm, b: 32mm
-

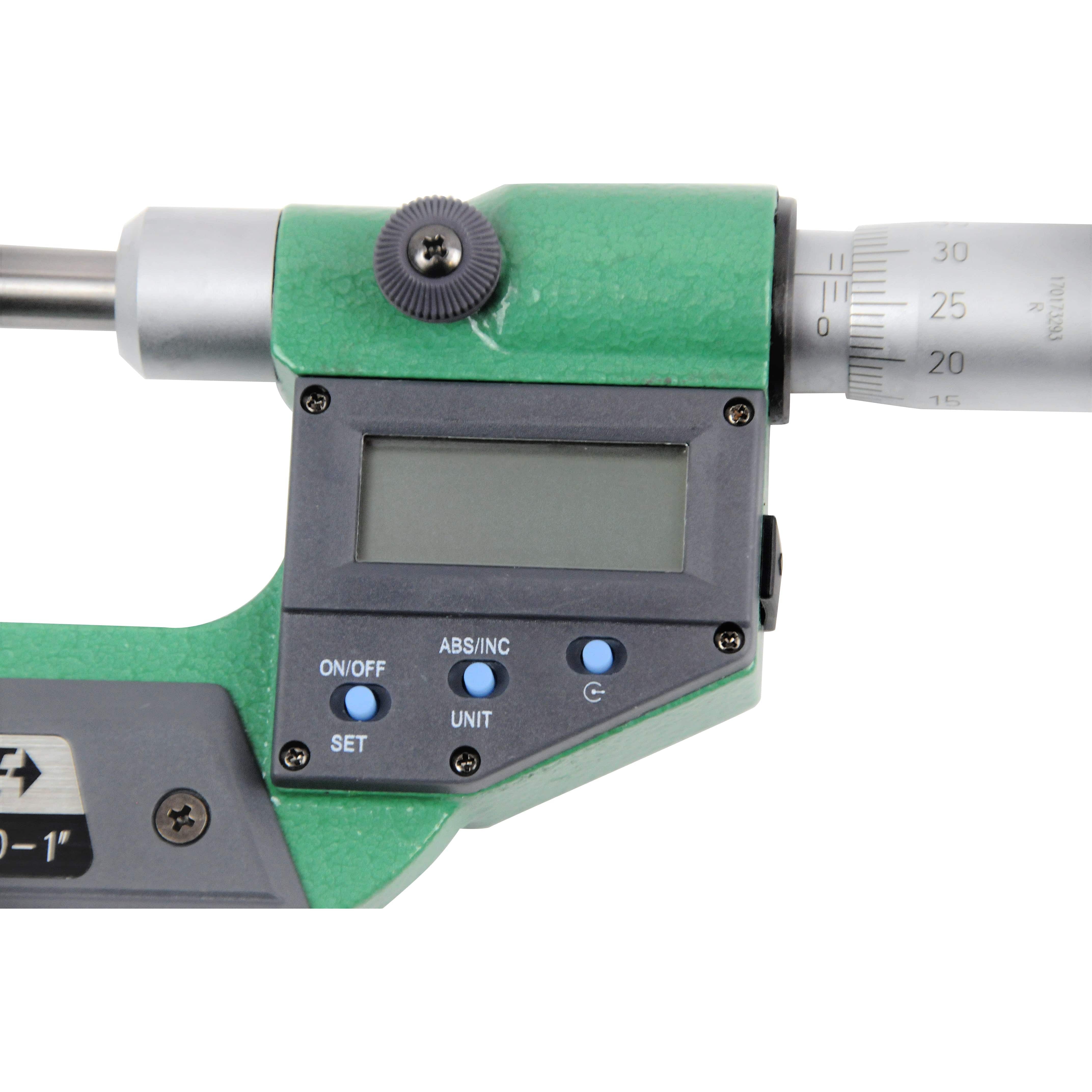

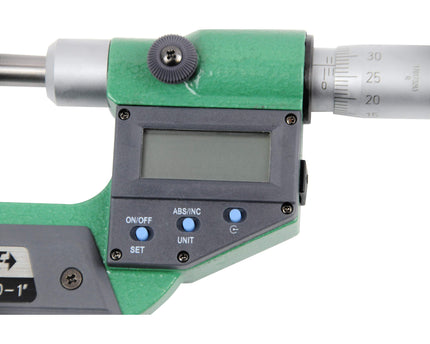

Button Functions: on/off, set, mm/inch, ABS/INC, data output
-
Battery: LR44 with automatic power-off
-

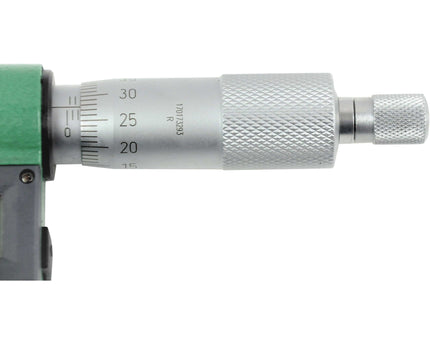

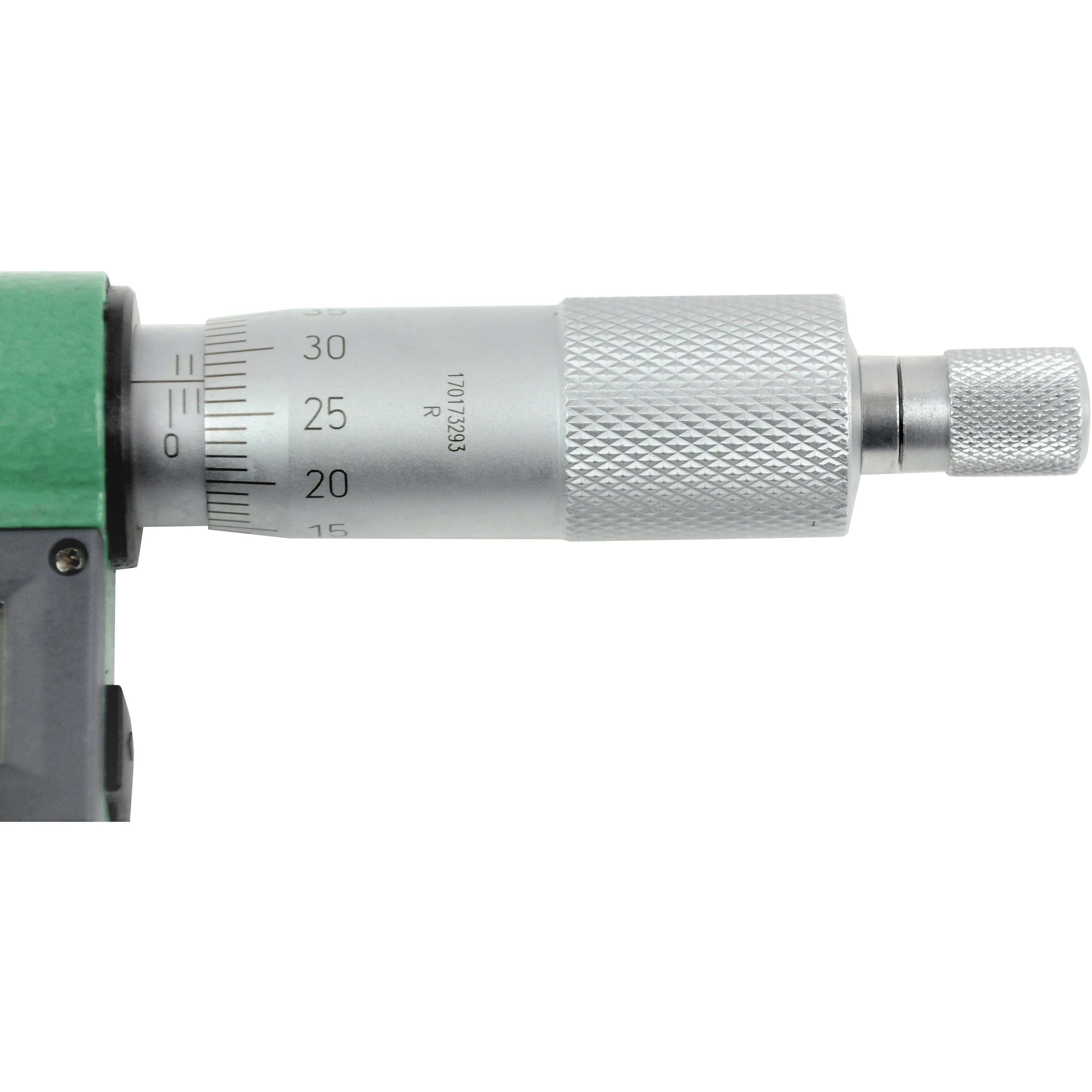

Ratchet Stop: Yes
-

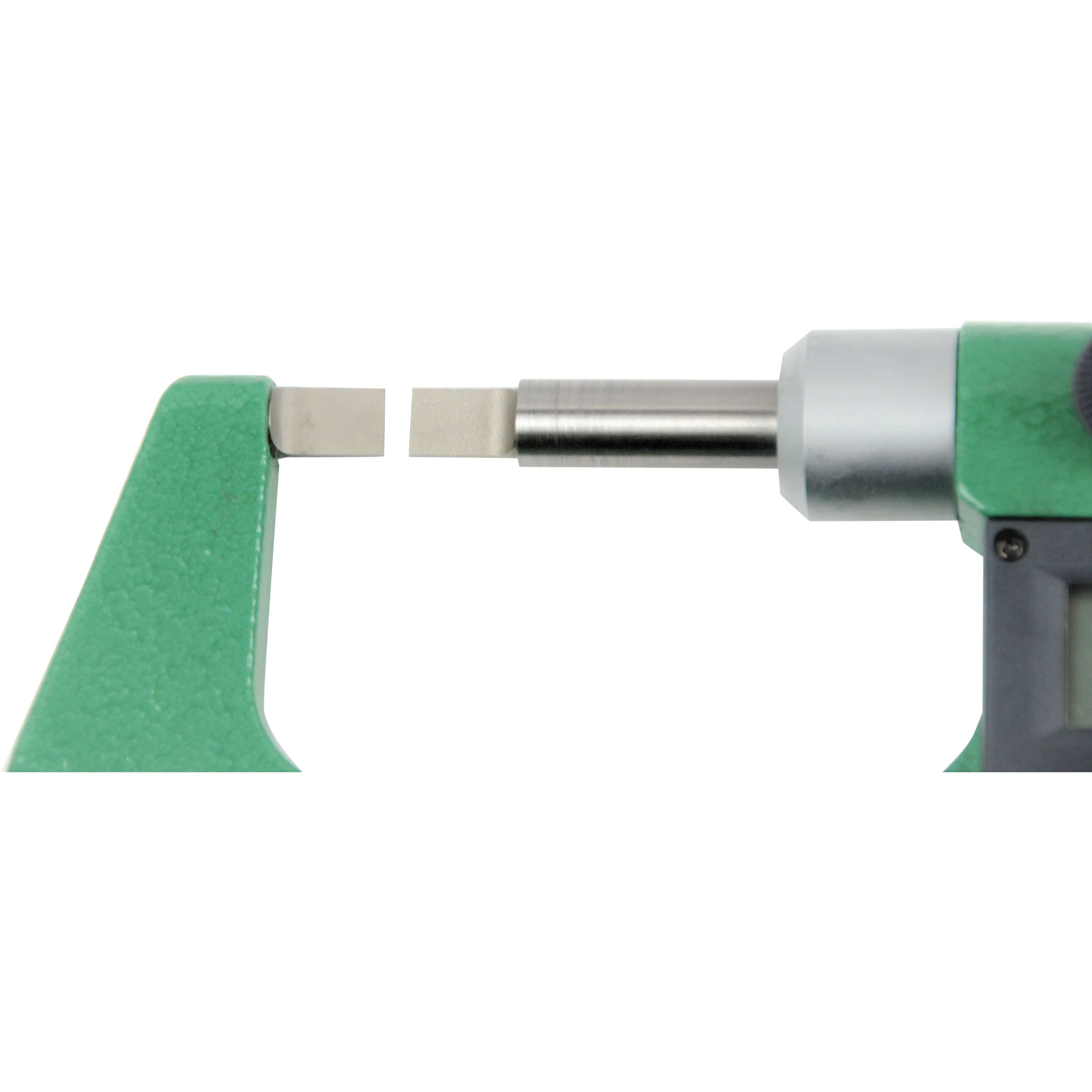

Measuring Tips: Carbide
-
Setting Standards: Supplied (except 0–25mm / 0–1")
-
Optional Accessories:
- Data output cable (7306-30, 7302-SPC2A, 7305-SPC3)
- Setting ring (6312)
Well designed and built for durability, Insize indicating micrometers provide reliable and repeatable measurements for precision inspection tasks. The supported frame and clear digital display make this micrometer ideal for measuring groove diameters, shaft features, and keyways in workshop and inspection environments.
