Description

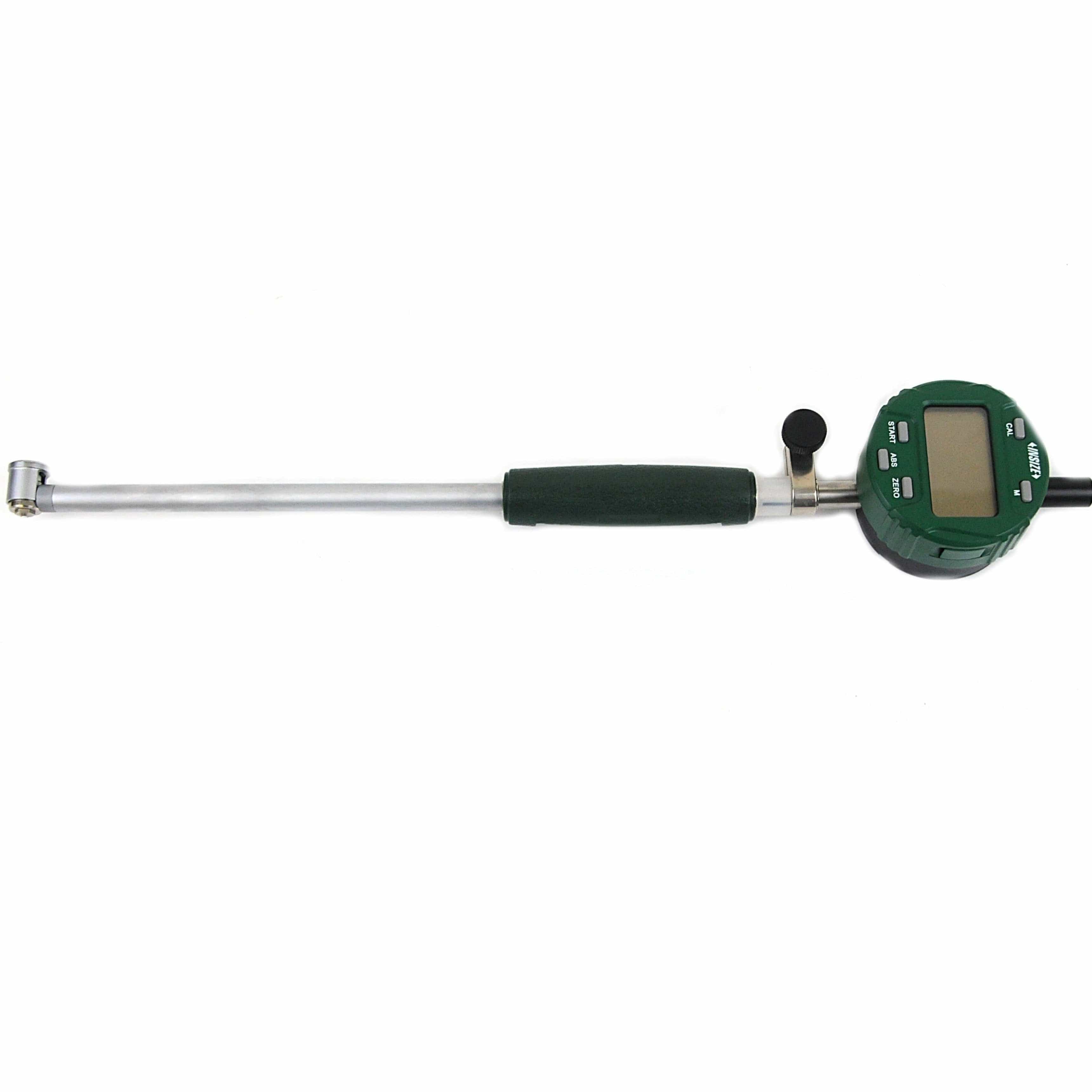

Insize Digital Bore Gauge
This digital bore gauge is engineered for precise internal diameter measurement across small hole ranges. With a high-resolution digital display, smooth measuring action, and stable repeatability, it delivers consistent accuracy when inspecting bores, sleeves, bushings, and precision components. Designed for ease of use, it provides fast diameter reading and efficient minimum-value tracking to automatically locate the true bore size.

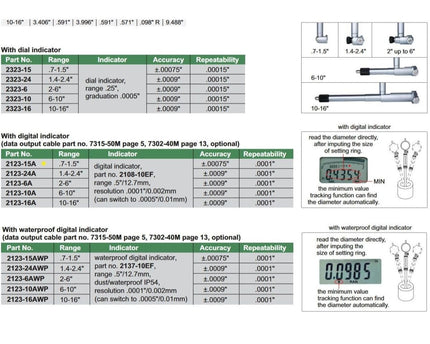

Specifications :

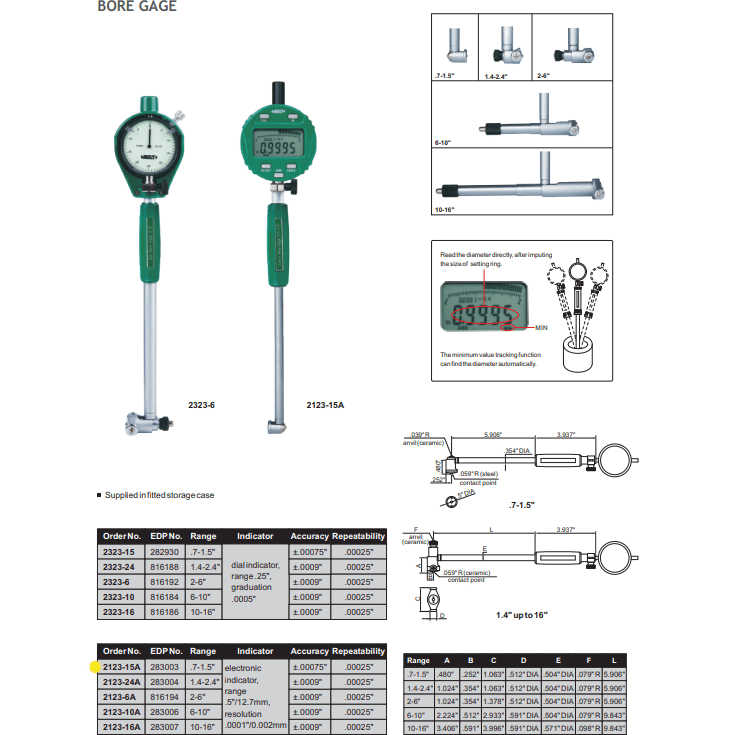

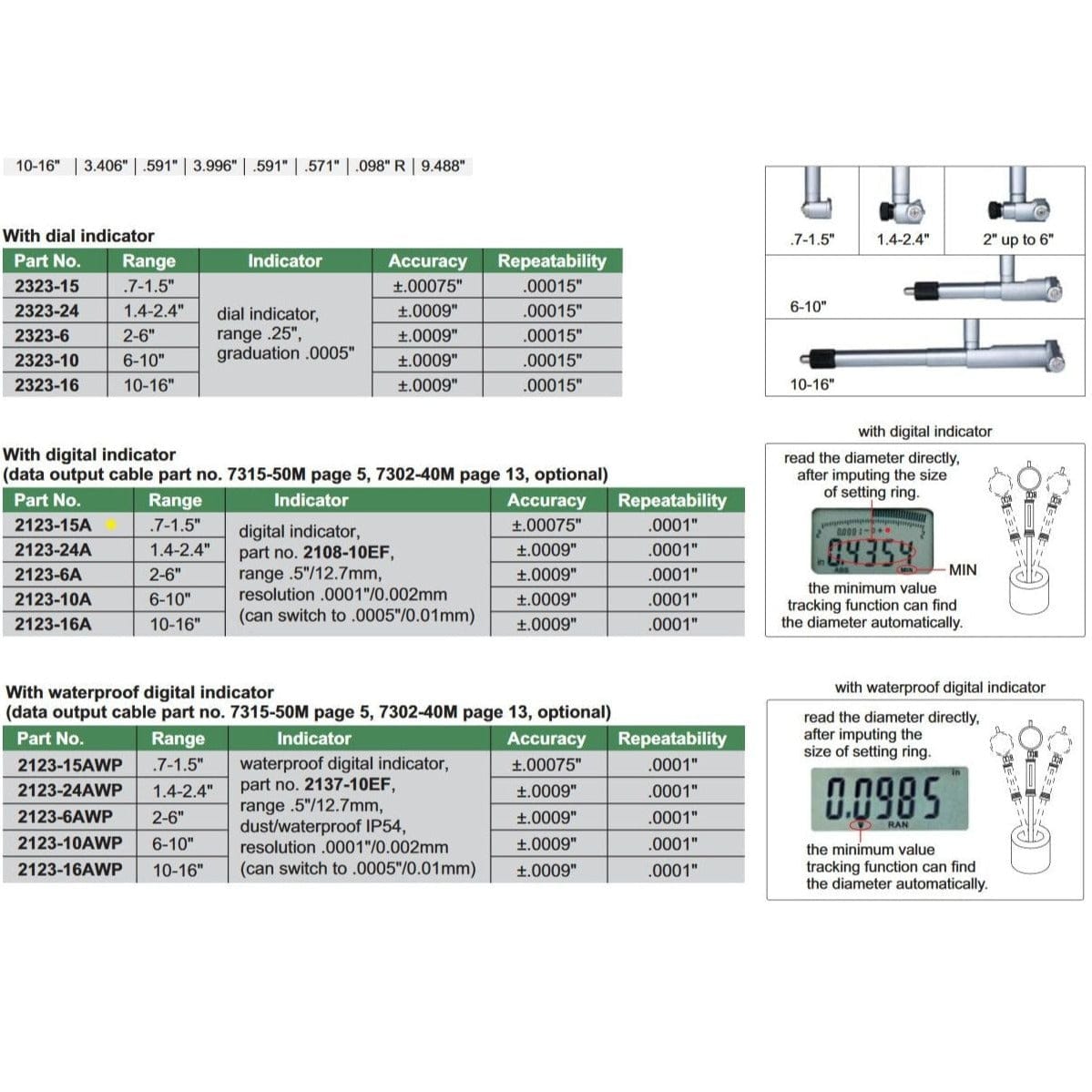

- Part no: 2123-15A
- Reading: Metric / Imperial
- Resolution: 0.002mm / 0.0001"
- Accuracy: ±0.00075"
- Repeatability: 0.0001"

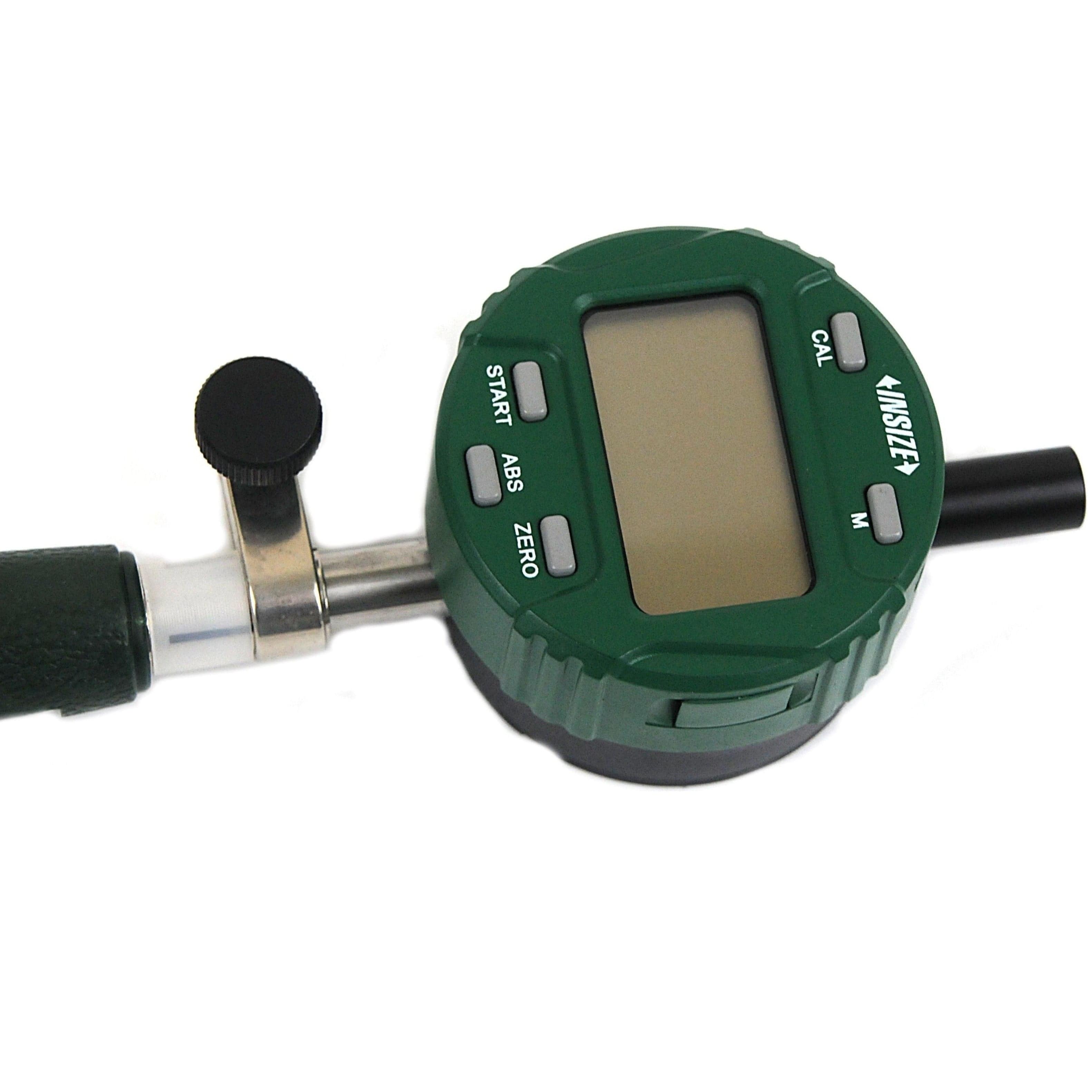

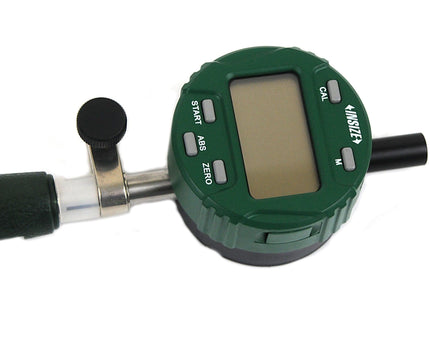

- Large, easy-to-read LCD screen
- Automatic power off
- Range: 0.7–1.5"
- Strictly made in accordance with DIN 878
- Silky smooth movement throughout
- Soft grip handle

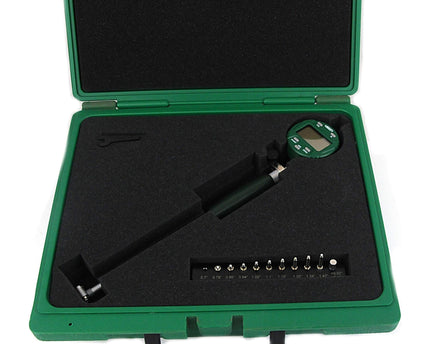

- Supplied with extension rods

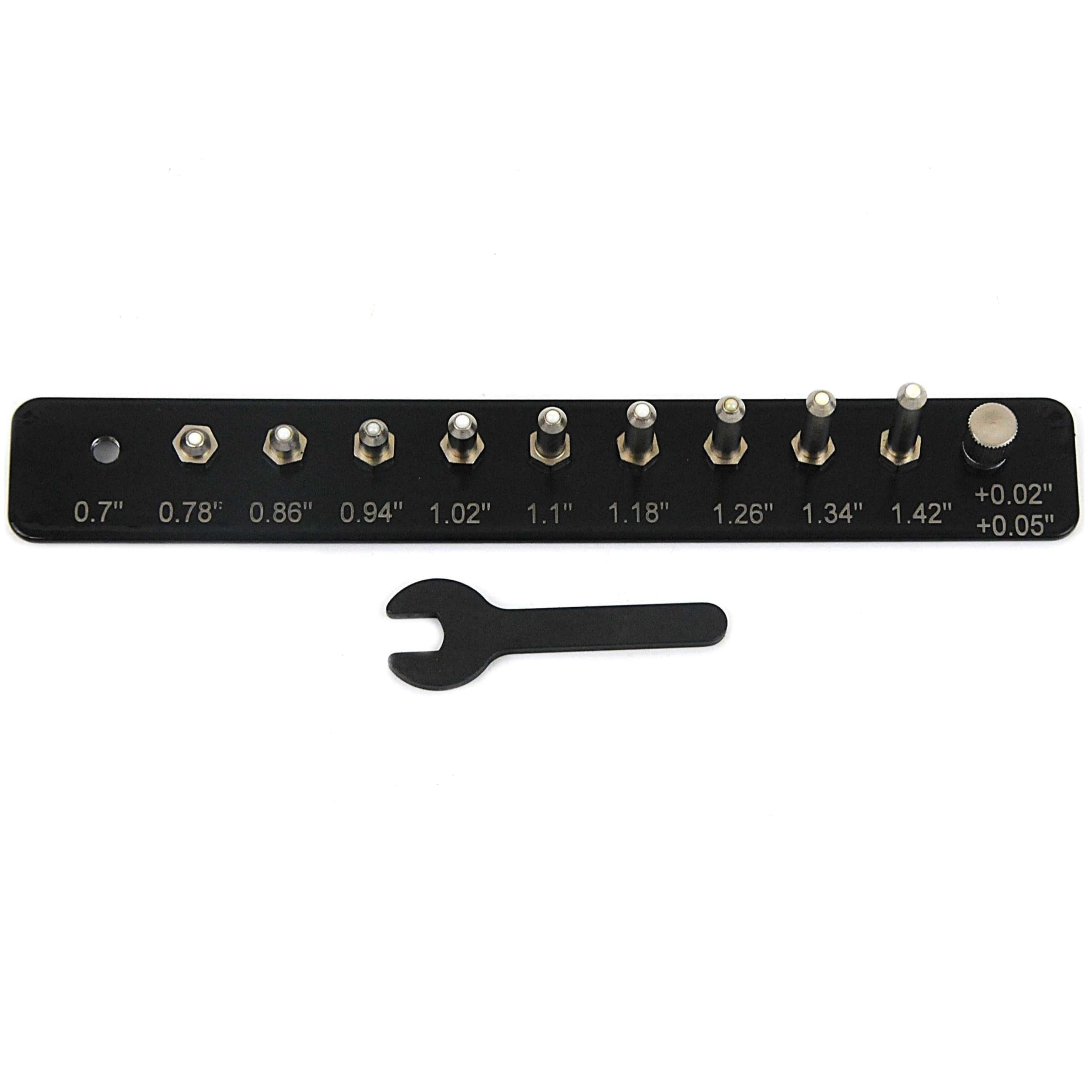

- Range of adapter extensions included
- Reads diameter directly after entering the setting ring value; minimum-value tracking locates the true bore diameter automatically
- Ceramic contact point
- Supplied with a CR2032 battery
- The optional setting ring is not included
- Optional long handle not included

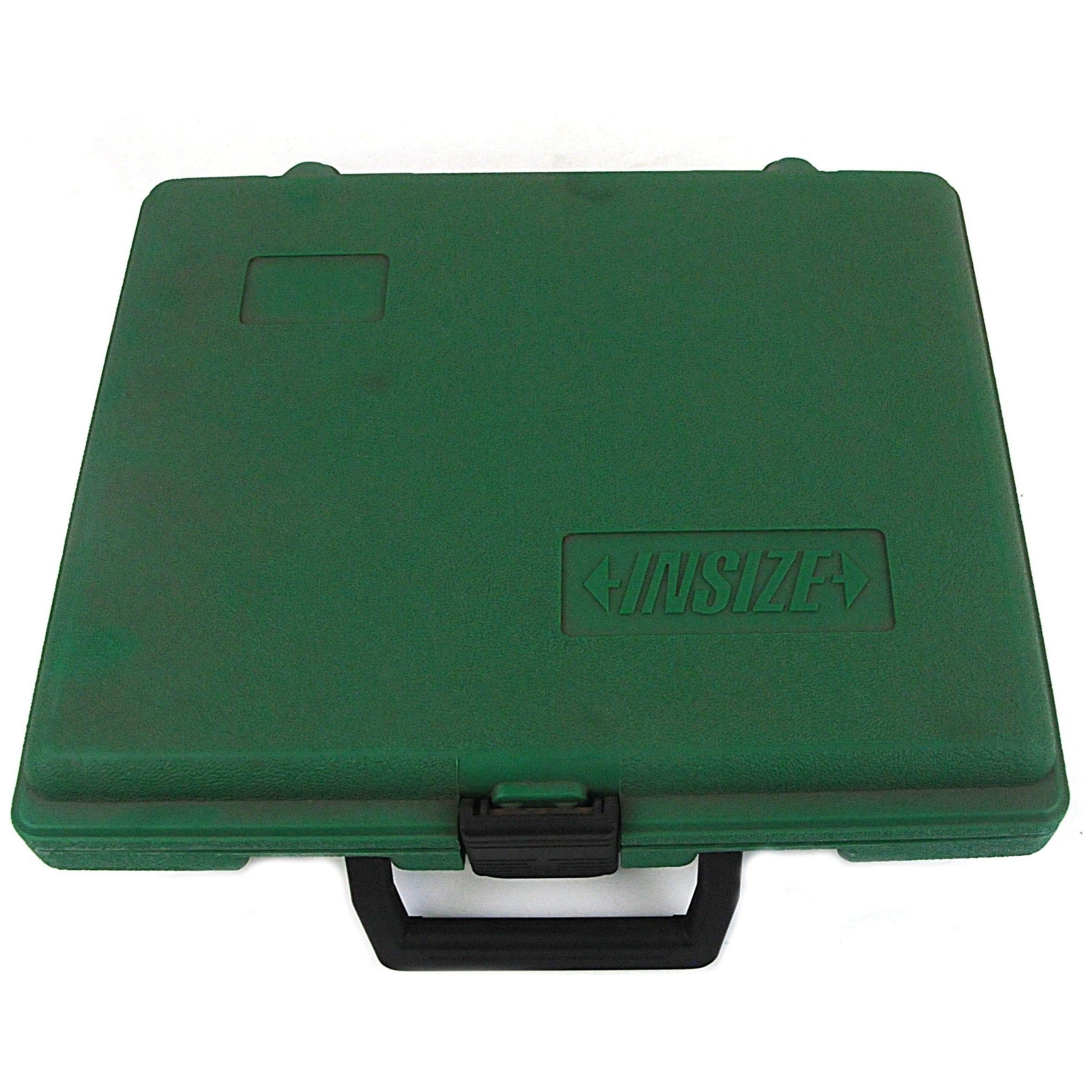

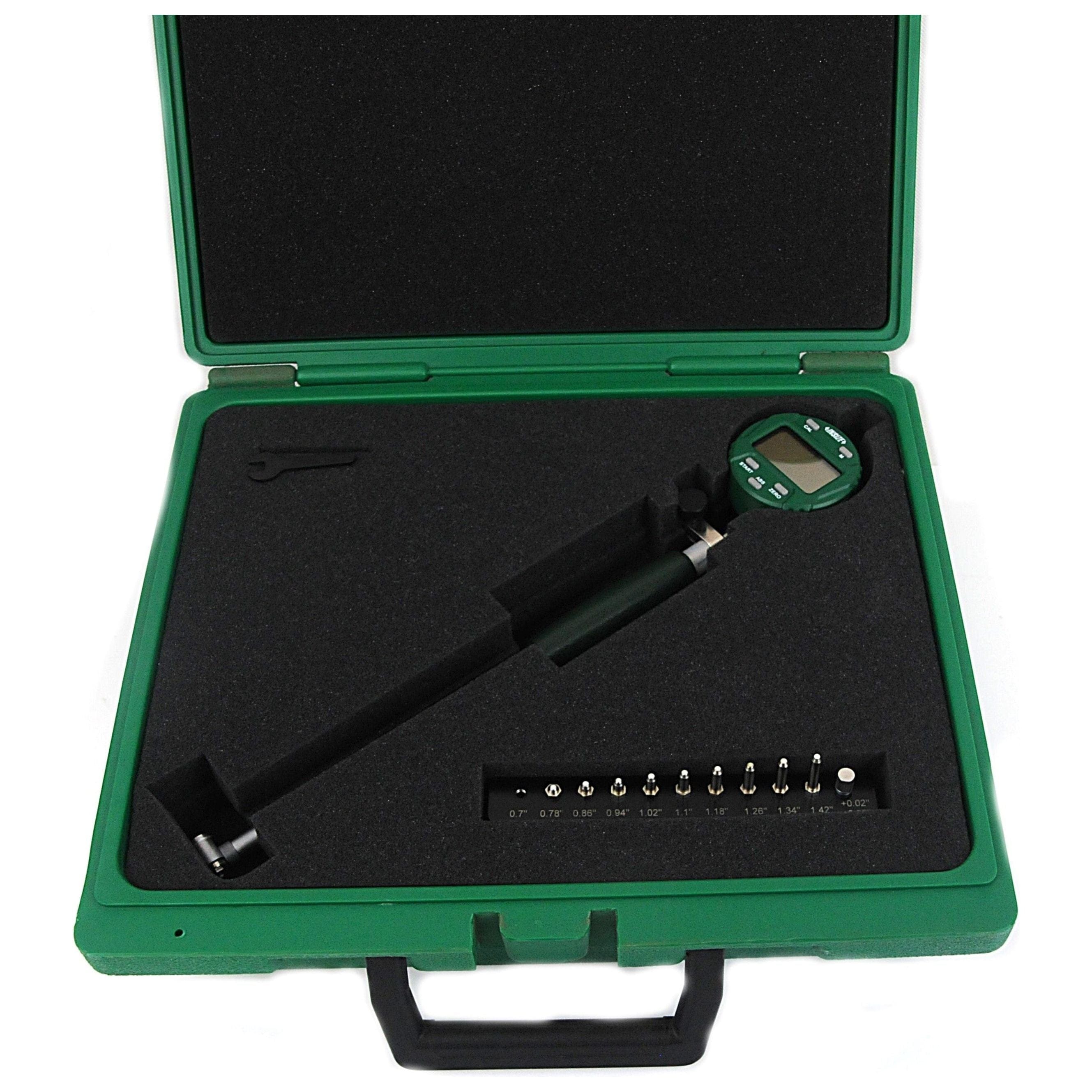

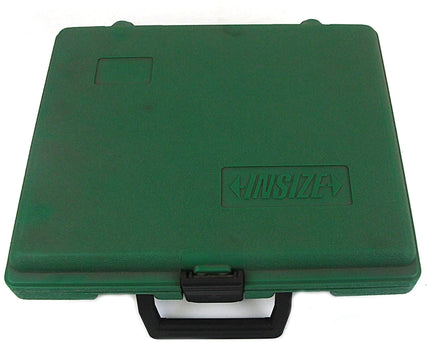

- Supplied in a moulded storage box
Well-designed, durable, high-precision tools that are suitable for various measuring ranges. INSIZE bore gauges are ideal for accurate inspection of internal diameters across a wide range of components. Easy to use, stable in operation, and built for reliable bore measurement.
