Description

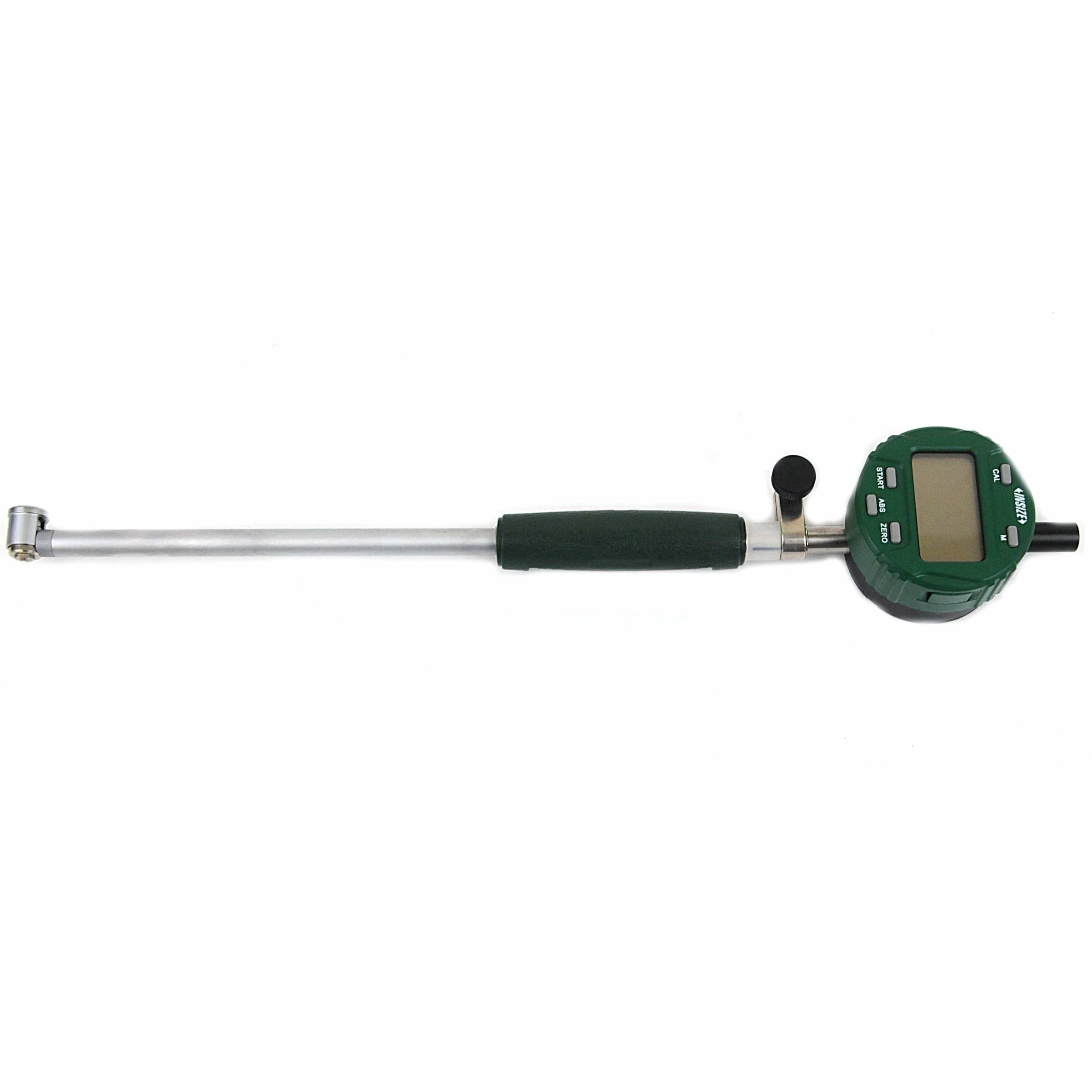

Insize Digital Bore Gauge
This high-precision Insize digital bore gauge is engineered for accurate internal diameter measurement across a wide range of applications. Designed for reliable performance in workshop, machining, inspection, and quality-control environments, it features smooth mechanical movement, a clear LCD display, and excellent repeatability. Its ergonomic handle and precision contact system allow consistent, repeatable readings—even in deep or difficult-to-access bores.

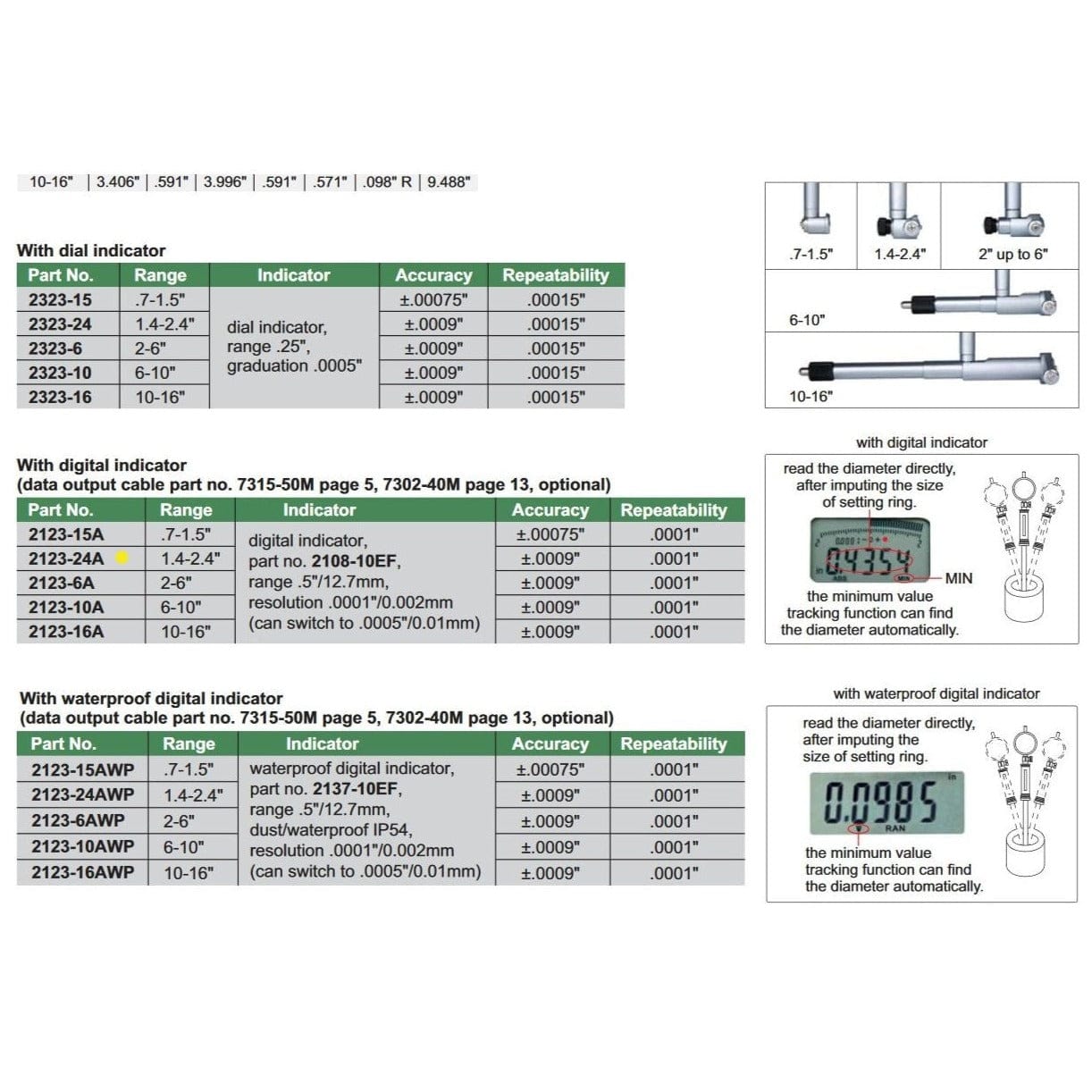

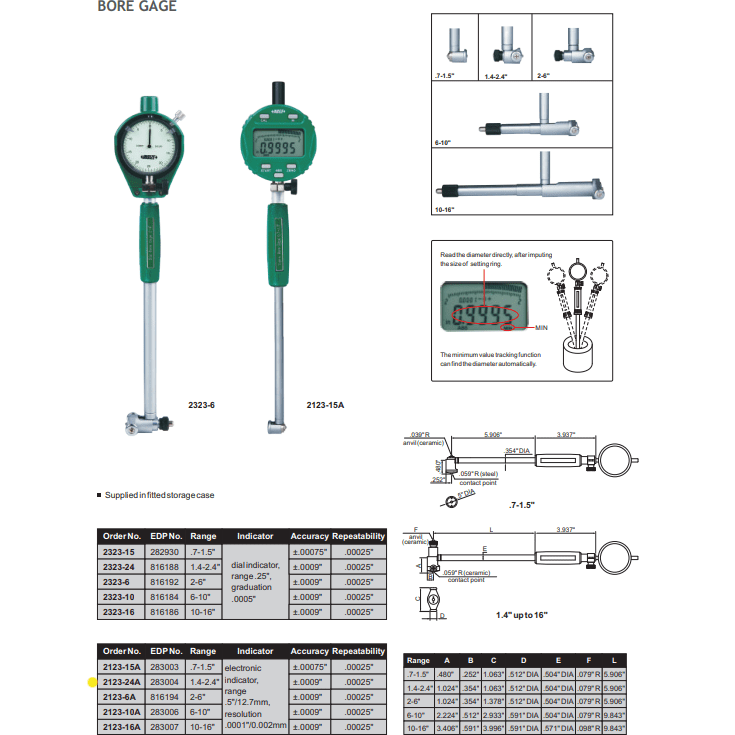

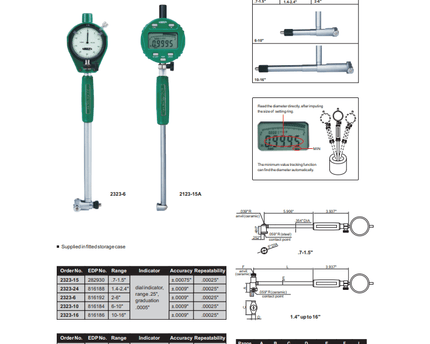

Specifications :
- Part no: 2123-24A
- Reading: Metric / Imperial
- Resolution: 0.002mm / 0.0001"
- Accuracy: ±0.0009"
- Repeatability: 0.0001"

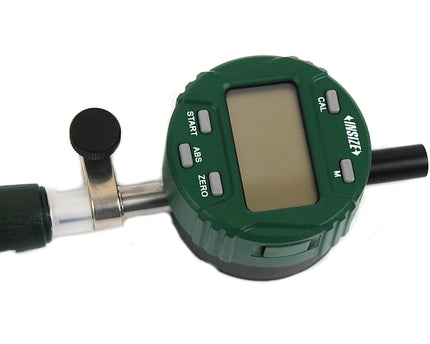

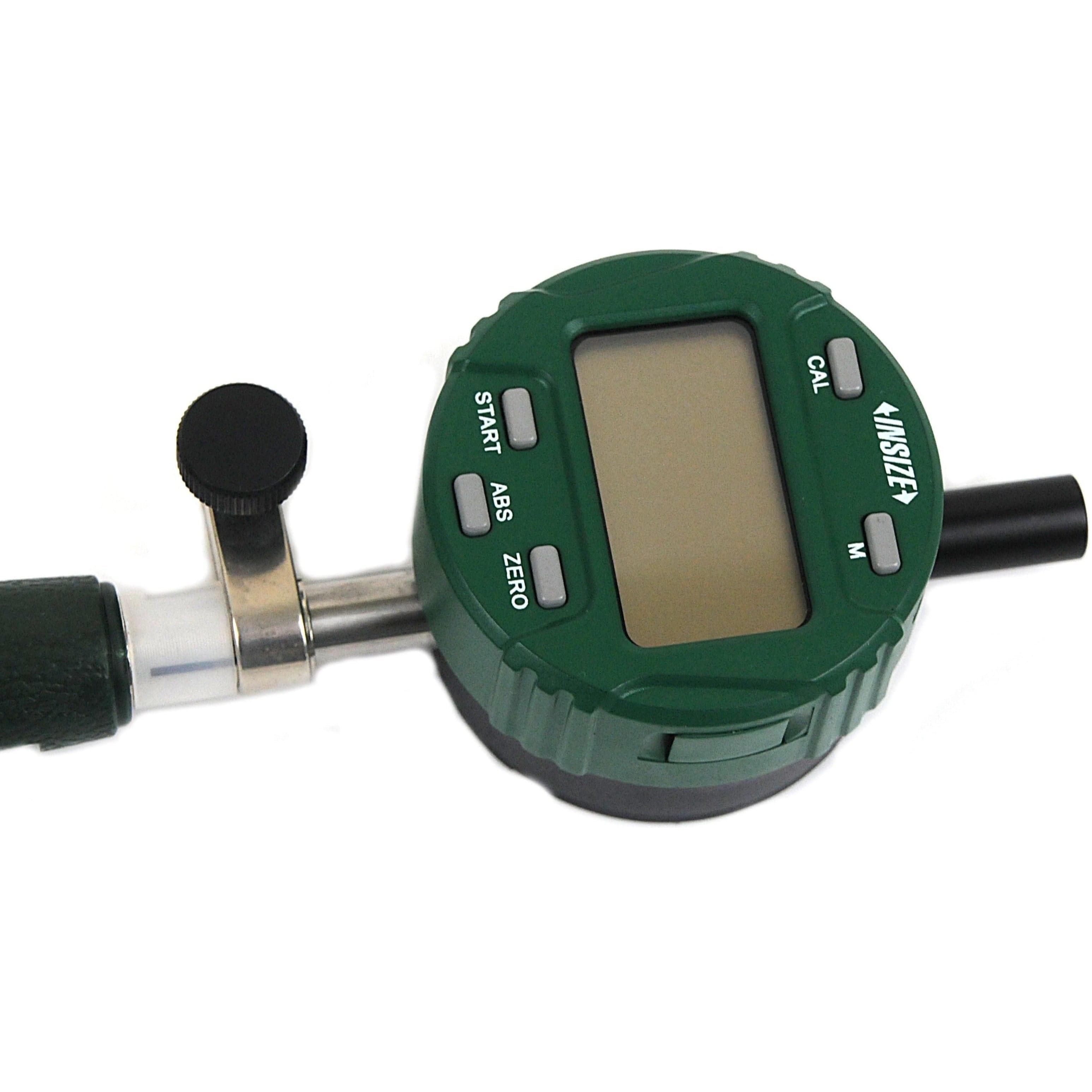

- Large, easy-to-read LCD display
- Automatic power off
- Range: 1.4–2.4"
- Strictly made in accordance with DIN 878
- Silky-smooth movement
- Soft-grip ergonomic handle

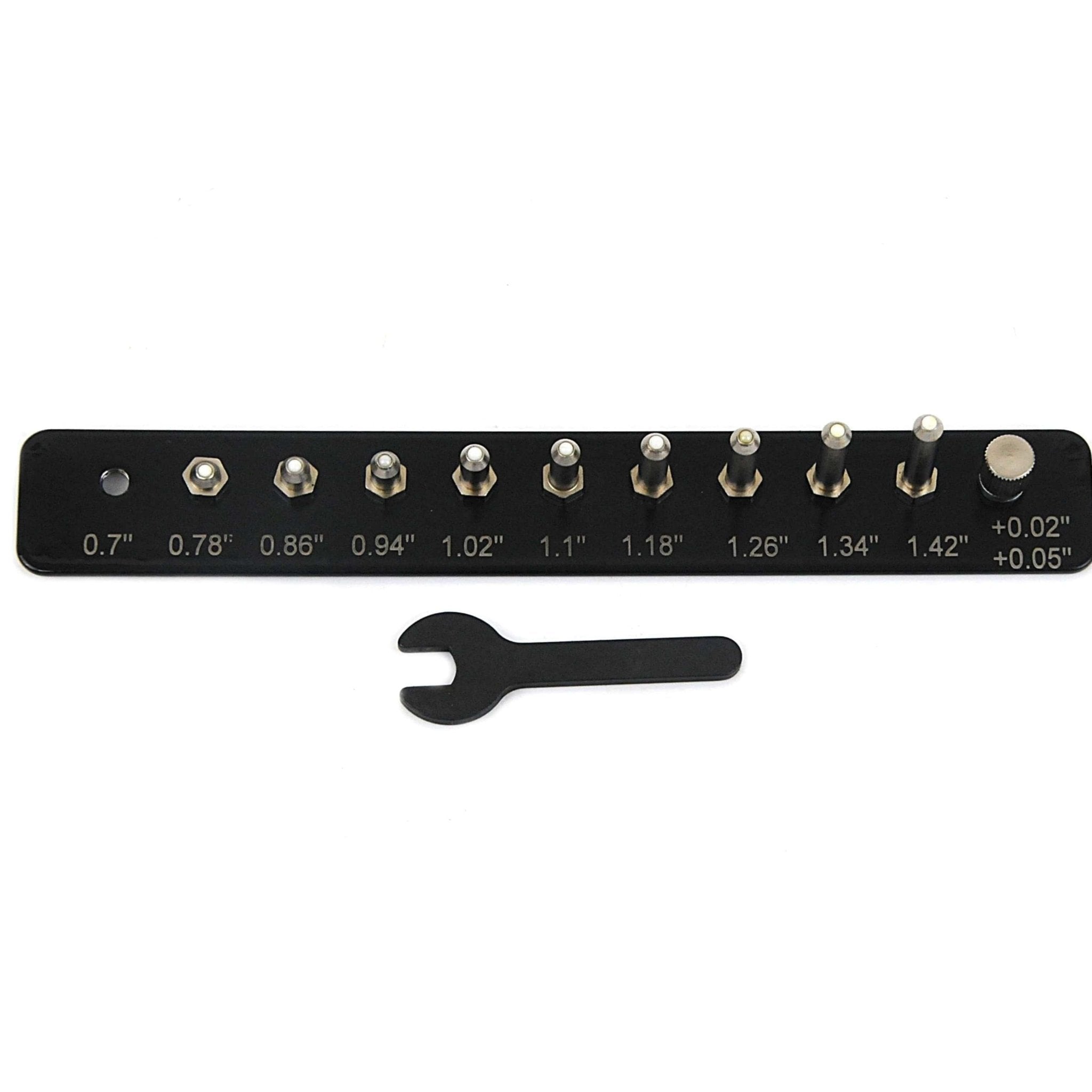

- Supplied with extension rods

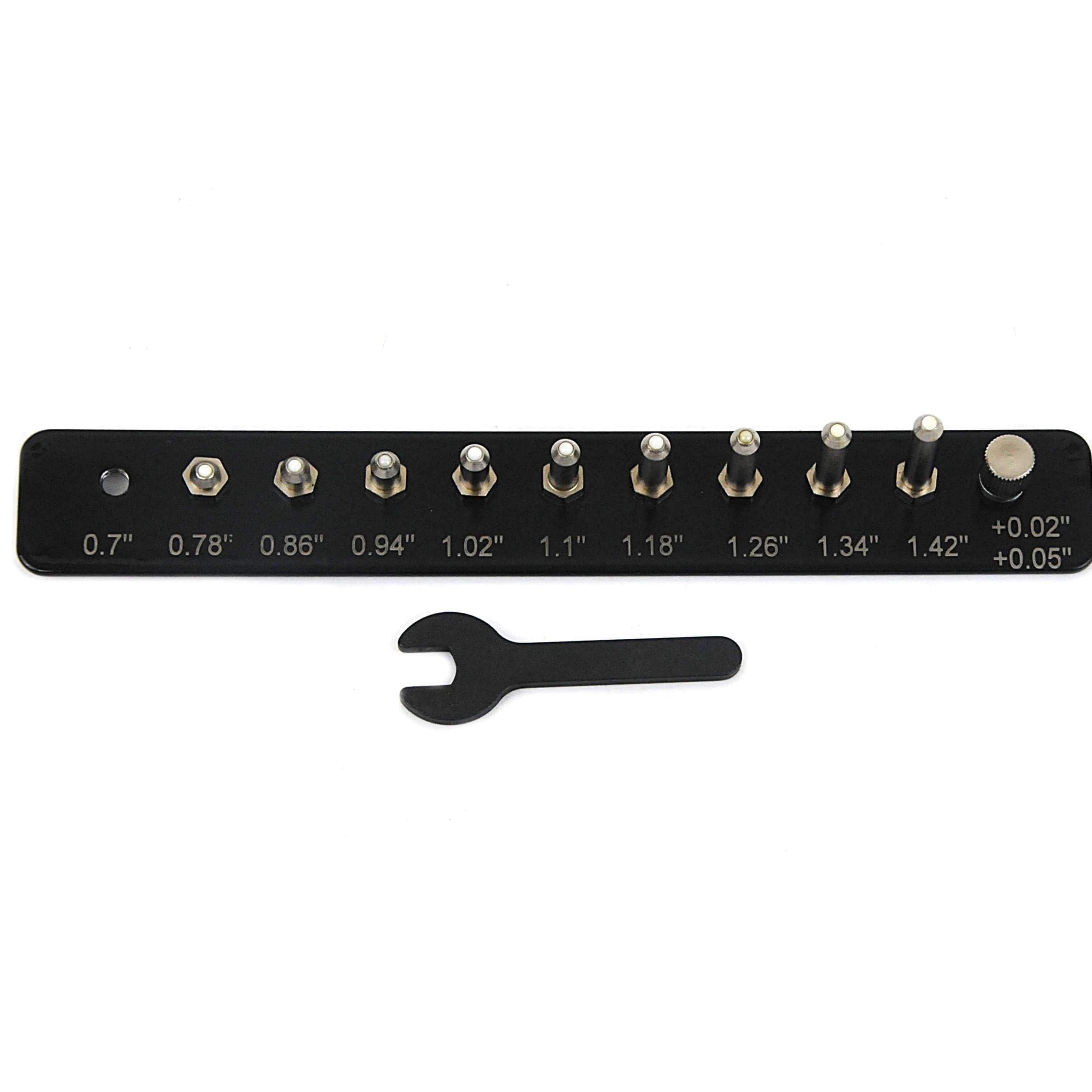

- Includes adapter extensions for multiple measuring configurations
- Direct diameter reading after inputting the setting ring size
- Minimum-value tracking automatically finds the bore diameter
- Ceramic contact point
- Supplied with a CR2032 battery
- The optional setting ring is not included
- Optional long handle not included

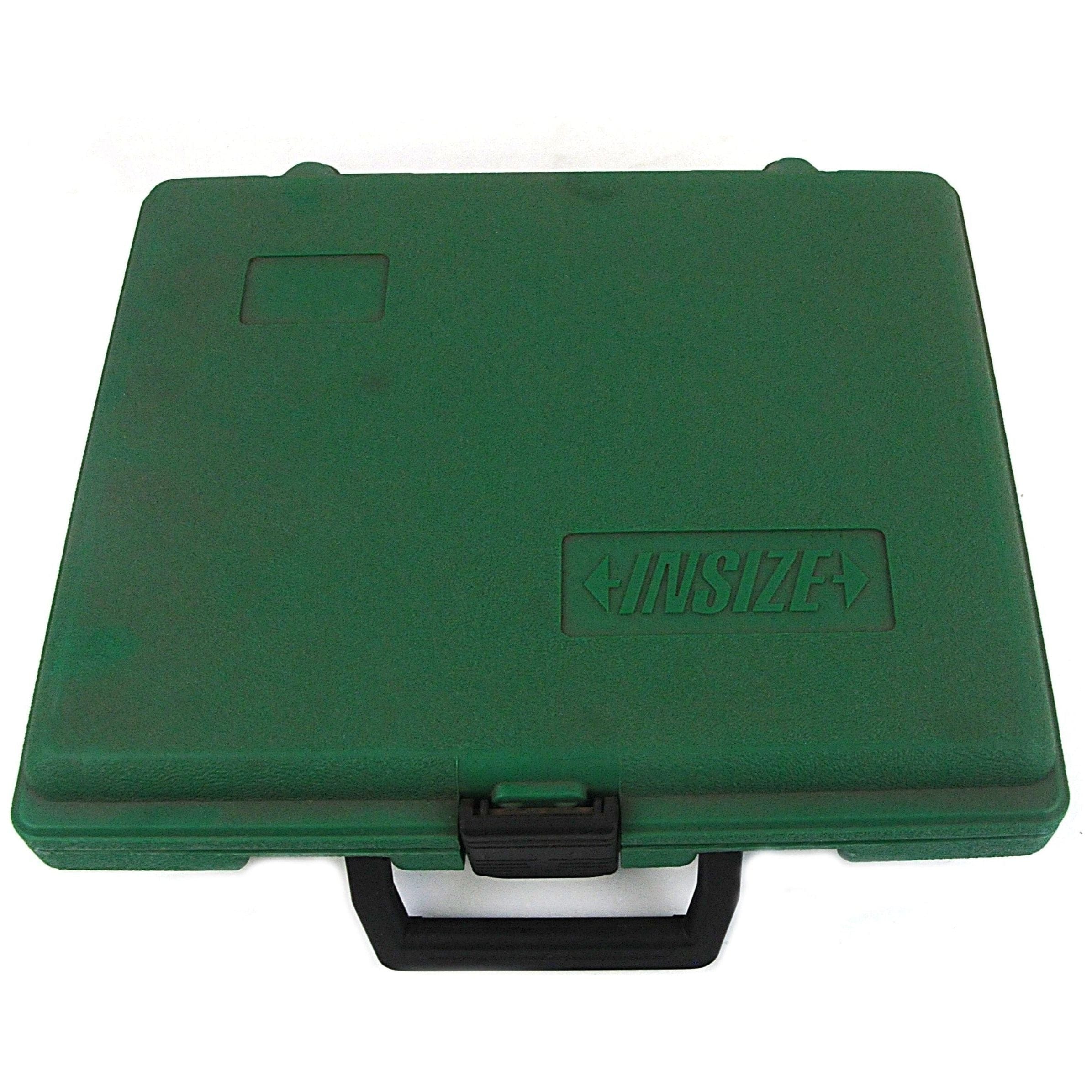

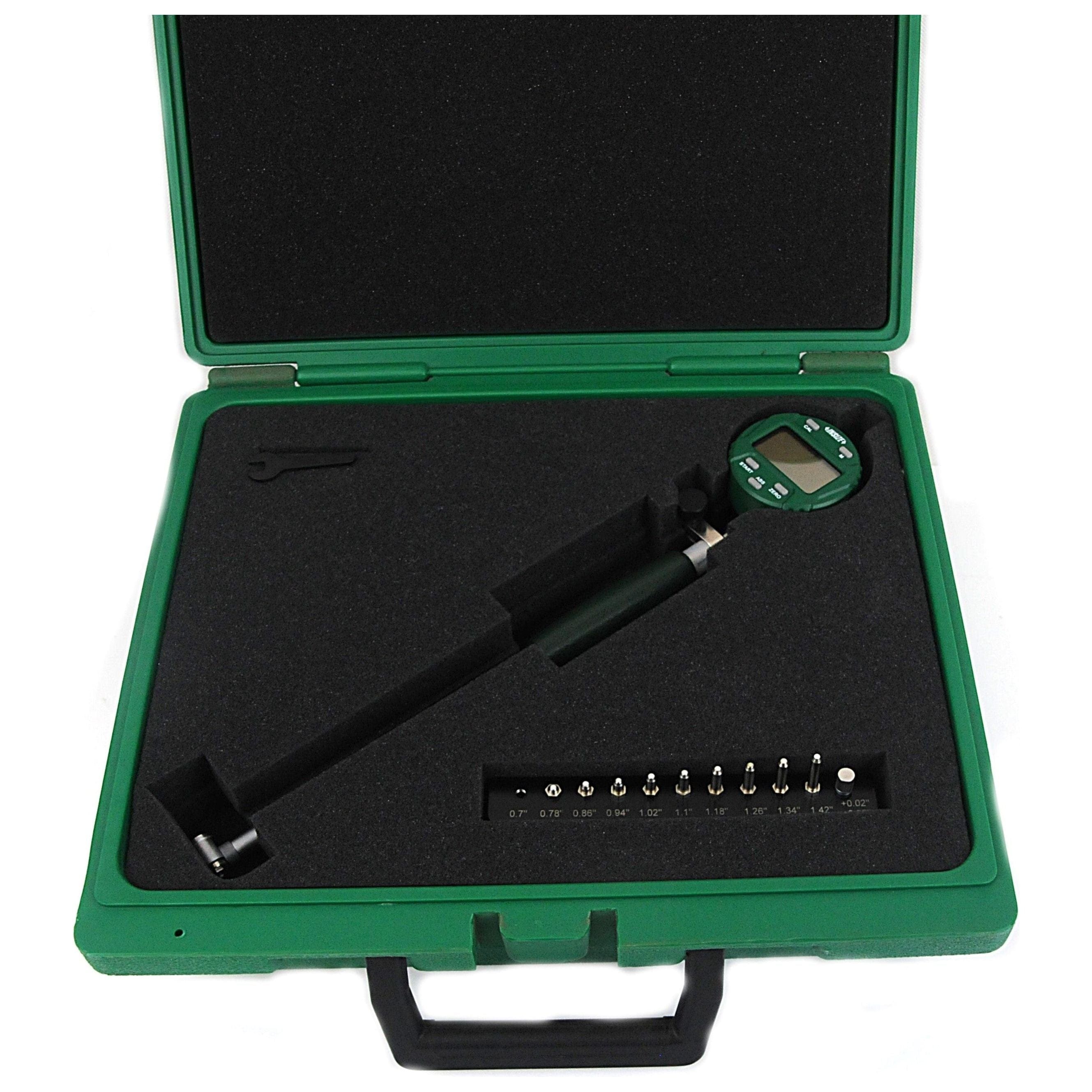

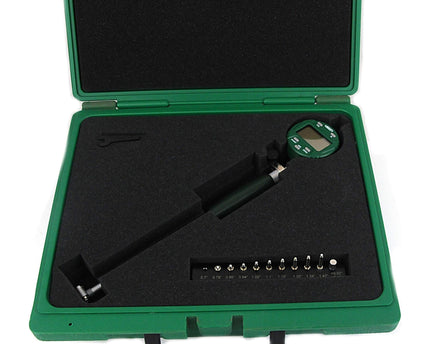

- Supplied in a moulded storage box
Well-designed and durable, this bore gauge delivers excellent precision across a wide measuring range. INSIZE bore gauges offer smooth operation, clear digital readings, and dependable accuracy—making them ideal for measuring internal diameters in professional machining, fabrication, and inspection tasks.
