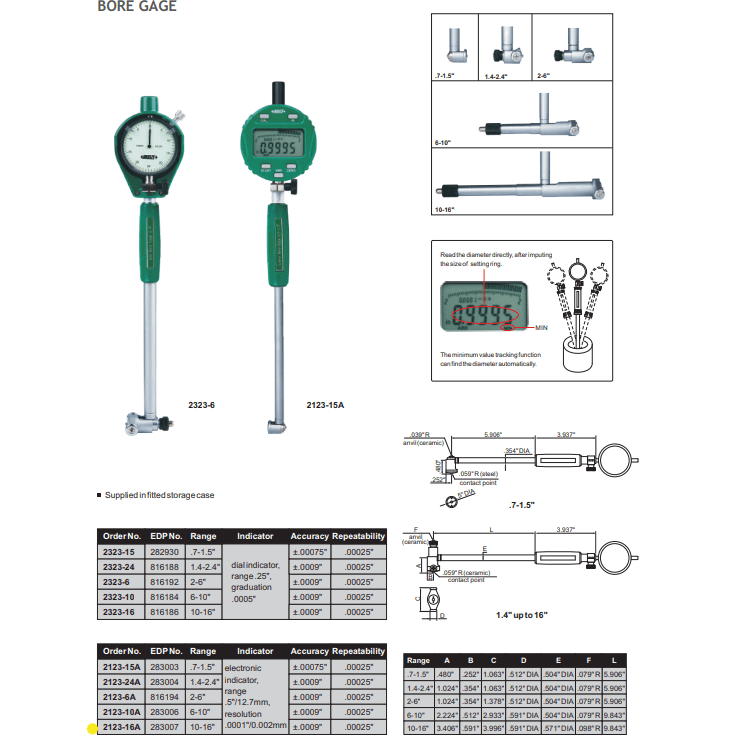

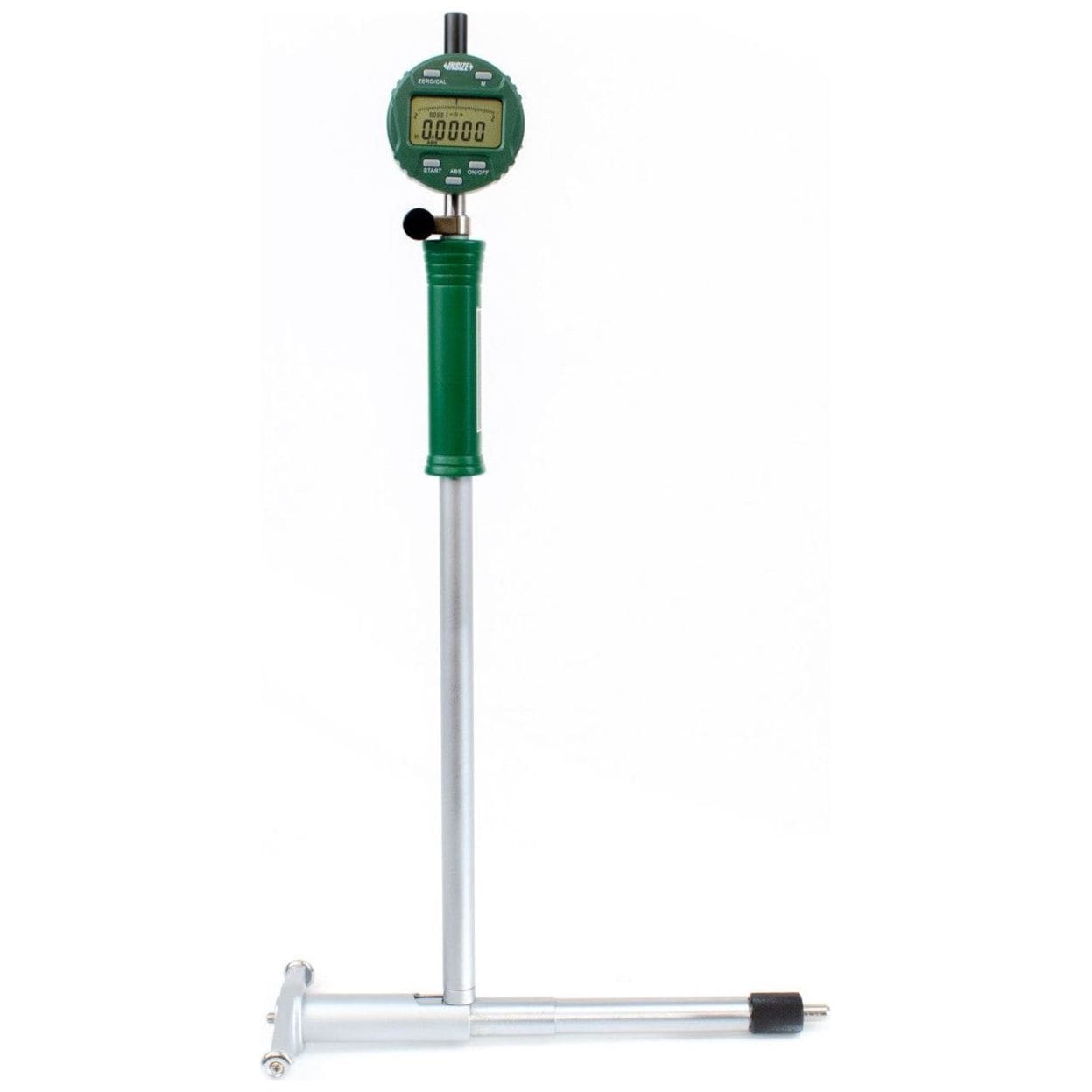

Insize Digital Bore Gauge
A high-precision digital bore gauge engineered for accurate internal diameter measurement across a wide range of applications. Designed for smooth, repeatable performance, it features a large LCD screen, ceramic contact point, and a lightweight soft-grip handle for comfortable, stable use. The digital reading, combined with metric/imperial conversion and minimum-value tracking, ensures quick and reliable measurement of bores with excellent consistency.

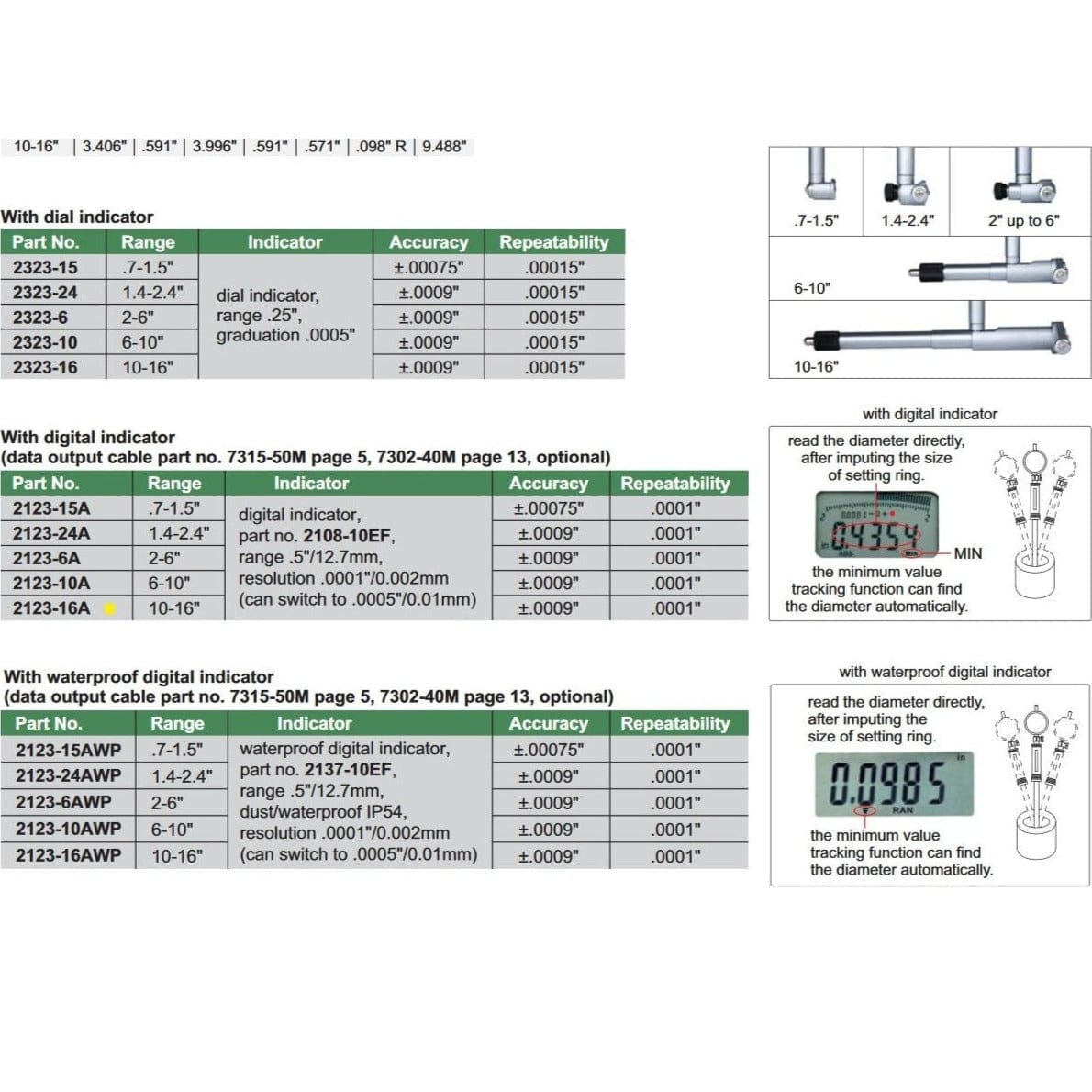

Specifications :

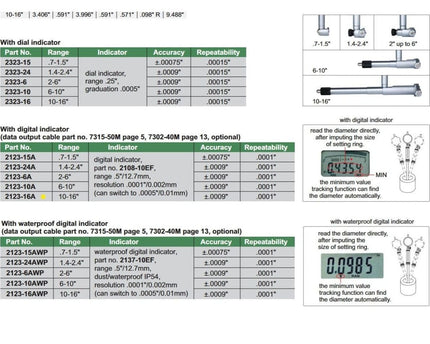

- Part no 2123-16A
- Reading: Metric / Imperial
- Resolution: 0.002mm / 0.0001"
- Accuracy: ±0.0009"
- Repeatability 0.0001"

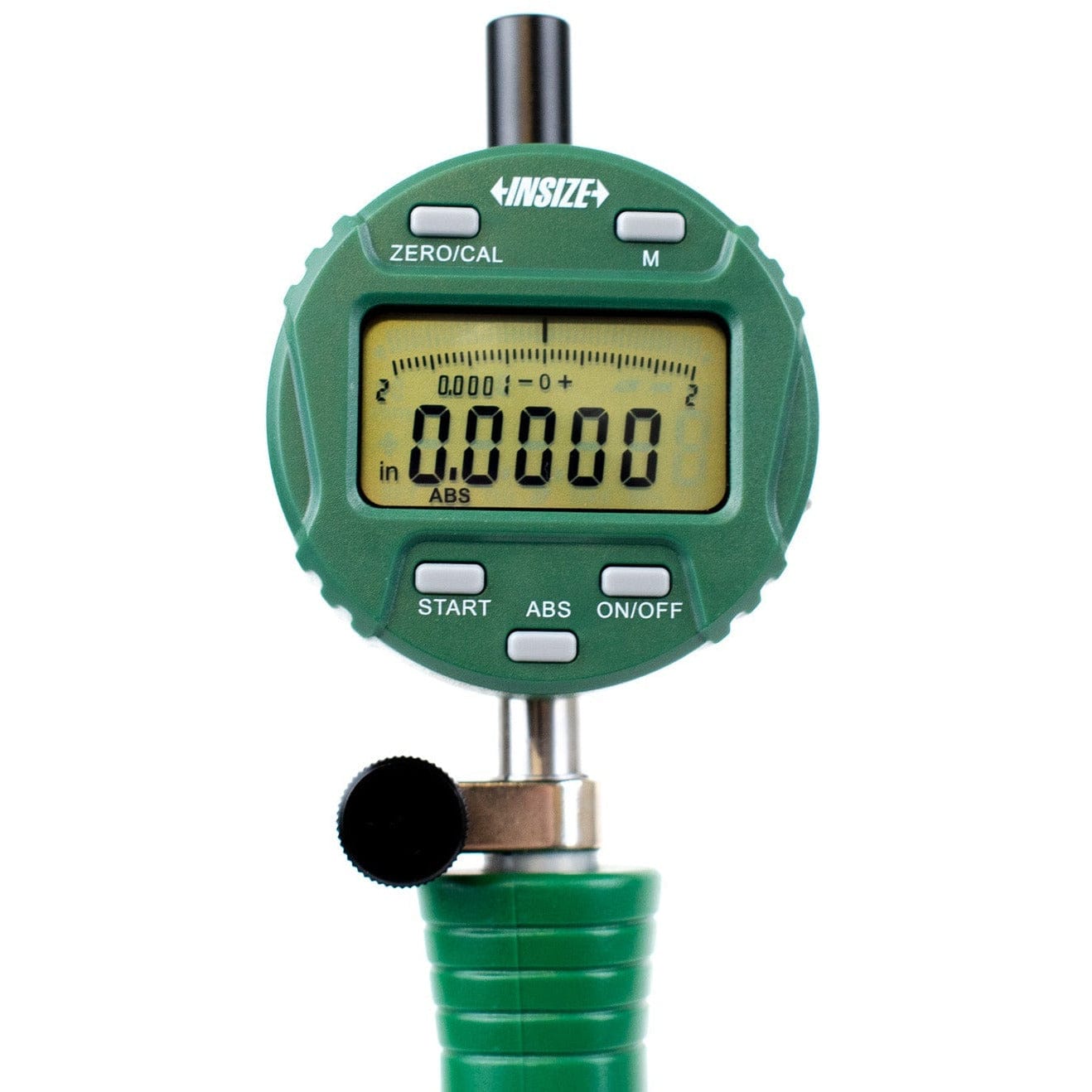

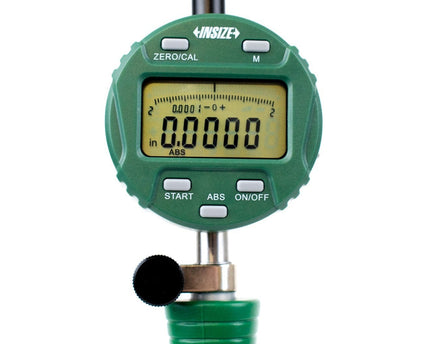

- Large, easy-to-read LCD screen
- Automatic power off
- Range 10 - 16"
- Strictly made in accordance with DIN 878
- Silky smooth movement throughout
- Soft grip handle

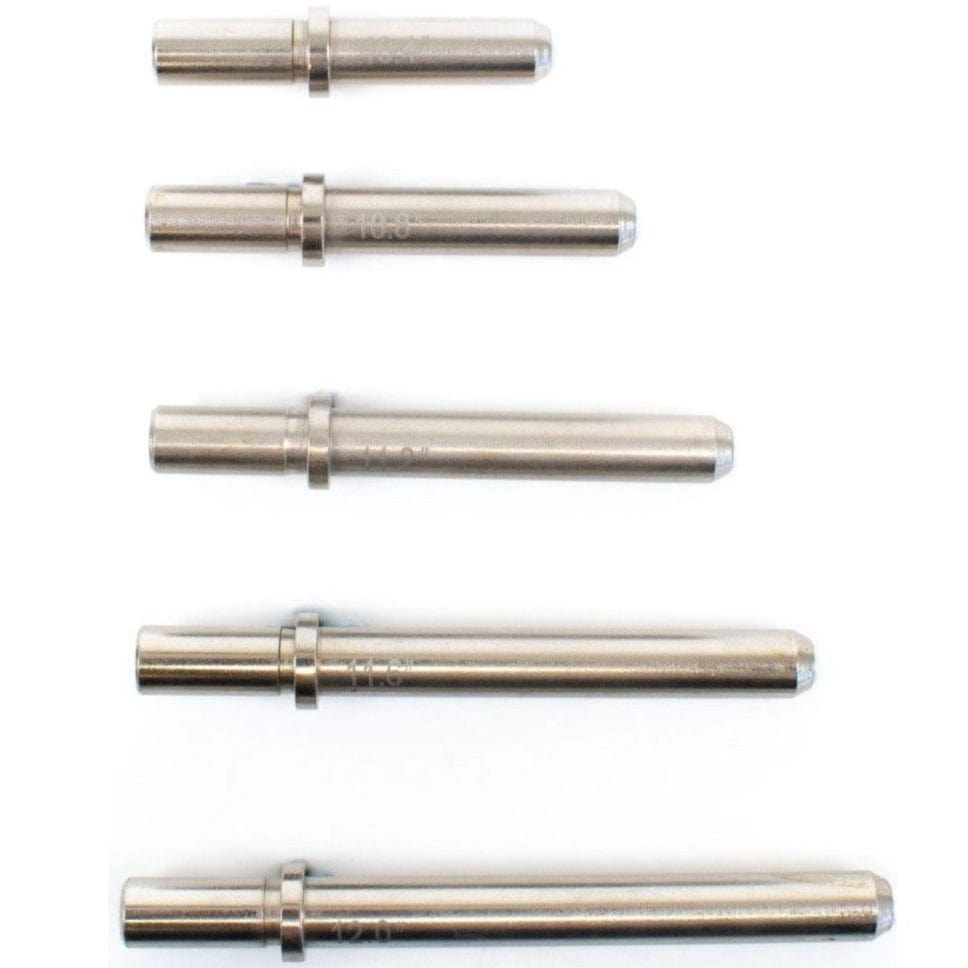

- Supplied extensions from 10.4" to 12.0" in 0.4" increments

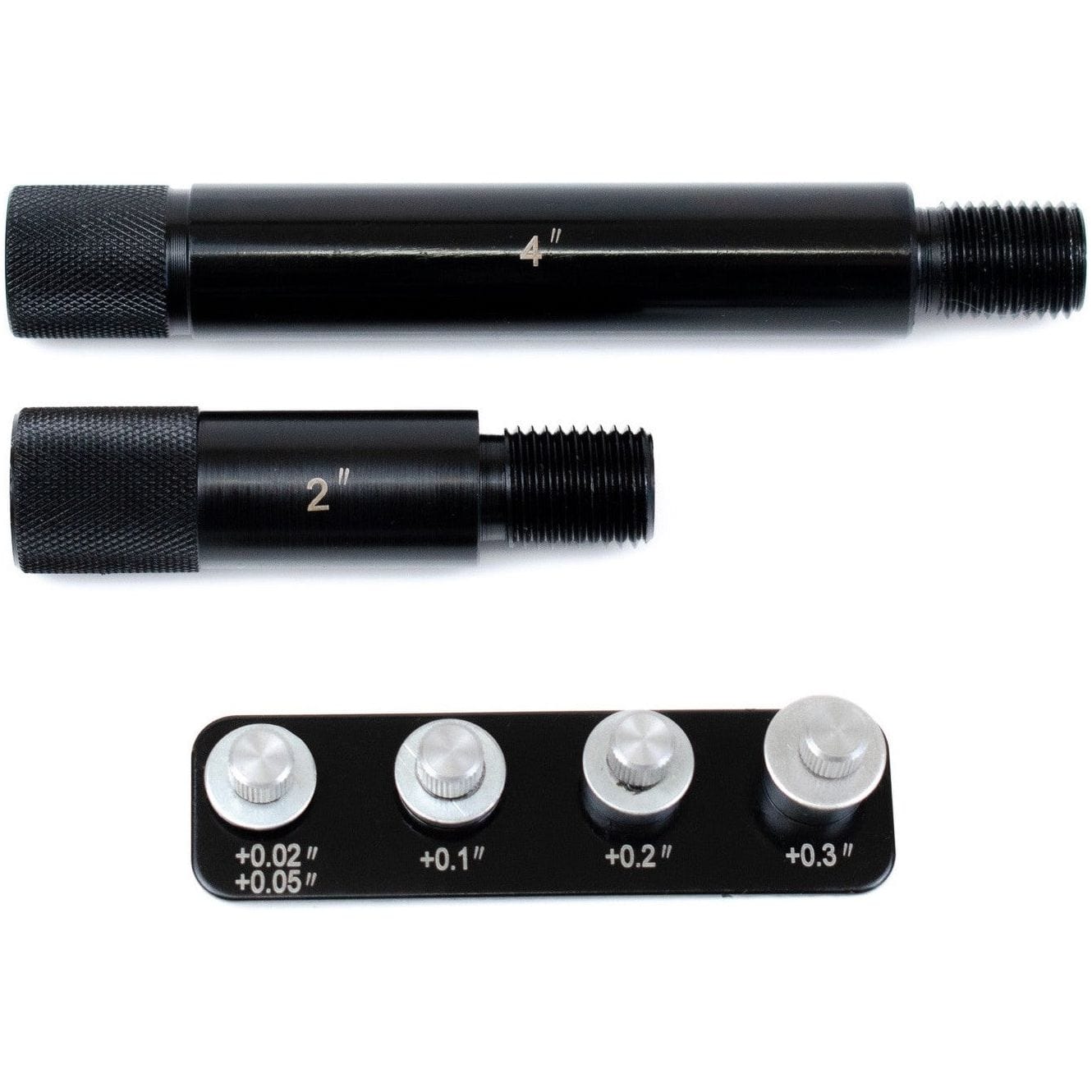

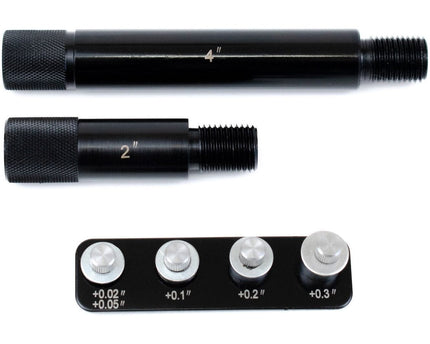

- Range of adapter extensions included
- Direct diameter reading after inputting the setting ring size; minimum value tracking locates the diameter automatically
- Ceramic contact point
- Supplied with a CR2032 battery
- The optional setting ring is not included
- Optional long handle not included

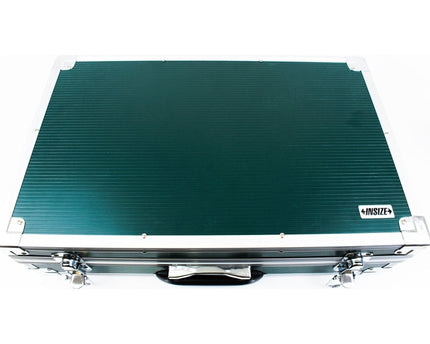

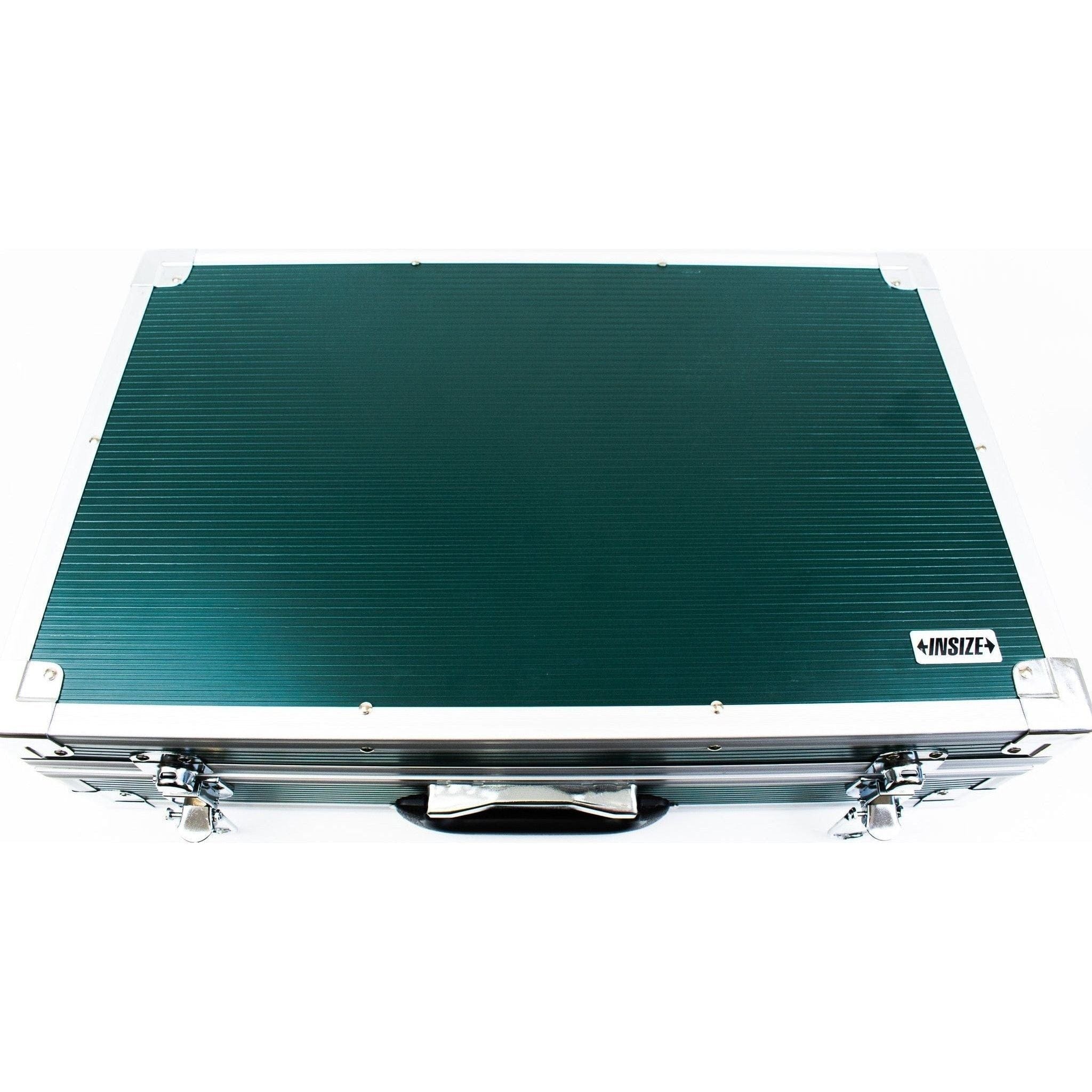

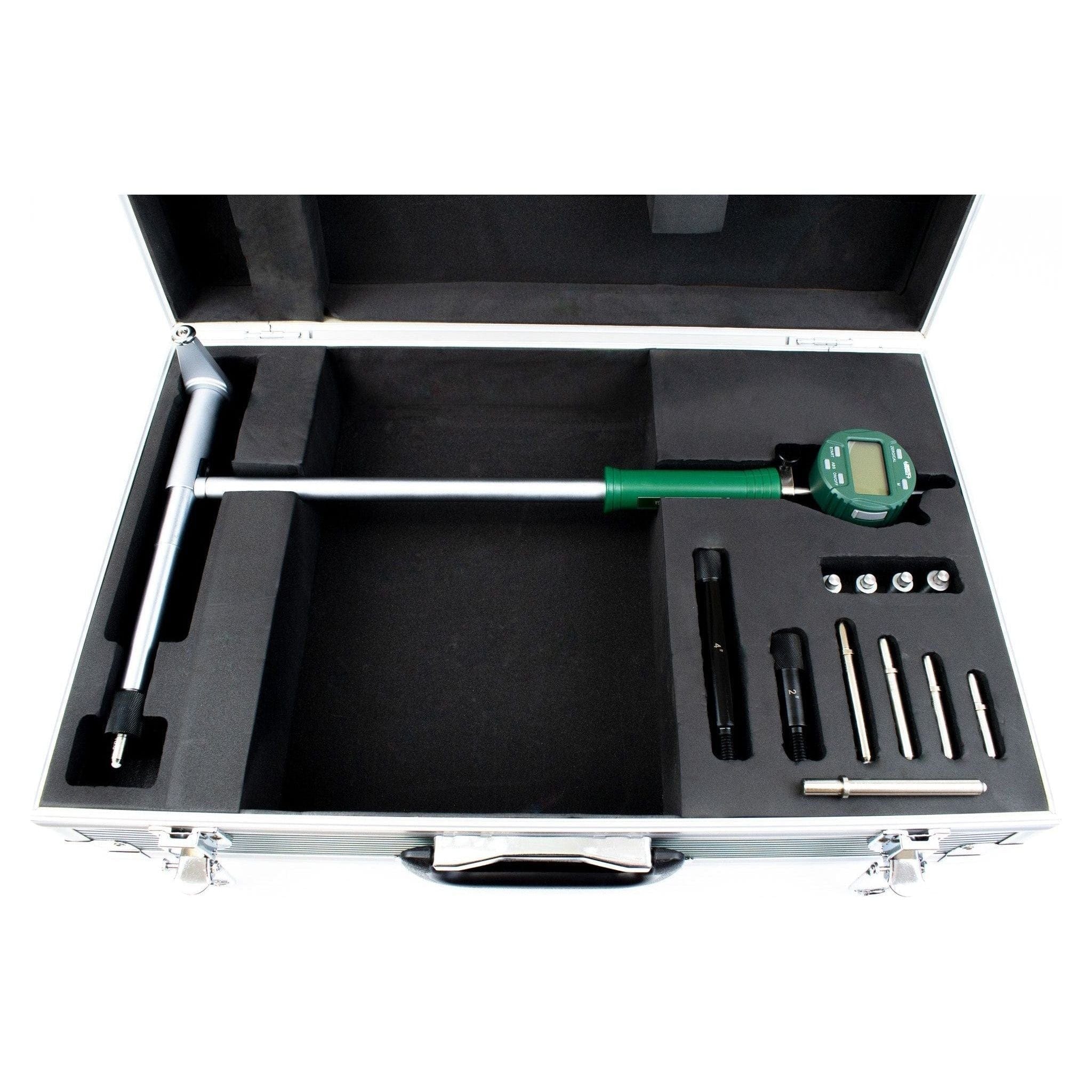

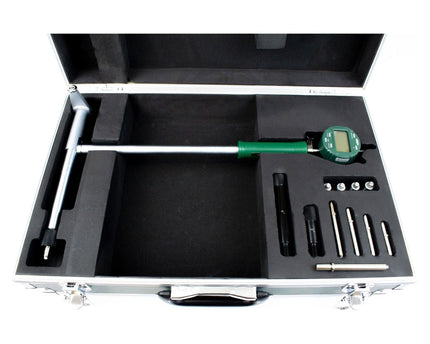

- Supplied in a moulded storage box
Well-designed, durable, high-precision tools suitable for a wide range of measuring tasks. INSIZE bore gauges provide reliable, repeatable measurements and are easy to set, operate, and adapt for various bore sizes.
