Description

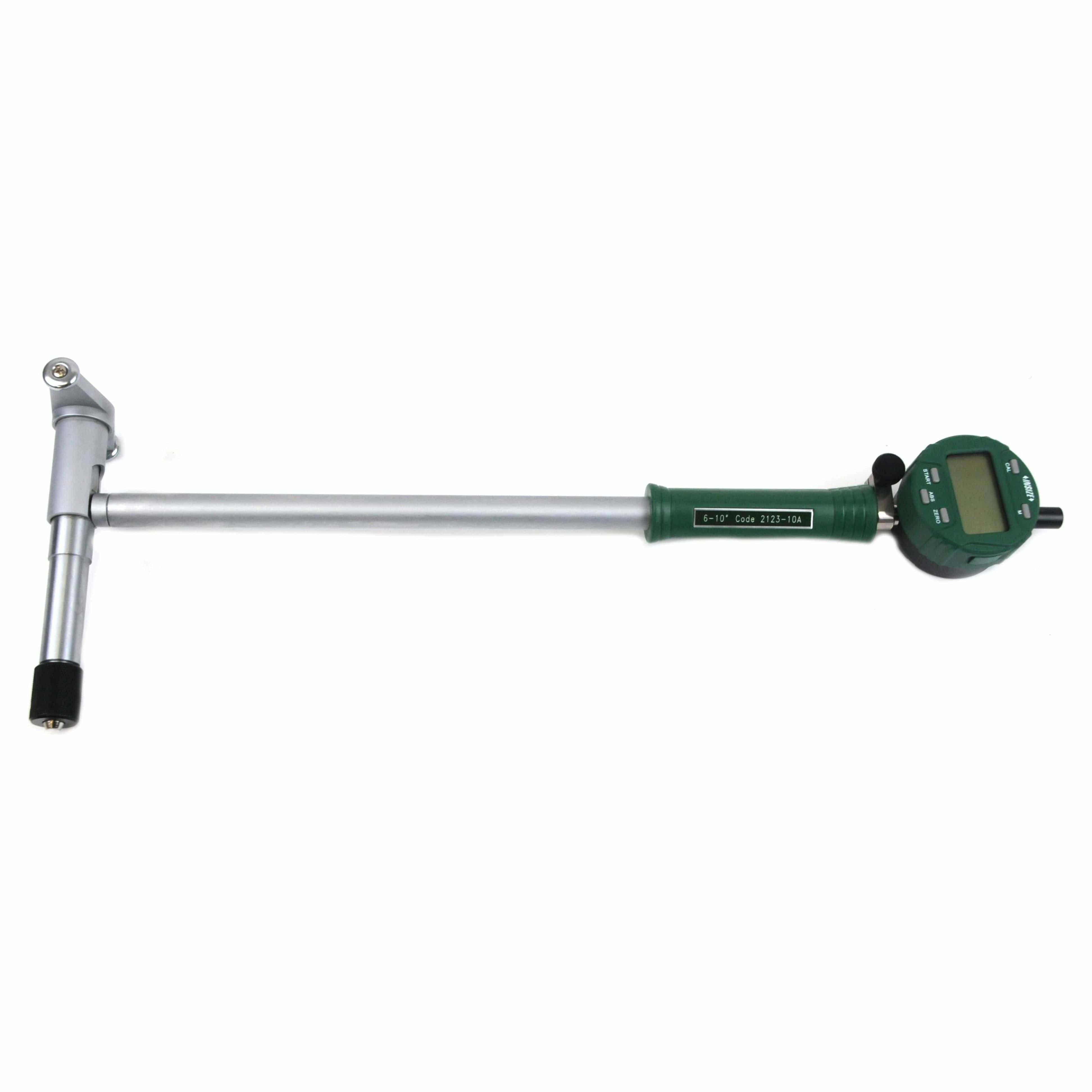

Insize Digital Bore Gauge
A high-precision digital bore gauge designed for fast, accurate internal diameter measurement across a wide range of applications. The large LCD display, ceramic contact point, and smooth operating mechanism make it suitable for toolrooms, machining centres, and inspection environments where reliability and repeatability are essential.

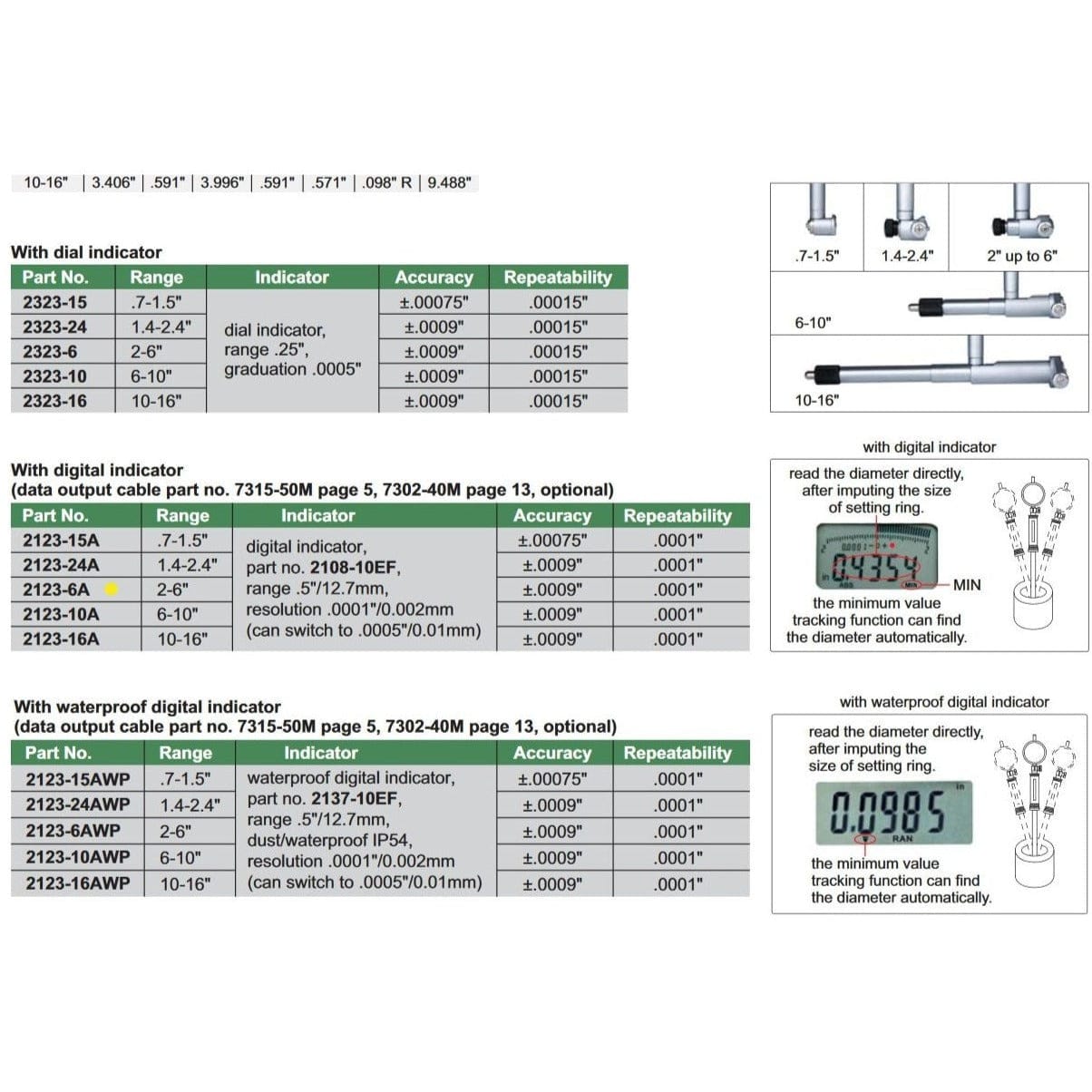

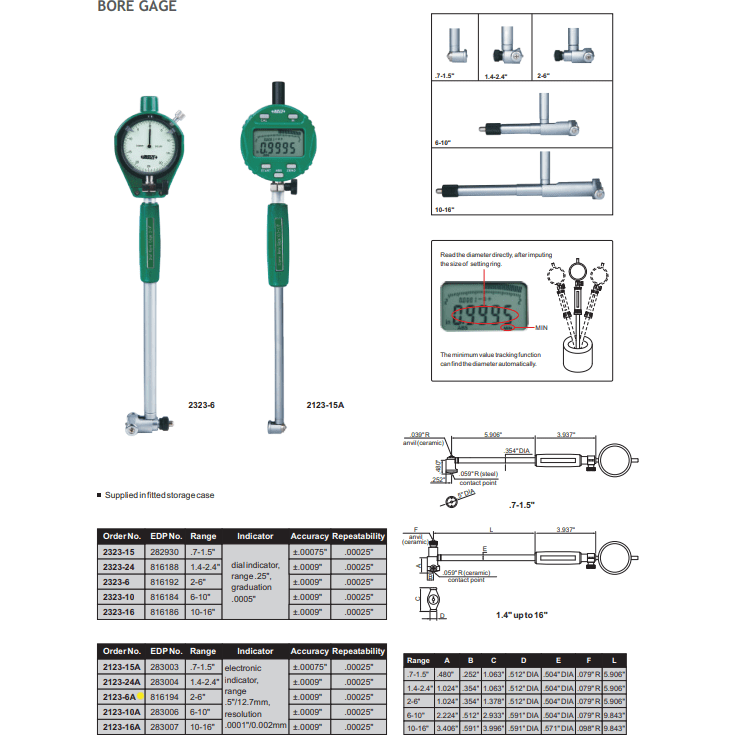

Specifications :
- Part no: 2123-6A
- Reading: Metric / Imperial
- Resolution: 0.002mm / 0.0001"
- Accuracy: ±0.0009"
- Repeatability: 0.0001"
- Large, easy-to-read LCD screen
- Automatic power off
- Range: 2–6"
- Strictly made in accordance with DIN 878
- Silky smooth movement throughout
- Soft grip handle

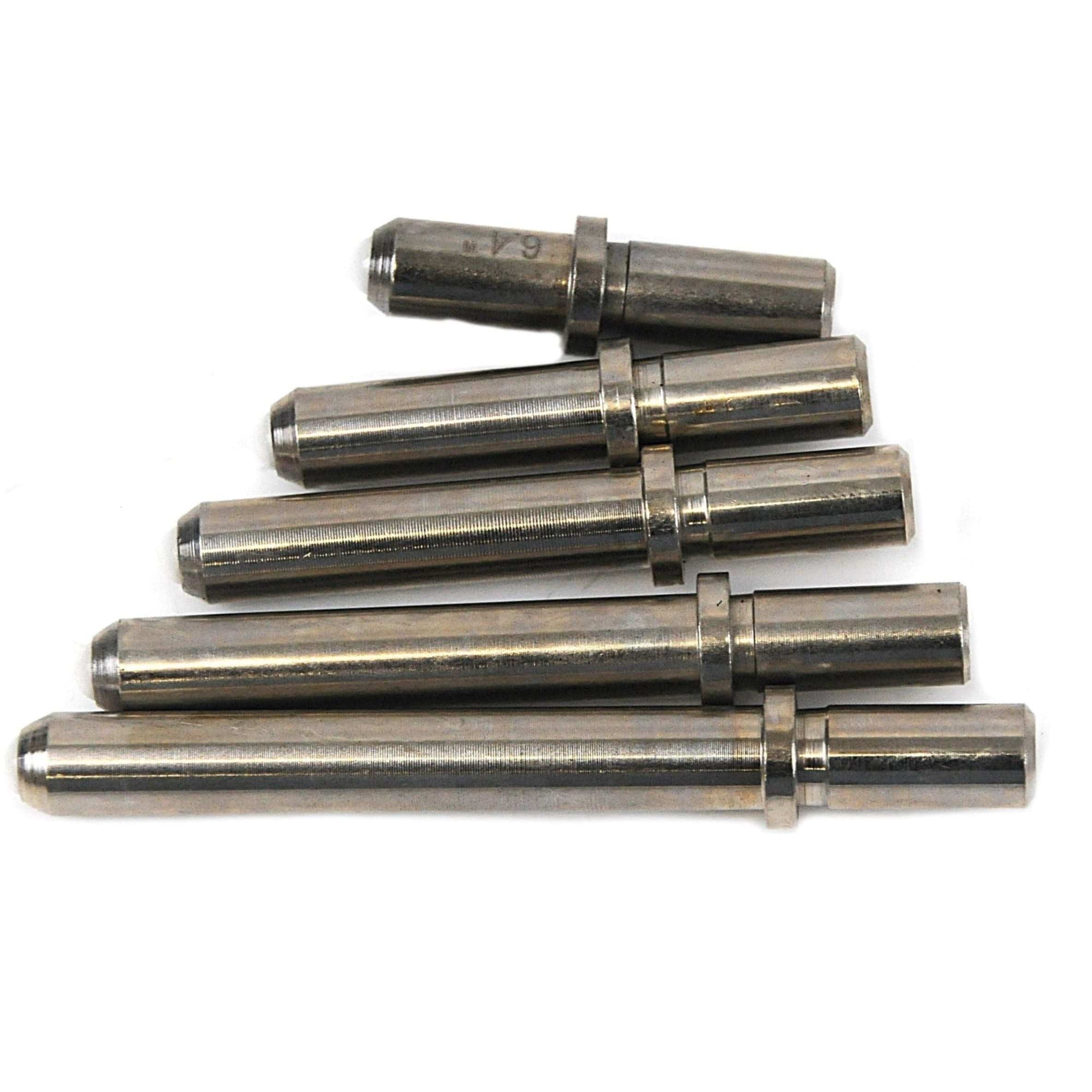

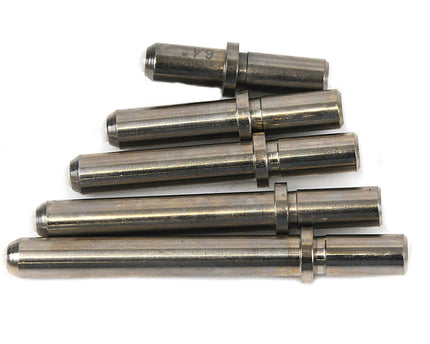

- Supplied with extension rods

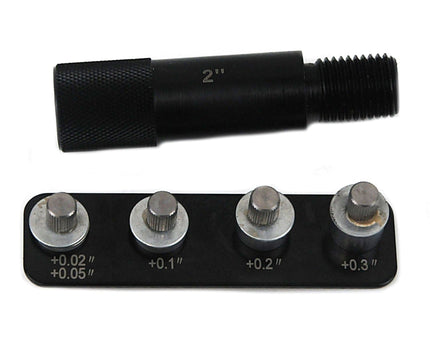

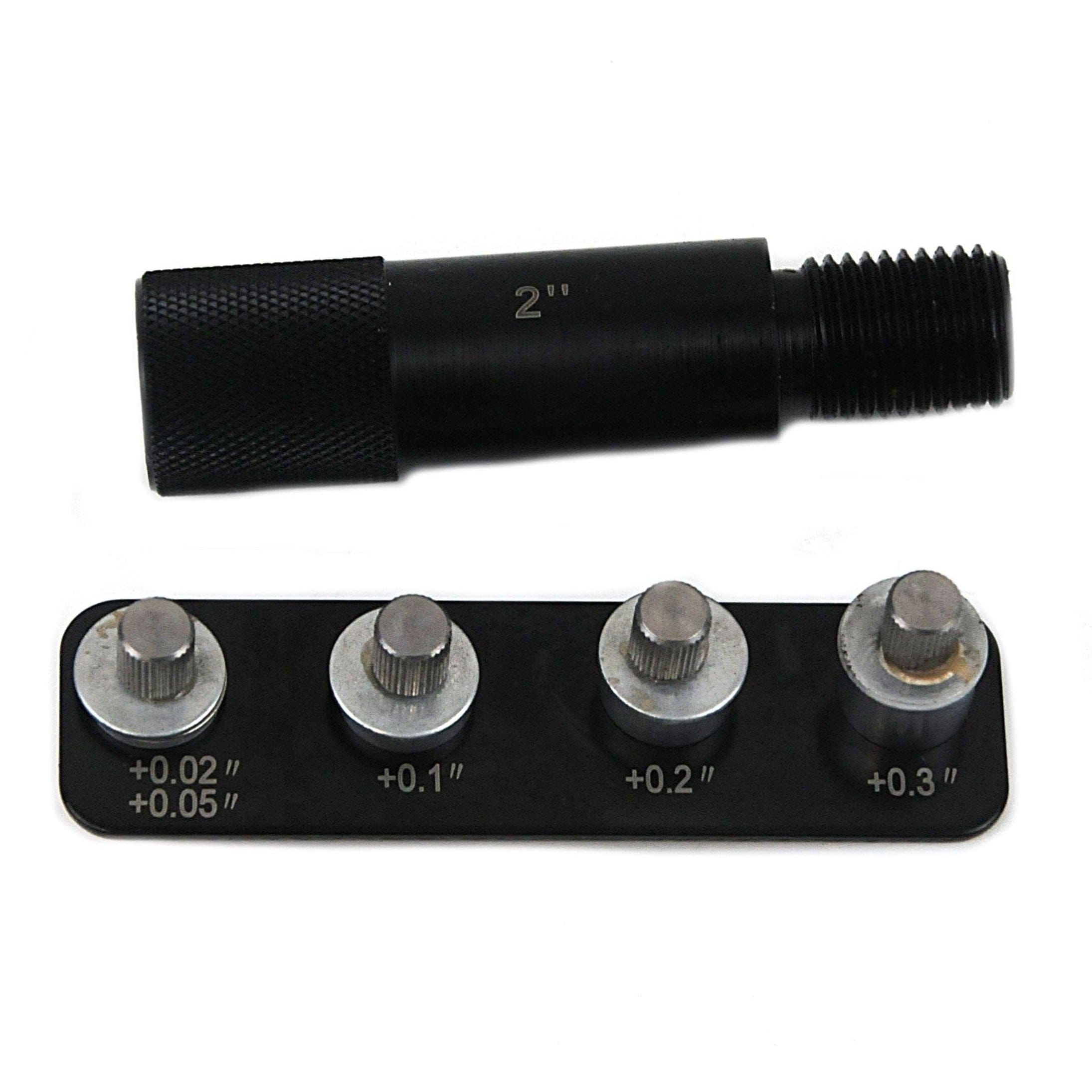

- Range of adapter extensions included
- Reads the diameter directly after inputting the size of the setting ring
- Minimum value tracking function automatically finds the true diameter
- Ceramic contact point
- Supplied with a CR2032 battery
- The optional setting ring is not included
- Optional long handle not included

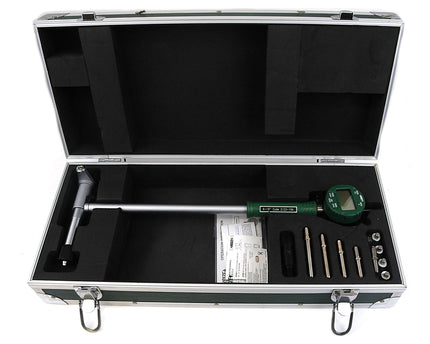

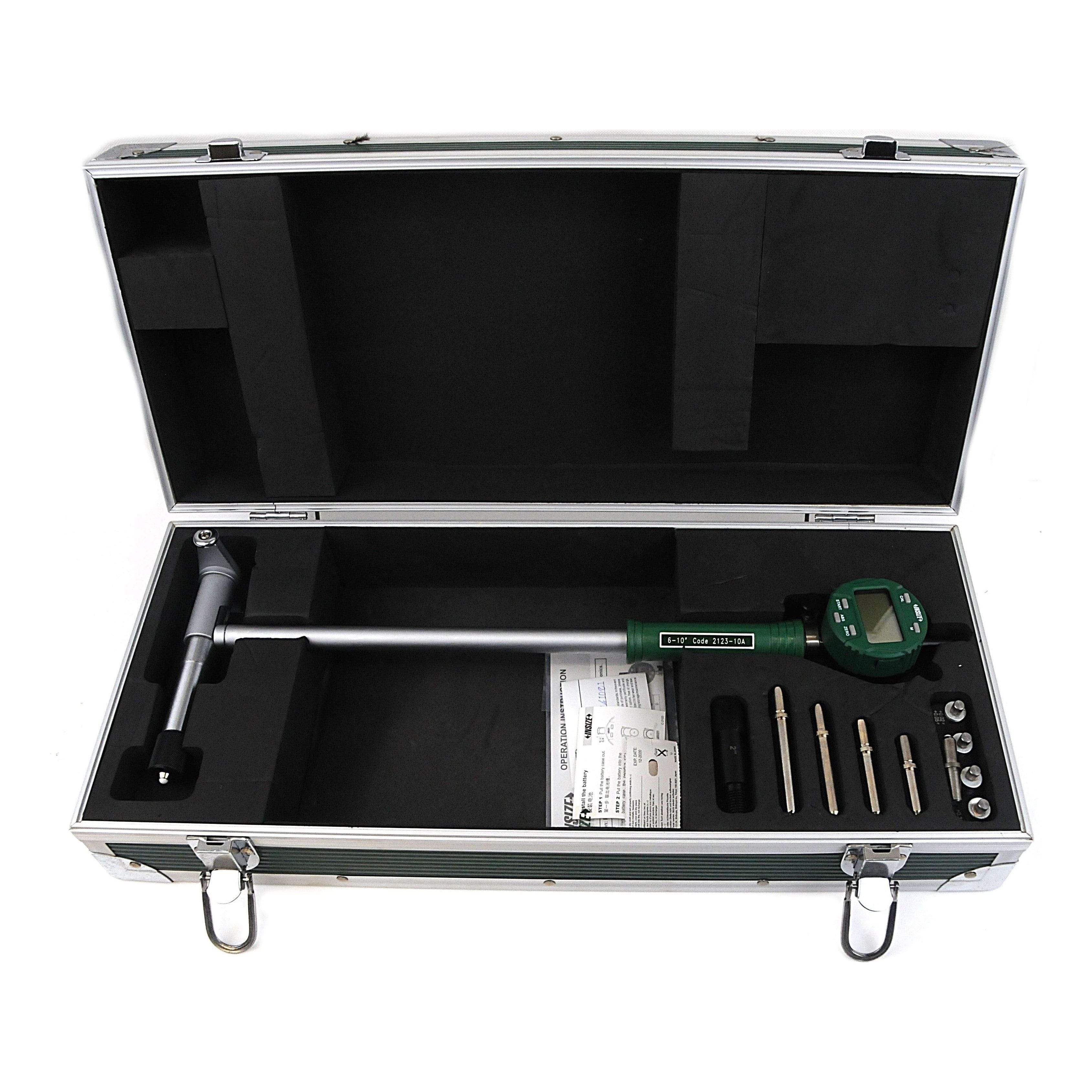

- Supplied in a moulded storage box
Well-designed, durable, high-precision tools suitable for a wide variety of measuring tasks. INSIZE digital bore gauges provide accurate, repeatable internal measurements with smooth operation and intuitive controls, making them ideal for workshops, inspection setups, and precision engineering environments.
