Description

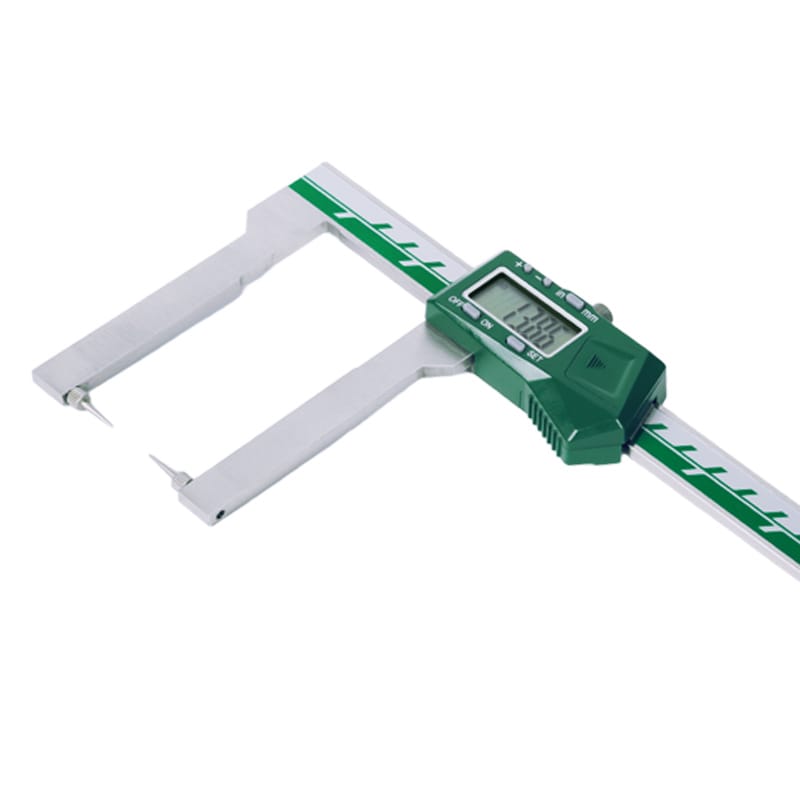

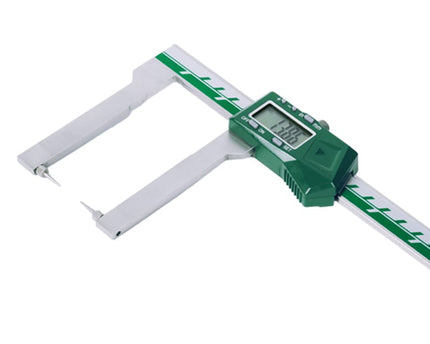

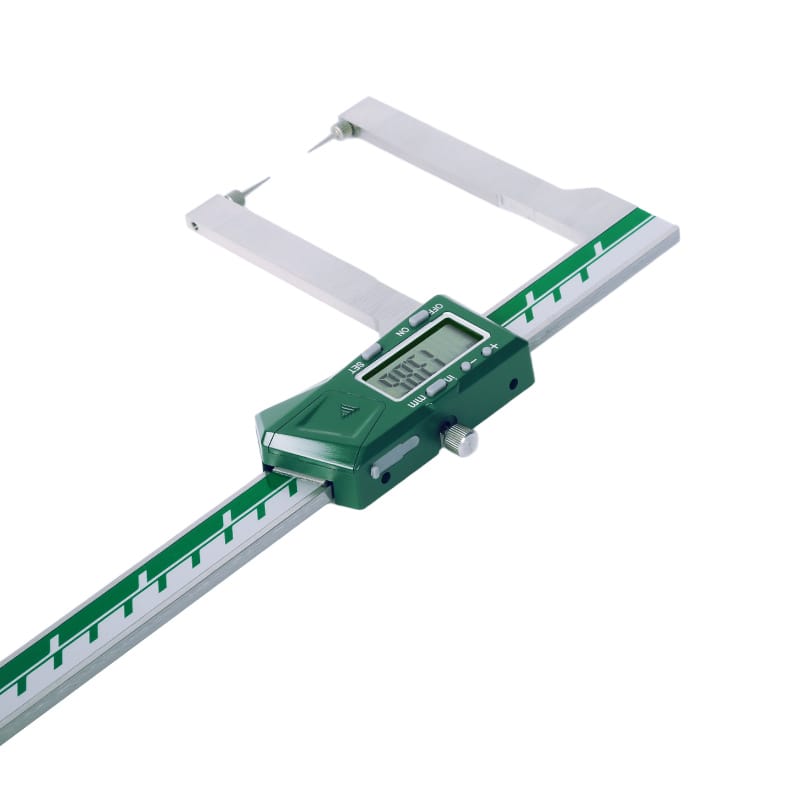

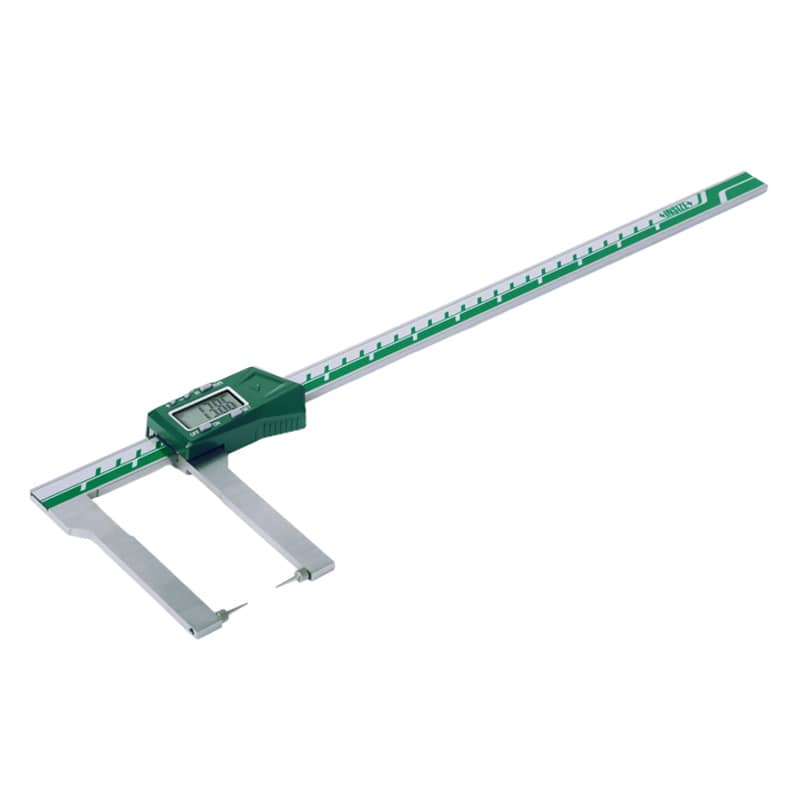

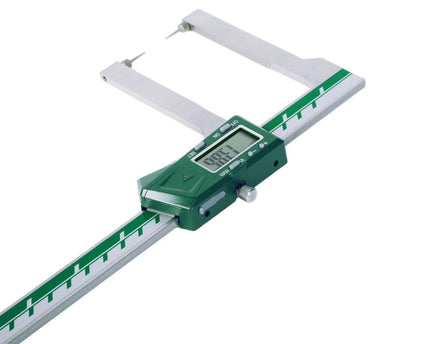

The Insize 1530-500 Digital Caliper with Interchangeable Points is a versatile precision measuring instrument designed for accurate measurement of internal and external grooves, slots, recesses, and specialised dimensions. Featuring interchangeable measuring points, preset functionality, and data output capability, this caliper is ideal for advanced inspection, machining, and quality control applications.
Manufactured from stainless steel and supplied with four pairs of interchangeable points and a zero setting block, the 1530-500 provides reliable and repeatable measurements across a wide 0-500mm measuring range.
Key Features & Benefits
- Wide measuring range of 0-500mm / 0-20"
- Digital display with preset function
- Interchangeable measuring points for specialised applications
- Suitable for internal and external groove measurements
- Data output interface for measurement recording
- Resolution of 0.01mm / 0.0005"
- Automatic power off function
- Metric and imperial conversion
- Made from durable stainless steel
- Supplied with zero setting block for external measurement
- Preset buttons for efficient operation
- Optional wireless transmitter available
Technical Specifications
- Part Number: 1530-500
- Range: 0-500mm / 0-20"
- Accuracy: ±0.08mm
- Resolution: 0.01mm / 0.0005"
- Data Output: With data interface
- Material: Stainless steel
- Battery: CR2032
- Functions: On/off, set, mm/inch, preset (+, -)
- Automatic Power Off: Yes
- L Dimension: 740mm
- d Dimension: 100mm
- c Dimension: 24mm
- Wireless Transmitter (Optional): 7315-22 (receiver required)
Included Accessories
- 4 pairs of interchangeable measuring points
- Zero setting block for external measurement
The Insize 1530-500 is suitable for precision machining, toolmaking, engineering inspection, and specialised groove measurement applications where interchangeable contact points provide increased measuring flexibility.
Well-designed, durable high-precision measuring tools suitable for a wide variety of industrial and workshop applications. Insize digital calipers deliver dependable performance, accuracy, and ease of use for professional measurement tasks.
Insize is globally recognised for manufacturing professional precision measuring instruments trusted by machinists, engineers, inspectors, and quality control professionals worldwide.
