Description

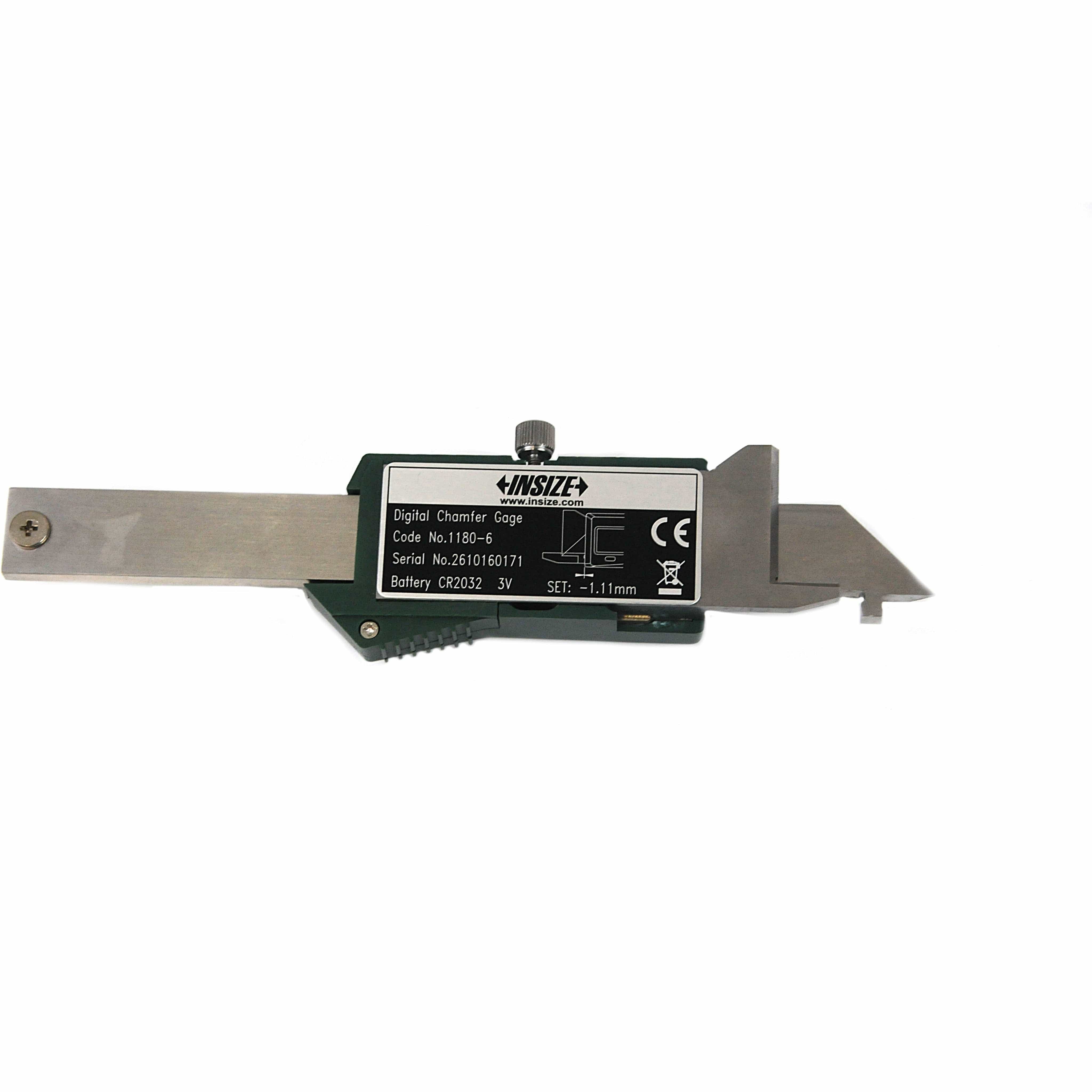

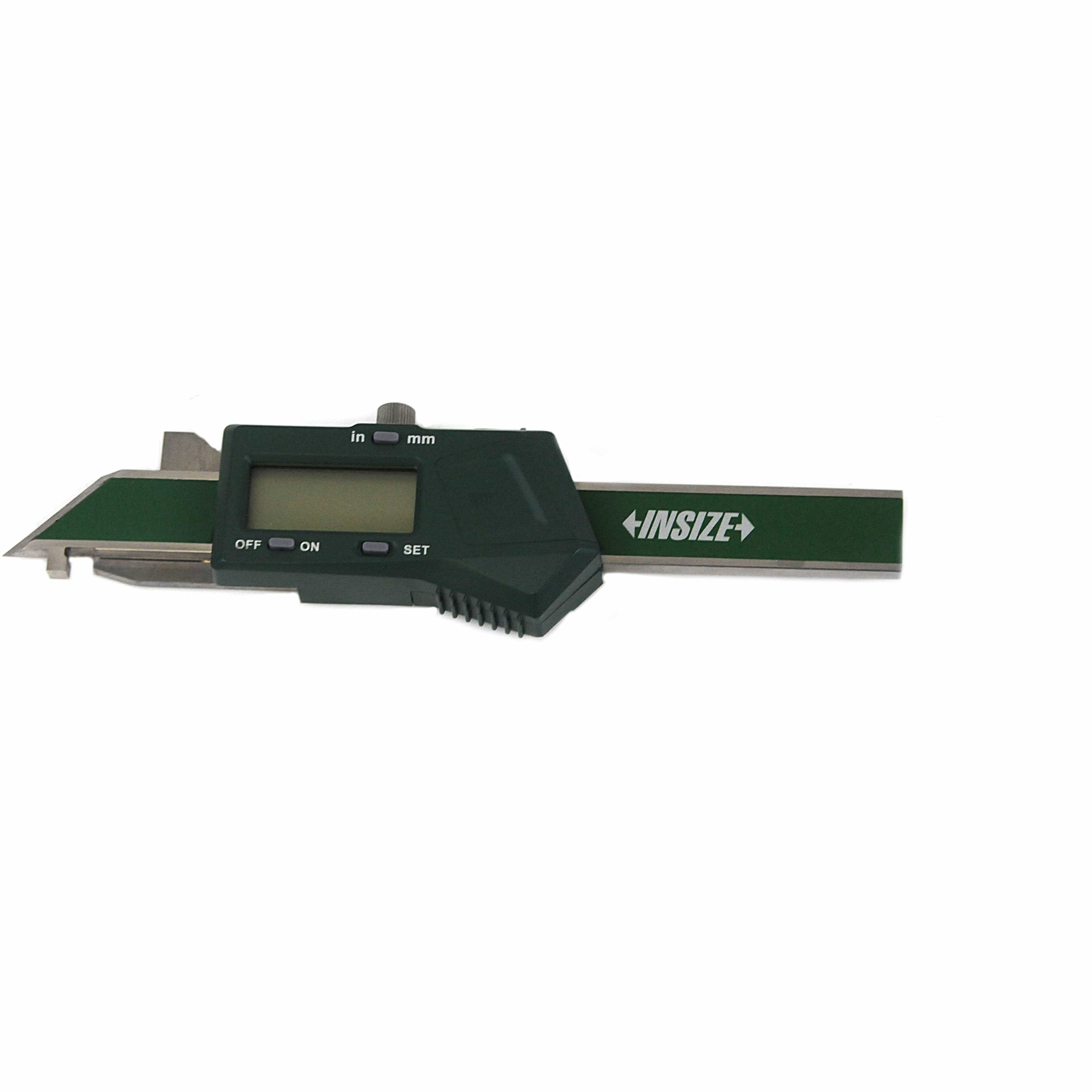

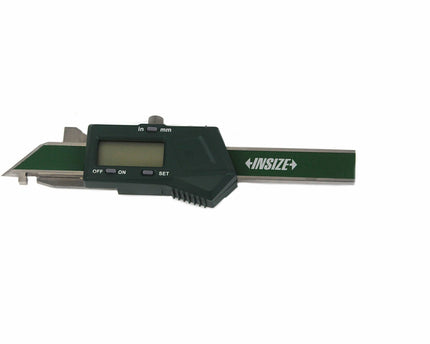

The Insize 1180-6 Digital Chamfer Gauge is designed for fast and accurate measurement of chamfer dimensions in machining, manufacturing, and inspection applications. Featuring a 45° measuring angle and digital display, this precision gauge delivers reliable readings for chamfer inspection on machined components and internal edges.
Manufactured from stainless steel for durability and long service life, the gauge provides clear digital measurement with mm/inch conversion and data output capability. Its compact and easy-to-use design makes it ideal for workshop, toolroom, and quality control environments.
Key Features & Benefits
- Digital chamfer gauge for precision chamfer measurement
- Measuring range: 0-10mm / 0-0.39"
- 45° chamfer measurement capability
- Resolution: 0.01mm / 0.0005"
- Accuracy: ±0.06mm
- Suitable for measuring 15°, 20°, 30°, 45°, and 60° chamfers
- Digital display with mm/inch conversion
- Data output capability
- Automatic power off function
- Powered by CR2032 battery
- Made from durable stainless steel
- Compact and lightweight for workshop and inspection use
Technical Specifications
- Part Number: 1180-6
- Type: Digital Chamfer Gauge
- Range: 0-10mm / 0-0.39"
- Resolution: 0.01mm / 0.0005"
- Accuracy: ±0.06mm
- Chamfer Angle (α): 45°
- Dimension A: 15mm
- Dimension B: 22mm
- Minimum Internal Diameter (ØD): 7mm
- Battery: CR2032
- Material: Stainless Steel
- Optional Accessory: Wireless transmitter 7315-25 (receiver required)
The Insize 1180 series chamfer gauges are ideal for machinists, inspectors, engineers, and manufacturing professionals requiring accurate chamfer measurement and verification in precision machining and quality control applications.
Insize is globally recognised for producing high-quality precision measuring instruments trusted by industrial, engineering, and inspection professionals worldwide.
