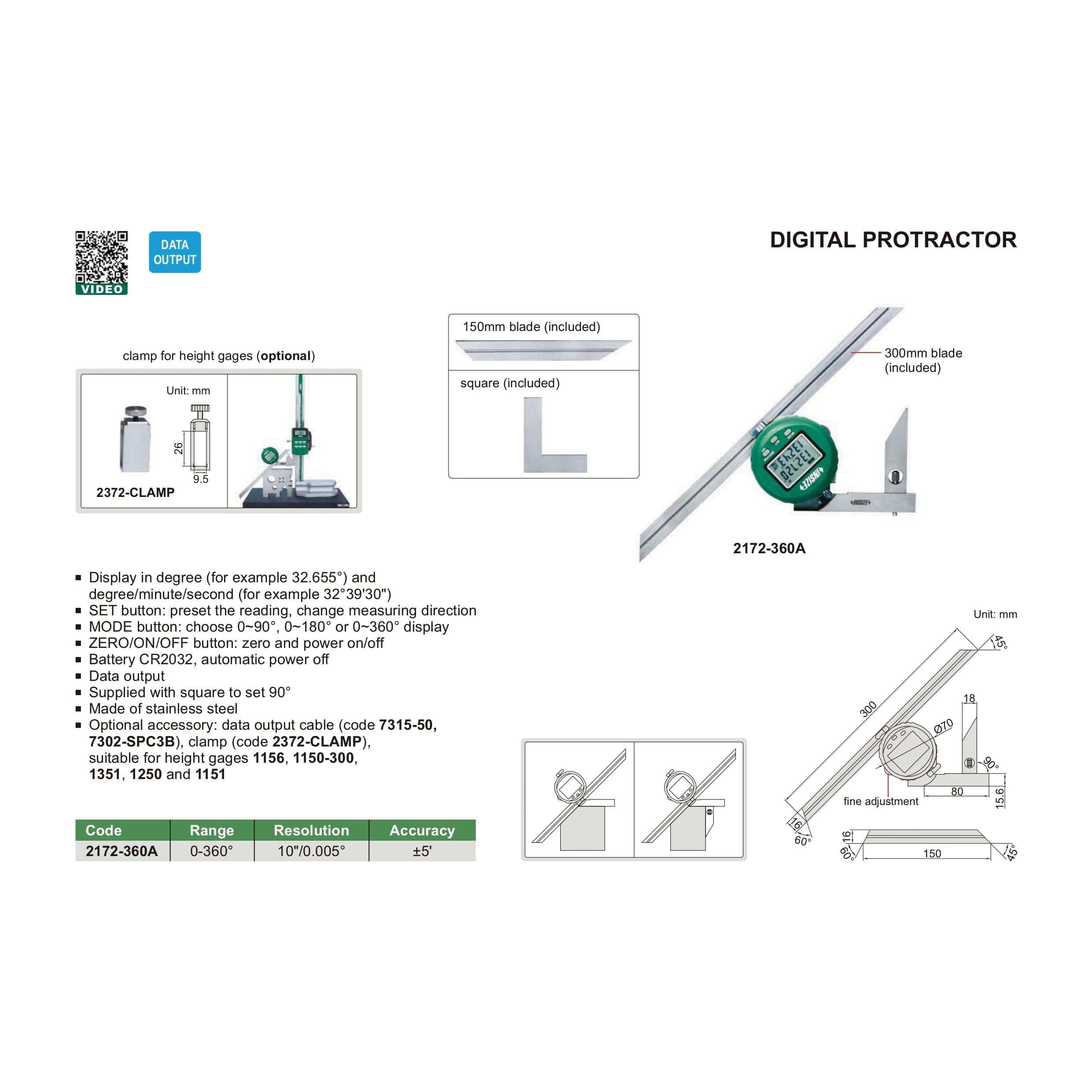

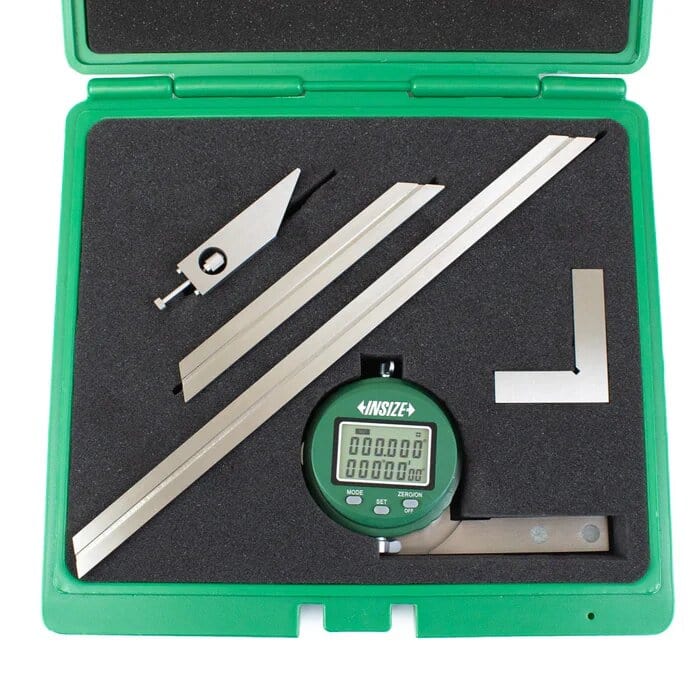

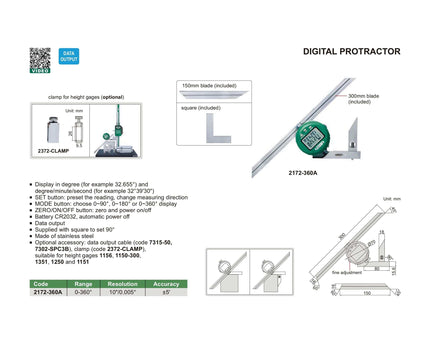

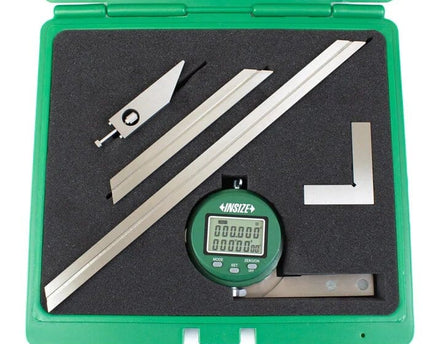

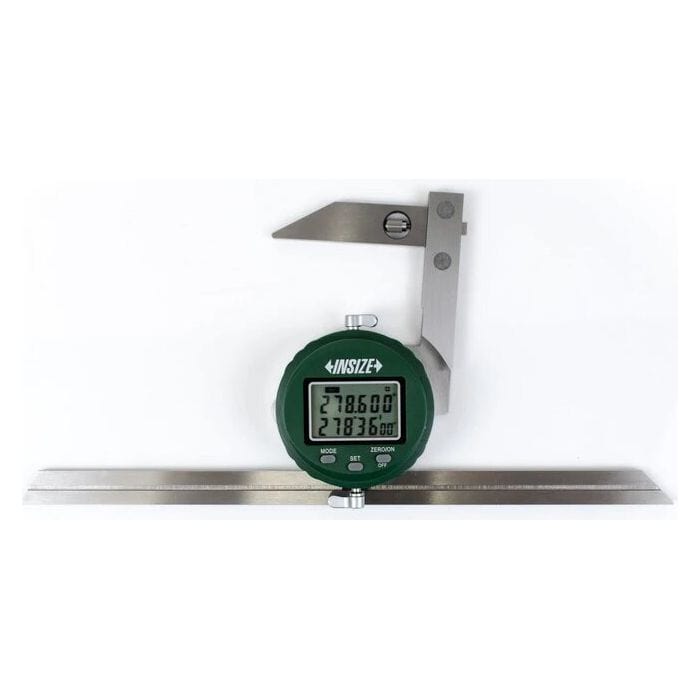

Insize 0–360° Digital Degree Protractor
This precision digital protractor is engineered to deliver accurate angular measurements for machining, fabrication, inspection, and setup applications. Built with a robust stainless-steel construction and equipped with advanced digital functions, it provides reliable and repeatable readings across the full 360° range. A built-in square is included for fast and accurate 90° referencing, making this tool ideal for workshop, industrial, and quality-control environments.
Key Features:
-
Part Number: 2172-360A
-
Resolution: 10" / 0.005° for highly precise angle readings
-
Accuracy: ±5'
-
Measurement Range: 0–360°
-
Display Options: Degree (°) or degree/minute/second (° ’ ”) formats
-
SET Button: Preset reading and change measuring direction
-
MODE Button: Selectable display ranges — 0–90°, 0–180°, or 0–360°
-
ZERO / ON / OFF Button: Zero reference and power control
-
Battery: CR2032 with automatic power-off to conserve battery life
-
Data Output: Enables digital measurement transfer to compatible devices
-

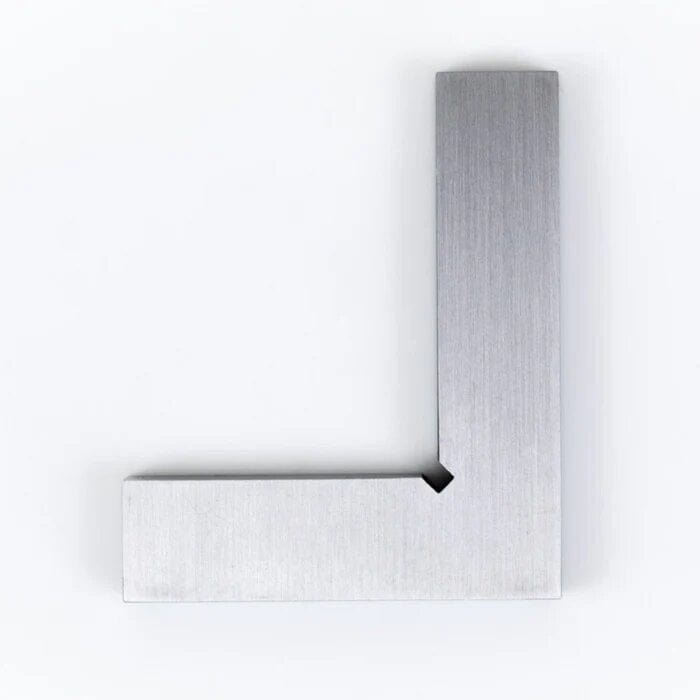

Accessory Included: Precision square for setting a perfect 90° reference
-
Material: High-quality stainless steel
-
Optional Accessory: Data output cable (code 7305-SPC1A)
Well-designed, durable, high-precision tools suitable for a wide range of measurement tasks. INSIZE digital protractors offer outstanding reliability for accurately determining angles on components, fixtures, and assemblies. Easy to operate and ideal for both workshop and inspection environments.
