Description

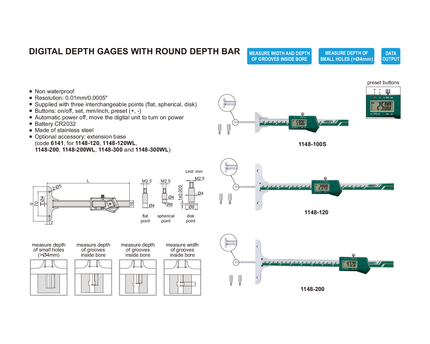

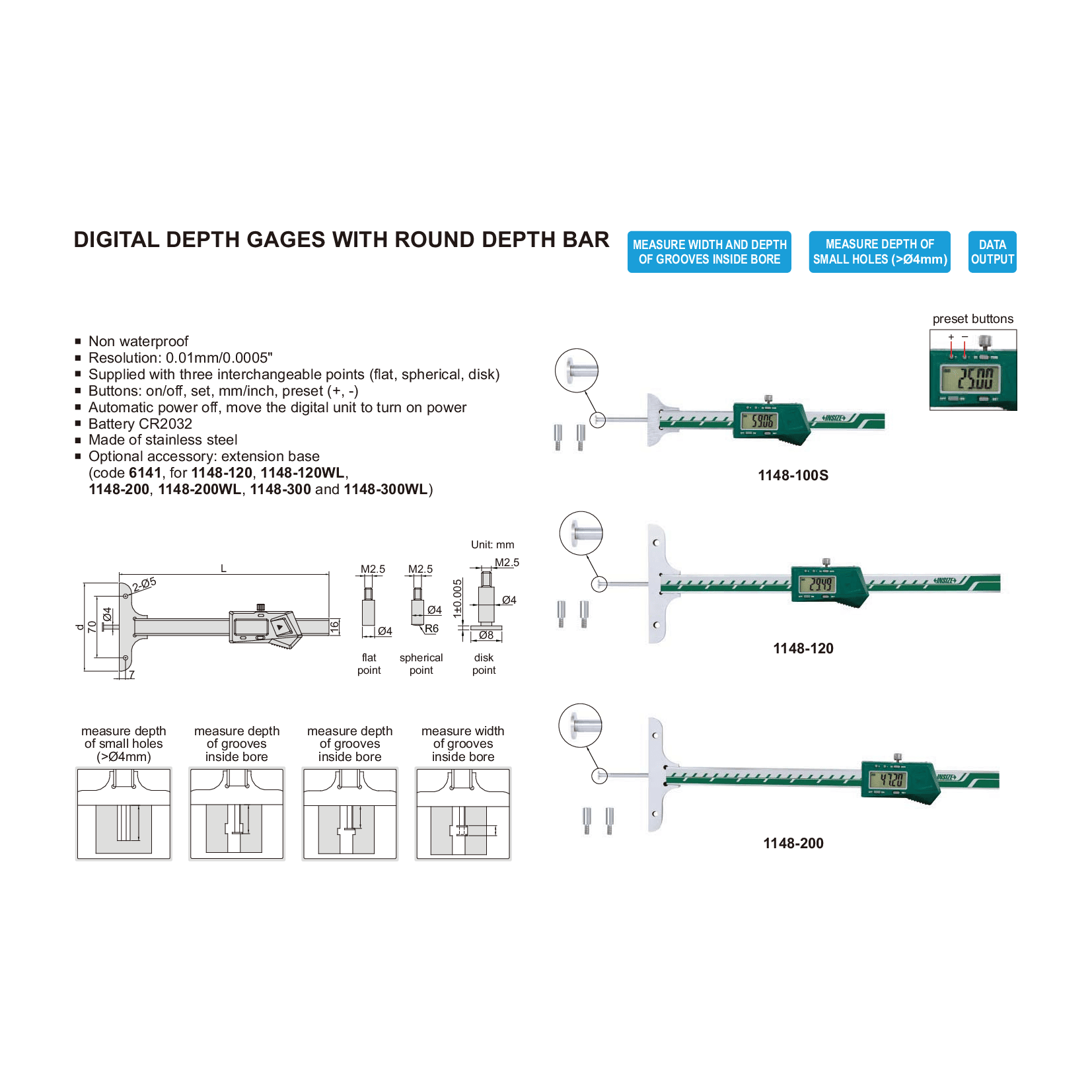

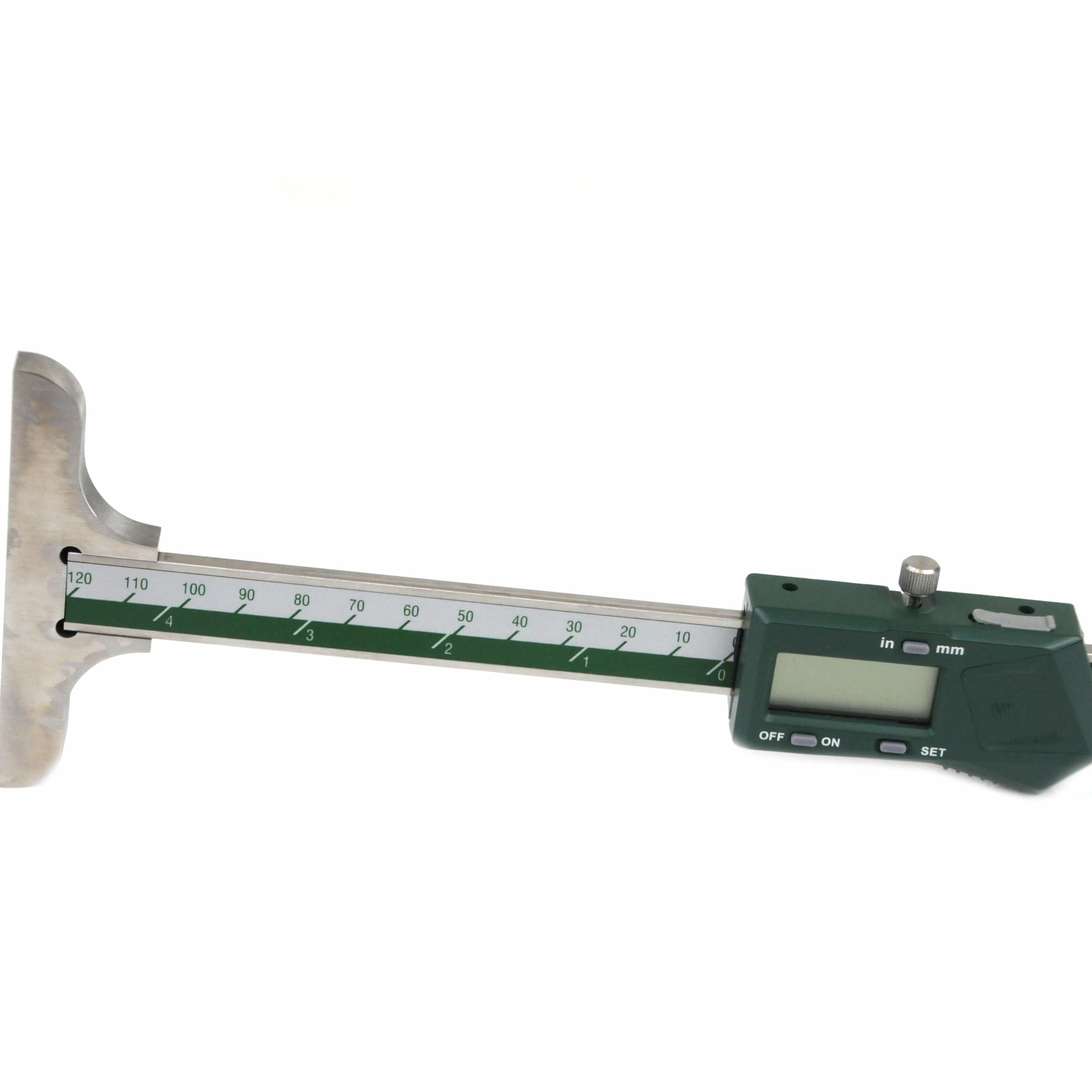

Insize 0–100 mm / 0–4" Digital Depth Gauge
A precision digital depth gauge designed for accurate measurement of bores, recesses, grooves, and blind holes. Constructed from durable stainless steel and equipped with a clear, easy-to-read digital display, it provides dependable performance for machining, inspection, and workshop applications. The interchangeable measuring points allow versatile use across a range of components and materials.

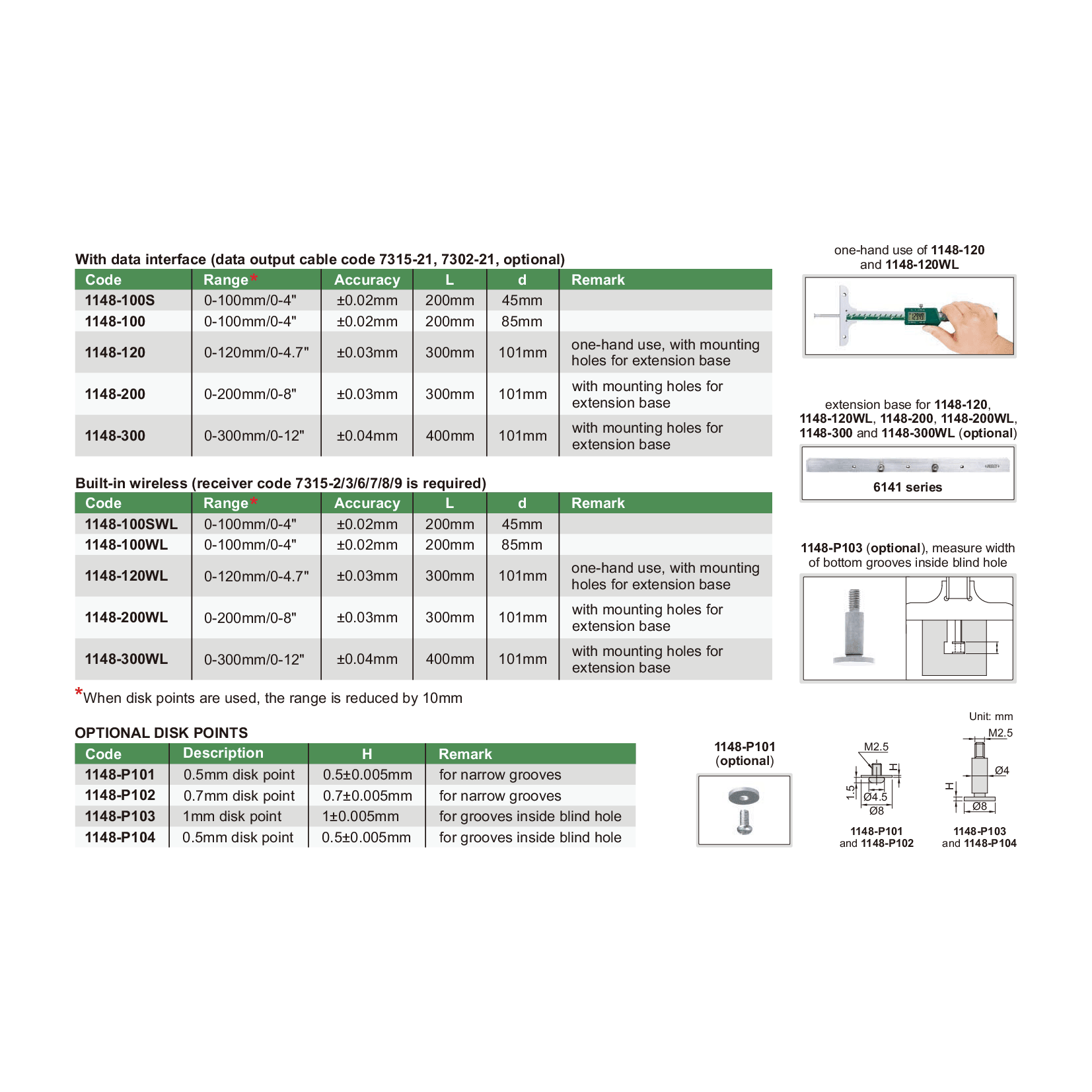

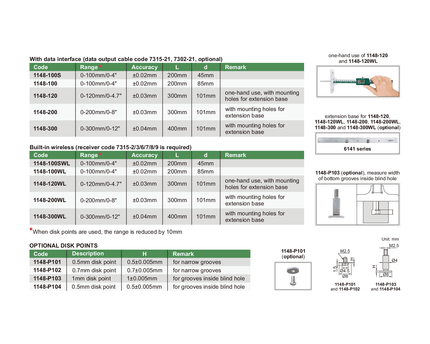

Specifications:
- Part No: 1148-100
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.02 mm
- Range: 0–100 mm / 0–4"
- Supplied with three interchangeable measuring points: flat, spherical, and disk
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Power turns on when the digital unit is moved
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC1A/SPC1B, 7305-SPC2), Extension base (6141)
Engineered for durability and consistent accuracy, the Insize Digital Depth Gauge offers smooth operation and high precision, making it an ideal tool for depth measurement tasks in machining, fabrication, quality control, and general industrial use.
