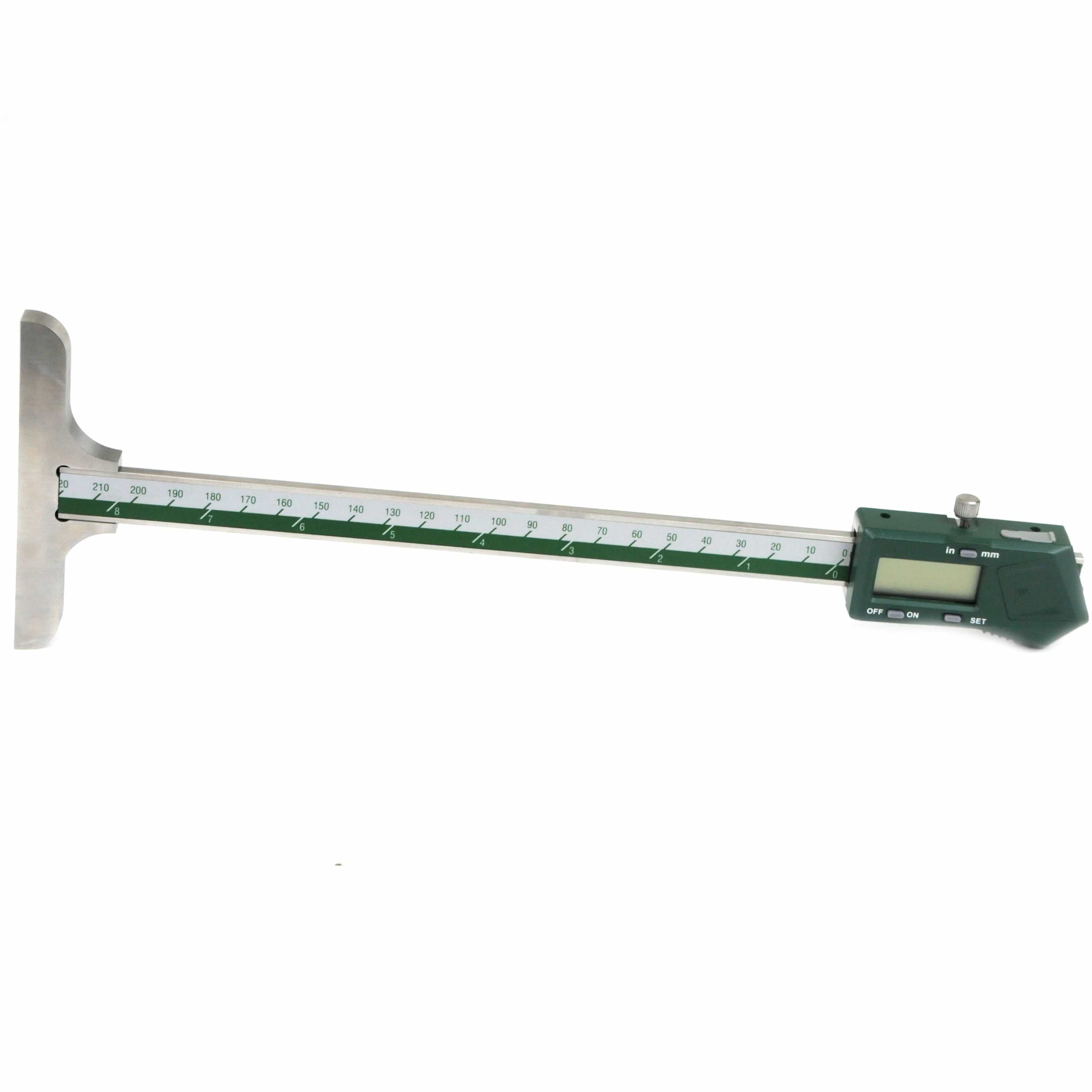

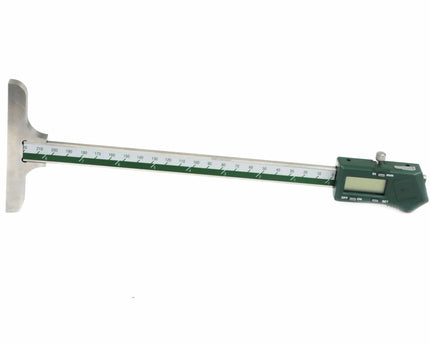

Insize 0–200 mm / 0–8" Digital Depth Gauge
A precision digital depth gauge engineered for accurate measurement of bores, recesses, blind holes, and tread depths. Built from durable stainless steel and fitted with a clear digital display, it delivers stable, repeatable performance for machining, inspection, and workshop applications. This model includes three interchangeable measuring points to suit a wide range of tasks.

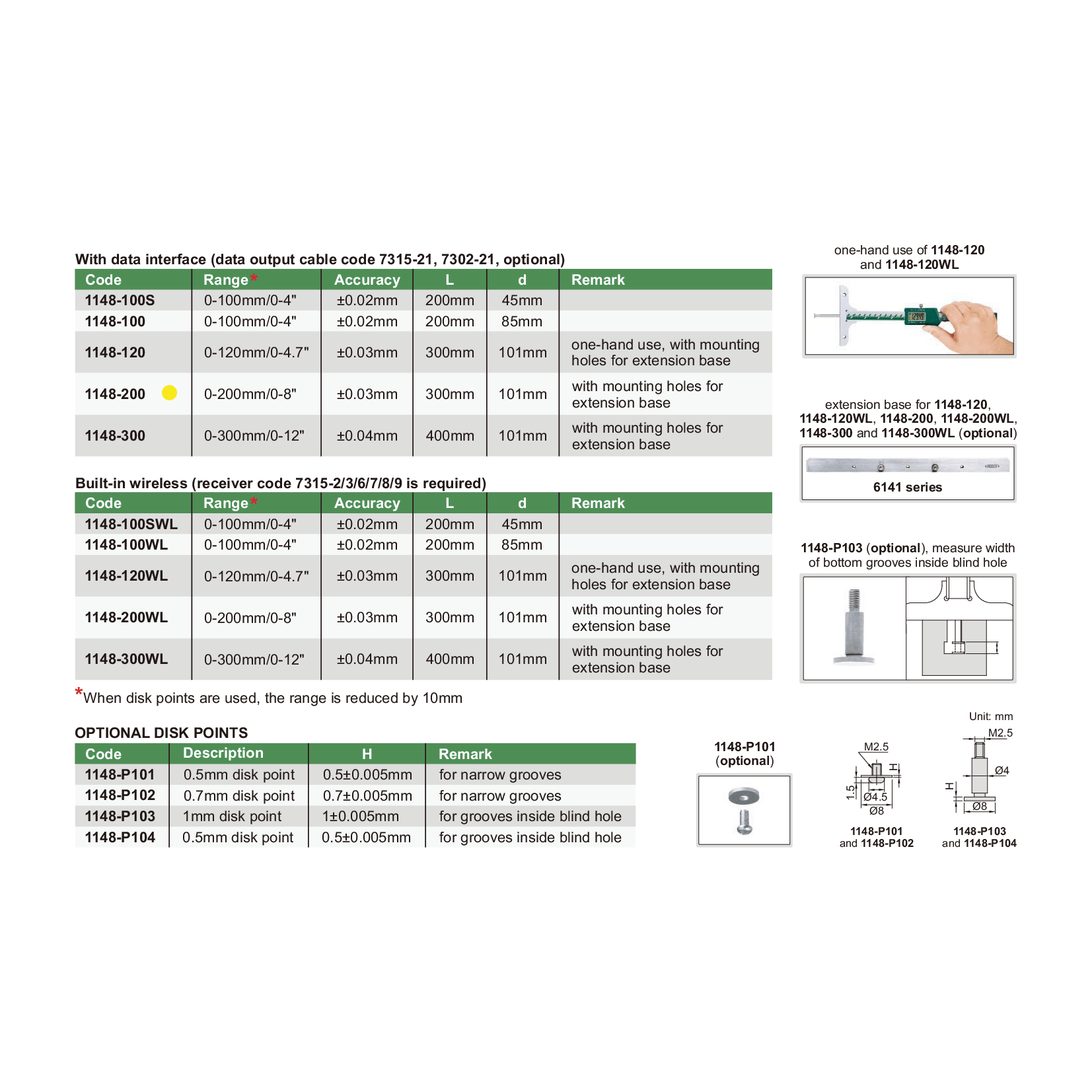

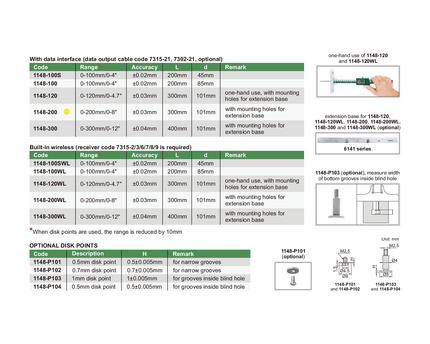

Specifications:
- Part No: 1148-200
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.03 mm
- Range: 0–200 mm / 0–8"
- With mounting holes for extension base

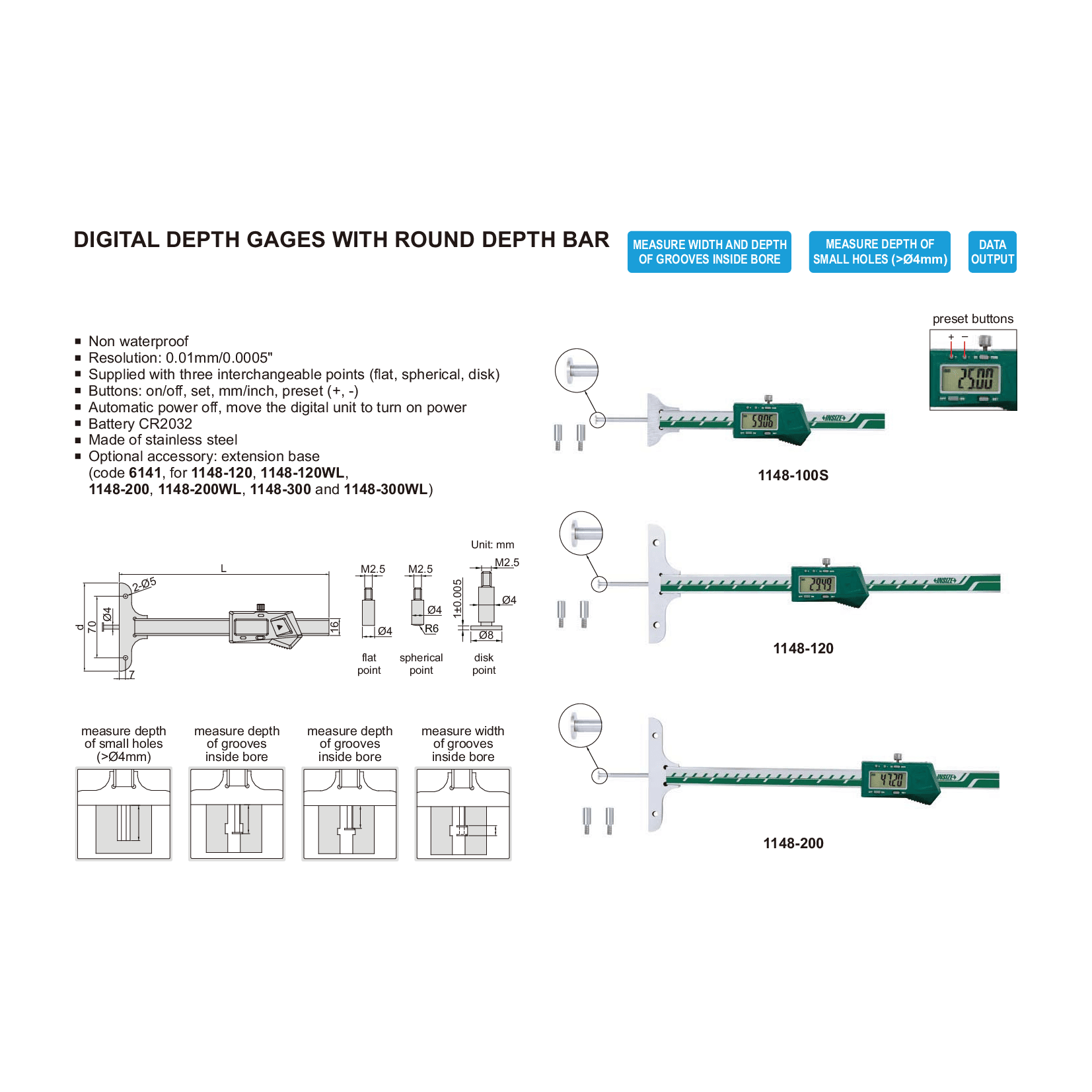

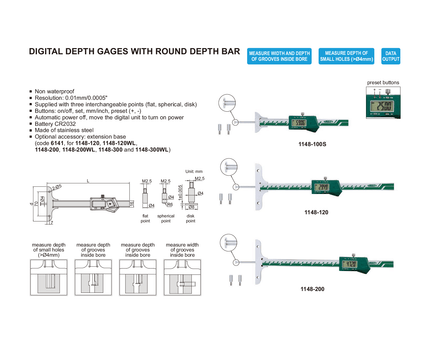

- Supplied with three interchangeable points: flat, spherical, and disk
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Moves to power on automatically
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC1A/SPC1B, 7305-SPC2), Extension base (6141)
Designed for precision and ease of use, the Insize Digital Depth Gauge provides accurate and reliable depth measurements across a variety of industrial, automotive, and workshop applications.
