Description

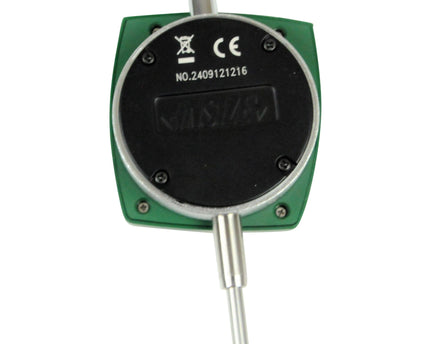

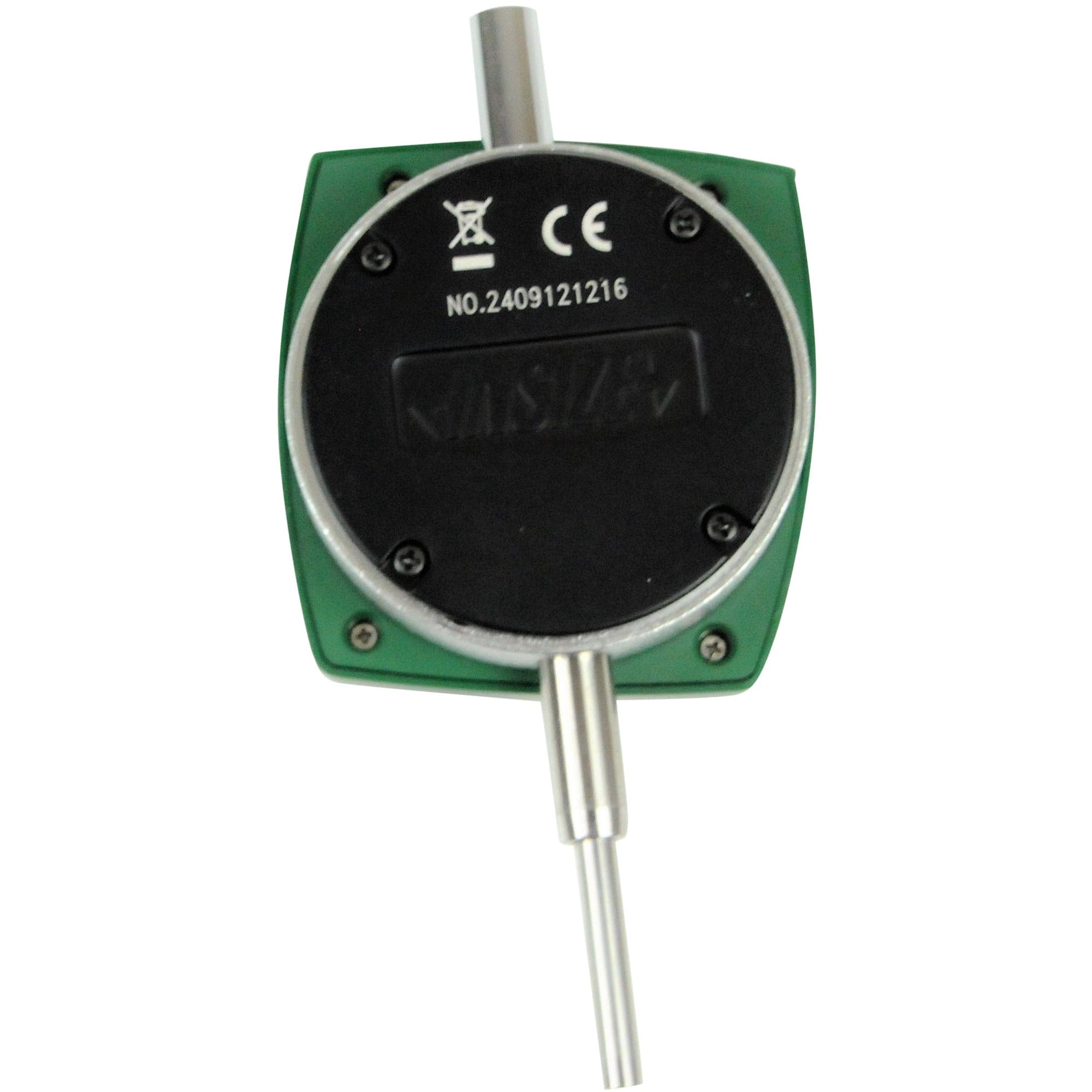

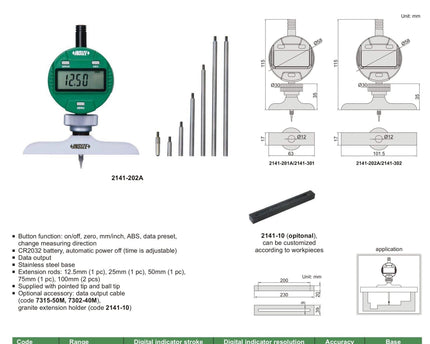

Insize Digital Depth Gauge (Long Base Style)
A long-base digital depth gauge designed for precision measurement of slots, steps, grooves, bores, and recesses. Built for accuracy and reliability, this depth gauge combines a smooth-travel digital indicator with a stable, long base to ensure consistent and repeatable results across a wide measurement range. Ideal for machining, tooling, metalworking, inspection, and workshop applications where dependable depth readings are essential.

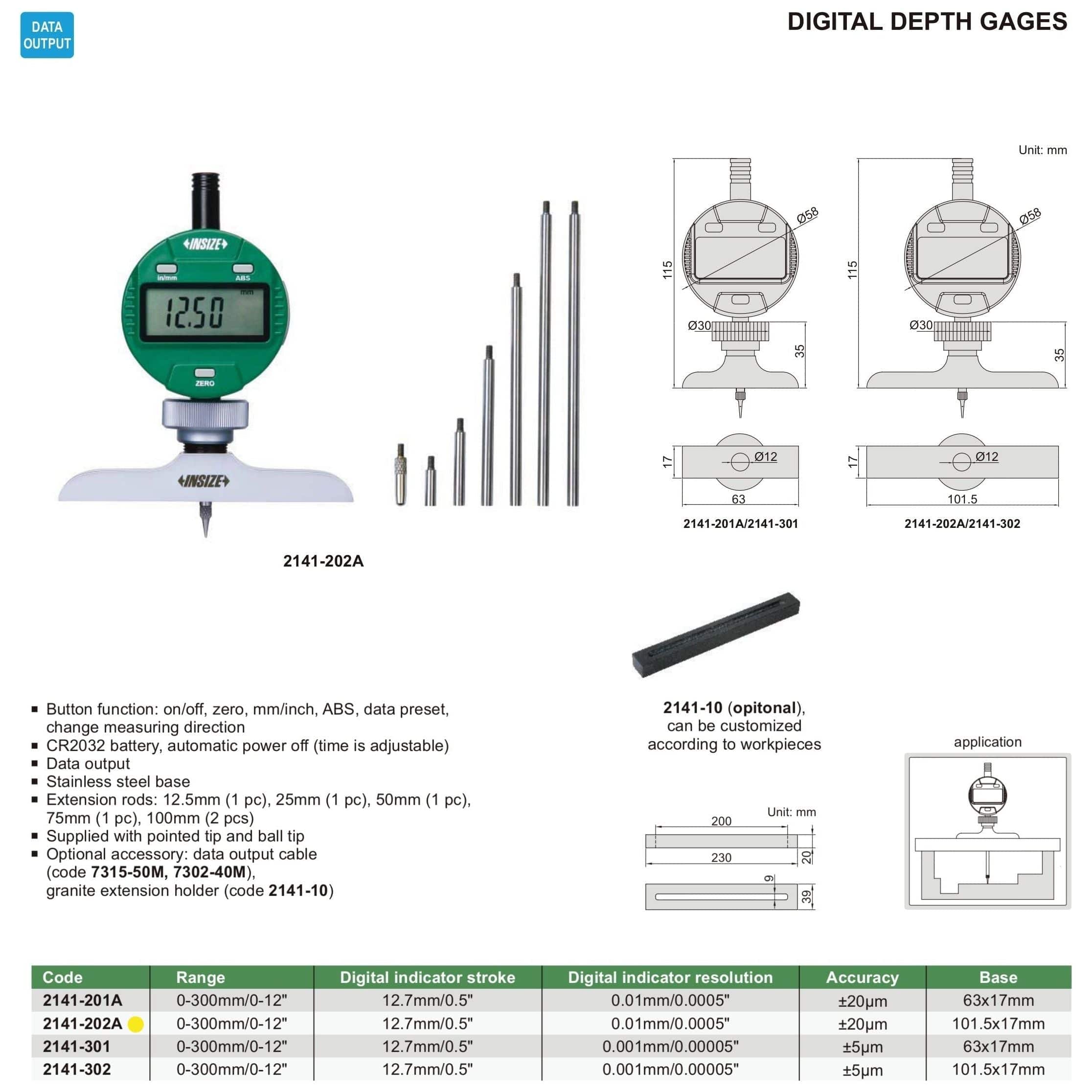

Specifications :
- Part no: 2141-202A
- Range: 0–300mm / 0–12"

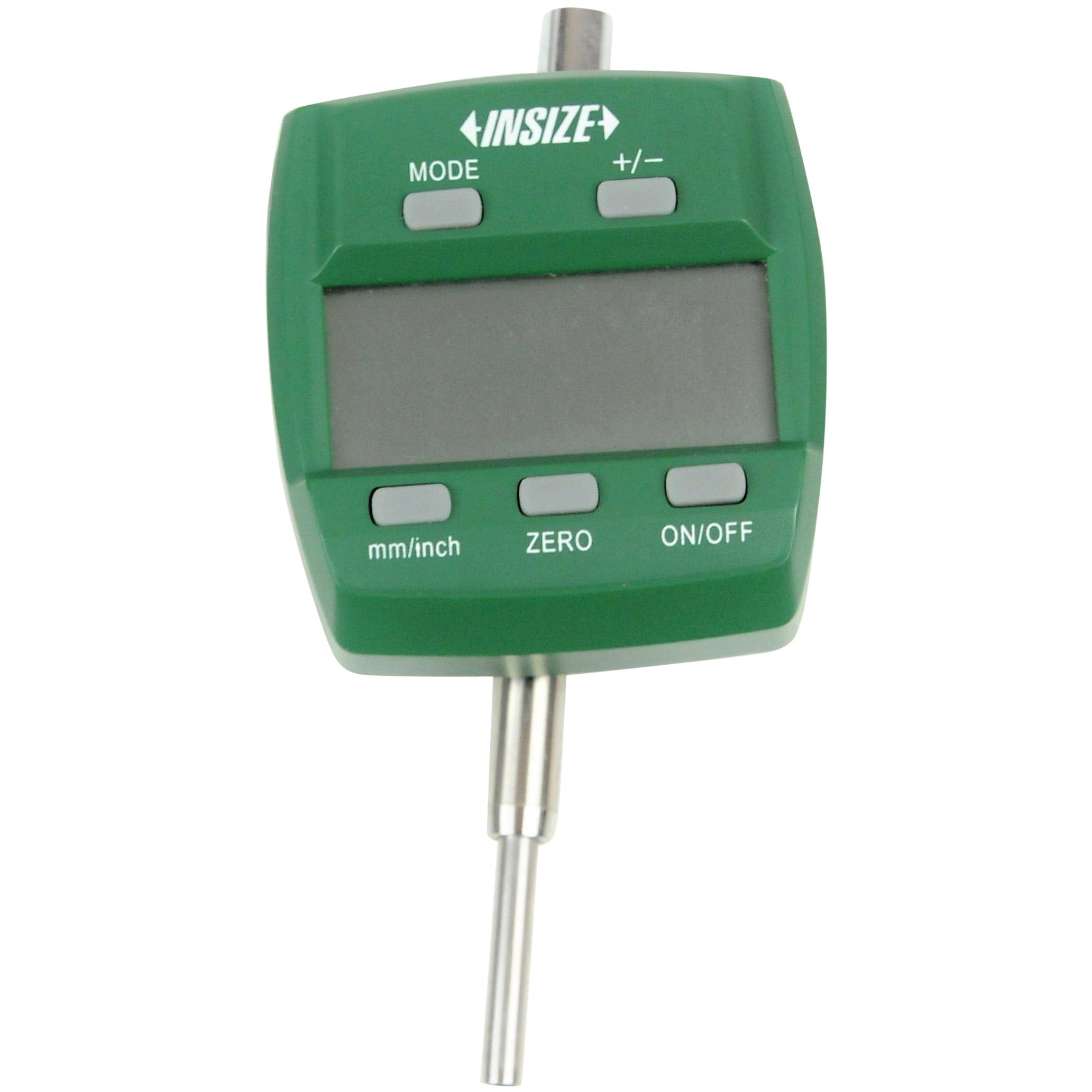

- Digital Indicator Stroke: 12.7mm / 0.5"
- Digital Indicator Resolution: 0.01mm / 0.0005"

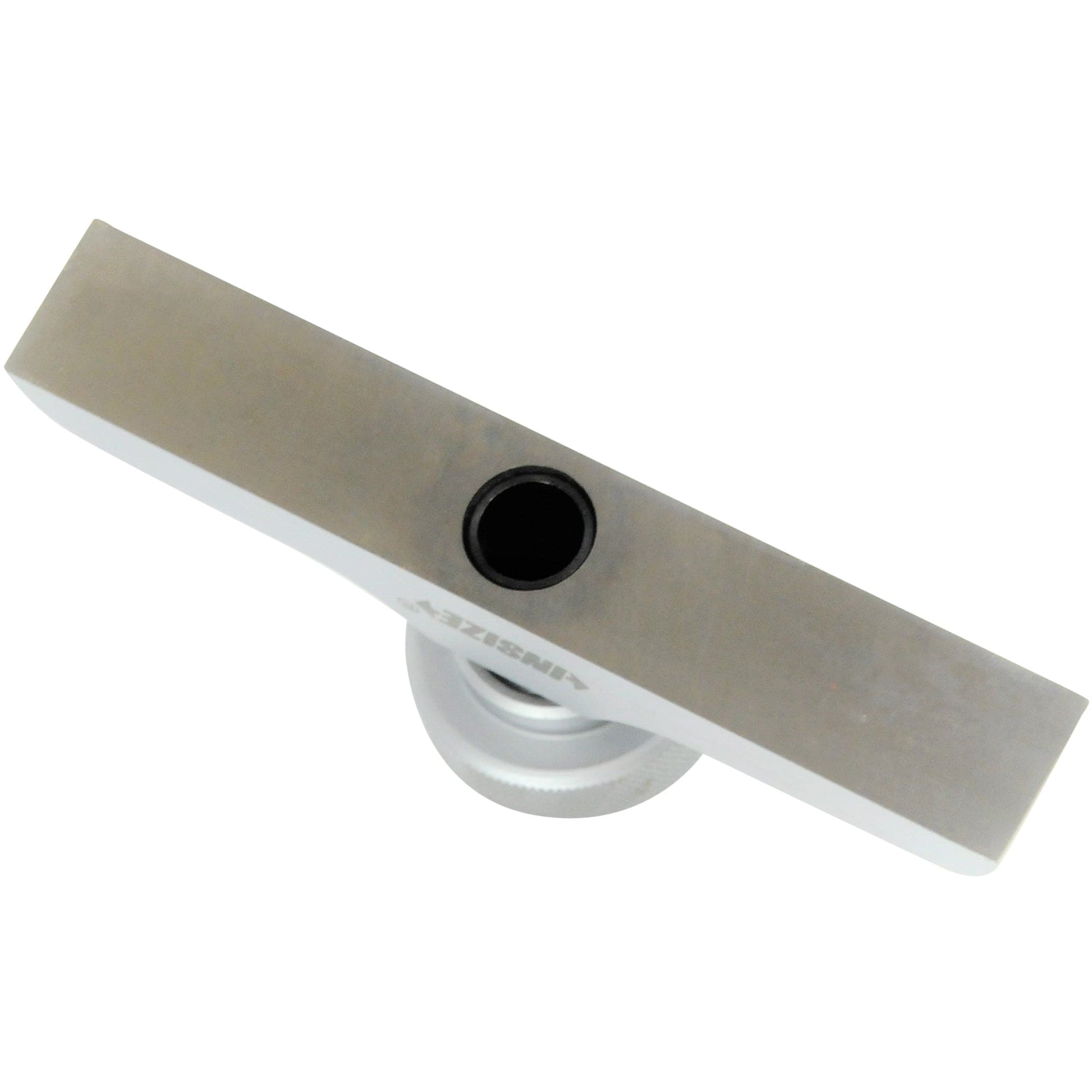

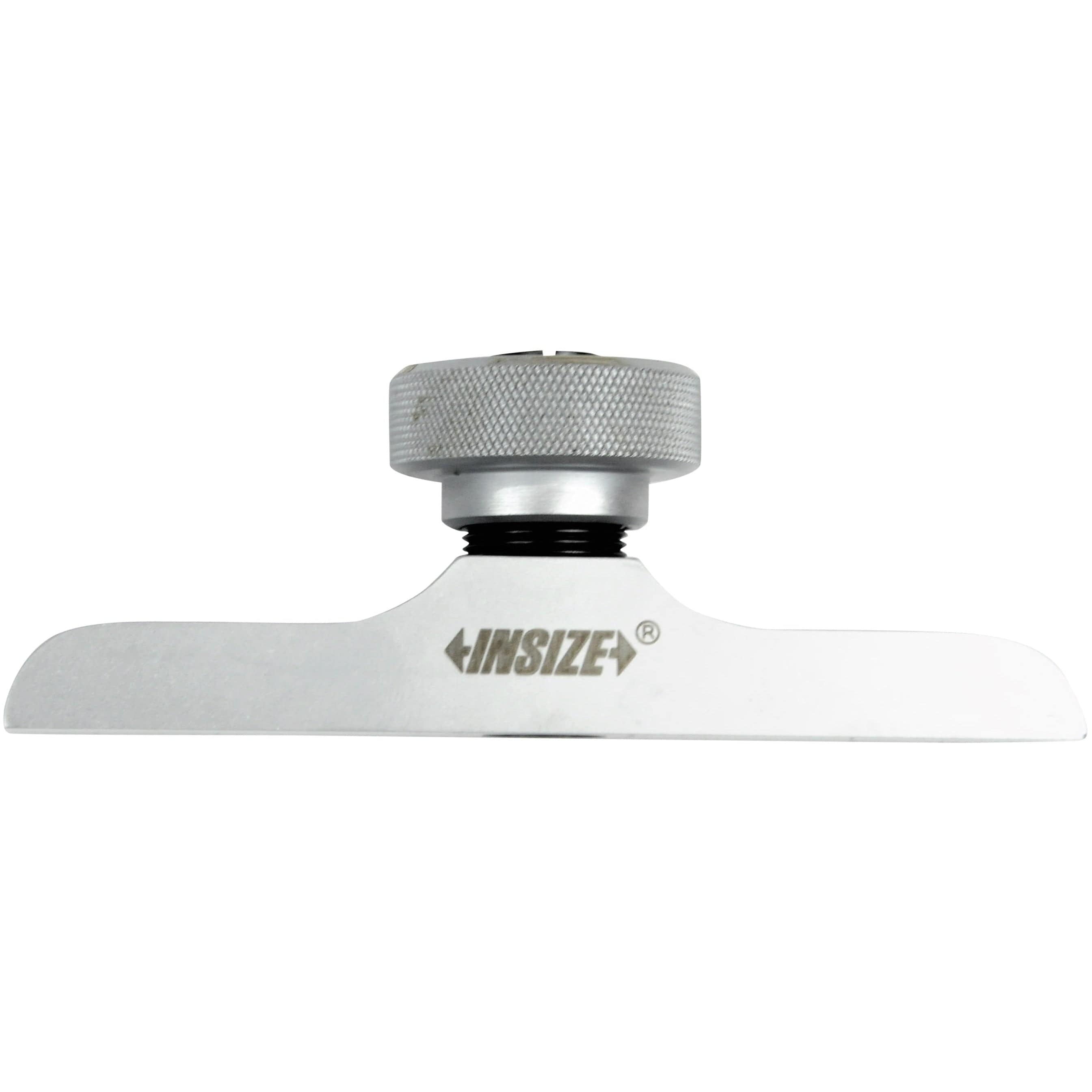

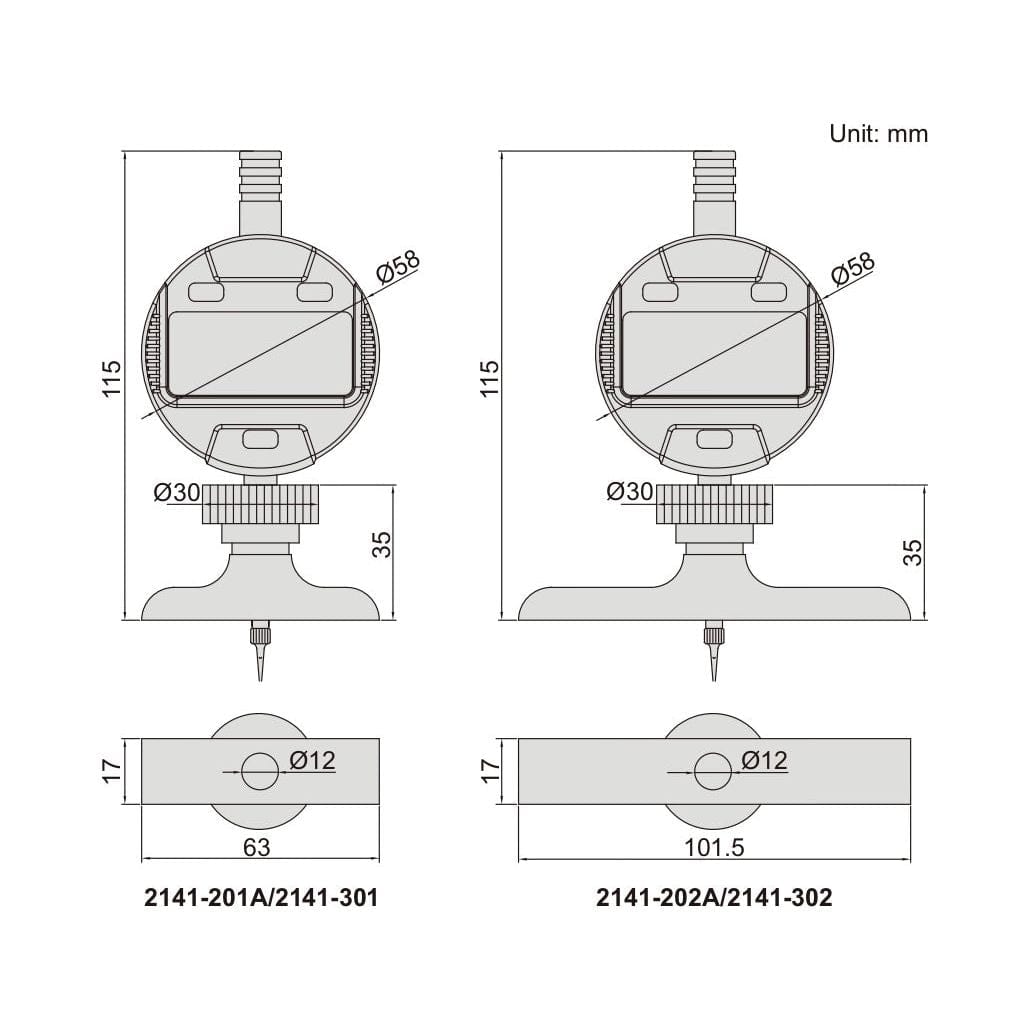

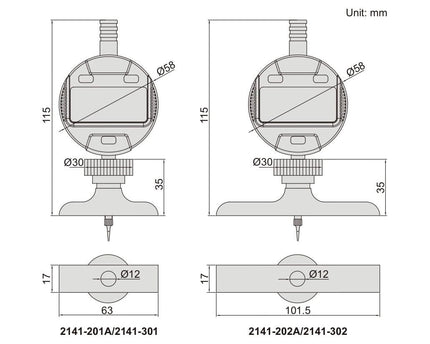

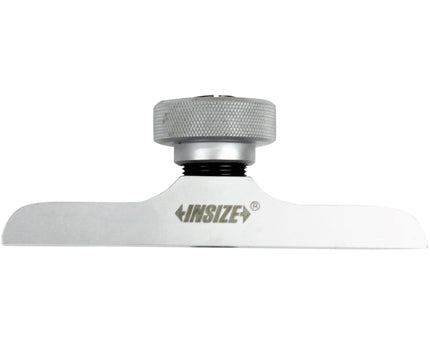

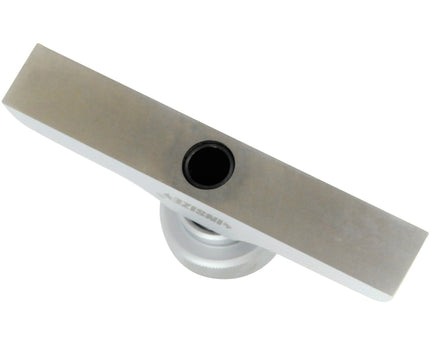

- Base Size: 63 × 17mm

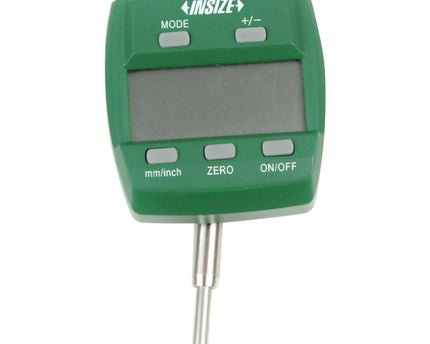

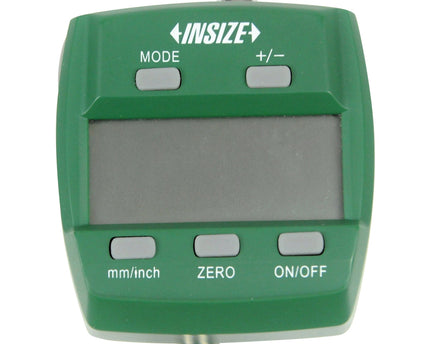

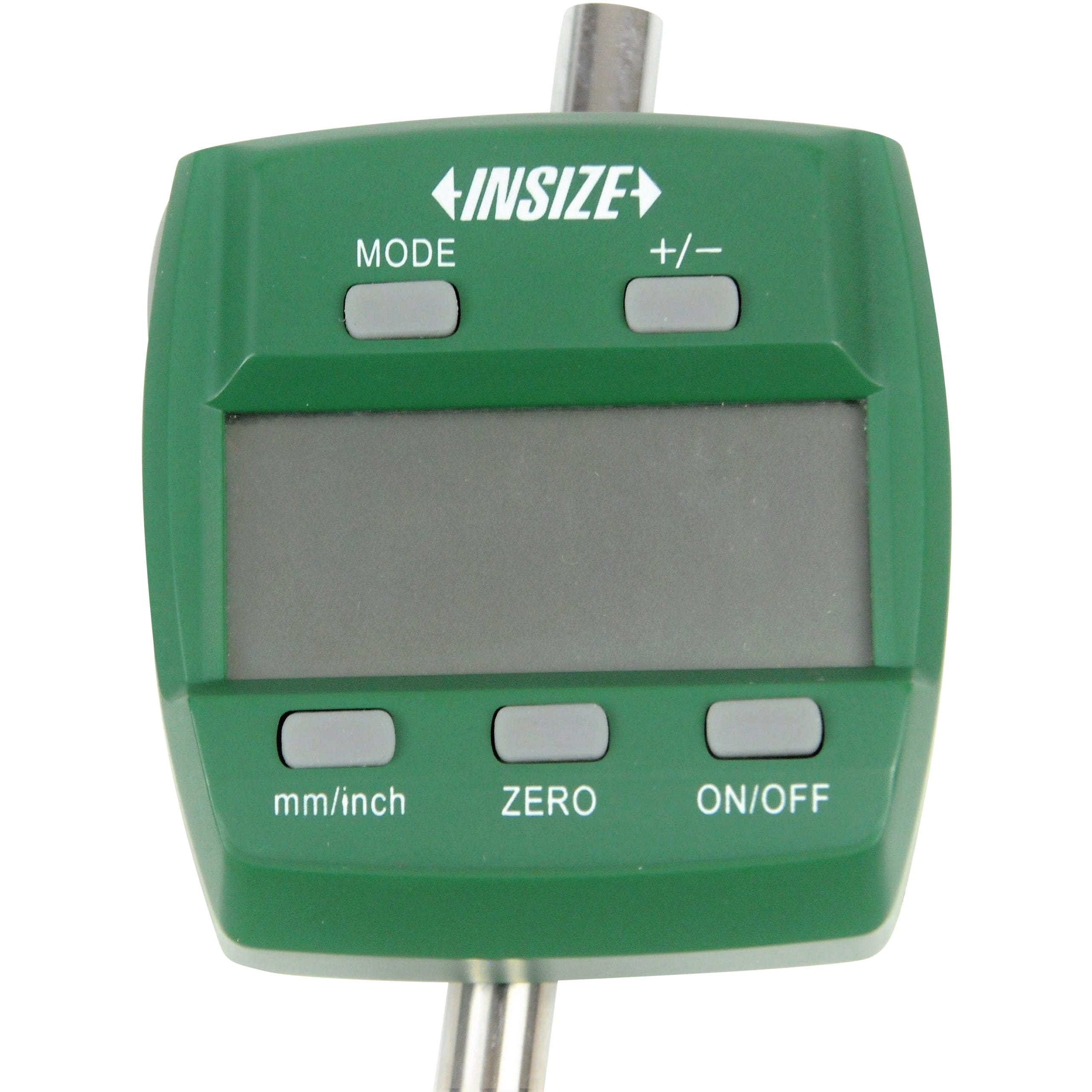

- Button functions: on/off, zero, inch/mm, ABS, data preset, change measuring direction

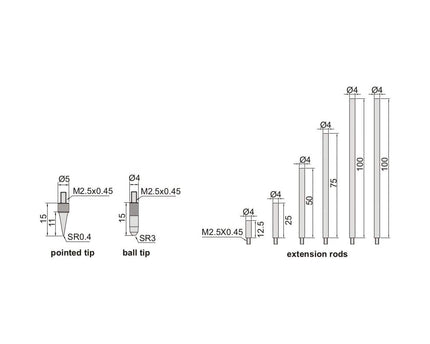

- Includes pointed tip and ball tip
- Go/No-Go tolerance display
- Max./min./range measurement
- Inch/metric conversion
- Absolute/incremental measurement
- Battery: CR2032 (automatic power off)
- Material: Stainless steel construction
- Optional: data output cable (no. 7306-40, 7302-SPC3A, 7305-SPC1A)

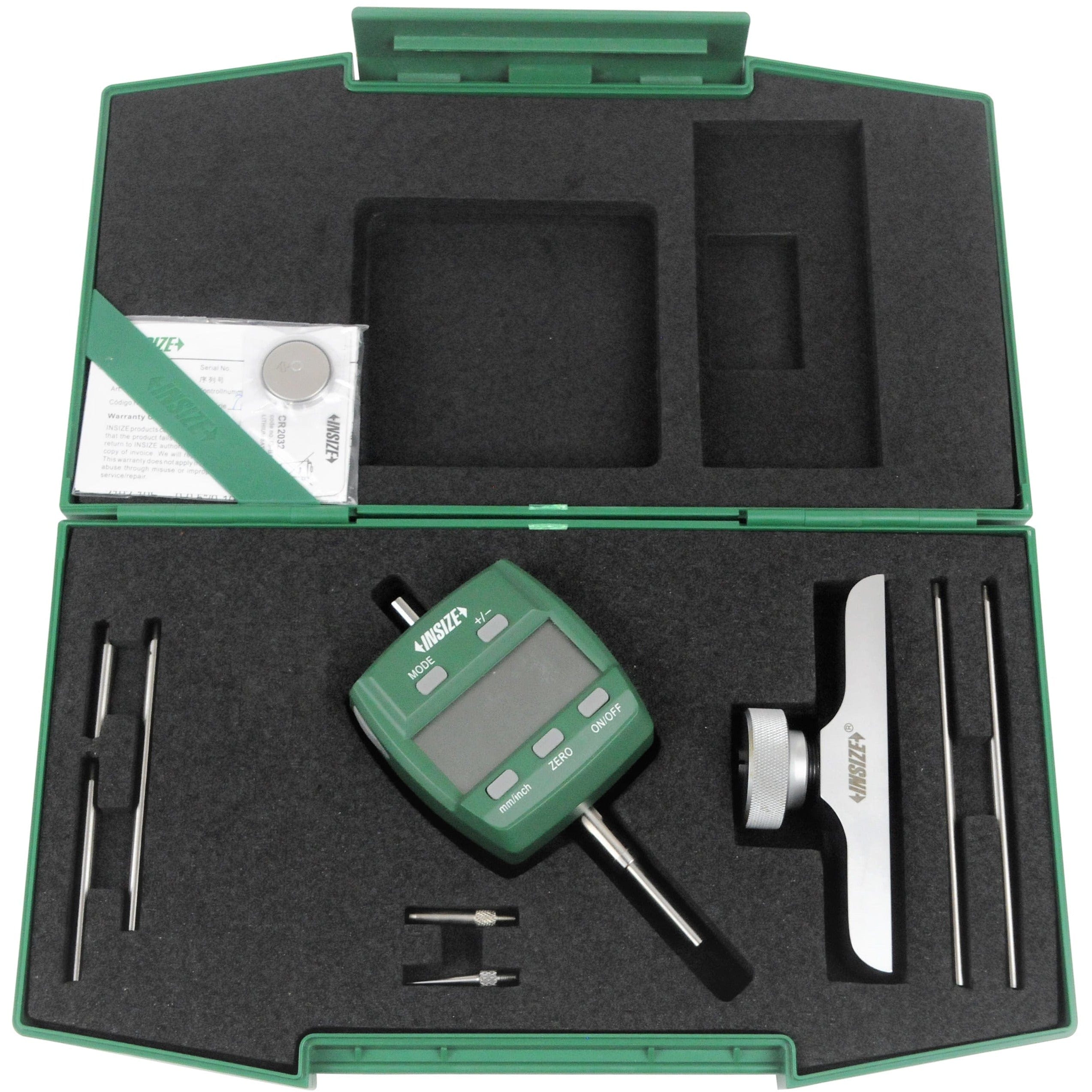

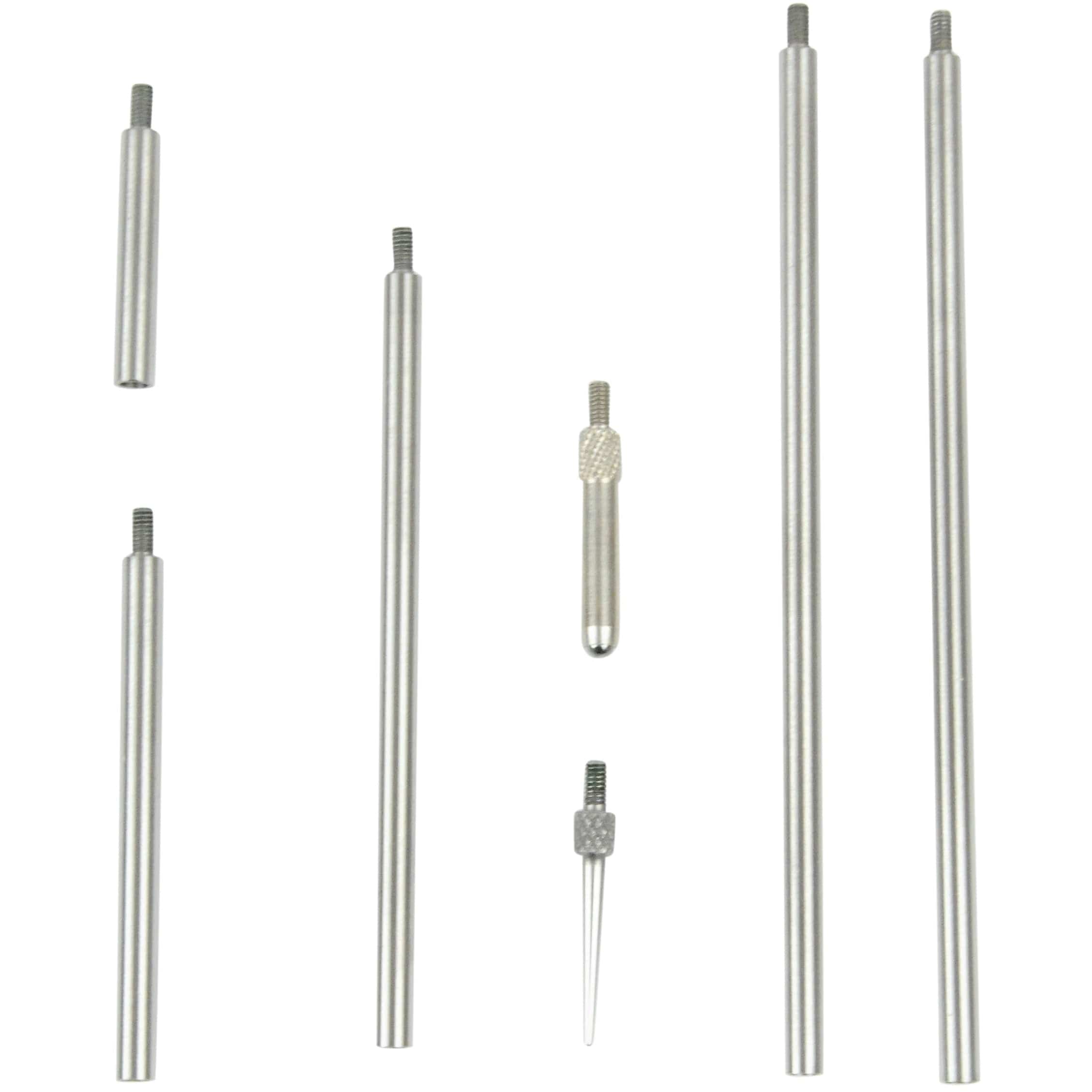

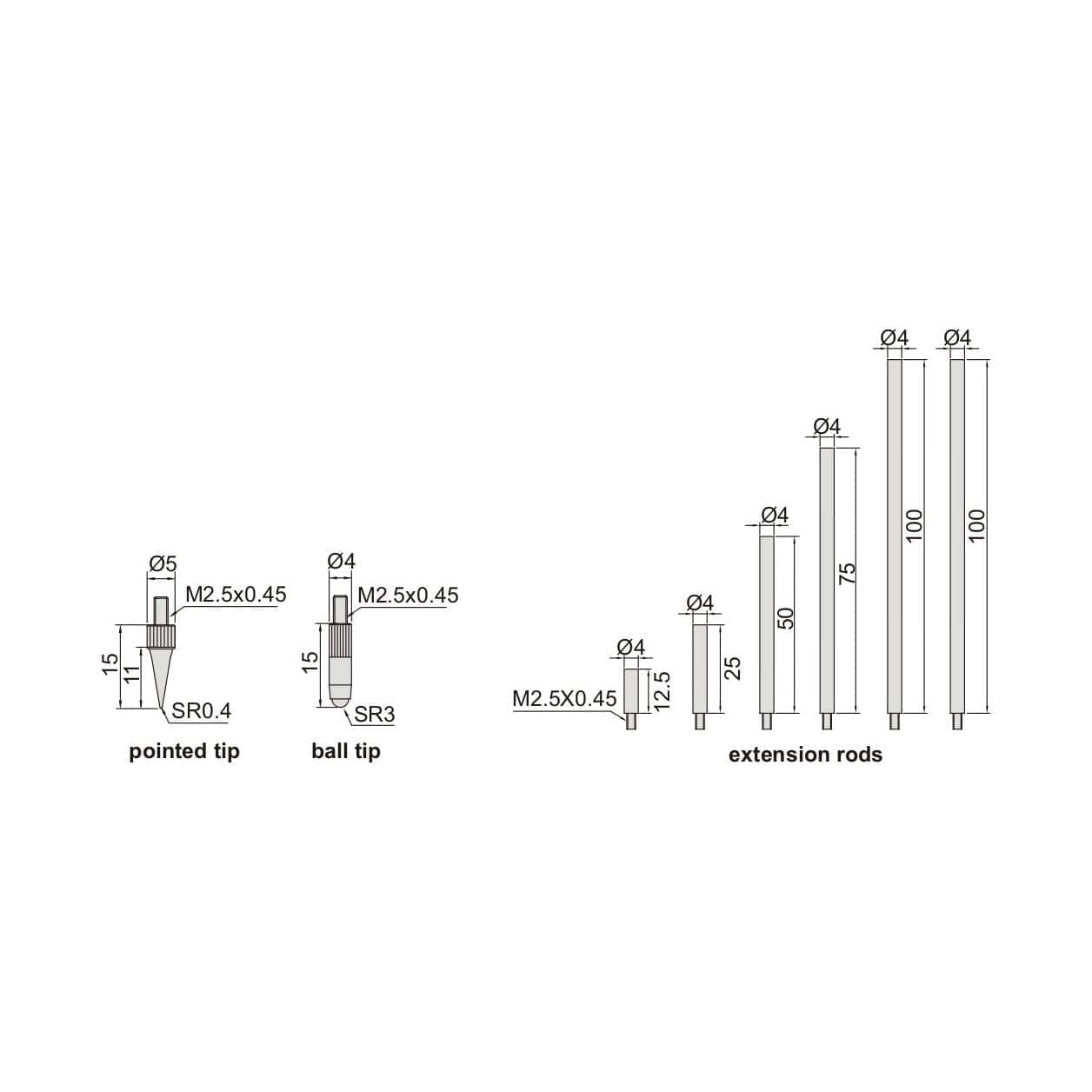

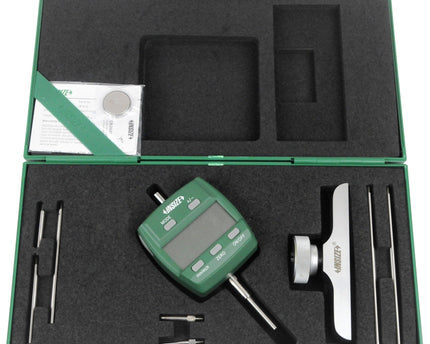

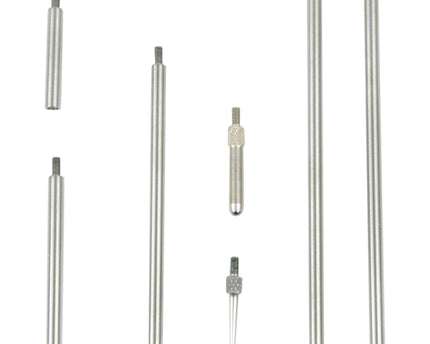

- Extension rods included: 12.5mm (1pc), 25mm (1pc), 50mm (1pc), 75mm (1pc), 100mm (2pcs)
Well-designed, durable, high-precision measuring tools suitable for a wide range of applications. This digital depth gauge provides stable positioning, smooth movement, and highly repeatable measurements, making it ideal for accurately determining depths in bores, recesses, grooves, and other machined features.
