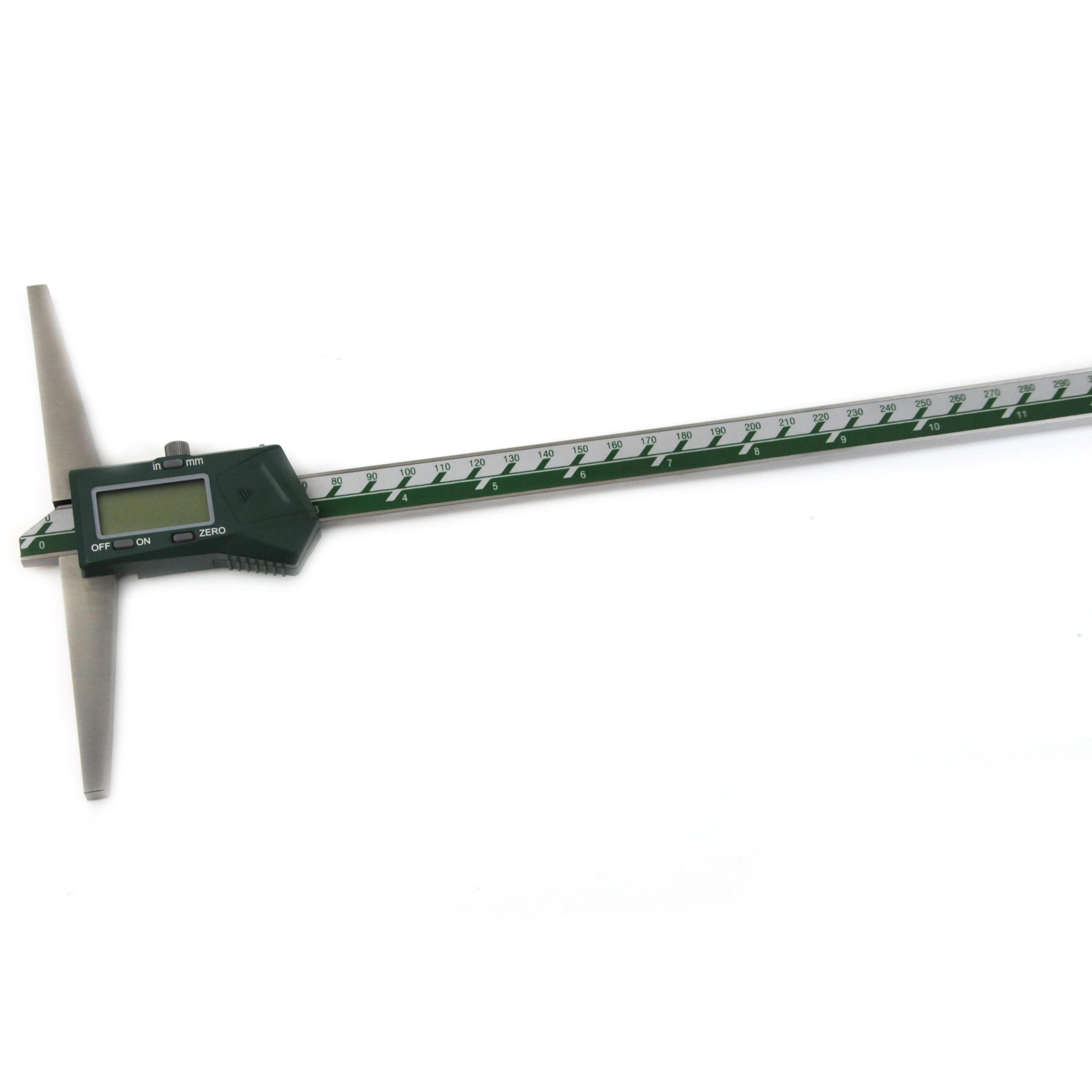

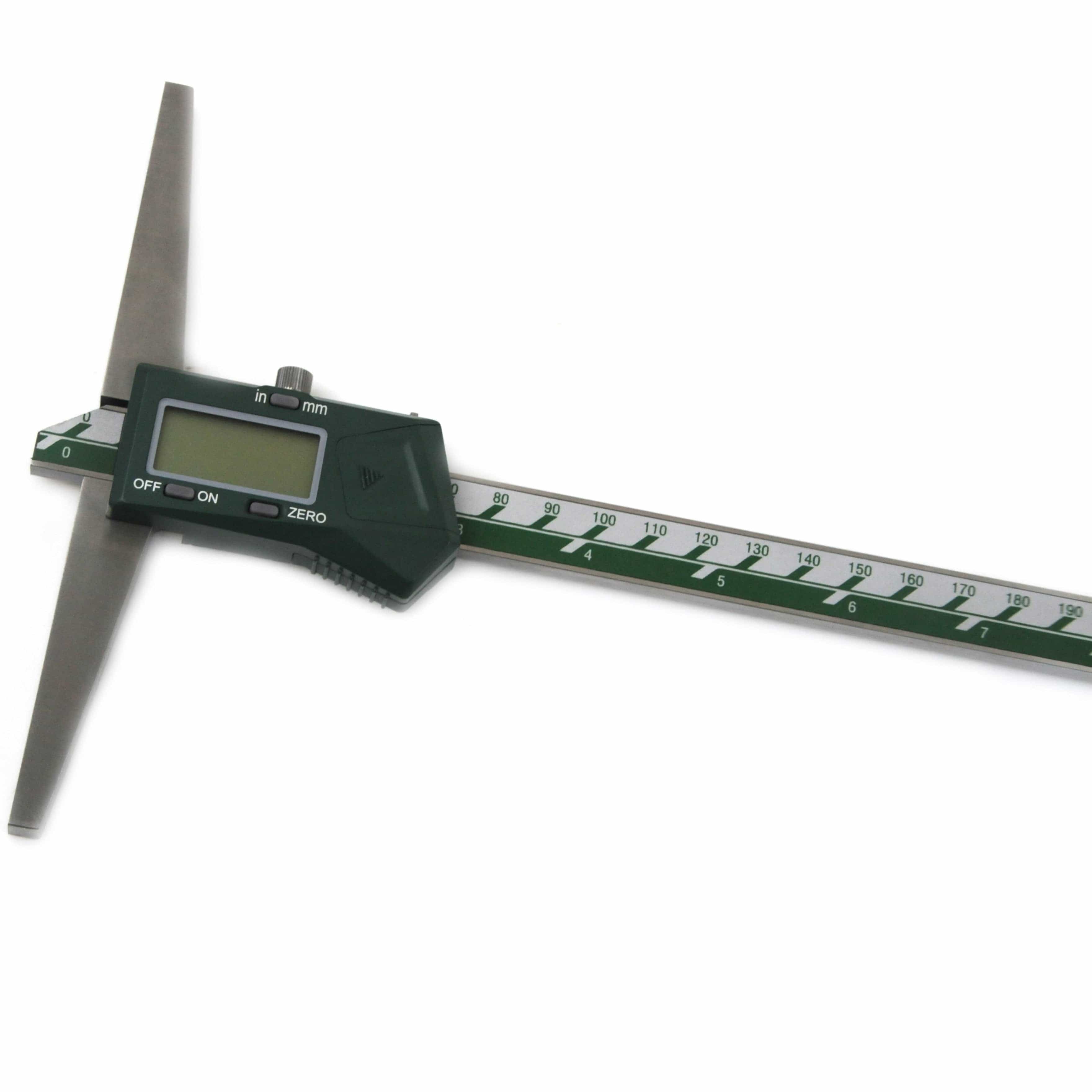

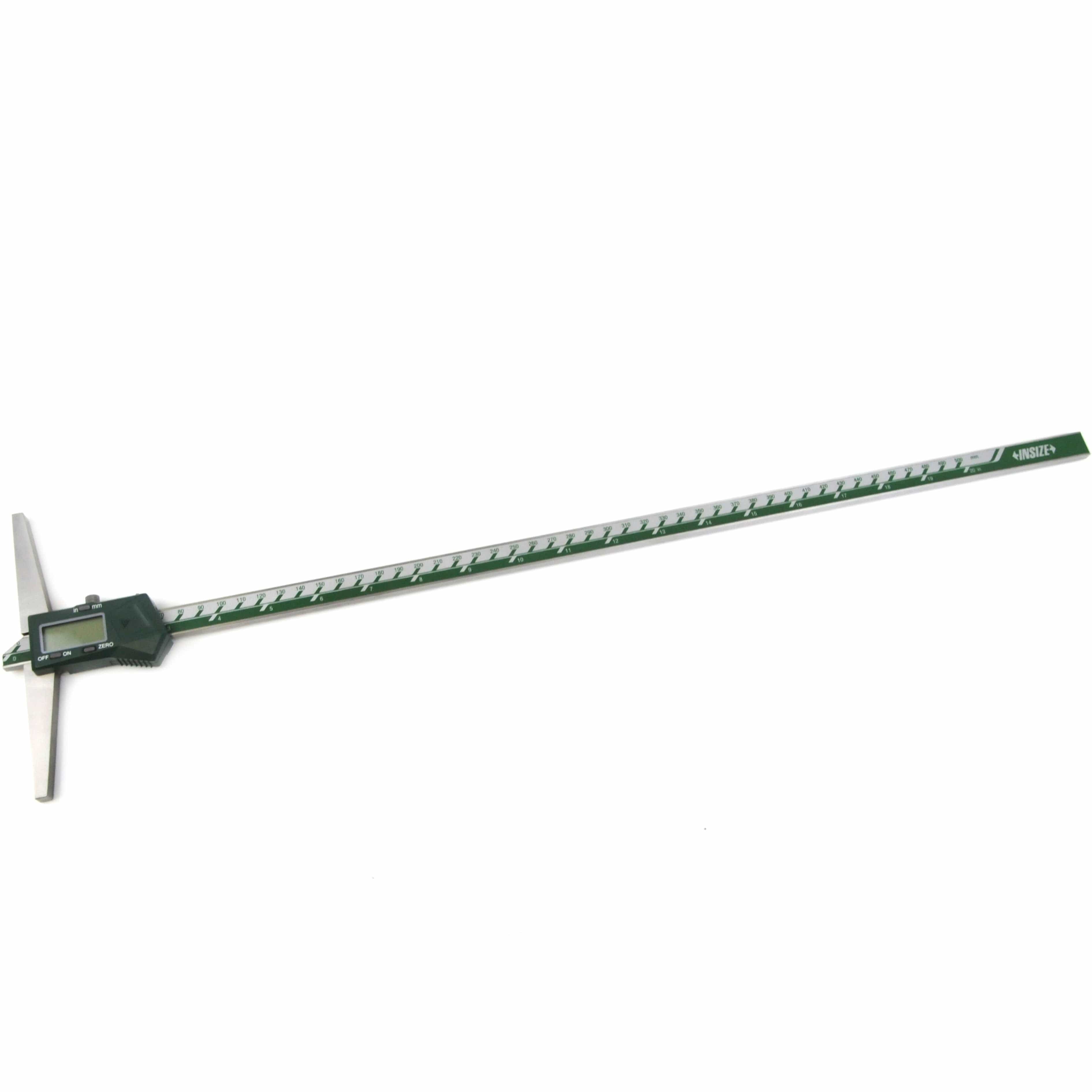

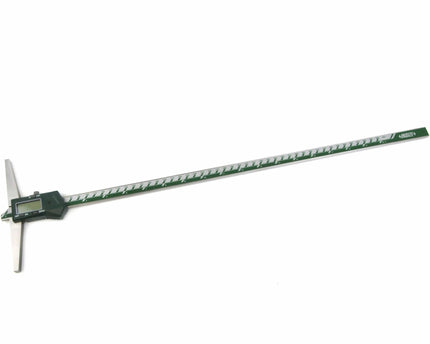

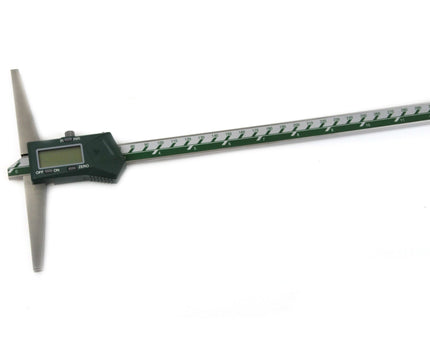

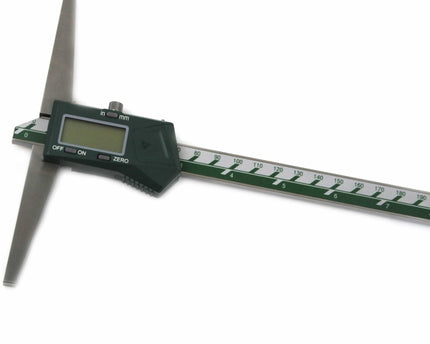

Insize 0–500 mm / 0–20" Digital Depth Gauge
A heavy-duty digital depth gauge designed for accurate measurement of bores, recesses, grooves, and blind holes across an extended 500 mm range. Constructed from stainless steel and equipped with a clear digital display, it delivers stable, precise performance for machining, inspection, metalworking, and general workshop applications.

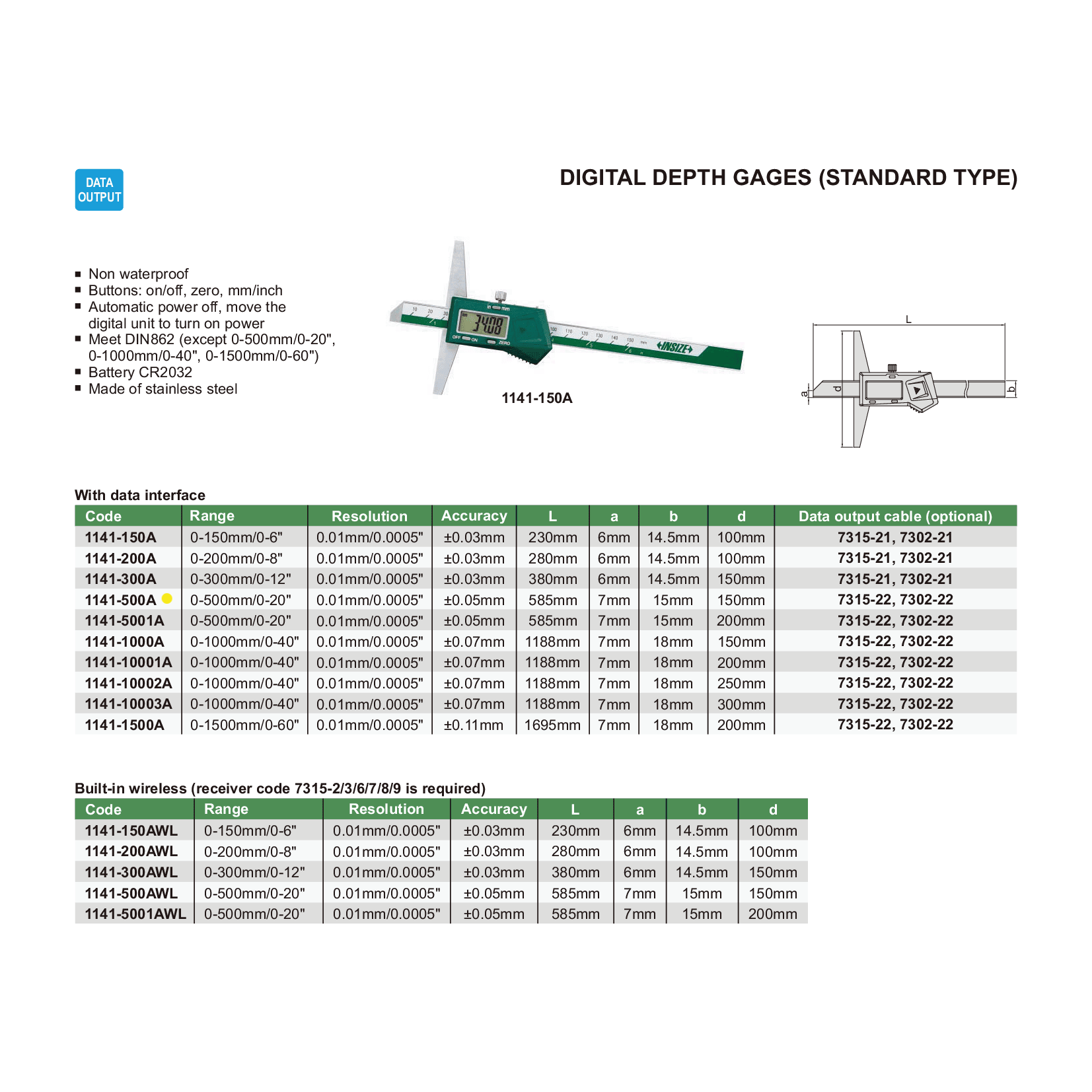

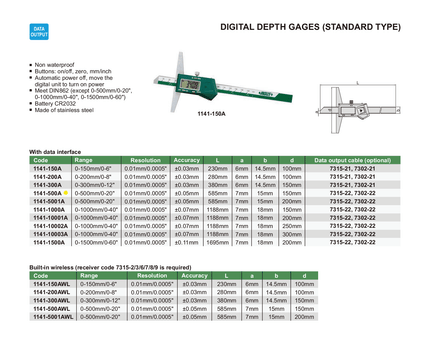

Specifications:
- Part No: 1141-500A
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.05 mm
- Range: 0–500 mm / 0–20"
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Power turns on when the digital unit is moved
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Optional Accessories: Data output cables (7306-20, 7302-SPC1A/SPC1B, 7305-SPC2), Extension base (6141)
Reliable, precise, and easy to operate, the Insize Digital Depth Gauge is ideal for ensuring accurate depth measurements in industrial, machining, and quality-control environments.
