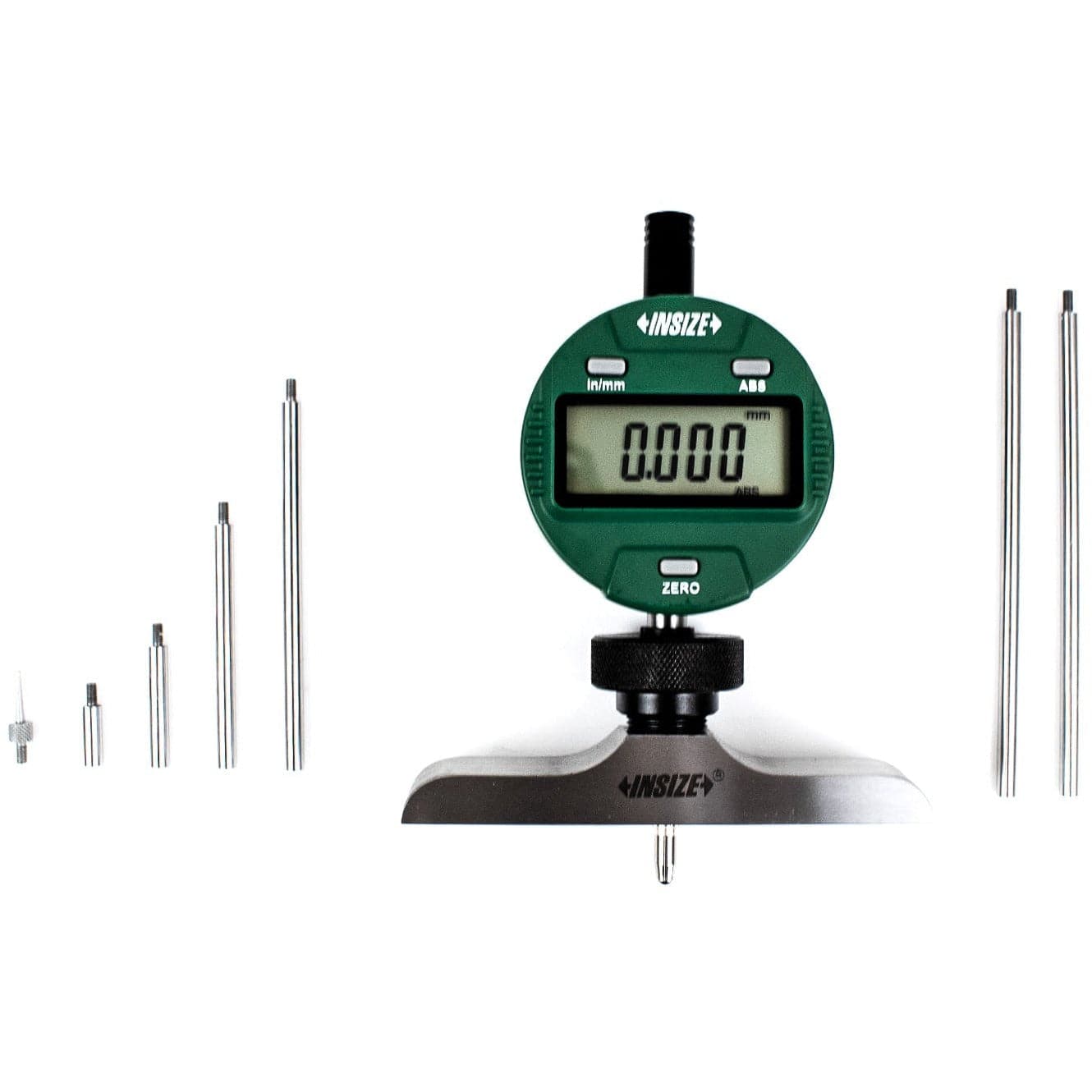

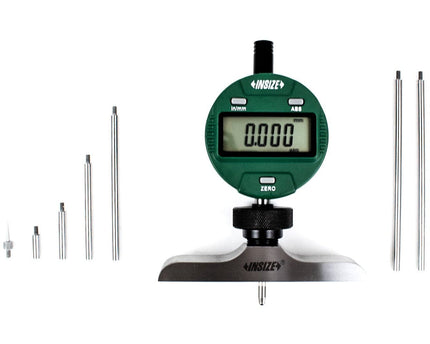

Insize Digital Depth Gauge (Long Base Style)
This Insize long-base digital depth gauge is engineered for precise measurement of bores, recesses, slots, and blind holes. Featuring a stable stainless steel base and a high-accuracy digital indicator, it delivers smooth movement, clear reading, and reliable repeatability in workshop, machining, and inspection environments. The extended base design provides excellent stability when measuring across wide surfaces or irregular features.

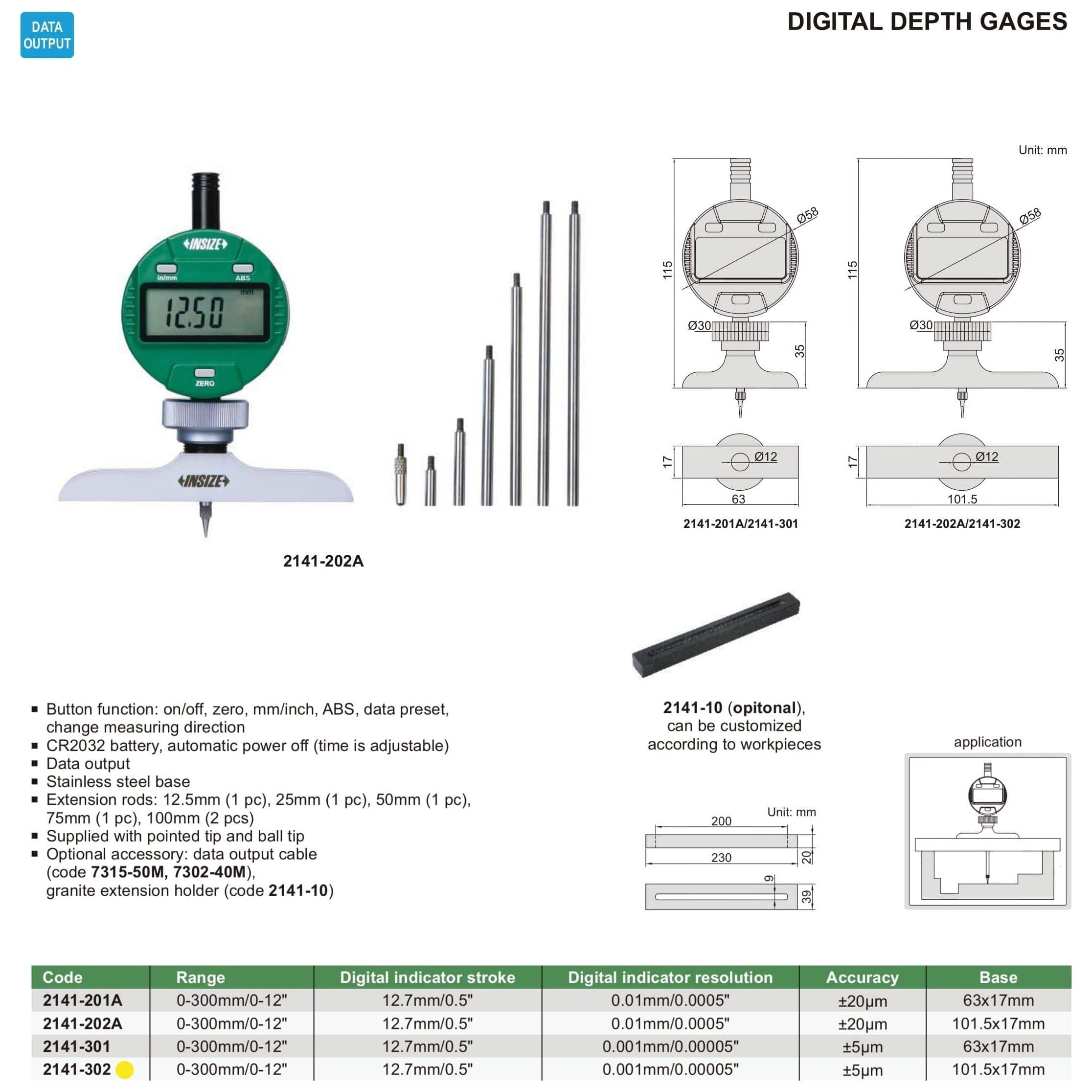

Specifications :
- Part no: 2141-302
- Range: 0-300mm / 0-12"
- Digital Indicator Stroke: 12.7mm / 0.5"
- Digital Indicator Resolution: 0.01mm / 0.0005"

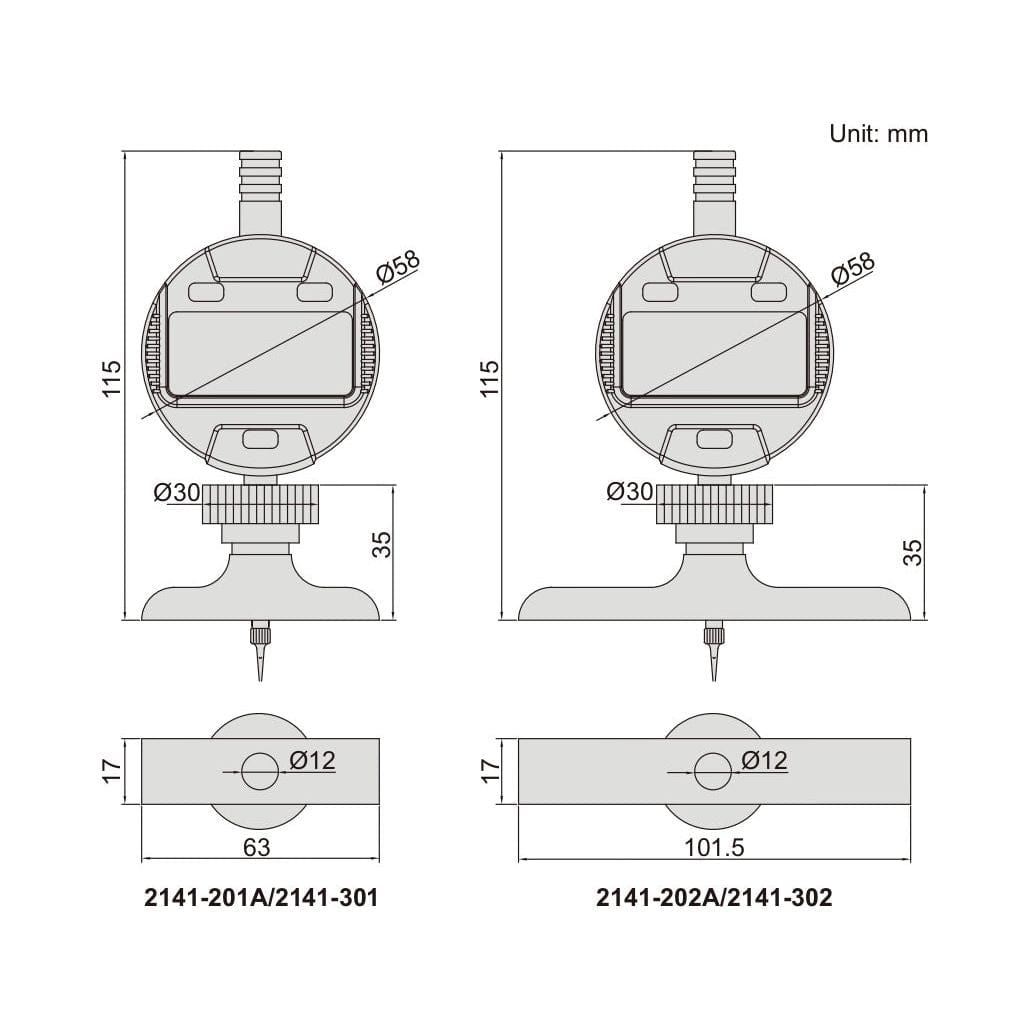

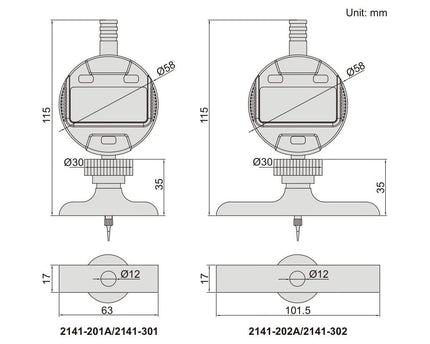

- Base Size: 101.5 × 17mm
- Button function: on/off, zero, mm/inch, ABS, data preset, change measuring direction
- CR2032 battery, automatic power off
- Data output
- Stainless steel base

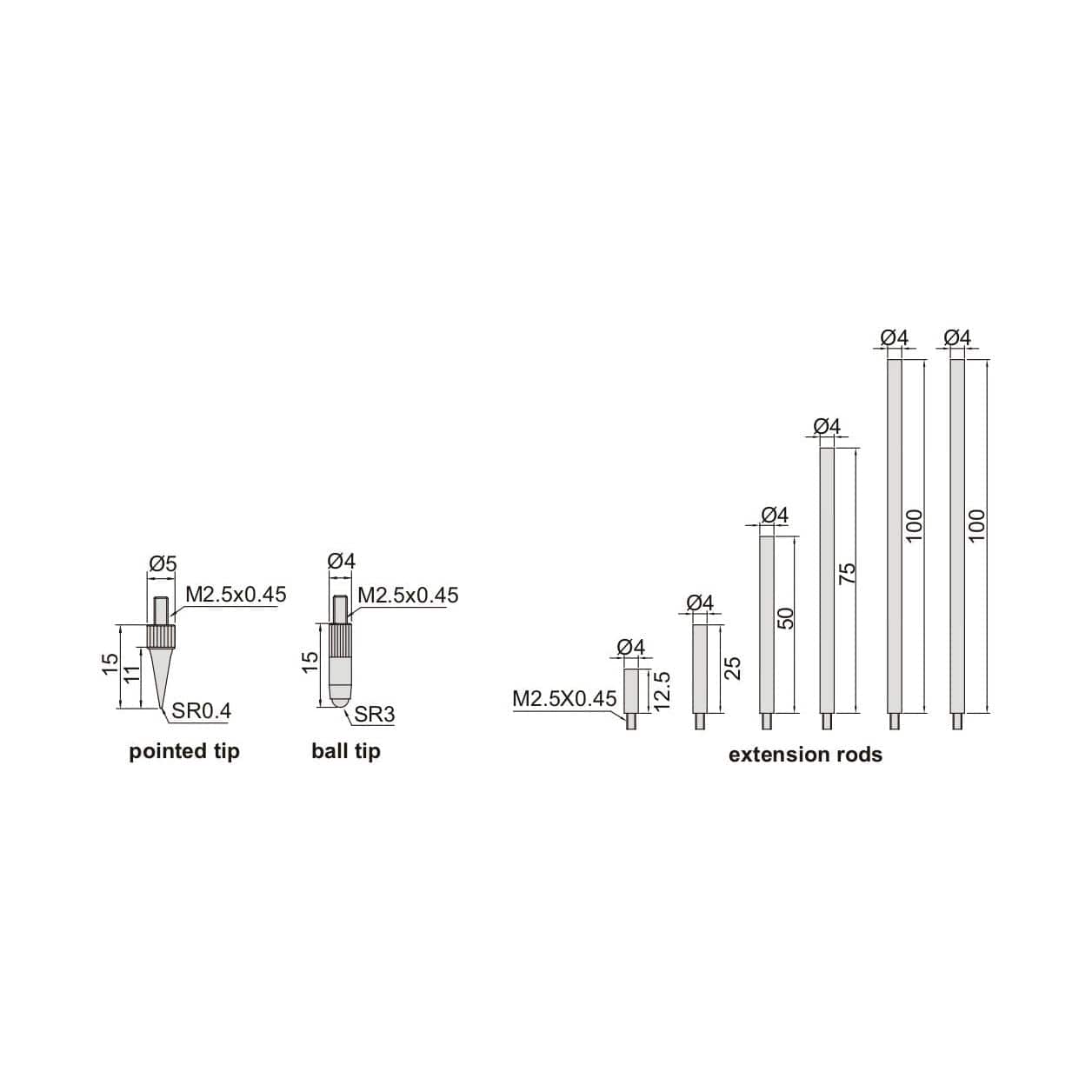

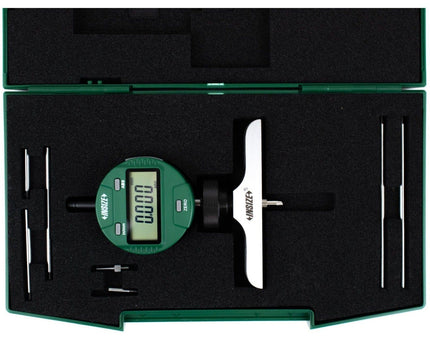

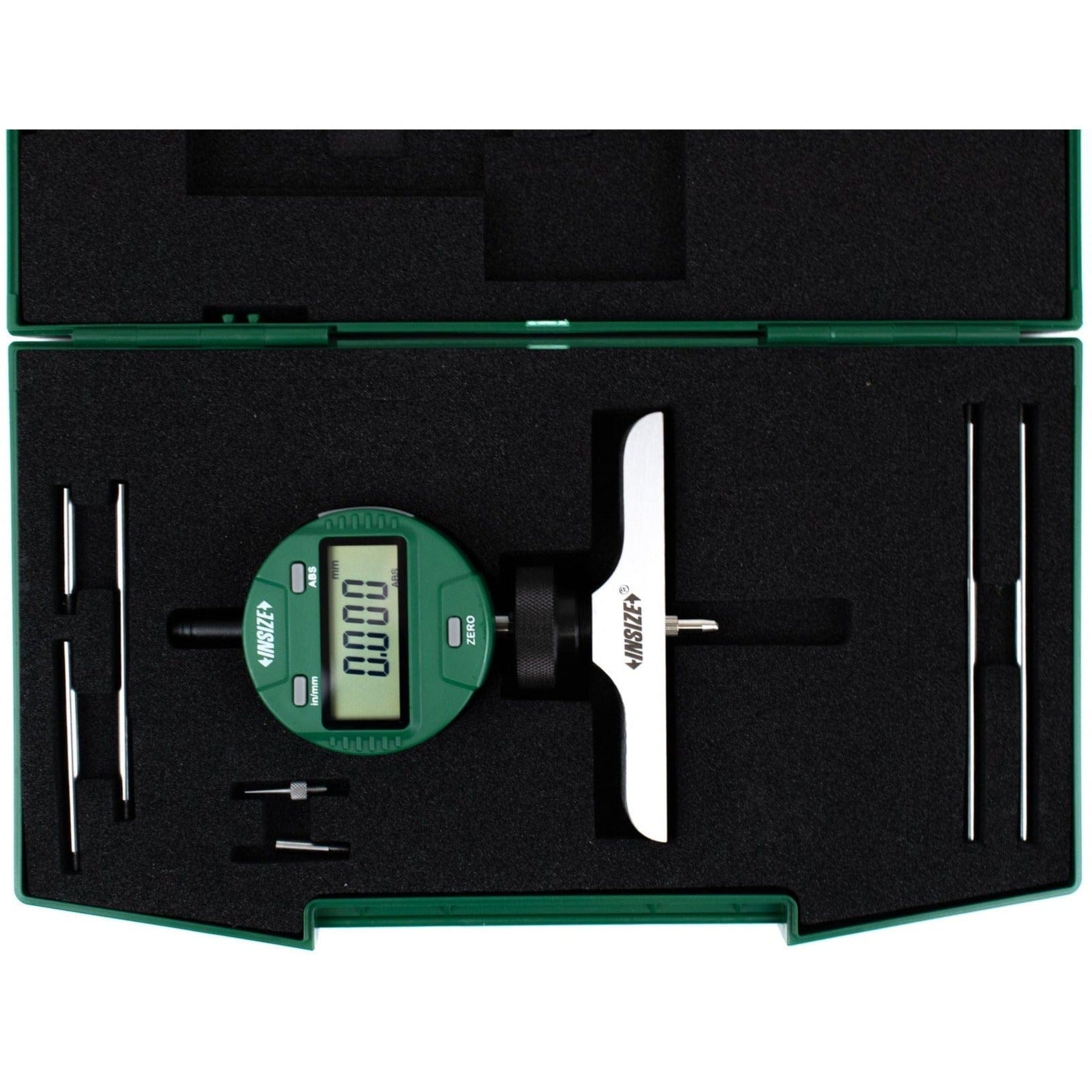

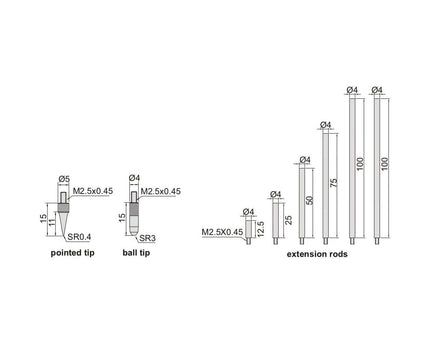

- Extension rods included: 12.5mm (1pc), 25mm (1pc), 50mm (1pc), 75mm (1pc), 100mm (2pcs)
- Supplied with a pointed tip and a ball tip
- Optional accessory: data output cable (code 7315-50M, 7302-40M), granite extension holder (code 2141-10)
Well-designed, durable, and highly precise, this digital depth gauge is ideal for a wide range of dimensional inspection tasks. The rotary display, smooth action, and interchangeable extension rods make it easy to set, position, and read measurements in demanding workshop applications.
