Description

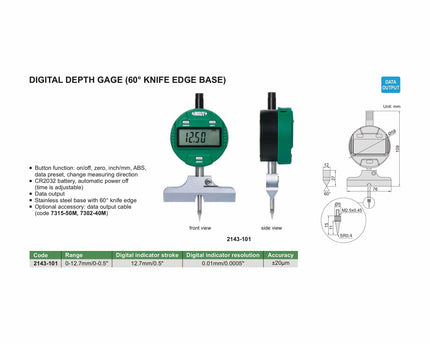

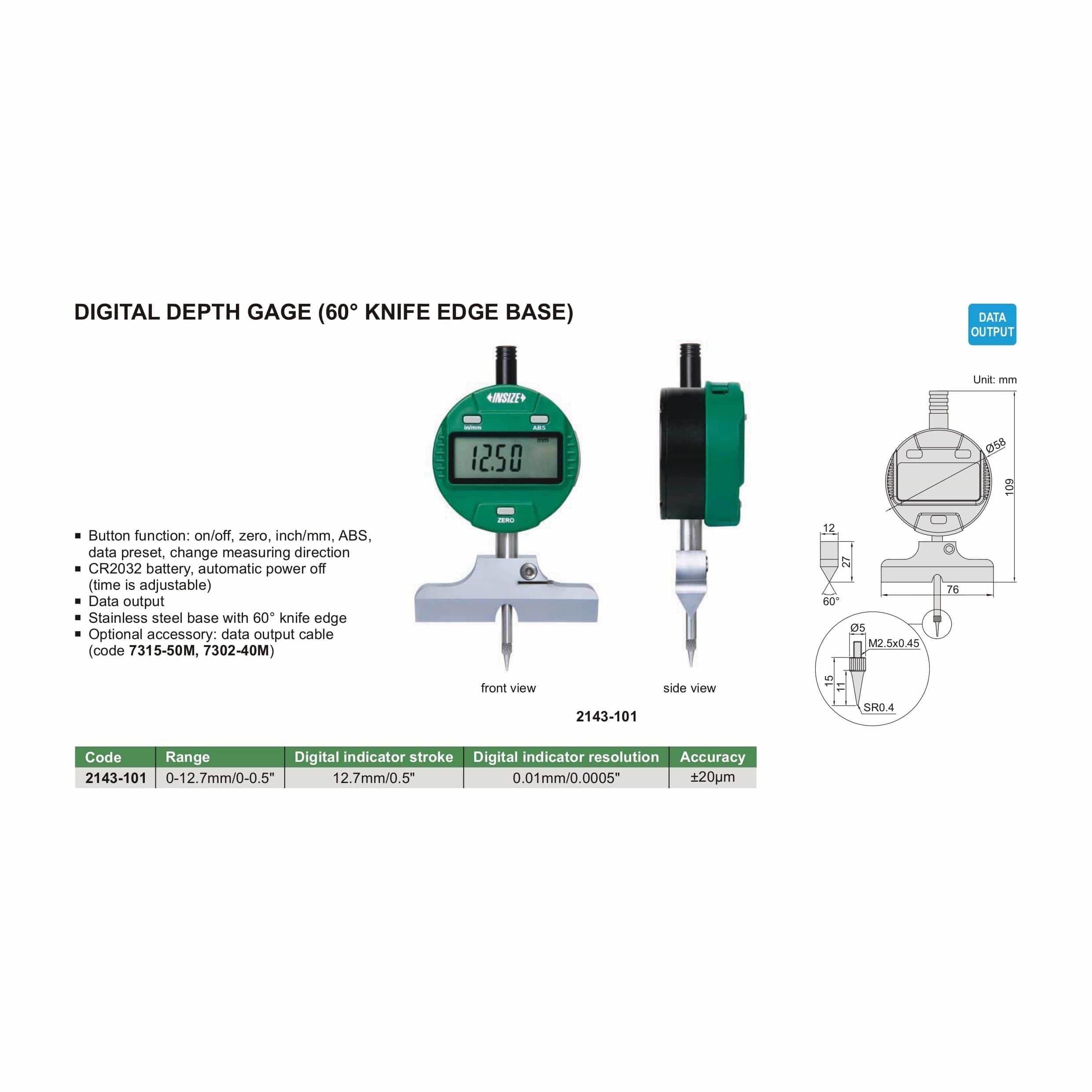

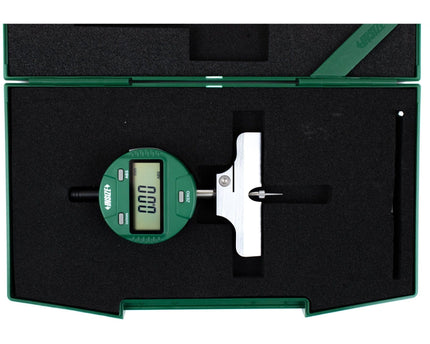

Insize Digital Depth Gauge (60° Knife Edge Base)

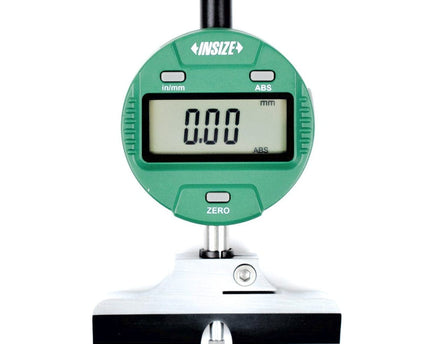

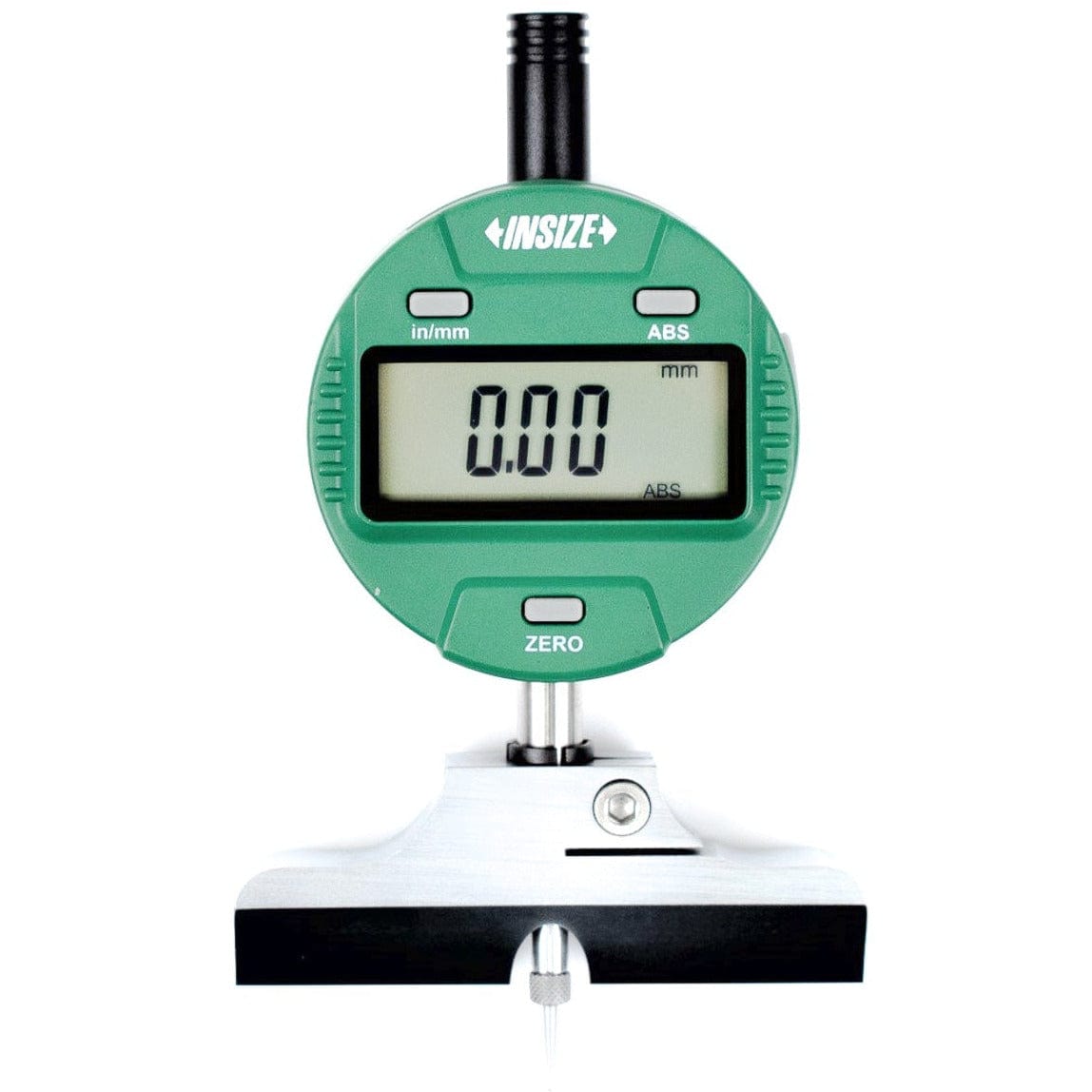

The Insize 2143-101 Digital Depth Gauge is engineered for precision measurement of narrow grooves, recesses, and small internal features. Its 60° knife-edge base allows accurate access into tight or angled spaces, while the digital indicator provides clear, reliable readings for both metric and imperial applications. Designed for smooth operation and ease of use, it delivers dependable performance in workshop, machining, and inspection environments.
Specifications :
- Part no: 2143-101
- Range: 0–12.7mm / 0.5"
- Digital indicator stroke: 12.7mm / 0.5"
- Digital indicator resolution: 0.01mm / 0.0005"
- Button function: on/off, zero, inch/mm, ABS, data preset, change measuring direction
- Automatic power off
- Battery: CR2032
- Data output

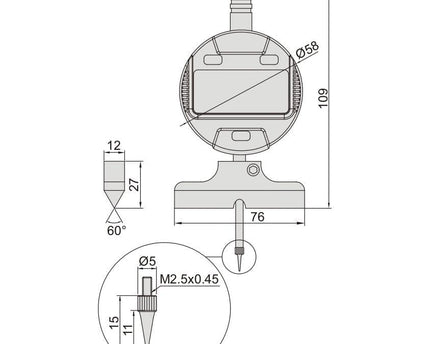

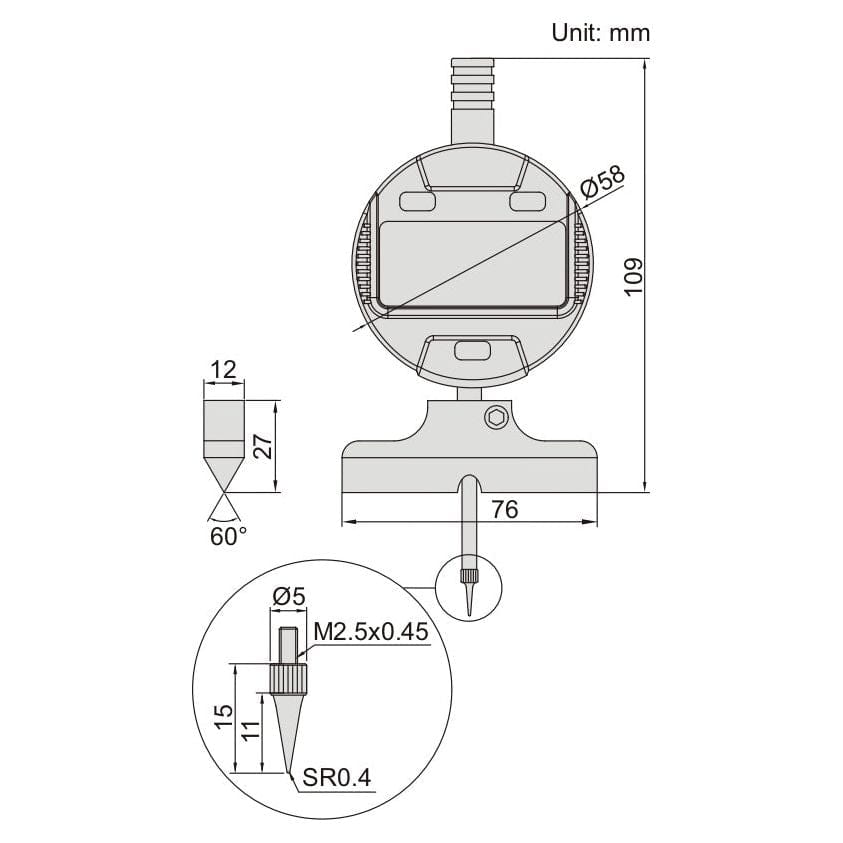

- Stainless steel base with 60° knife edge
- Optional accessory: data output cable (code 7315-50M, 7302-40M)
Well-designed, durable, high-precision tools suitable for a wide variety of measuring applications. This digital depth gauge is easy to use and provides accurate measurement of depths and internal features, especially where a knife-edge base offers improved accessibility.
