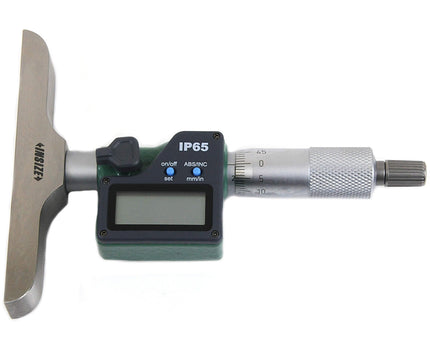

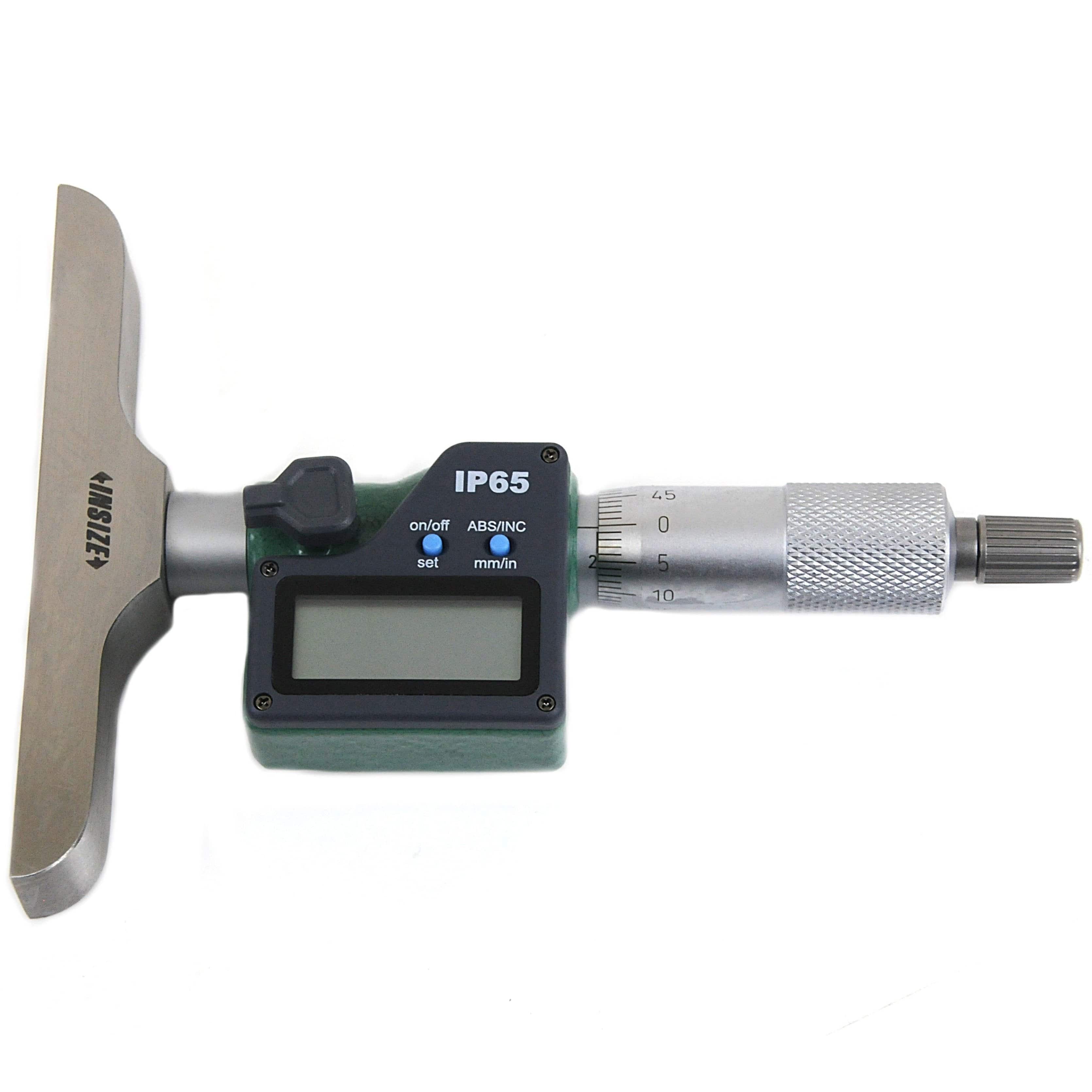

Insize Digital Depth Micrometer with Support 0–150mm
The Insize Digital Depth Micrometer with Support 0–150mm is a high-precision measuring instrument designed for accurate depth measurement of holes, slots, steps, and recesses. Featuring a stable, supported base and digital micrometer head, it provides excellent repeatability and ease of use in machining, inspection, and quality control environments.
Key Features:
-

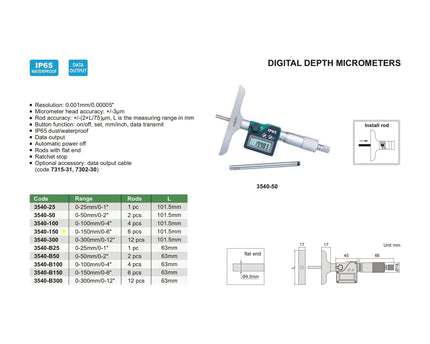

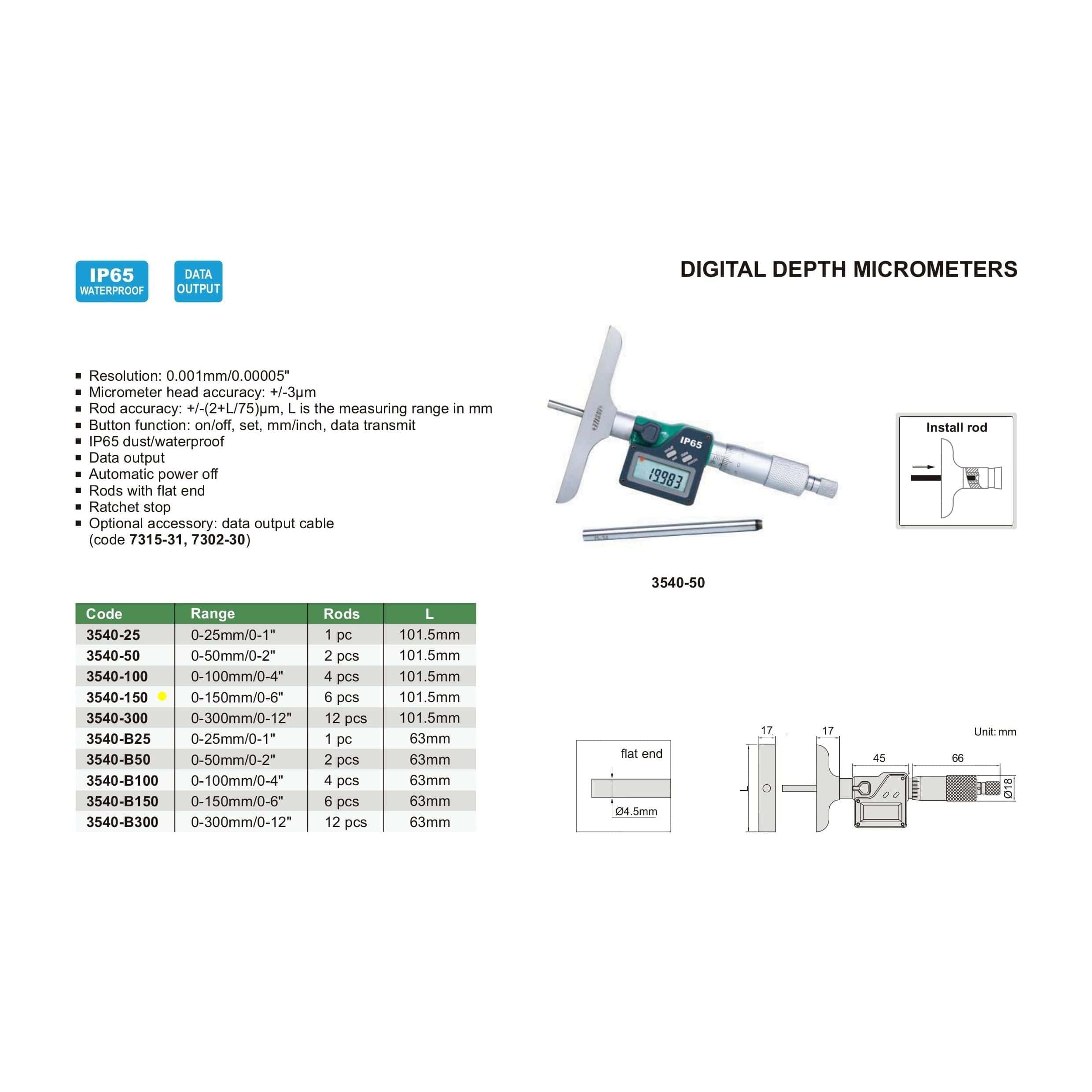

Part Number: 3540-150
-
Measuring Range: 0–150mm / 0–6"
-

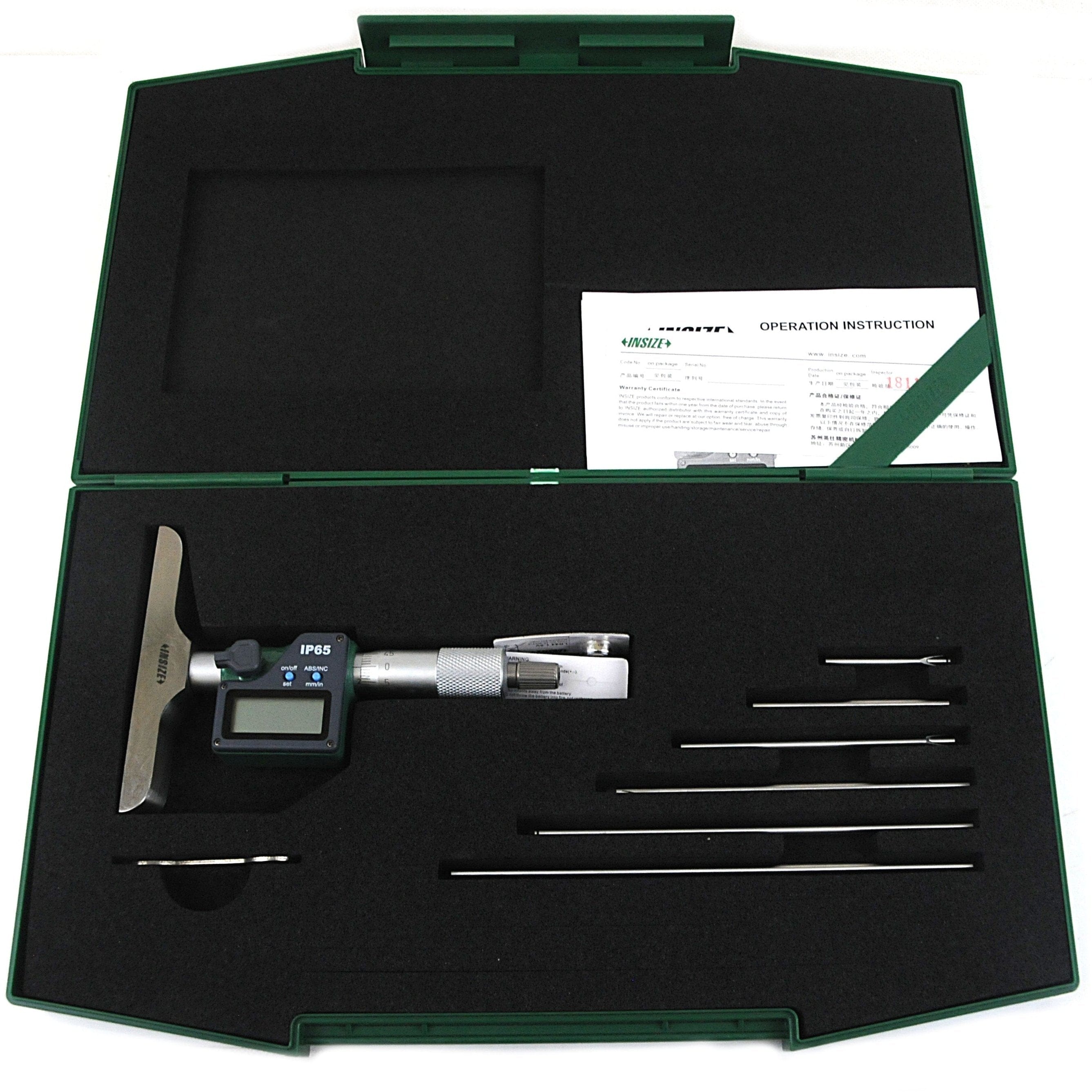

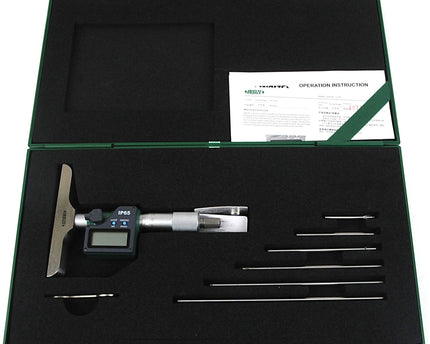

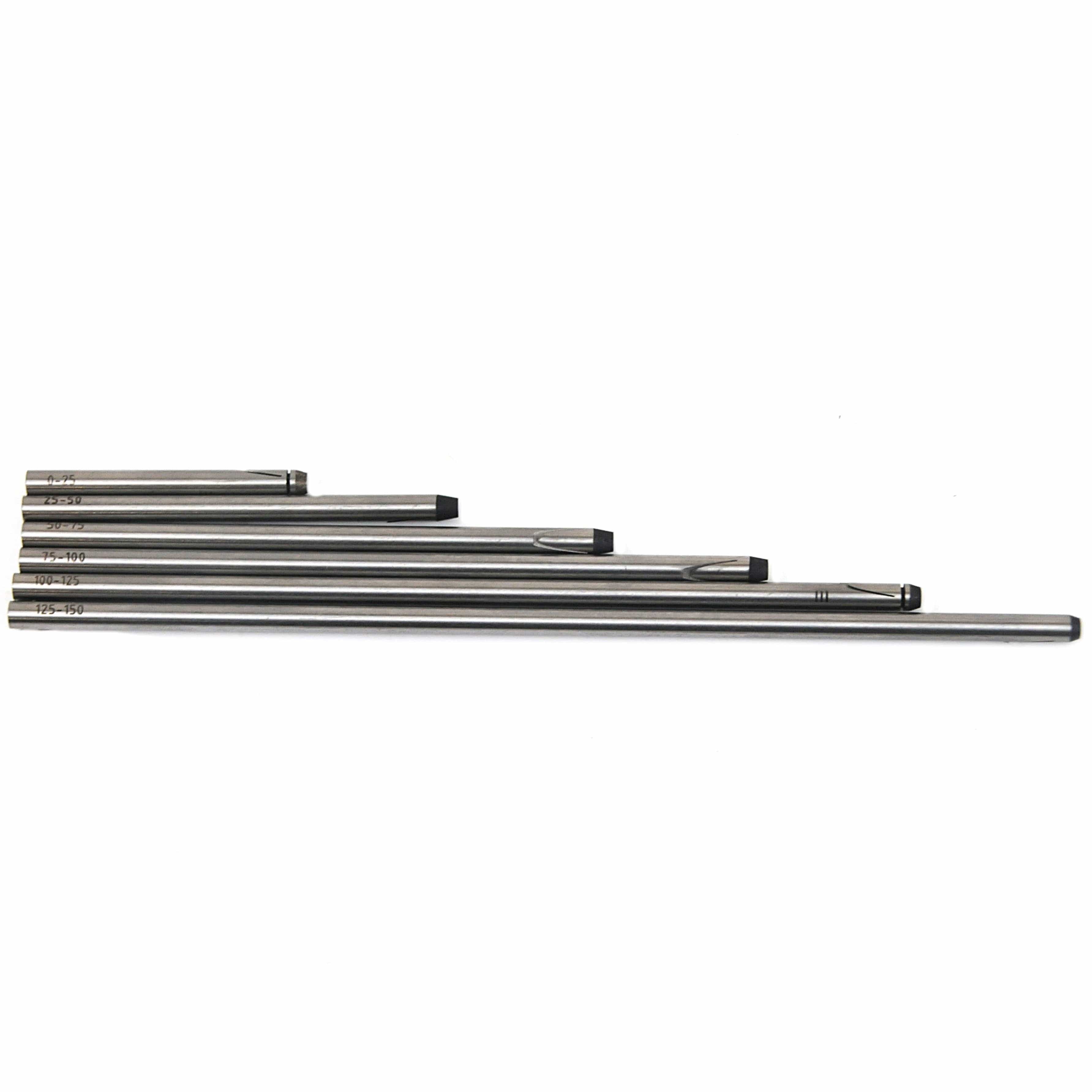

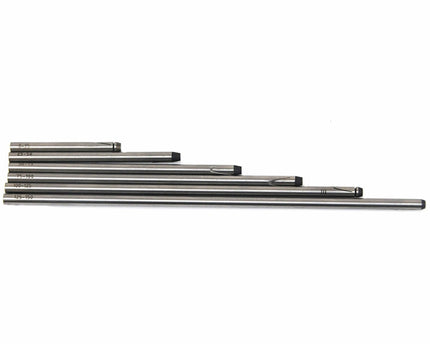

Rods: 6 pcs
-

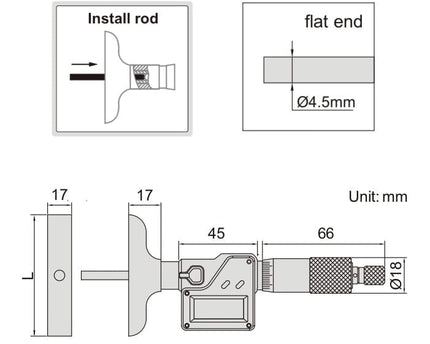

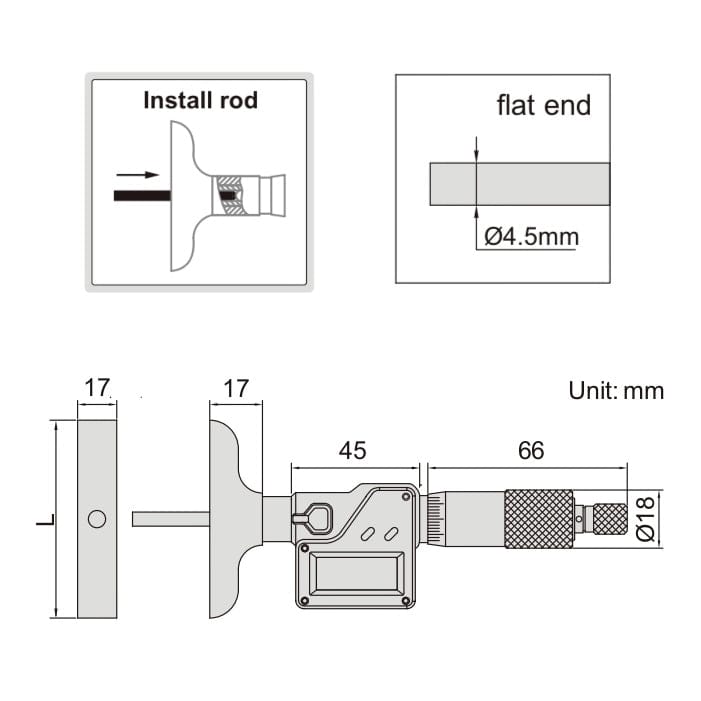

Dimensions: L: 101.5mm
-
Resolution: 0.001mm / 0.00005"
-
IP Rating: IP65 dust/waterproof
-
Micrometer Head Accuracy: ±3µm
-
Rod Accuracy: ±(2+L/75)µm, where L is the measuring range in mm
-
Button Functions: on/off, set, mm/inch, ABS/INC, data output
-
Battery: LR44 with automatic power off
-
Features: Rods with flat end, ratchet stop
-
Optional Accessories: Data output cable (7306-30, 7302-SPC2A, 7305-SPC3)
Well designed and built for durability, Insize digital depth micrometers deliver reliable and repeatable depth measurements across a wide range of applications. The clear digital display and supported base make this instrument ideal for precision measurement of holes, slots, and recessed features in workshop and inspection settings.
