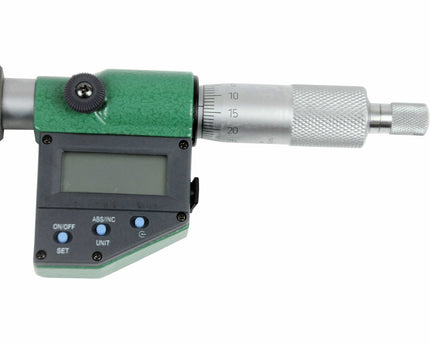

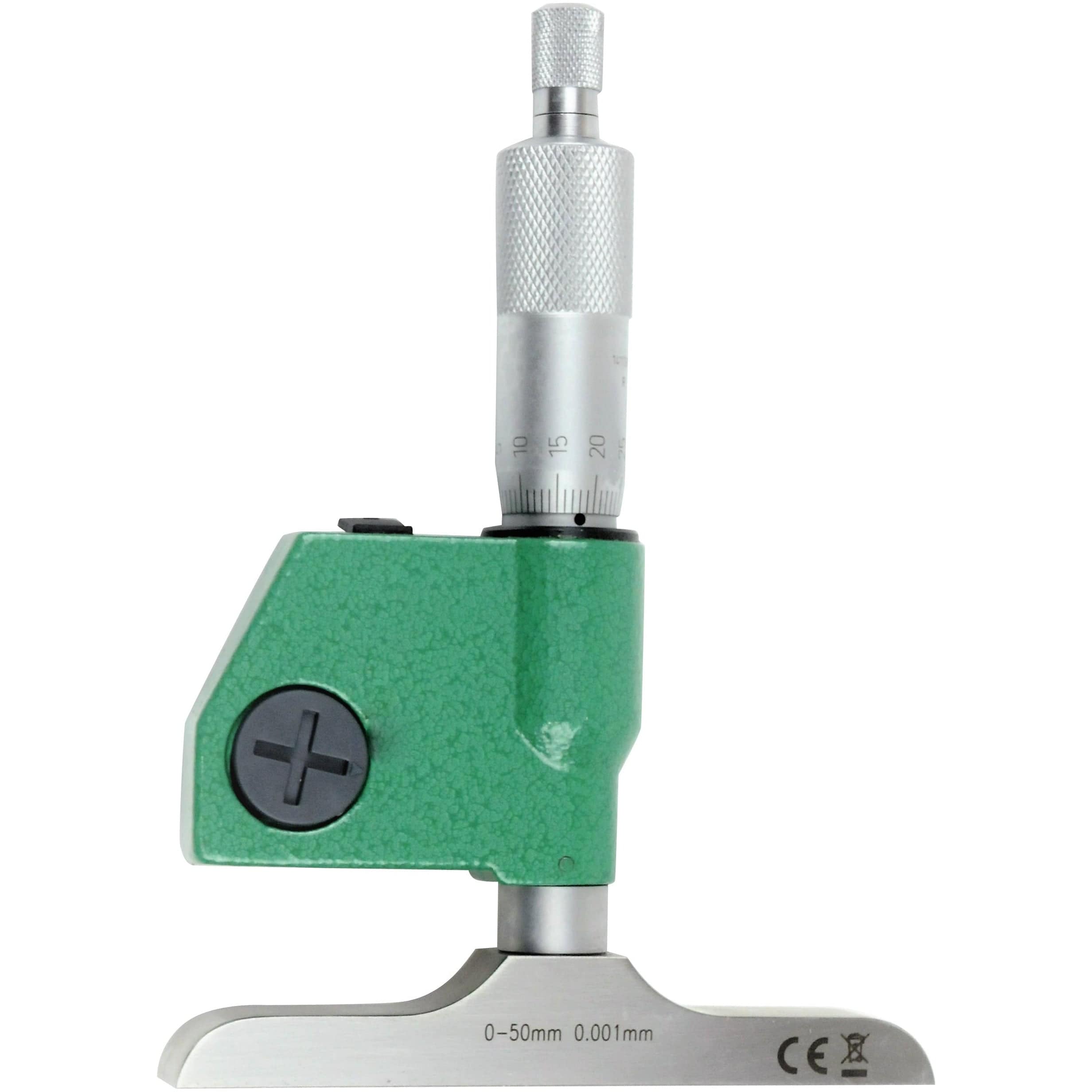

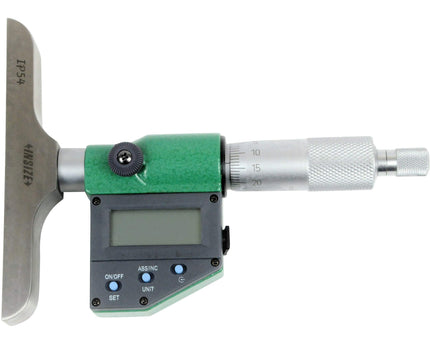

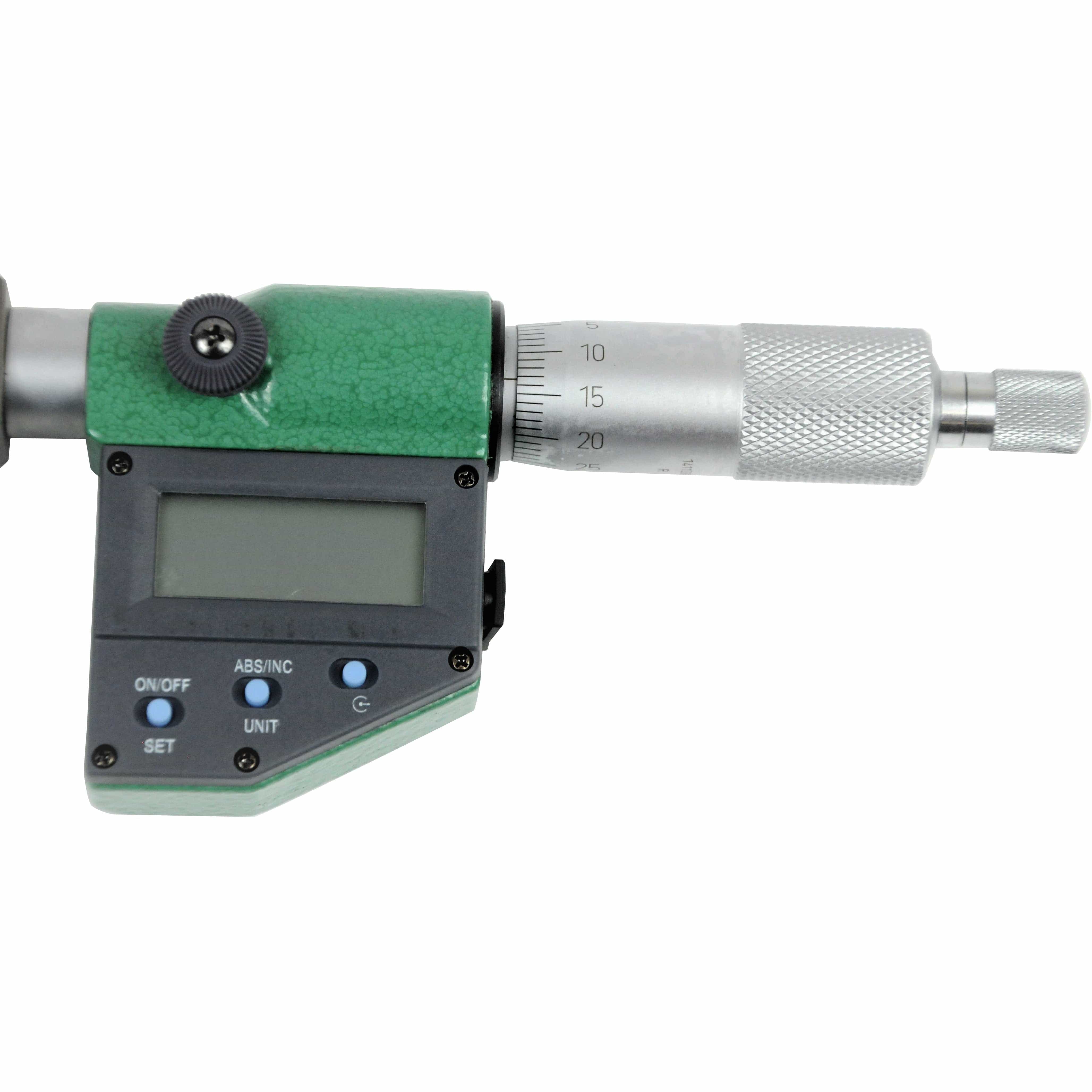

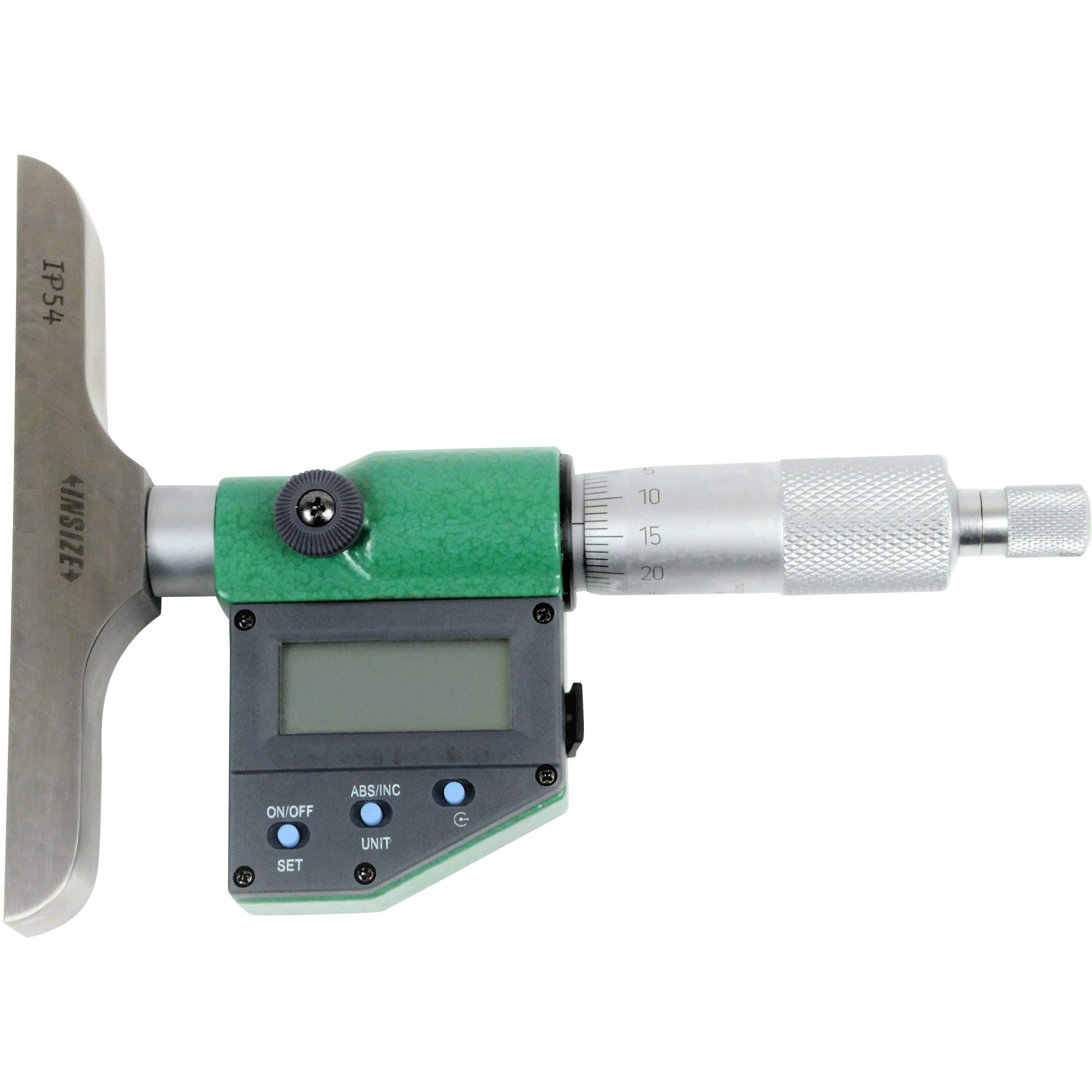

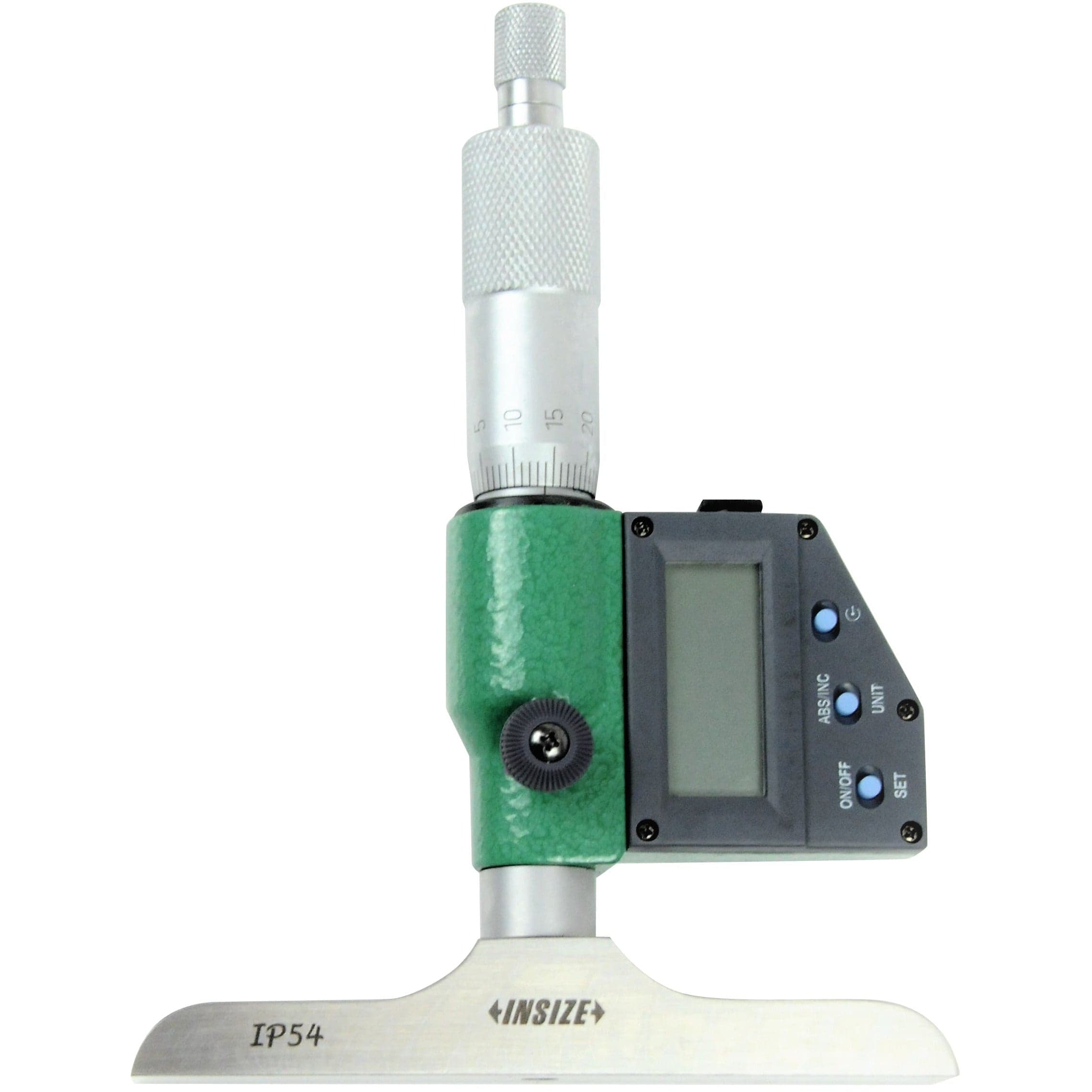

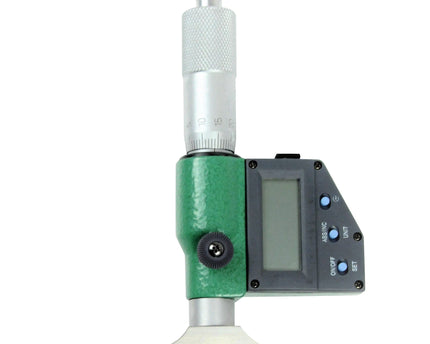

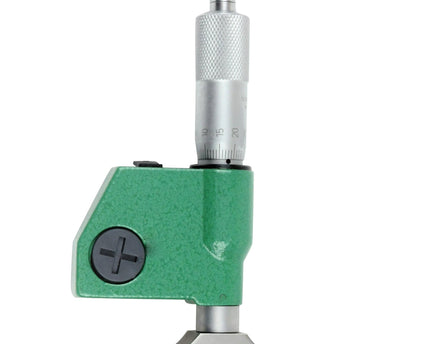

Insize Digital Depth Micrometer
The Insize Digital Depth Micrometer is a precision measuring instrument designed for accurate depth measurement of holes, slots, steps, and recesses. Featuring a digital micrometer head with high resolution and repeatability, it is suitable for machining, inspection, and quality control applications requiring reliable depth measurement.
Key Features:
-

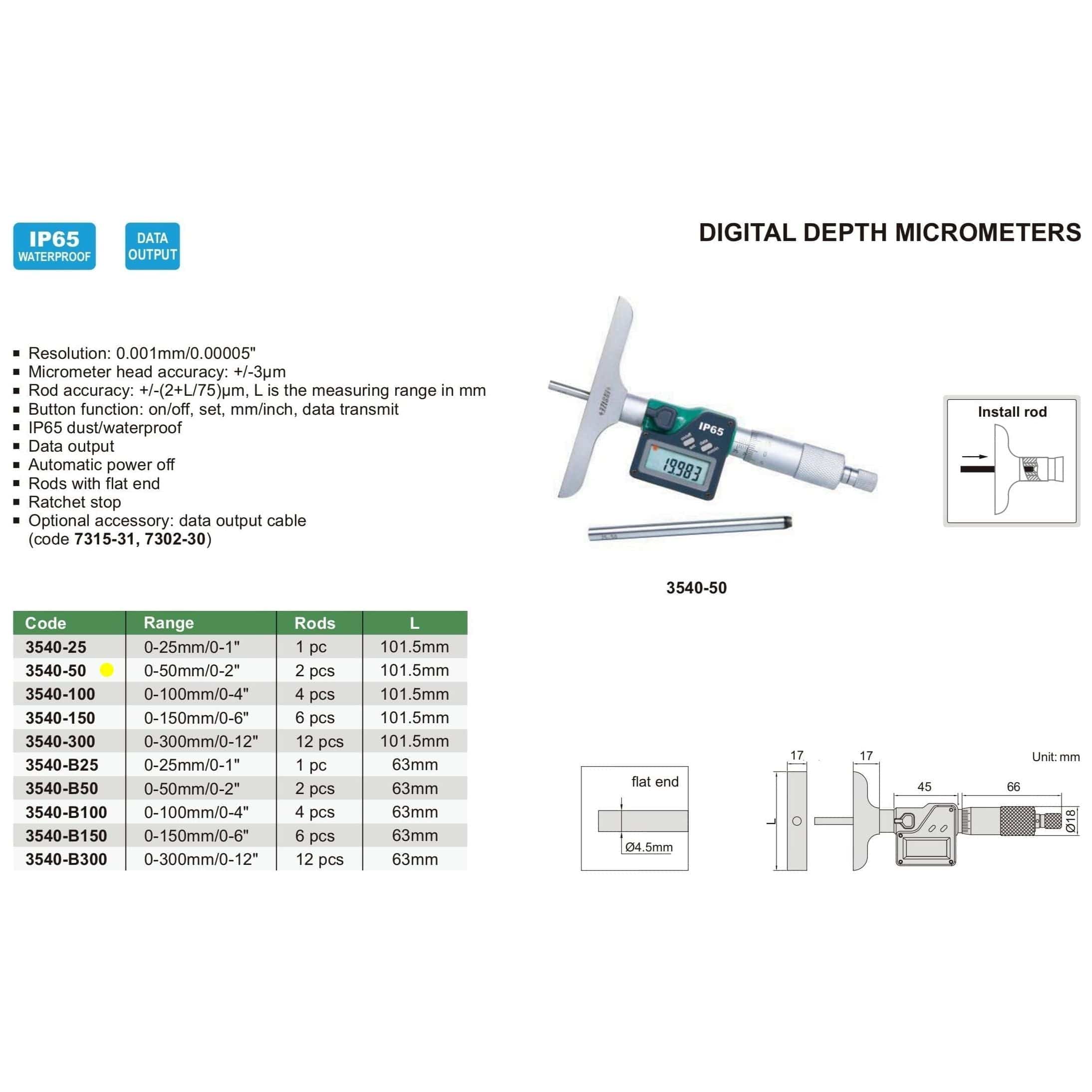

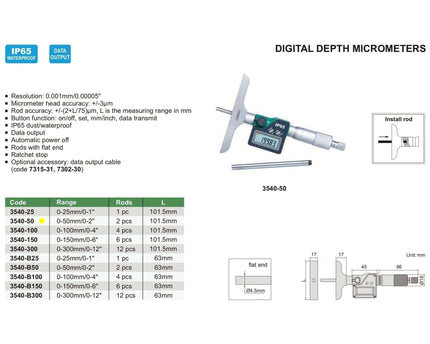

Part Number: 3540-50
-
Type: Digital depth micrometer
-
Resolution: 0.001mm / 0.00005"
-
Micrometer Head Accuracy: ±3µm
-
Rod Accuracy: ±(2+L/75)µm, where L is the measuring range in mm
-

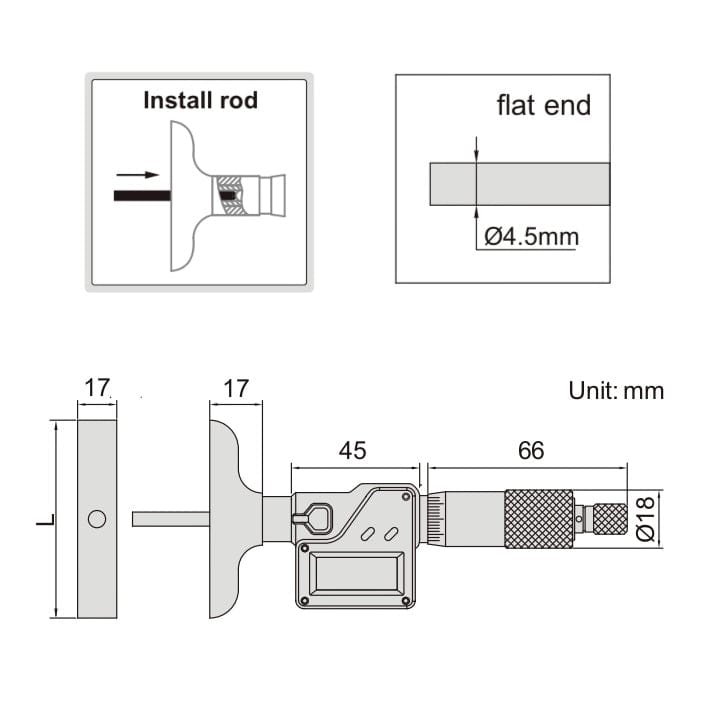

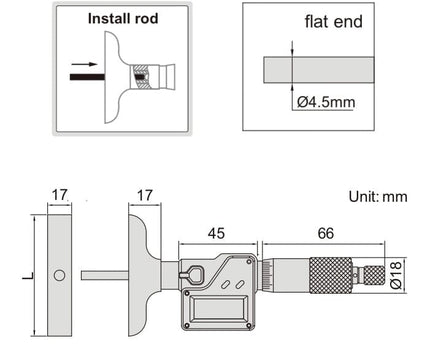

Dimensions: Rod with flat end
-
Button Functions: on/off, set, mm/inch, ABS/INC, data output
-
Battery: LR44 with automatic power off
-
Features: Carbide measuring face, ratchet stop, quick and easy adjustment, spindle thread hardened, ground, and lapped for accuracy
-

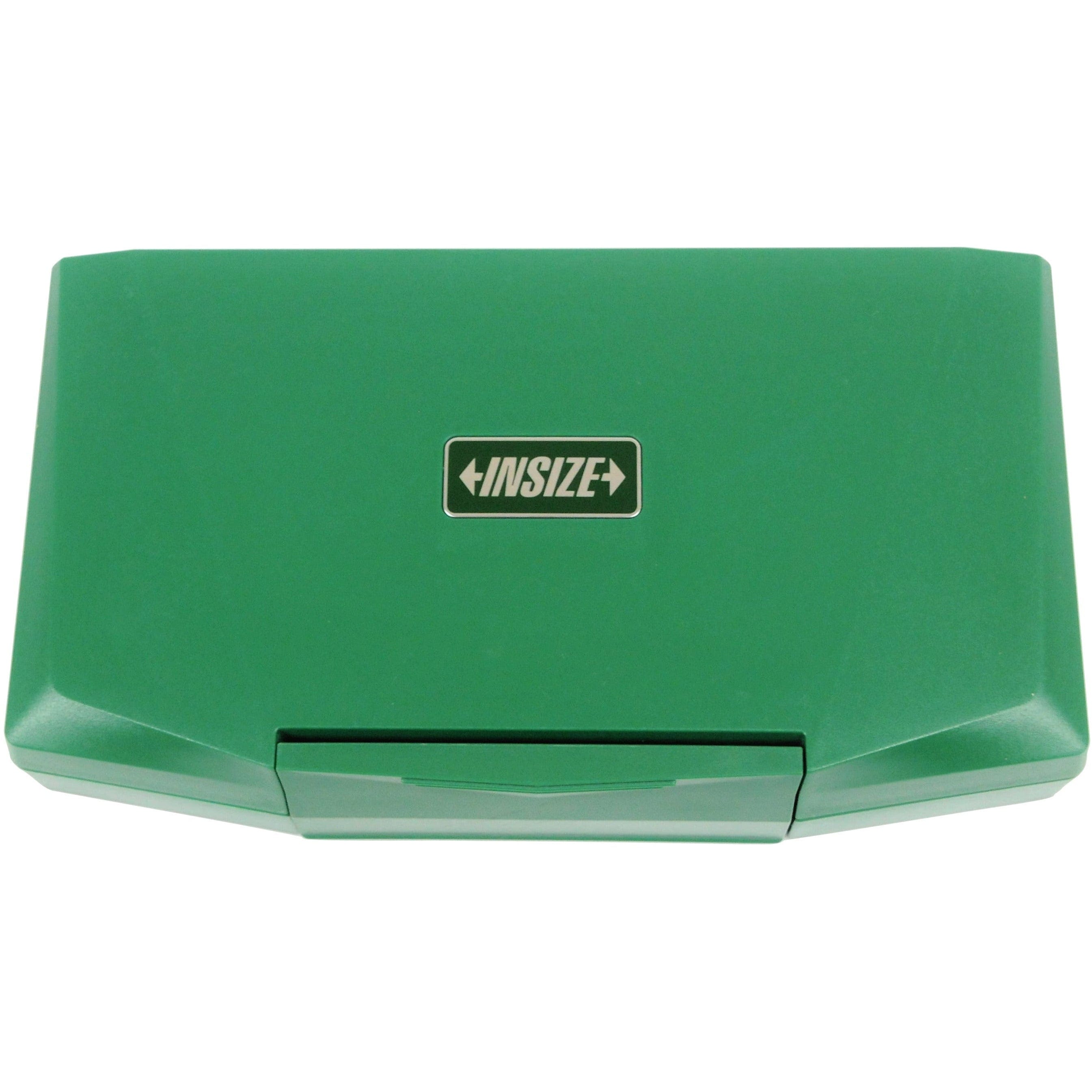

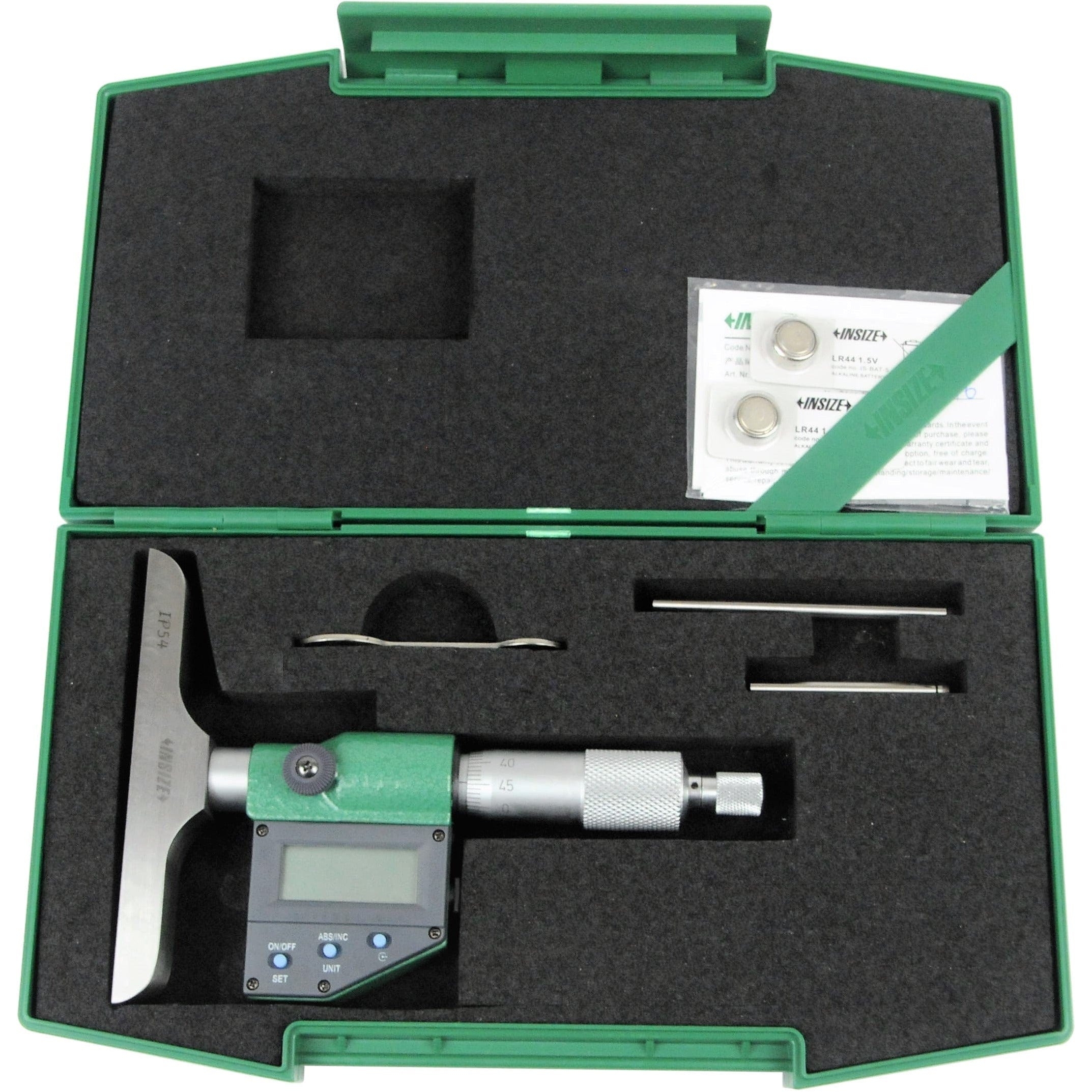

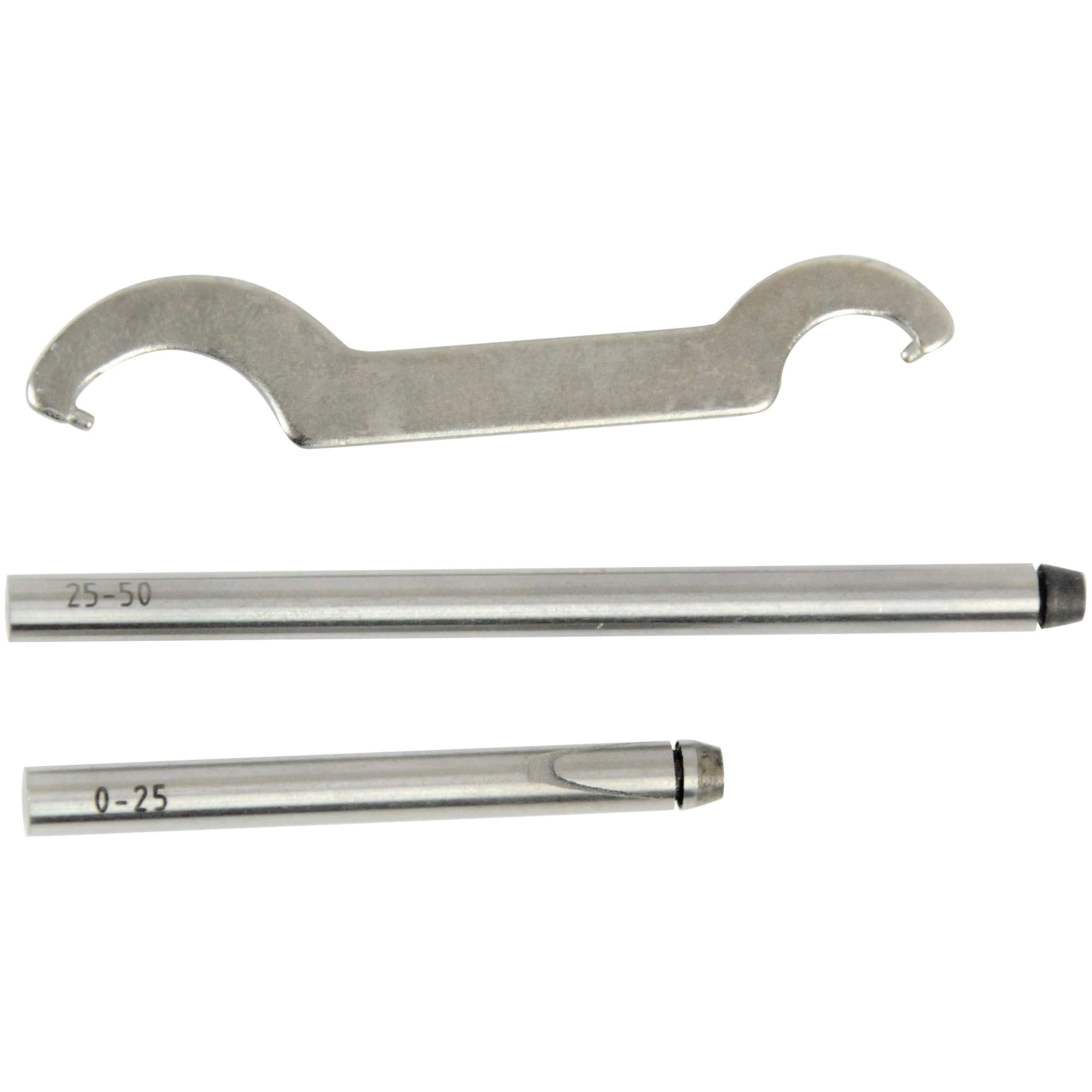

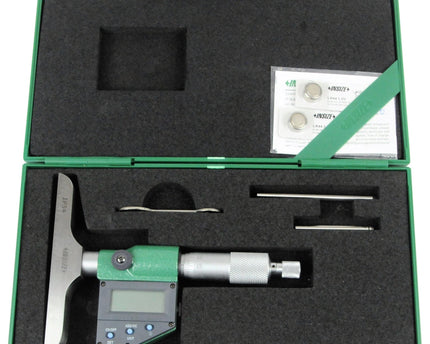

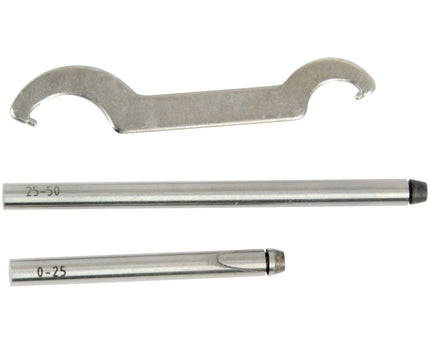

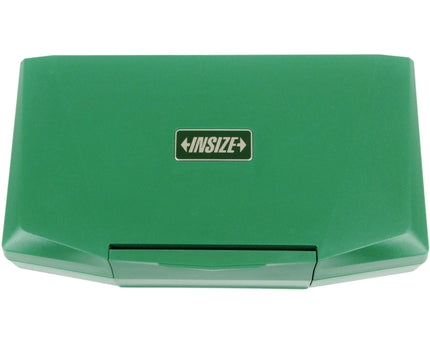

Included: Zero adjusting wrench, two depth rods in 25mm increments, measuring rod clamp, custom styled case
-
Optional Accessories: Data output cable (7306-30, 7302-SPC2A, 7305-SPC3)
Well designed and built for durability, Insize digital depth micrometers provide dependable and repeatable depth measurements across a wide range of applications. The clear digital display and precision-ground spindle make this instrument ideal for accurate measurement of internal depths in workshop and inspection environments.
