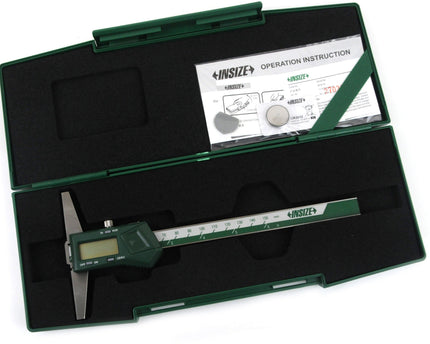

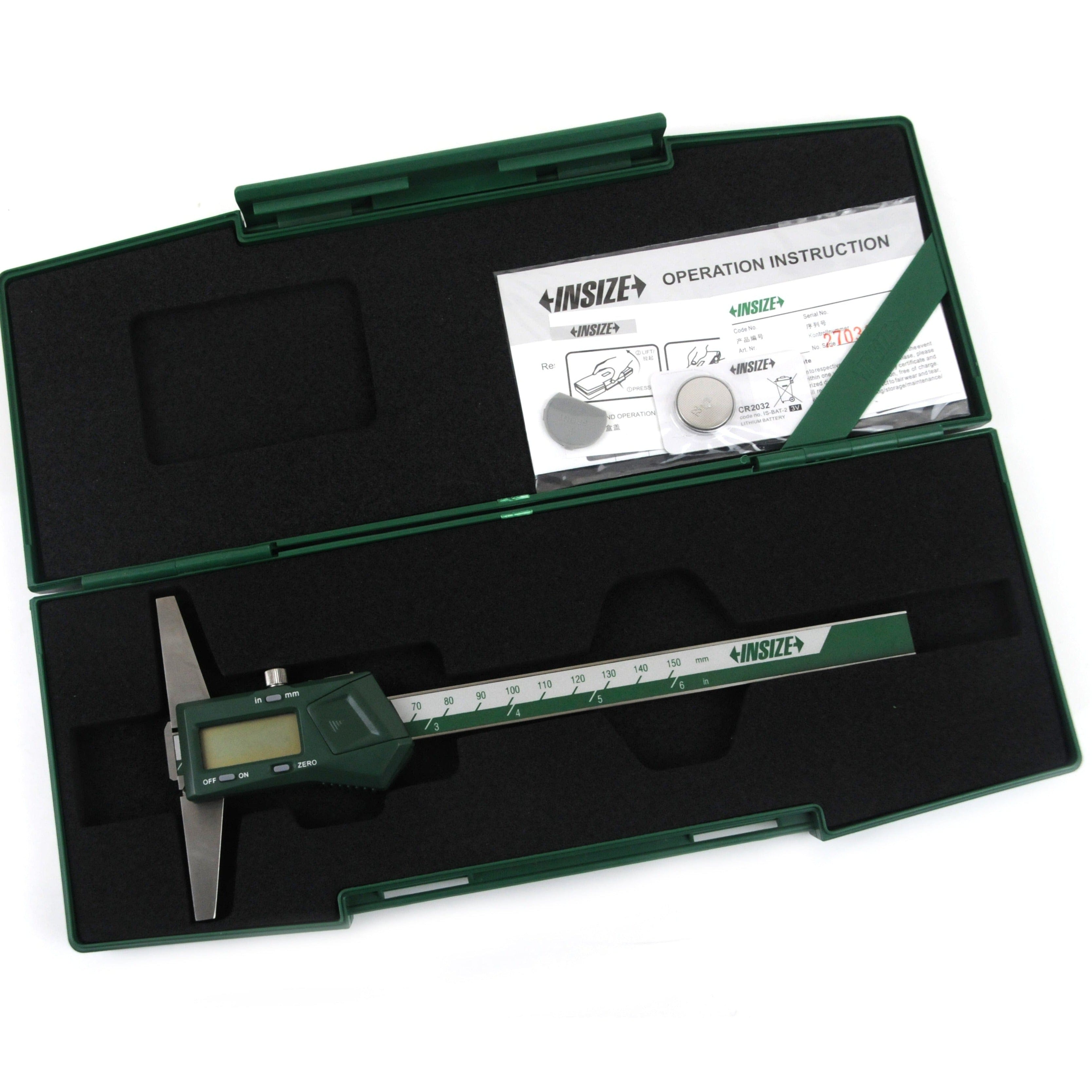

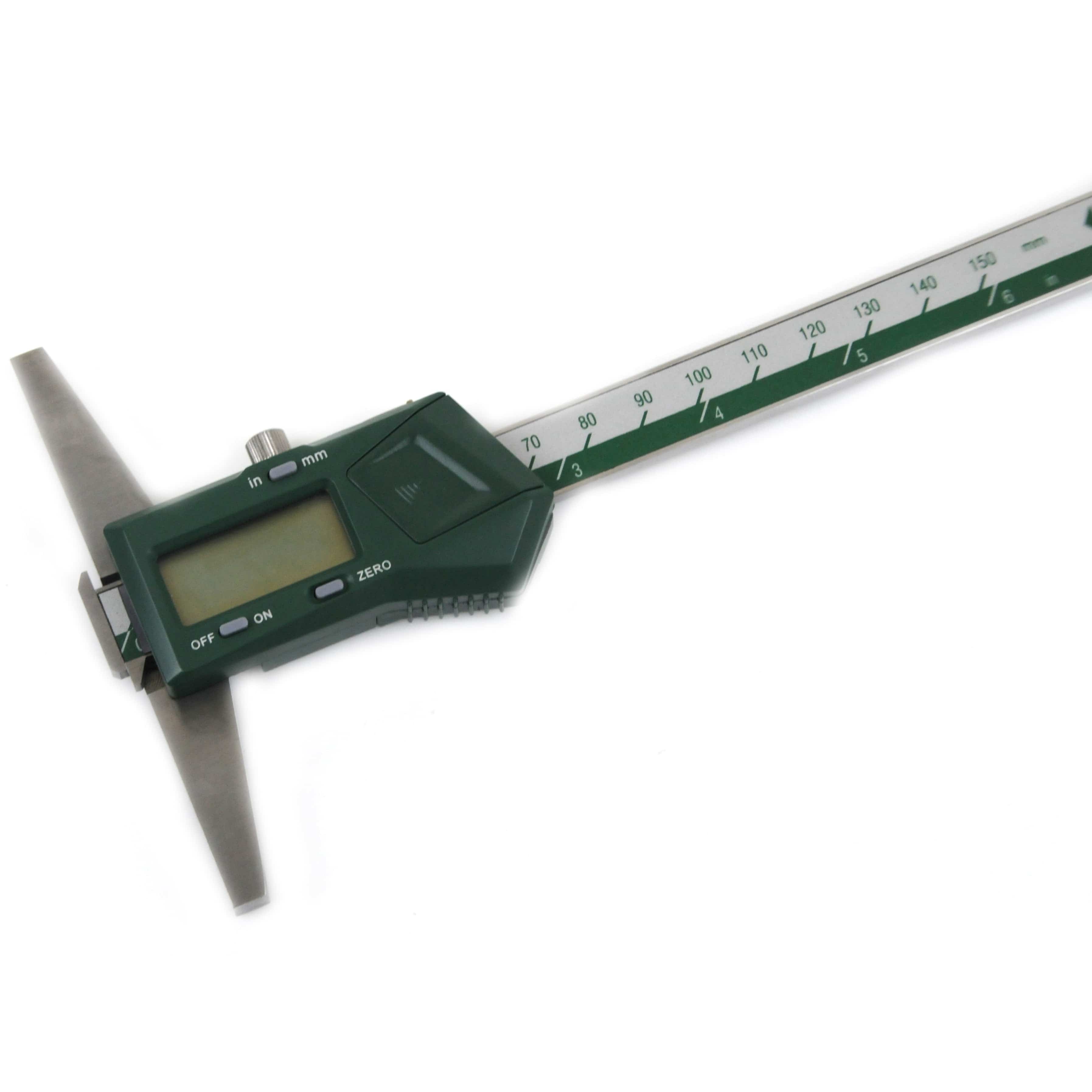

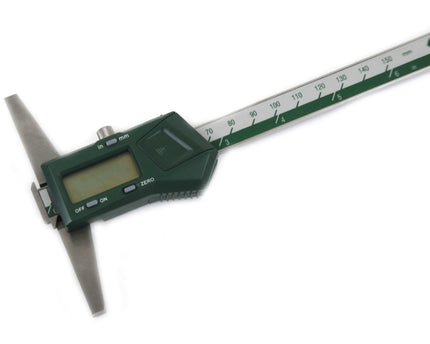

Insize 0–150mm / 0–6″ Digital Depth Gauge
The Insize Digital Depth Gauge is a compact and precise measuring instrument designed for accurate depth measurement of bores, recesses, holes, and tread depths. Manufactured from stainless steel and fitted with a clear digital display, this gauge delivers reliable results for workshop, inspection, and quality control applications.

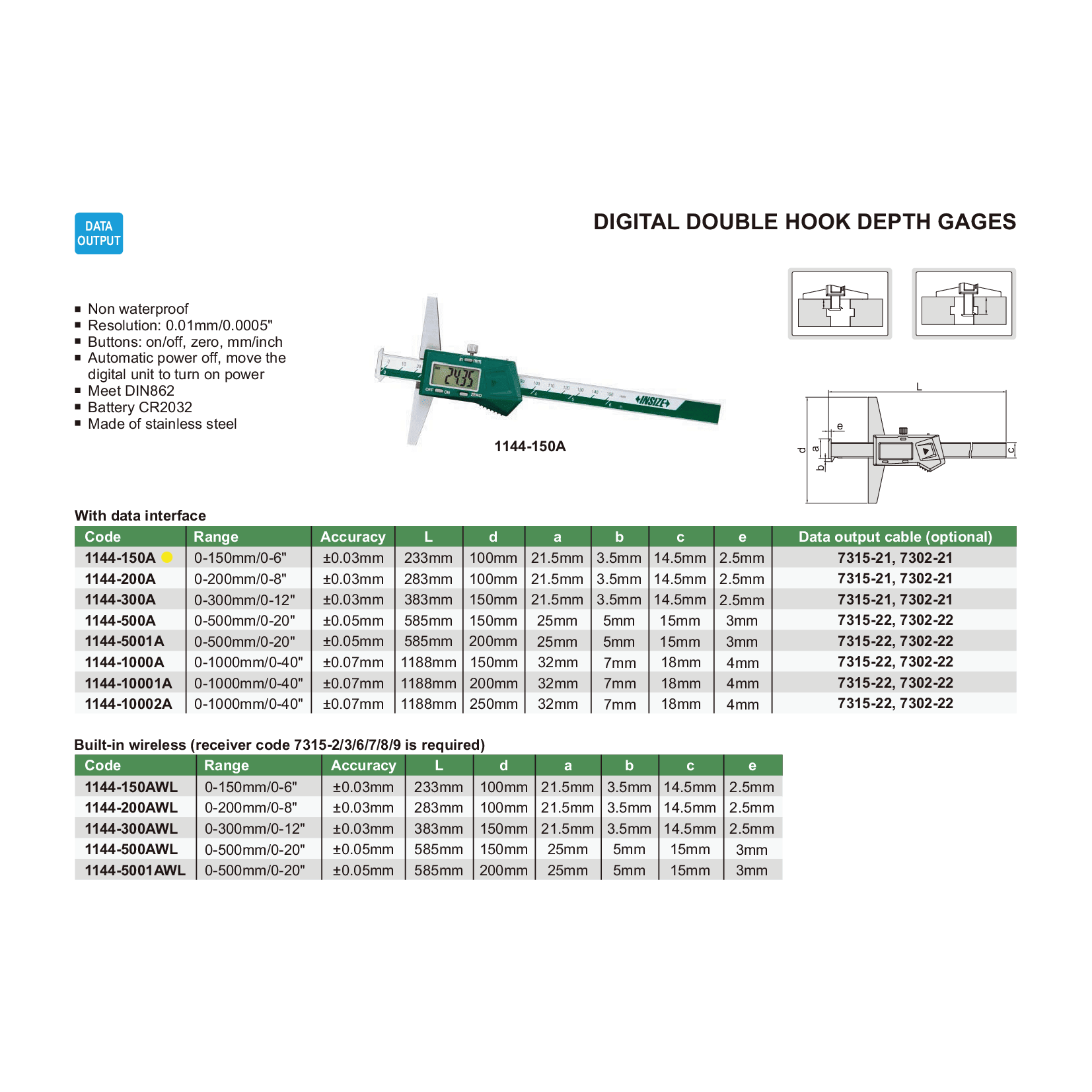

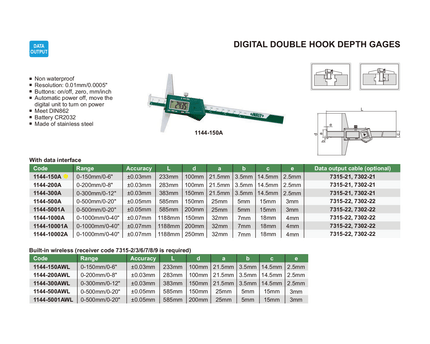

Specifications :
- Part No.: 1144-150A
- Measuring Range: 0–150mm / 0–6″
- Resolution: 0.01mm / 0.0005″
- Accuracy: ±0.03mm
- Overall Length: 233mm

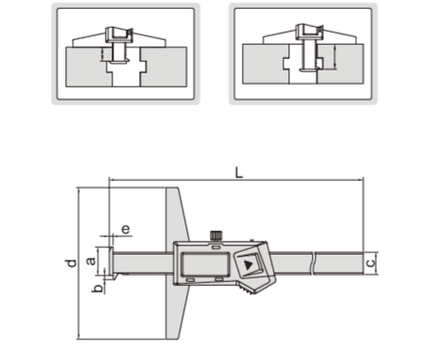

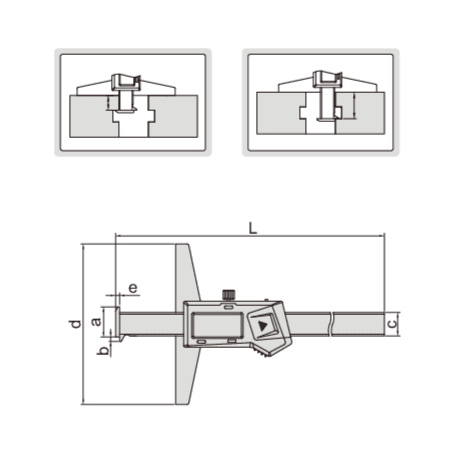

- Dimensions: A: 21.5mm, B: 3.5mm, C: 14.5mm, D: 100mm, E: 2.5mm
- Material: Stainless steel
- Display: Digital LCD
- Functions: On/off, zero, inch/mm conversion, ABS mode, data preset
- Operation: Automatic power off, move digital unit to power on
- Data Output: Yes
- Battery: CR2032
This well-designed and durable digital depth gauge provides accurate and repeatable measurements across a wide range of applications. Easy to operate and highly versatile, it is ideal for professional use where precise depth measurement is required.
