Description

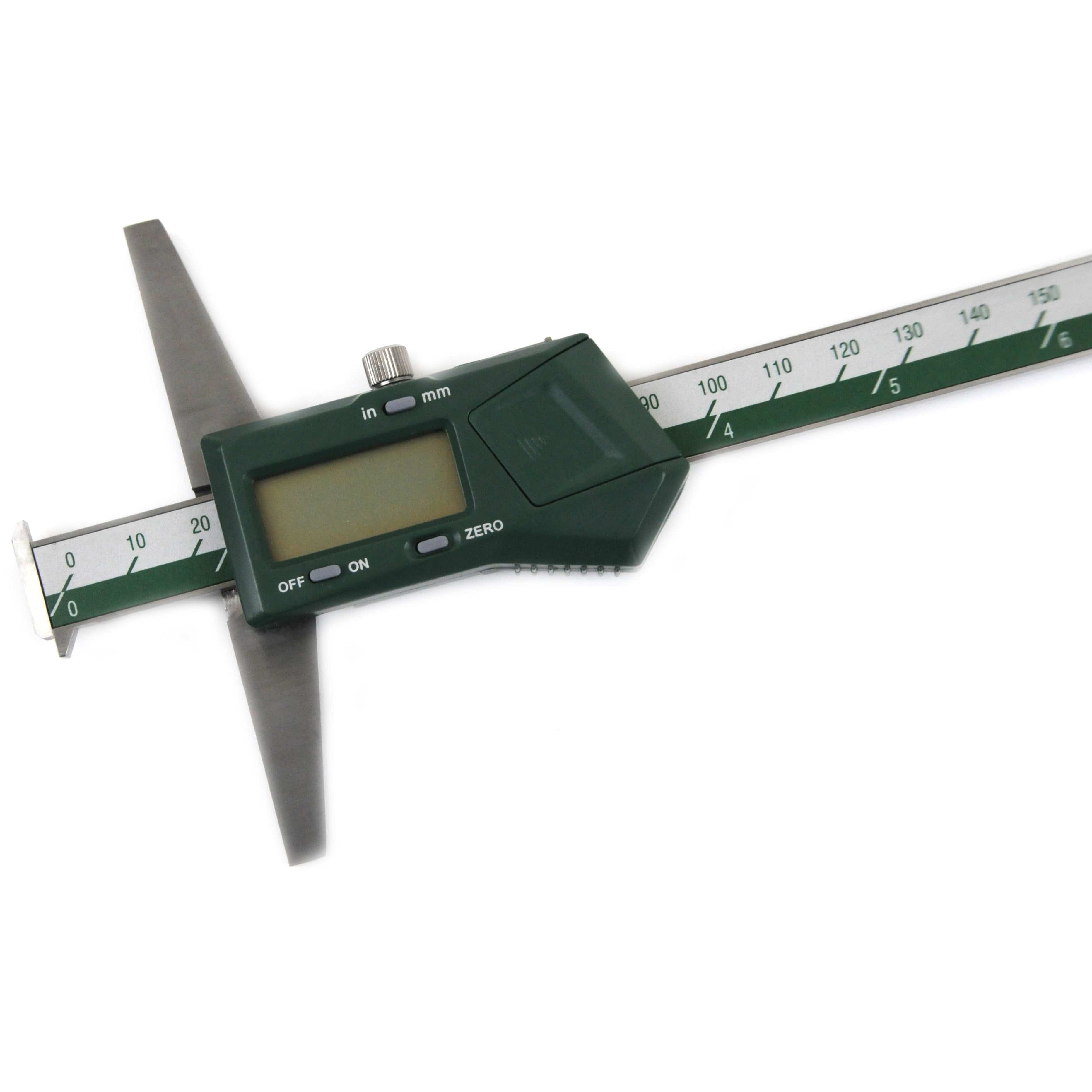

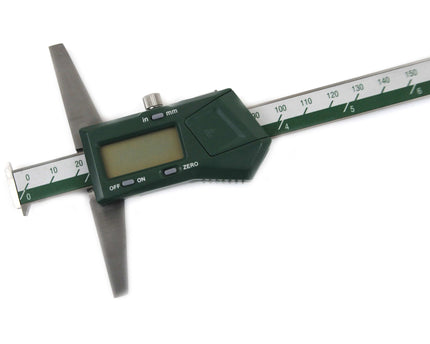

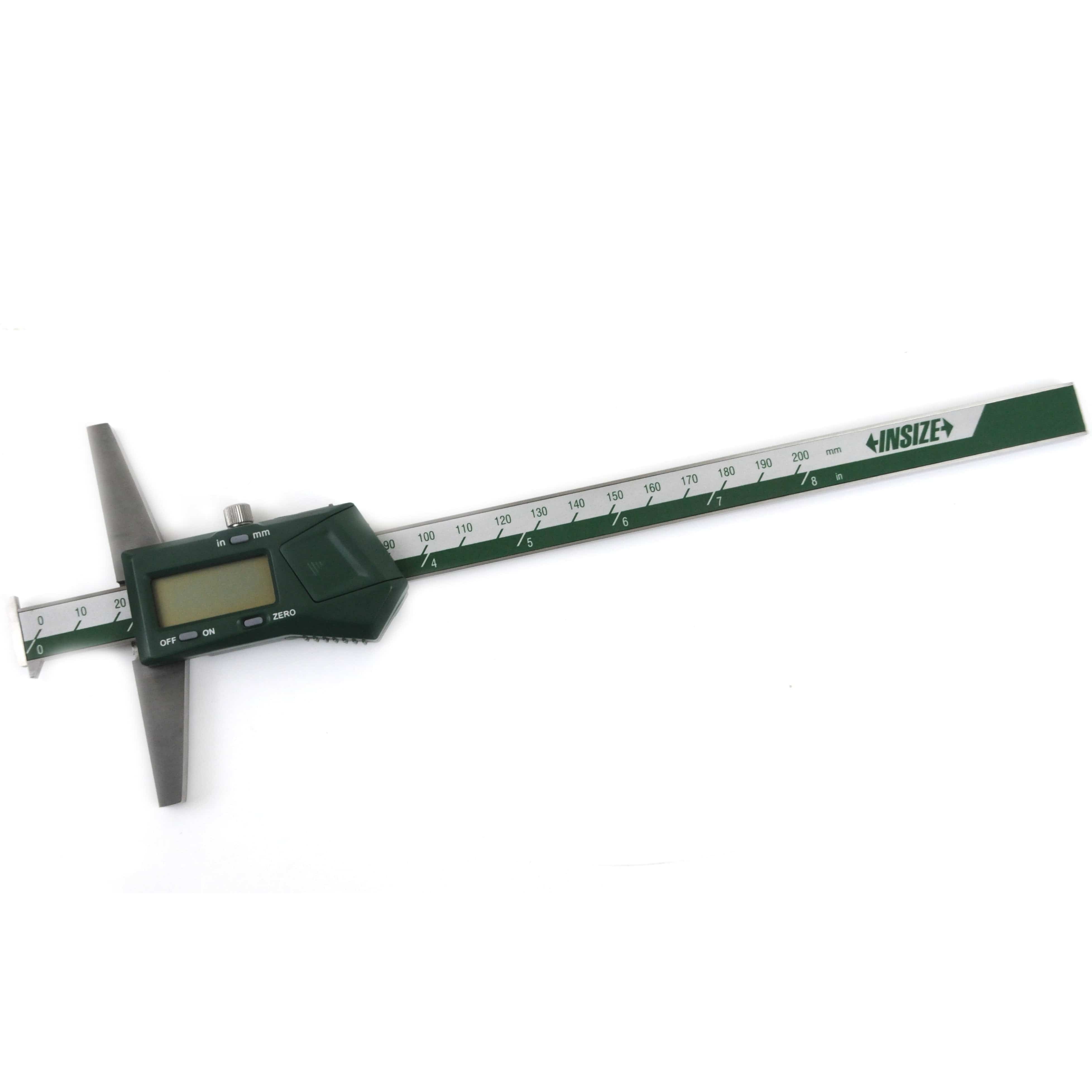

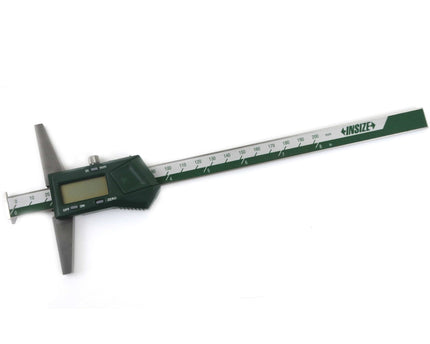

Insize 0–200 mm / 0–8" Digital Depth Gauge
A precision digital depth gauge engineered for accurate measurement of grooves, recesses, blind holes, and tire tread depth. Featuring a double-hook measuring design, this instrument provides excellent stability and versatility for workshop, machining, metalworking, and inspection tasks. The stainless-steel construction ensures durability, while the clear digital display allows easy and reliable reading.

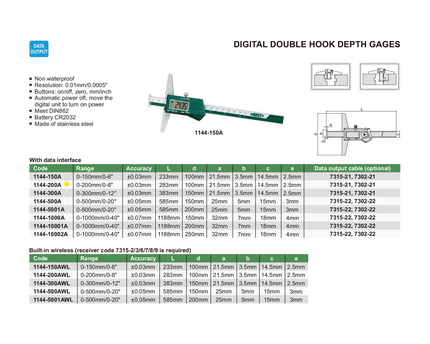

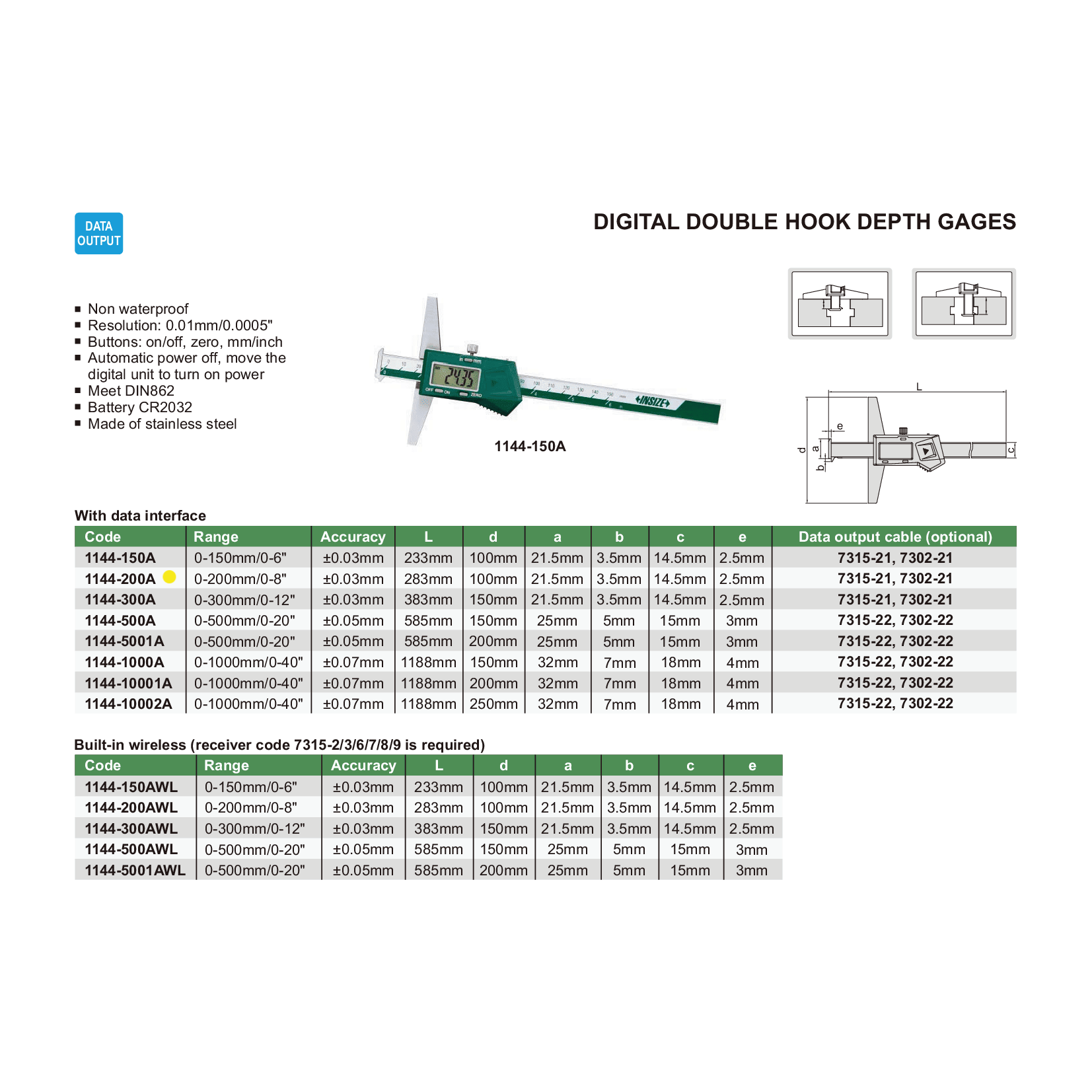

Specifications:
- Part No: 1144-200A
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.03 mm
- Range: 0–200 mm / 0–8"

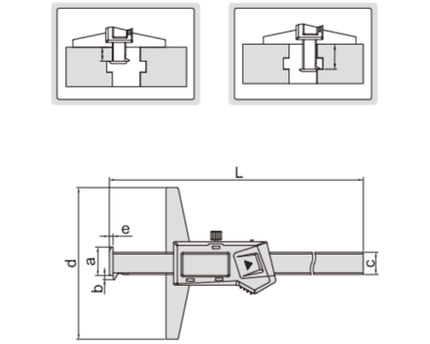

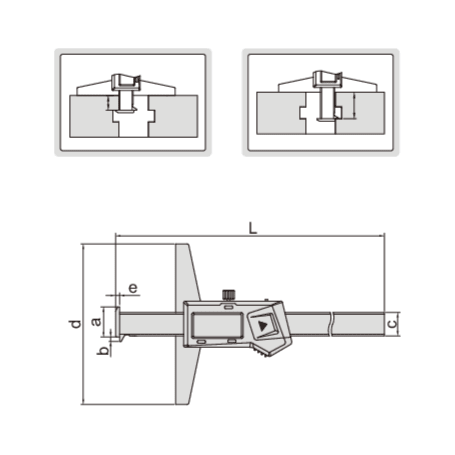

- A: 21.5 mm
- B: 3.5 mm
- C: 14.5 mm
- D: 100 mm
- E: 2.5 mm
- Length: 283 mm
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Power activates when the digital unit is moved
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
Designed for precision and ease of use, the Insize Digital Double Hook Depth Gauge delivers dependable performance for measuring depth in a variety of industrial and workshop environments. Its robust construction and ergonomic handling make it ideal for technicians requiring consistent and accurate measurements.
