Description

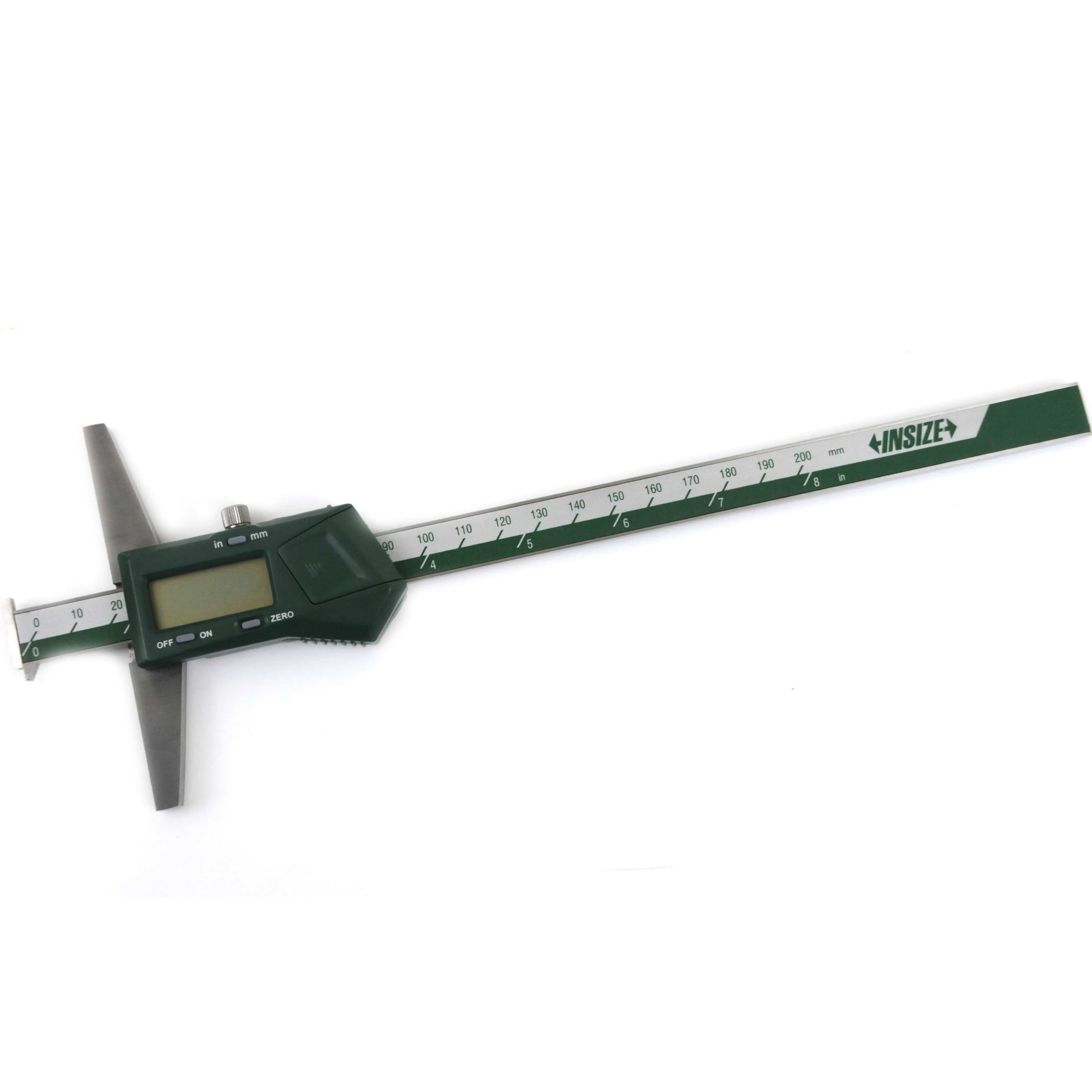

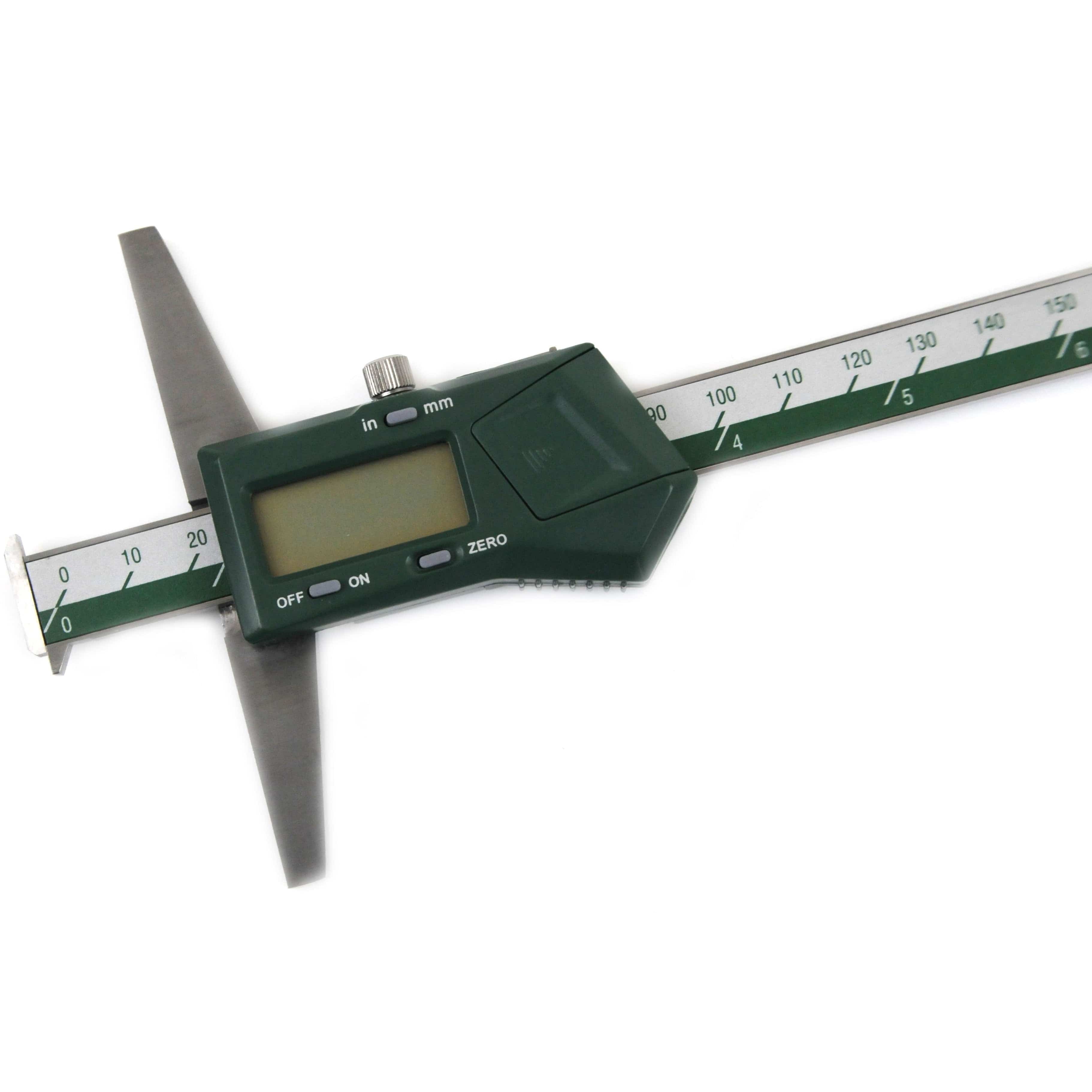

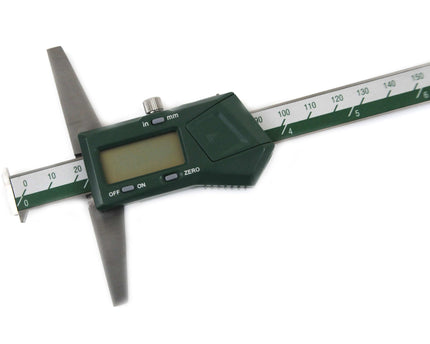

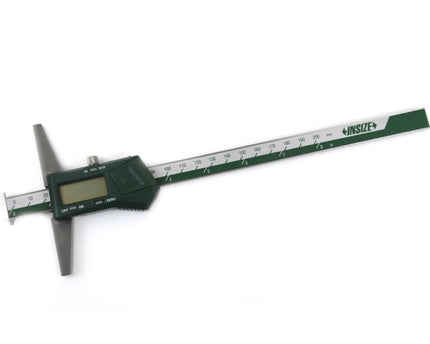

Insize 0–300 mm / 0–12" Digital Depth Gauge
A high-precision digital depth gauge designed for accurate measurement of bores, recesses, blind holes, grooves, and tyre tread depth. Built from stainless steel for durability and equipped with a clear digital display, it delivers dependable performance for machining, inspection, metalworking, and general workshop use. The double-hook design enhances measurement versatility for applications requiring reference from both sides of a feature.

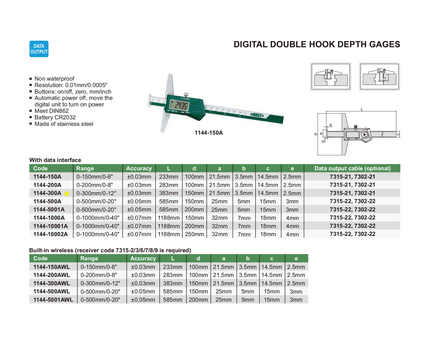

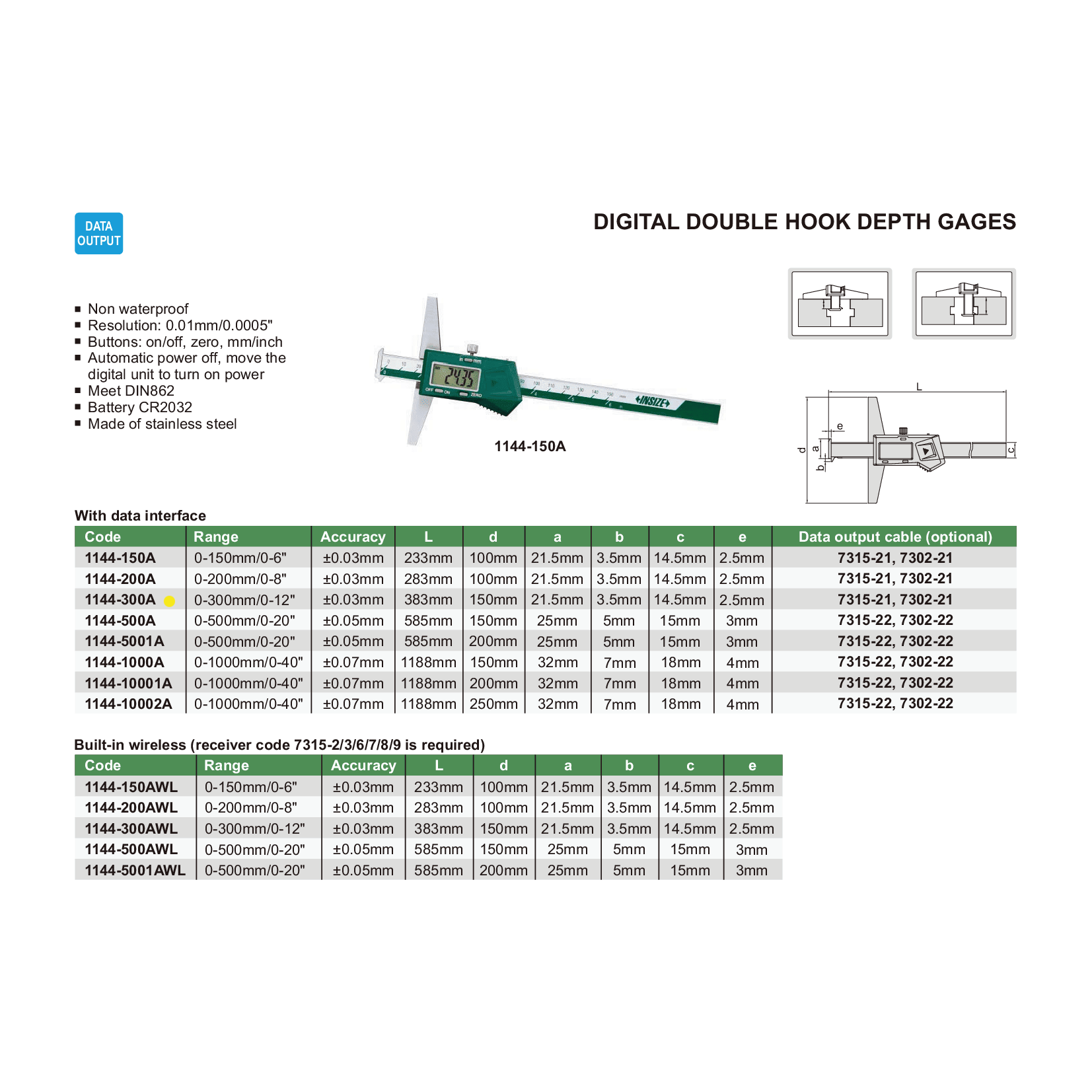

Specifications:
- Part No: 1144-300A
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.03 mm
- Range: 0–300 mm / 0–12"

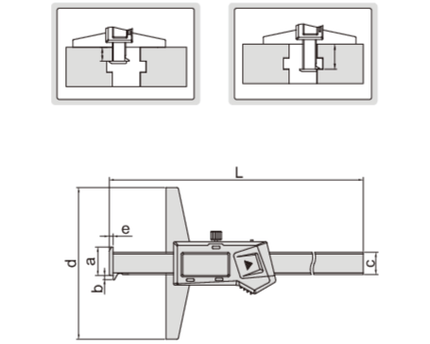

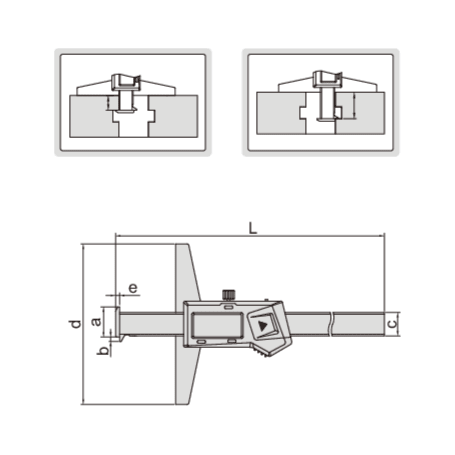

- A: 21.5 mm
- B: 3.5 mm
- C: 14.5 mm
- D: 150 mm
- E: 2.5 mm
- Length: 383 mm
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Power turns on when the digital unit is moved
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
Designed for precision, ease of use, and long-term reliability, the Insize Digital Depth Gauge is ideal for accurate depth measurement across a wide variety of industrial and workshop applications.
