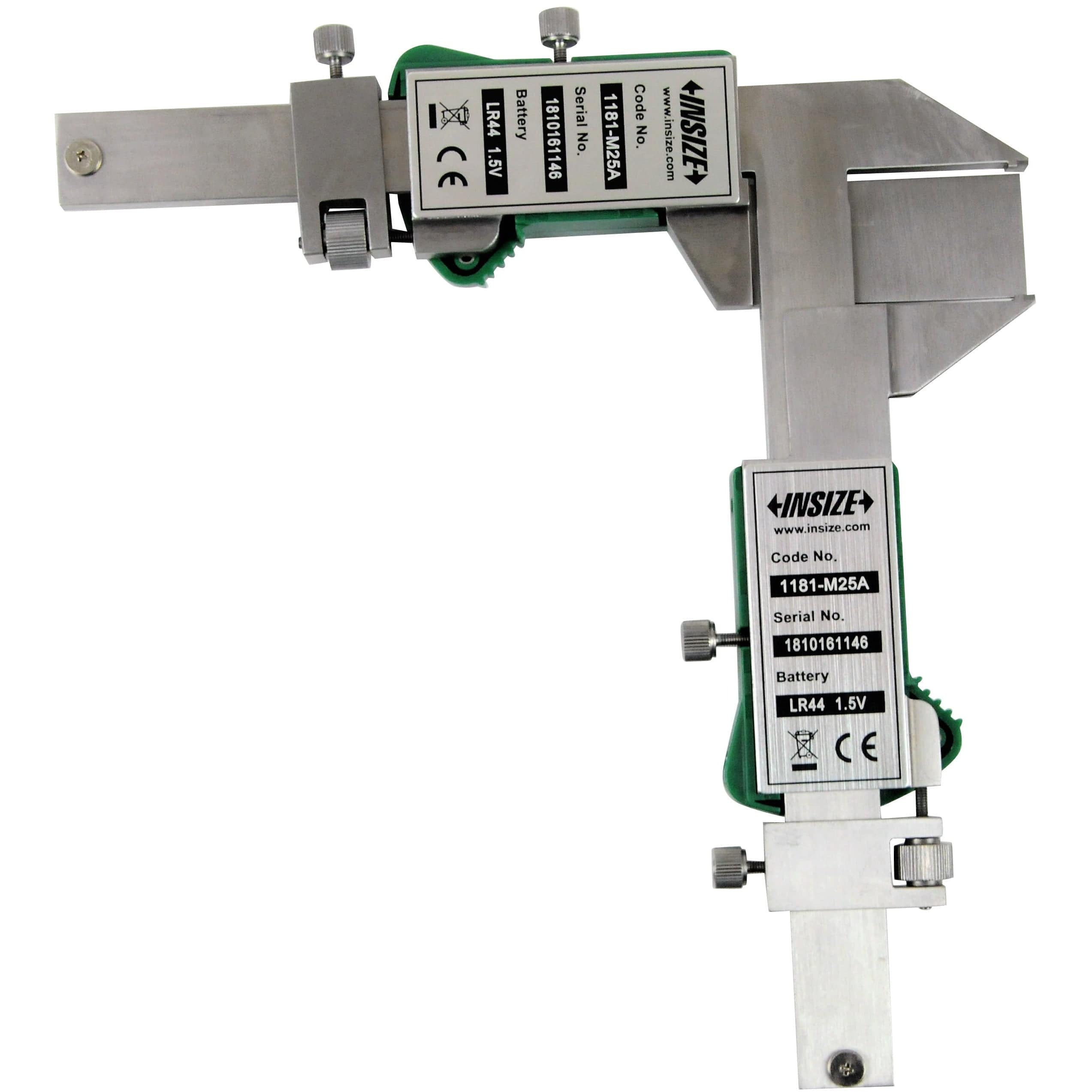

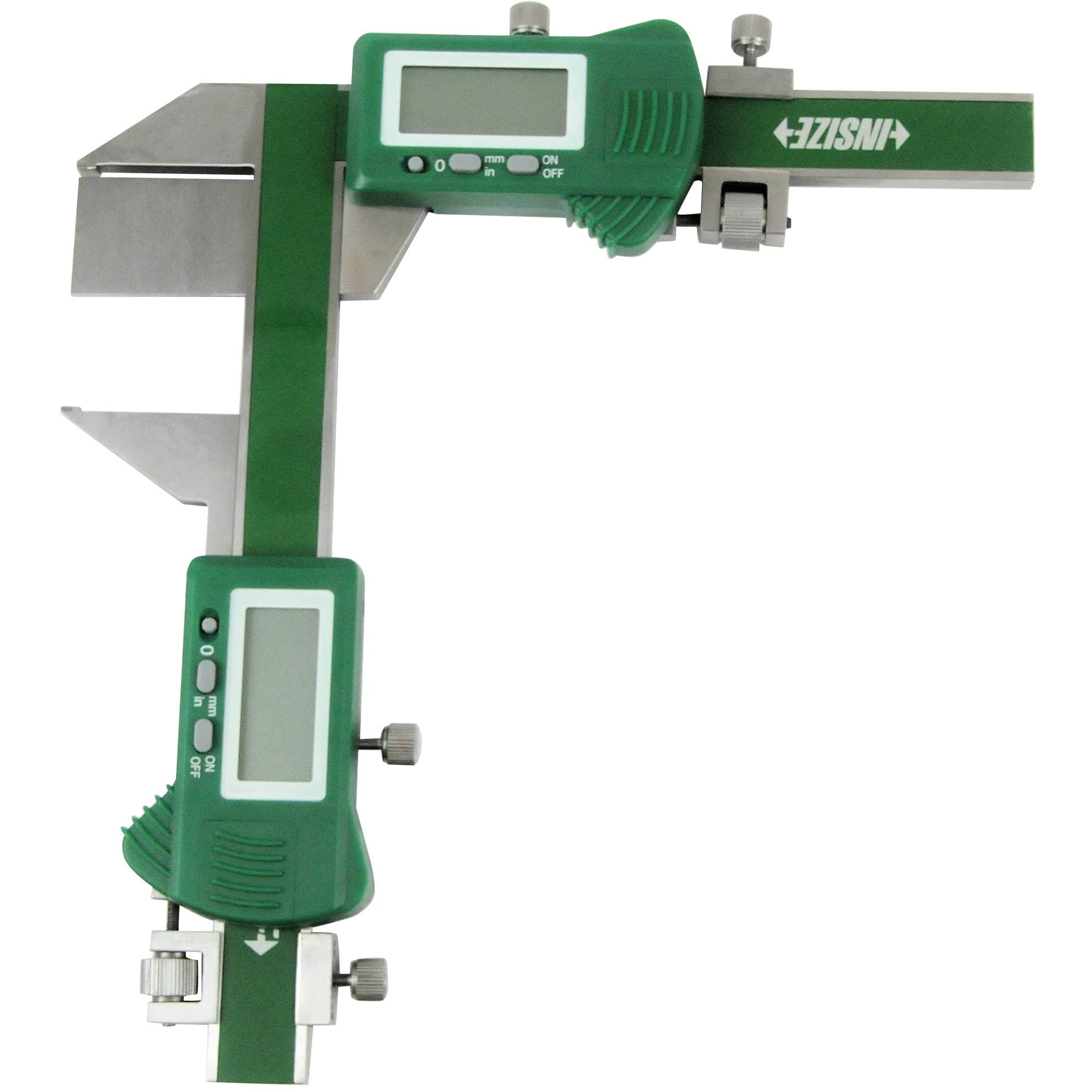

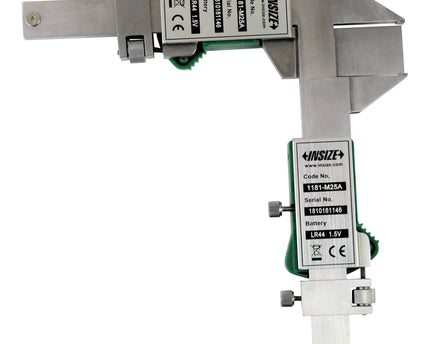

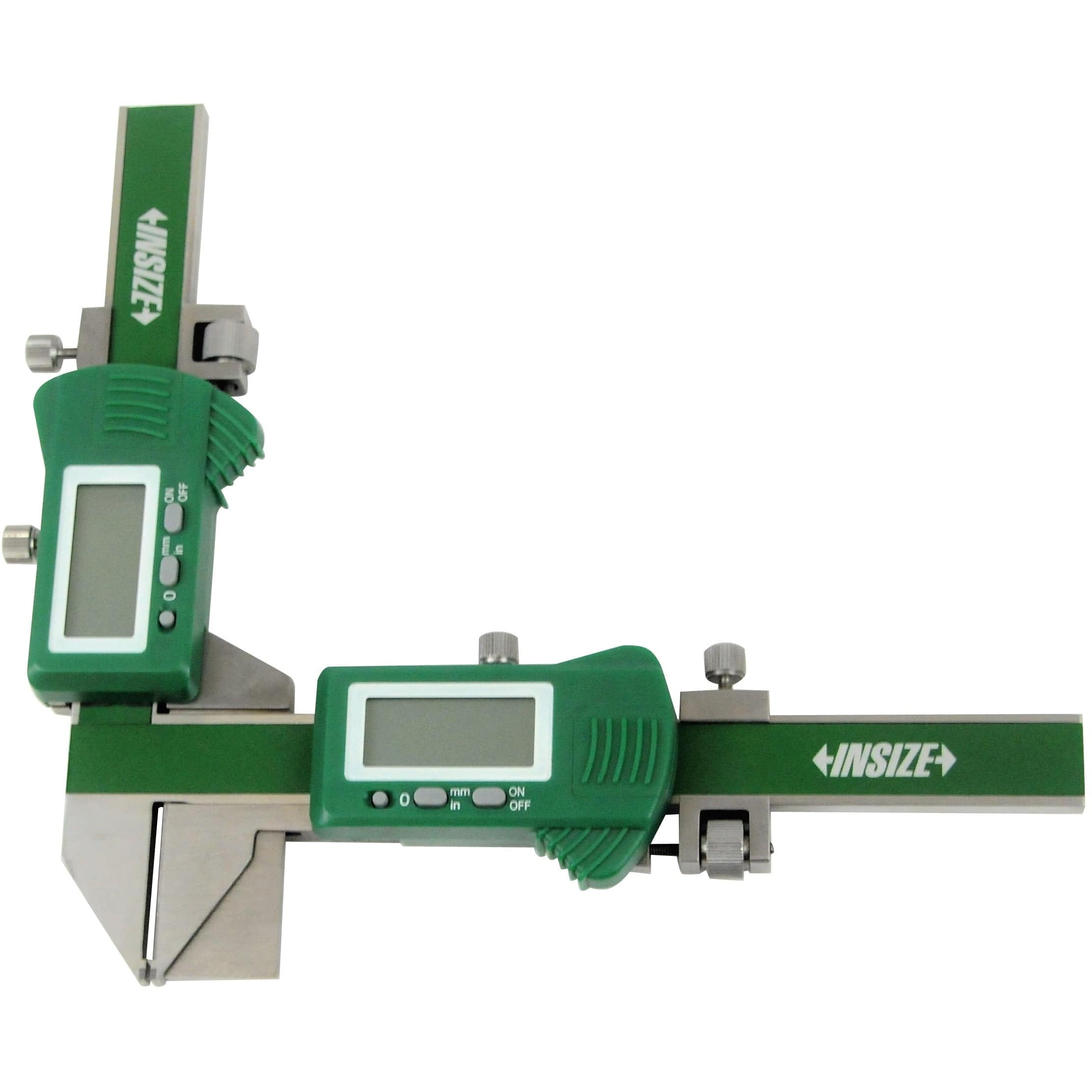

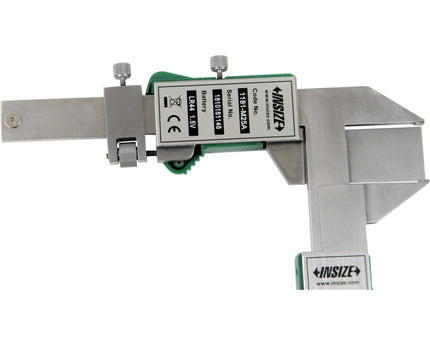

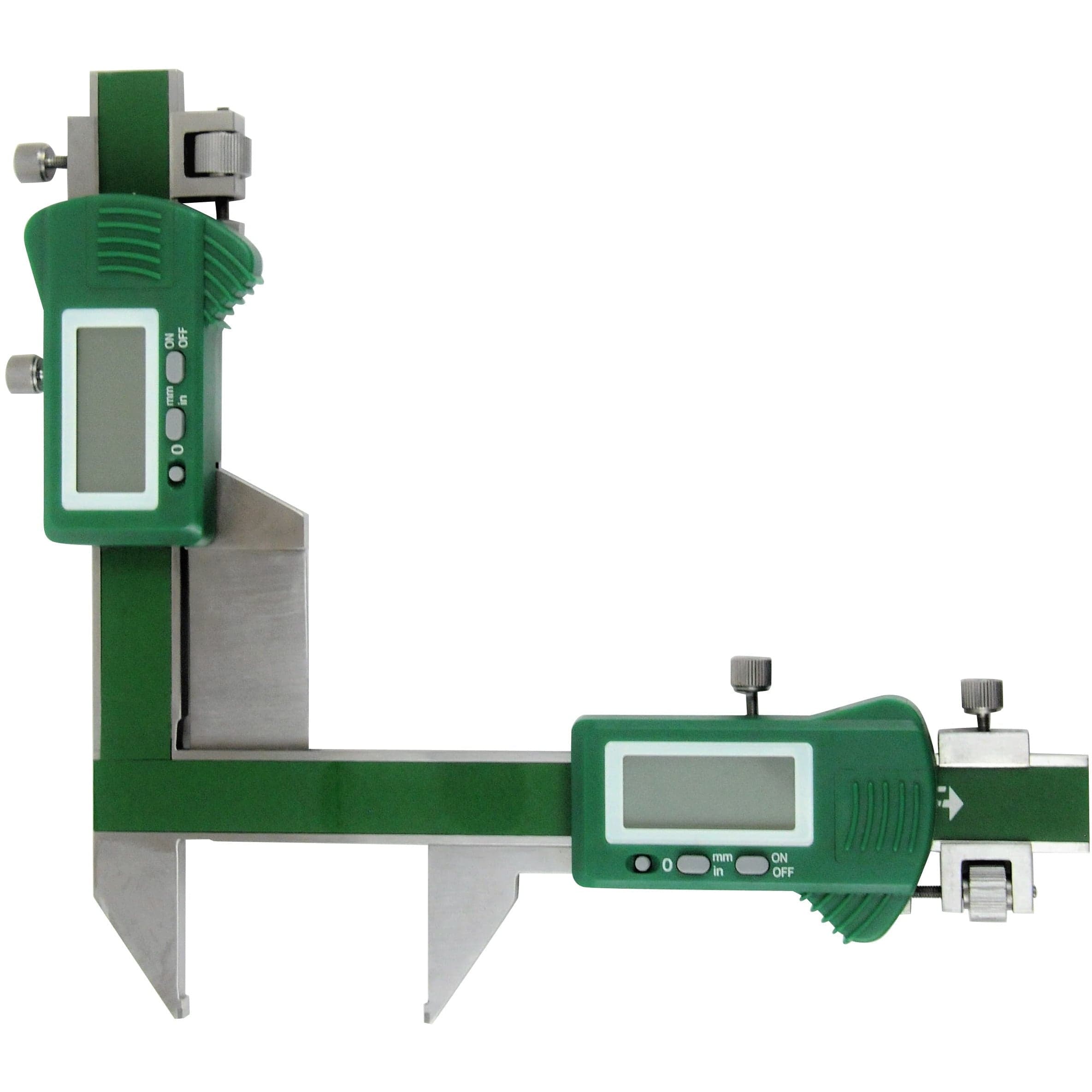

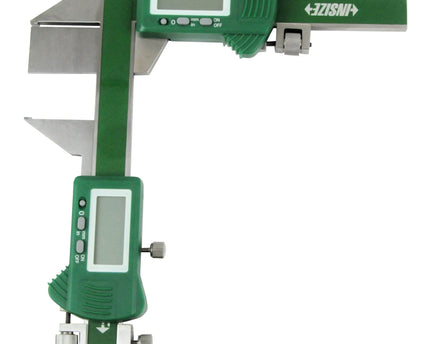

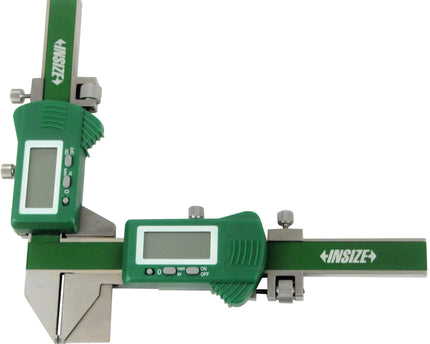

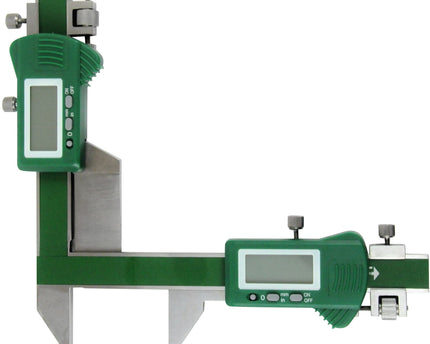

Insize 1–25 mm Gear Tooth Digital Caliper
A precision digital caliper designed specifically for measuring gear tooth thickness and tooth height. Built from stainless steel and equipped with carbide-tipped measuring faces, it offers consistent accuracy and reliable performance for gear inspection, machining, and maintenance applications.

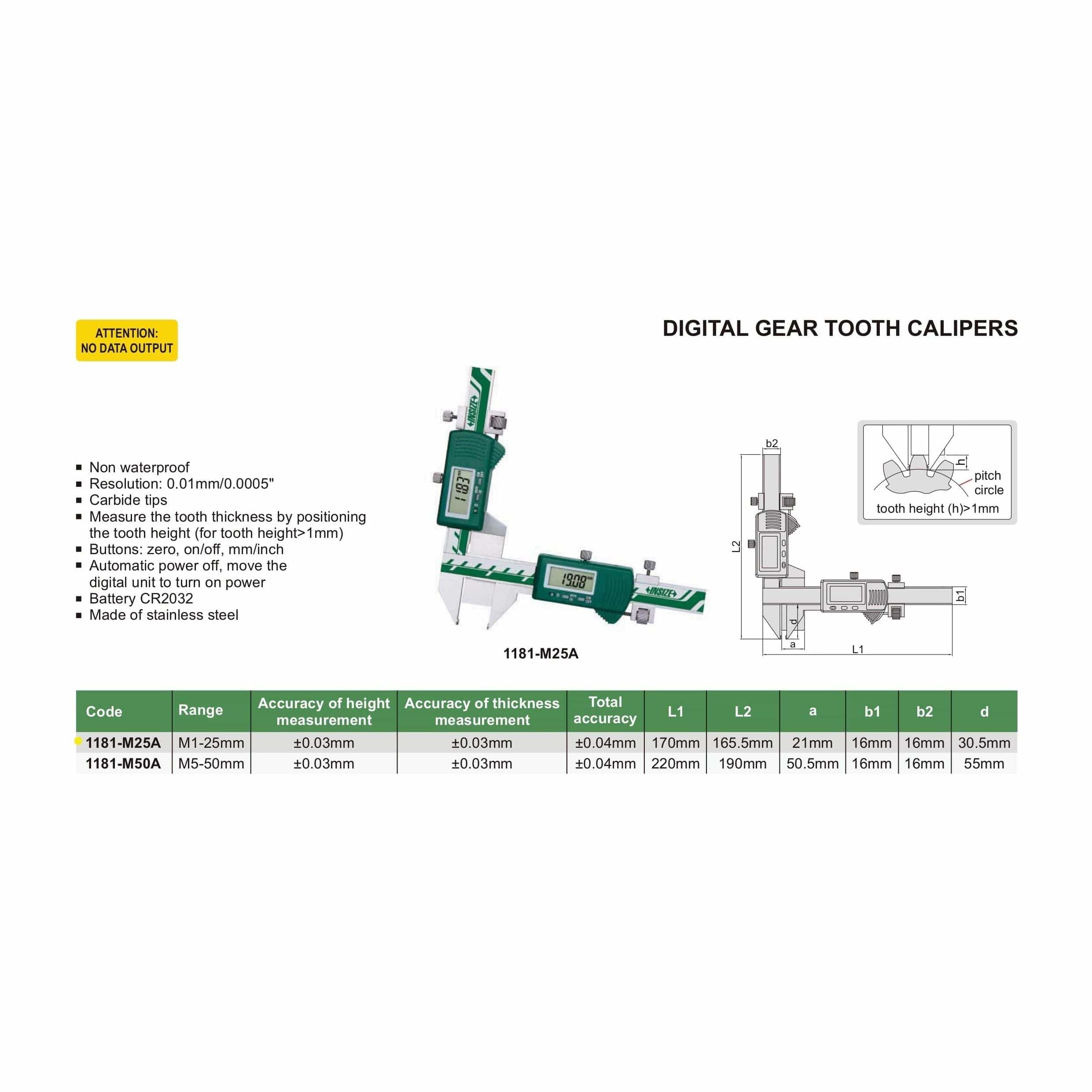

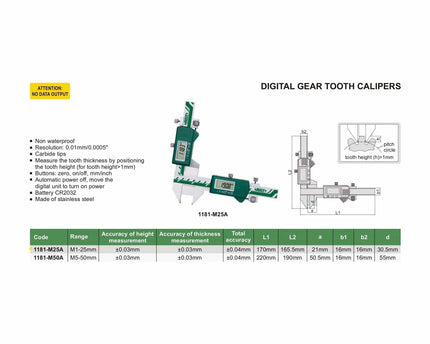

Specifications:
- Part No: 1181-M25A
- Accuracy (height measurement): ±0.03 mm
- Accuracy (thickness measurement): ±0.03 mm
- Total Accuracy: ±0.04 mm
- Resolution: 0.01 mm / 0.0005"
- Range: Module 1–25 mm

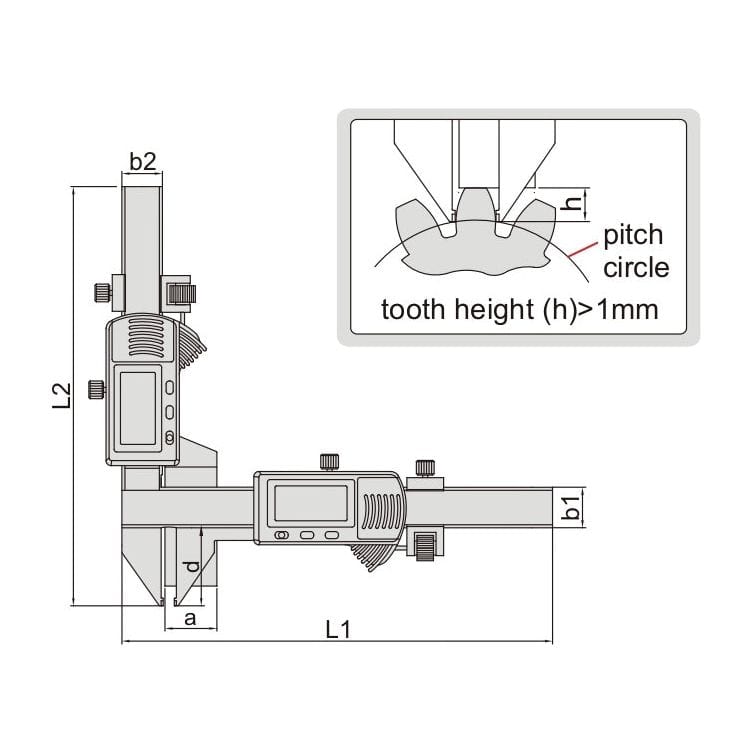

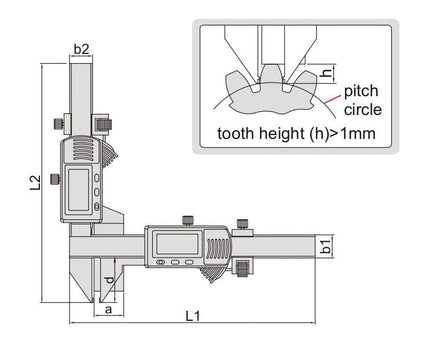

- L1: 170 mm
- L2: 165.5 mm
- A: 21 mm
- B1: 16 mm
- B2: 16 mm
- D: 30.5 mm

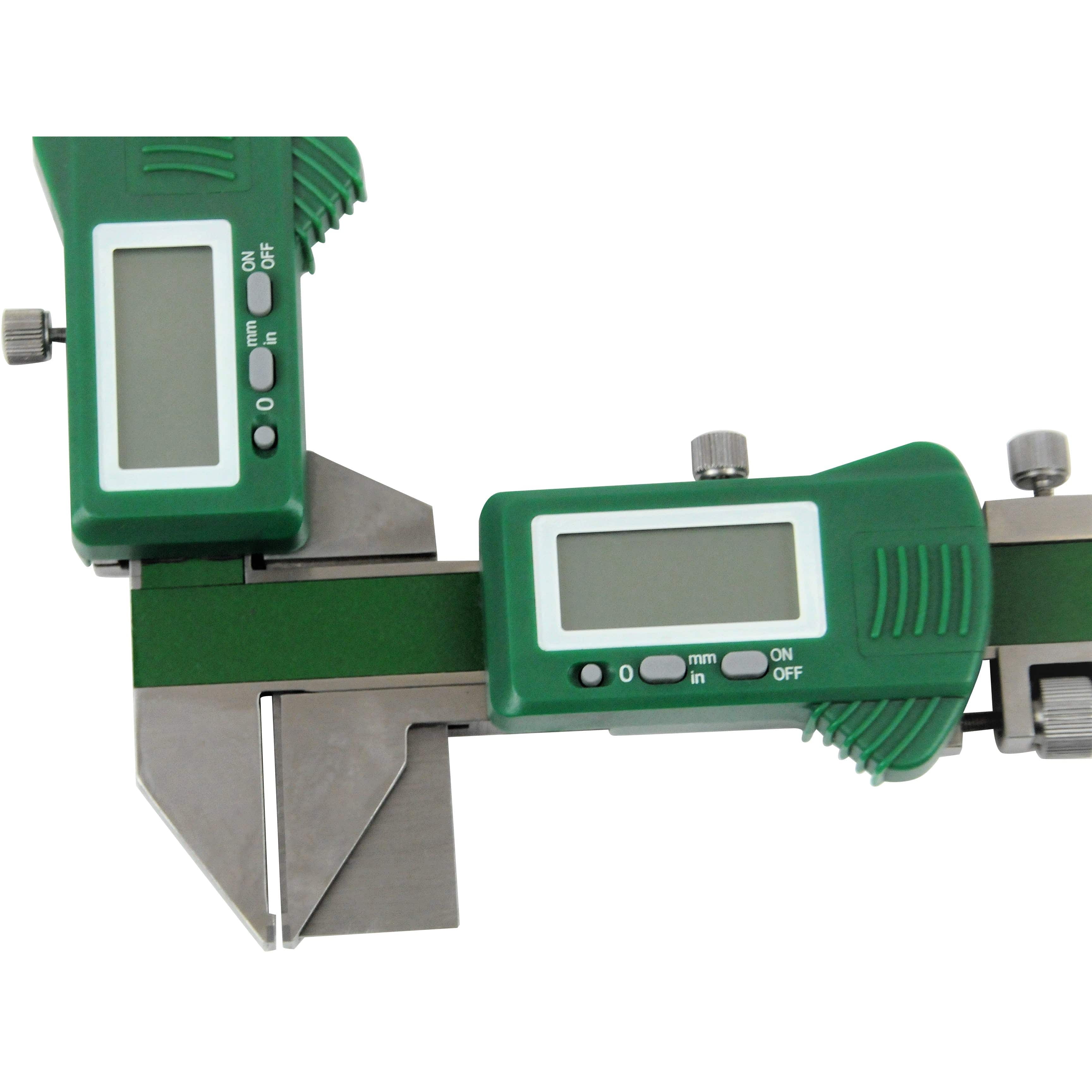

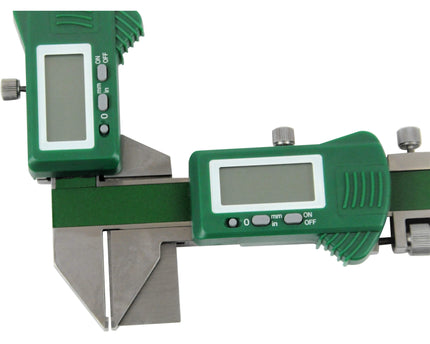

- Measuring Faces: Carbide-tipped
- Measurement Method: Positions tooth height first for accurate tooth thickness measurement (tooth height > 1 mm)
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Off: Yes

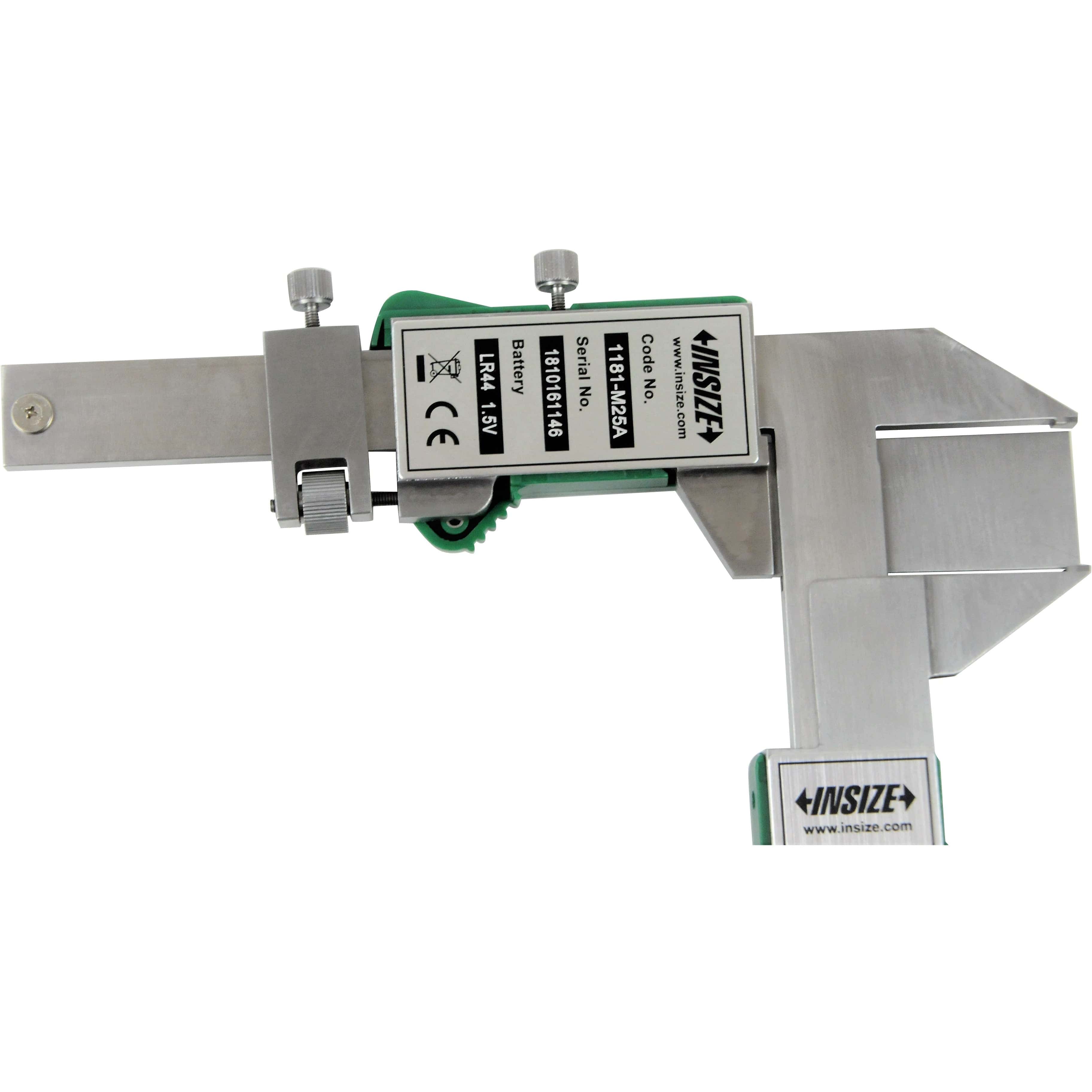

- Battery: LR44
- Data Output: Yes
- Material: Stainless steel
Well-designed and built for durability, this high-precision caliper is ideal for fast and accurate gear tooth measurement. Its carbide contacts and fine resolution ensure dependable readings for gear inspection, manufacturing, and setup tasks.
