Description

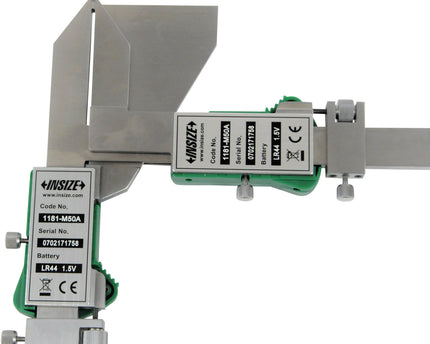

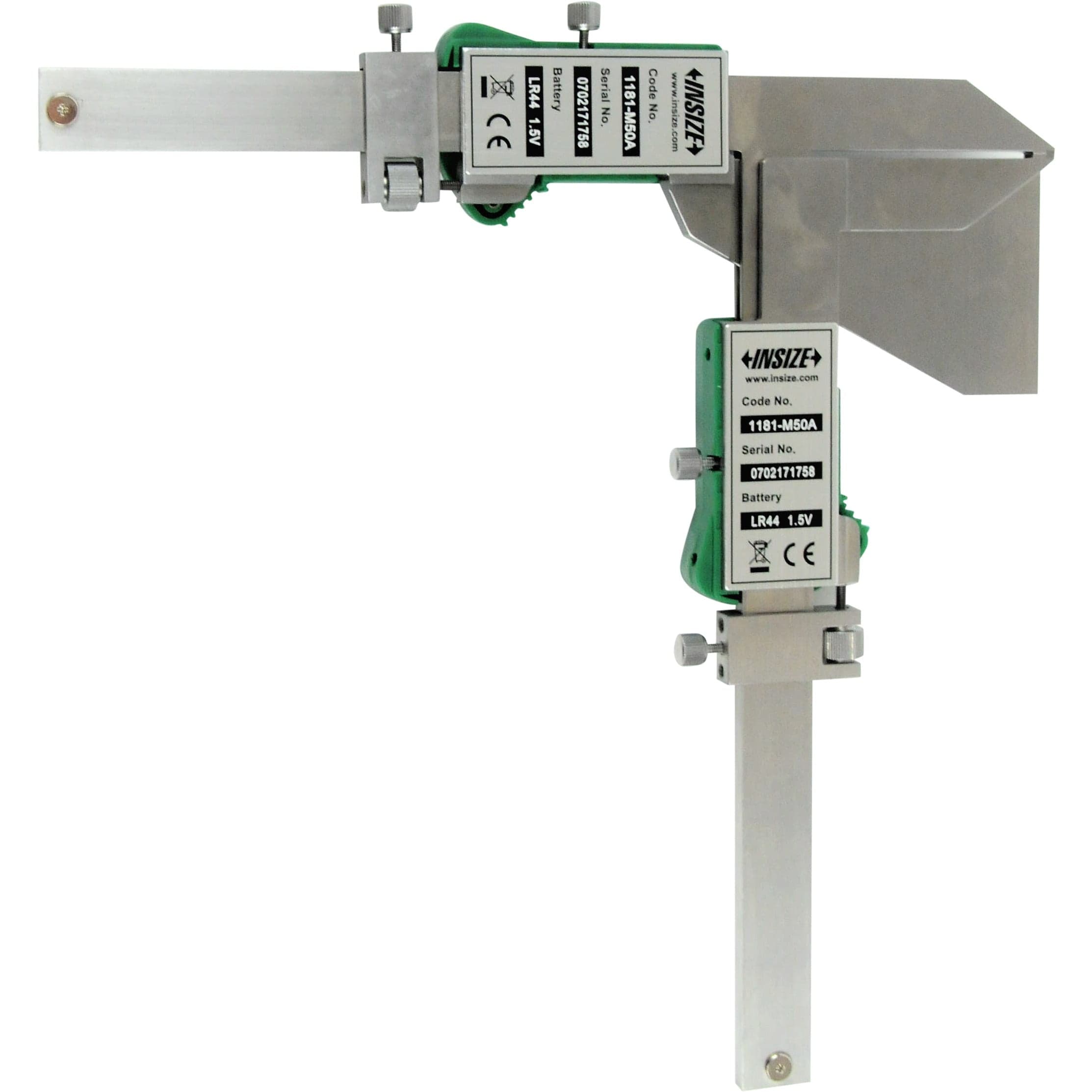

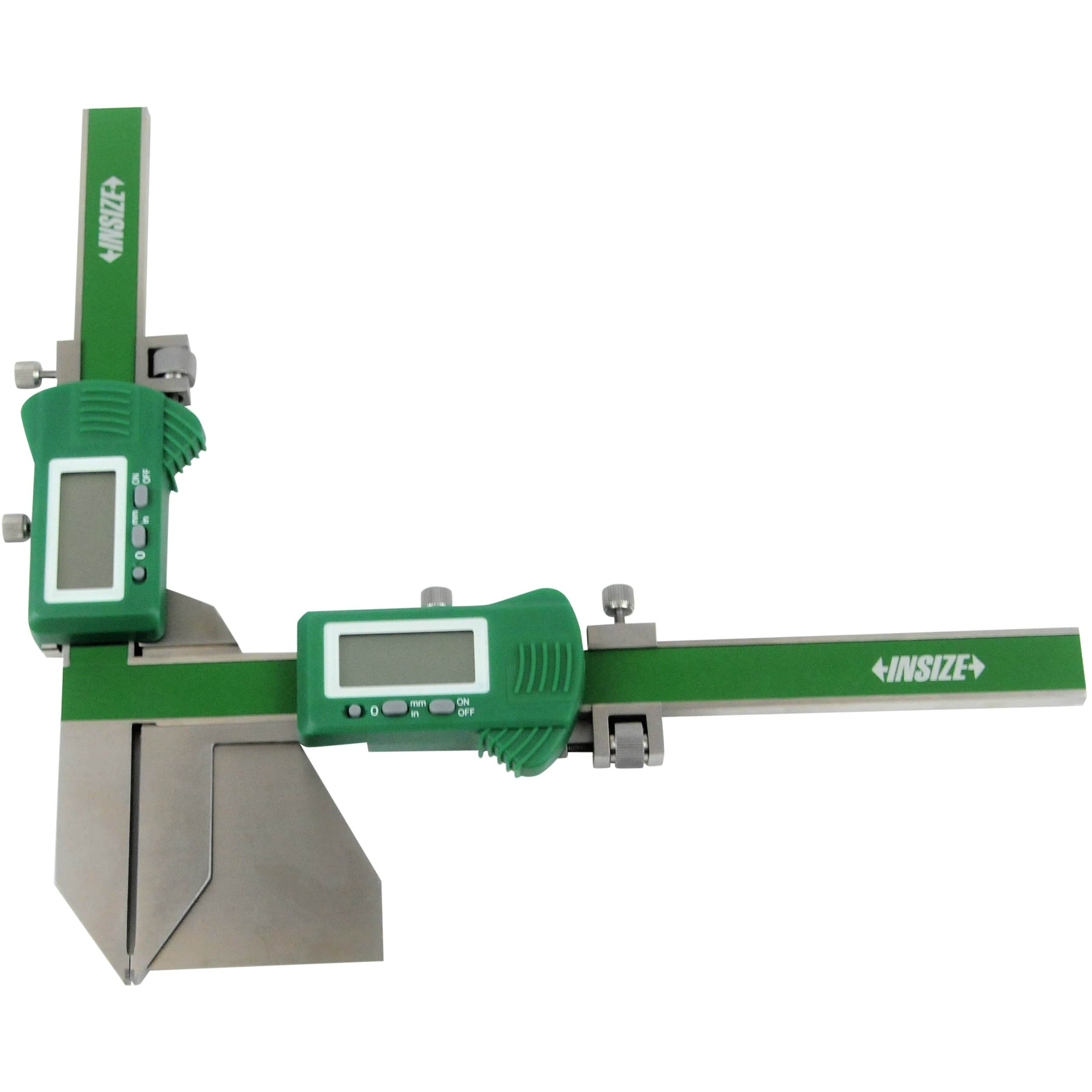

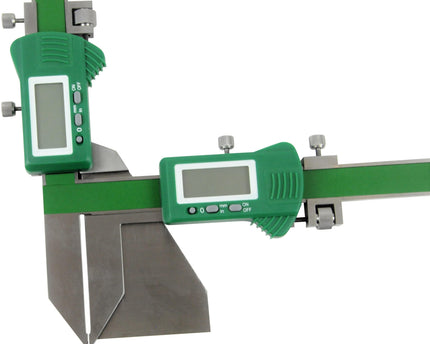

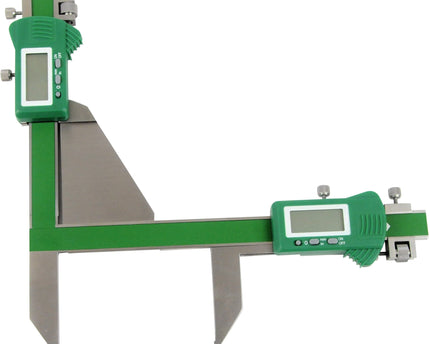

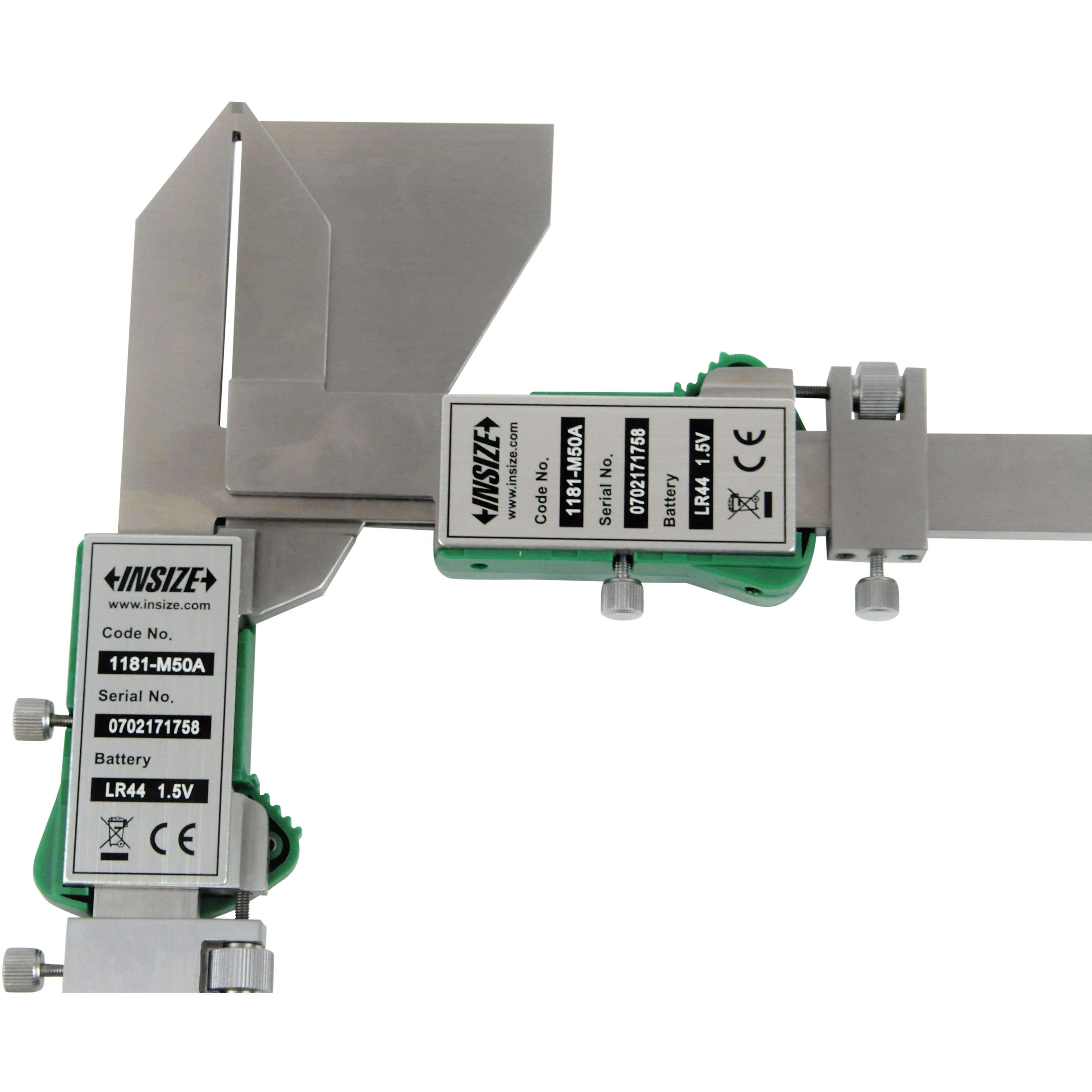

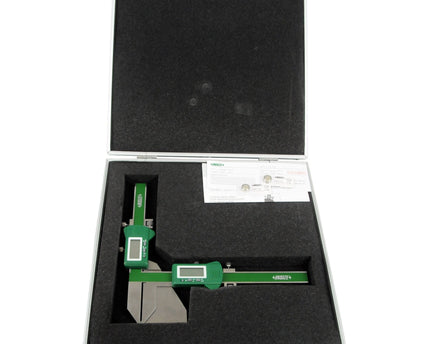

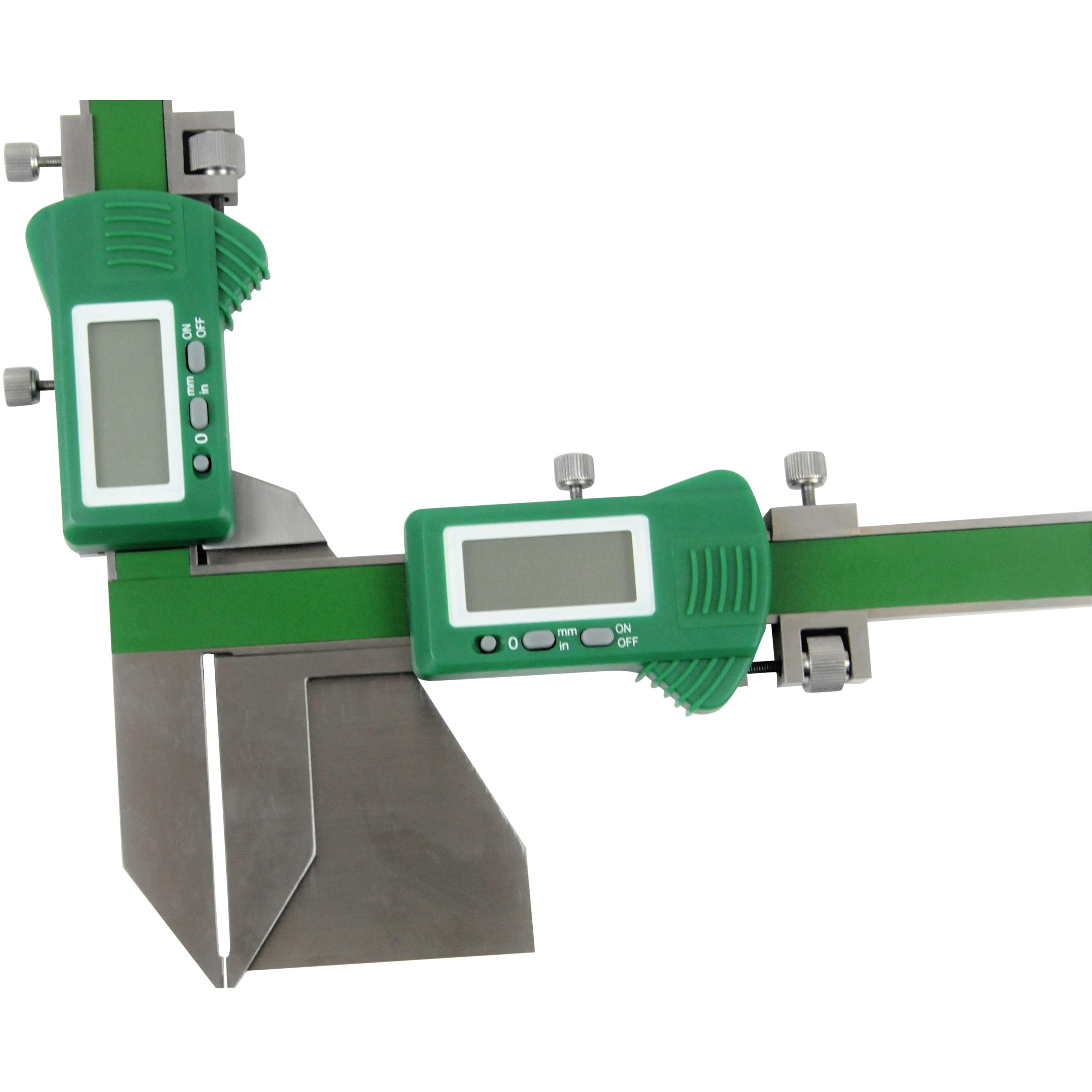

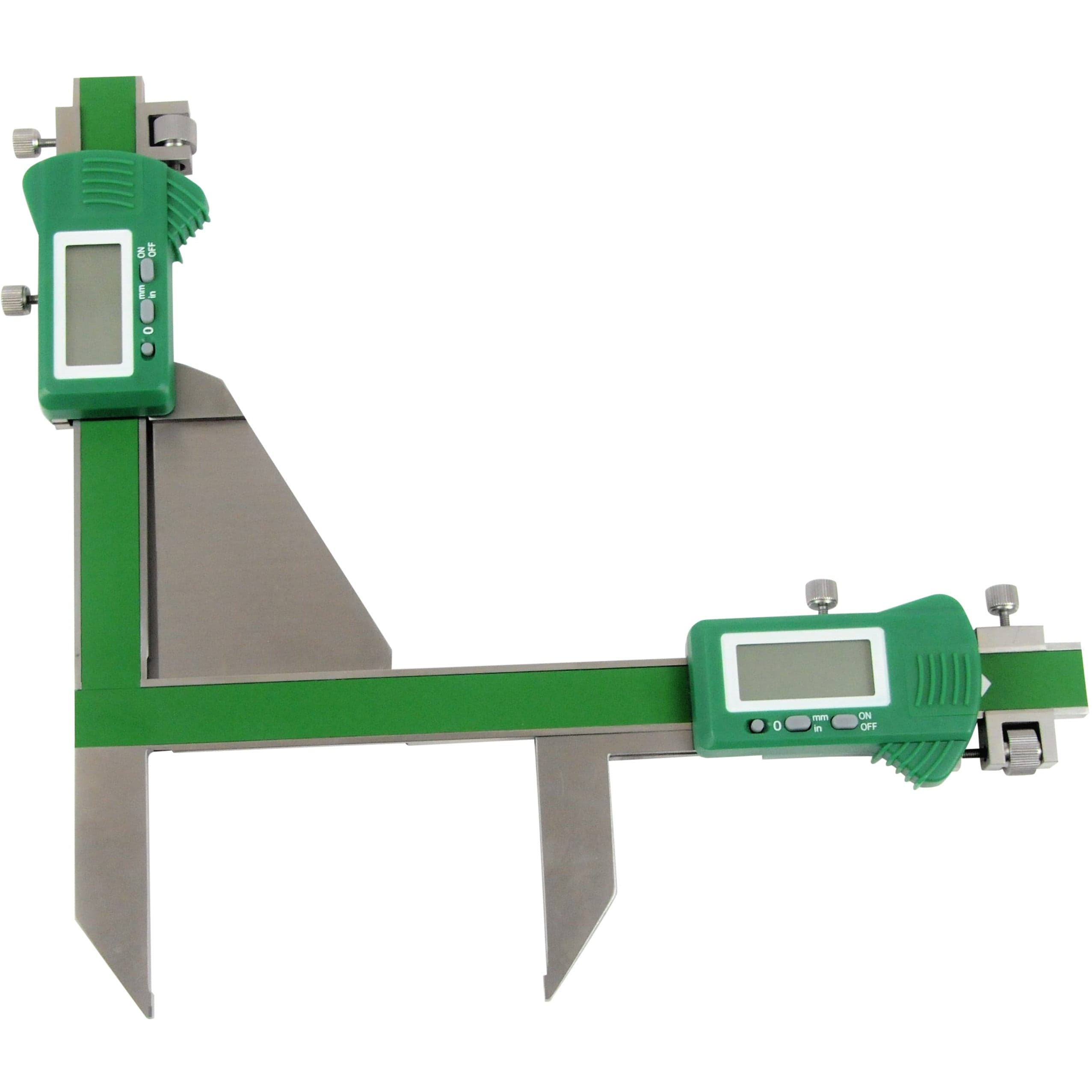

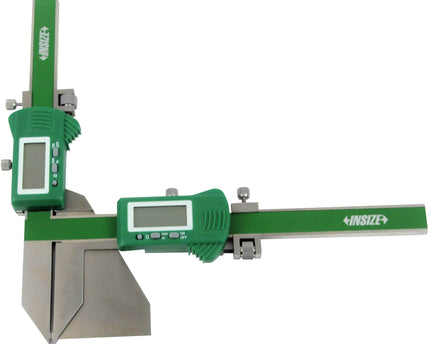

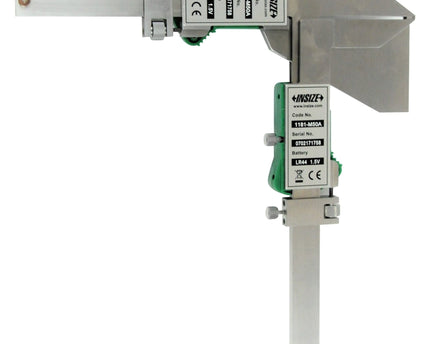

Insize 5–50 mm Gear Tooth Digital Caliper
A precision digital caliper designed for measuring the thickness of gear teeth with accuracy and repeatability. Built from durable stainless steel and fitted with carbide tips, this instrument ensures stable performance in workshop, machining, and inspection environments.

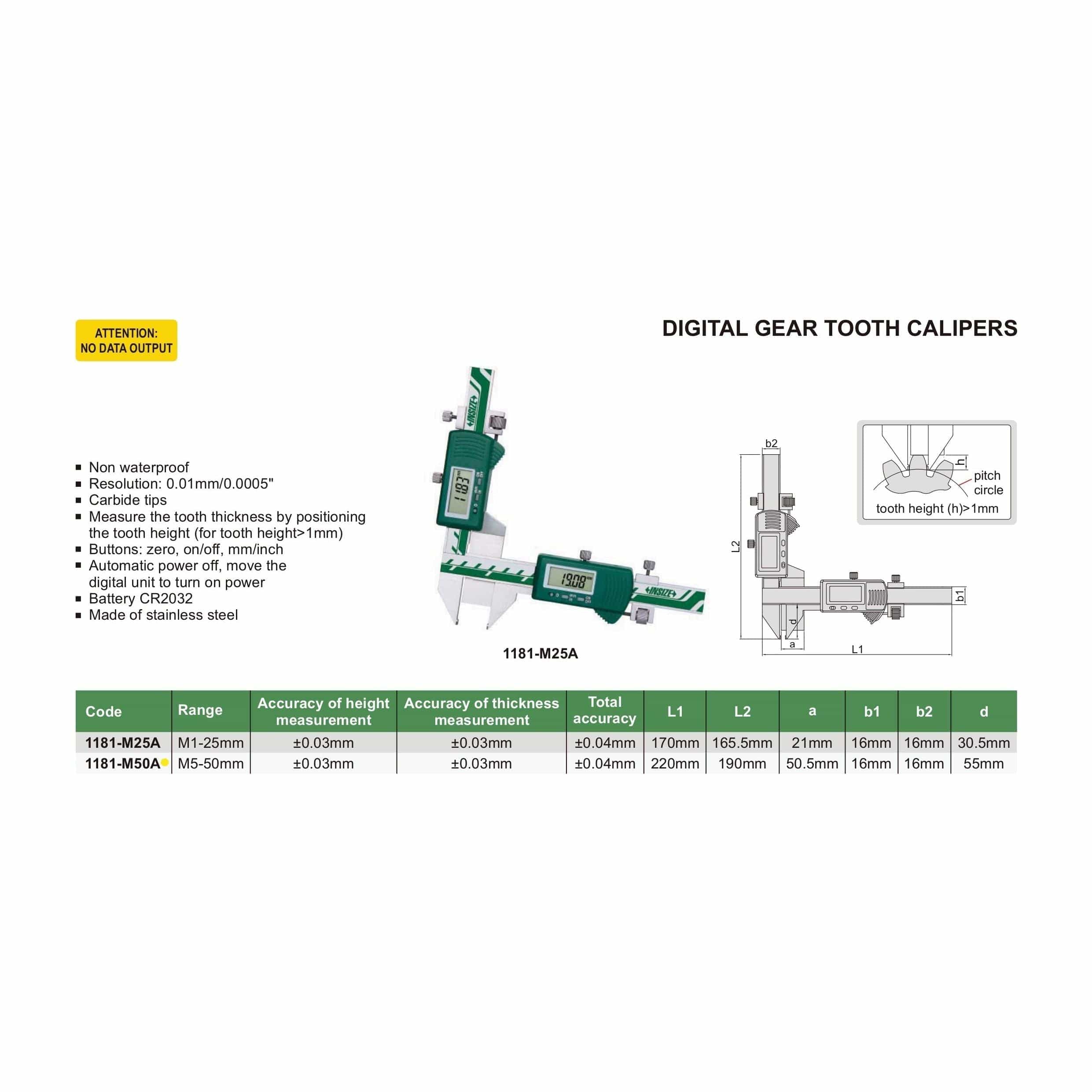

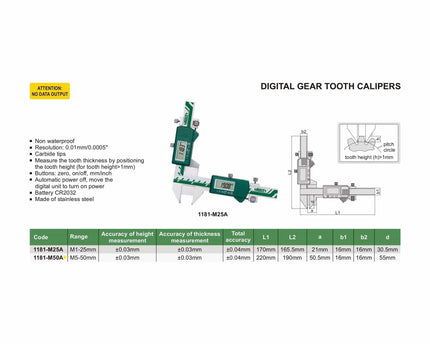

Specifications:
- Part No: 1181-M50A
- Accuracy (height measurement): ±0.03 mm
- Accuracy (thickness measurement): ±0.03 mm
- Total Accuracy: ±0.04 mm
- Resolution: 0.01 mm / 0.0005"
- Range: M5–50 mm

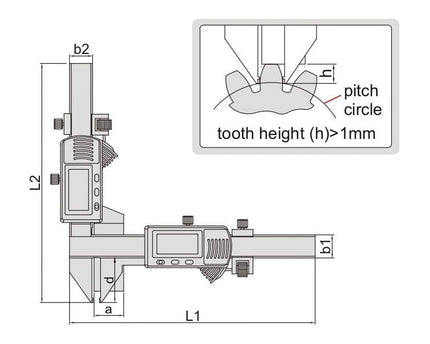

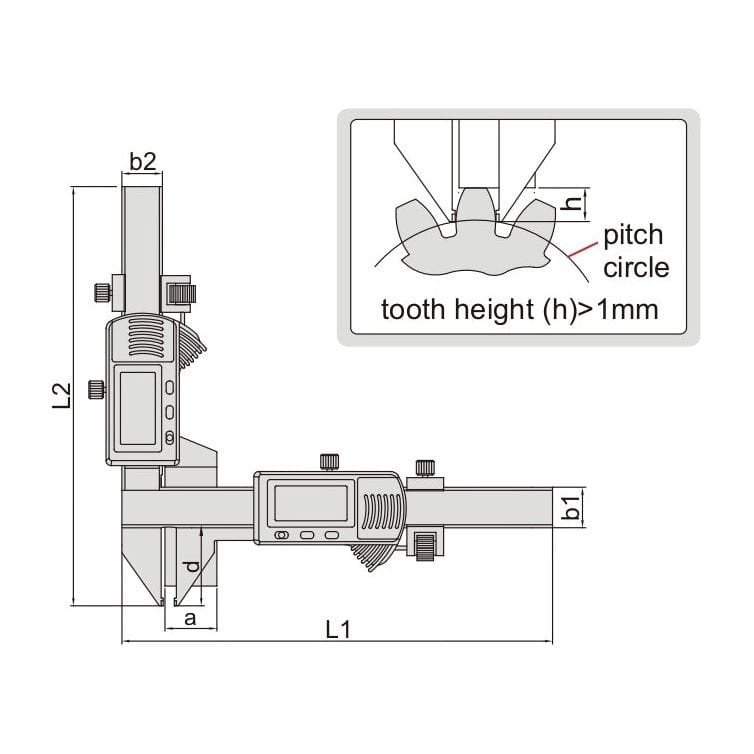

- L1: 220 mm
- L2: 190 mm
- A: 50.5 mm
- B1: 16 mm
- B2: 16 mm
- D: 55 mm
- Carbide-tipped measuring faces
- Measures tooth thickness by positioning the tooth height (for tooth height > 1 mm)
- Automatic power off
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Battery: LR44
- Data Output: Yes
- Material: Stainless steel
Well-designed and built for precision, this digital gear tooth caliper provides reliable thickness measurement of gear teeth. Easy to use, stable in hand, and suited for both workshop and inspection tasks requiring consistent and accurate readings.
