Description

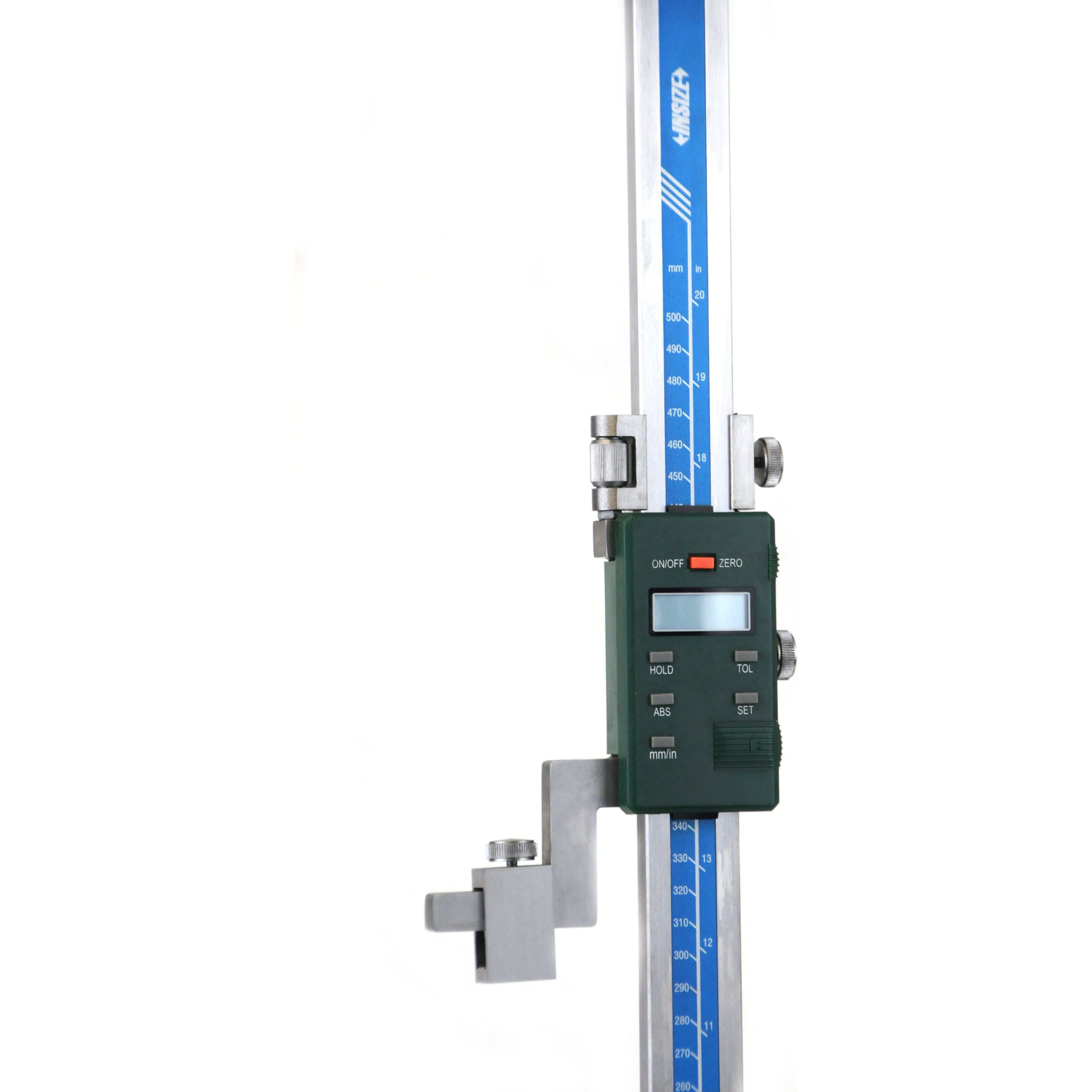

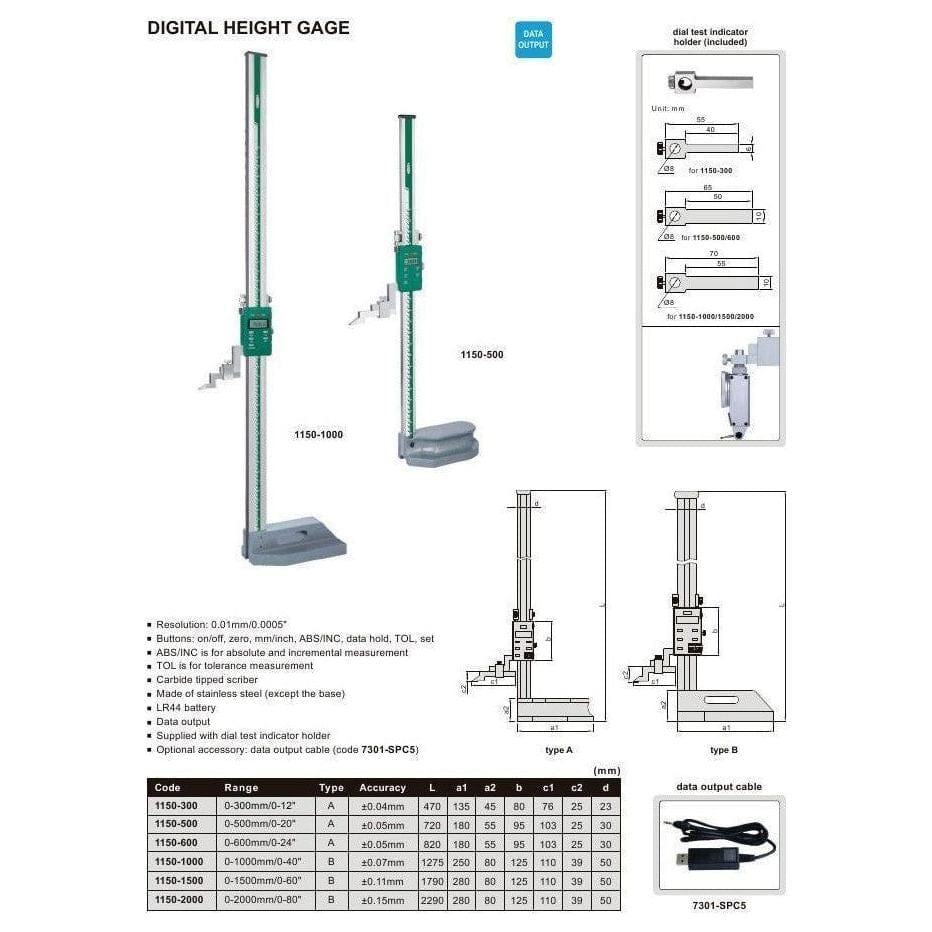

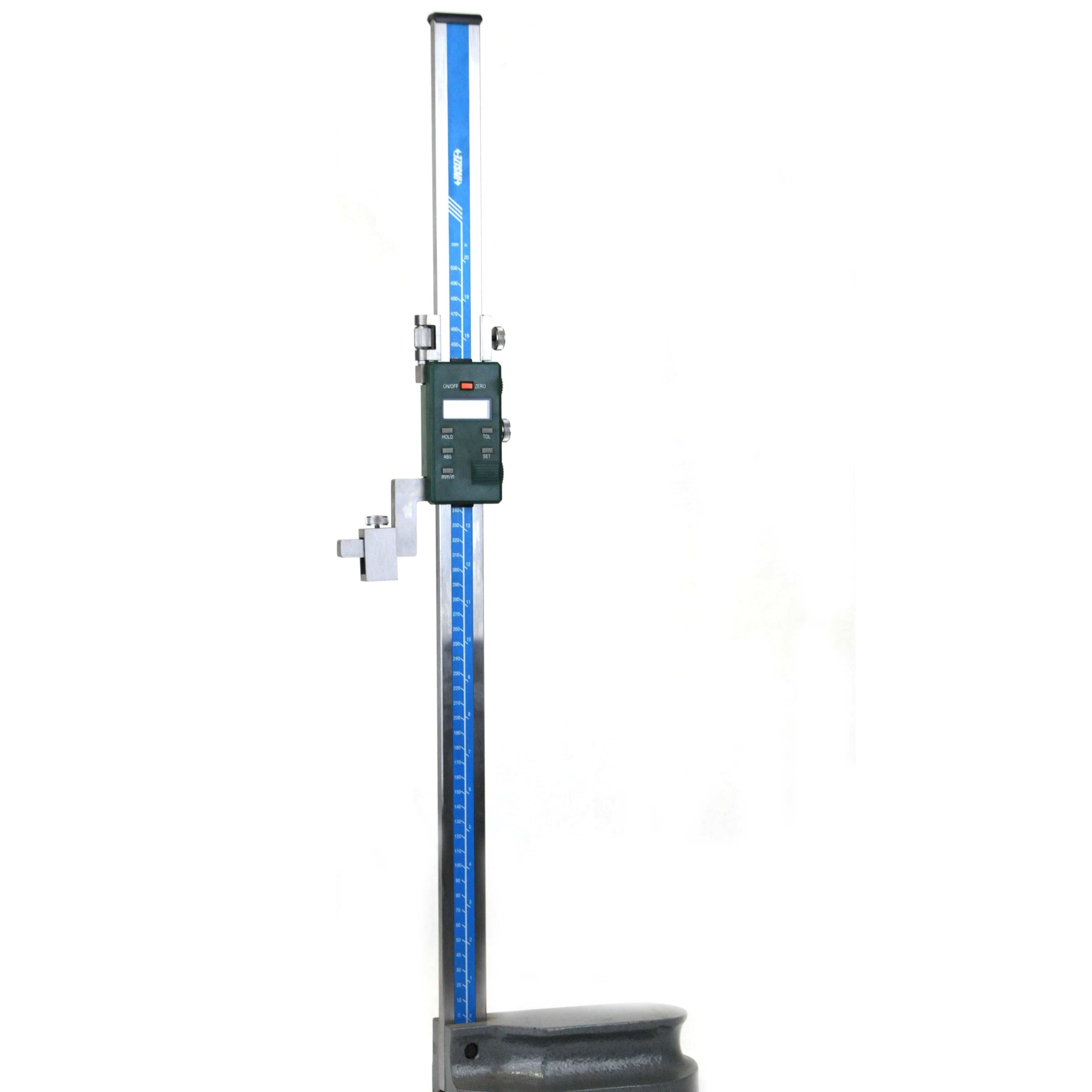

Insize 0–500mm Digital Height Gauge
The Insize Digital Height Gauge is a precision measuring instrument designed for accurate vertical measurement, marking-out, and inspection tasks. Manufactured in accordance with DIN 862 standards, it features smooth sliding movement, hardened measuring surfaces, and a clear digital display, making it ideal for workshop, toolroom, and quality control applications.
Specifications :
- Part No.: 1150-500
- Measuring Range: 0–500mm
- Resolution: 0.01mm / 0.0005″
- Accuracy: ±0.05mm
- Standard: DIN 862
- Material: Stainless steel body (excluding base)
- Measuring Surfaces: Hardened, ground and lapped
- Display: Digital LCD
- Functions: On/off, zero, mm/inch, ABS/INC, data hold, tolerance (TOL), set
- Measurement Modes: Absolute and incremental measurement
- Step Measuring Faces
- Operation: Smooth sliding movement with locking screw
- Automatic Power Off: 5 minutes
- Power Supply: LR44 battery
- Data Output: Optional cable (code 7301-SPC5)
- Accessories Included: Carbide scriber, dial test indicator holder, dust cover
Well designed and durable, this digital height gauge delivers reliable and repeatable results across a wide range of measuring and inspection tasks. Its ease of use and precision make it an essential tool for accurate height measurement and layout work.
