Description

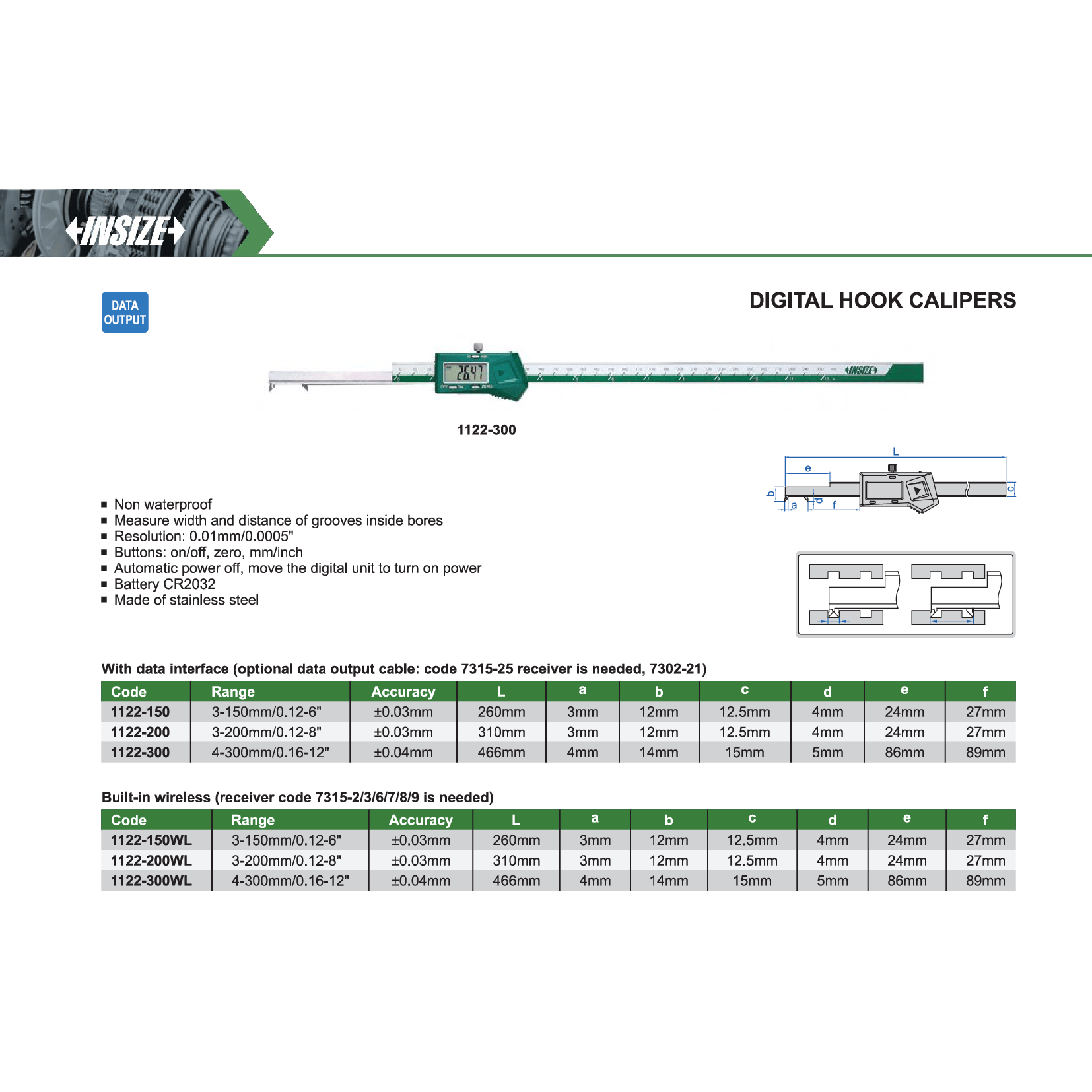

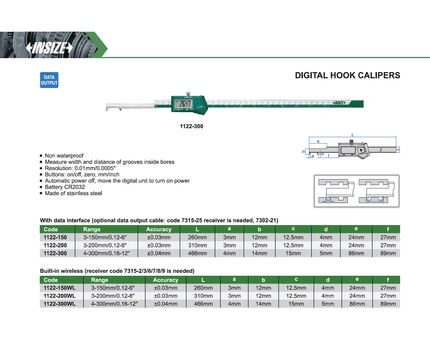

Insize Digital Hook Caliper
The Insize 1122-150 Digital Hook Caliper is designed for precise measurement of width and groove distances inside bores. With a resolution of 0.01 mm (0.0005") and an accuracy of ±0.03 mm, it delivers reliable performance for inspection and manufacturing applications. The caliper is constructed from stainless steel for durability and features easy-to-use buttons for on/off, zero setting, and mm/inch conversion. The automatic power-off function preserves battery life, and the digital unit powers on when moved. This model includes a data interface for connectivity with optional output cables.
Specifications :
-
Part No: 1122-150
-
Range: 3–150 mm / 0.12–6"
-
Resolution: 0.01 mm / 0.0005"
-
Accuracy: ±0.03 mm
-
L: 260 mm
-
a: 3 mm
-
b: 12 mm
-
c: 12.5 mm
-
d: 4 mm
-
e: 24 mm
-
f: 27 mm
-
Material: Stainless steel
-
Power Supply: CR2032 battery
-
Functions: On/off, zero, mm/inch conversion, automatic power off
-
Optional Accessories: Data output cable (code 7315-25, receiver code 7302-21)
Engineered for precise internal groove and width measurement, the INSIZE 1122-150 offers robust stainless steel construction and high accuracy, making it a dependable tool for precision inspection tasks.
