Description
Insize Digital Hook Caliper 1122-300
The Insize 1122-300 digital hook caliper is a precision tool designed specifically for accurate internal measurements in demanding applications. With a measuring range of 0.16–12" (4–300mm), it is ideal for checking groove widths and spacing inside bores or other hard-to-reach internal features. The hook-style jaws allow for measurements that standard calipers can't reach, making it an essential tool for machinists, inspectors, and quality control professionals.
Constructed from high-grade stainless steel, the caliper offers long-term durability and consistent accuracy. The digital display provides high-resolution readings in both metric and imperial units, and the intuitive controls include on/off, zero, mm/inch conversion, and a preset (+/-) function. An automatic power-off feature helps preserve battery life, while the movement-activated wake-up ensures it's ready when you need it. The 1122-300 also supports SPC data output via optional cables, allowing easy integration into digital inspection workflows.
Specifications :
-
Part No: 1122-300
-
Range: 0.16–12" / 4–300mm
-
Accuracy: ±0.0015" / 0.04mm
-
Resolution: 0.01mm / 0.0005"
-

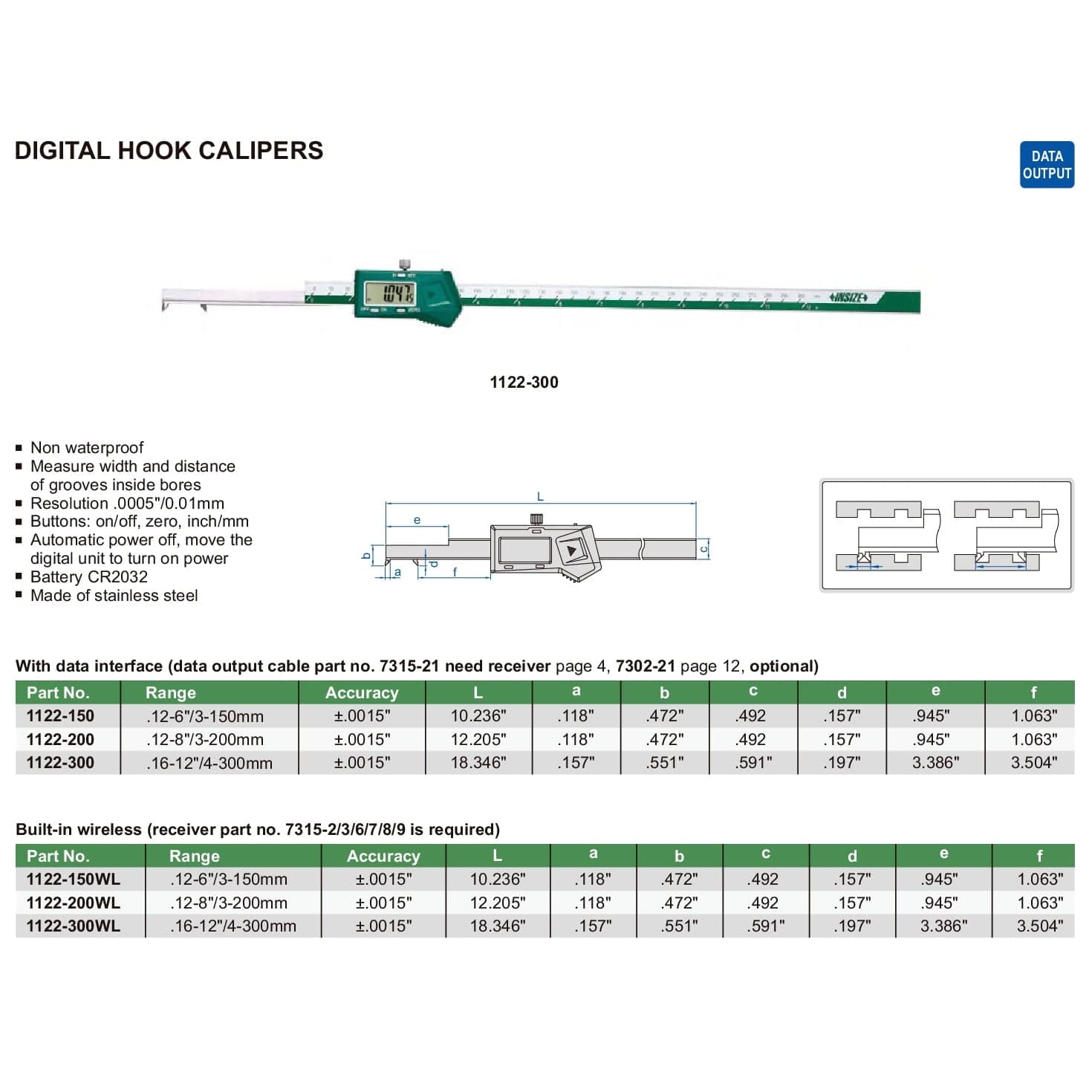

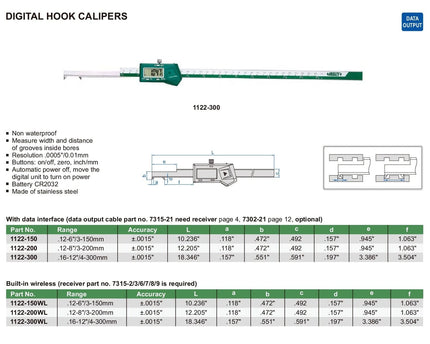

Measurements:
-
L: 18.346"
-
a: 0.157"
-
b: 0.551"
-
c: 0.591"
-
d: 0.197"
-
e: 3.386"
-
f: 3.504"
-
Display: Digital
-
Material: Stainless steel
-
Category: Measuring
-
Style: Hook caliper
-
Power Supply: CR2032 battery
-
Data Output: Compatible with SPC cables 7315-21, 7302-21 (optional)
Key Features :
- Hook jaws for measuring groove width and spacing inside bores
- High-resolution digital display with 0.01mm / 0.0005" readability
- On/off, zero, mm/inch conversion, and preset (+/-) functions
- Automatic power-off and wake-up when moved
- Rugged stainless steel construction
- SPC data output support with optional cables
Ideal for precision internal measurements in grooves, bores, and recessed features, the Insize 1122-300 digital hook caliper delivers accuracy and convenience in a durable, professional-grade design.
