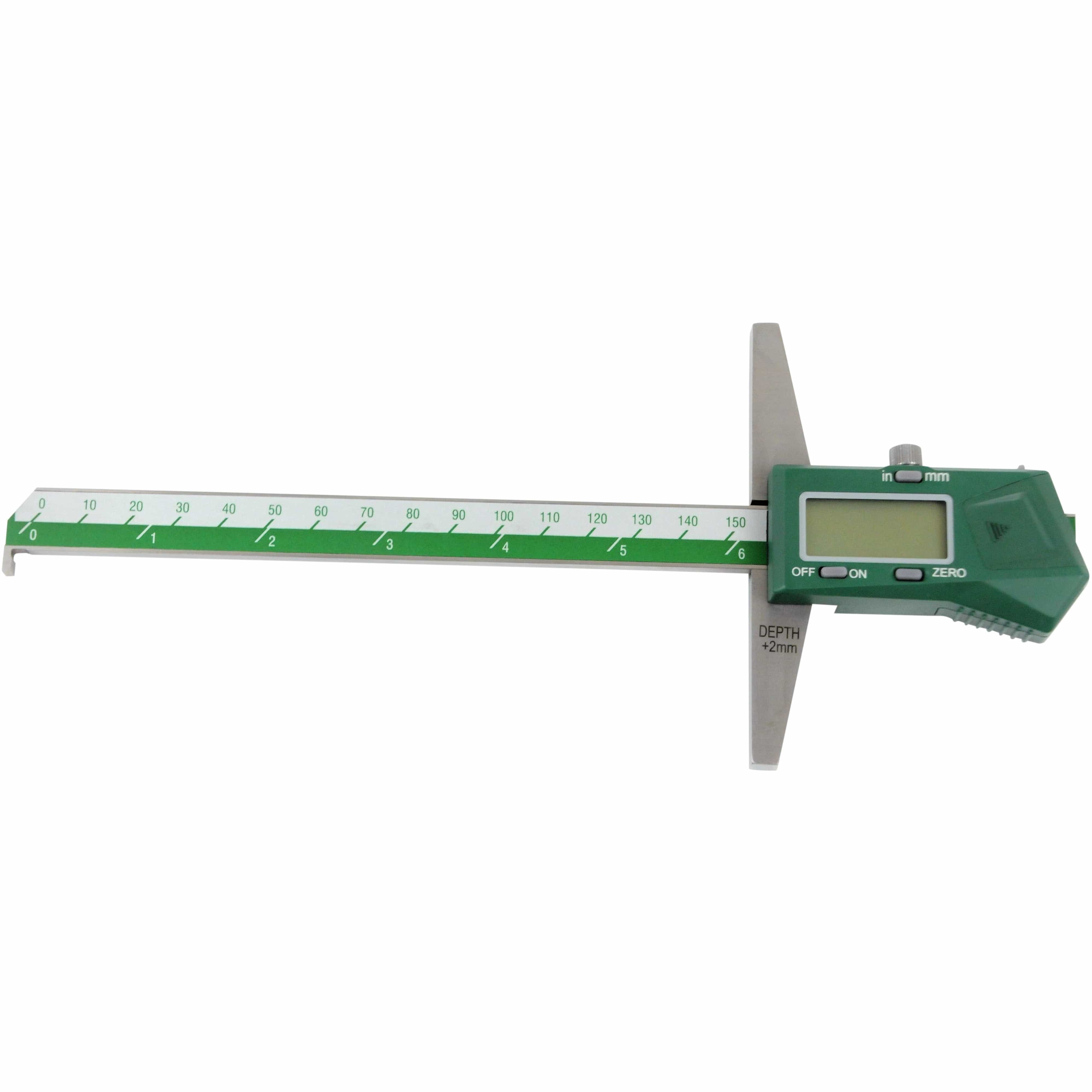

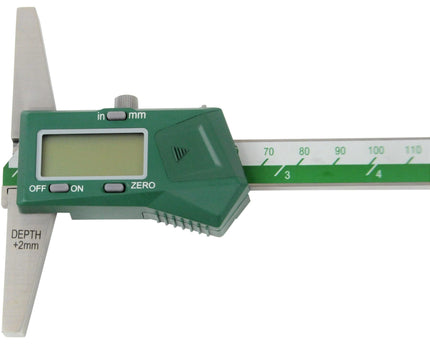

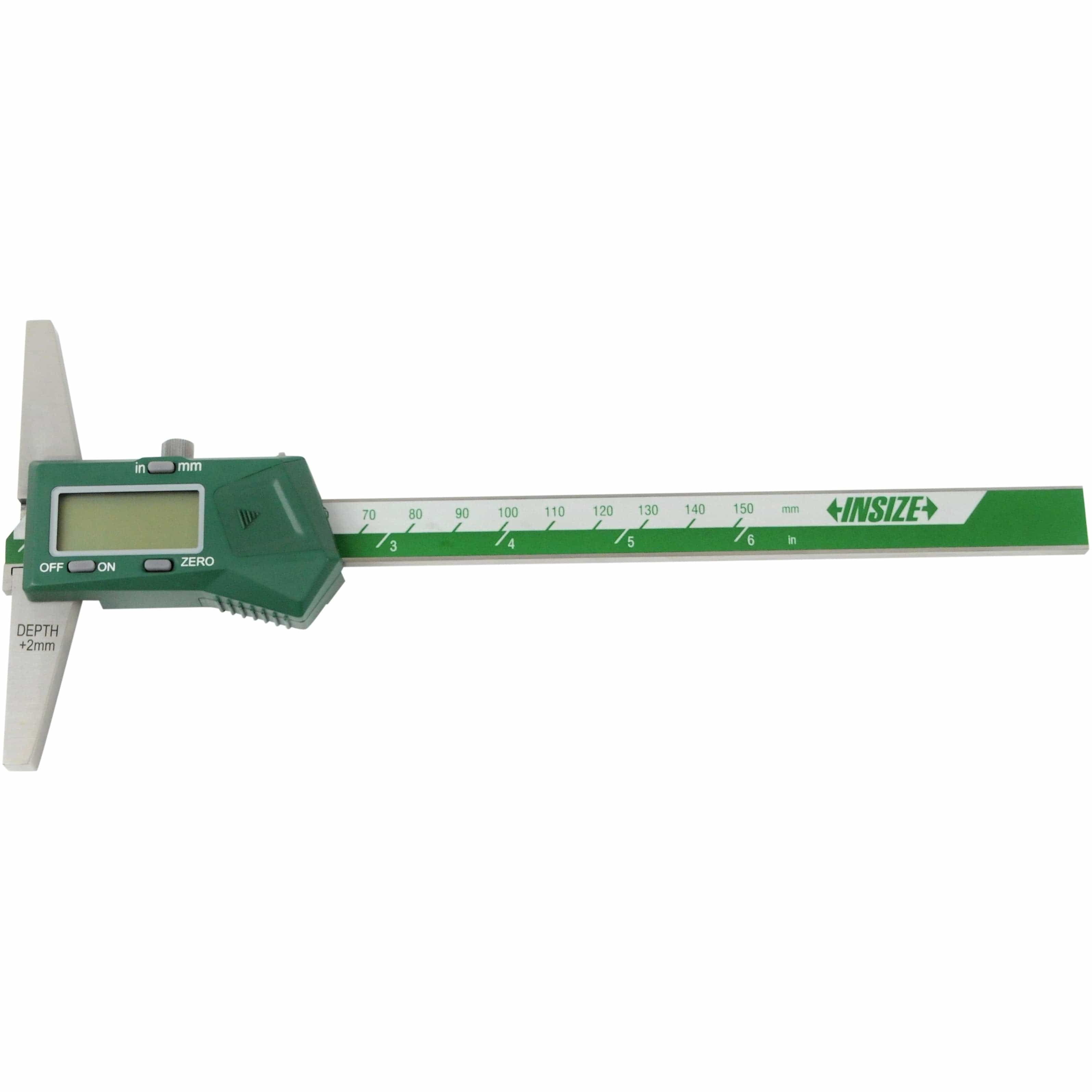

Insize Digital Hook Depth Gauge 1142-150A

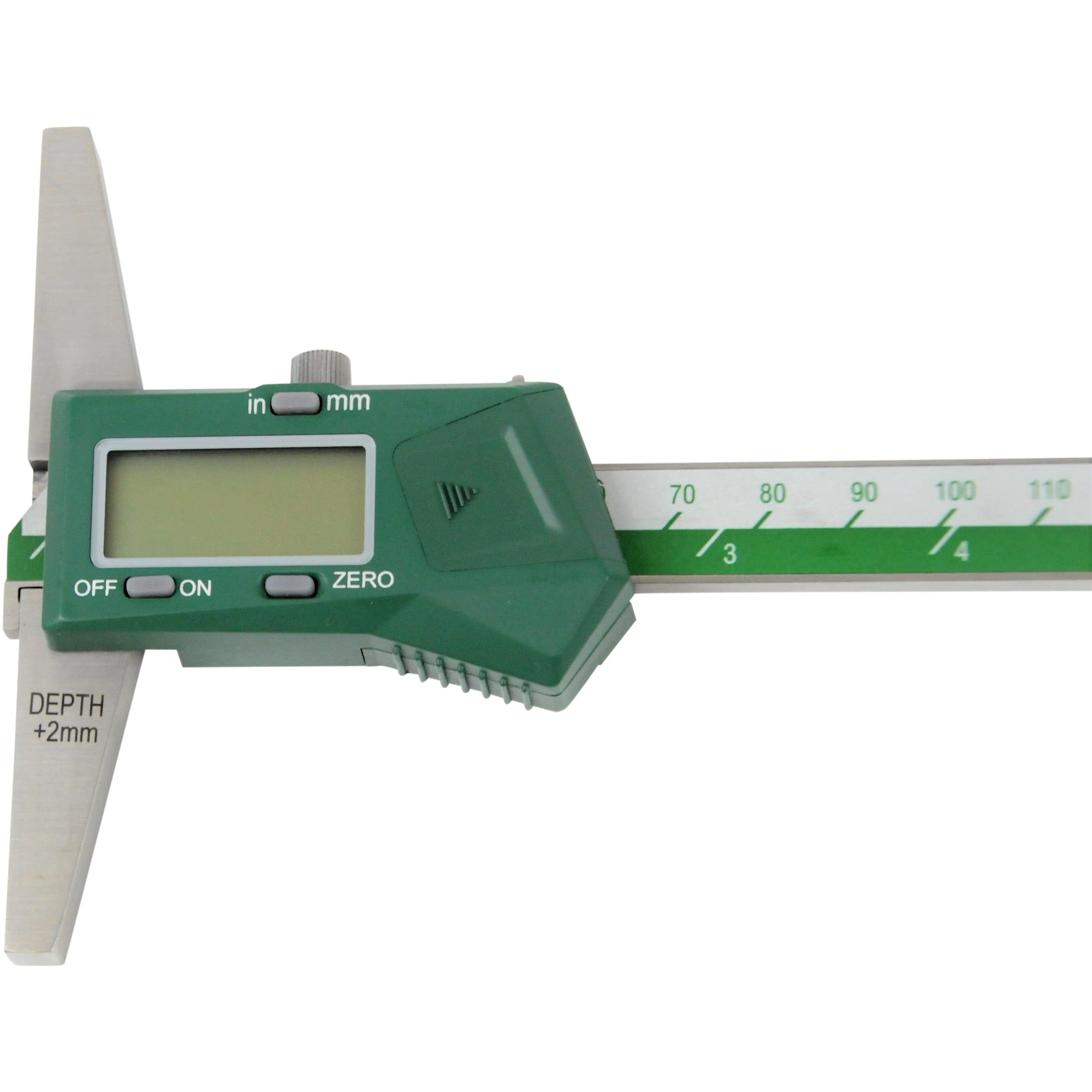

The Insize 1142-150A Digital Hook Depth Gauge is engineered for accurate depth measurements with a resolution of 0.01 mm / 0.0005″. It features an easy-to-read digital display, zero setting, mm/inch conversion, and automatic power-off for extended battery life. Designed with stainless steel construction, it ensures durability in workshop and inspection environments. The model comes with data output capability for seamless integration with data recording systems.

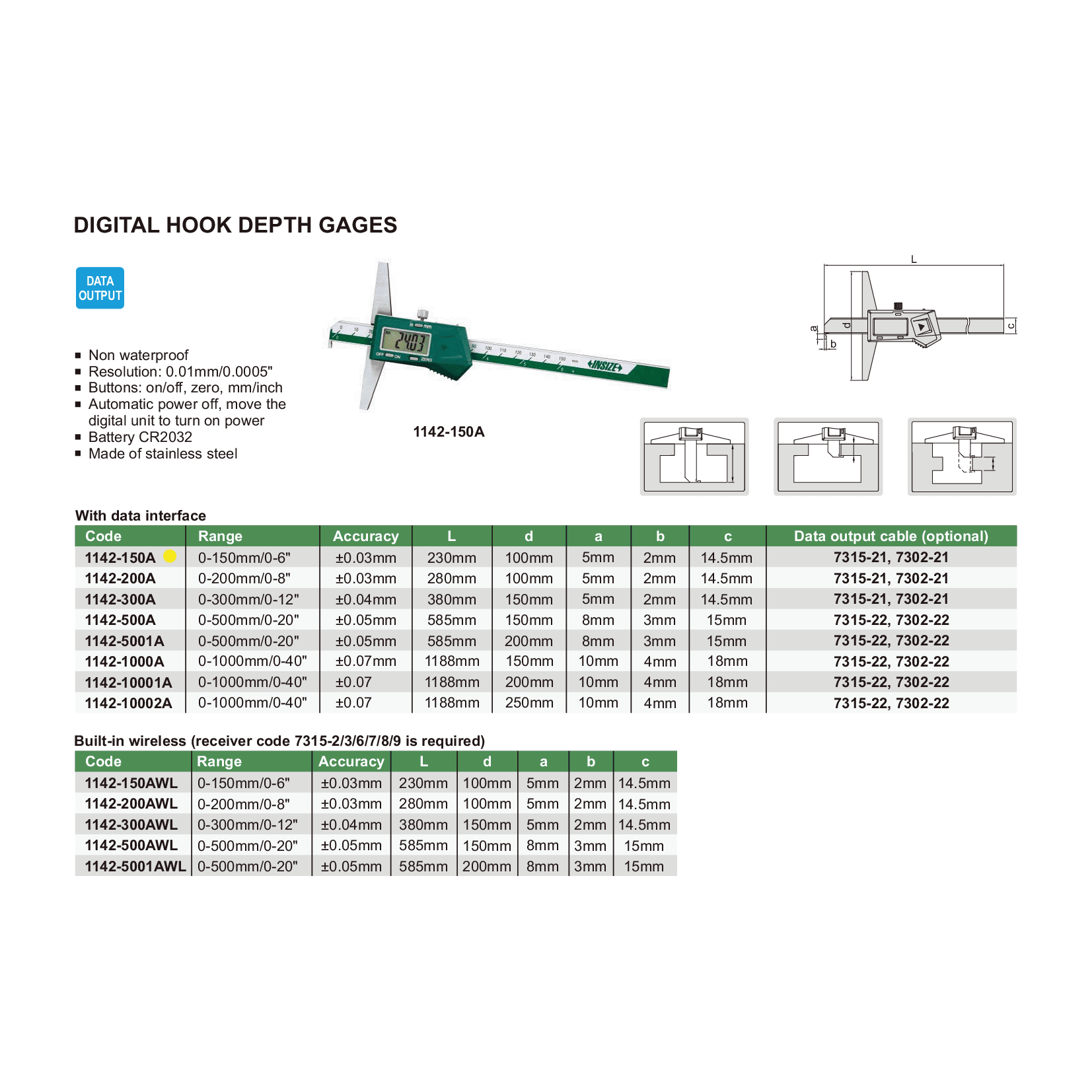

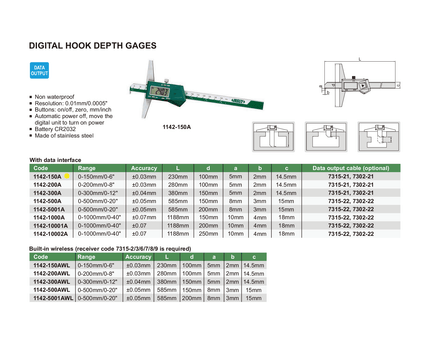

Specifications :
-
Part No: 1142-150A
-
Measuring Range: 0–150 mm / 0–6″
-
Resolution: 0.01 mm / 0.0005″
-
Accuracy: ±0.03 mm
-

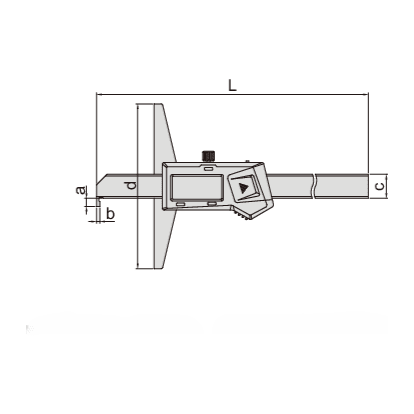

L: 230 mm
-
d: 100 mm
-
a: 5 mm
-
b: 2 mm
-
c: 14.5 mm
-
Battery: CR2032
-
Material: Stainless steel
-
Functions: On/off, zero, mm/inch conversion
-
Data Output: Yes (optional cable: 7302-21; receiver: 7315-25)
Reliable and precise, the Insize 1142-150A is an essential tool for depth measurement in machining, tooling, and quality control.
