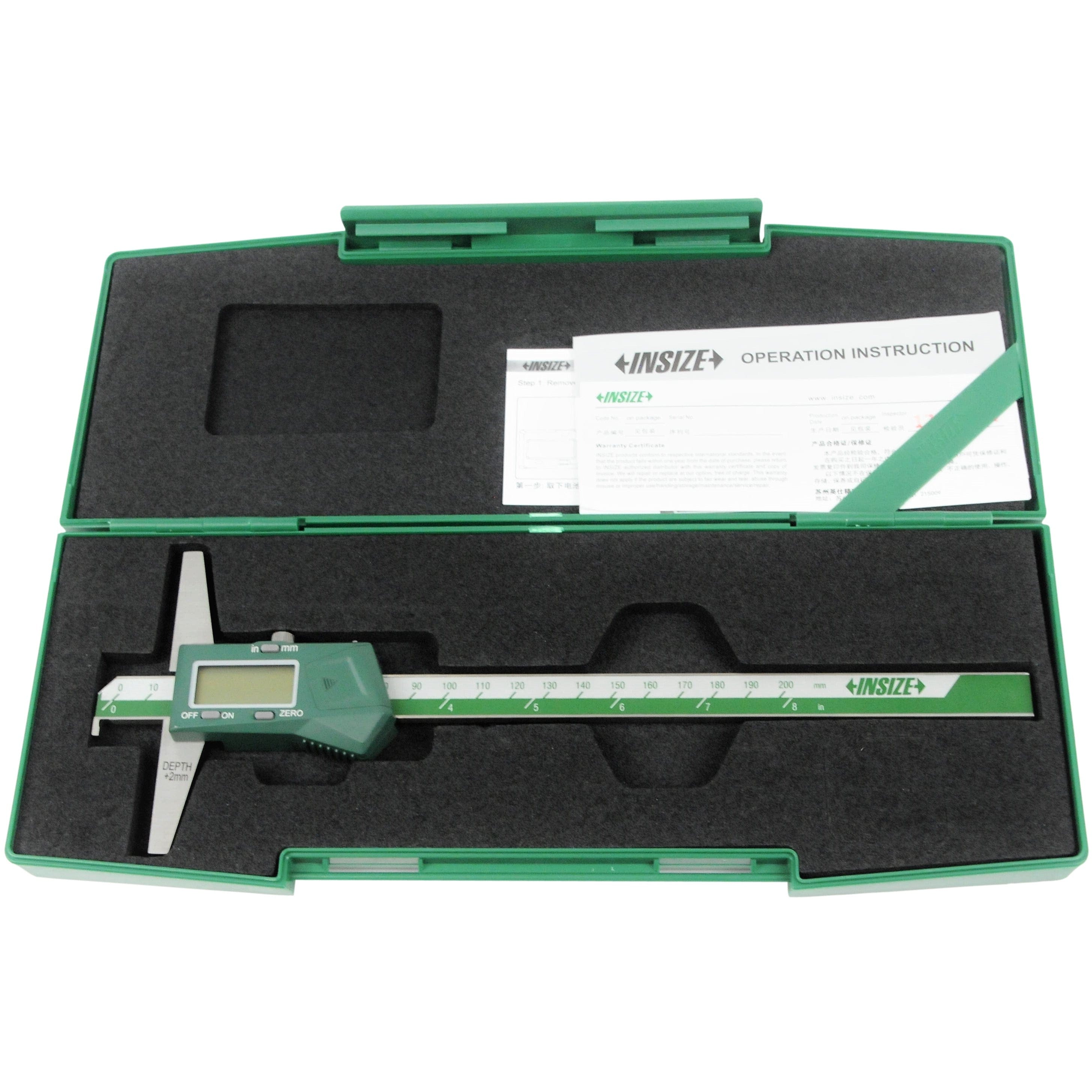

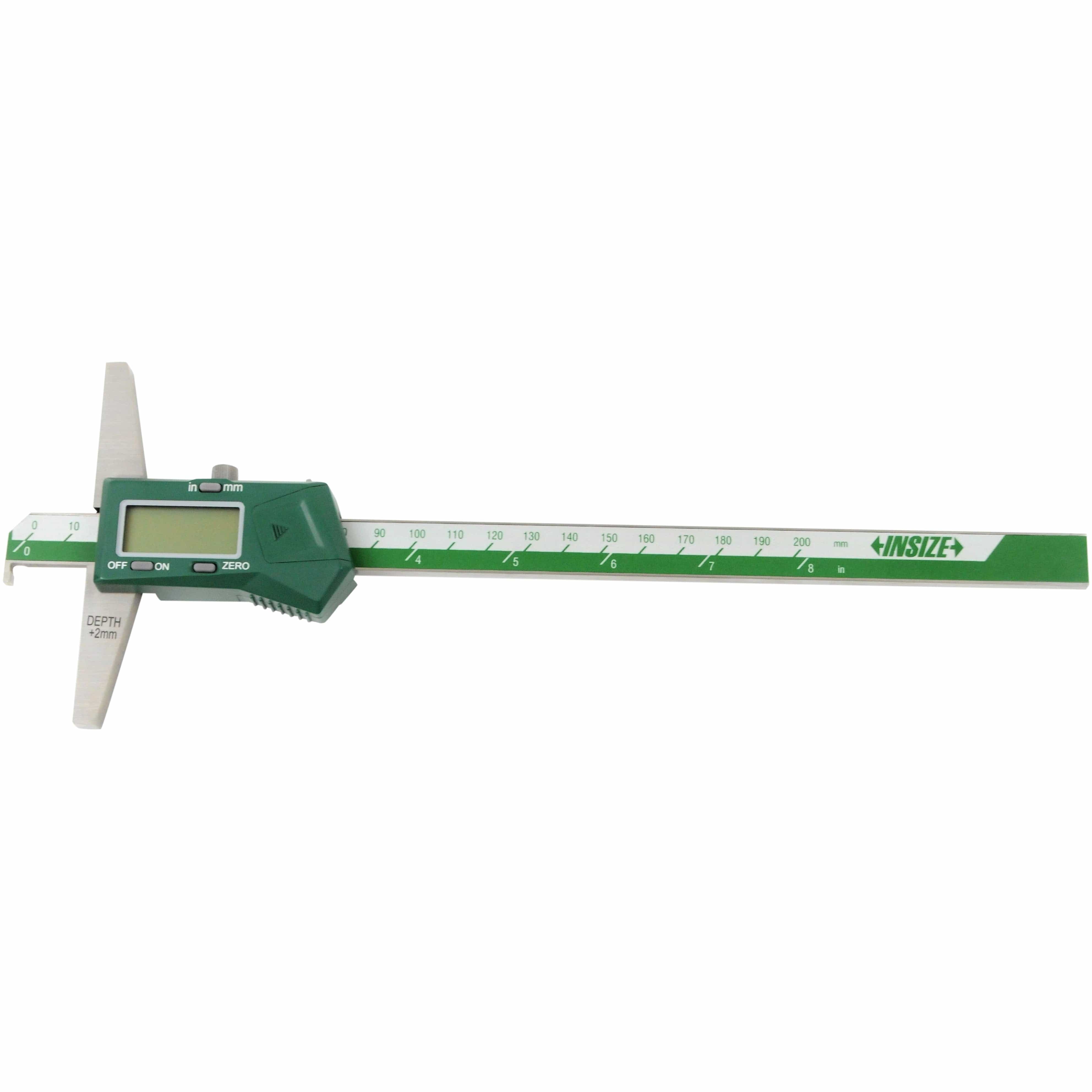

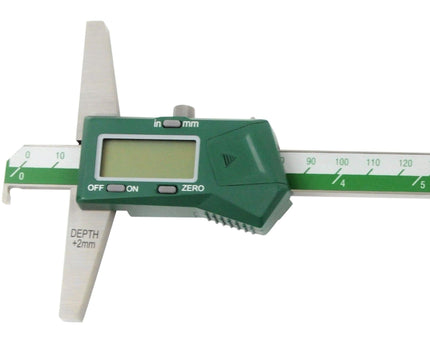

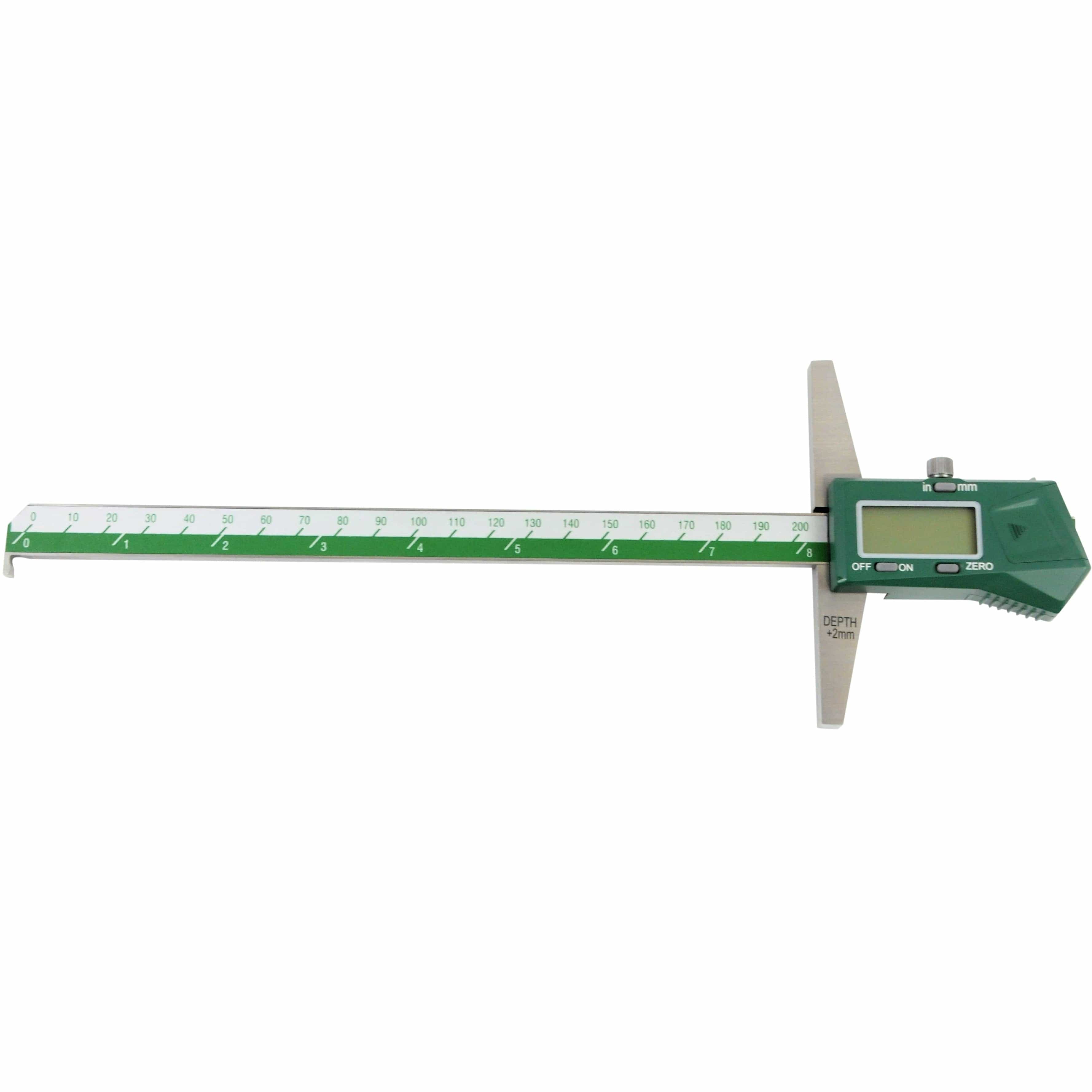

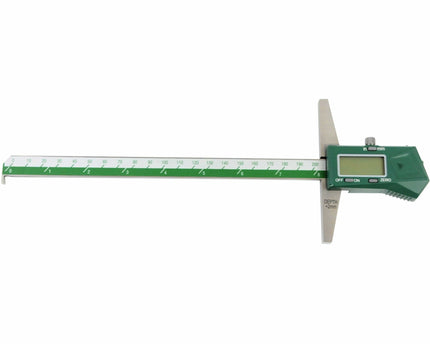

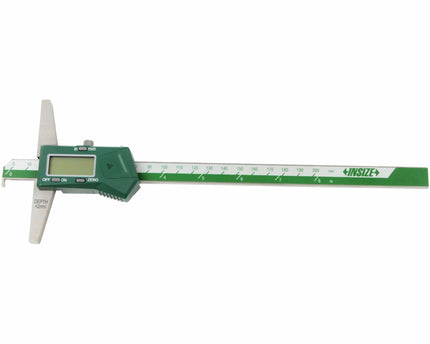

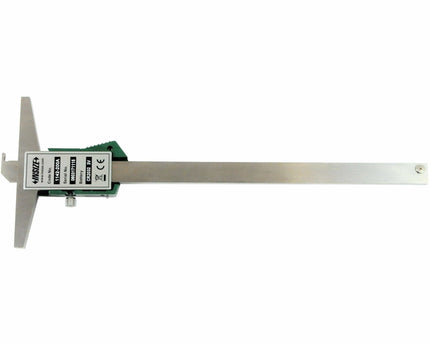

Insize 0–200 mm / 0–8" Digital Depth Gauge

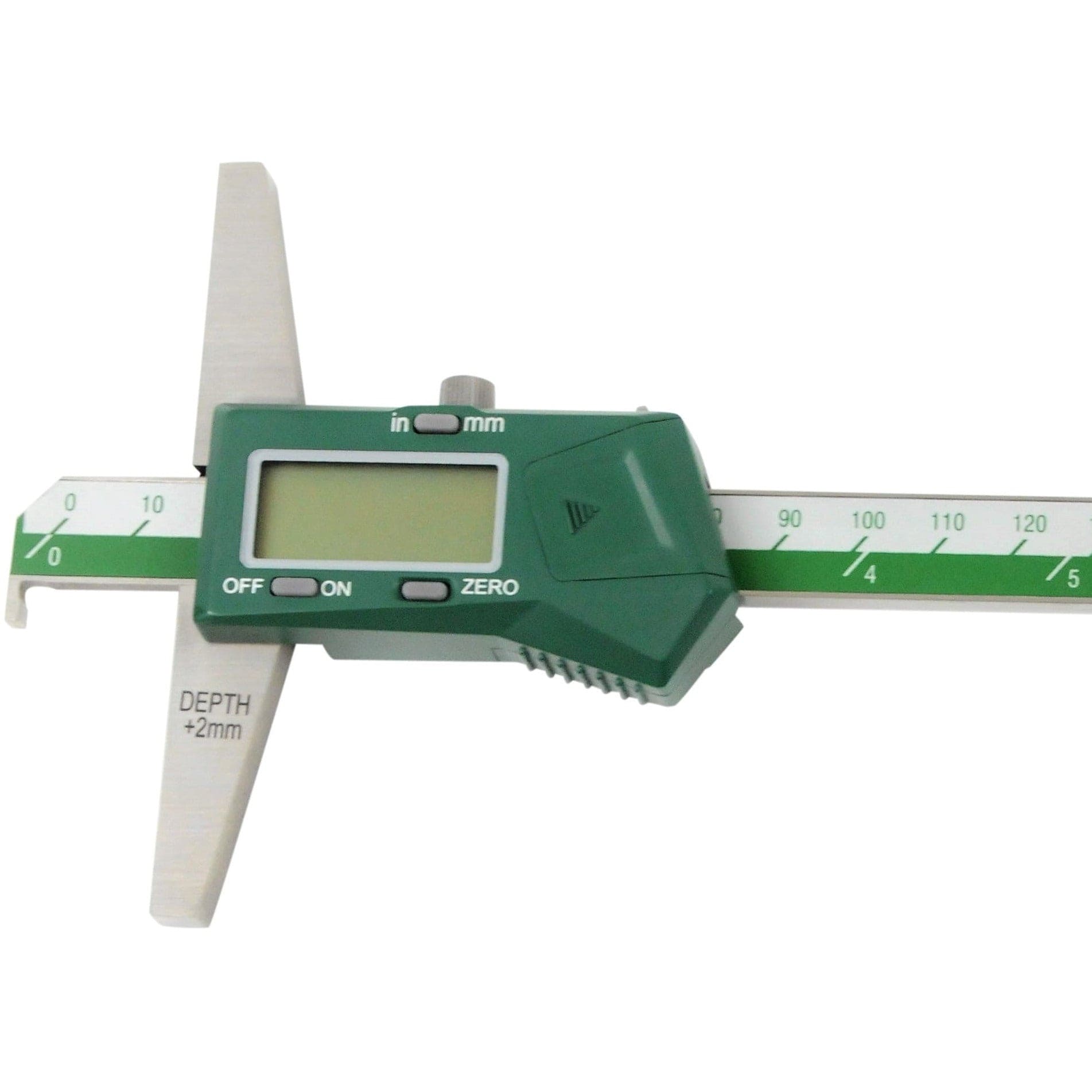

A precision digital depth gauge designed for accurate measurement of bores, recesses, blind holes, and tire tread depth. Constructed from stainless steel and equipped with a clear digital display, it delivers stable and repeatable performance for workshop, machining, automotive, and inspection applications.

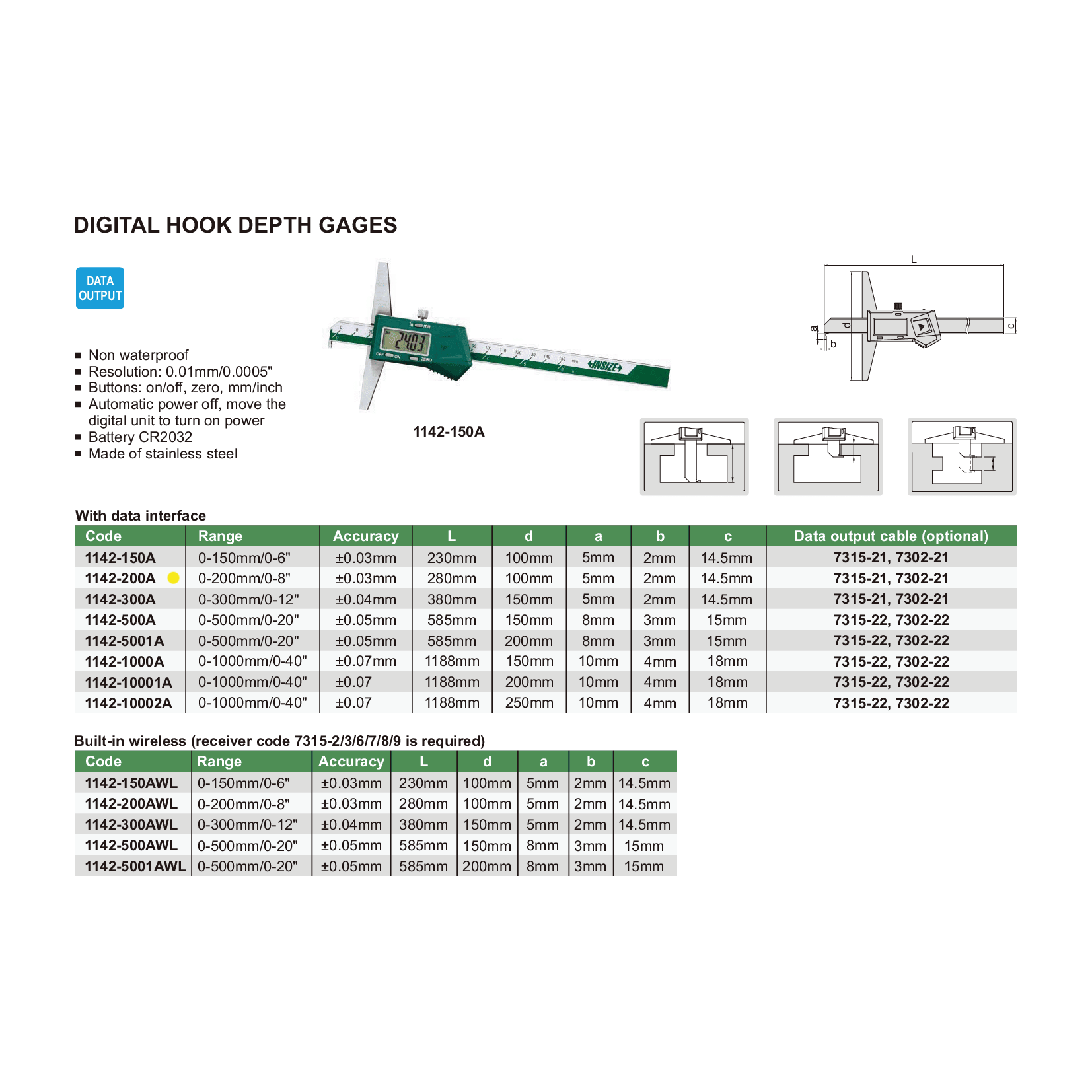

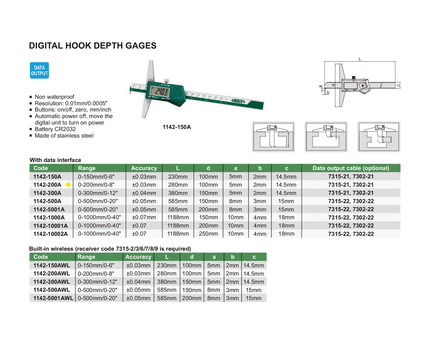

Specifications:

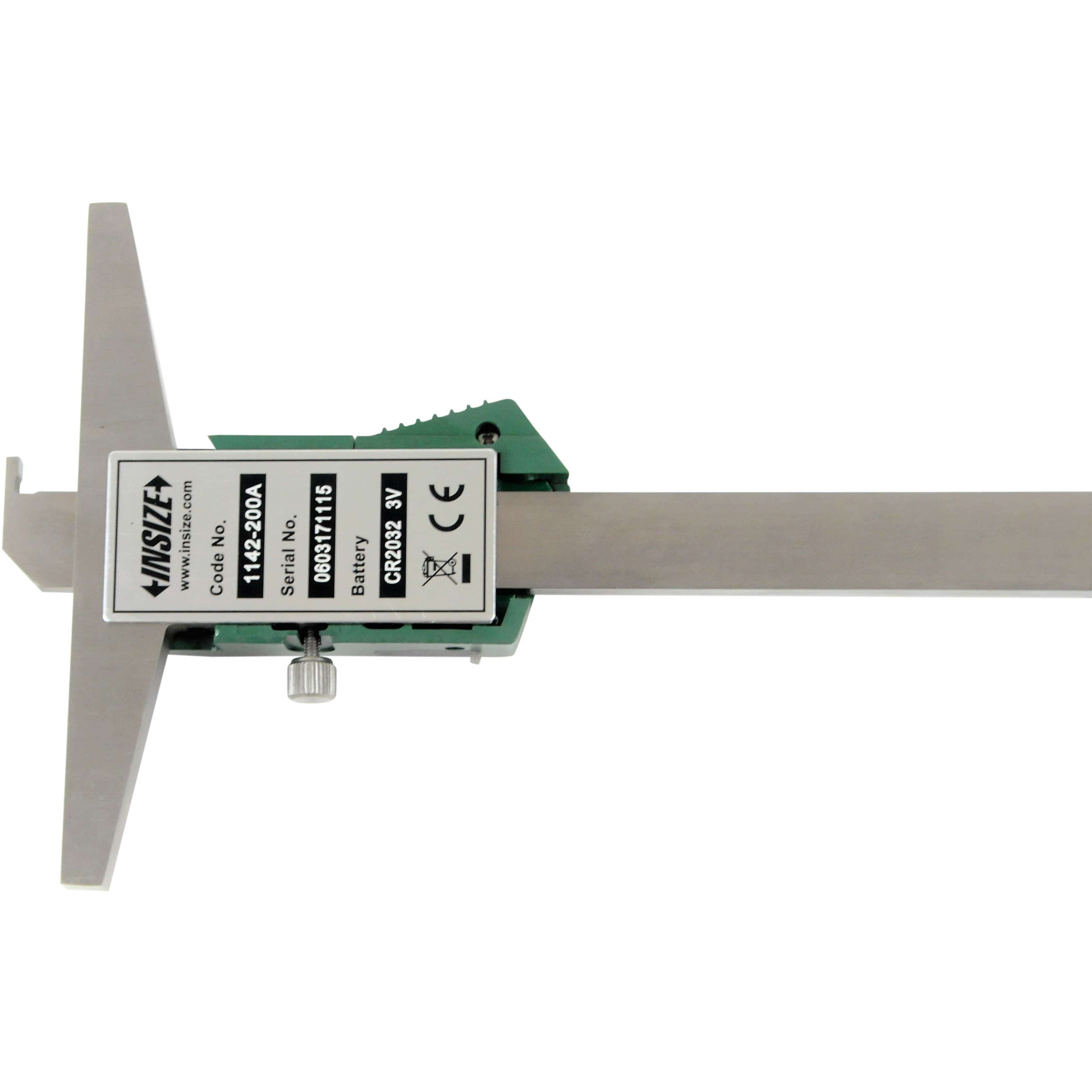

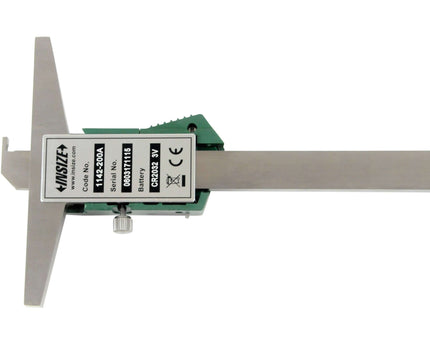

- Part No: 1142-200A
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.03 mm

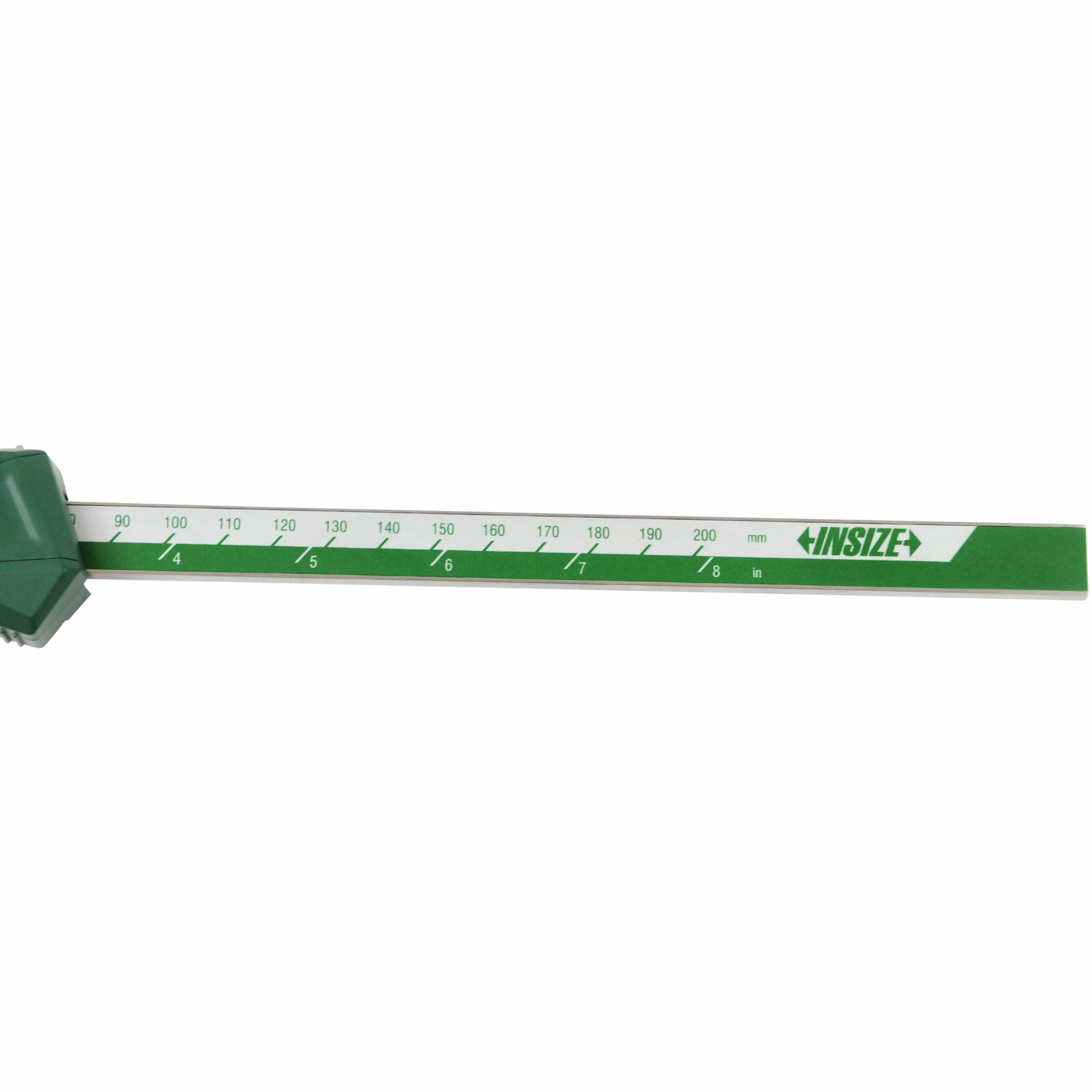

- Range: 0–200 mm / 0–8"

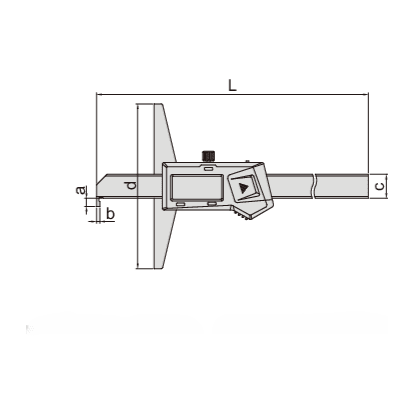

- A: 5 mm
- B: 2 mm
- C: 14.5 mm
- D: 100 mm
- Length: 280 mm
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Power turns on when the unit is moved
- Battery: CR2032
- Data Output: Yes

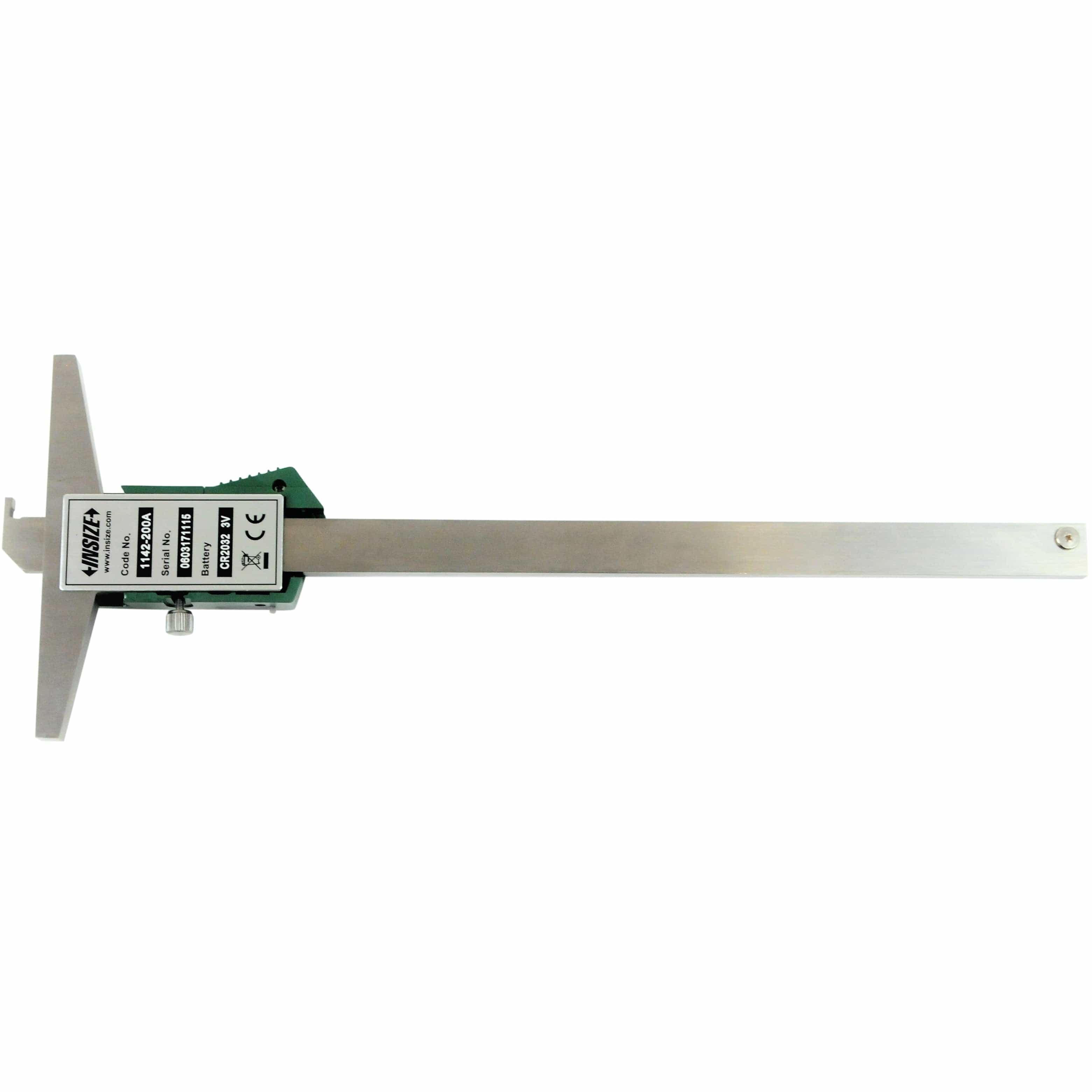

- Material: Stainless steel
Engineered for precision and ease of use, the Insize Digital Depth Gauge provides accurate, reliable depth readings for industrial, workshop, and automotive measurement tasks, including specialized applications such as tire tread depth inspection.
