Description

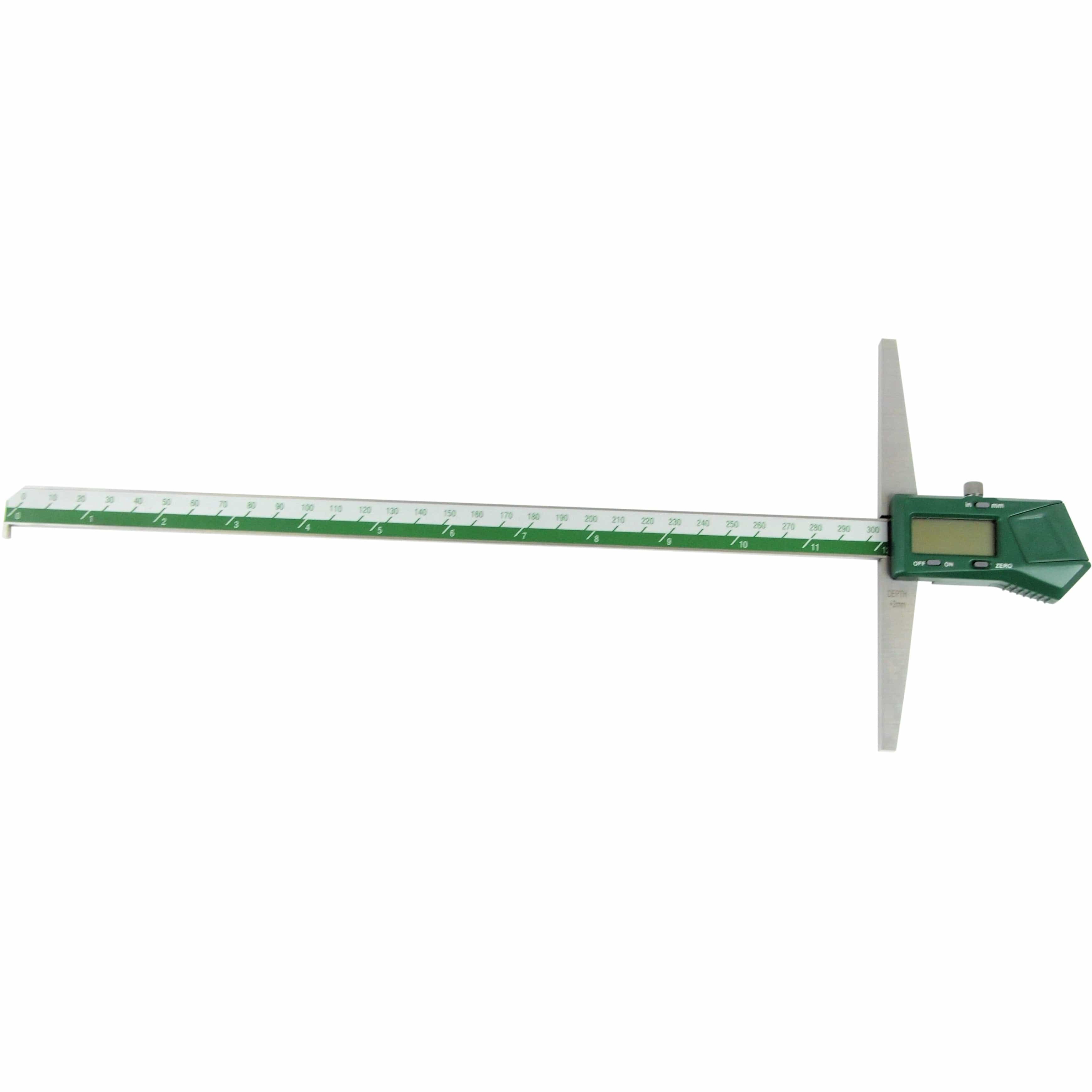

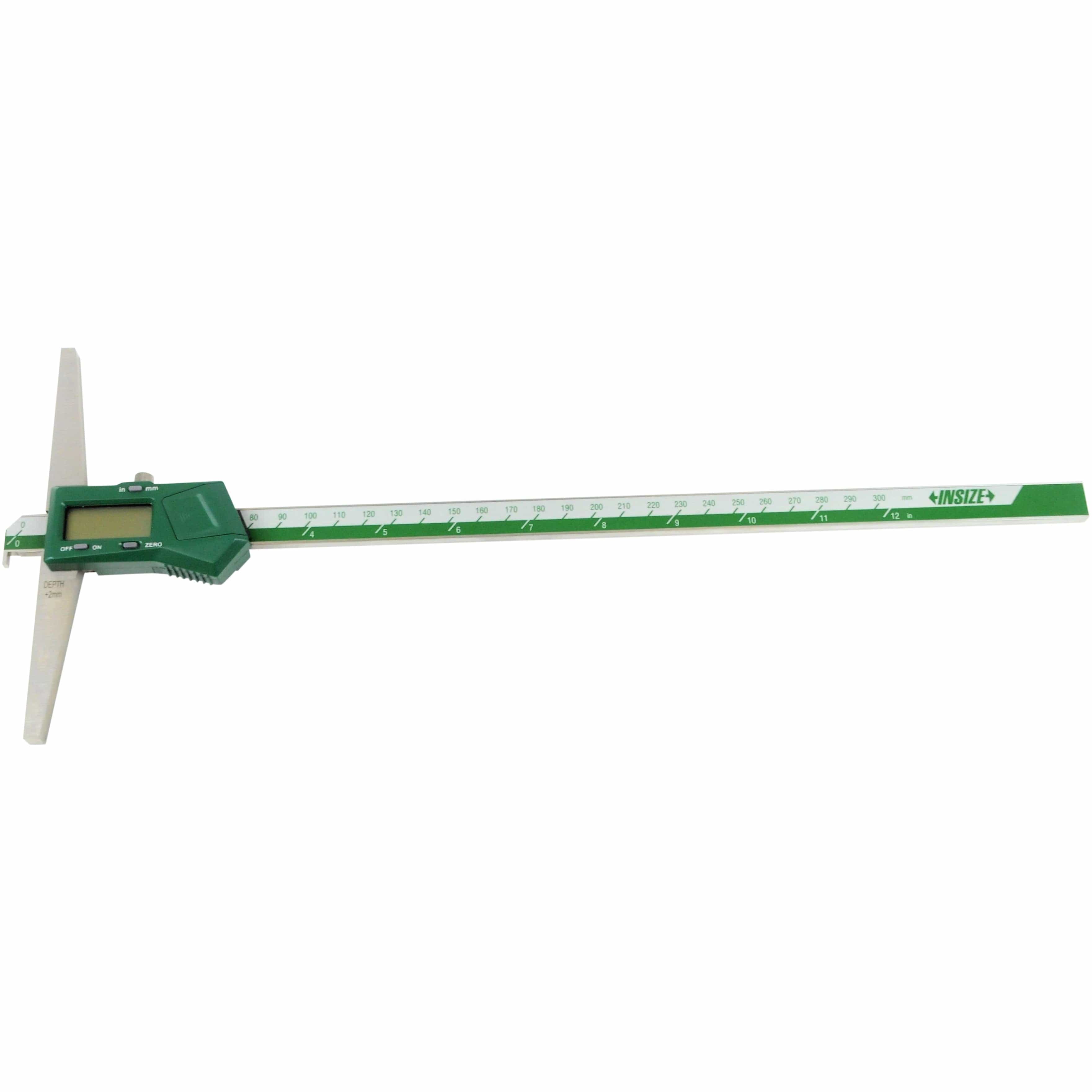

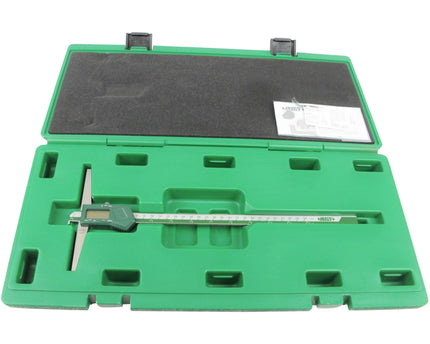

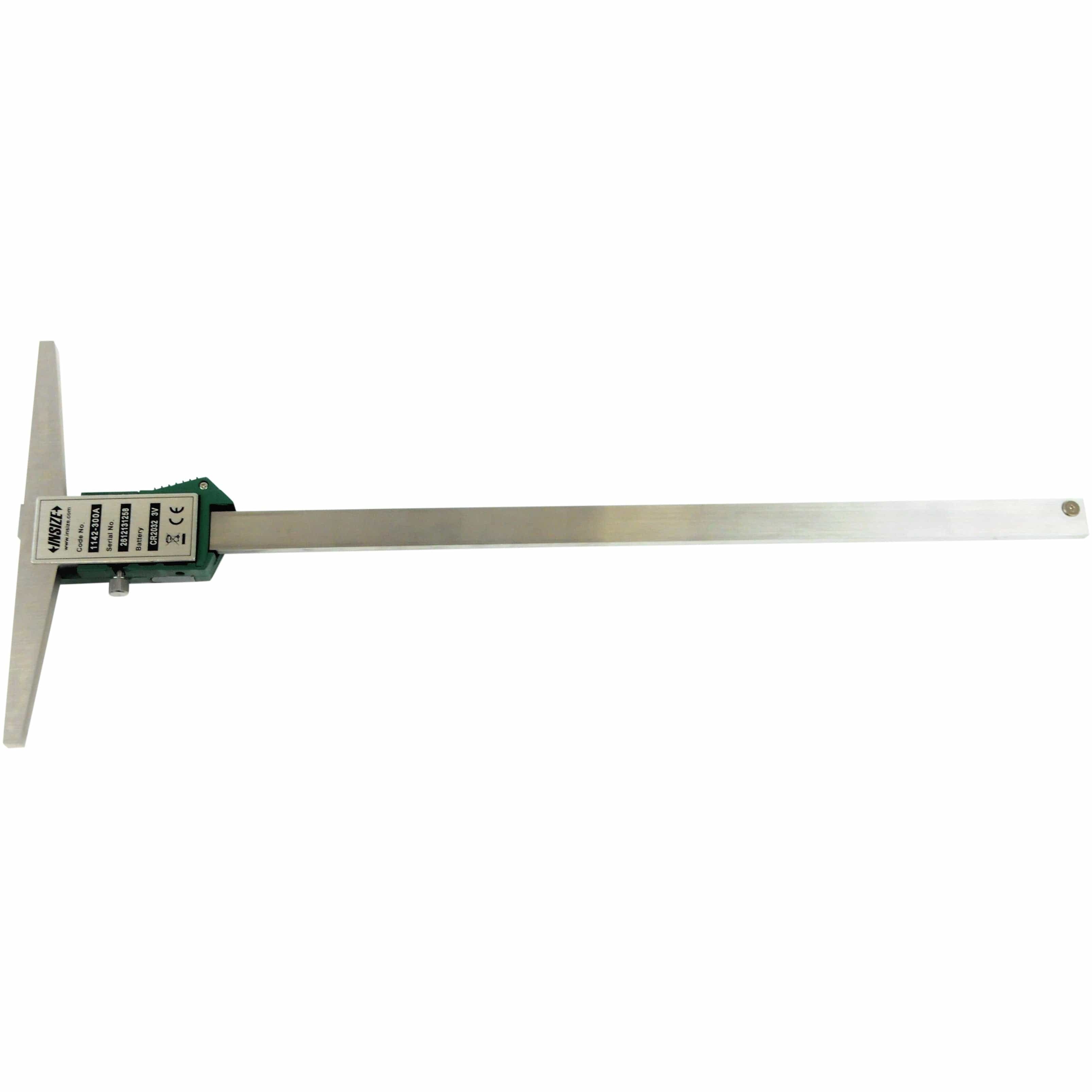

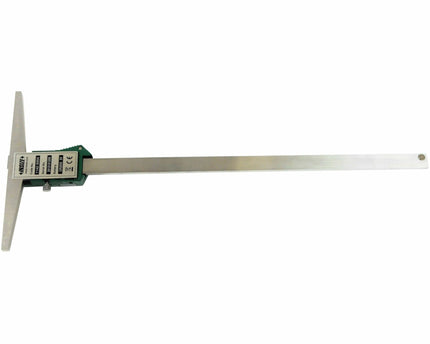

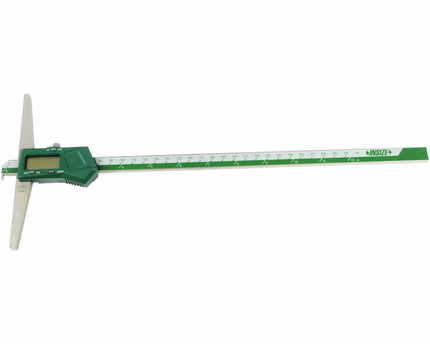

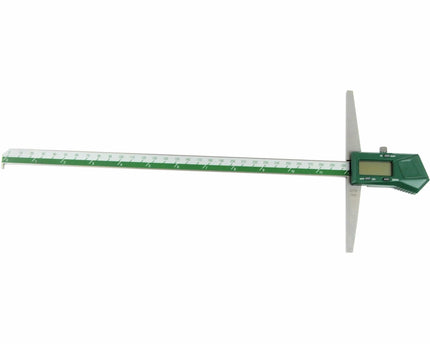

Insize 0–300 mm / 0–12" Digital Depth Gauge
A high-precision hook-style digital depth gauge designed for measuring the depth of bores, recesses, grooves, holes, and tyre treads. Constructed from stainless steel and fitted with a clear digital readout, it offers dependable accuracy and smooth operation, making it suitable for machining, inspection, and automotive measurements.

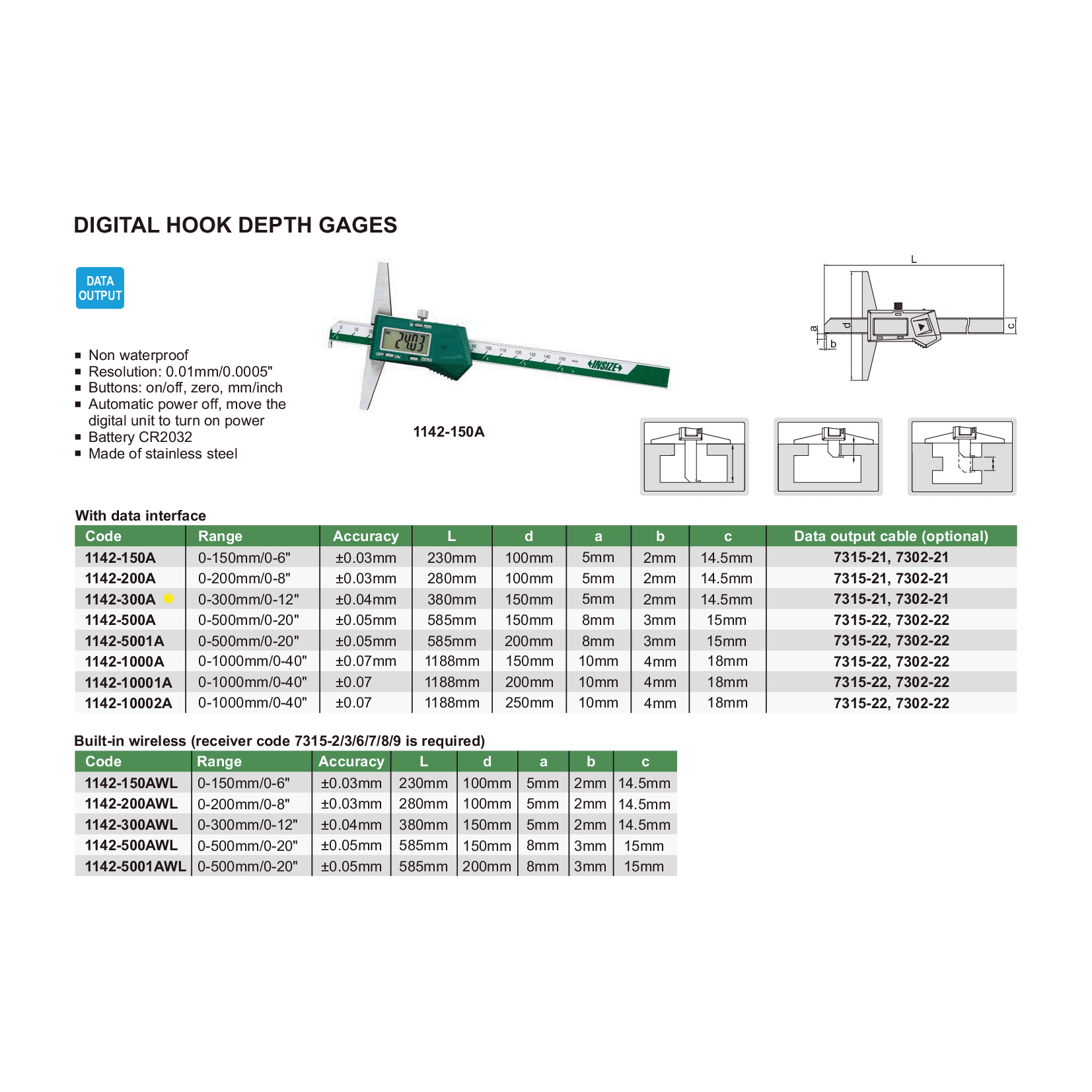

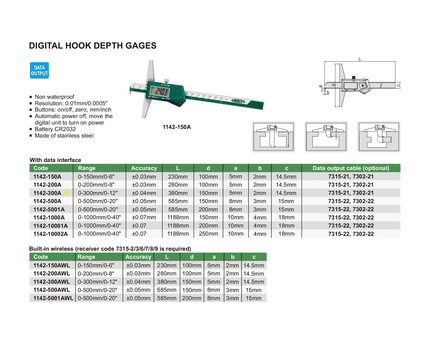

Specifications:

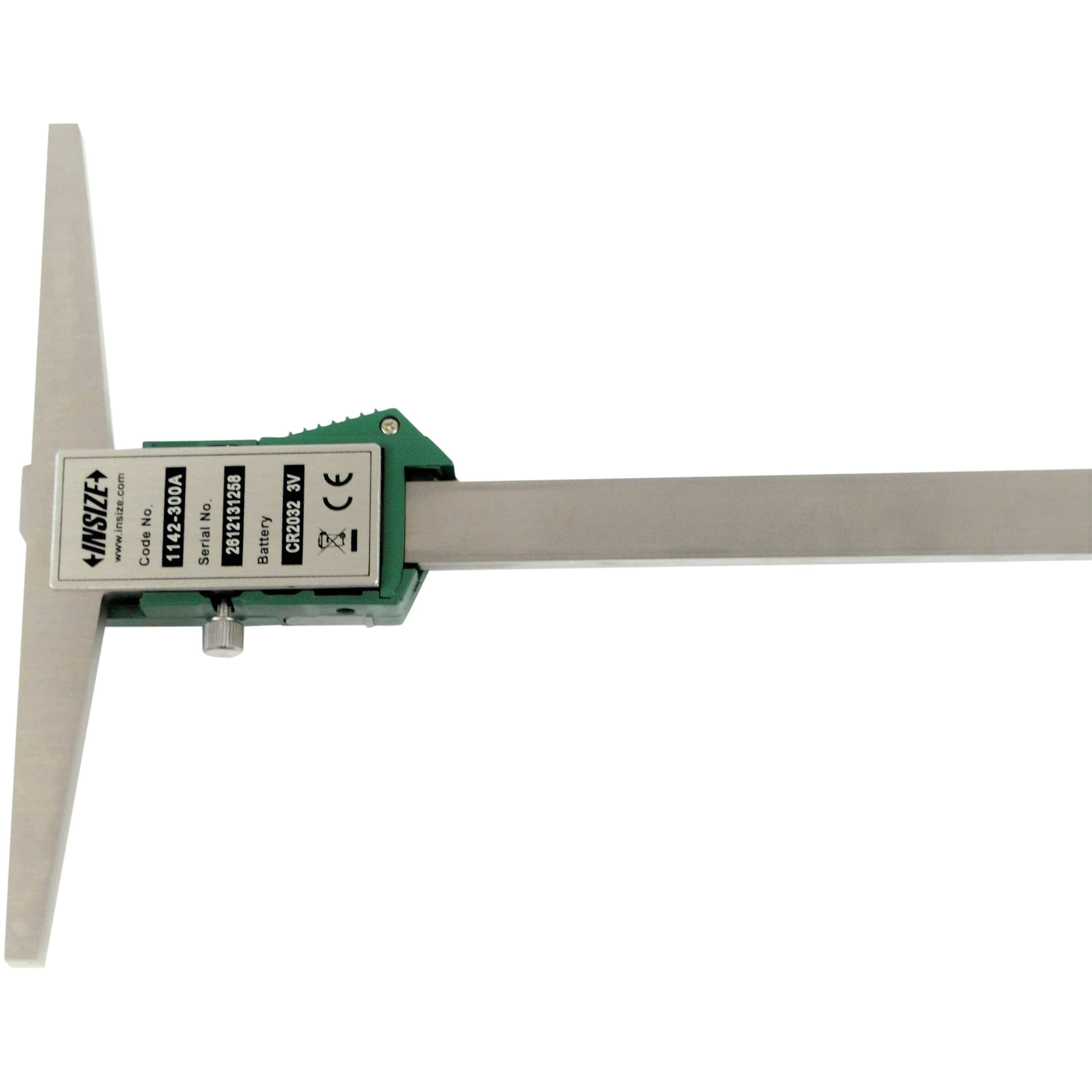

- Part No: 1142-300A
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.04 mm

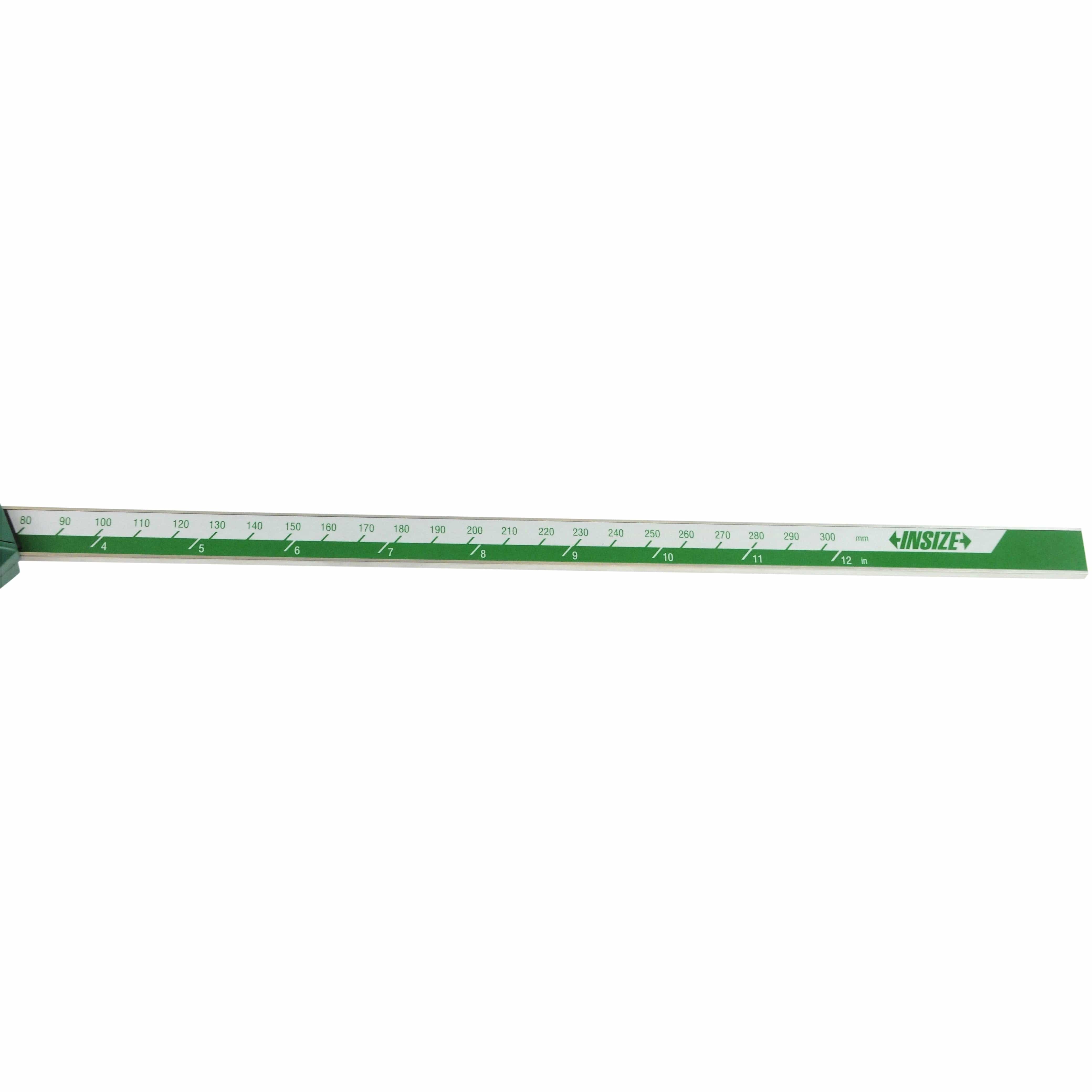

- Range: 0–300 mm / 0–12"

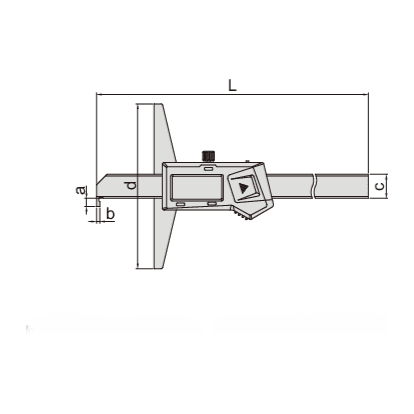

- A: 5 mm
- B: 2 mm
- C: 14.5 mm
- D: 150 mm
- Total Length: 380 mm

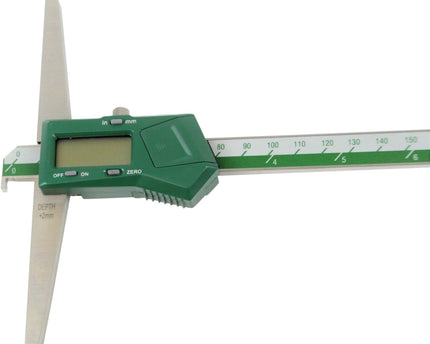

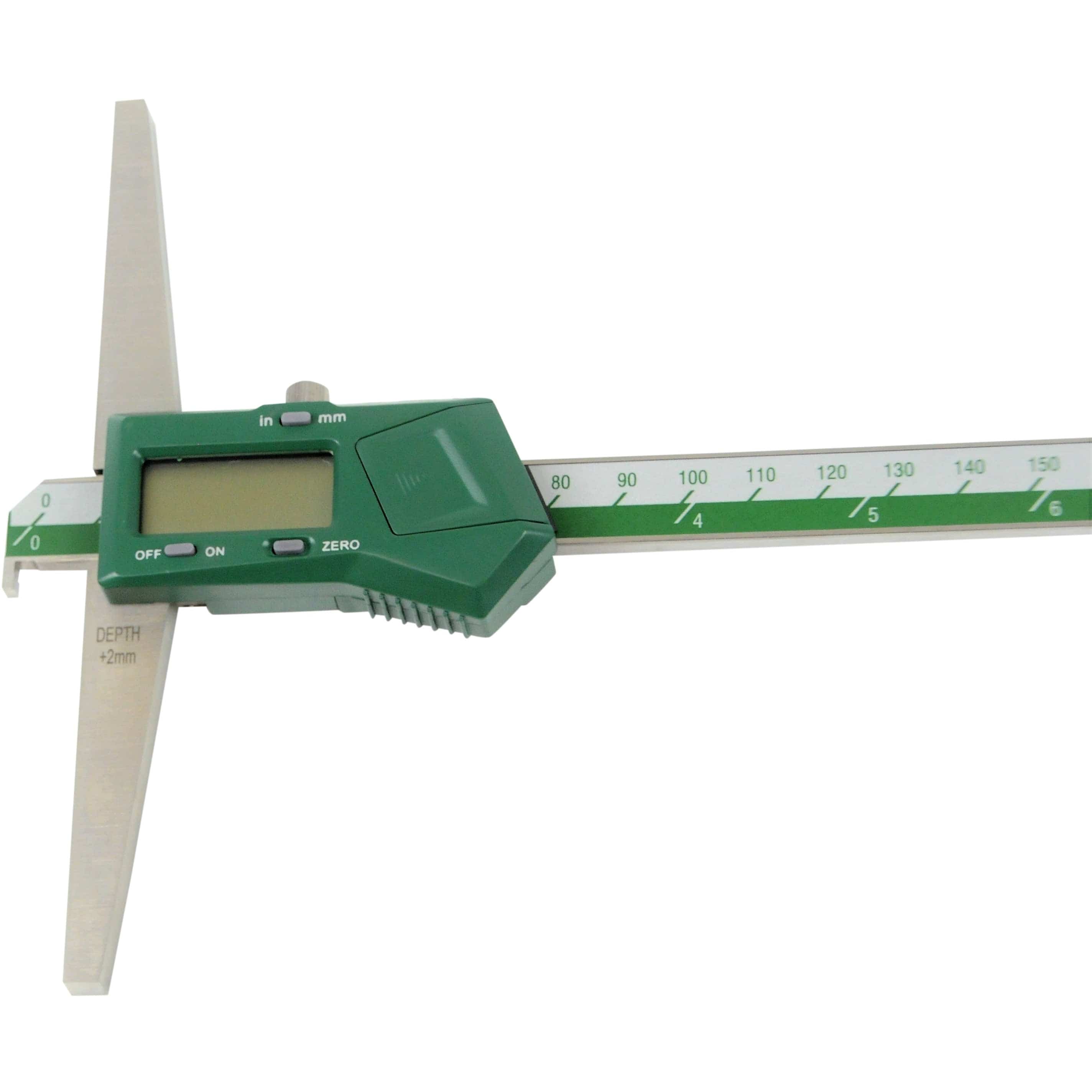

- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Automatic Power Control: Activates when the digital unit is moved
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
Designed for precision and long-range measurement capability, this digital hook depth gauge delivers reliable performance in both workshop and inspection environments, ensuring accurate depth readings with ease.
