Description

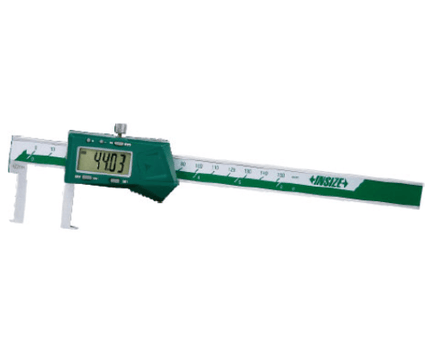

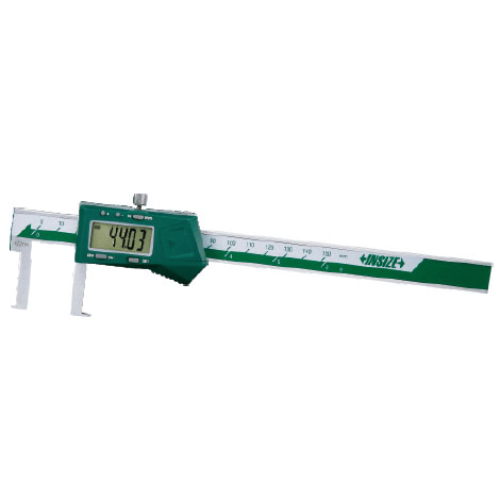

Insize Digital Inside Groove Caliper
The INSIZE Digital Inside Groove Caliper 1120-300A is designed for accurate measurement of internal grooves, slots, and recesses. Built with stainless steel construction and a digital display, it offers durability, precision, and ease of use in machining, tooling, and inspection environments.
Specifications :
-
Part No: 1120-300A
-
Measuring Range: 30–300 mm / 1.18–12″
-
Resolution: 0.01 mm / 0.0005″
-
Accuracy: ±0.05 mm
-
Type: A (with preset function, mm/inch conversion, data output)
-
Material: Stainless steel
-
Battery: CR2032 (included)
-
Display Features: On/off, set, mm/inch, preset (+/−)
-
Data Output: Yes (optional cable: 7302-22; receiver: 7315-22)
-
Jaw Dimensions: a = 5 mm, b = 15 mm, c = 16 mm, d = 50 mm, e = 1.5 mm, f = 4 mm
-
Total Length (L): 410 mm
-
Included Accessories: CR2032 battery, protective case
-
Optional Accessories: Data output cable, wireless receiver
The INSIZE 1120-300A provides reliable performance and precision for internal groove measurements, making it an excellent choice for workshops and quality control applications.
