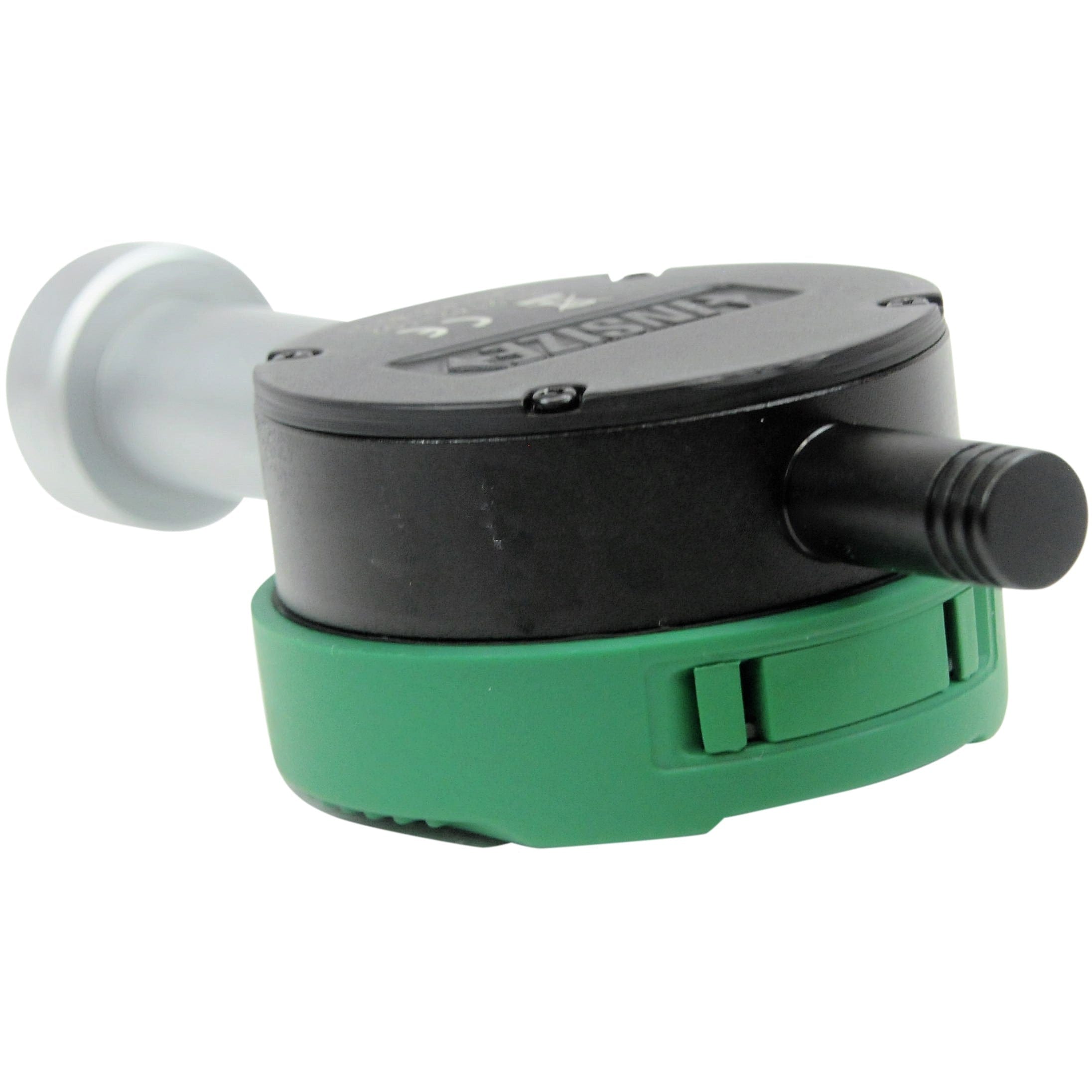

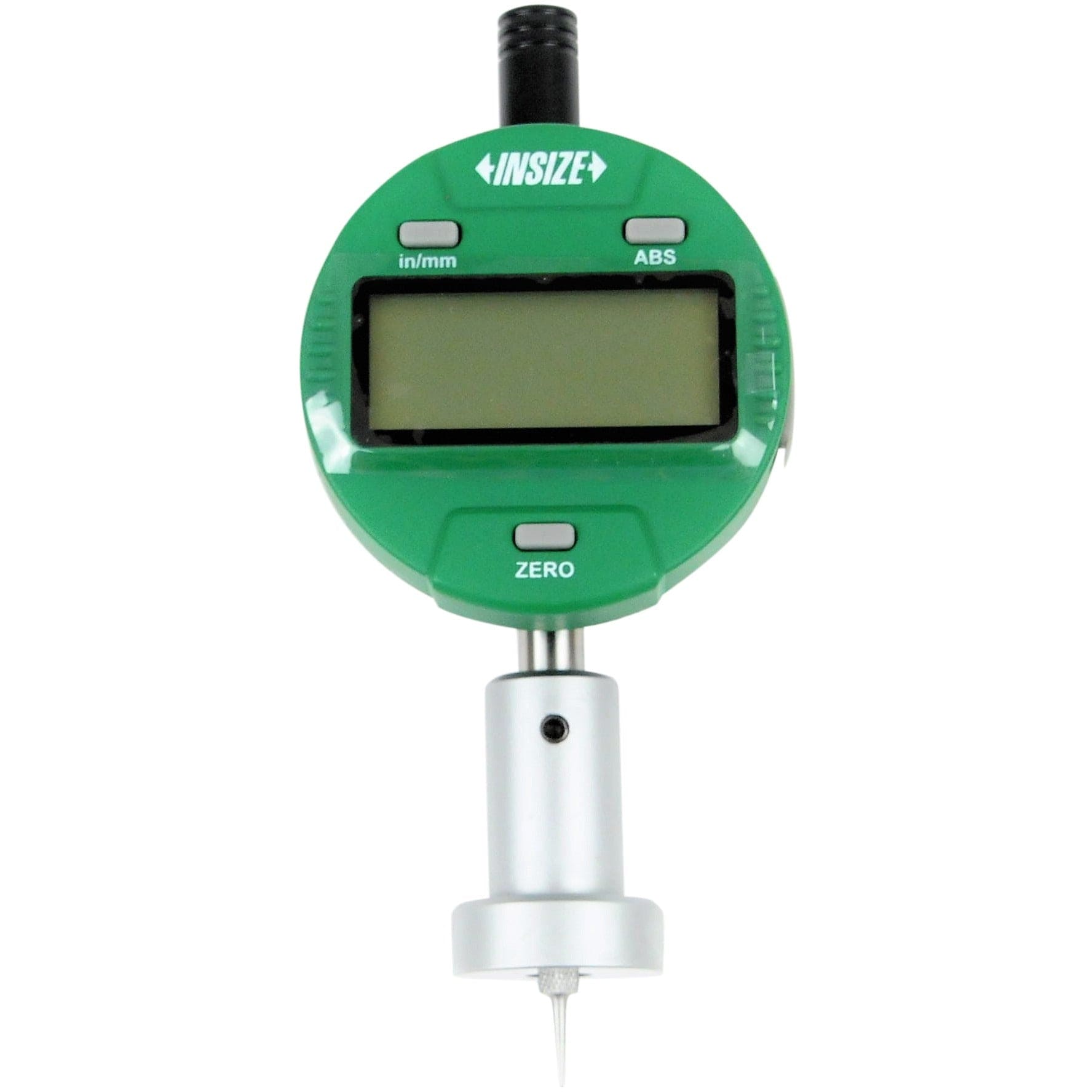

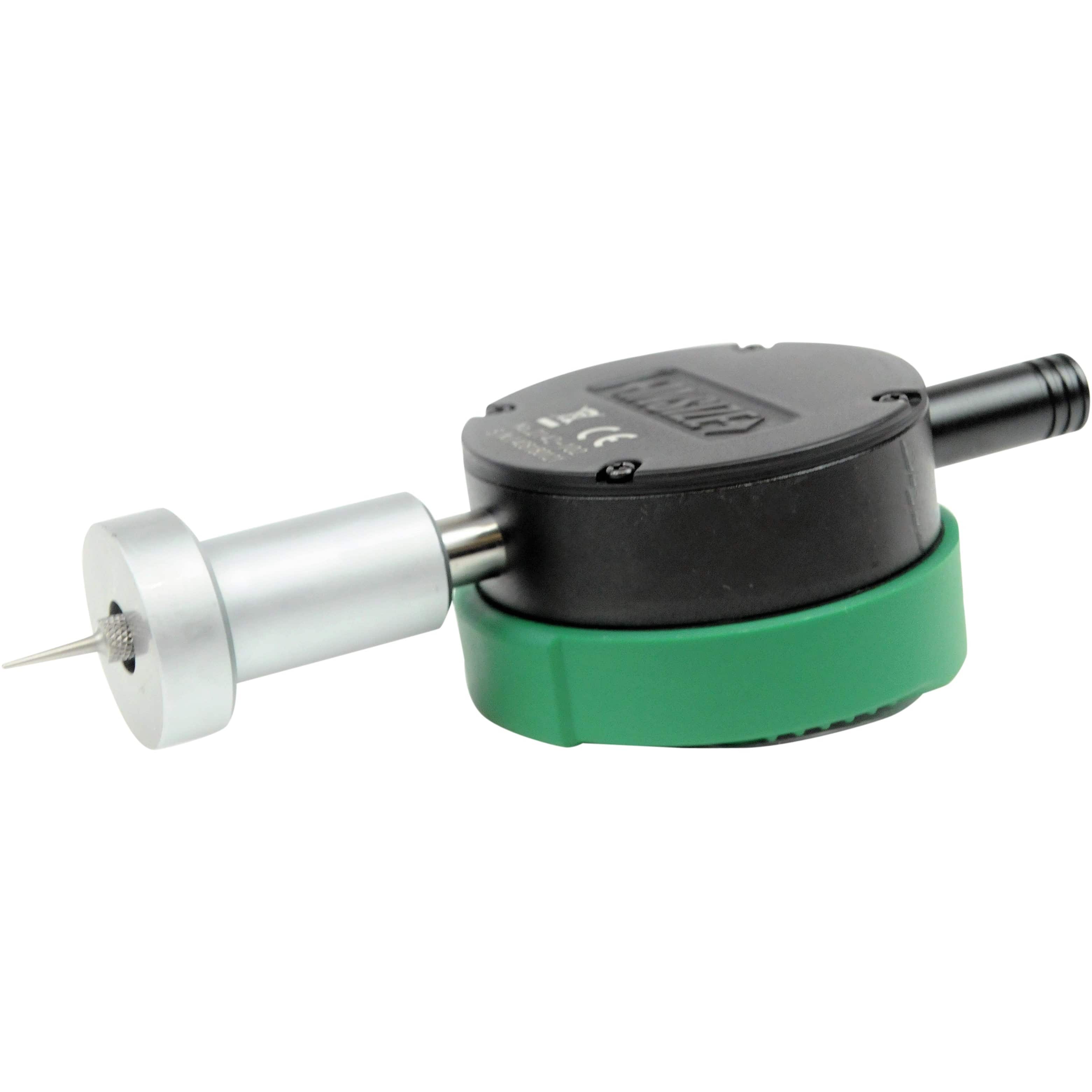

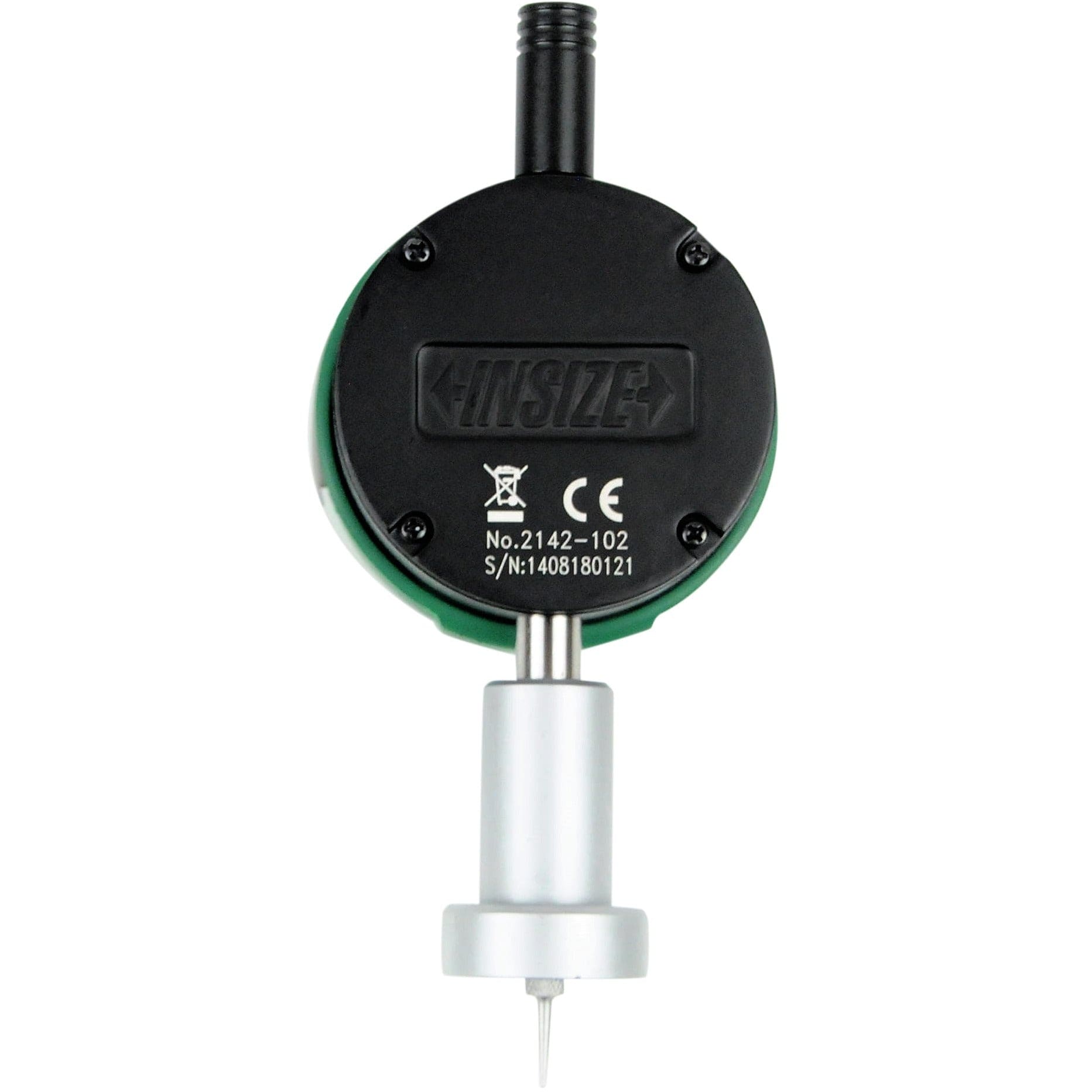

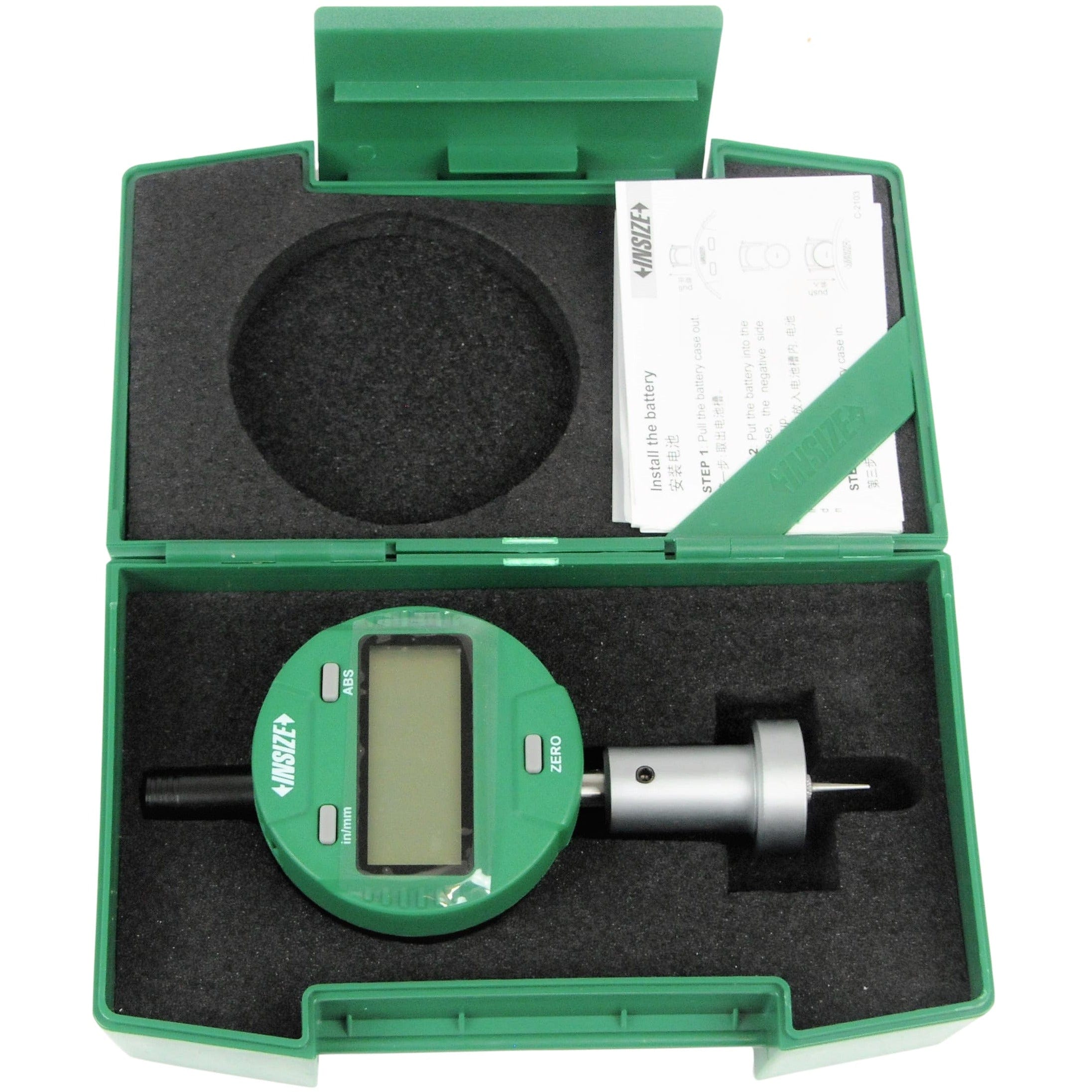

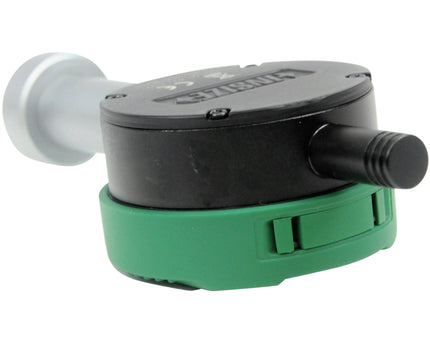

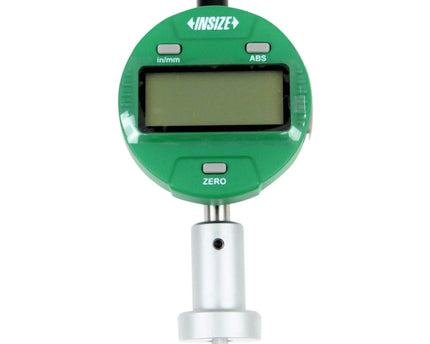

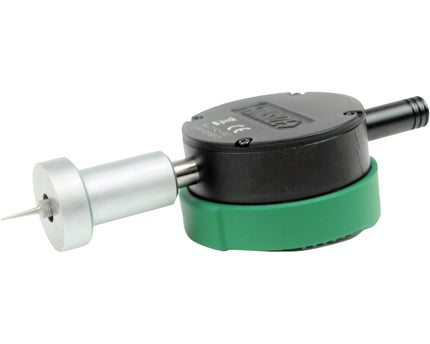

Insize Digital Mini Long Base Depth Gauge
This compact long-base digital depth gauge is engineered for precise measurement of shallow recesses, slots, steps, and small bores. Its extended base provides excellent stability, while the digital indicator delivers clear, reliable readings for accurate depth verification in machining, inspection, and workshop applications.

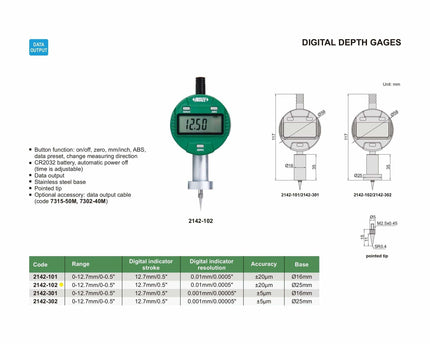

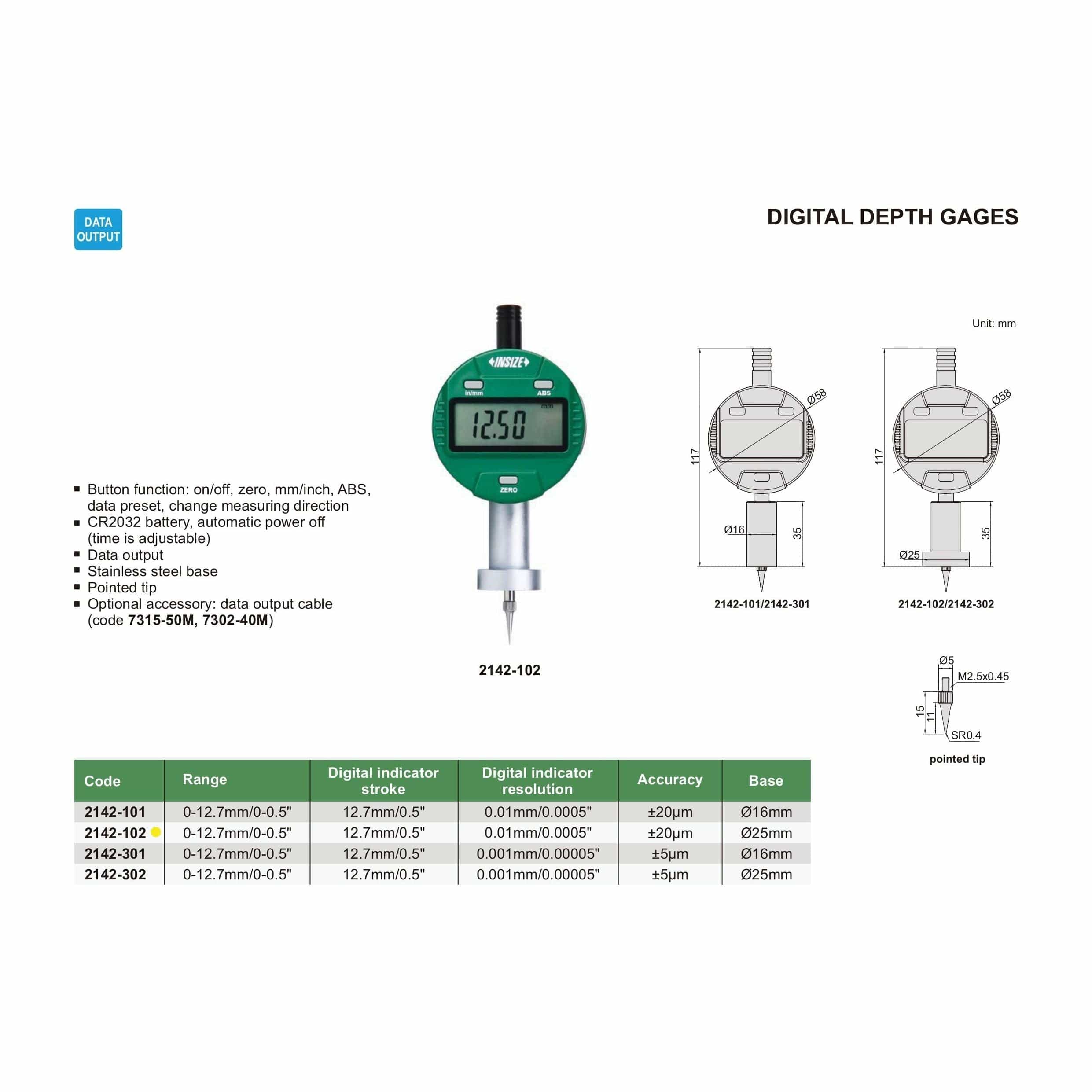

Specifications :

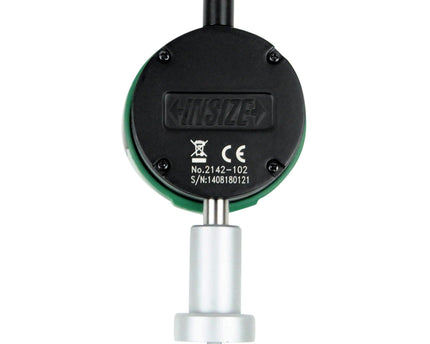

- Part no: 2142-102
- Range: 0–12.7mm / 0–0.5"
- Digital Indicator Stroke: 12.7mm / 0.5"
- Digital Indicator Resolution: 0.01mm / 0.0005"

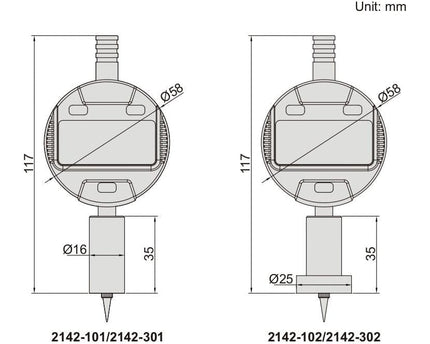

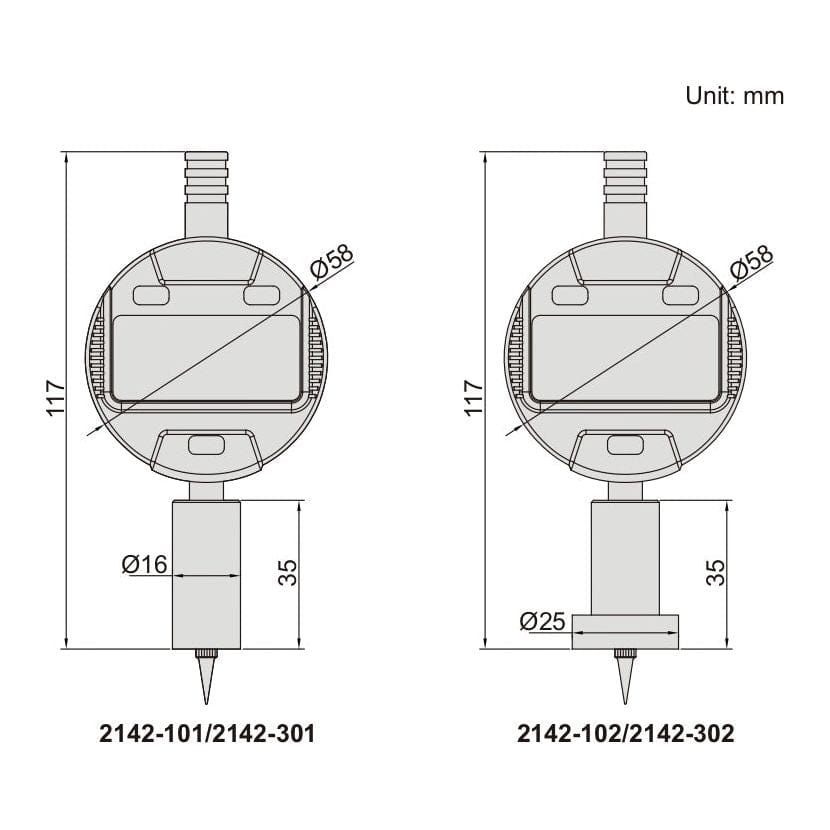

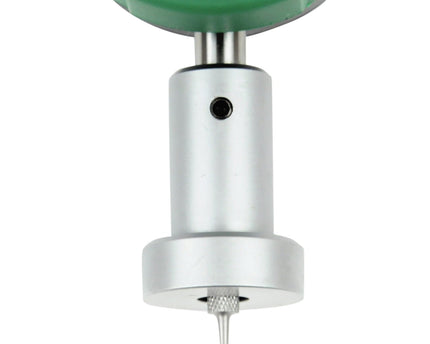

- Base: 63 × 17mm (long base style for added stability)

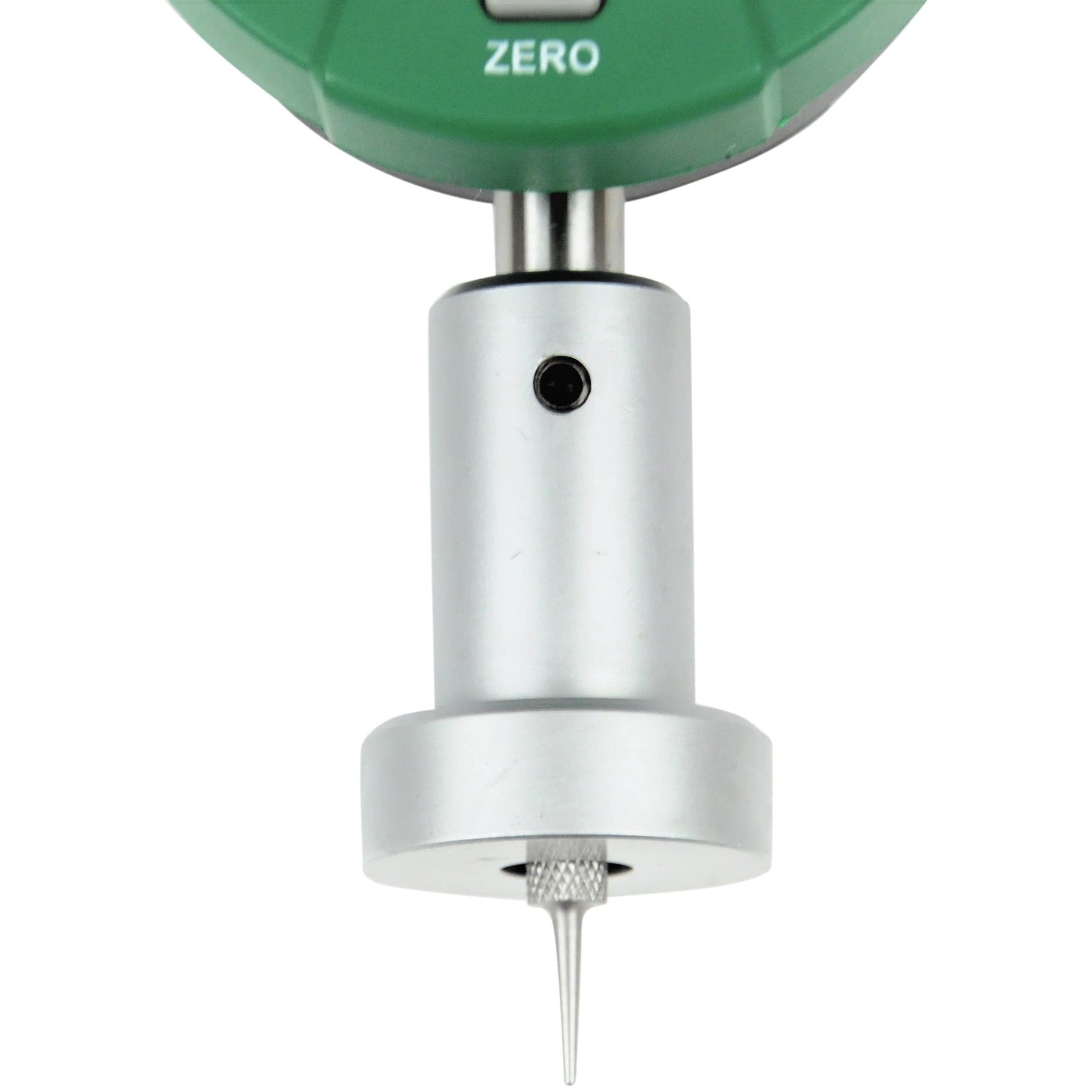

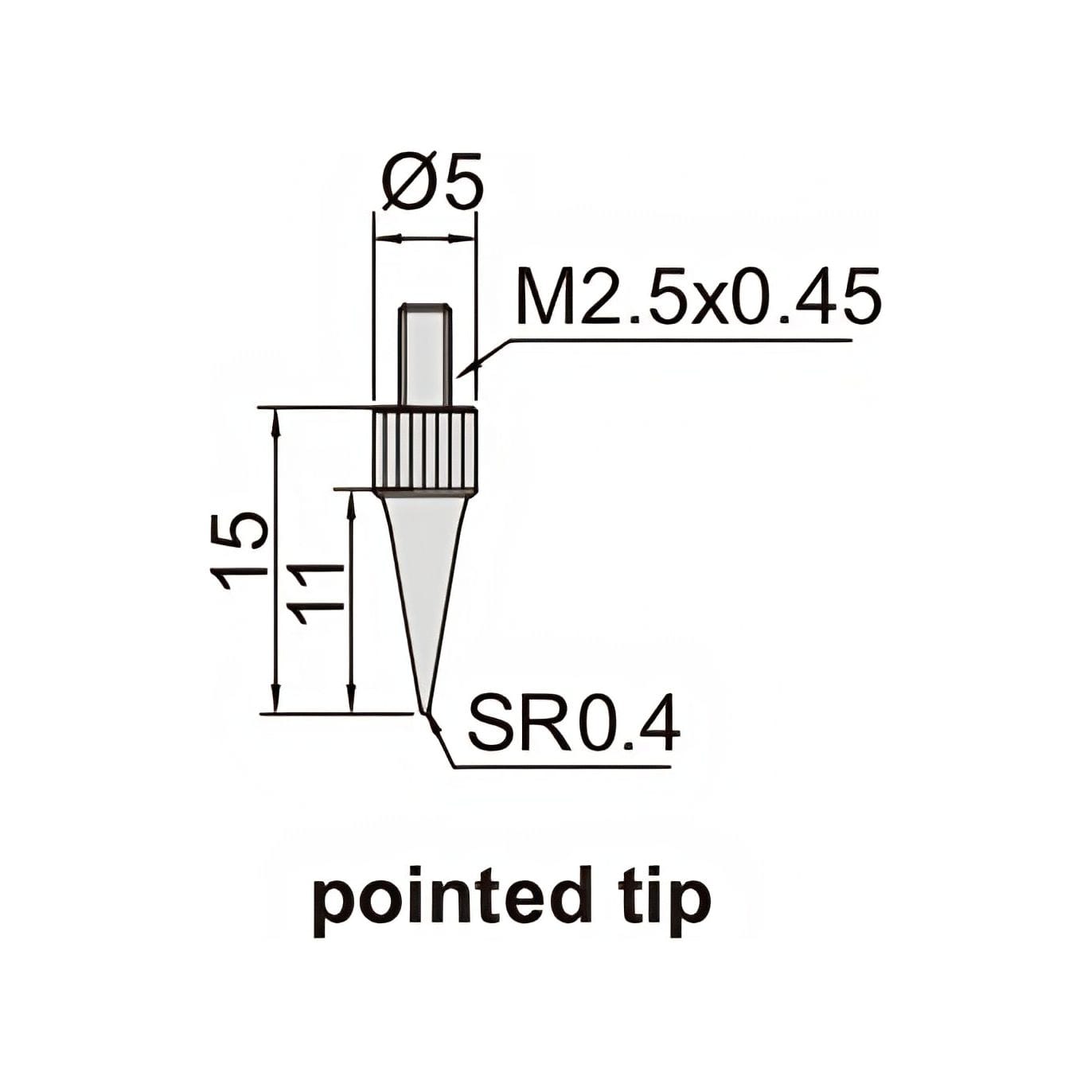

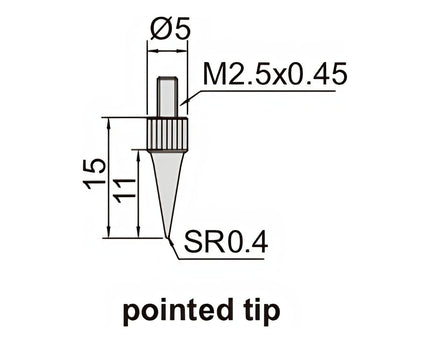

- Pointed measuring tip included

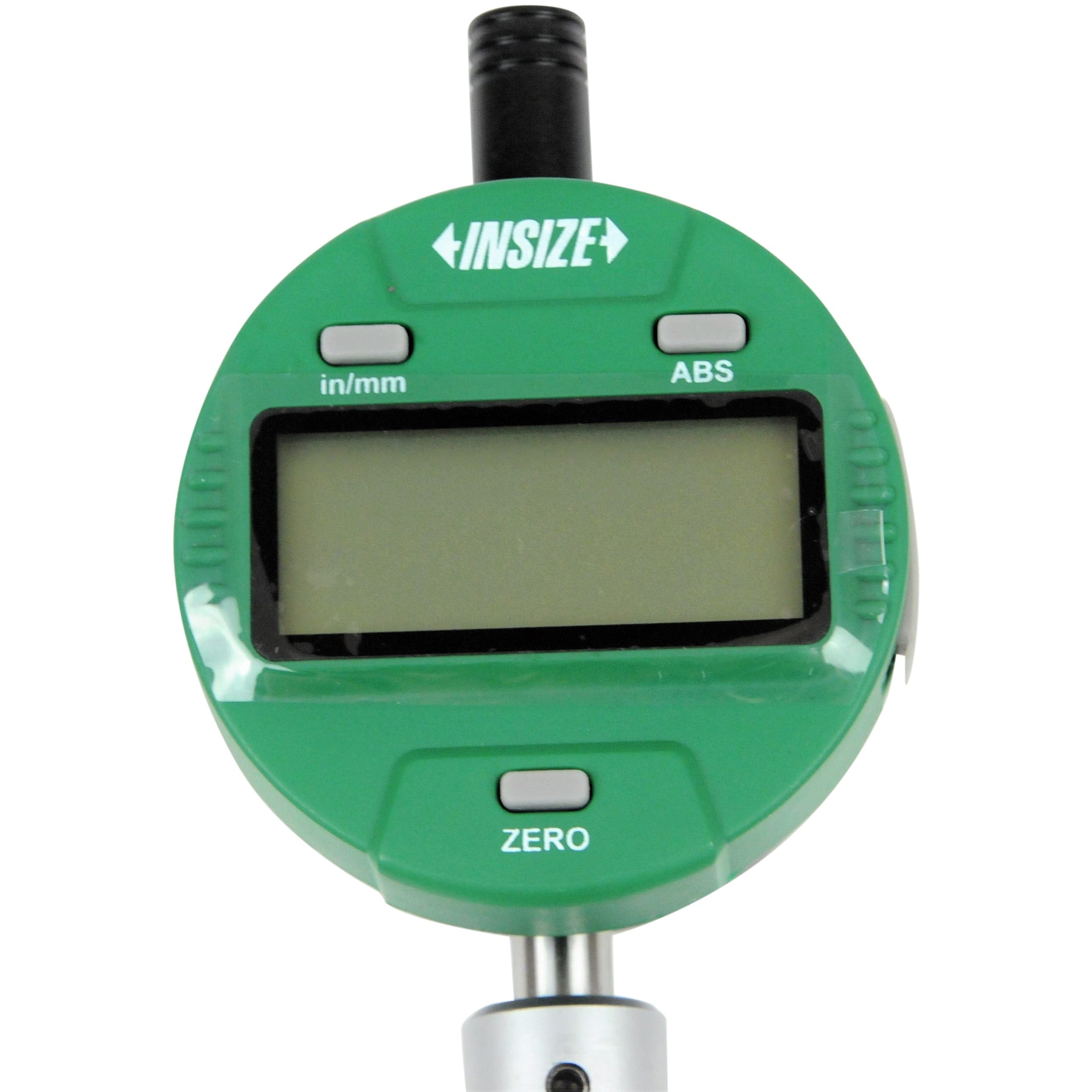

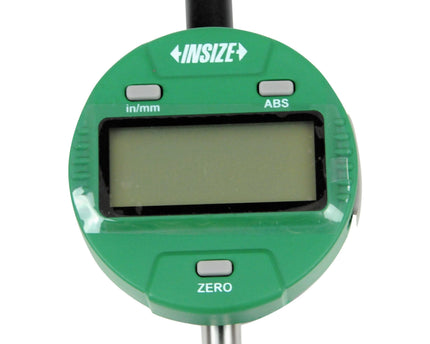

- Button functions: on/off, zero, inch/mm, ABS, data preset, change measuring direction
- Tolerance Go/No-Go display, measuring direction change, max/min/range measurement, inch/metric conversion, absolute/incremental measurement
- CR2032 battery, automatic power off
- Data output capability
- Manufactured from stainless steel
- Optional accessories: data output cable (no. 7306-40, 7302-SPC3A, 7305-SPC1A)
Well-designed and built for durability, this high-precision depth gauge is ideal for a wide range of measurement tasks. INSIZE digital gauges provide excellent accuracy and ease of use, making them suitable for professional machining, metalworking, tooling, and inspection environments. The long-base configuration ensures secure referencing on surfaces while delivering consistent and repeatable depth measurements.
