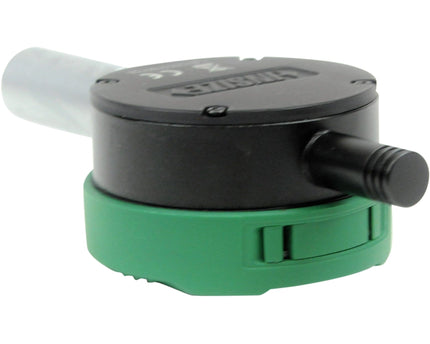

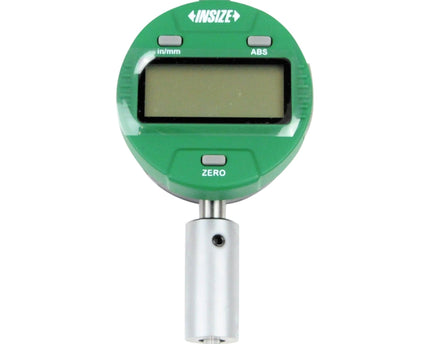

Insize Digital Mini Short Base Depth Gauge

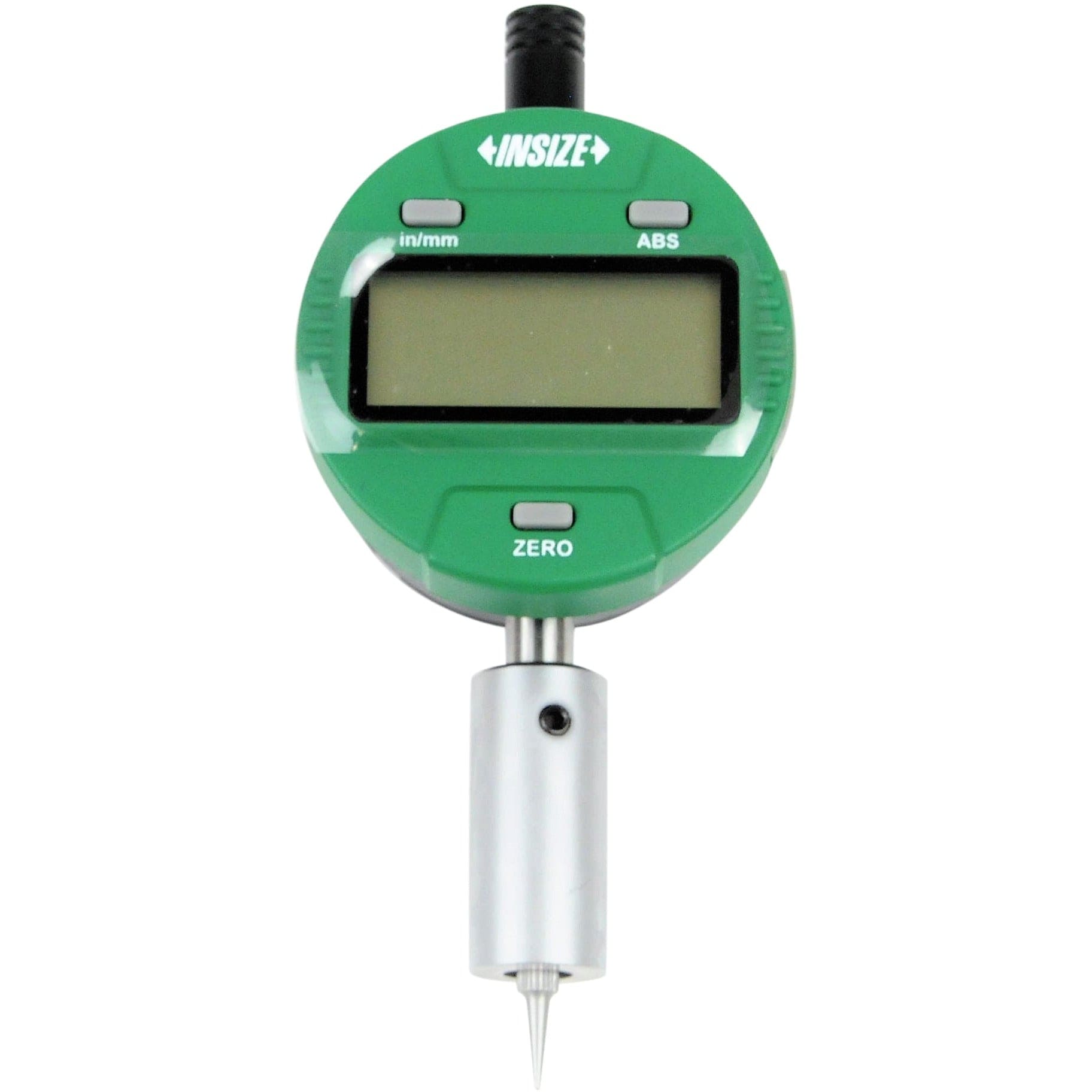

The Insize Digital Mini Short Base Depth Gauge is designed for precise depth measurement in compact or hard-to-reach spaces. Its short base and integrated digital indicator provide fast, accurate readings, while the pointed contact tip ensures reliable measurement of narrow recesses, grooves, and machined features. Built with a stainless steel base and smooth indicator travel, this instrument delivers dependable performance for workshop, inspection, and machining environments.

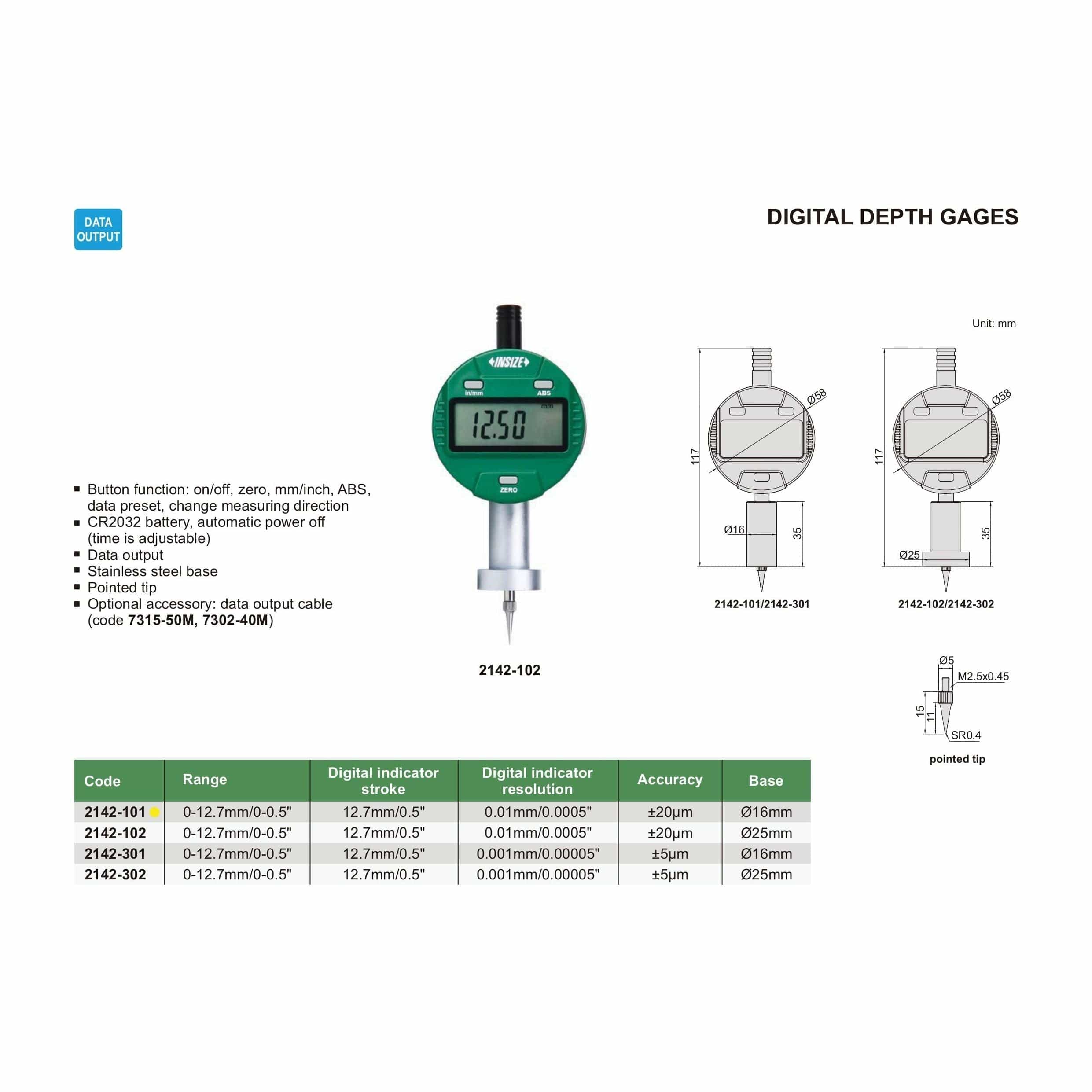

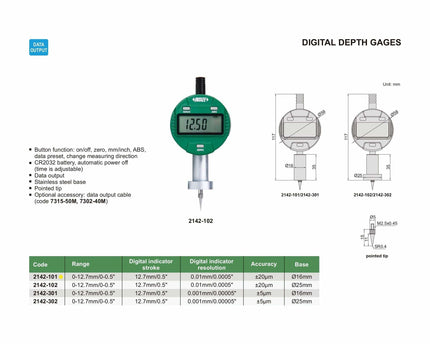

Specifications :
- Part no: 2142-101
- Range: 0–12.7mm / 0–0.5"
- Digital Indicator Stroke: 12.7mm / 0.5"
- Digital Indicator Resolution: 0.01mm / 0.0005"

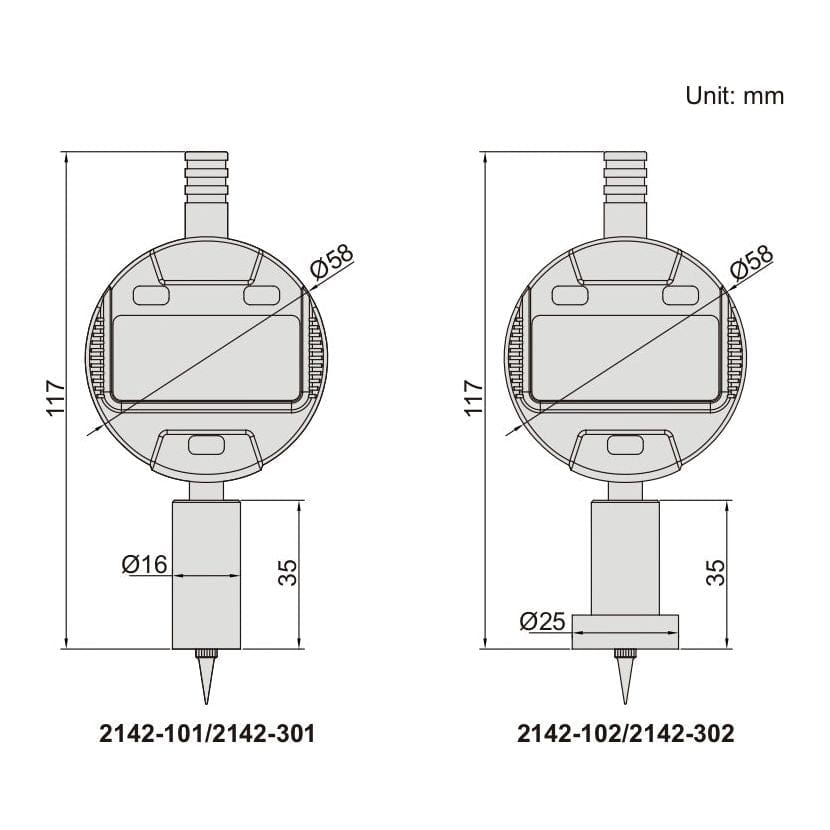

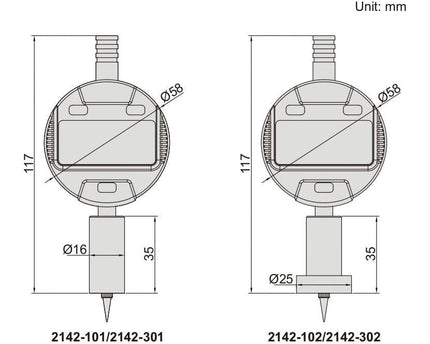

- Base Size: 63 × 17mm

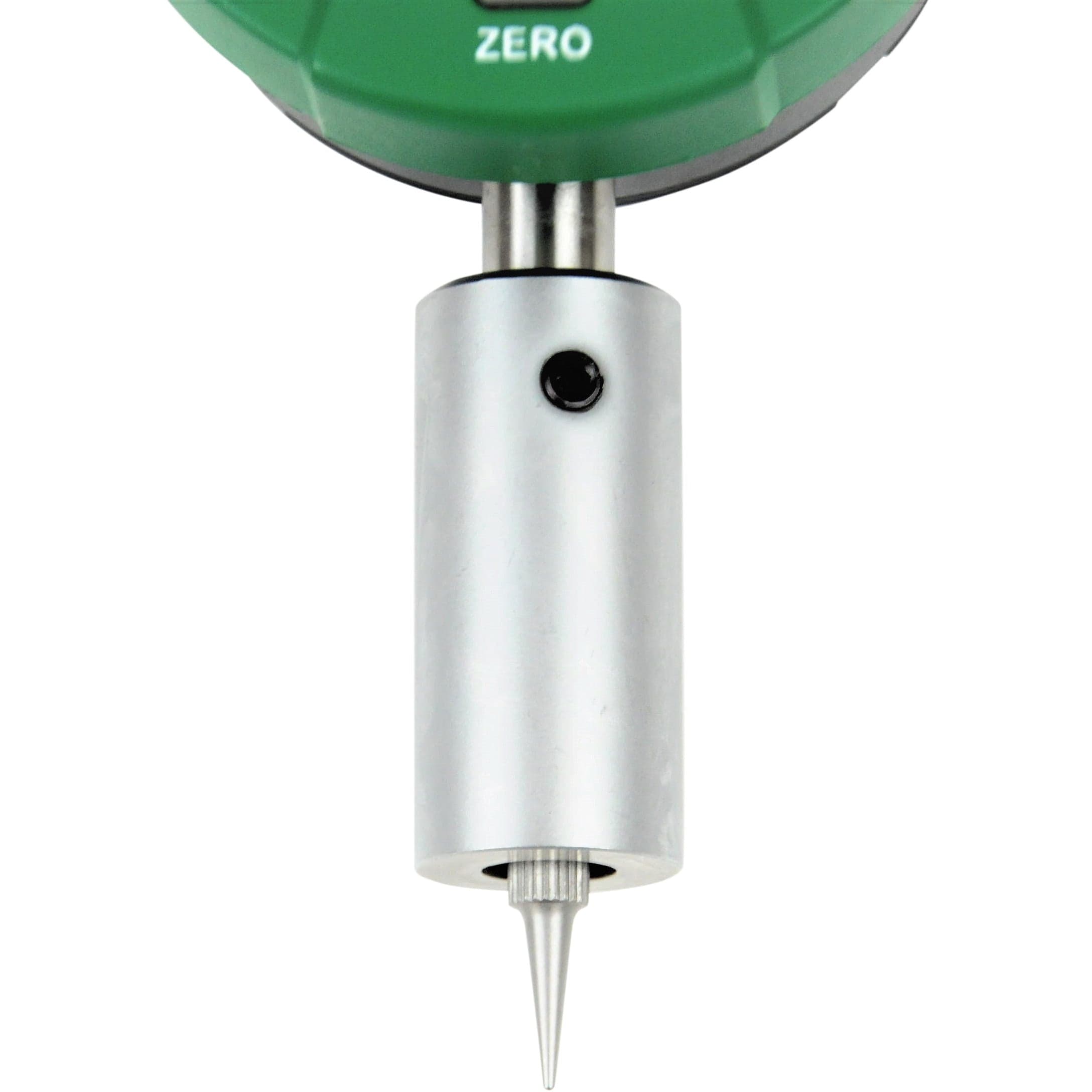

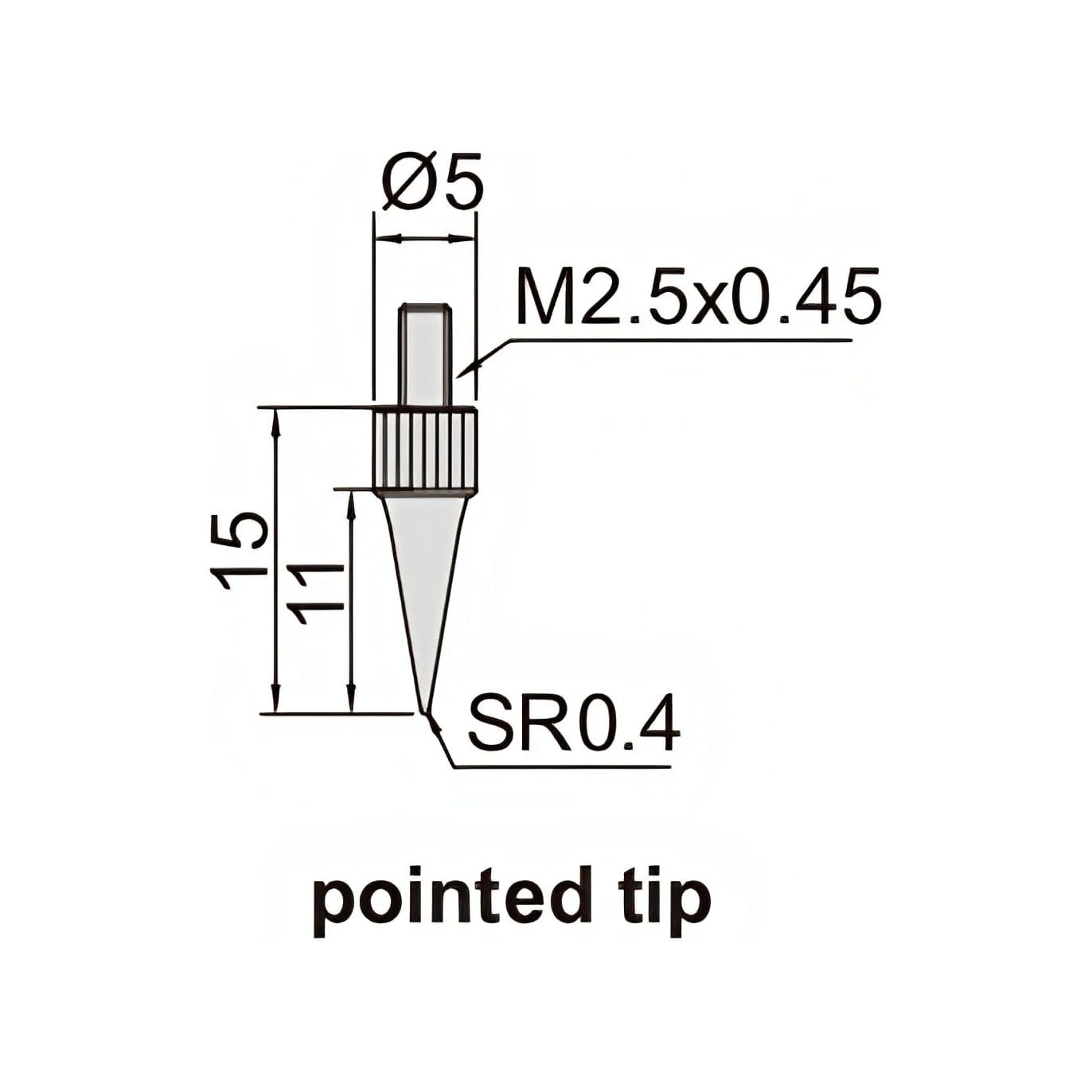

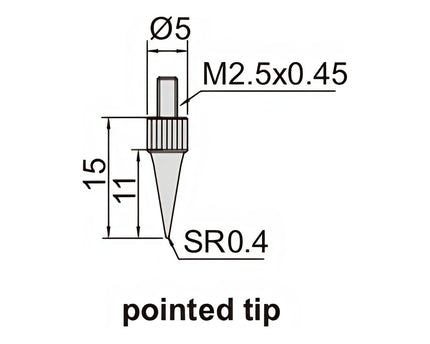

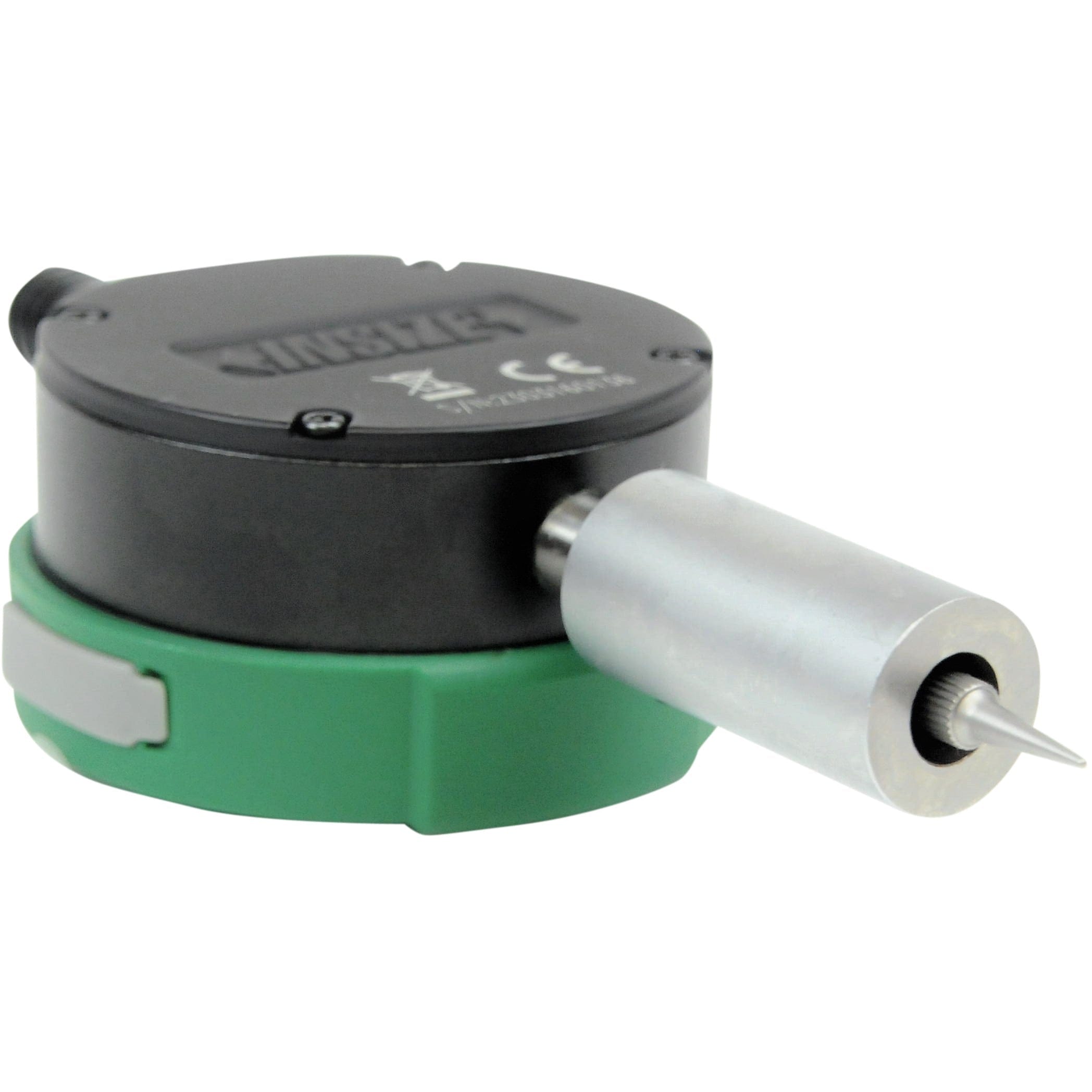

- Pointed measuring tip
- Stainless steel base
- Data output
- CR2032 battery, automatic power off

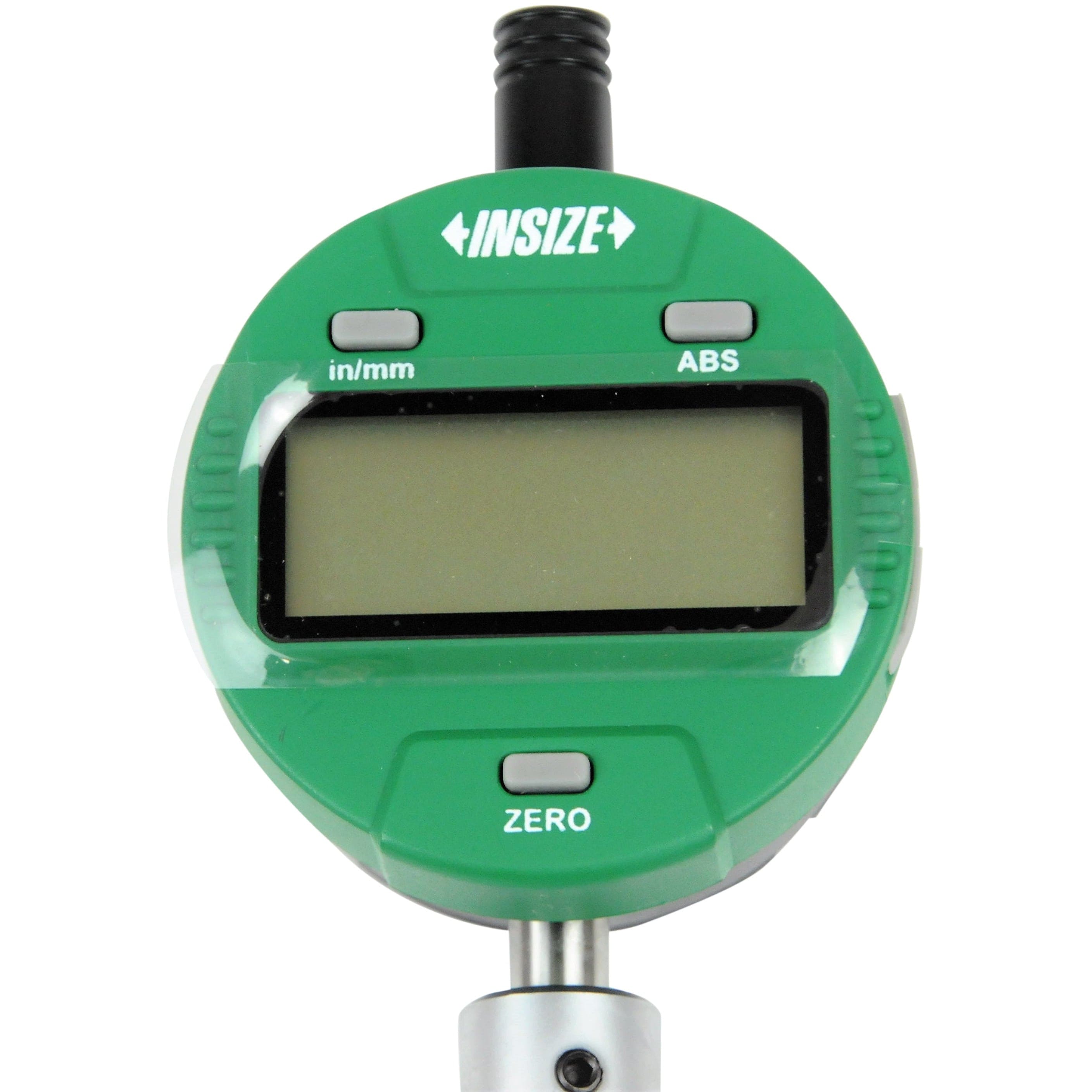

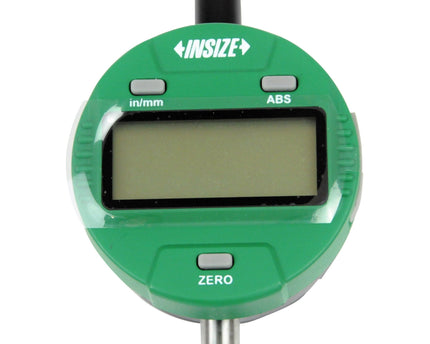

- Button functions: on/off, zero, inch/mm, ABS, data preset, change measuring direction, tolerance Go/No-Go, max/min/range measurement, absolute/incremental measurement
- Optional accessory: data output cable (7306-40, 7302-SPC3A, 7305-SPC1A)
Well-designed, durable, high-precision tools suitable for various measuring applications. This compact digital depth gauge provides smooth movement, easy readability, and reliable performance for measuring the depth of bores, recesses, slots, and other machined features.
