Description

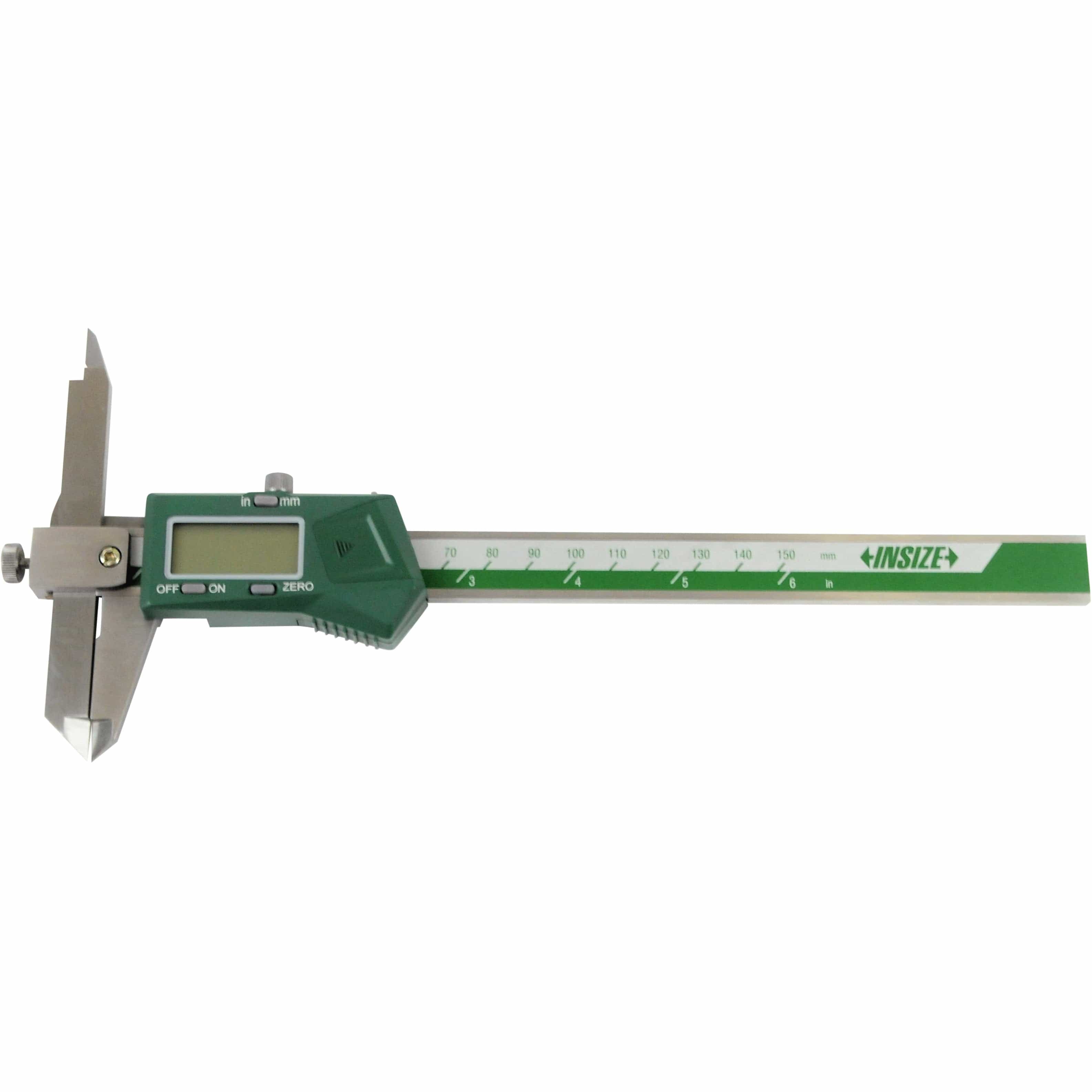

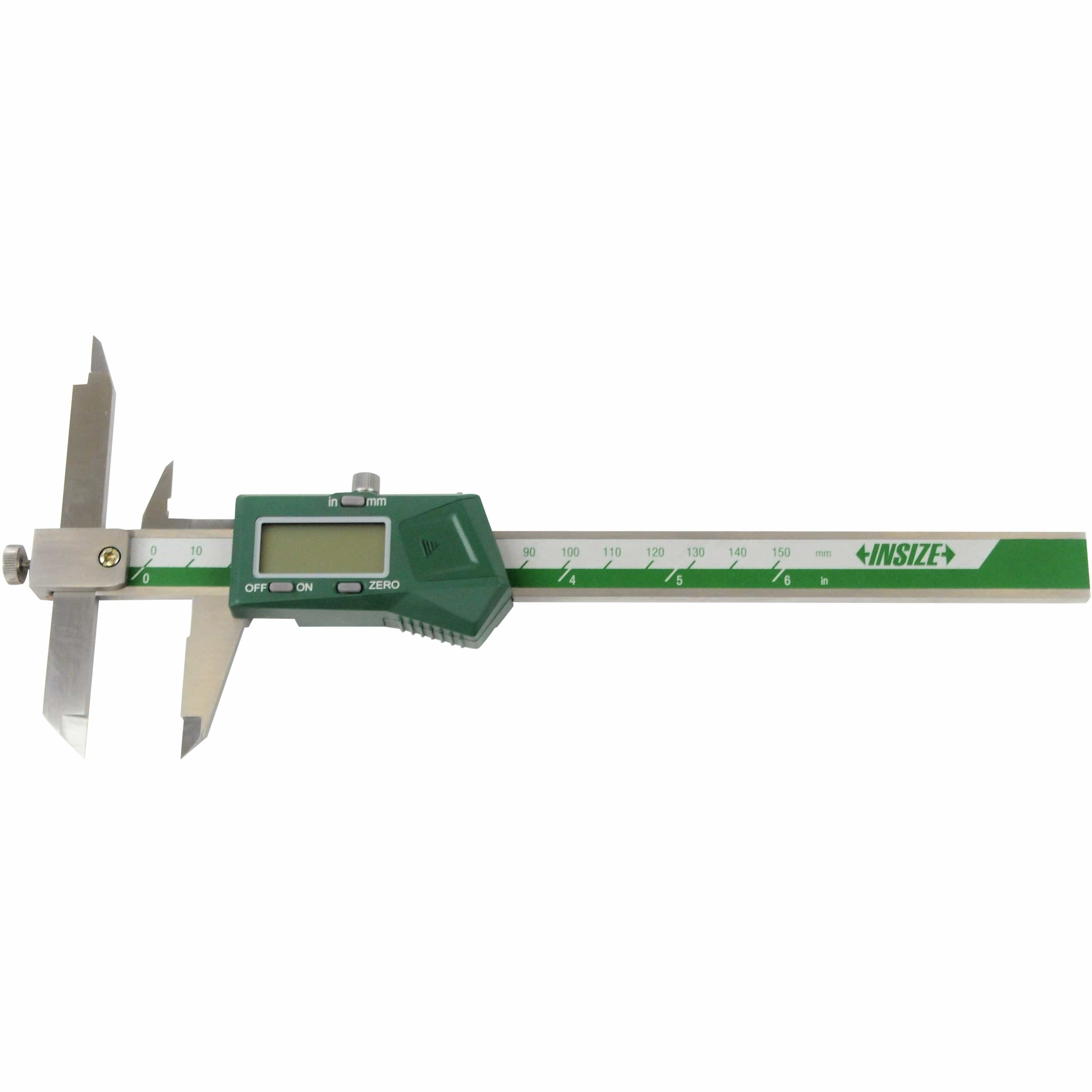

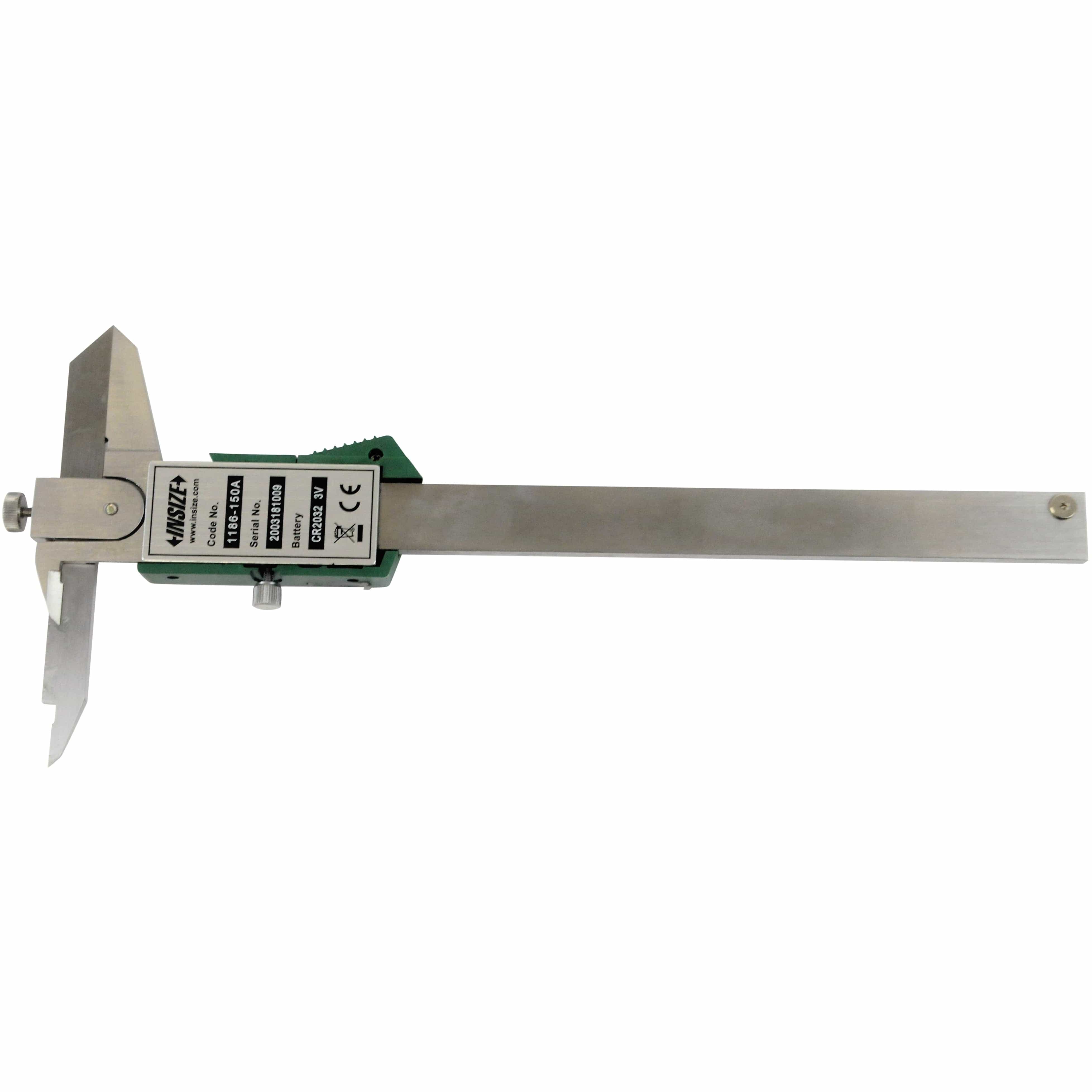

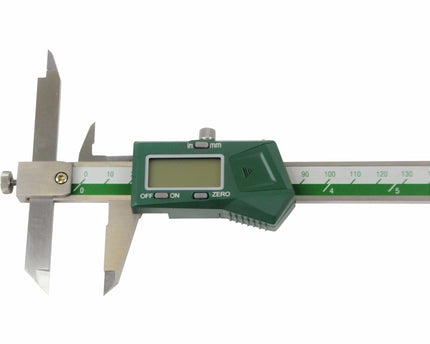

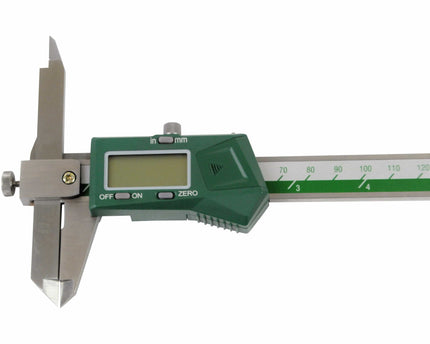

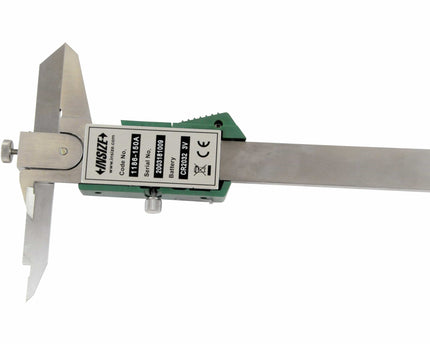

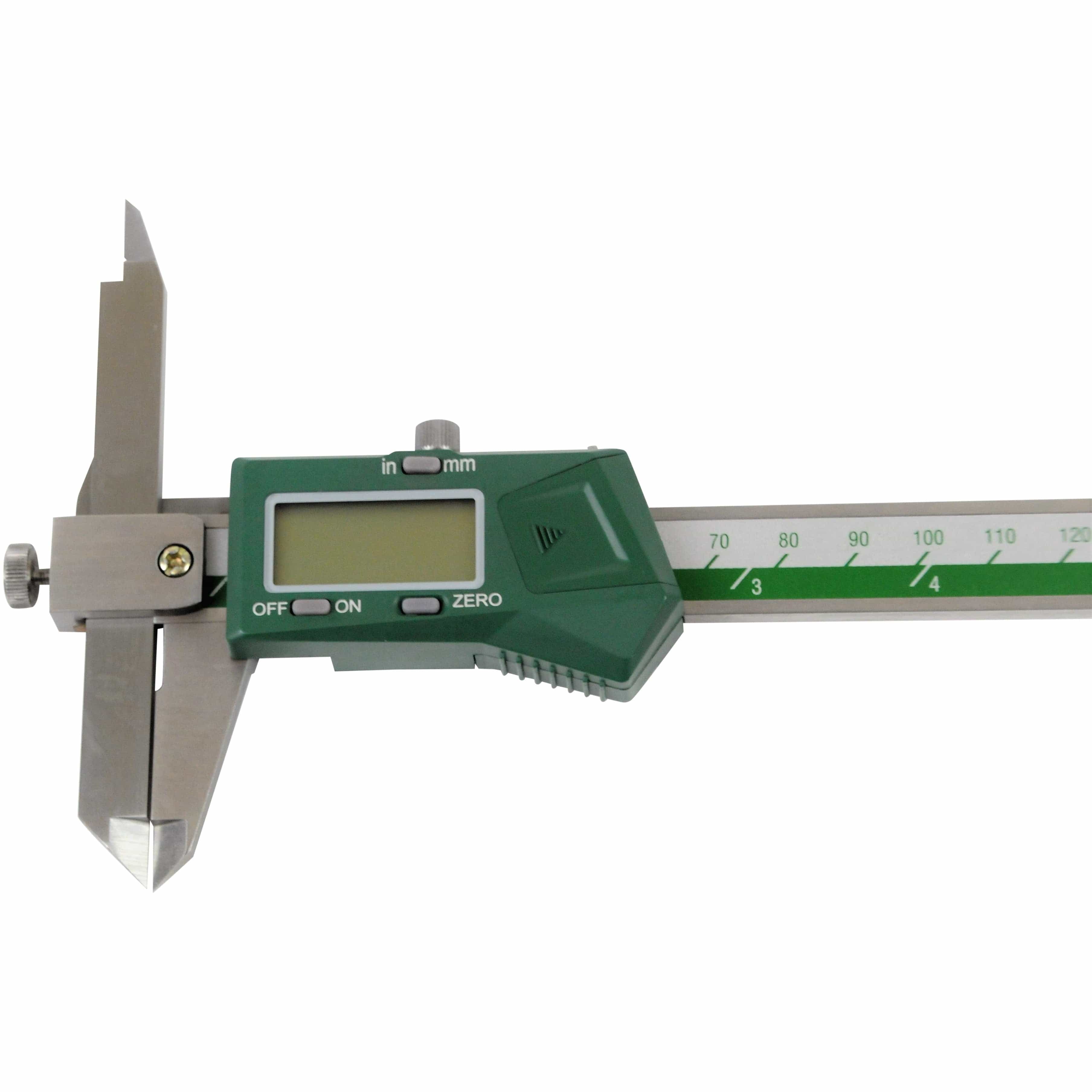

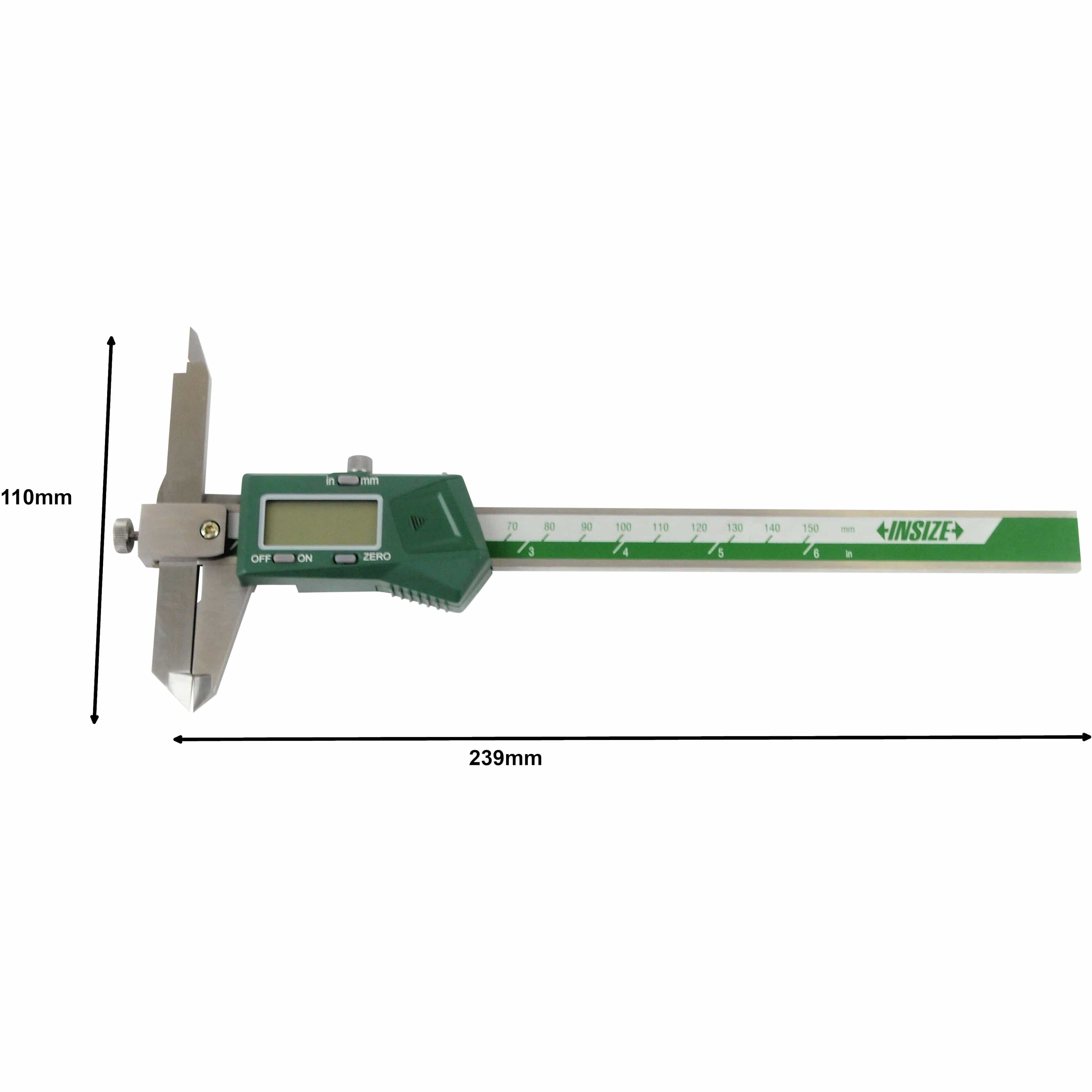

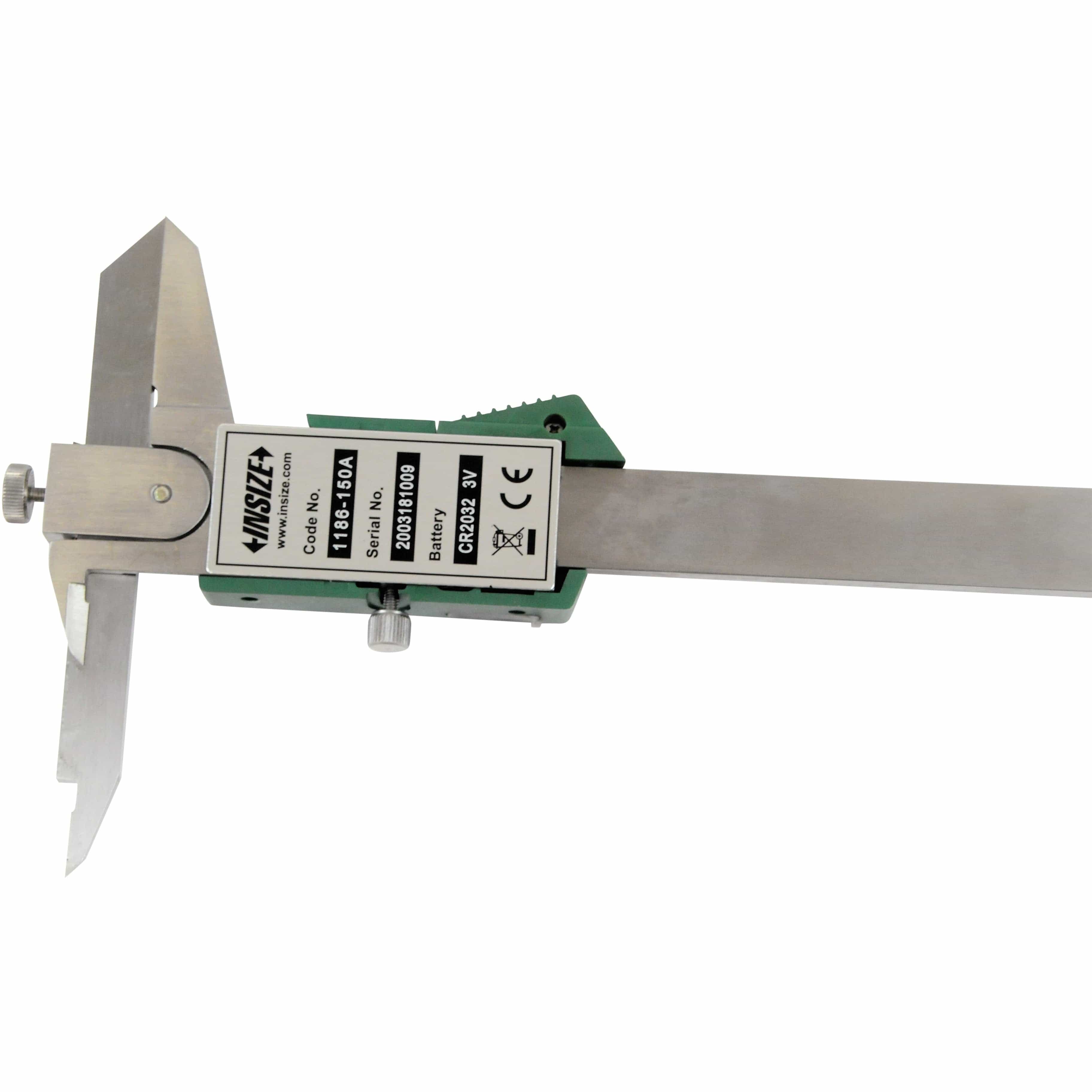

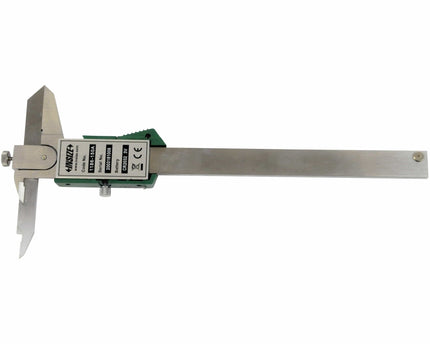

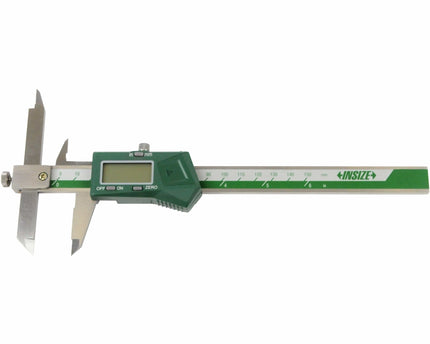

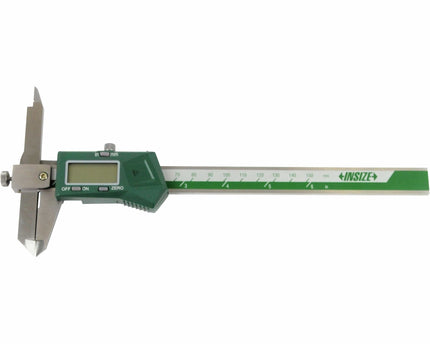

Insize 0–150 mm / 0–6" Digital Offset Caliper
A precision digital offset caliper engineered for accurate measurement of stepped sections and components with height differences. Built from stainless steel and fitted with a sliding left jaw, it allows reliable access to offset features while maintaining smooth and stable operation.

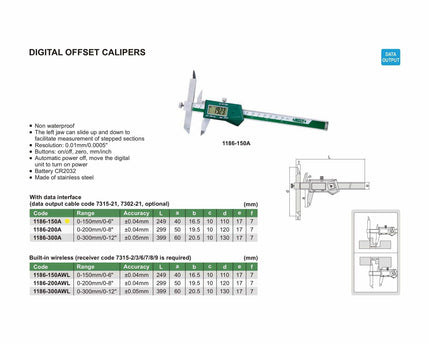

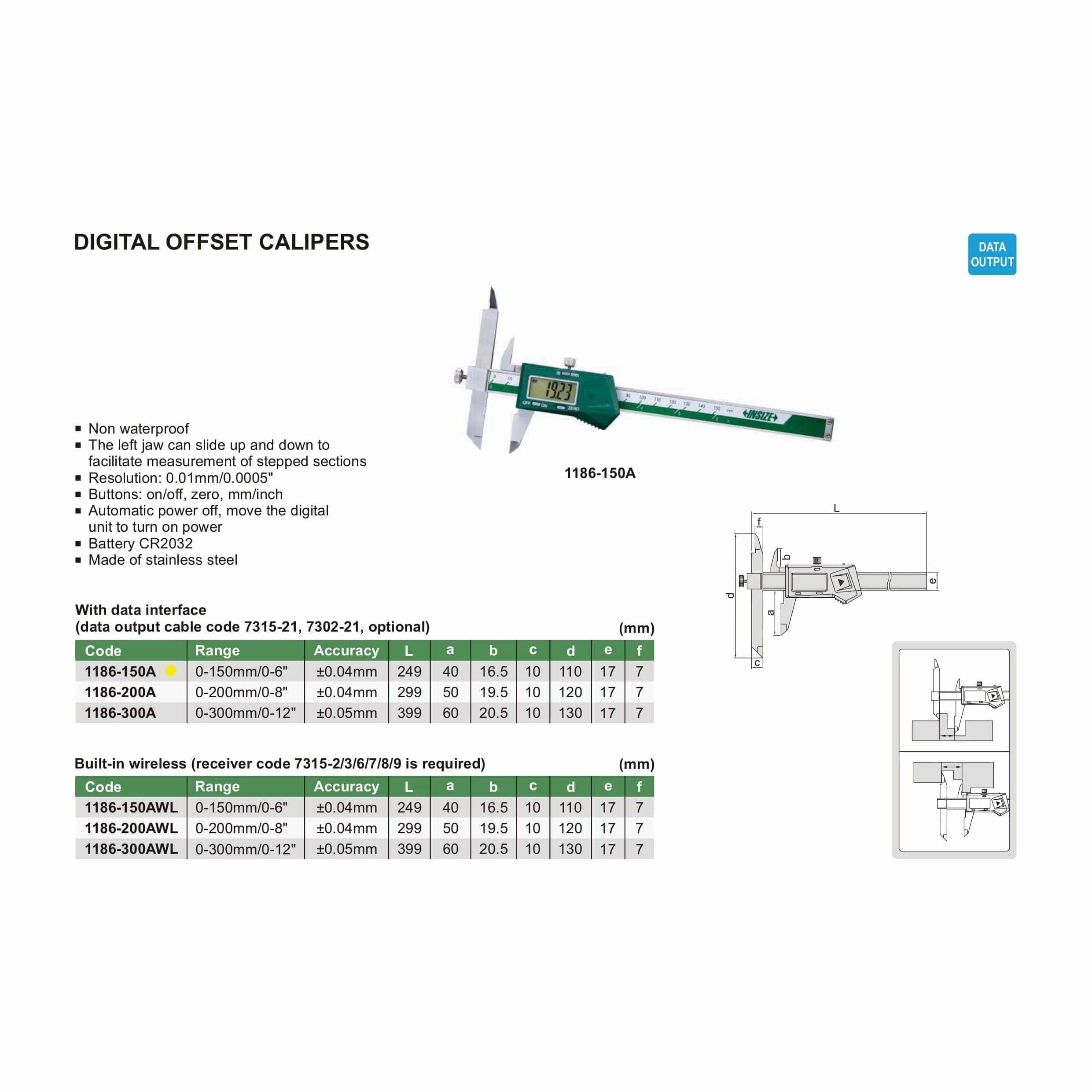

Specifications:
- Part No: 1186-150A
- Accuracy: ±0.04 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 0–150 mm / 0–6"

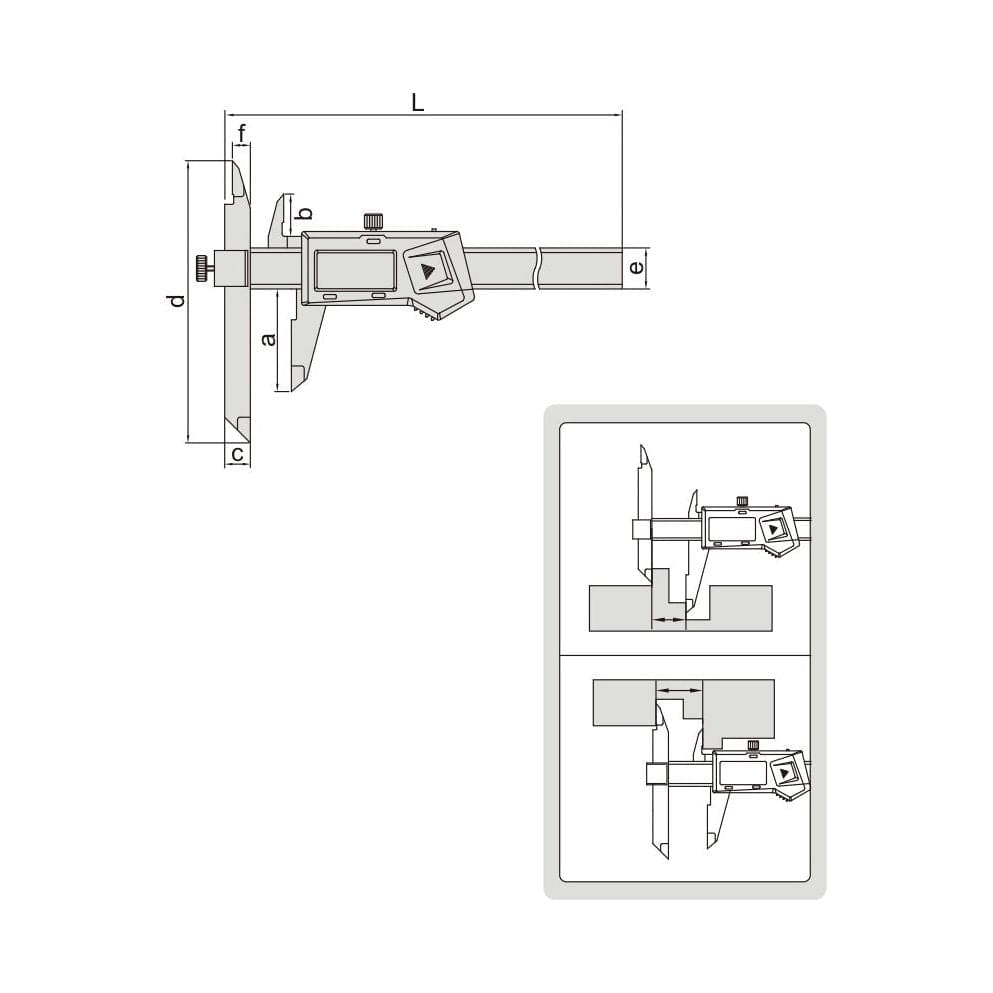

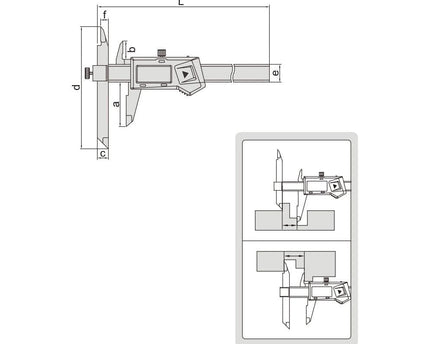

- L: 249 mm
- A: 40 mm
- B: 16.5 mm
- C: 10 mm
- D: 110 mm
- E: 17 mm
- F: 7 mm

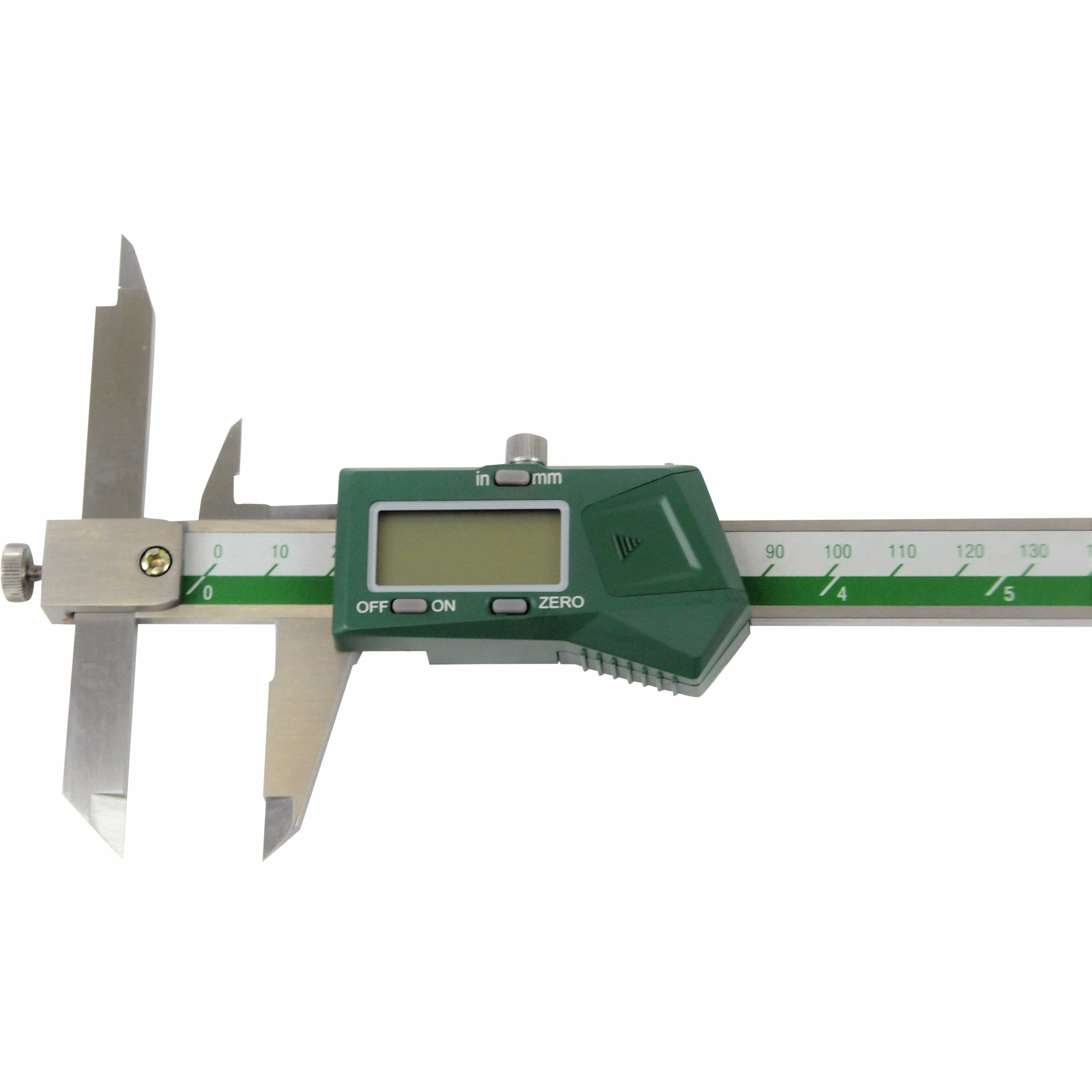

- Sliding left jaw for stepped and offset measurements
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Battery: CR2032
- Material: Stainless steel
Well-designed and built for durability, this high-precision instrument is ideal for accurately measuring stepped features and offset dimensions. Smooth to operate and easy to adjust, it provides dependable performance for workshop, machining, and inspection applications.
