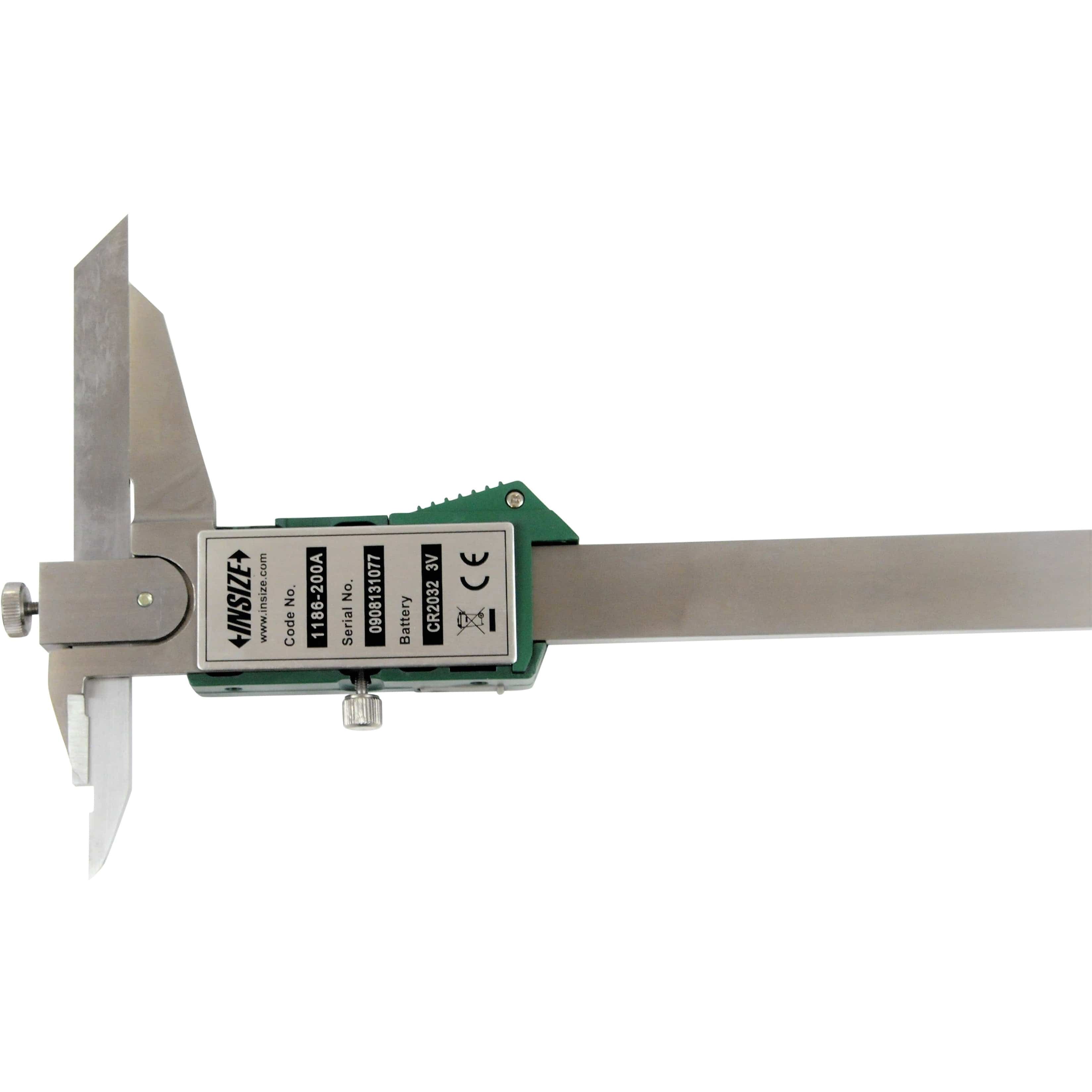

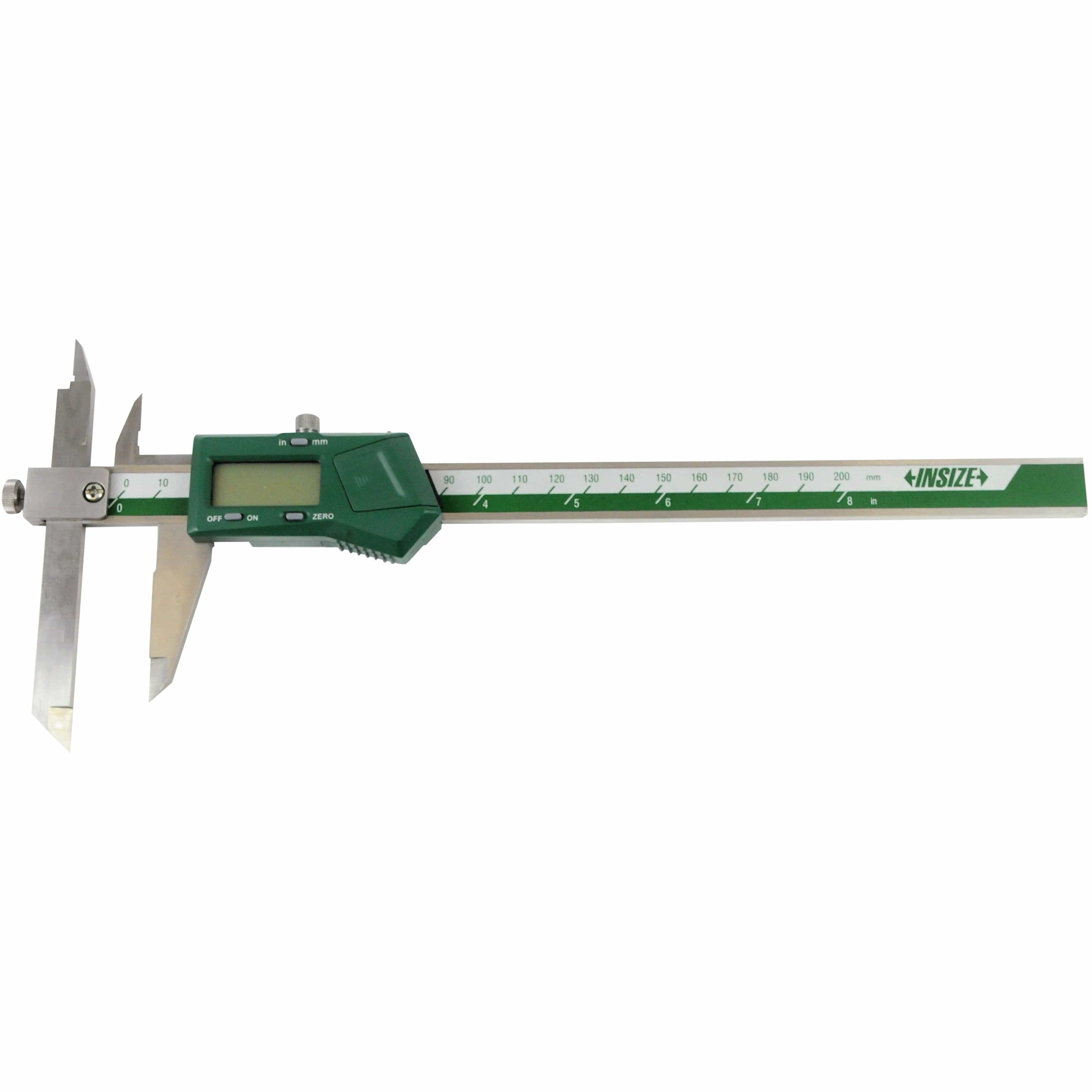

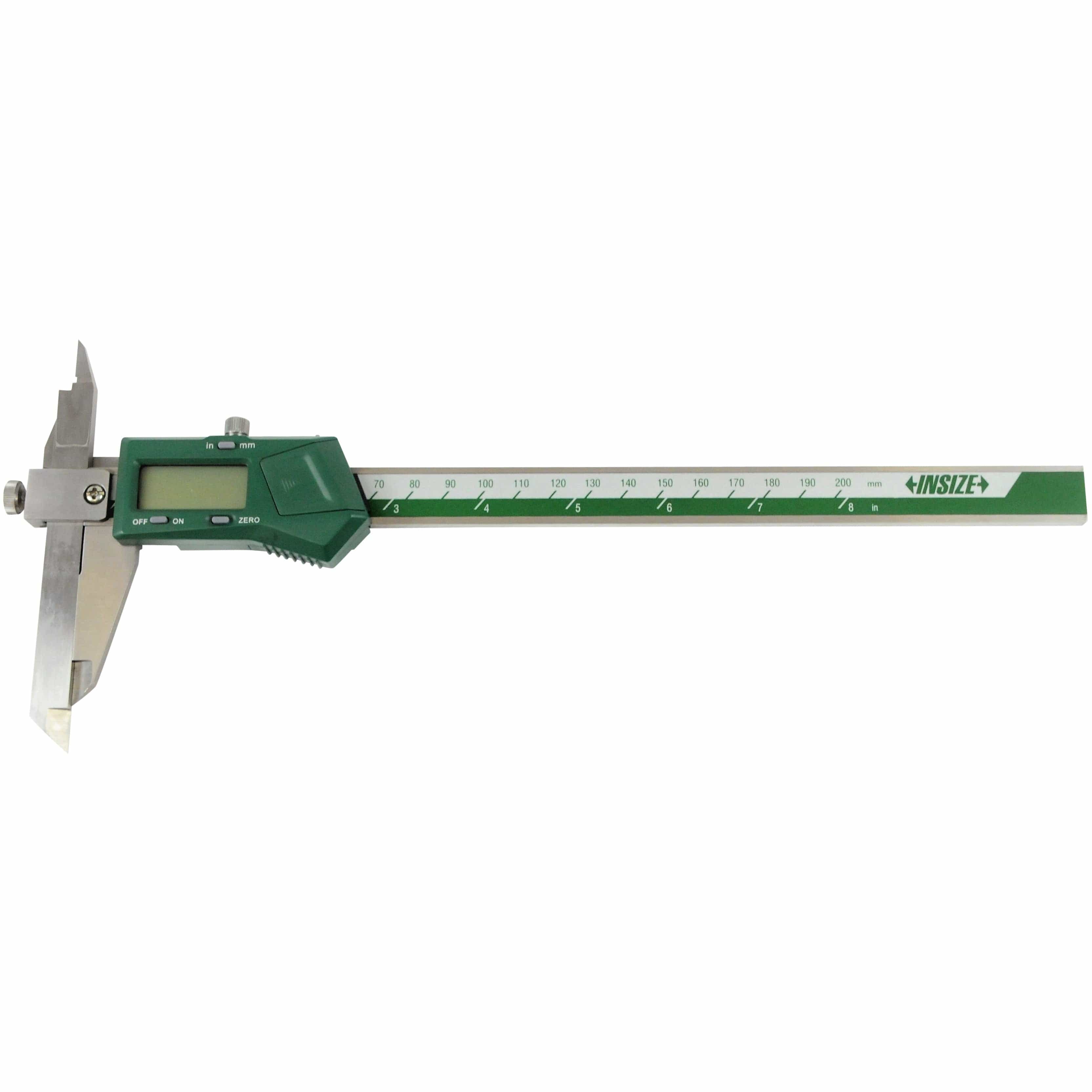

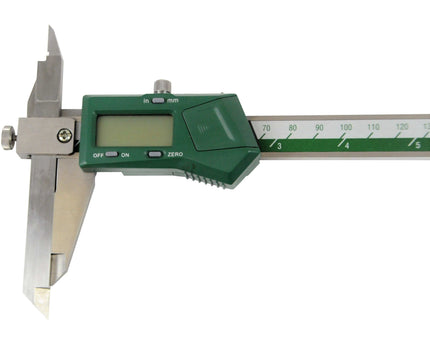

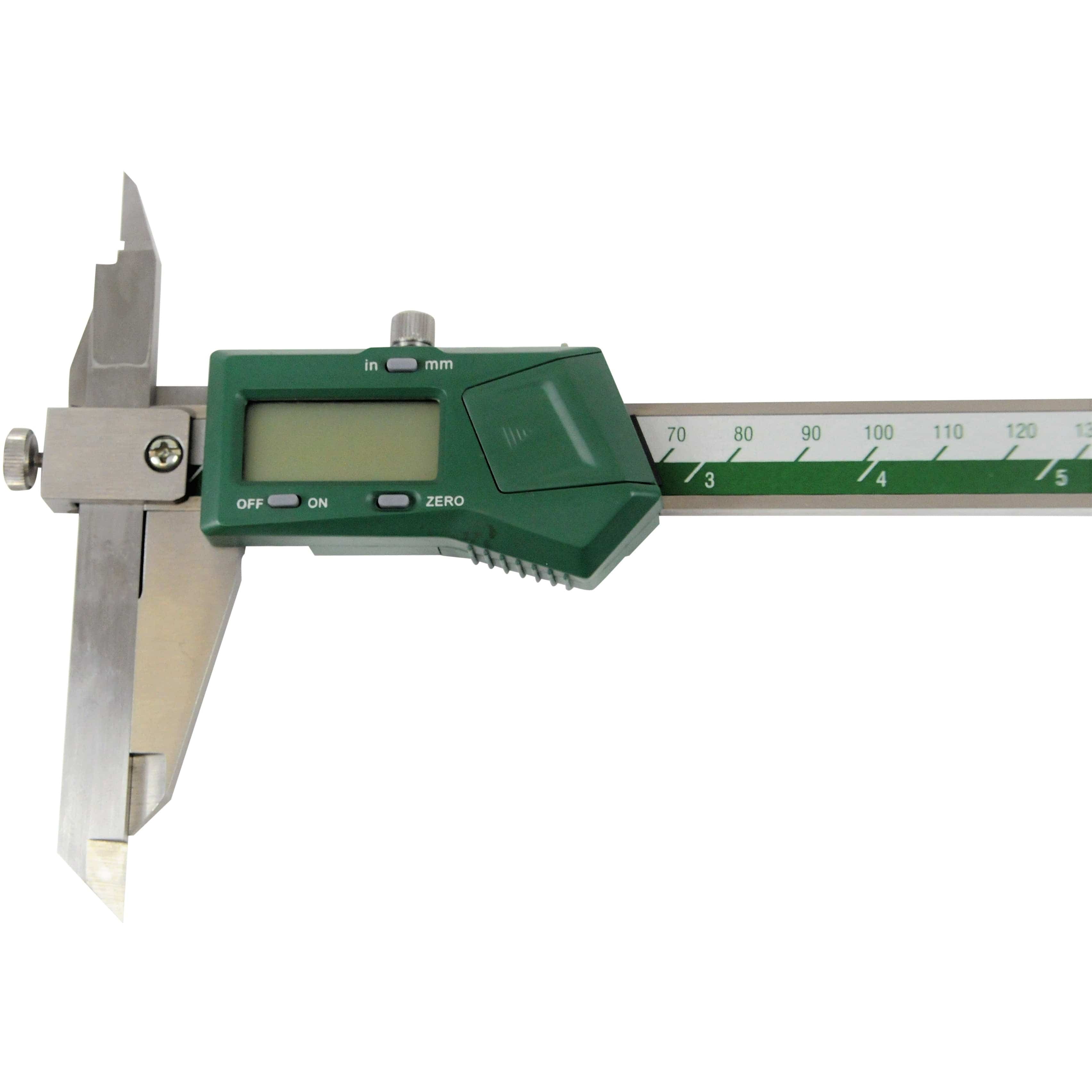

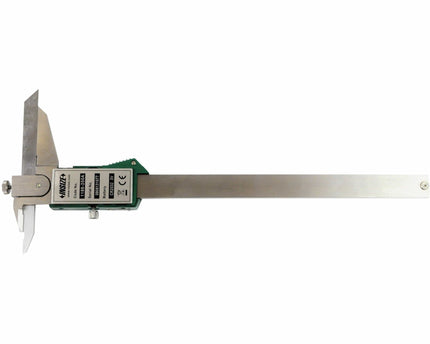

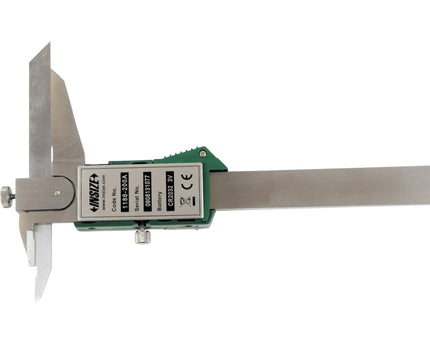

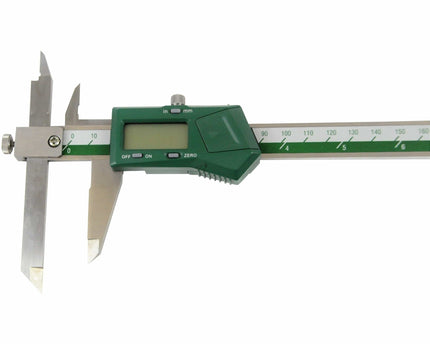

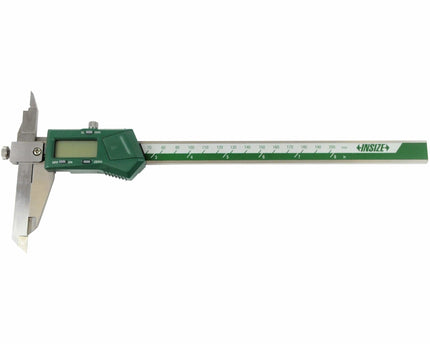

Insize 0–200 mm / 0–8" Digital Offset Caliper
A precision offset digital caliper designed for measuring stepped sections, recessed features, and hard-to-reach areas with ease. Manufactured from stainless steel, it delivers smooth operation, reliable accuracy, and clear digital readings suitable for workshop and inspection use.

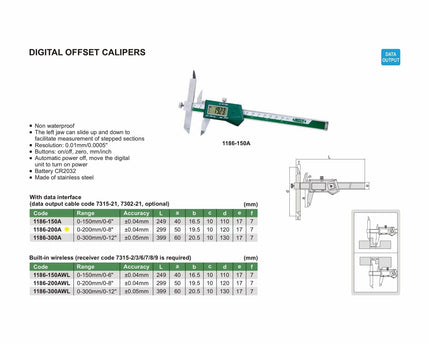

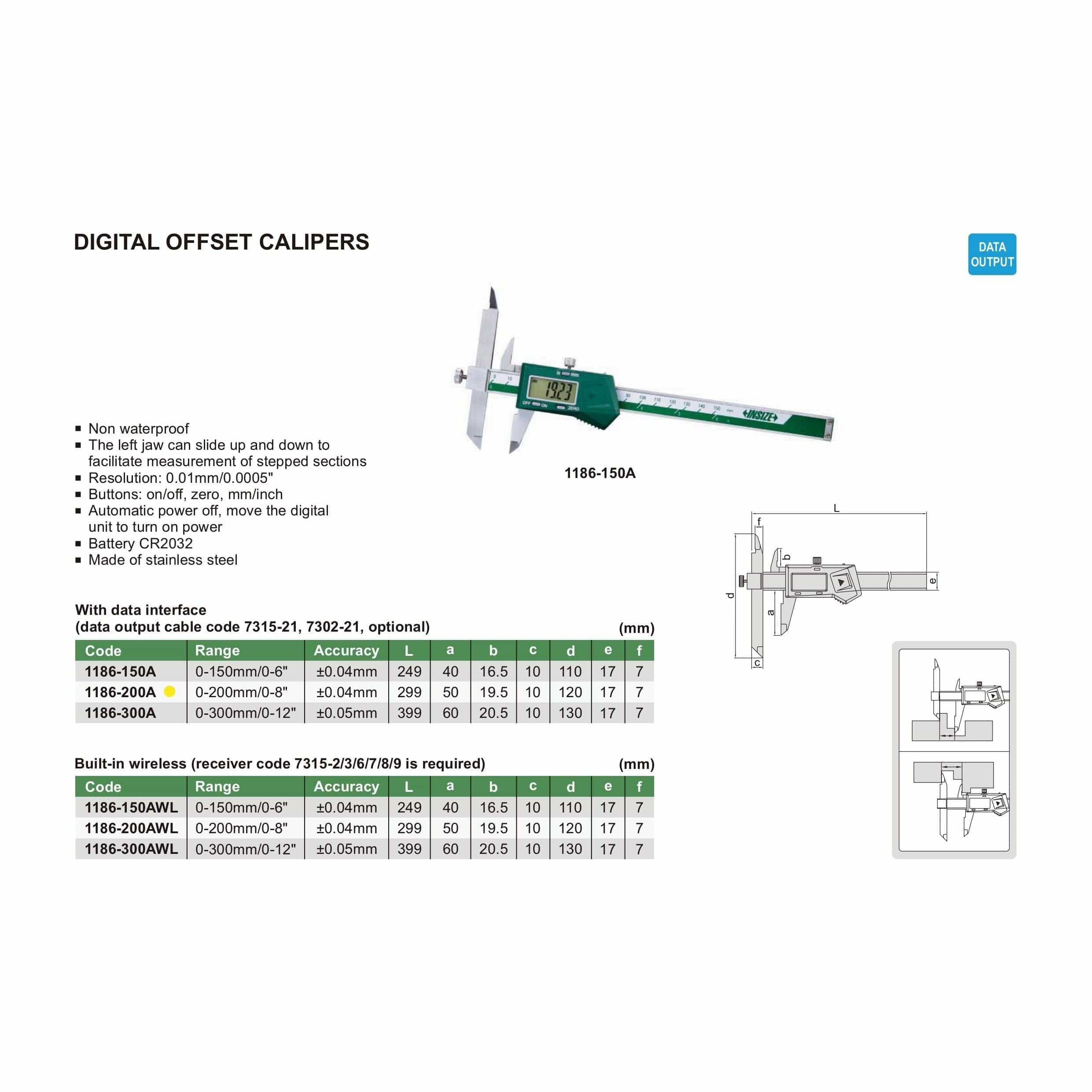

Specifications:
- Part No: 1186-200A
- Accuracy: ±0.04 mm
- Resolution: 0.01 mm / 0.0005"
- Range: 0–200 mm / 0–8"

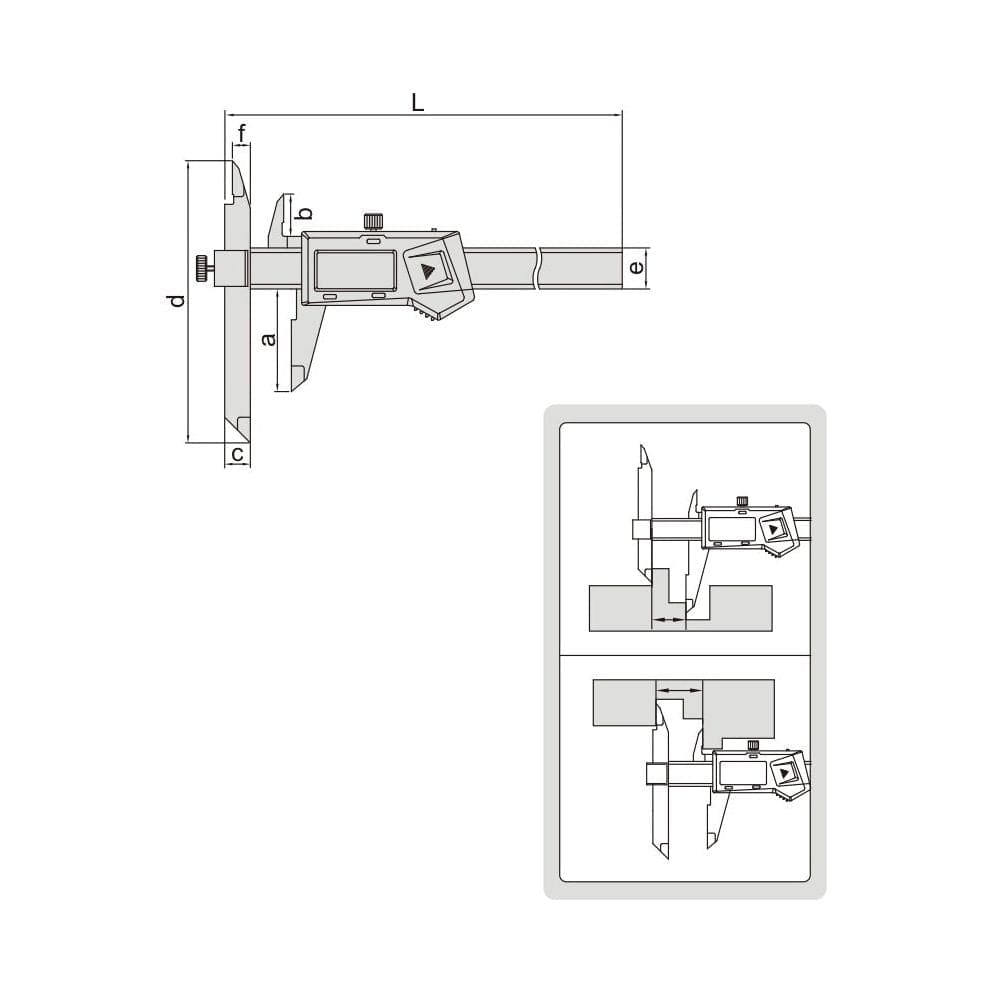

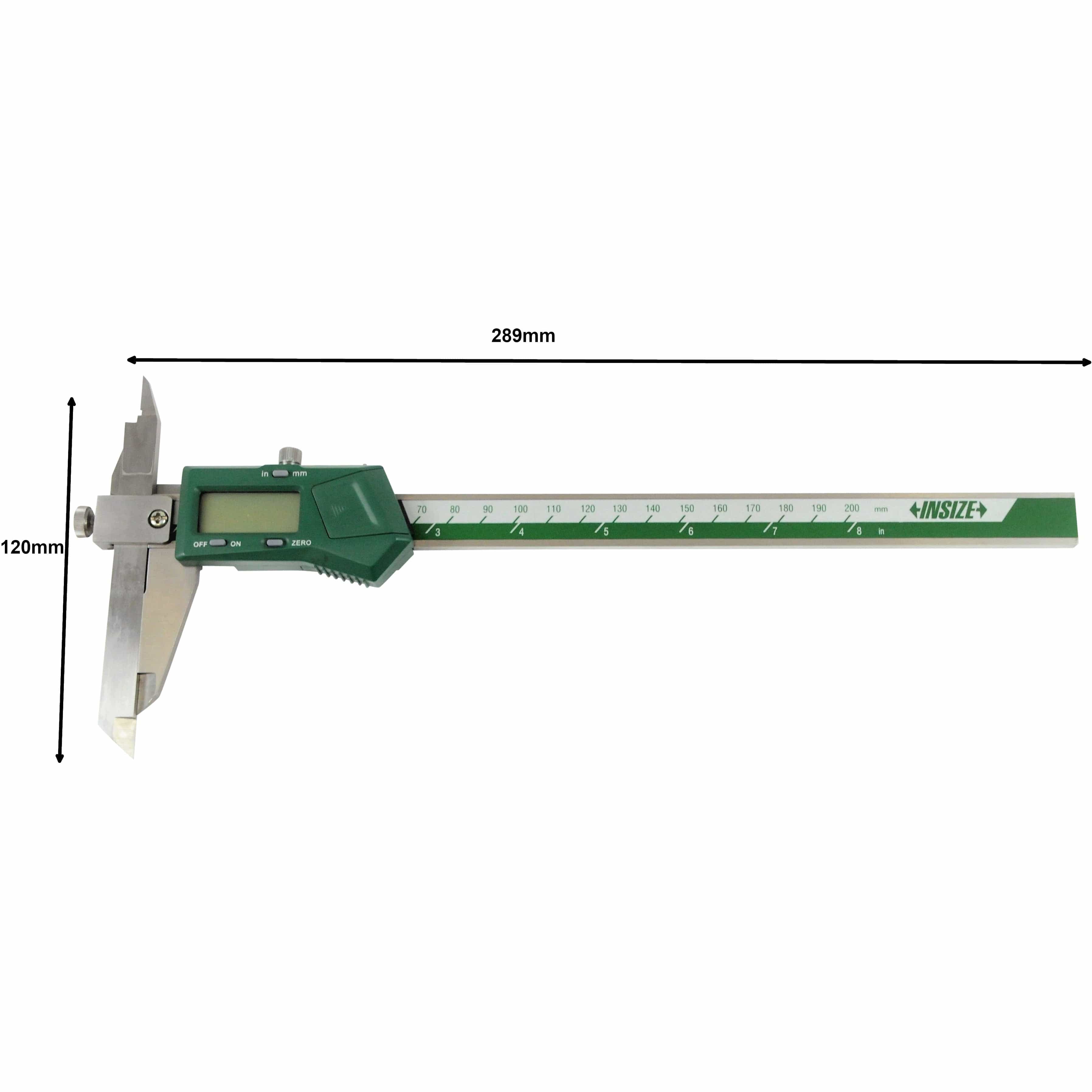

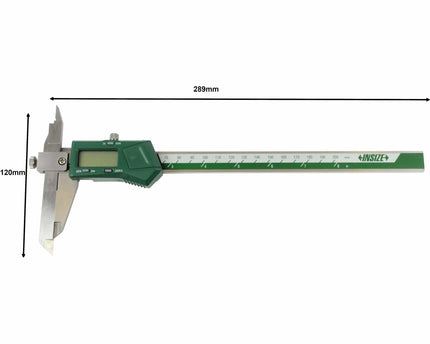

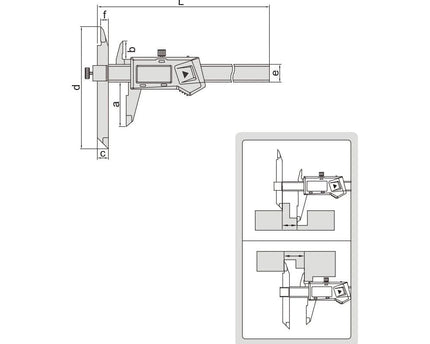

- L: 299 mm
- A: 50 mm
- B: 19.5 mm
- C: 10 mm
- D: 120 mm
- E: 17 mm
- F: 7 mm

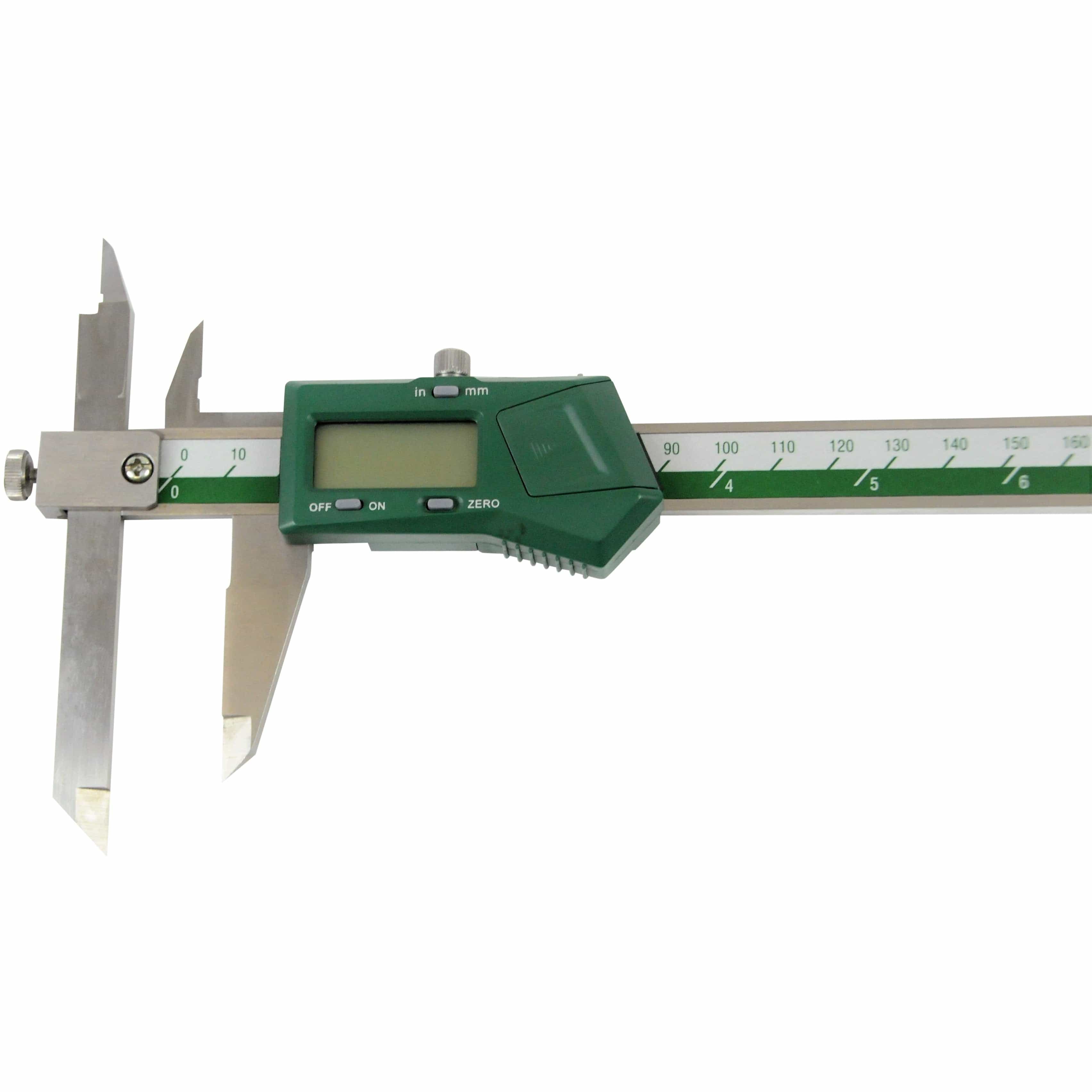

- Left jaw slides vertically to measure stepped sections
- Button Functions: On/Off, Zero, Inch/mm, ABS, Data Preset
- Battery: CR2032
- Material: Stainless steel
Well-designed and built for durability, this high-precision offset caliper is ideal for measuring stepped surfaces, offsets, and complex geometries. Easy to operate and adjust, it offers reliable performance for machining, inspection, and general measurement tasks.
