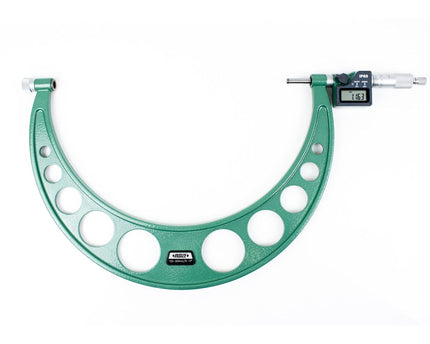

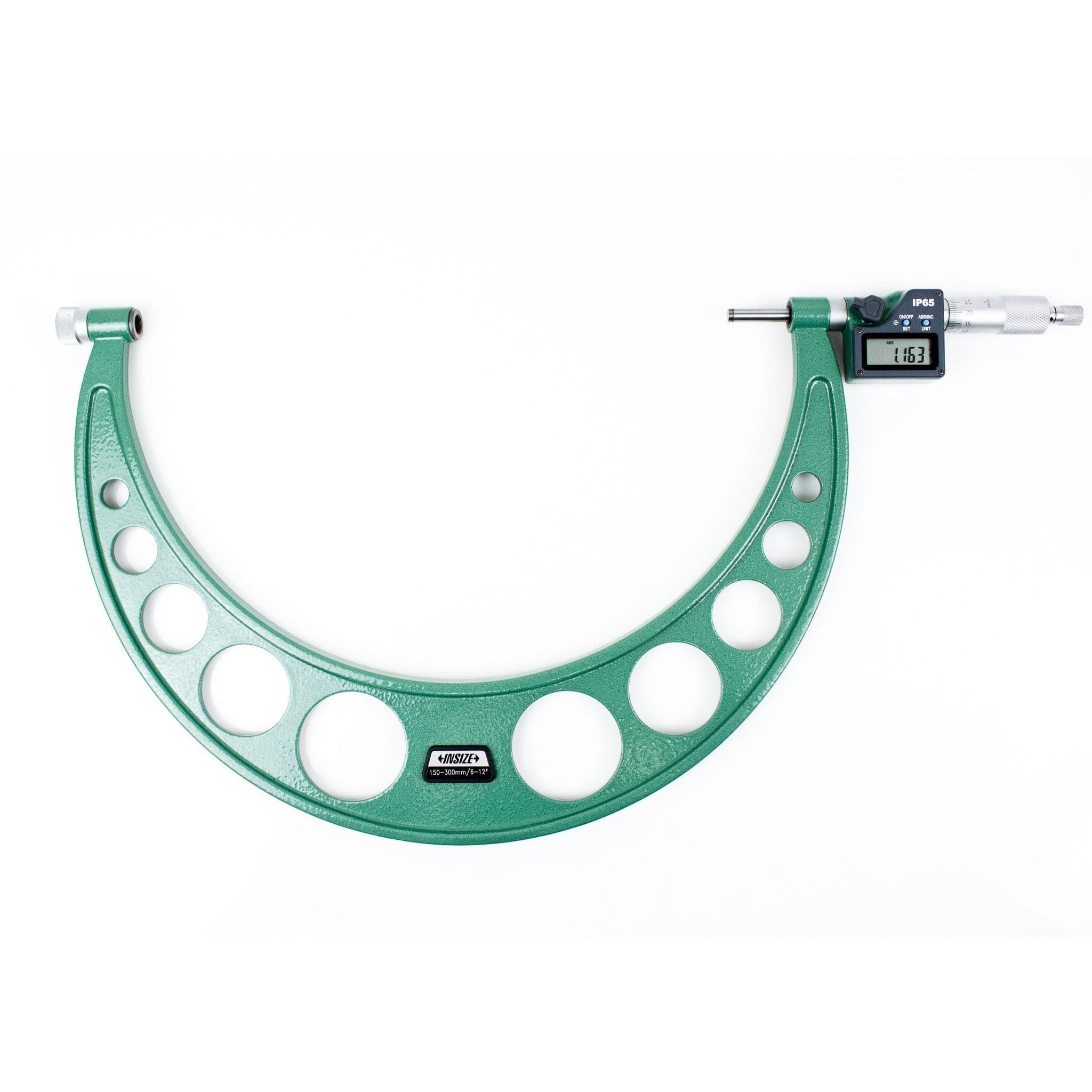

Insize 150–300mm Outside Micrometer
The Insize 150–300mm Outside Micrometer is a high-precision digital measuring instrument designed for accurate external measurement over extended ranges. Supplied as a complete interchangeable-anvil set, it provides excellent flexibility, repeatability, and reliability for workshop, toolroom, and inspection applications requiring wide measuring coverage.

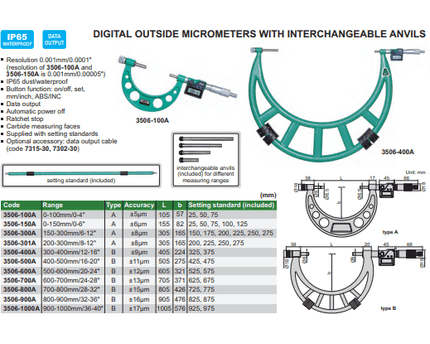

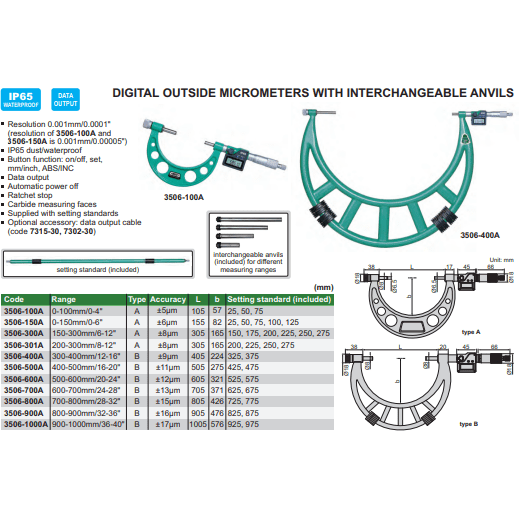

Specifications :
-
Part Number: 3506-300A
-
Measuring Range: 150–300 mm
- Strictly made in accordance with DIN 863
- Resolution: 0.001mm / 0.0001"
- IP65 dust/waterproof
- Button functions: on/off, set, mm/inch, ABS/INC
- Spindle thread hardened, ground, and lapped for high accuracy
- Baked enamel finish frame
- Barrel and thimble with satin chrome finish
- Absolute (ABS) and inch/metric conversion function
- Large, easy-to-read LCD display
- Clear graduations for easy operation
- Quick and easy adjustment
- Automatic power-off
- Carbide measuring faces
- Spindle lock
- Data output
- Ratchet stop
Includes

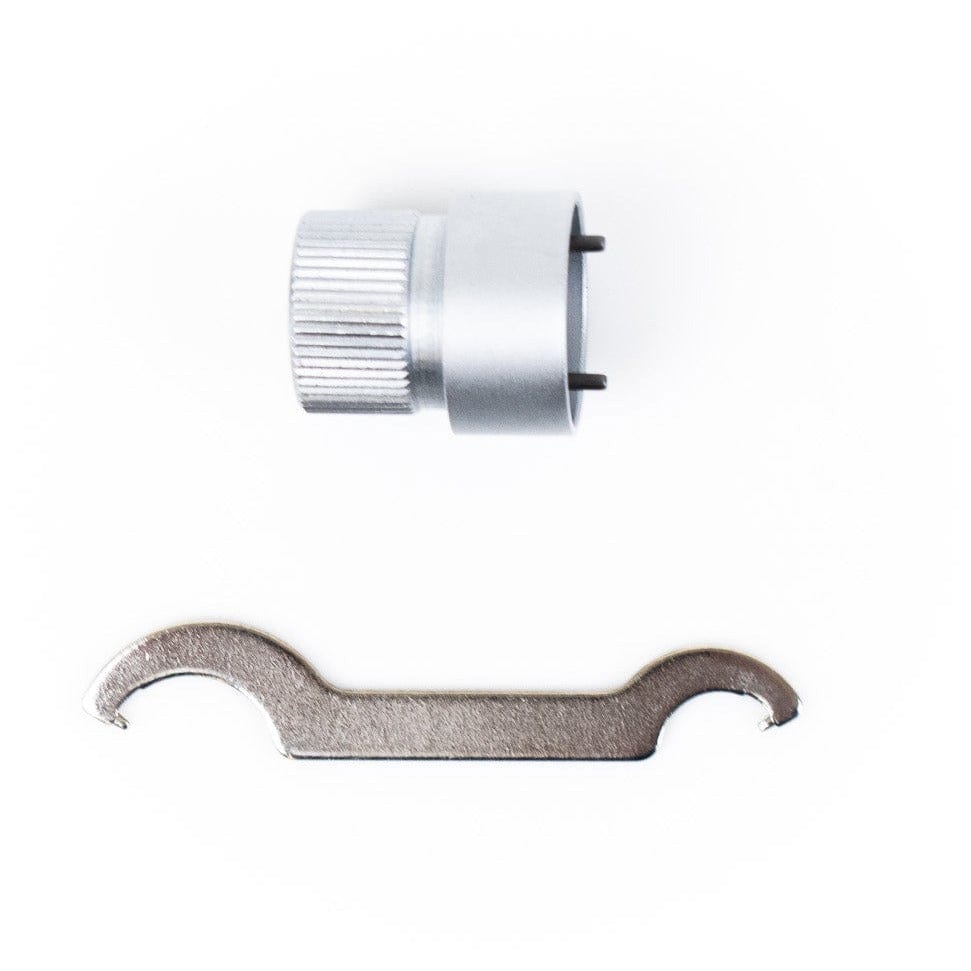

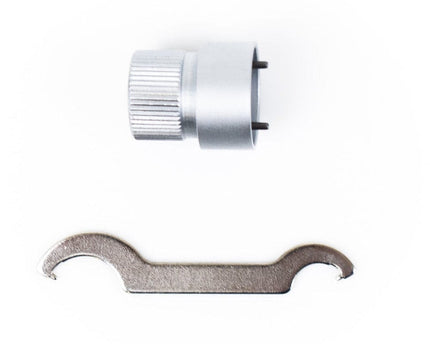

- Zero adjusting wrench

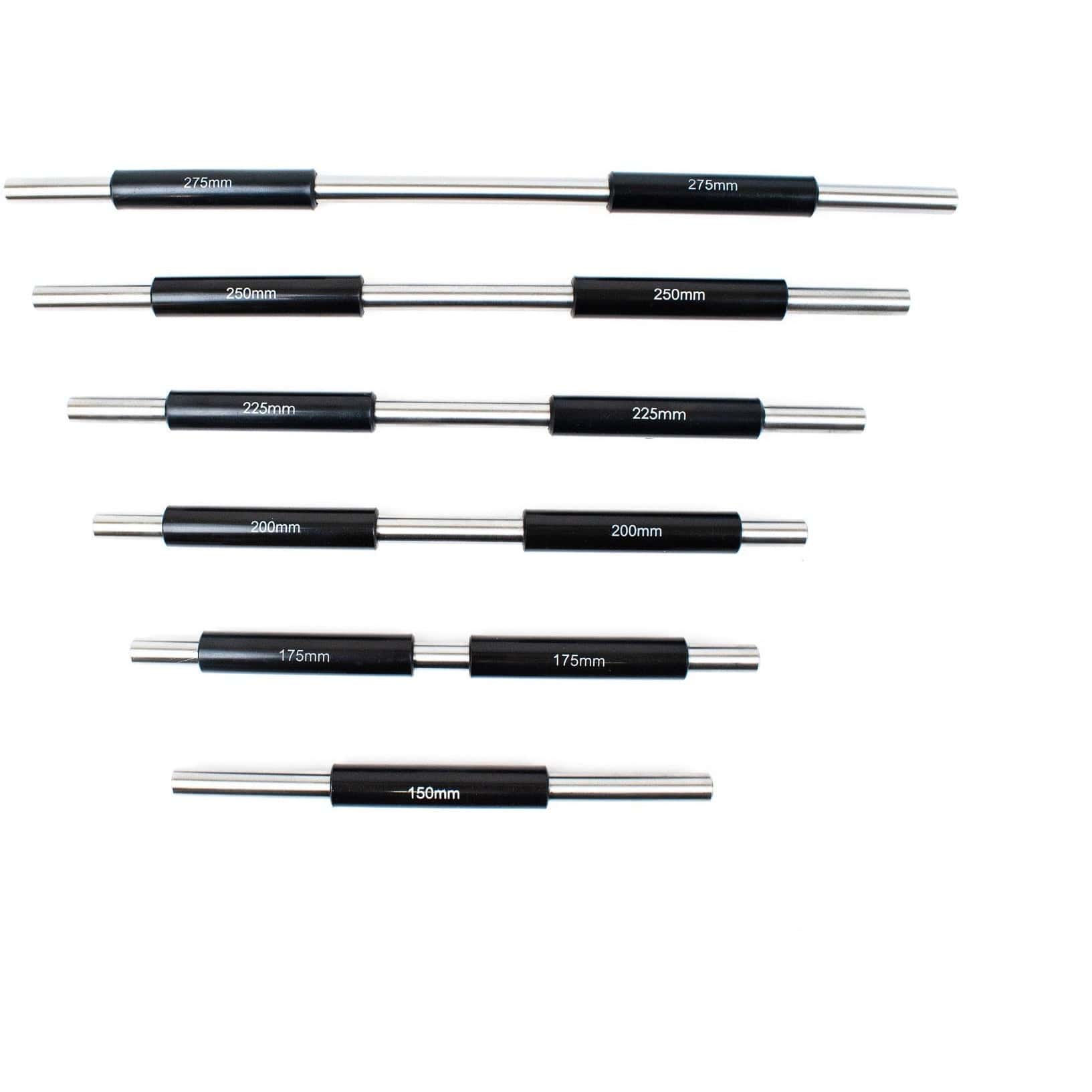

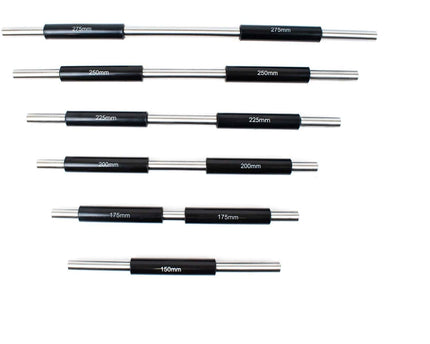

- 150mm calibration rod
- 175mm calibration rod
- 200mm calibration rod
- 225mm calibration rod
- 250mm calibration rod
- 300mm calibration rod

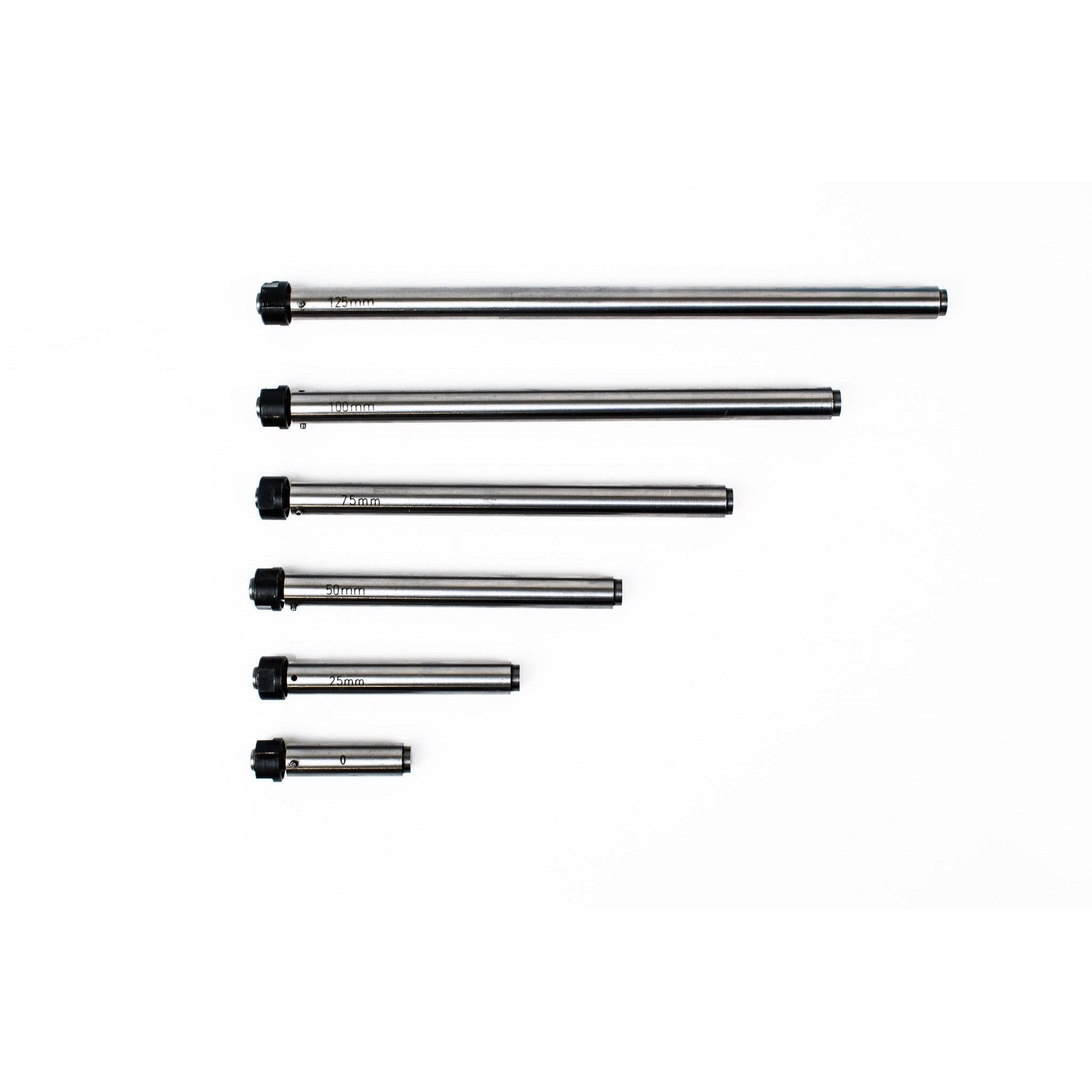

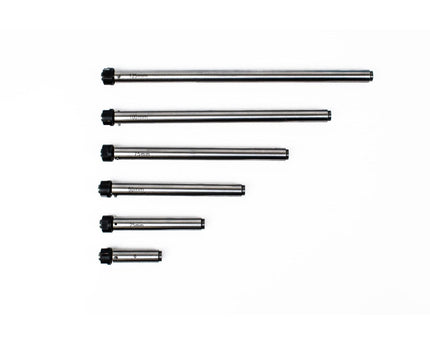

- Interchangeable anvil 0–25mm
- Interchangeable anvil 25–50mm
- Interchangeable anvil 50–75mm
- Interchangeable anvil 75–100mm
- Interchangeable anvil 100–125mm
- Optional data output cable (7315-30, 7302-30)

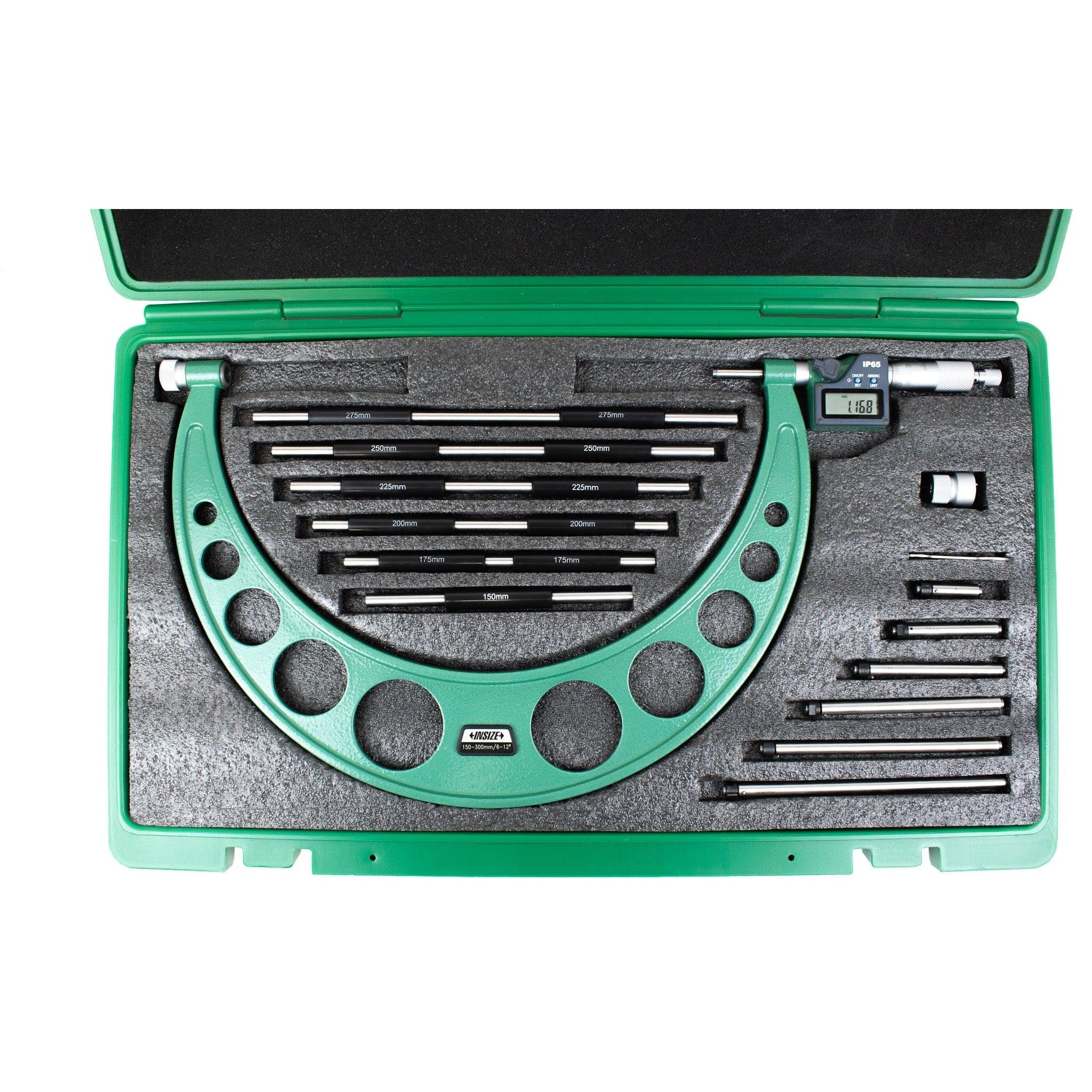

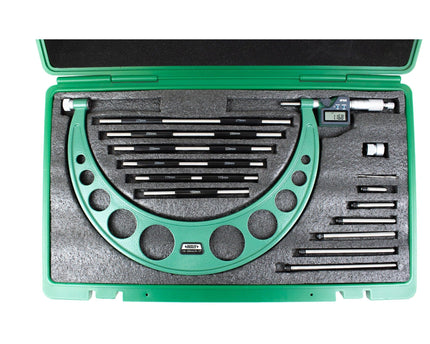

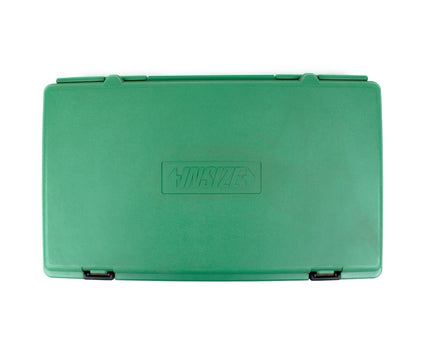

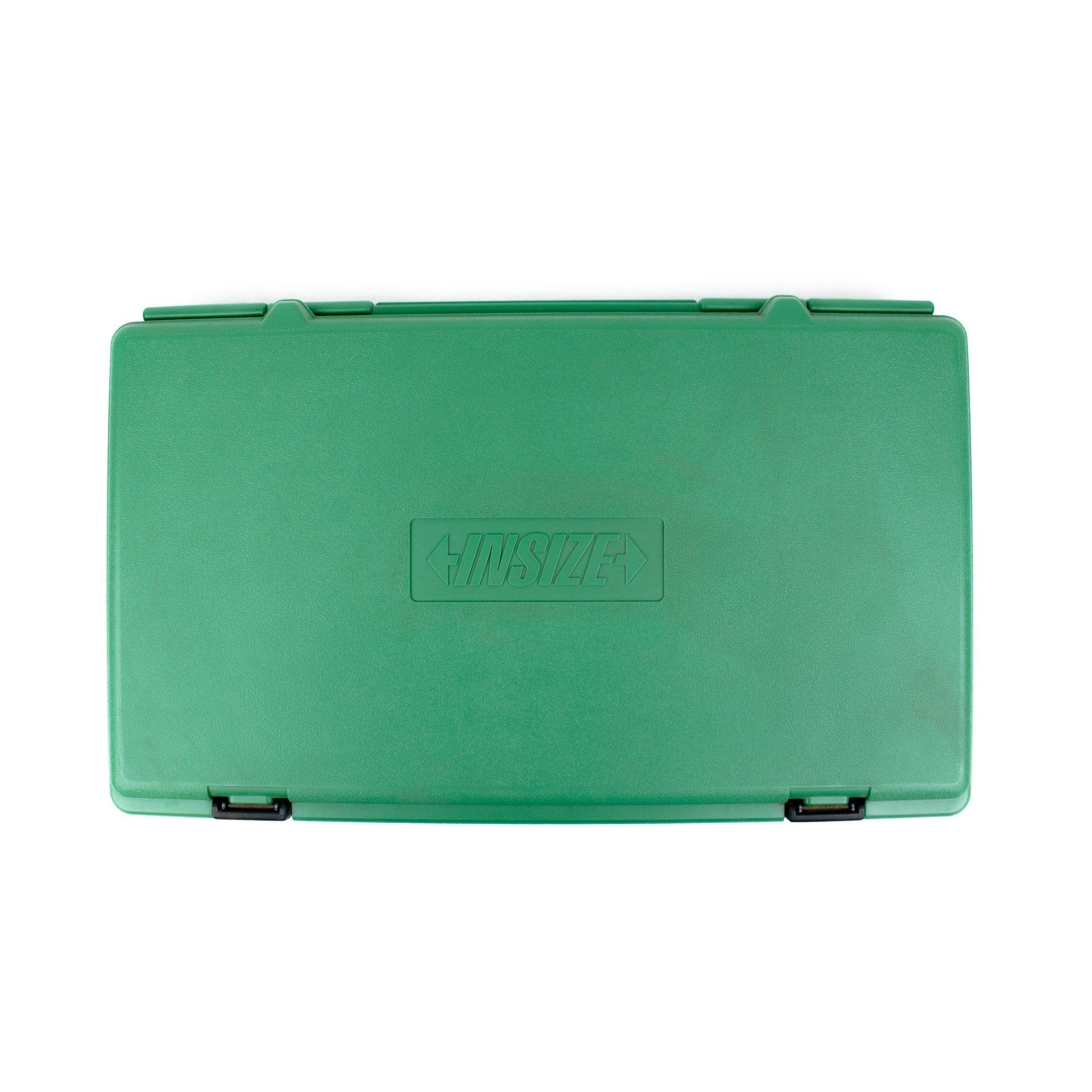

- Supplied in a custom-fitted protective case
Well designed and built for durability, Insize outside micrometer sets provide reliable and repeatable measurement across extended ranges. The interchangeable anvil system and clear digital display make this set ideal for precision measurement tasks in demanding industrial environments.
