Description

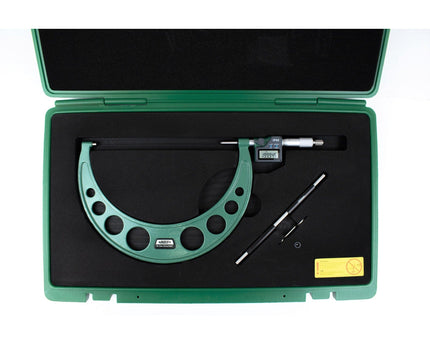

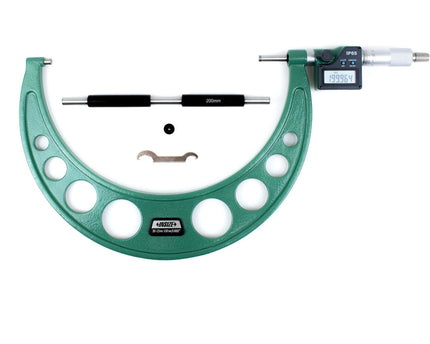

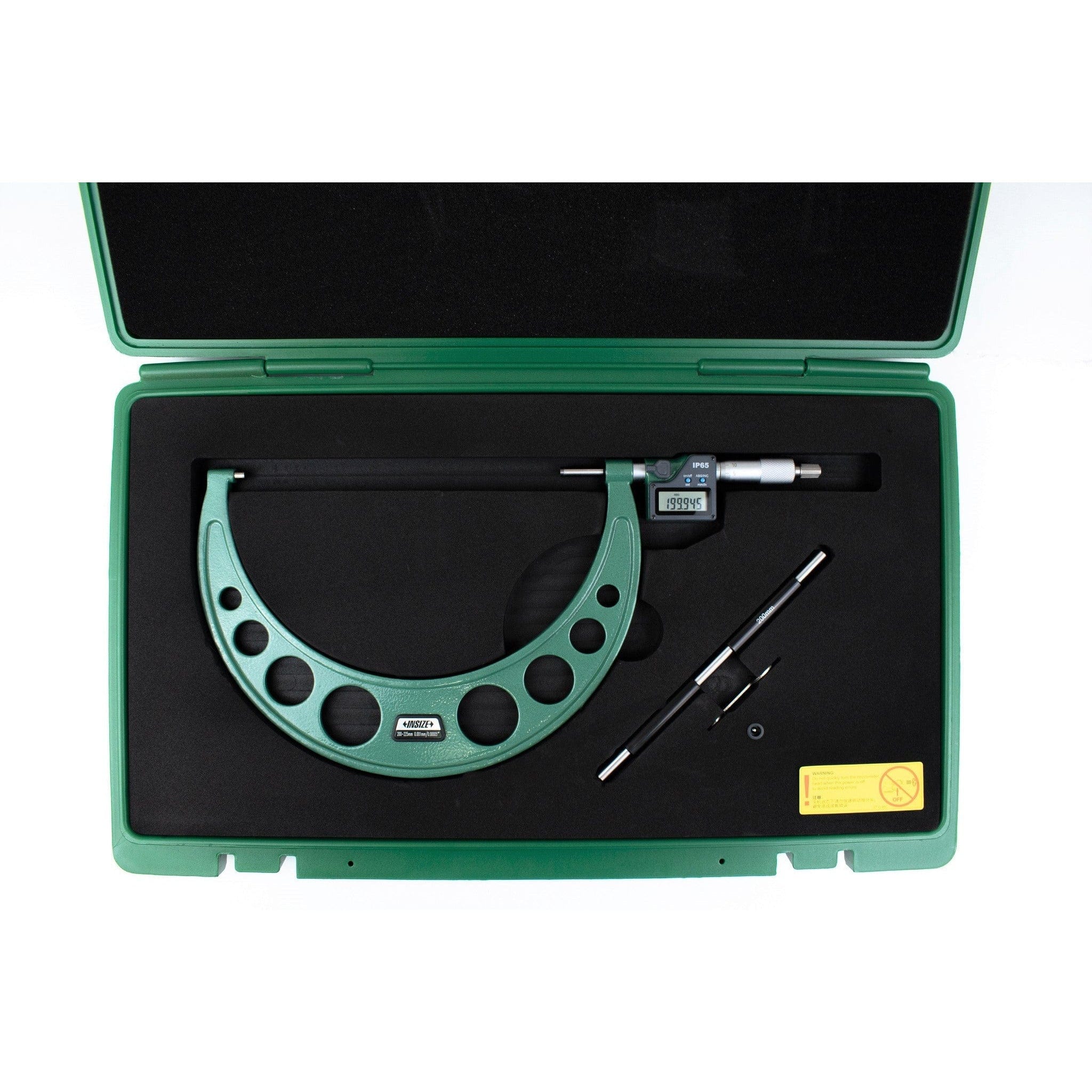

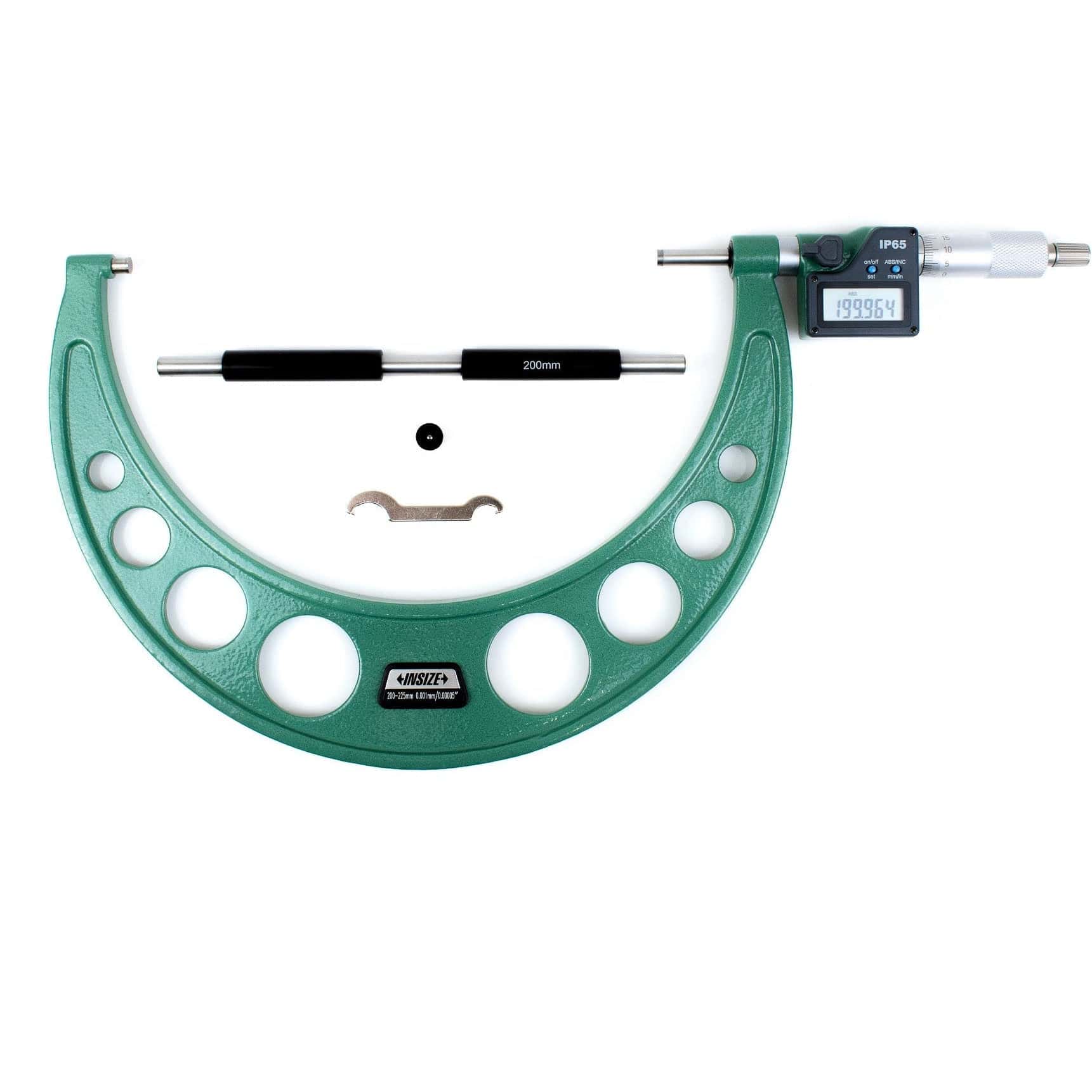

Insize 200–225 mm Digital Outside Micrometer
The Insize 200–225 mm Digital Outside Micrometer is designed for high-accuracy external measurements in professional machining, inspection, and quality-control environments. Featuring an IP65-rated construction and ABSOLUTE digital measuring system, this micrometer delivers reliable performance, smooth operation, and consistent results even in demanding workshop conditions.

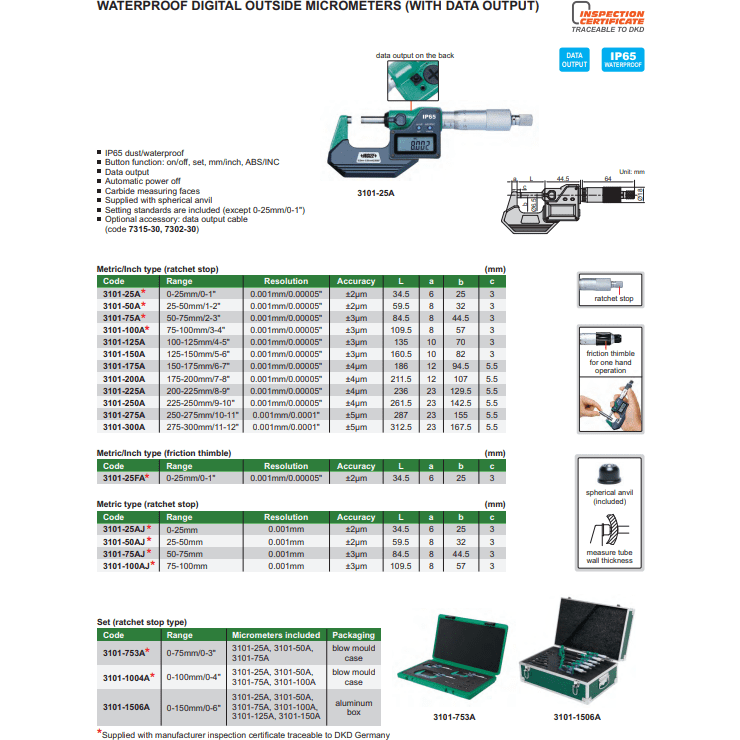

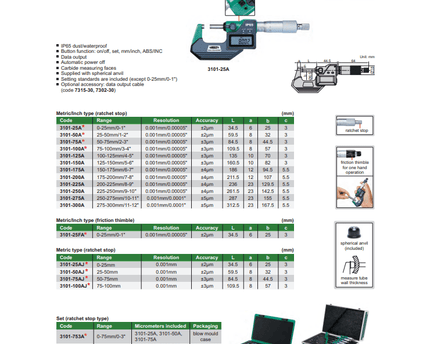

Specifications :
- Part No.: 3101-225A
- Measuring Range: 200–225 mm
- Manufactured in accordance with DIN 863
- IP65 dust and waterproof protection
- Button functions: on/off, set, mm/inch, ABS/INC
- Hardened, ground, and lapped spindle thread for maximum accuracy
- Baked enamel finish frame
- Satin chrome finish on barrel and thimble
- ABSOLUTE measurement system with inch/metric conversion
- Large, easy-to-read LCD display
- Clear graduations on satin chrome surface for smooth operation
- Quick and easy adjustment
- Automatic power-off function
- Carbide measuring faces
- Spindle lock
- Ratchet stop for consistent measuring force
- Data output capability
Includes :
- Zero adjusting wrench
- 200 mm calibration rod

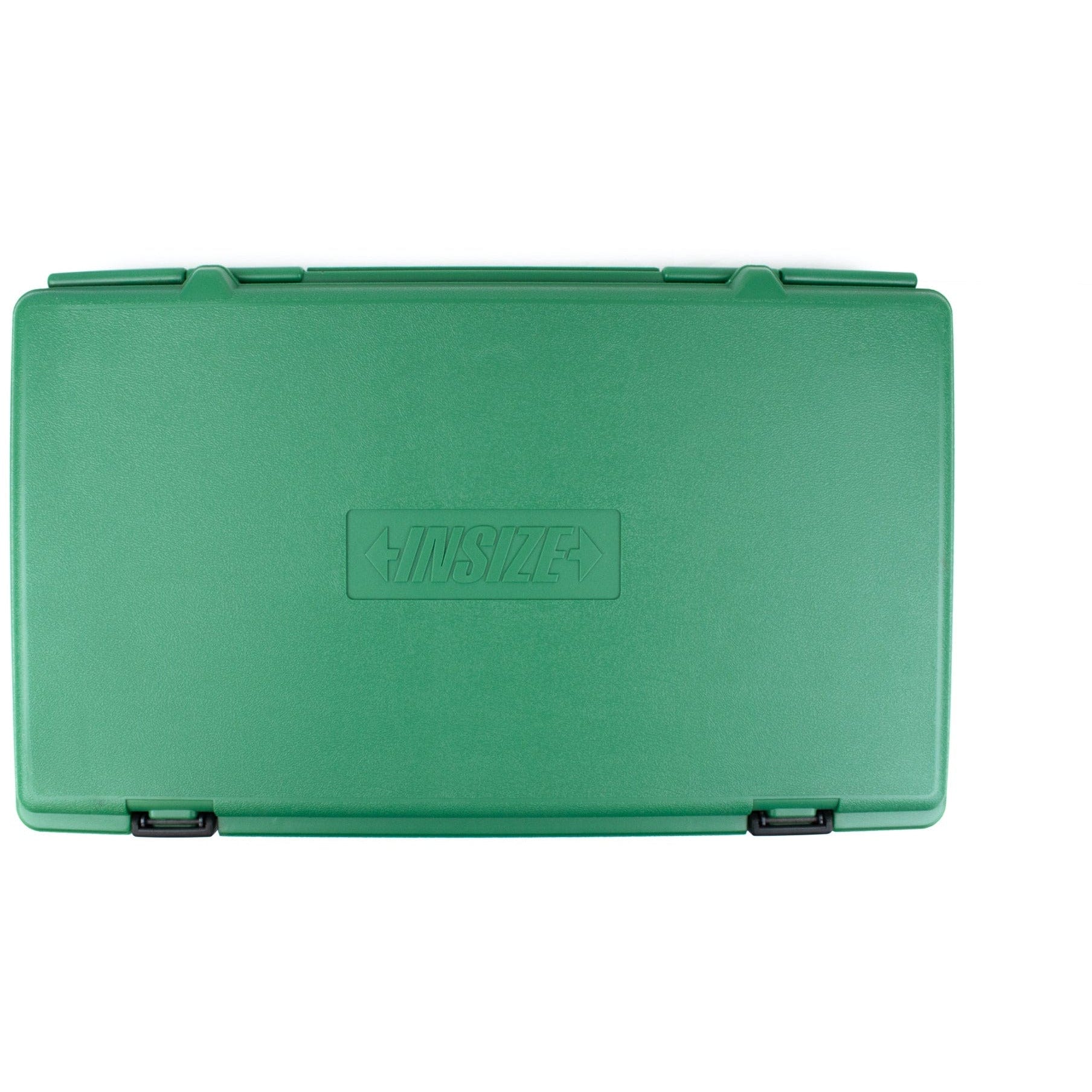

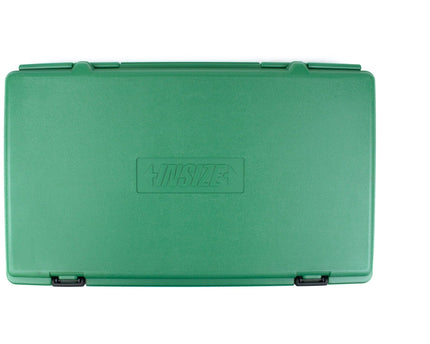

- Custom-styled protective case
- Optional data output cable: 7315-30, 7302-30
Well designed and highly durable, this precision digital micrometer is ideal for accurate external measurement tasks across a wide range of industrial applications. INSIZE outside micrometers are trusted for their precision, reliability, and long service life in professional measurement environments.
