Description

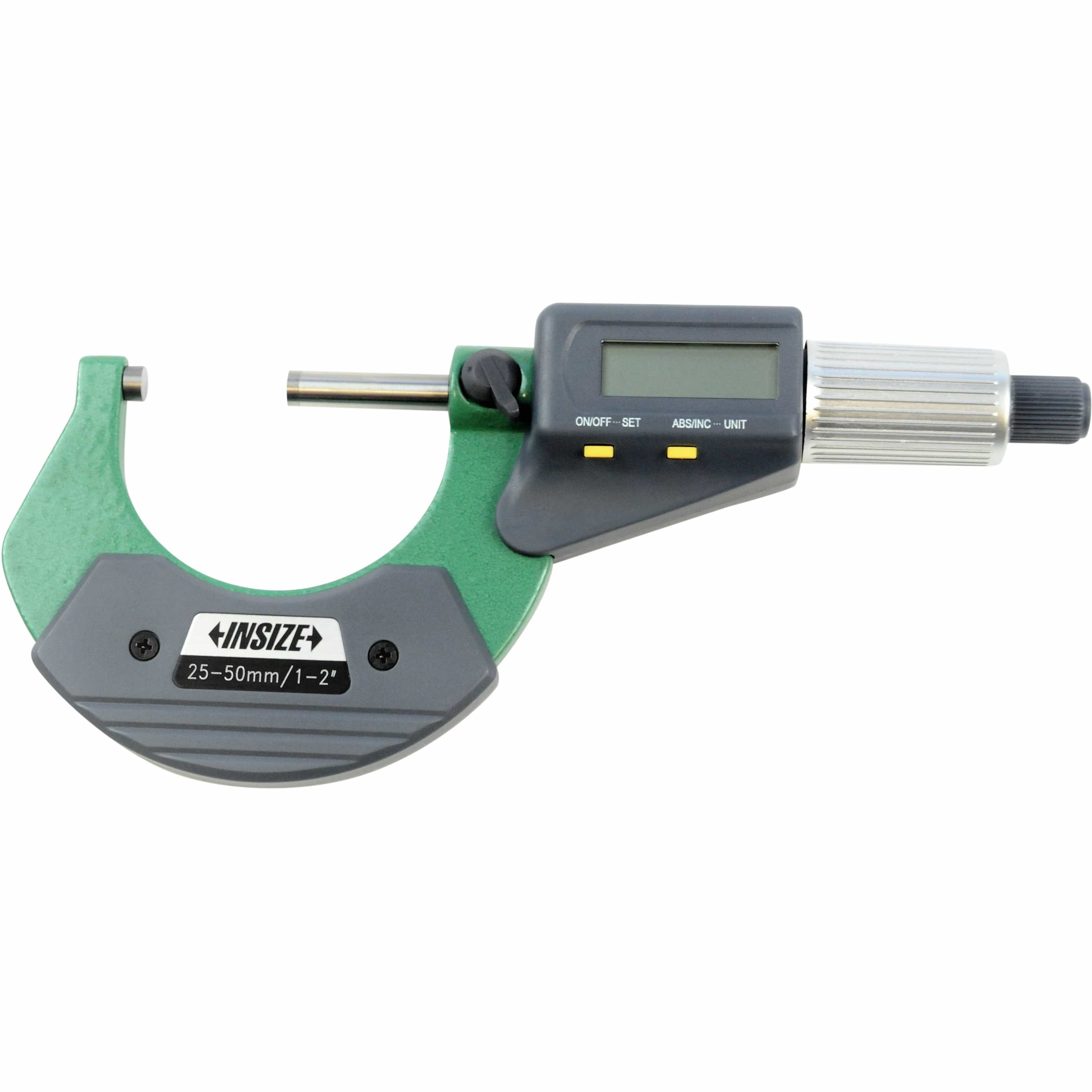

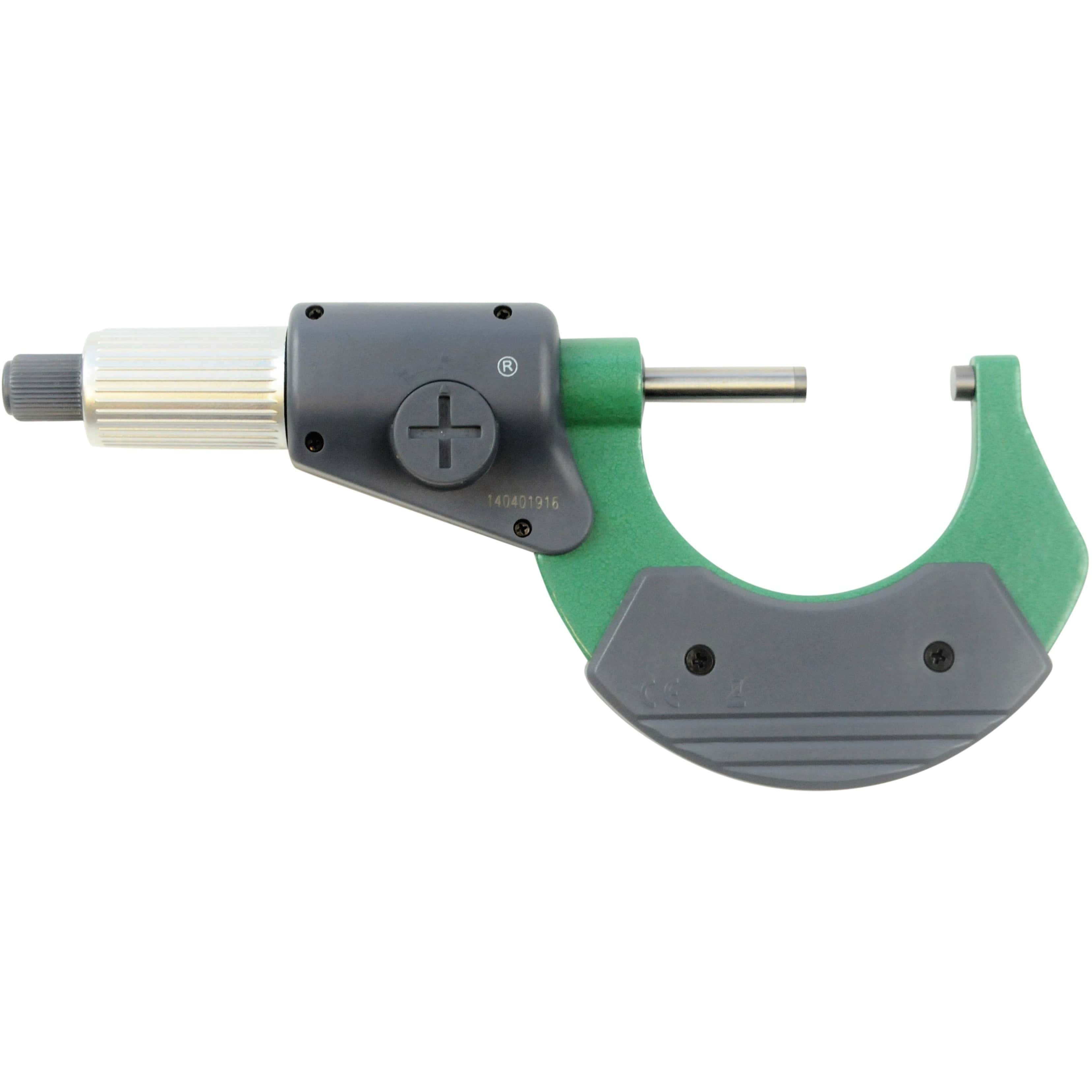

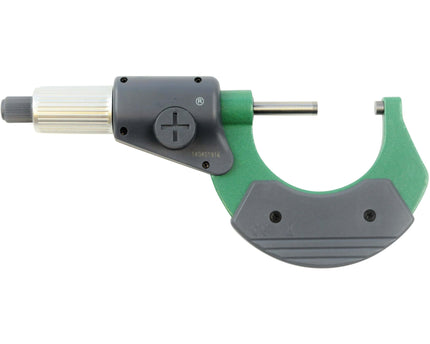

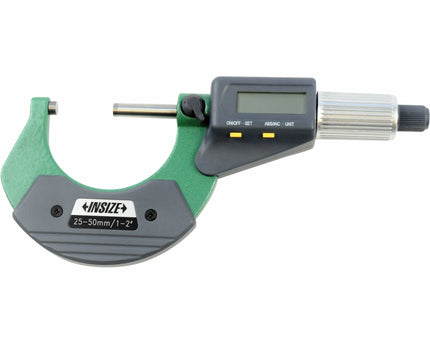

Insize 25–50 mm Digital Outside Micrometer
The Insize 25–50 mm Digital Outside Micrometer is a high-precision measuring instrument designed for accurate external measurements in machining, inspection, and quality control environments. Manufactured in accordance with DIN 863 standards, it combines a robust frame with an ABSOLUTE digital measuring system to deliver consistent and repeatable results.
Specifications :
- Part No.: 3109-50A
- Measuring Range: 25–50 mm
- Resolution: 0.01 mm / 0.0005"
- Manufactured in accordance with DIN 863
- Button functions: on/off, set, mm/inch, ABS/INC
- Hardened, ground, and lapped spindle thread for high accuracy

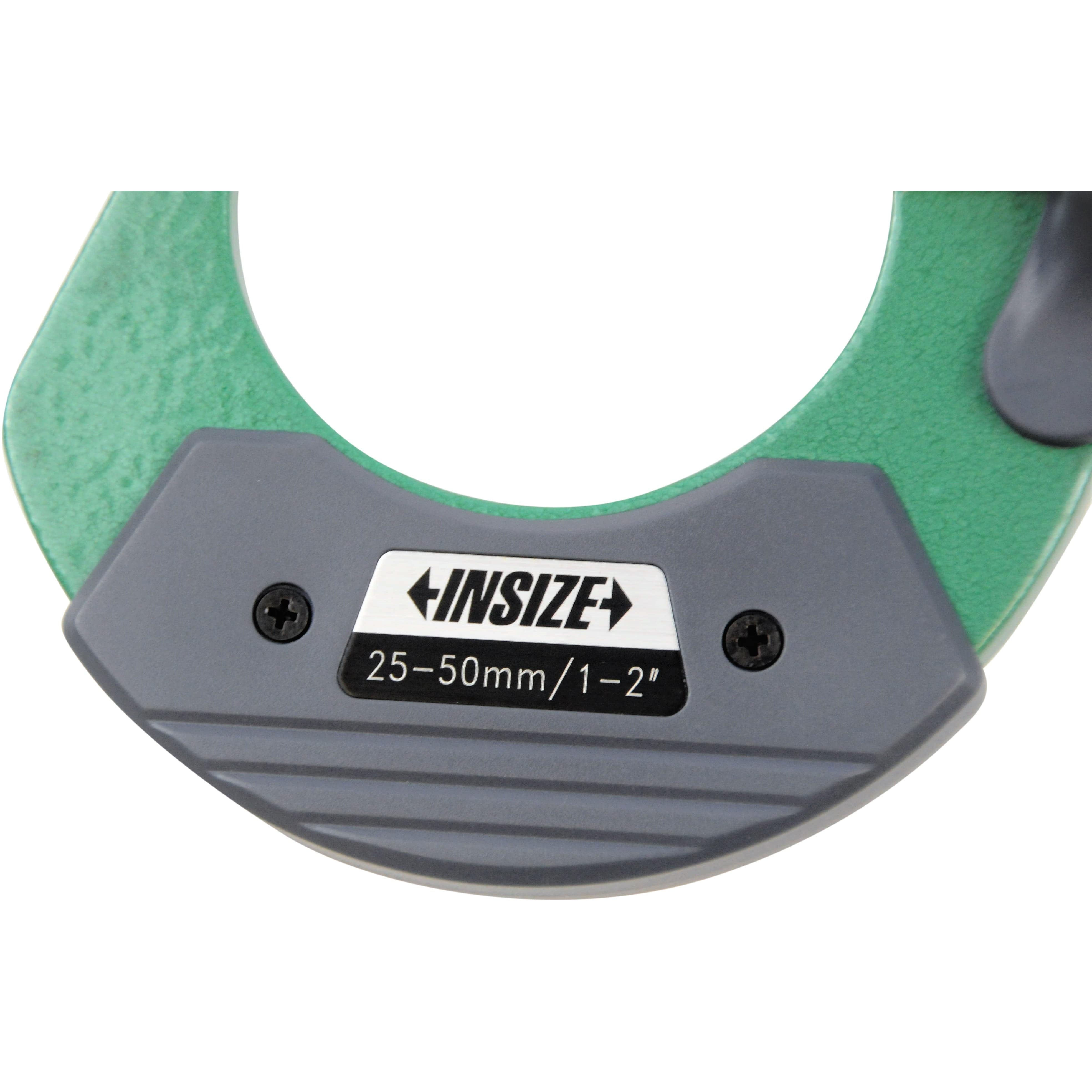

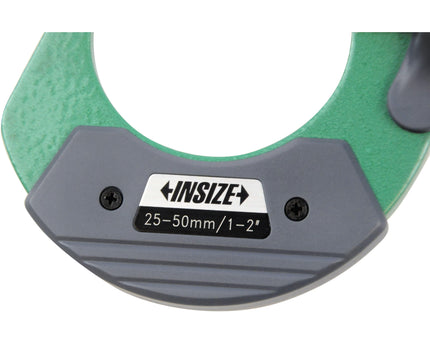

- Baked enamel finish frame
- Satin chrome finish barrel and thimble
- ABSOLUTE measuring system with inch/metric conversion
- Large, easy-to-read LCD display
- Clear graduations on a satin chrome surface for smooth operation
- Quick and easy adjustment
- Automatic power-off function
- Carbide measuring face
- Spindle lock
- Ratchet stop for consistent measuring force

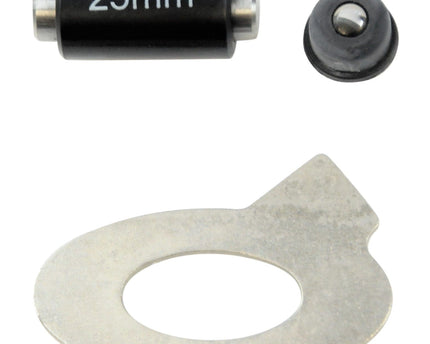

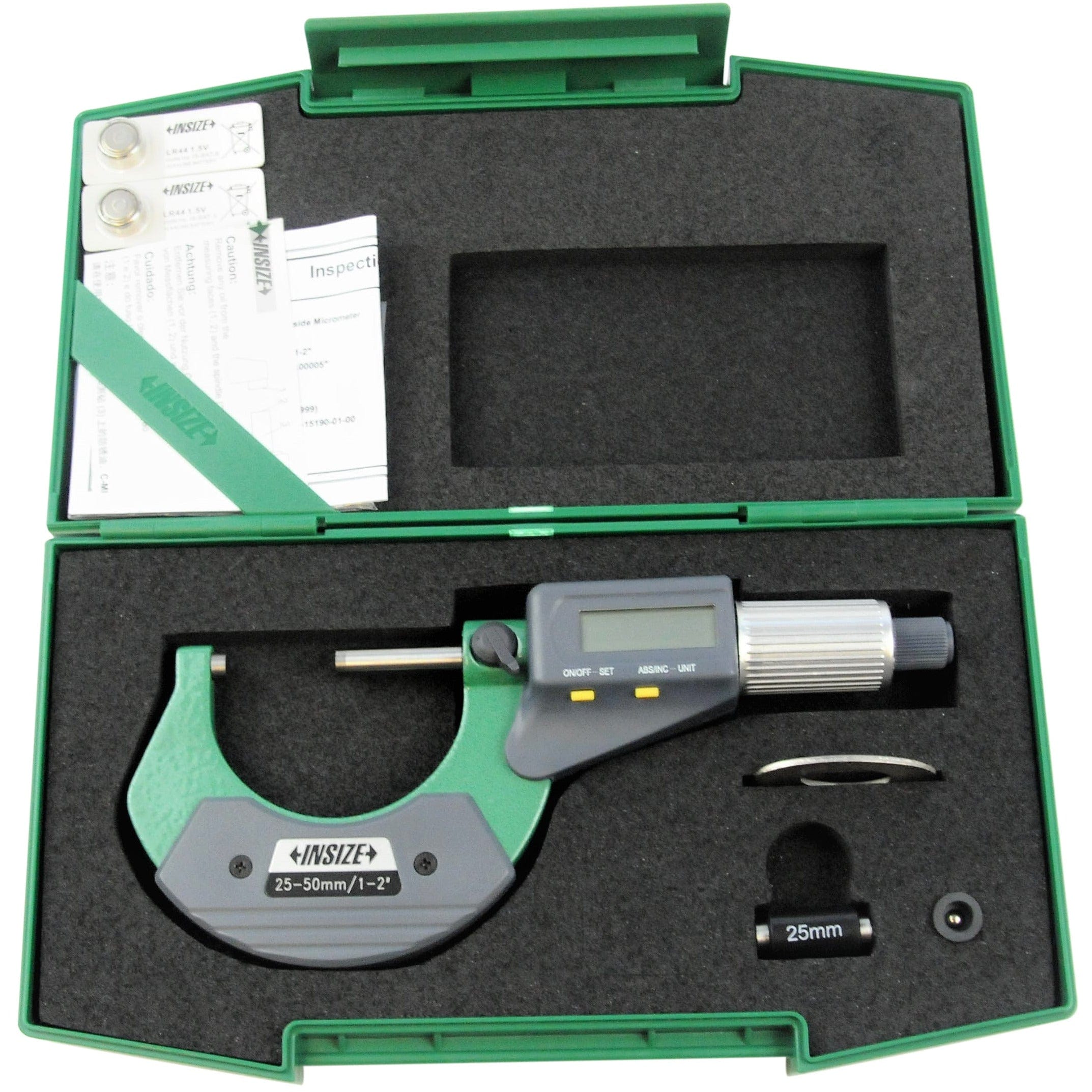

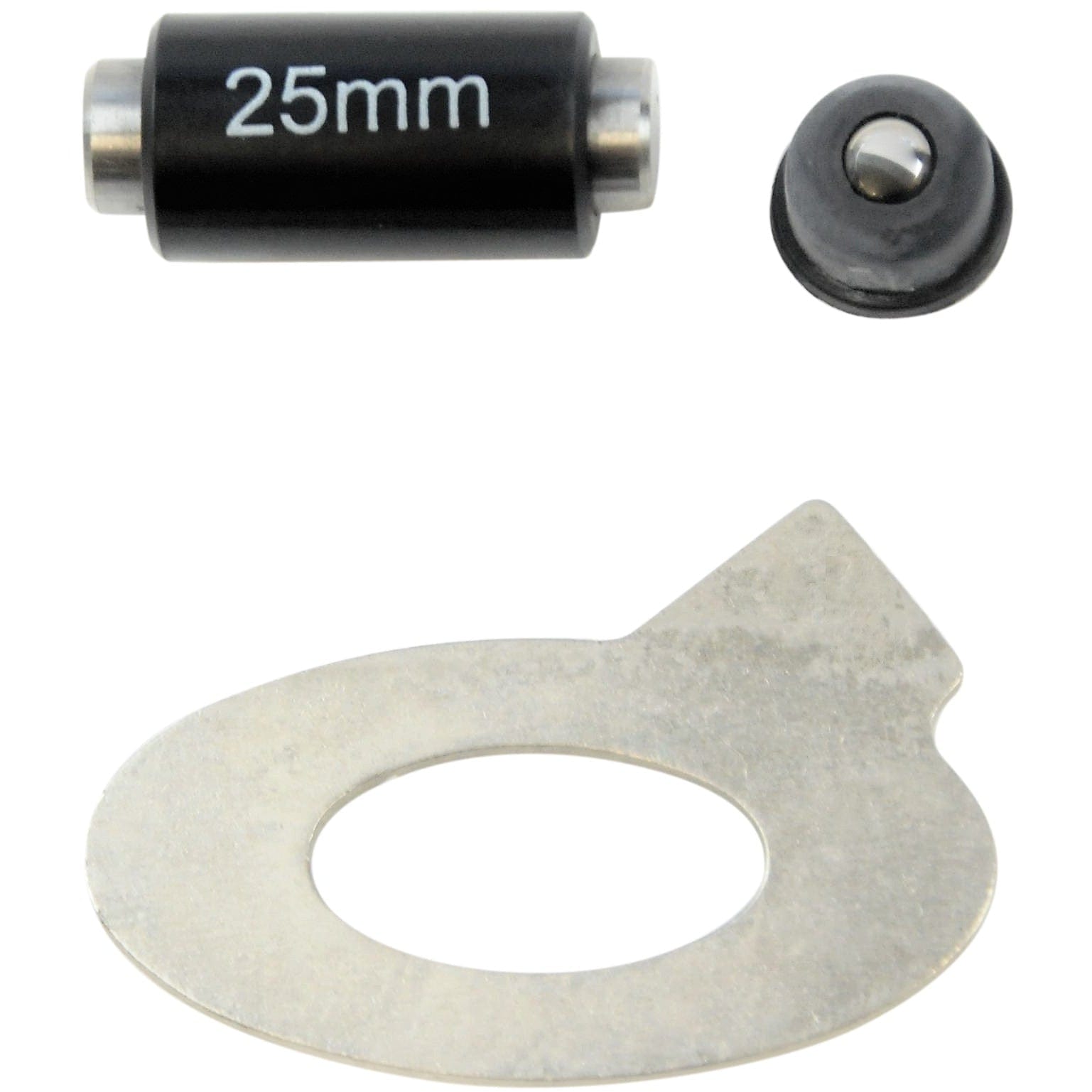

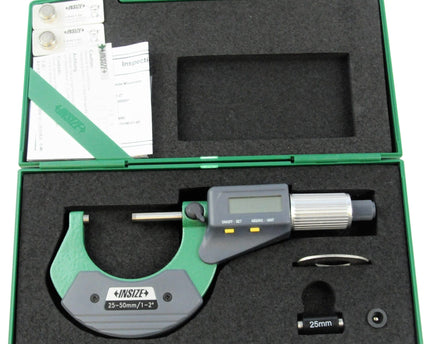

Includes :
- Zero adjusting wrench
- Spherical anvil

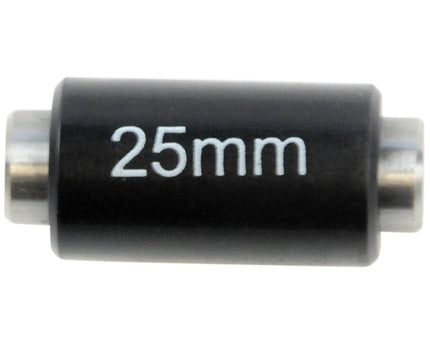

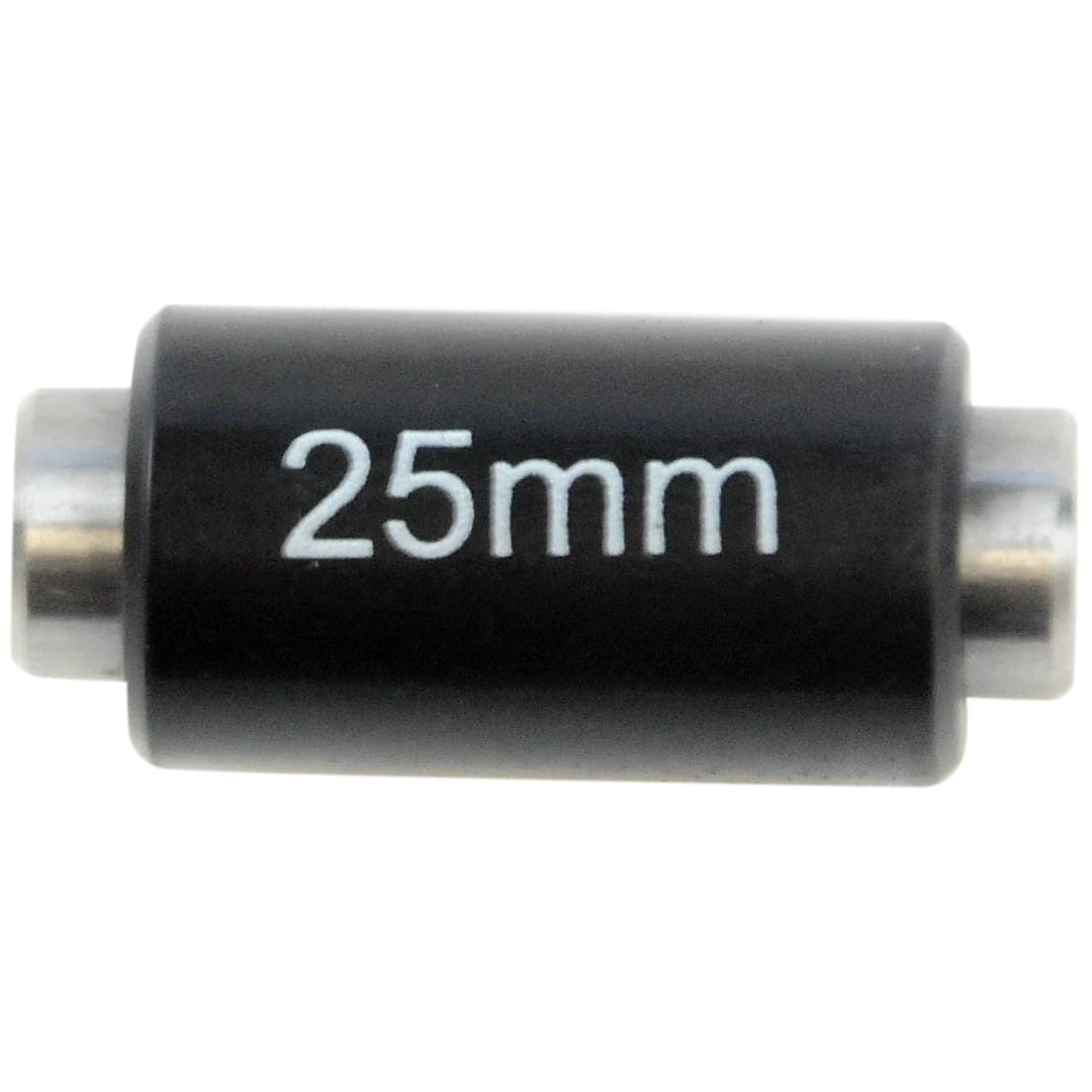

- 25 mm calibration rod

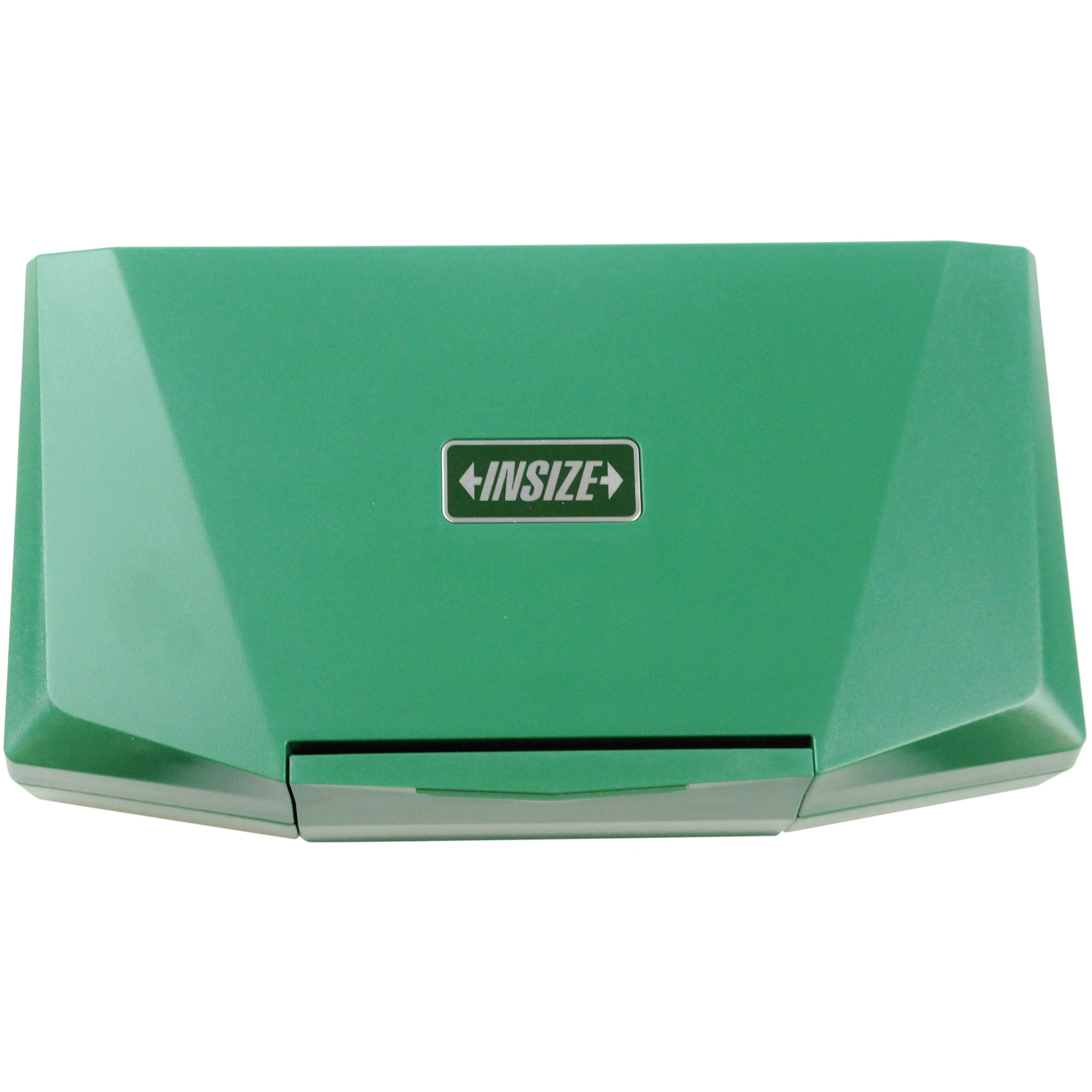

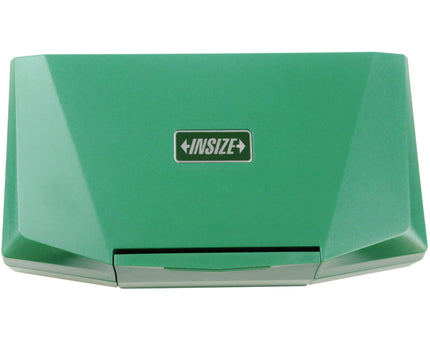

- Custom-styled protective case
Well designed and durable, this digital outside micrometer is suitable for a wide range of precision measuring tasks. Insize measuring instruments are trusted for their accuracy, ease of use, and long service life in demanding workshop and inspection environments.
