Description

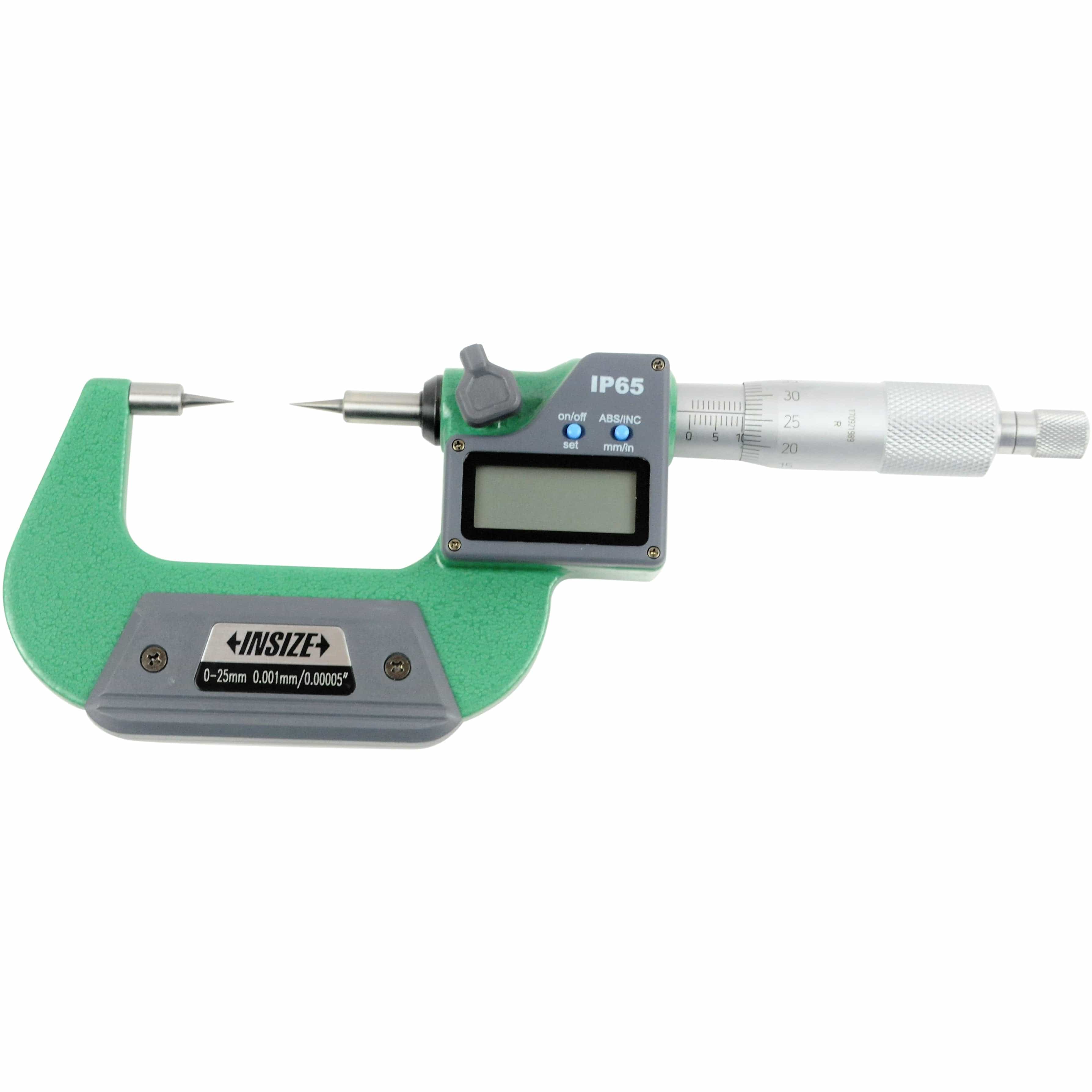

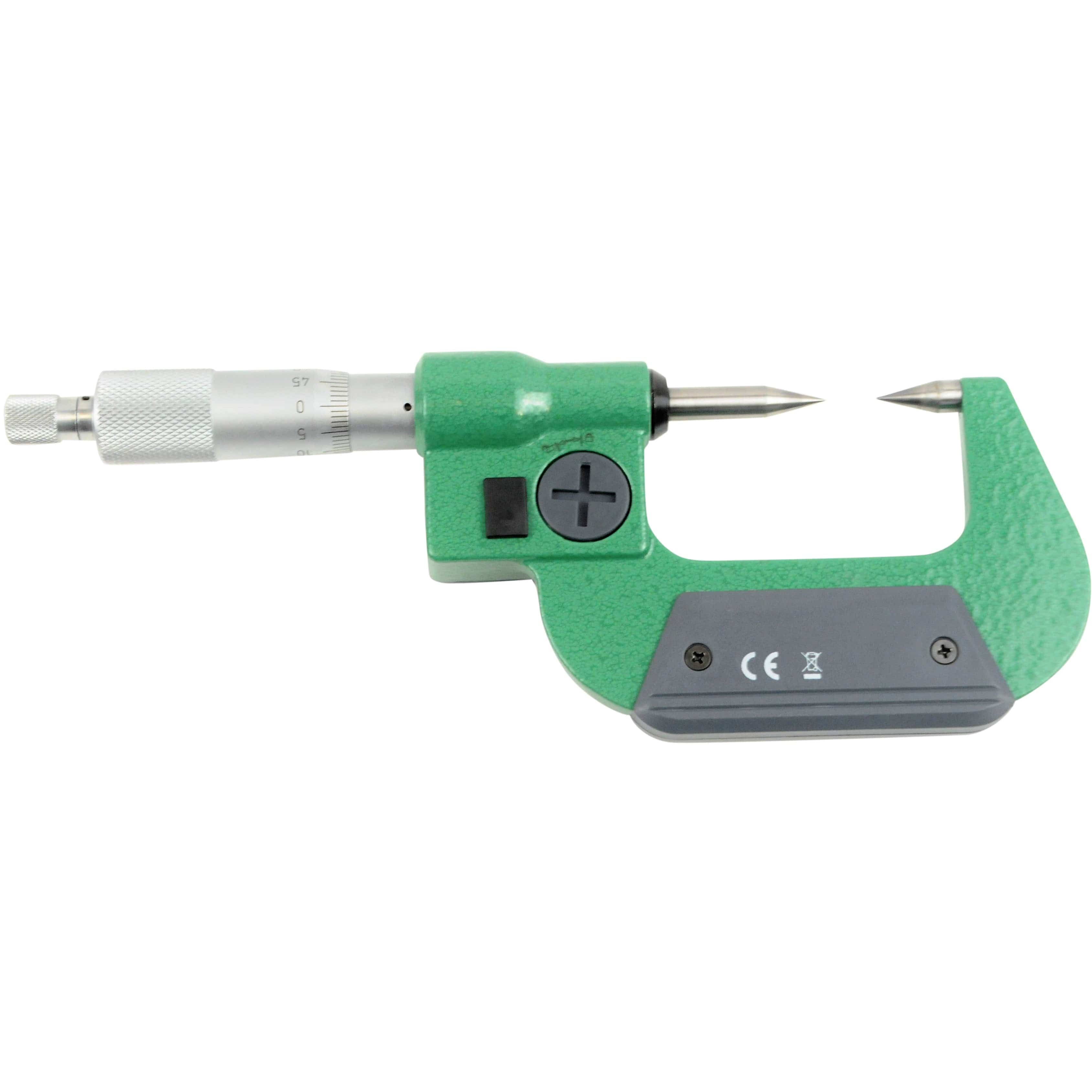

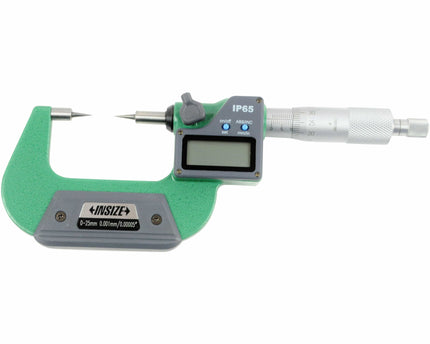

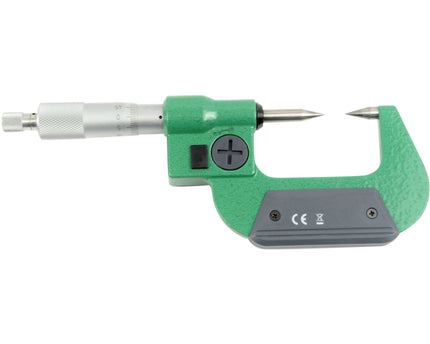

Insize Digital Point Micrometer
The Insize Digital Point Micrometer is designed for precise measurement of small features such as drill point thickness, narrow grooves, and keyways. Featuring pointed carbide measuring tips and a digital readout with absolute measurement capability, it provides reliable accuracy and repeatability for machining, inspection, and quality control applications.

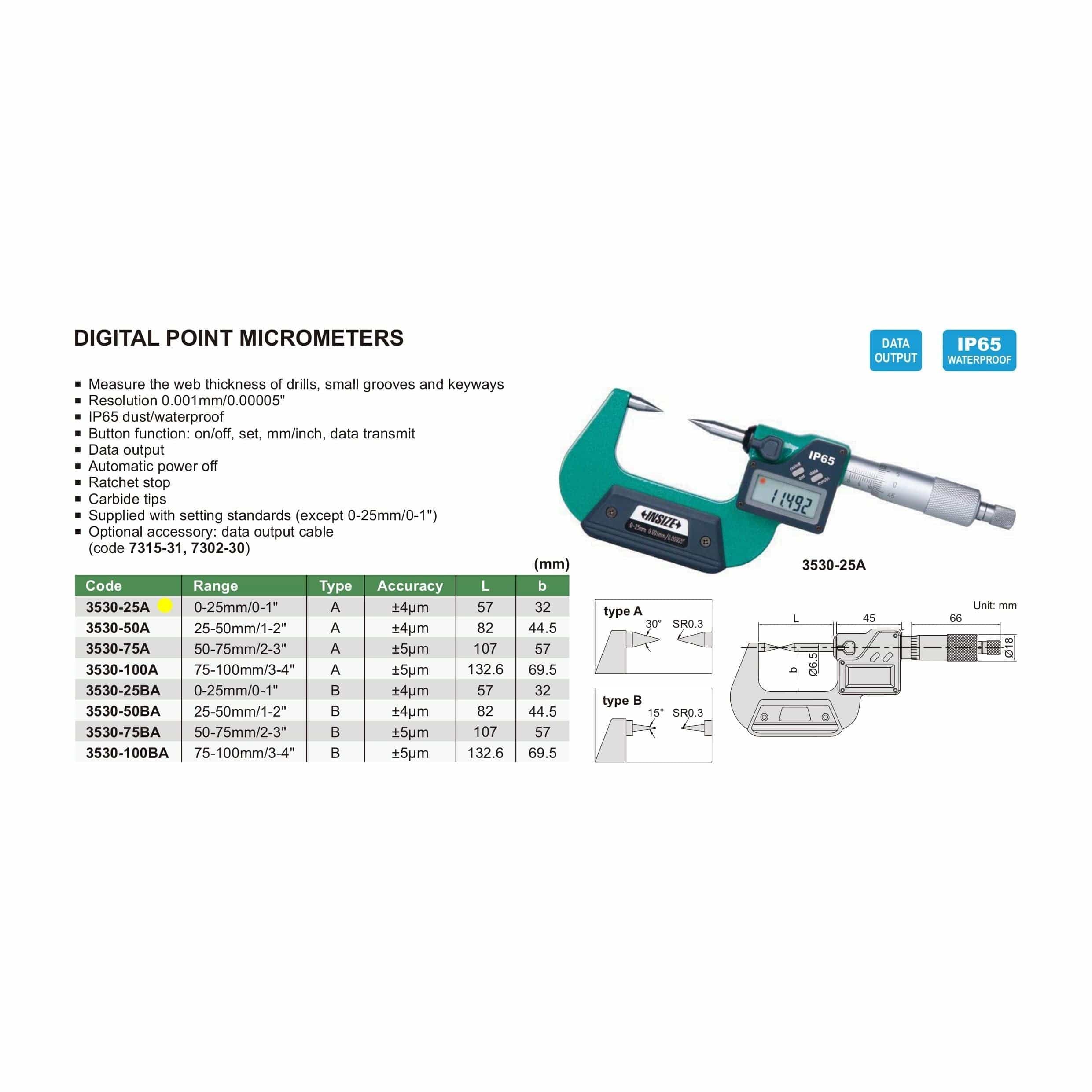

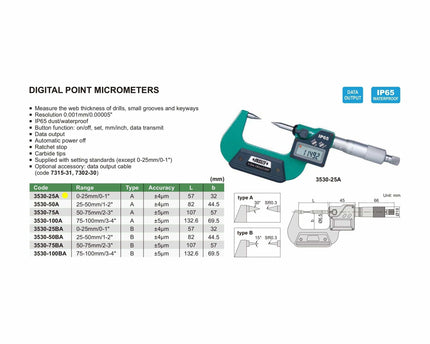

Specifications :
-
Part Number: 3530-25A
-

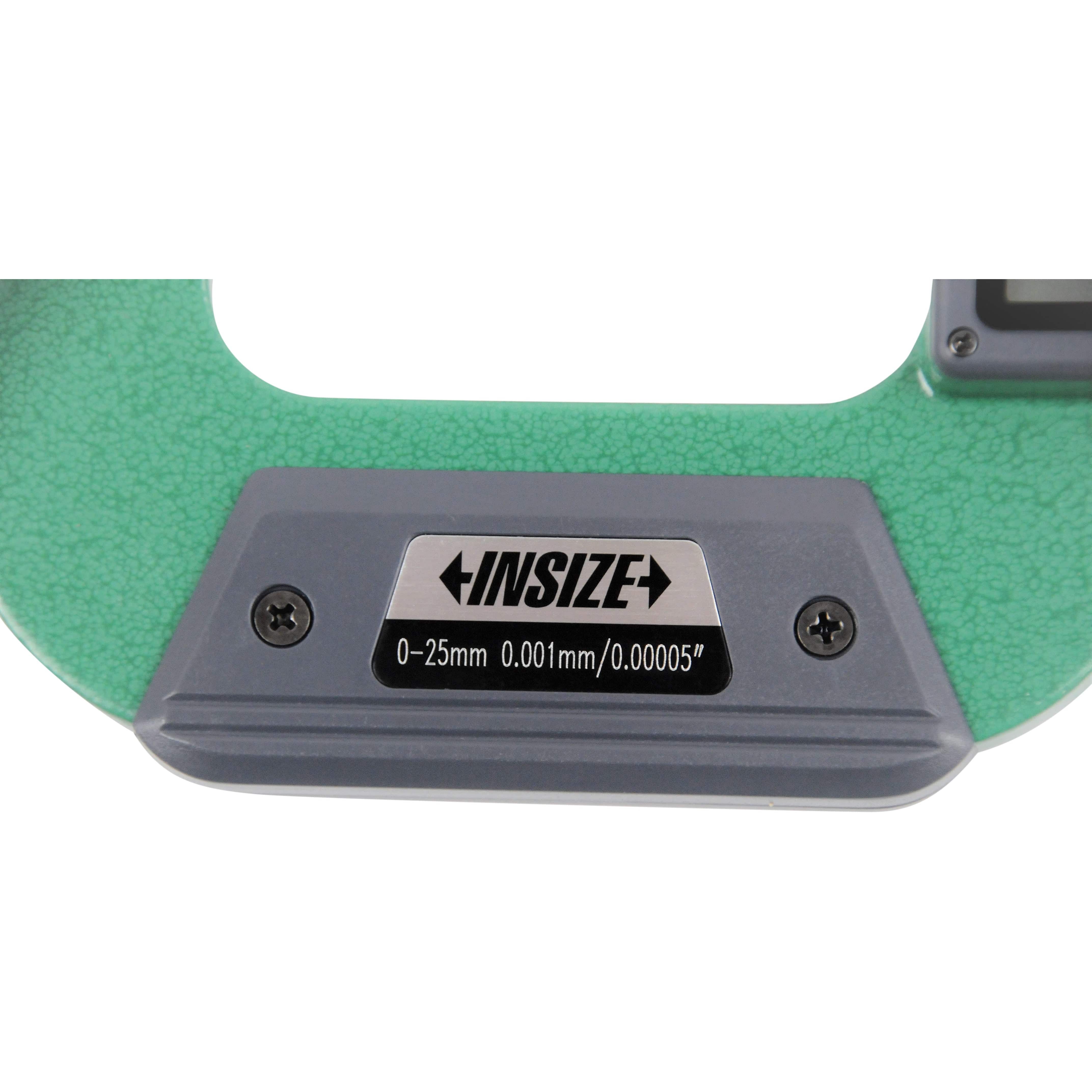

Measuring Range: 0–25mm / 0–1"
-
Resolution: 0.001mm / 0.00005"
-
Type: A
-

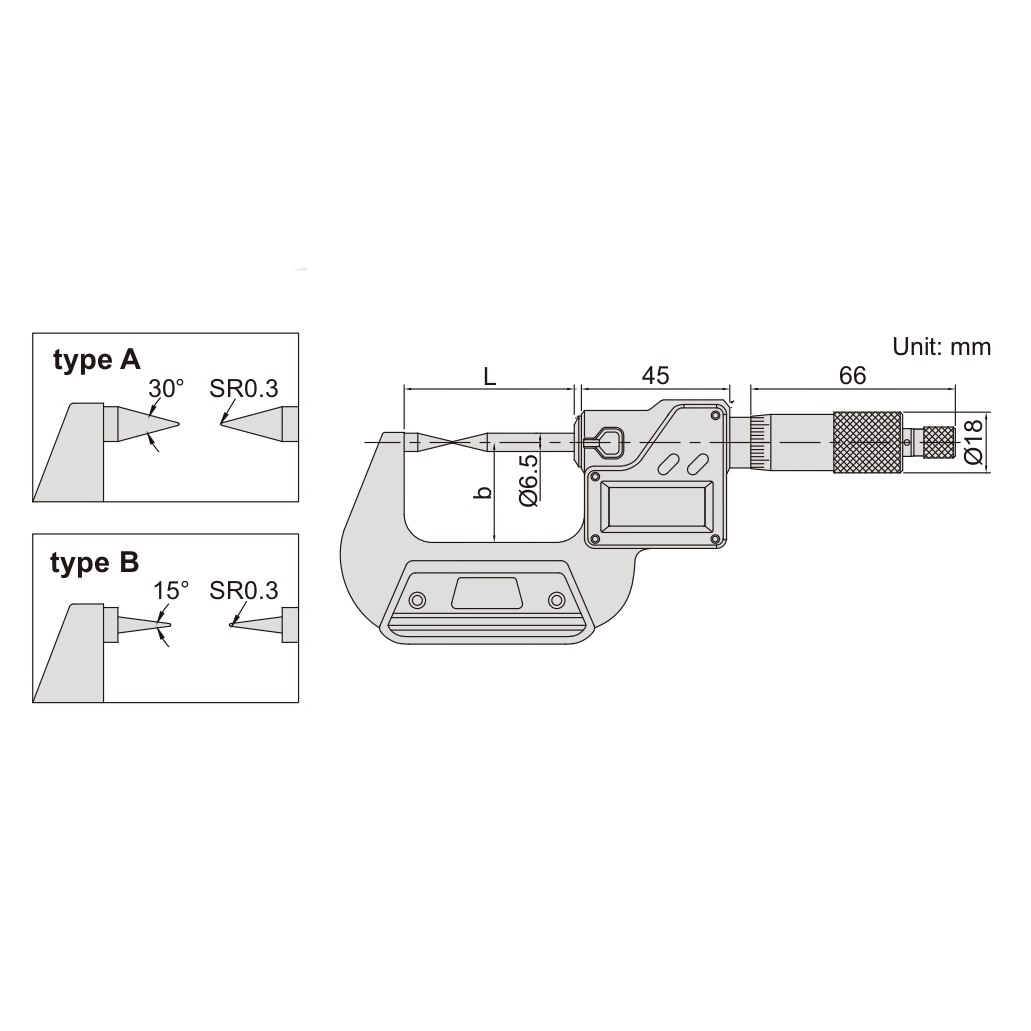

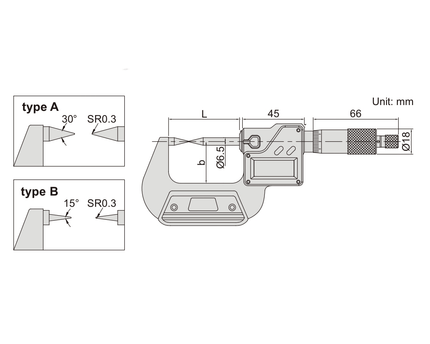

Point Angle: 15°
-
Dimensions: L: 57mm, B: 32mm
- IP54 dust and waterproof protection
- Button functions: on/off, set, mm/inch, ABS/INC, data output

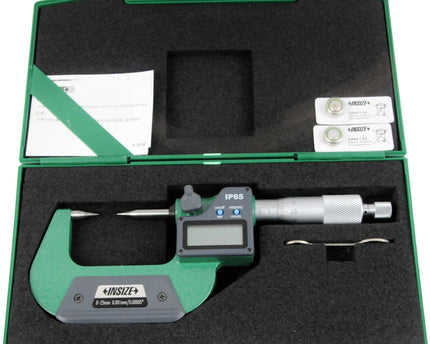

- Powered by an LR44 battery with automatic power-off

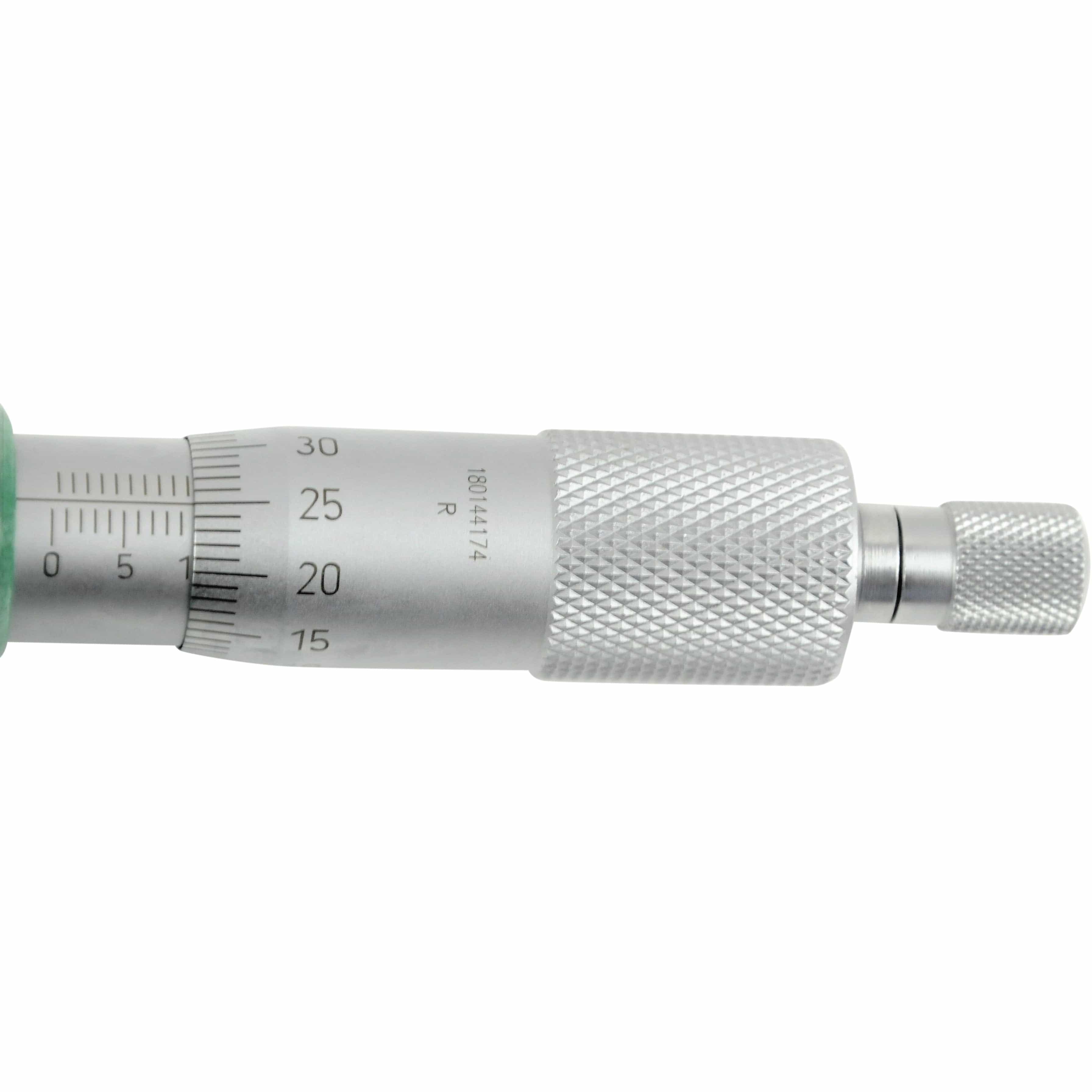

- Ratchet stop for consistent measuring pressure

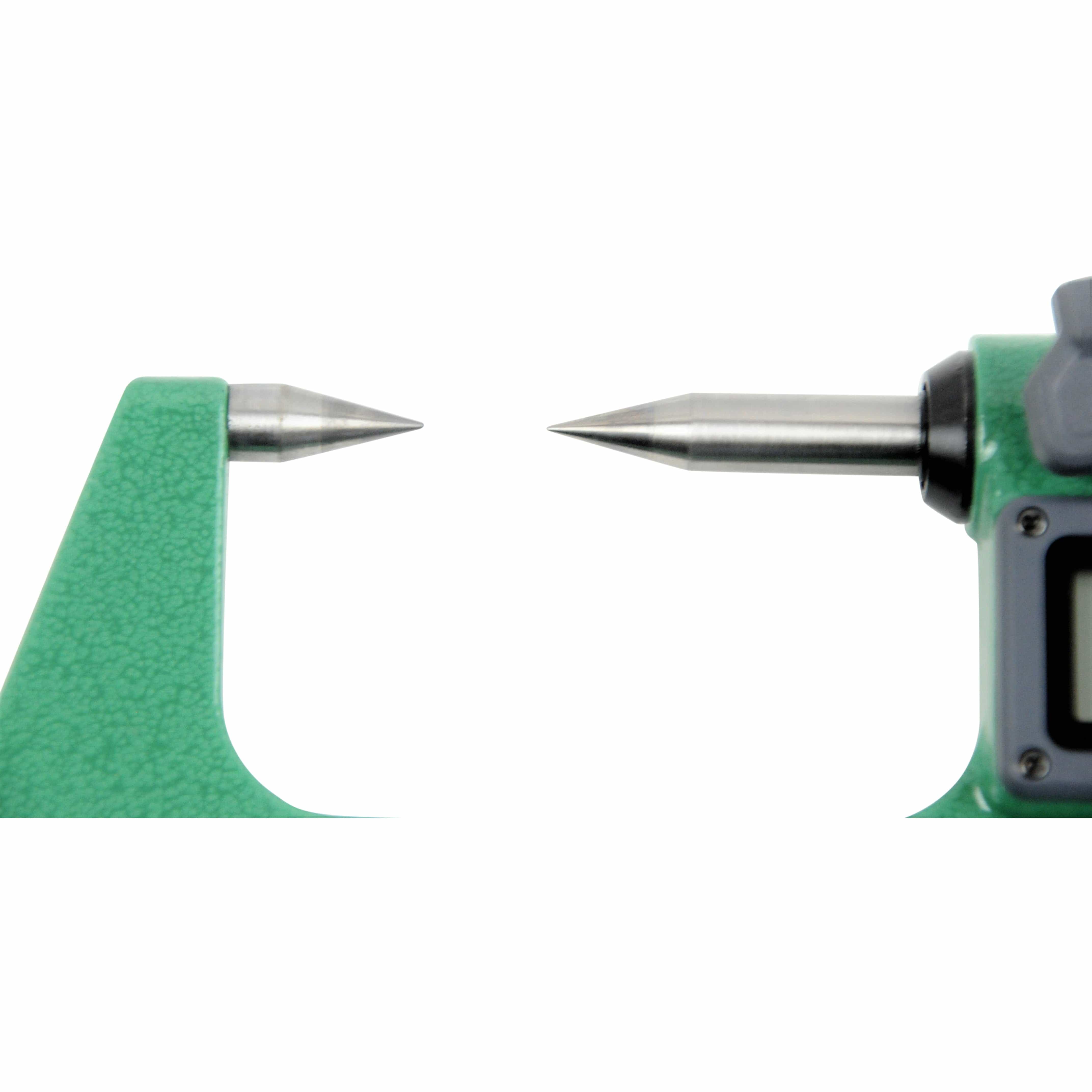

- Carbide measuring tips for durability and precision

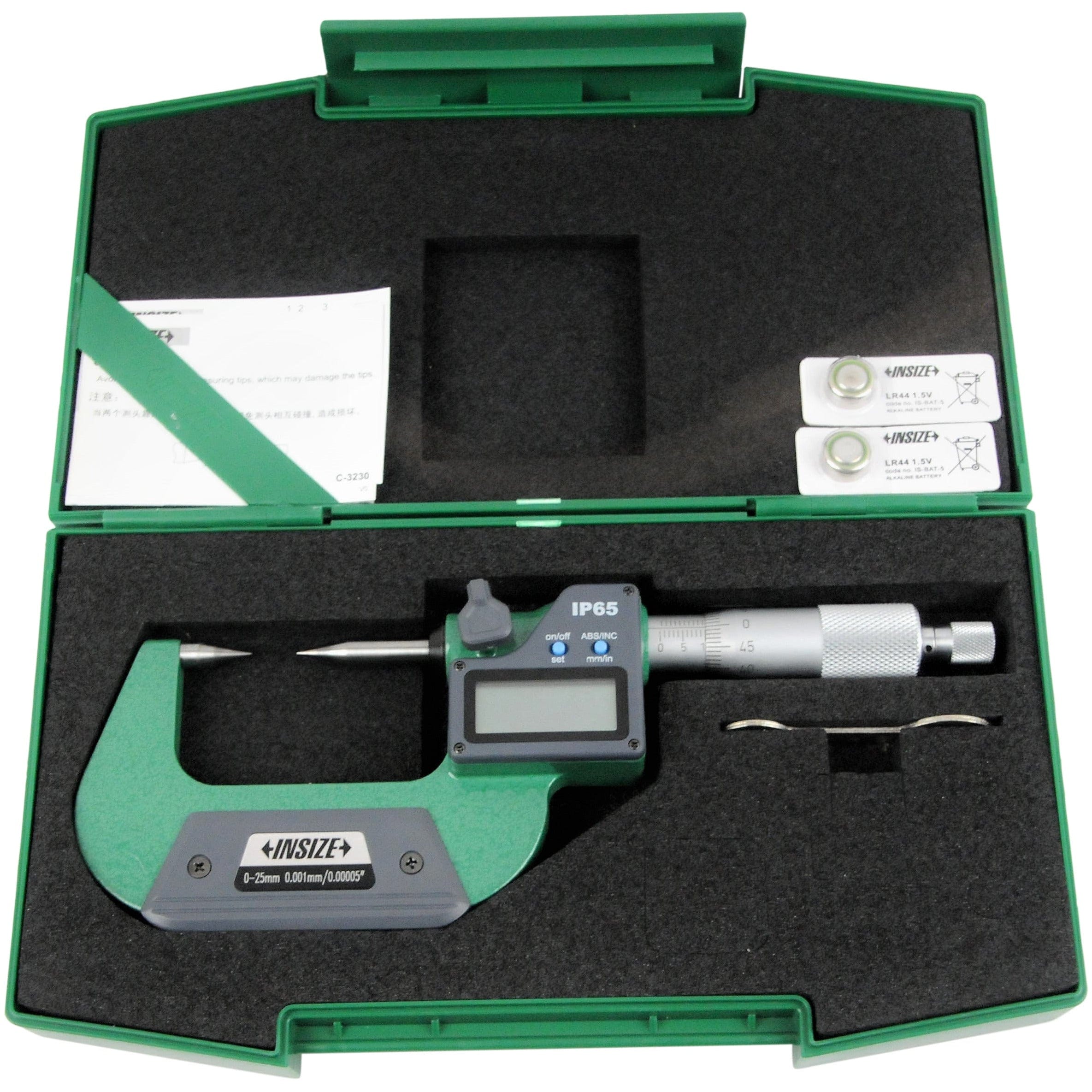

- Supplied with setting standards (except 0–25mm / 0–1")
- Optional accessories: data output cable (7306-30, 7302-SPC2A, 7305-SPC3), setting ring (6312)
Well designed and built for durability, Insize digital point micrometers provide reliable and repeatable measurement of fine features. The clear digital display and pointed anvils make this micrometer ideal for accurately measuring drill thickness, narrow grooves, and keyways in workshop and inspection environments.
