Description

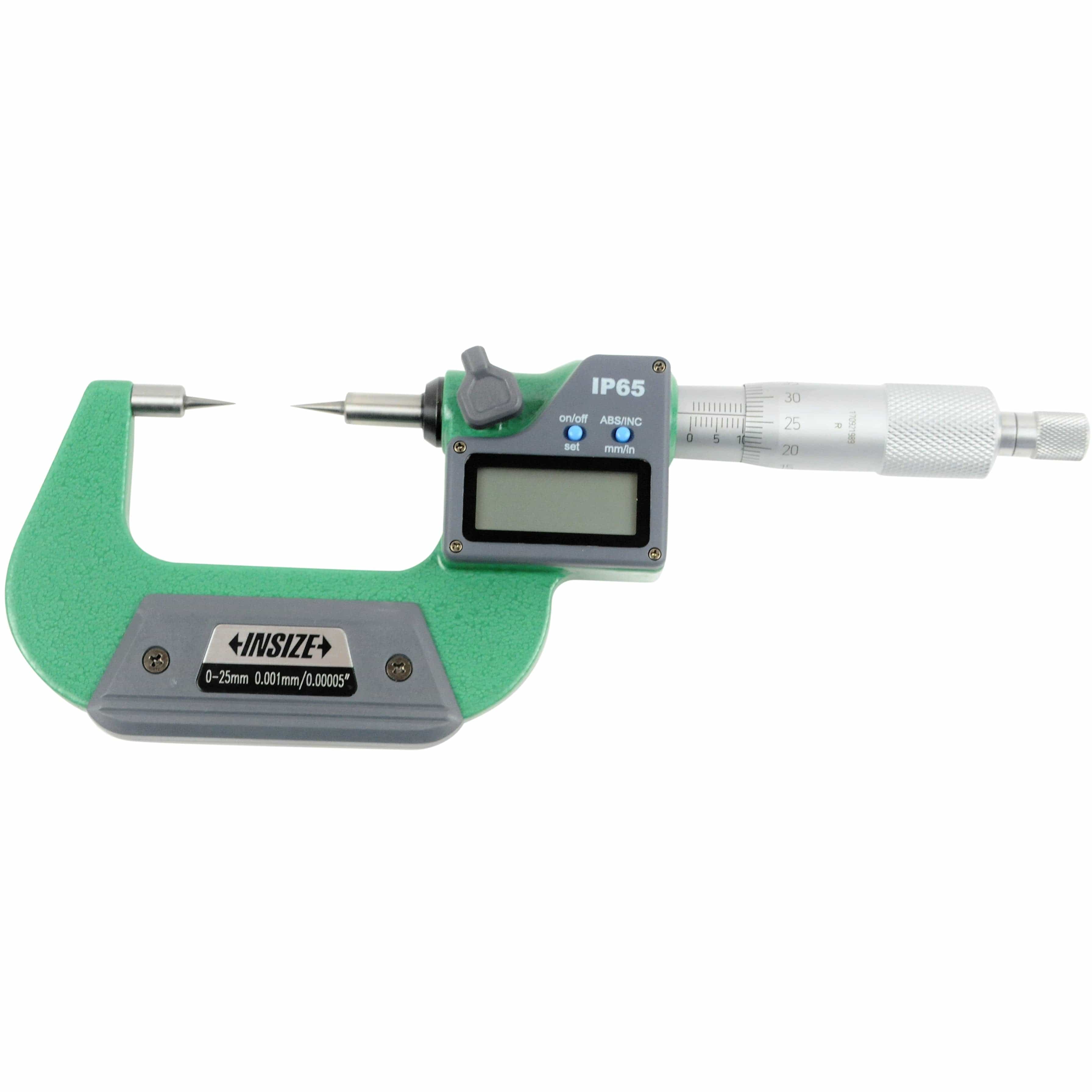

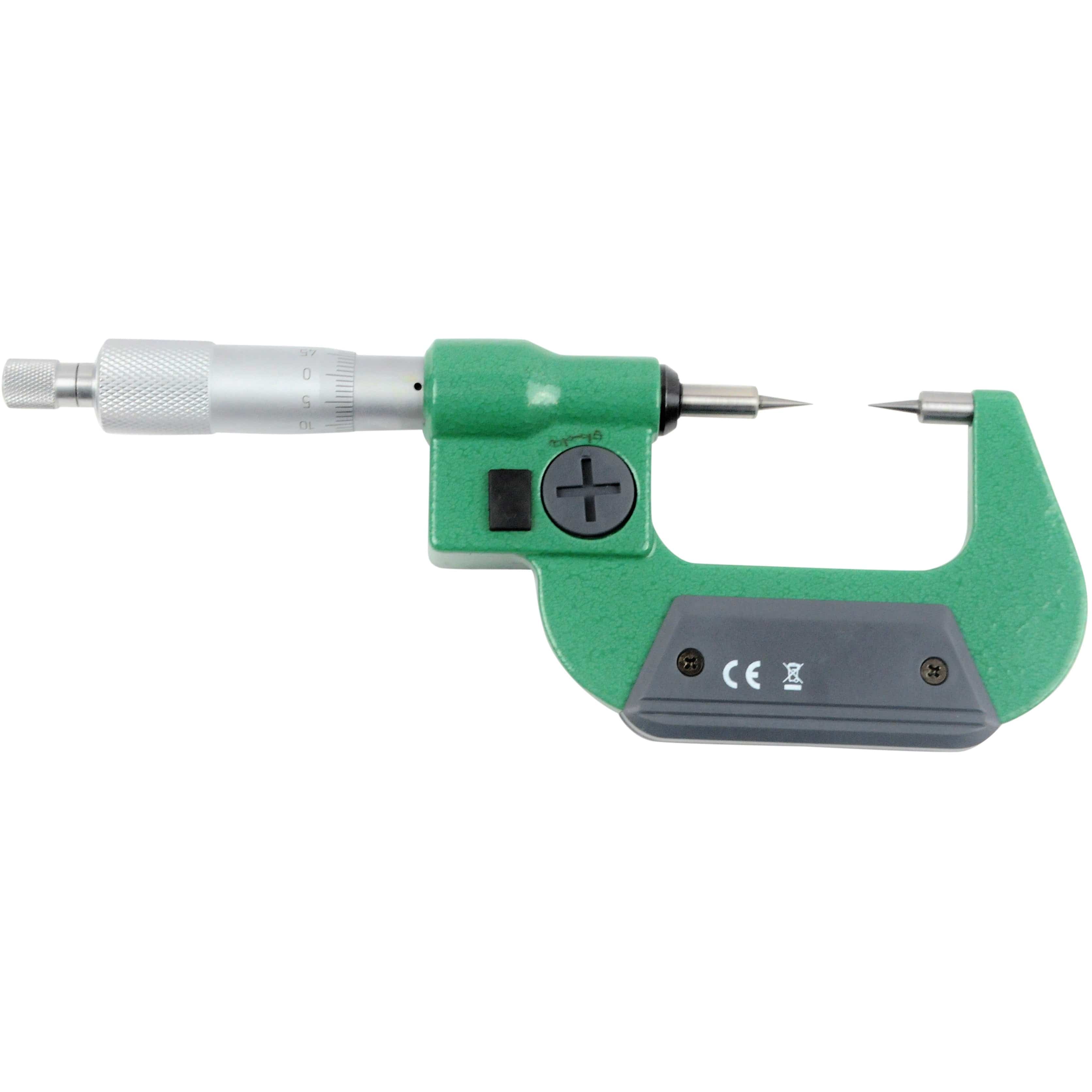

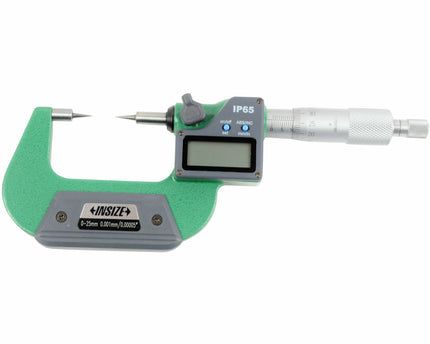

Insize Digital Point Micrometer
The Insize Digital Point Micrometer is designed for accurate measurement of fine features such as drill point thickness, narrow grooves, and keyways. Featuring hardened carbide point tips and a high-resolution digital display, it delivers reliable precision and repeatability for machining, inspection, and quality control applications.

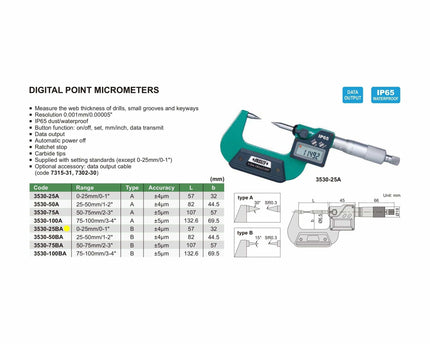

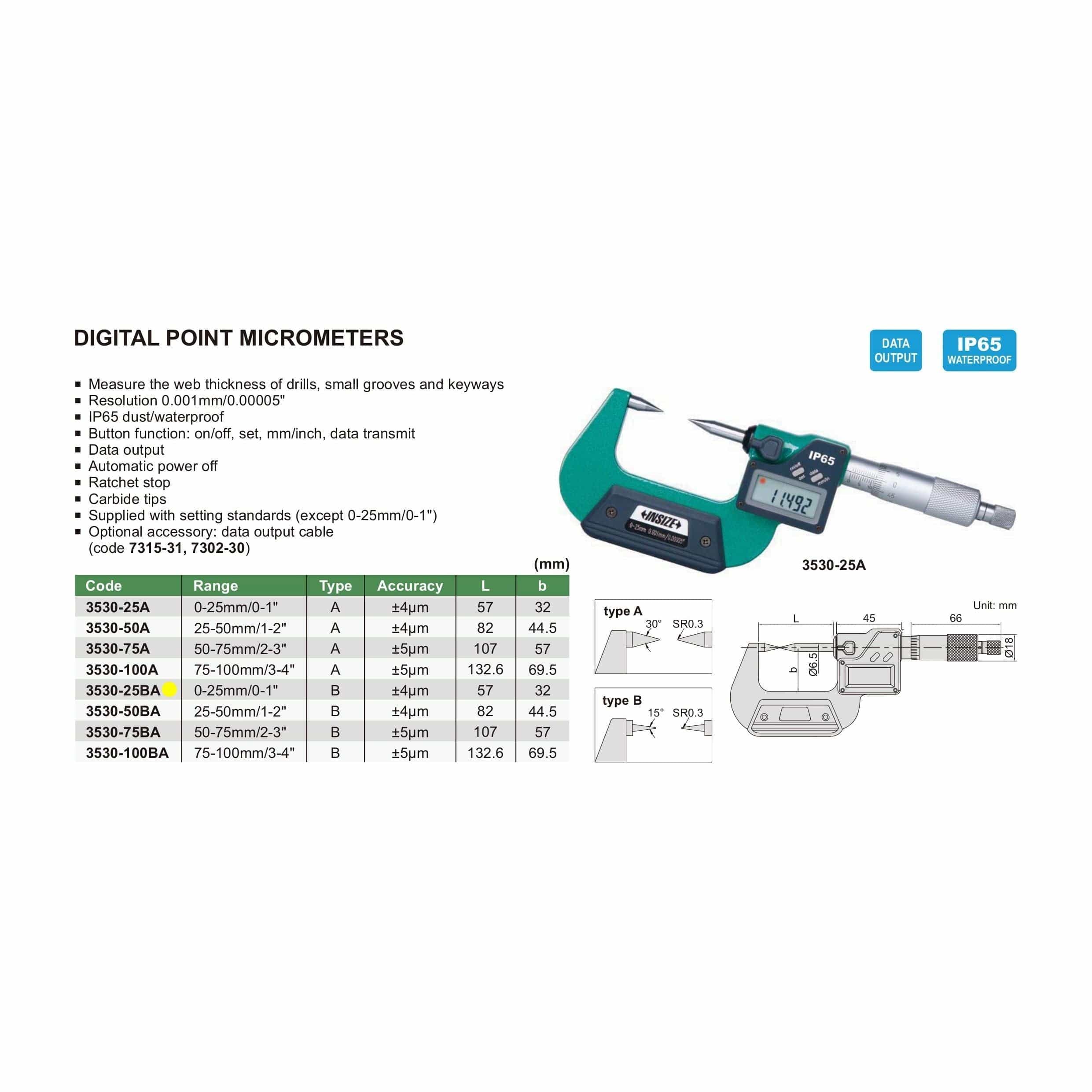

Specifications :
-
Part No: 3530-25BA
-

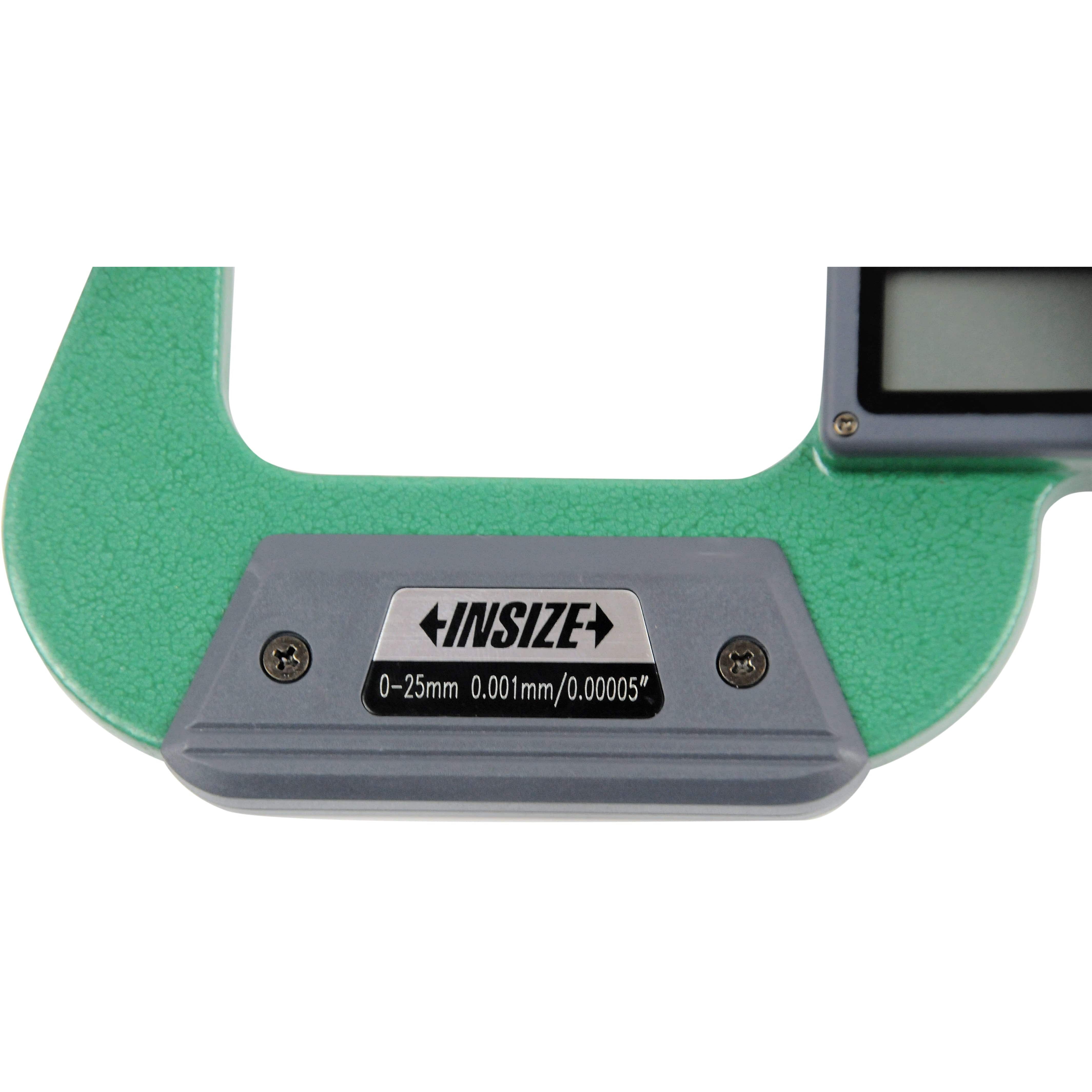

Measuring Range: 0–25mm / 0–1"
-
Resolution: 0.001mm / 0.00005"
-

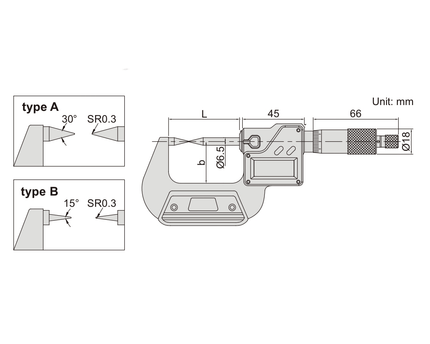

Type: A
-

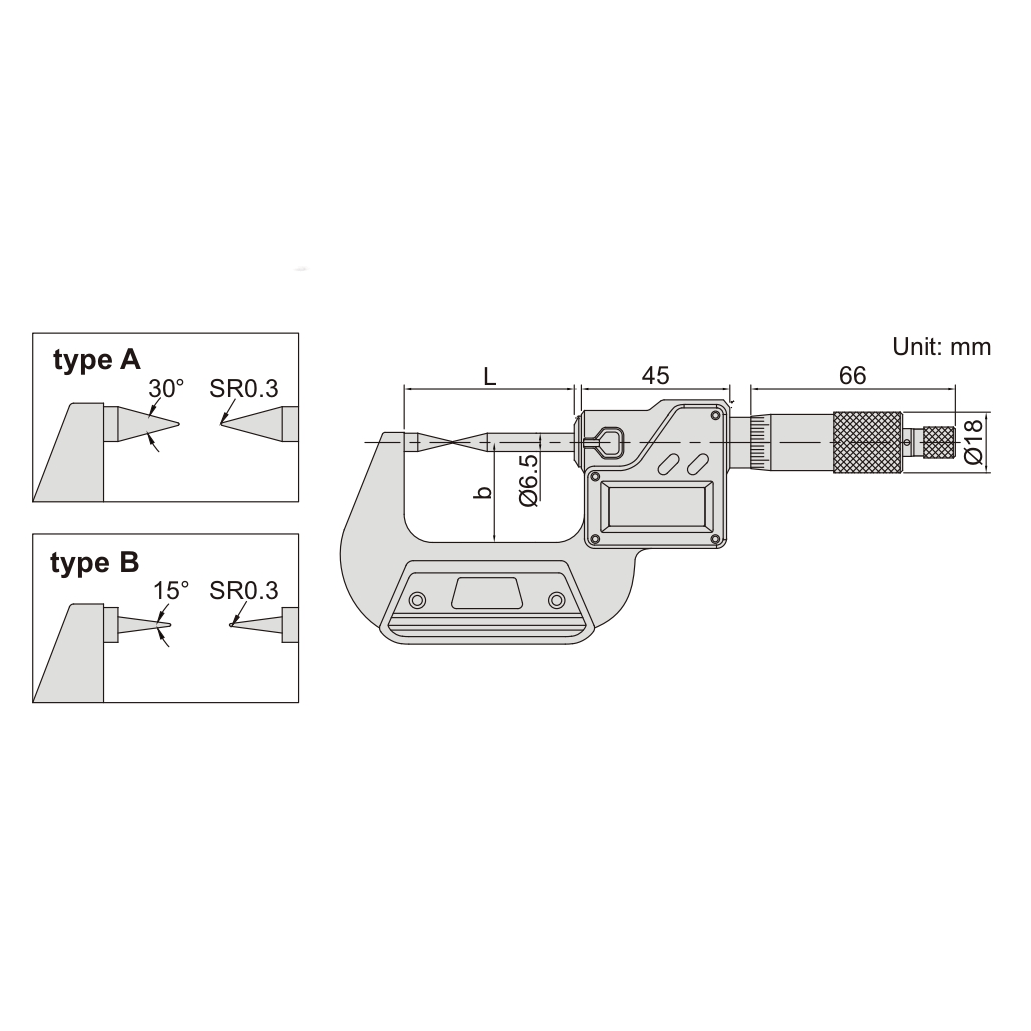

Point Angle: 15°
-
Dimensions: L: 57mm, B: 32mm
- IP54 dust and waterproof protection
- Button functions: on/off, set, mm/inch, ABS/INC, data output
- Powered by an LR44 battery with automatic power-off

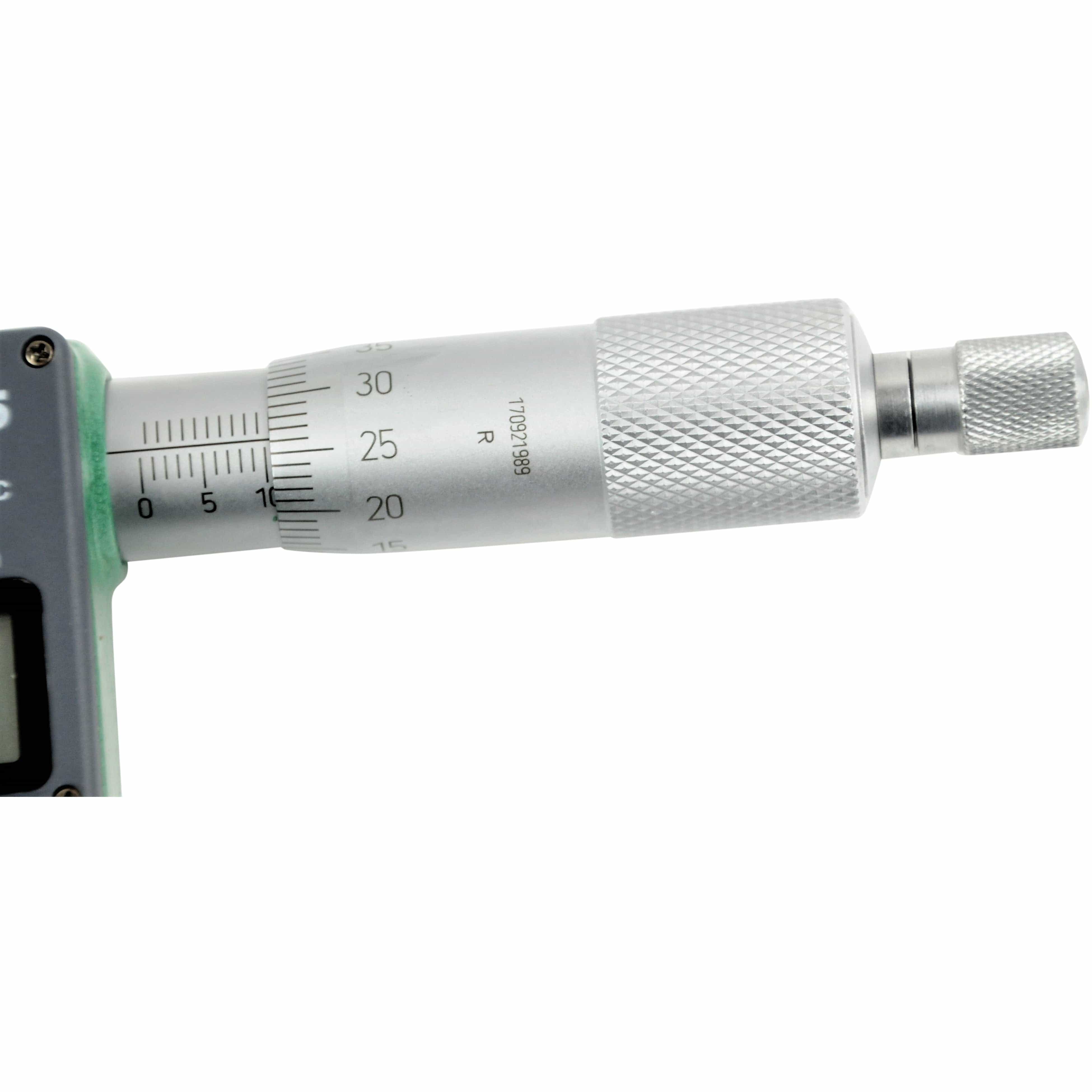

- Ratchet stop for consistent measuring pressure

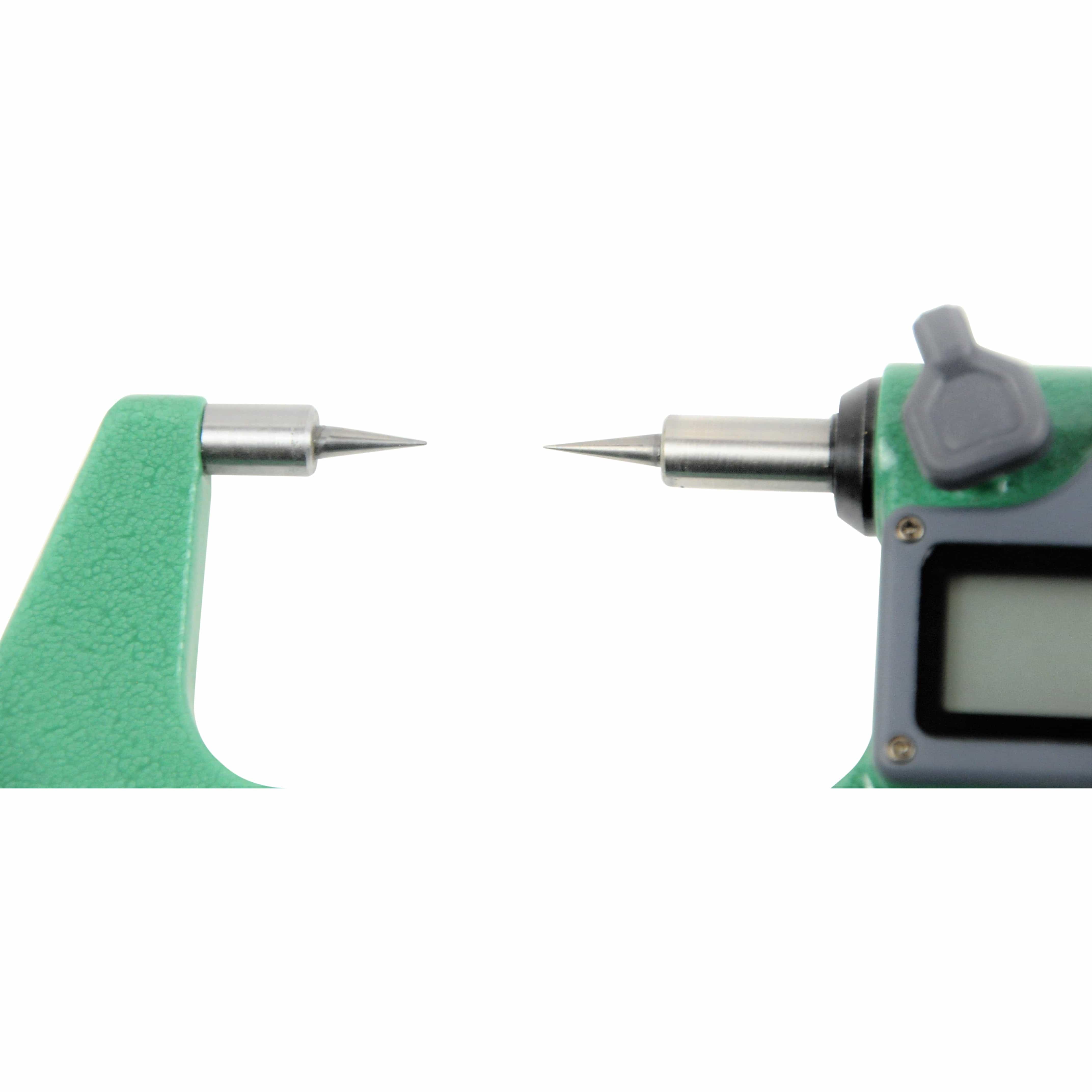

- Carbide point tips for durability and precision

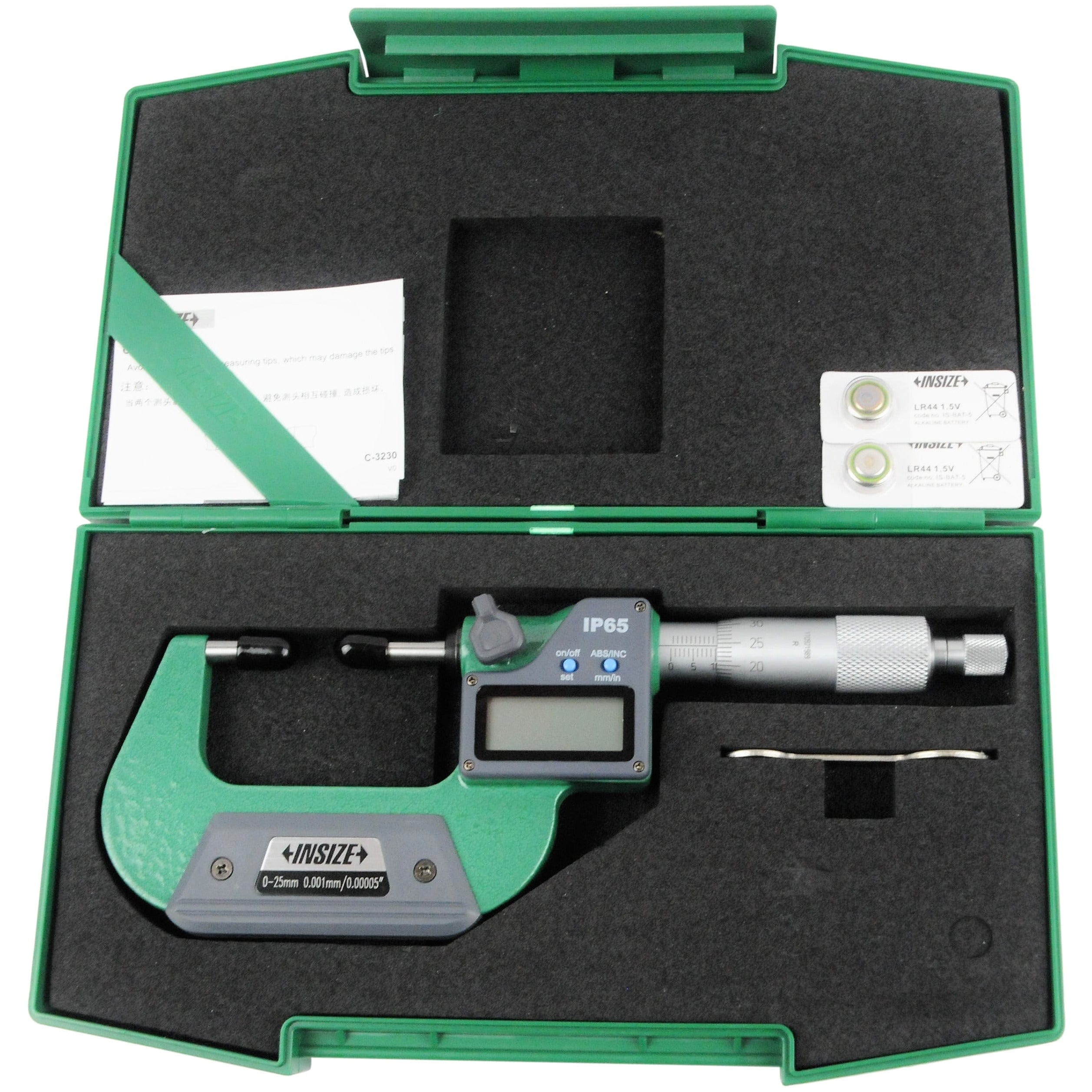

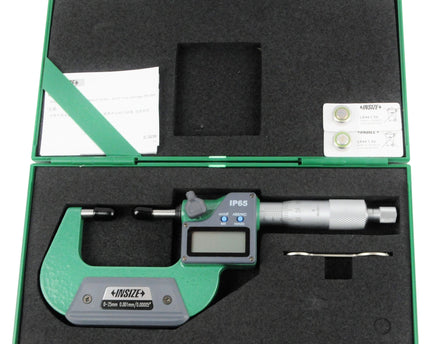

- Supplied with setting standards (except 0–25mm / 0–1")
- Optional accessories: data output cable (7306-30, 7302-SPC2A, 7305-SPC3), setting ring (6312)
Well designed and built for durability, Insize digital point micrometers provide reliable and repeatable measurement of small features. The pointed carbide tips and clear digital readout make this micrometer ideal for measuring drill thickness, narrow grooves, and keyways in workshop and inspection environments.
