Description

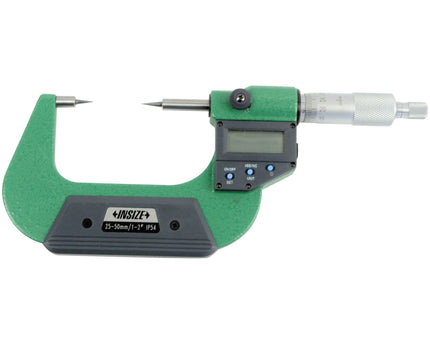

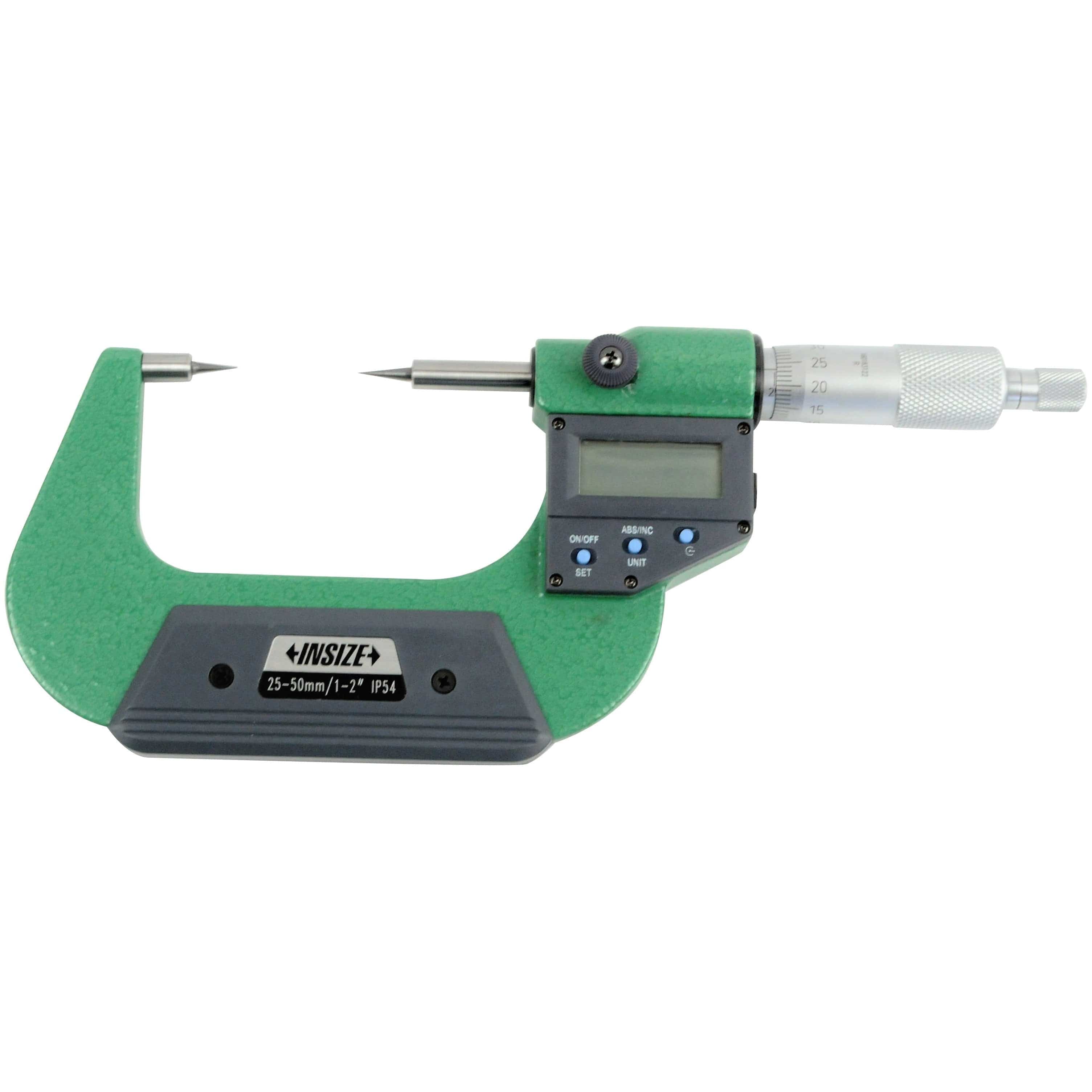

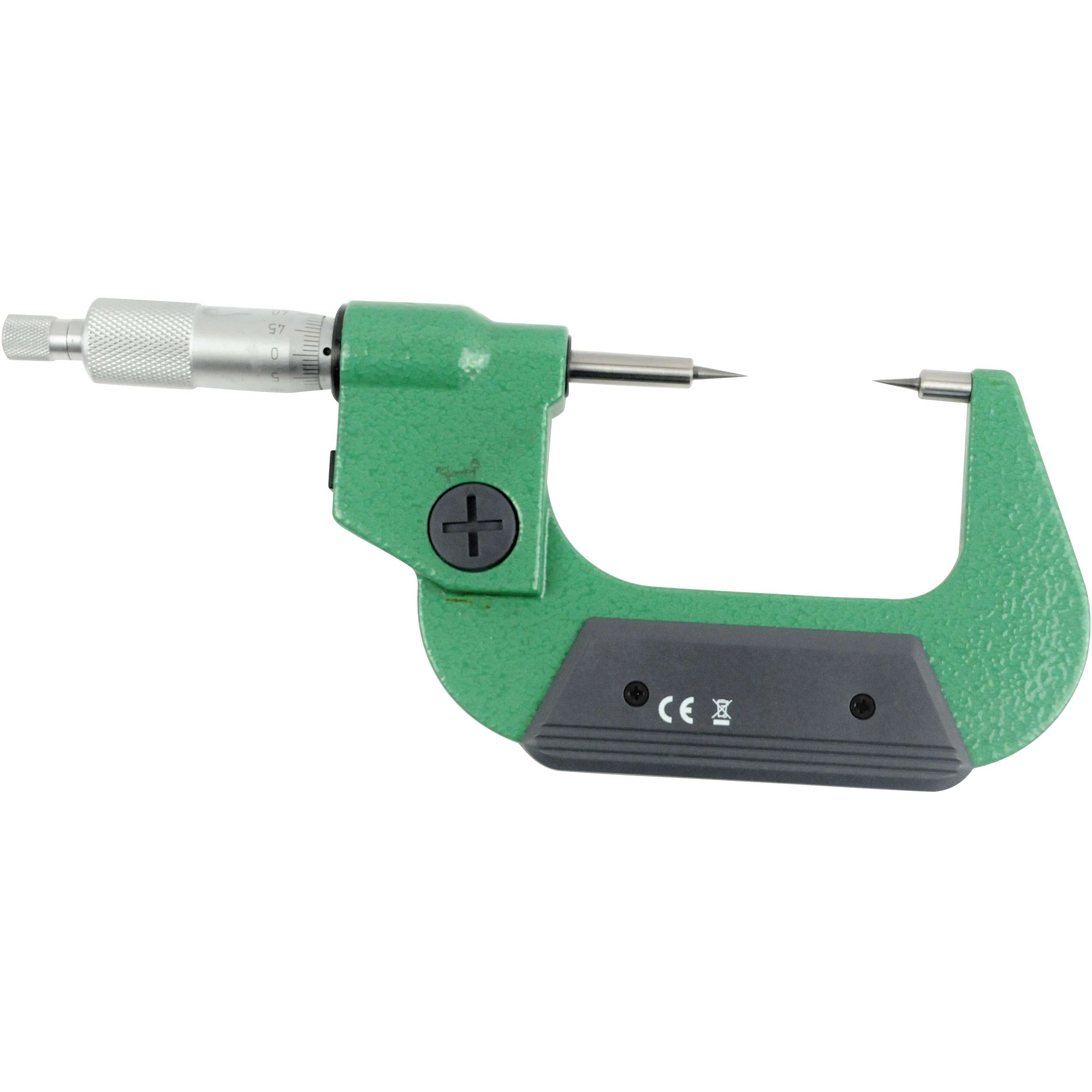

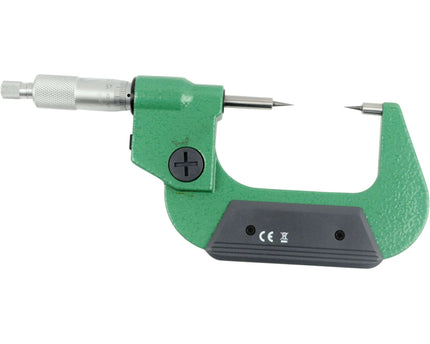

Insize Digital Point Micrometer
The Insize Digital Point Micrometer is designed as a high-precision instrument for measuring narrow features, including small grooves, keyways, and drill web thickness. The ergonomic digital display enables quick and confident face reading, while the carbide measuring points ensure long service life and dependable contact on hardened surfaces.
Featuring absolute and incremental measuring modes with data output functionality, this micrometer integrates easily into professional inspection routines and quality control documentation. Its compact frame and ratchet stop mechanism allow consistent measuring force, making it suitable for toolmaking, fine mechanical components, and repetitive workshop measurement.

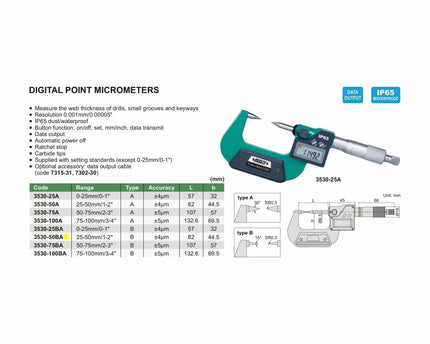

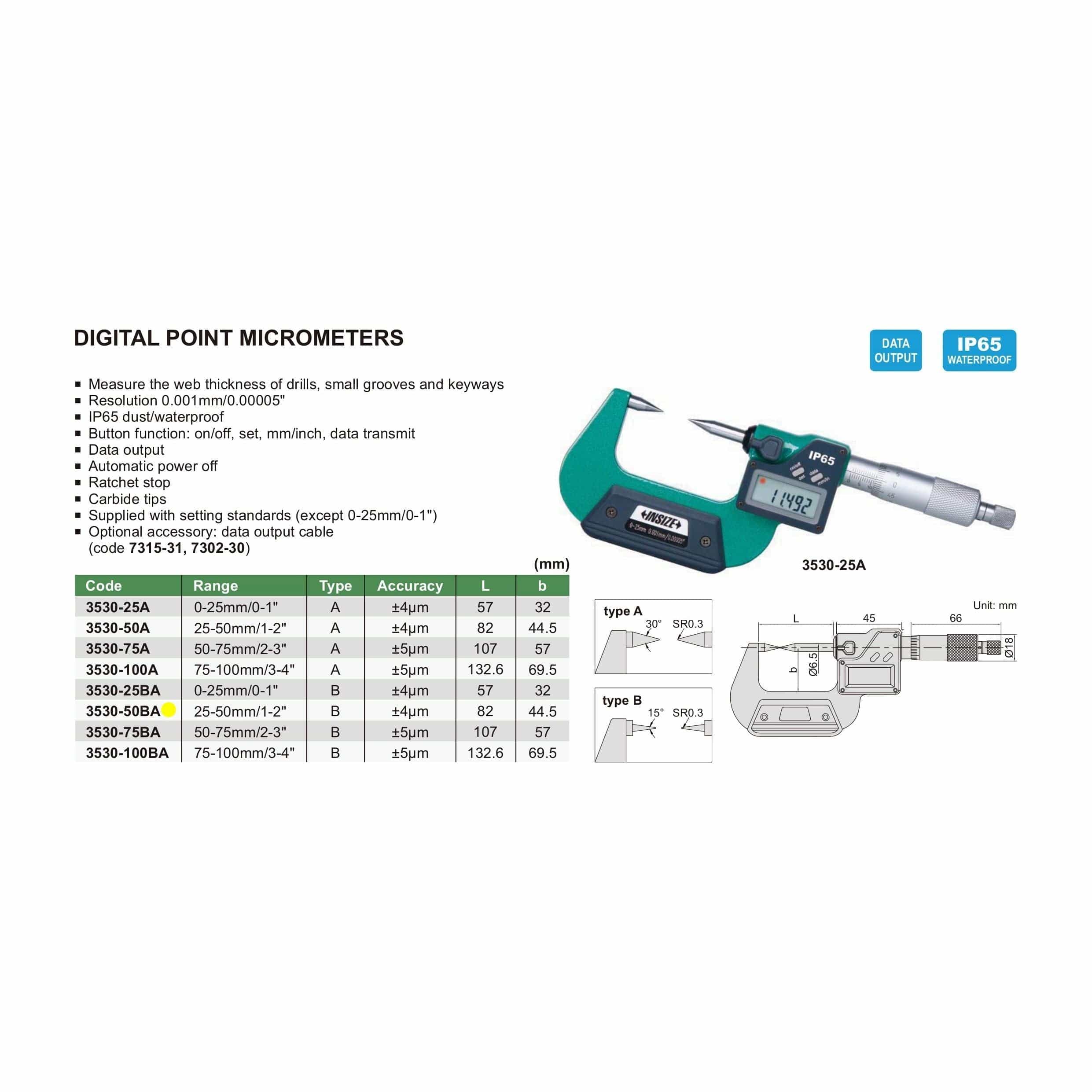

Specifications :
-
Part no: 3530-50BA
- Resolution: 0.001mm/0.00005"
- Range: 25-50mm/1-2"

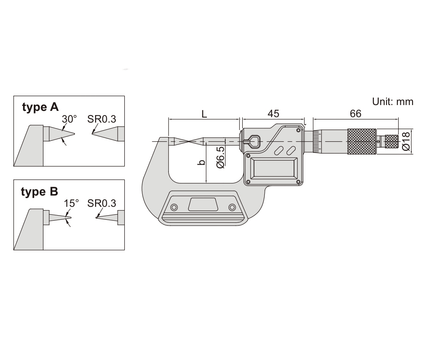

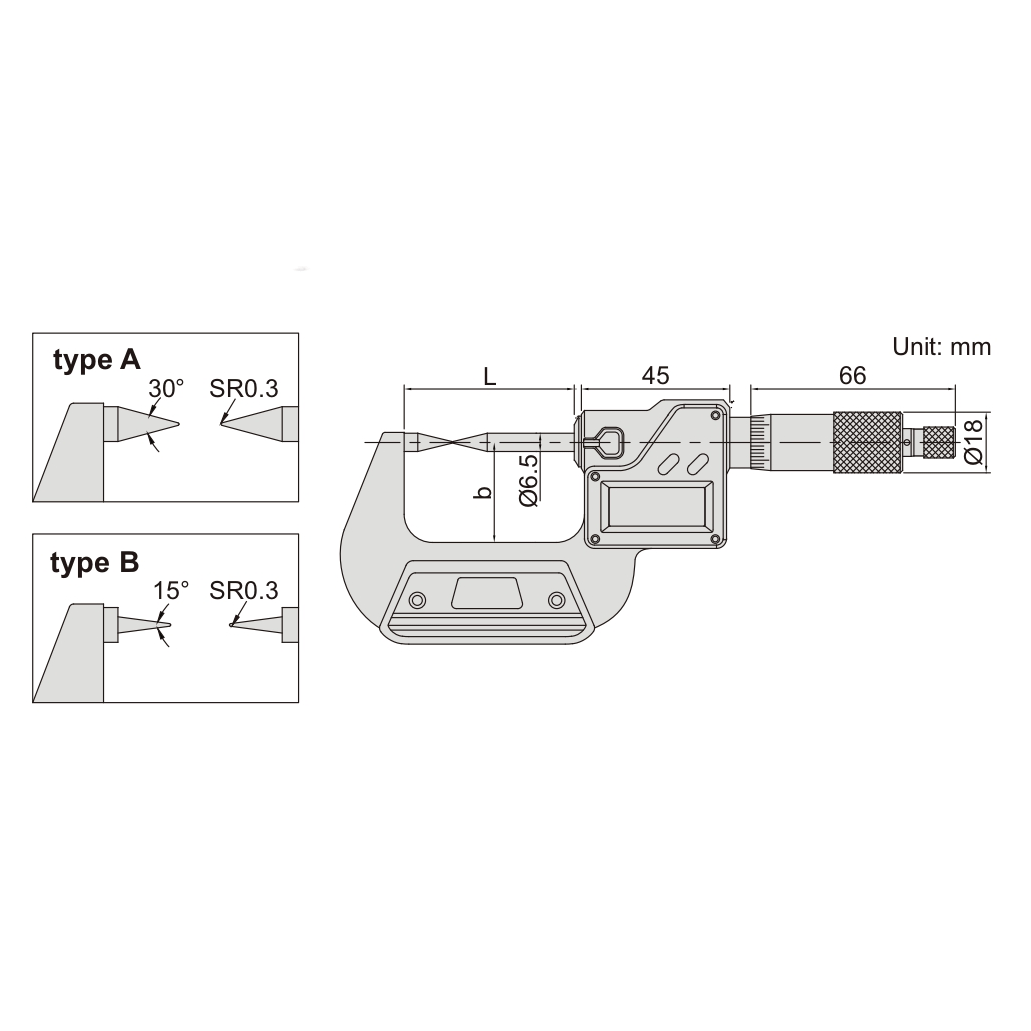

- Type B
- 30°
- L: 82mm
- B: 44.5mm
- IP54 dust/waterproof.

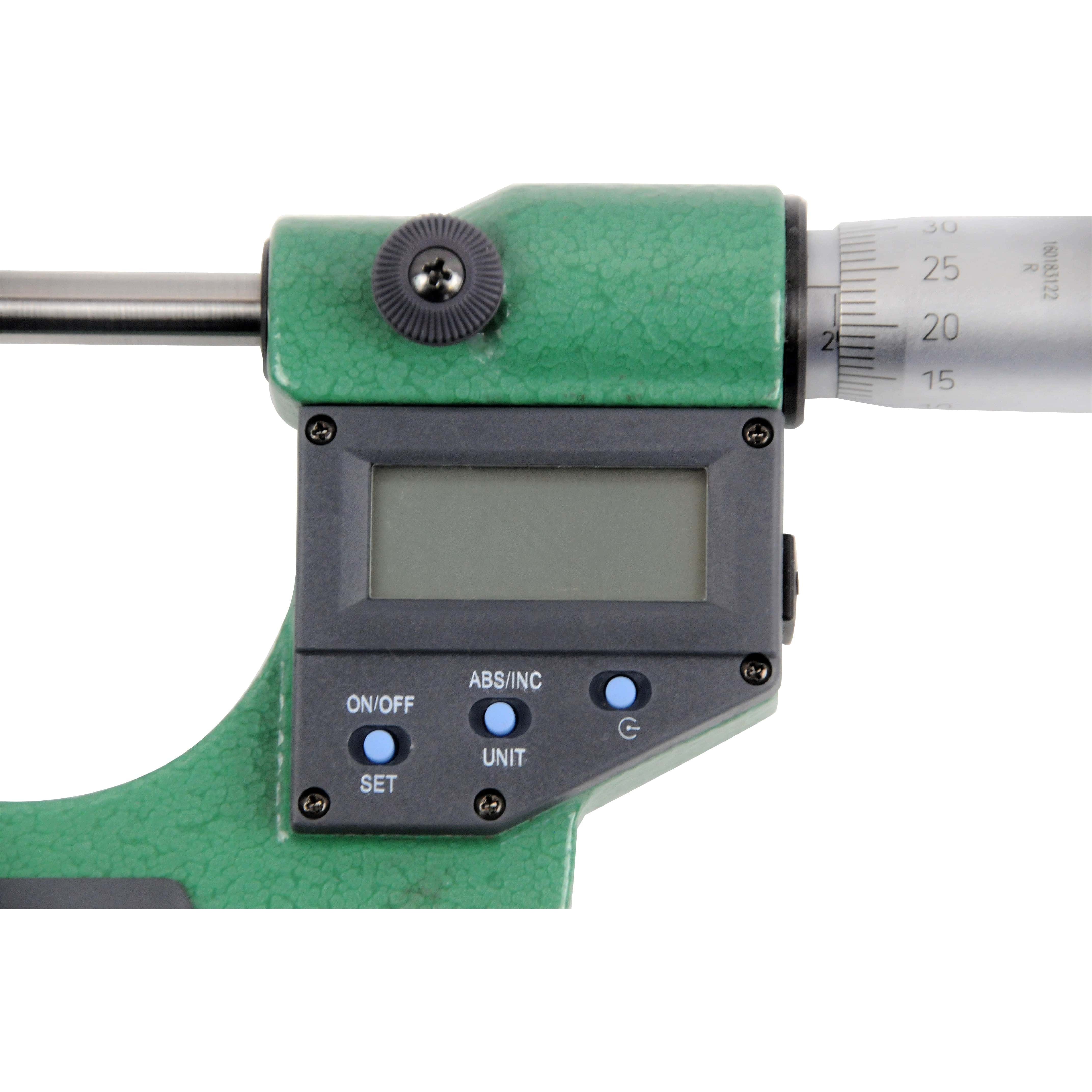

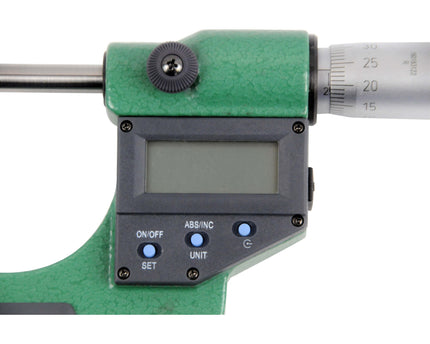

- Button function: on/off, set, mm/inch, ABS/INC, data output.
- LR44 battery, automatic power off.

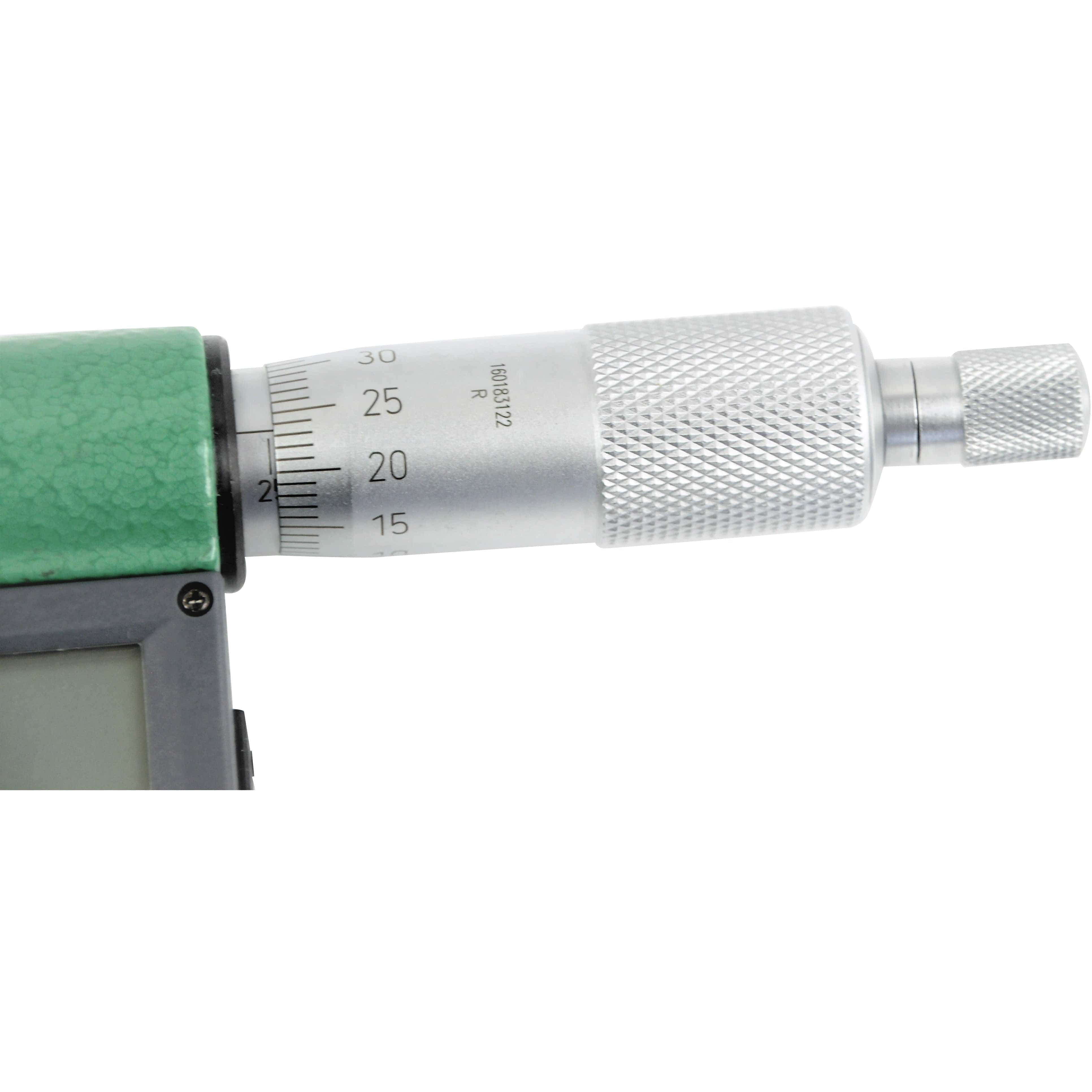

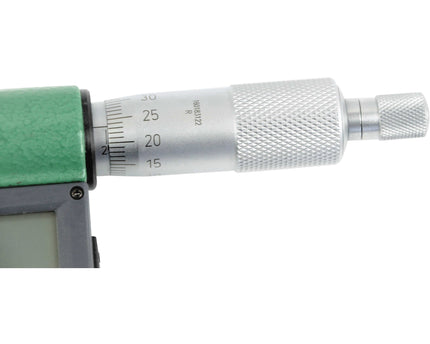

- Ratchet stop

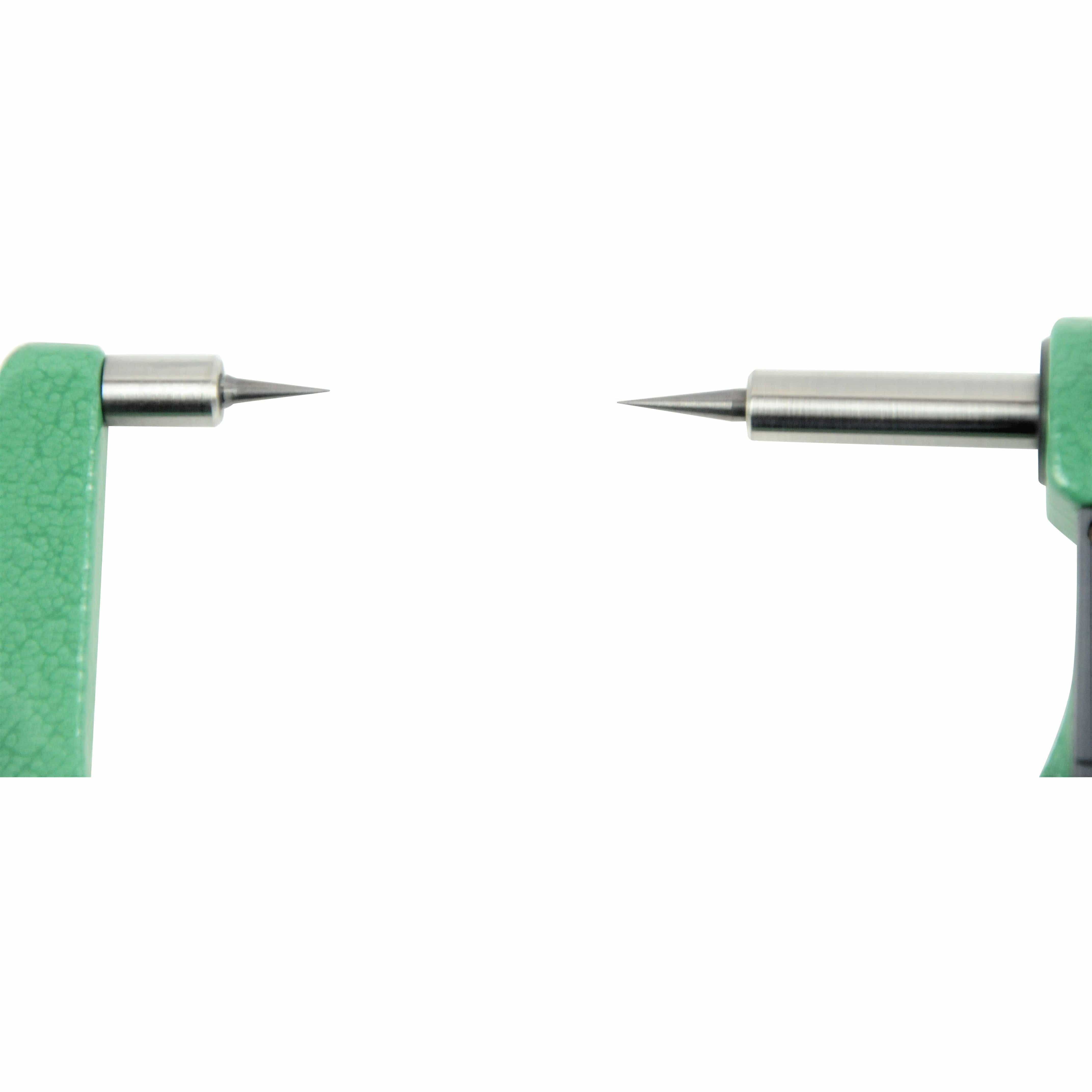

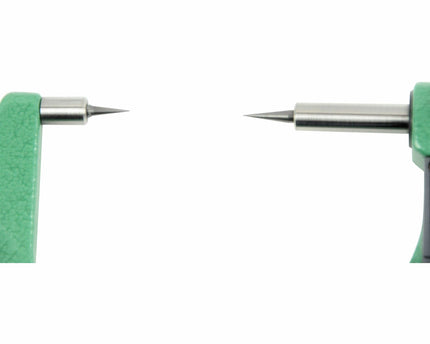

- Carbide tips

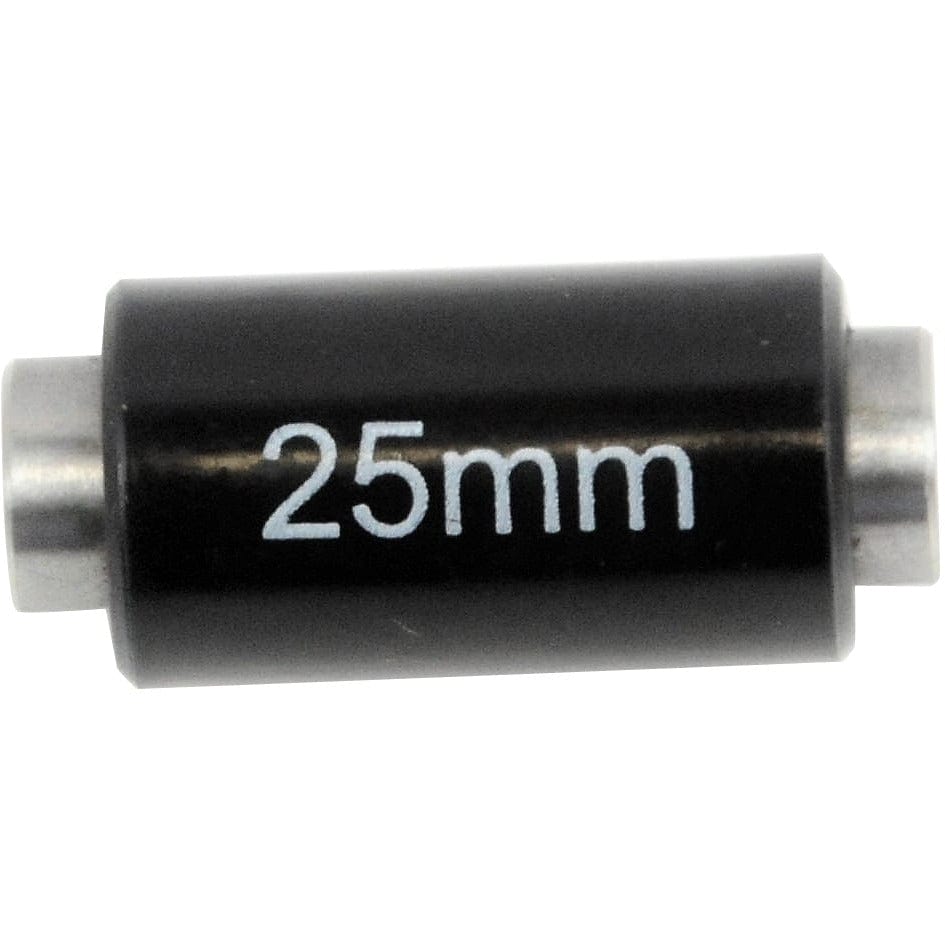

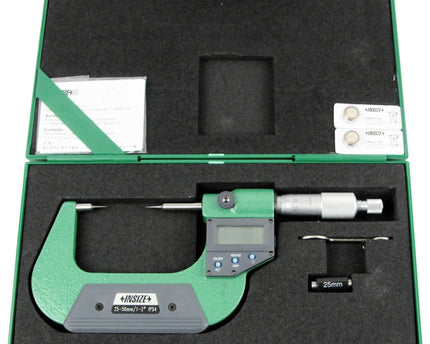

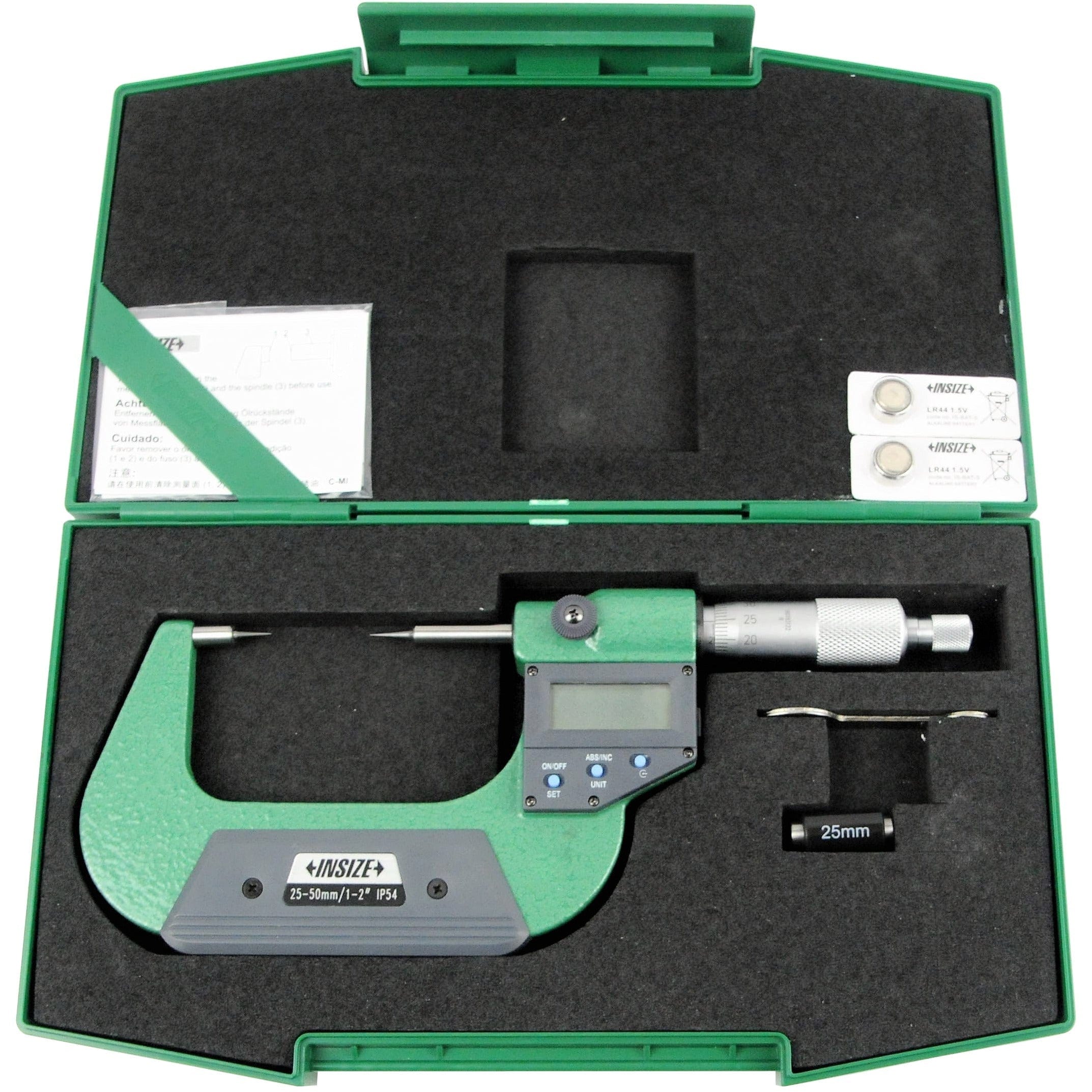

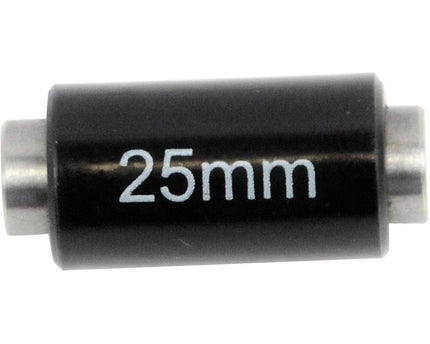

- Supplied with setting standards (except 0-25mm/0-1").
- Optional accessory: data output cable (code 7306-30, 7302-SPC2A, 7305-SPC3), setting ring (code 6312).
Well-designed, durable, high-precision tools that are suitable for various measuring ranges. INSIZE micrometers are the perfect instrument for the measurement of a wide range of components. Easy to use and read face to measure the thickness of drills, small grooves, and keyways.
