Description

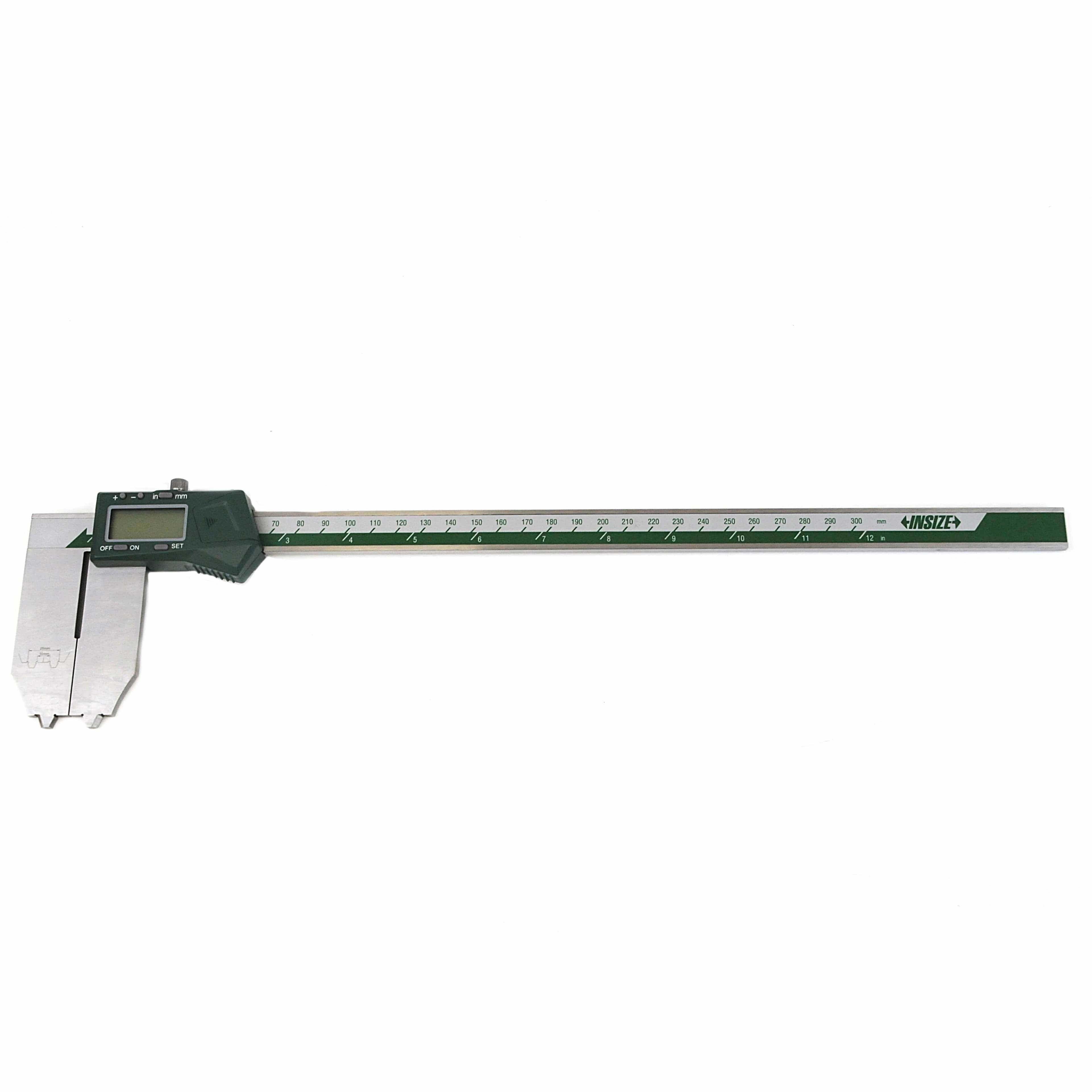

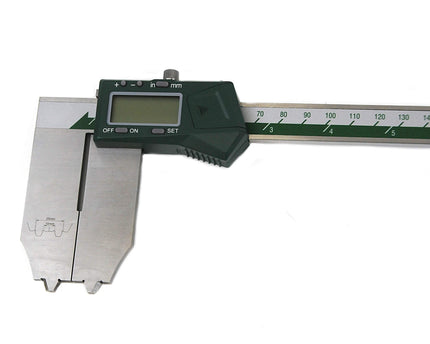

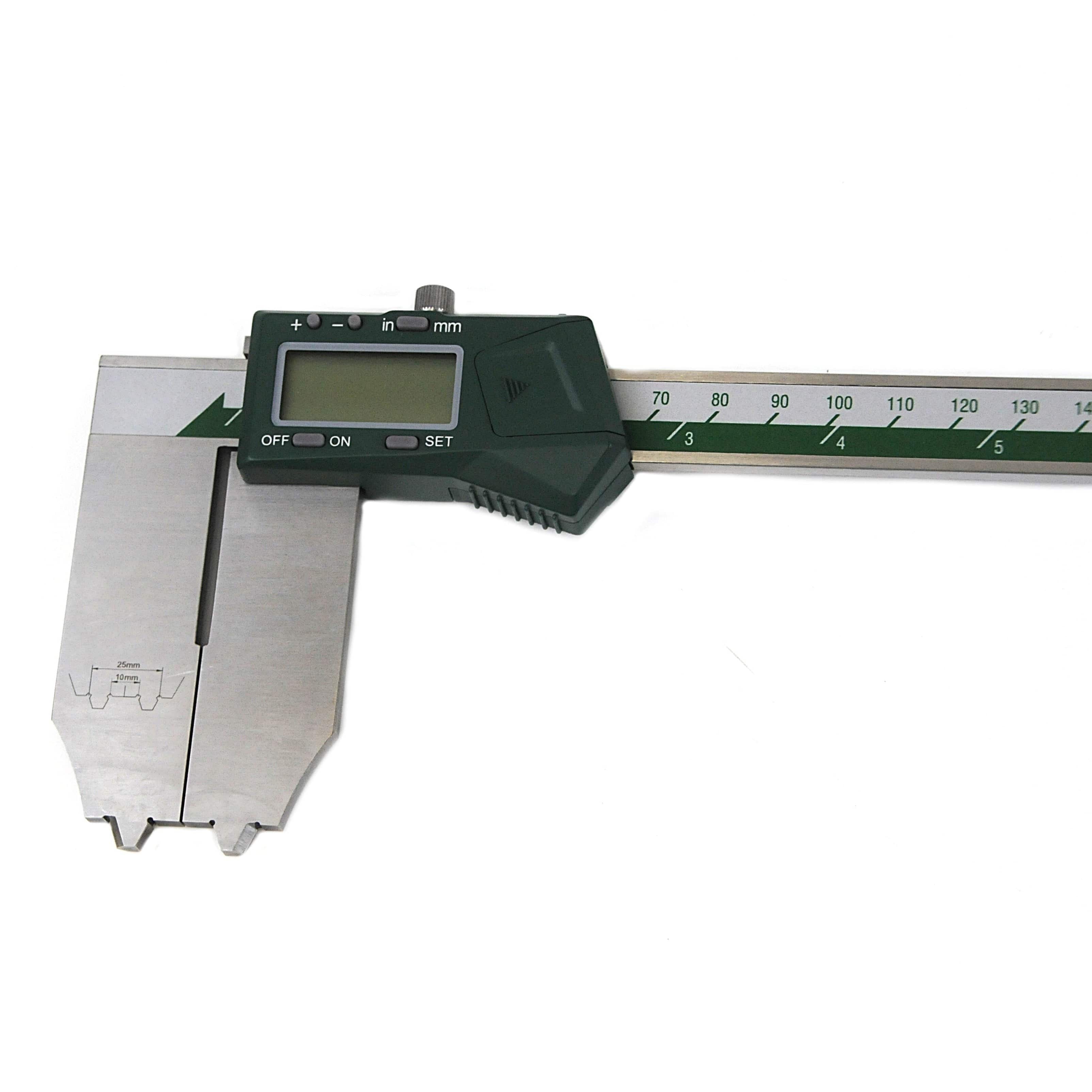

Insize Digital RTJ Ring Groove Caliper
A precision digital caliper designed for accurate measurement of RTJ ring grooves on flanges. Manufactured from stainless steel and engineered for reliability, this instrument provides smooth operation, stable readings, and the capability to measure both inside and outside diameters of RTJ ring grooves with ease.

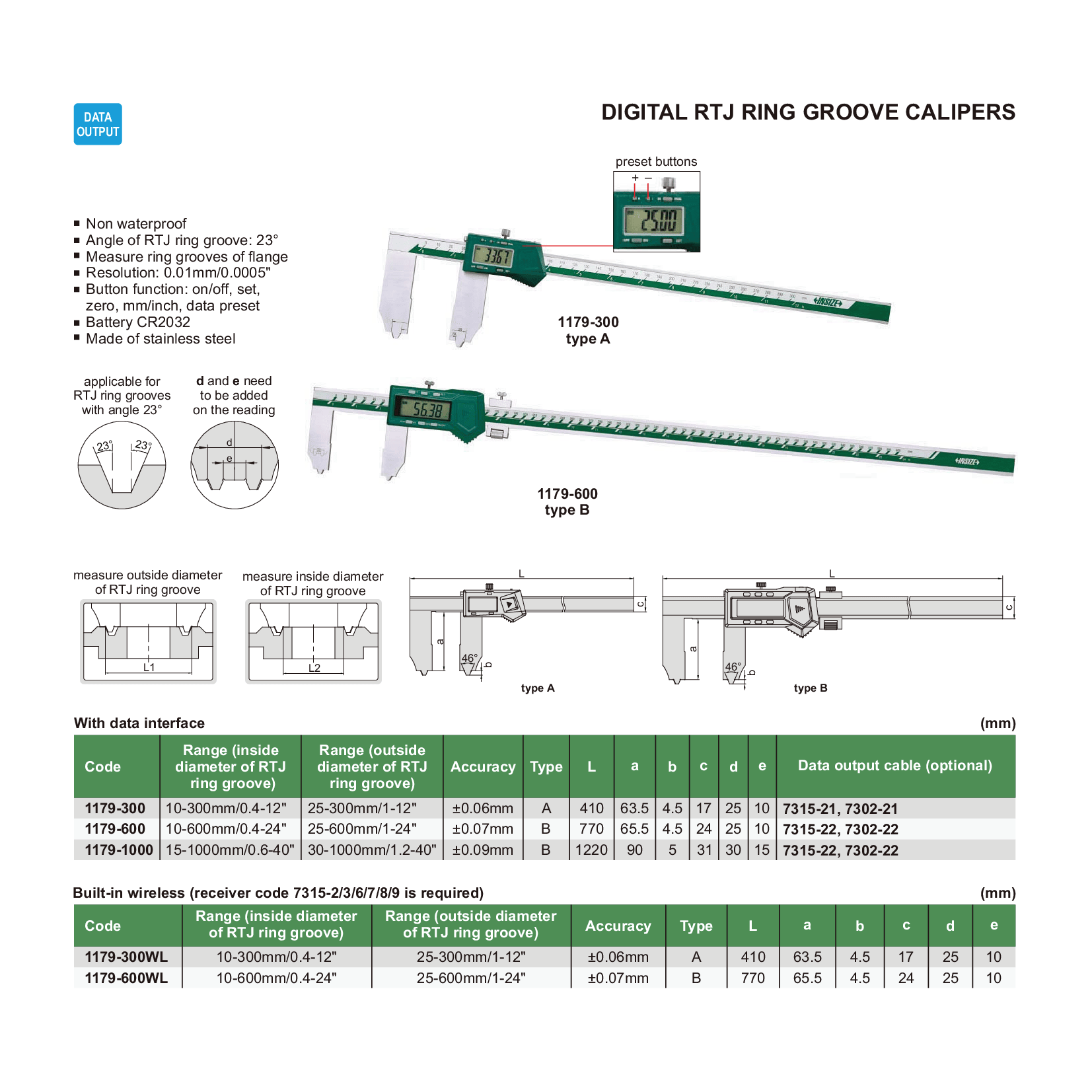

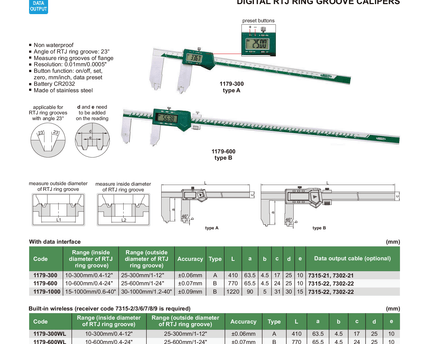

Specifications:
- Part No: 1179-300
- Resolution: 0.01 mm / 0.0005"
- Accuracy: ±0.06 mm
- Type: A
- A: 63.5 mm
- B: 4.5 mm
- C: 17 mm
- D: 25 mm
- E: 10 mm
- L: 410 mm
- Range (Inside Diameter of RTJ Ring Groove): 10–300 mm / 0.4–12"
- Range (Outside Diameter of RTJ Ring Groove): 25–300 mm / 1–12"
- Button Functions: On/Off, Set, mm/inch, Preset (+ / –)
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
- Power Management: Automatic power off; movement-activated wake-up
Well-designed and built for precision, this digital RTJ ring groove caliper is ideal for accurately measuring critical groove dimensions on RTJ flange rings. Easy to use and adjust, it delivers consistent and reliable performance for inspection, maintenance, and machining applications.
