Description

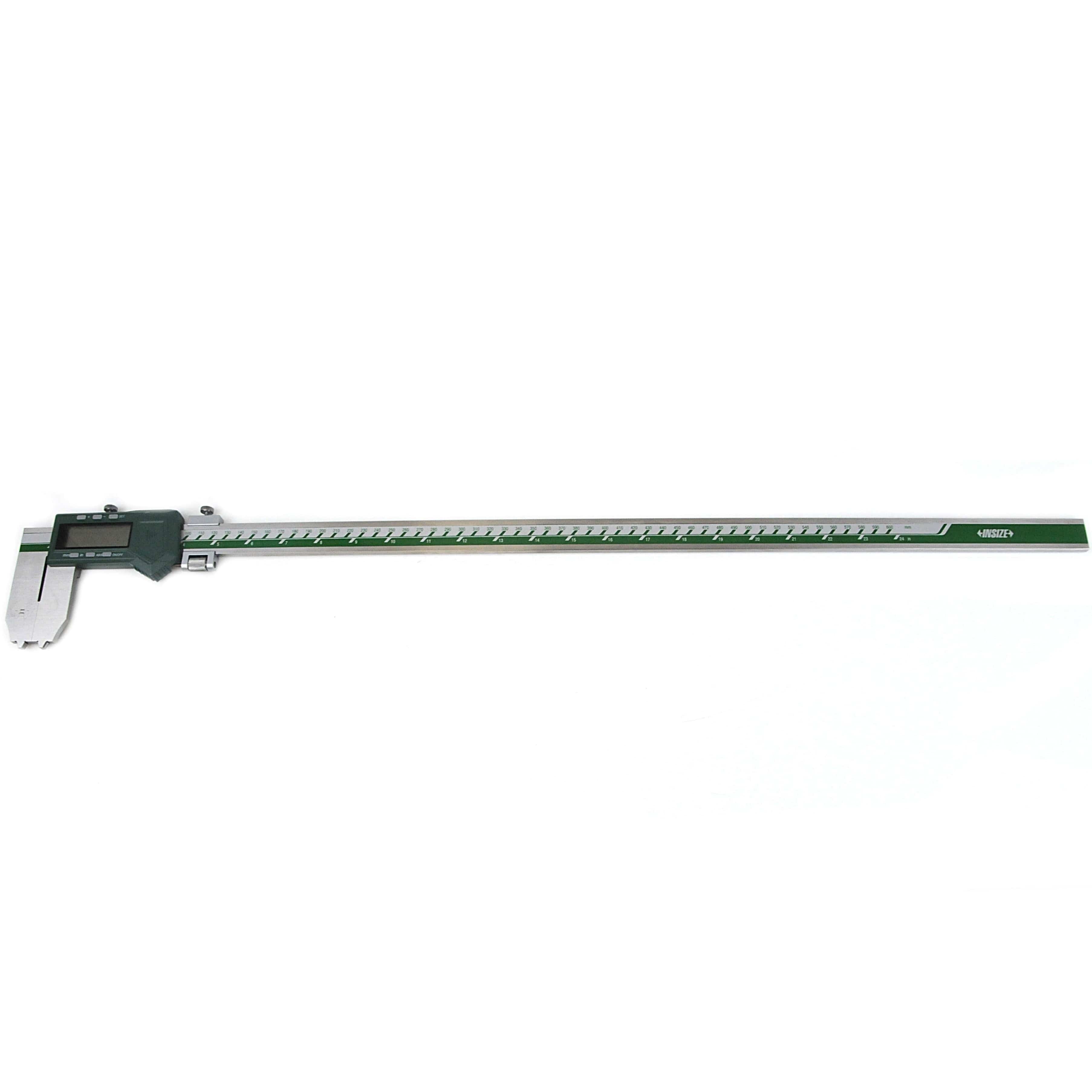

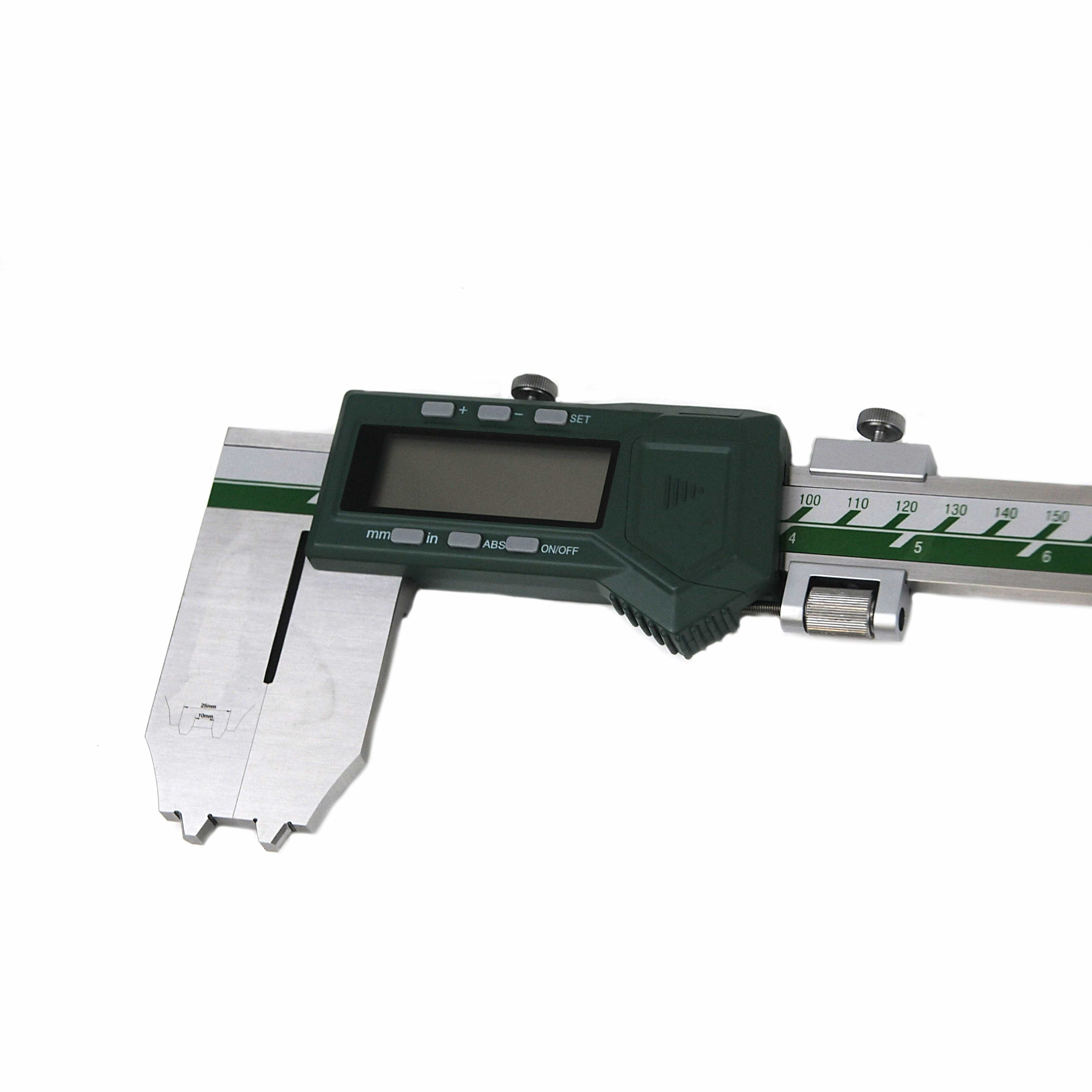

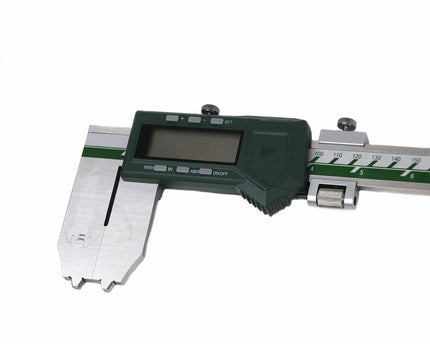

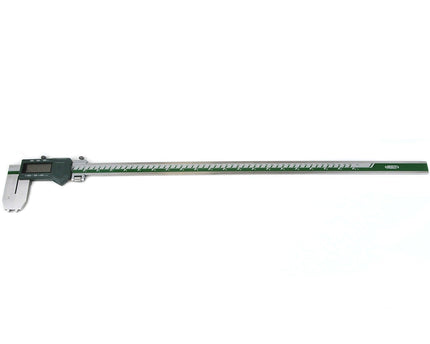

Insize Digital RTJ Ring Groove Caliper
A precision digital caliper designed specifically for accurate measurement of RTJ (Ring Type Joint) ring grooves on flanges. Built from stainless steel and engineered for reliability, it provides smooth movement and clear digital readability for dependable workshop and inspection use.

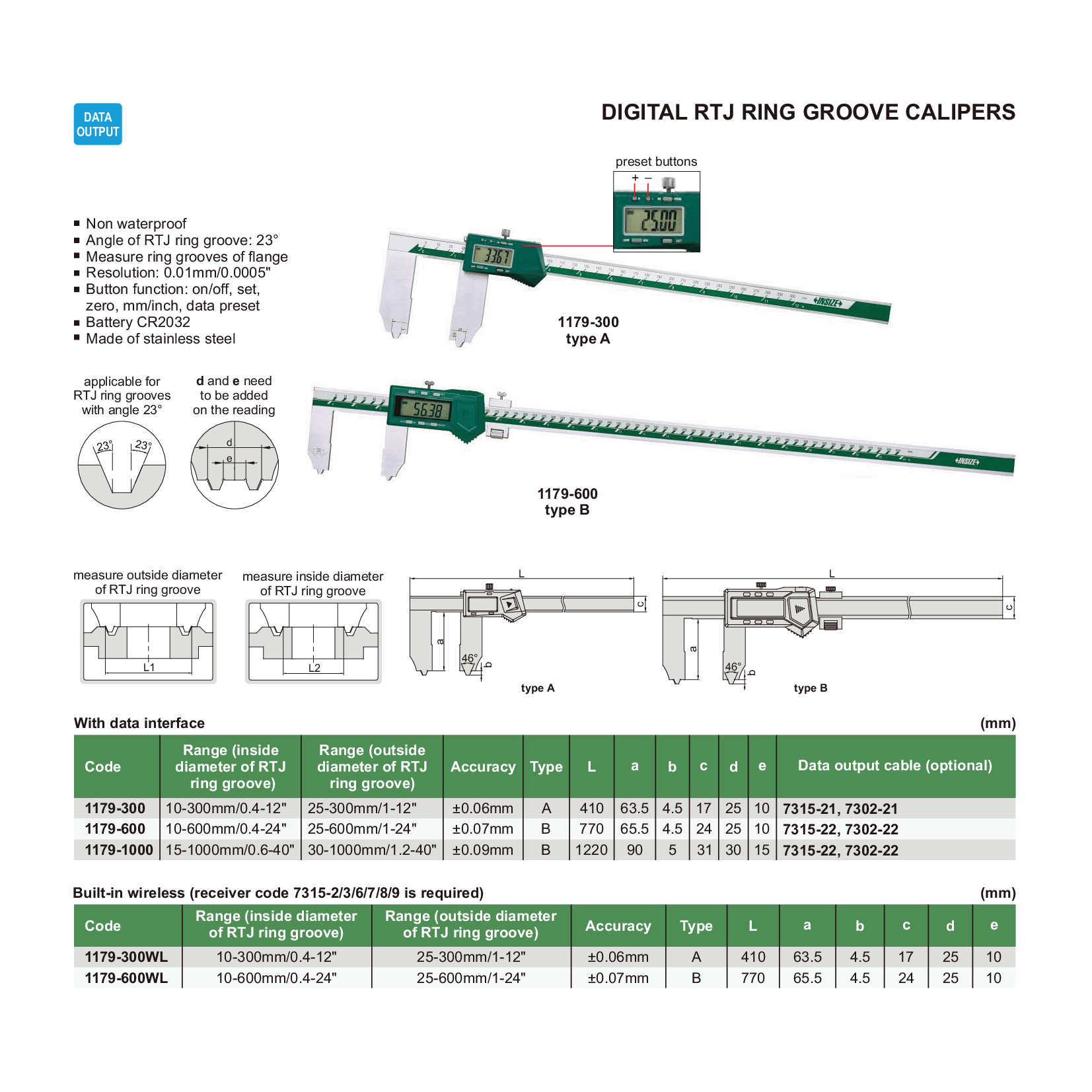

Specifications:
- Part No: 1179-600
- Resolution: 0.01mm / 0.0005"
- Accuracy: ±0.07mm
- Type: B
- A: 65.5mm
- B: 4.5mm
- C: 24mm
- D: 25mm
- E: 10mm
- L: 770mm
- Range (Inside Diameter of RTJ Ring Groove): 10–600mm / 0.4–24"
- Range (Outside Diameter of RTJ Ring Groove): 25–600mm / 1–24"
- Buttons: On/Off, Set, mm/inch, Preset (+ / –)
- Automatic Power On/Off: Moves to activate, auto shut-off
- Battery: CR2032
- Data Output: Yes
- Material: Stainless steel
Well-designed and built for precision, this instrument is ideal for accurately measuring both inside and outside diameters of RTJ ring grooves on flanges. Easy to use, smooth in operation, and dependable for inspection, maintenance, and flange verification tasks.
