Description

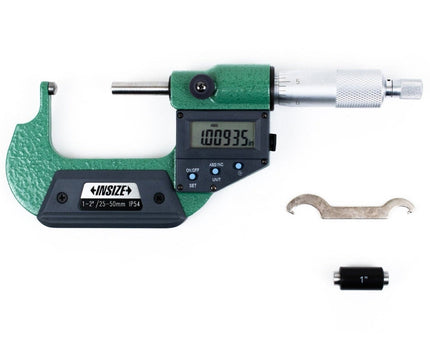

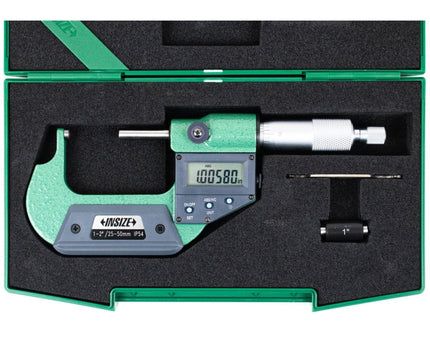

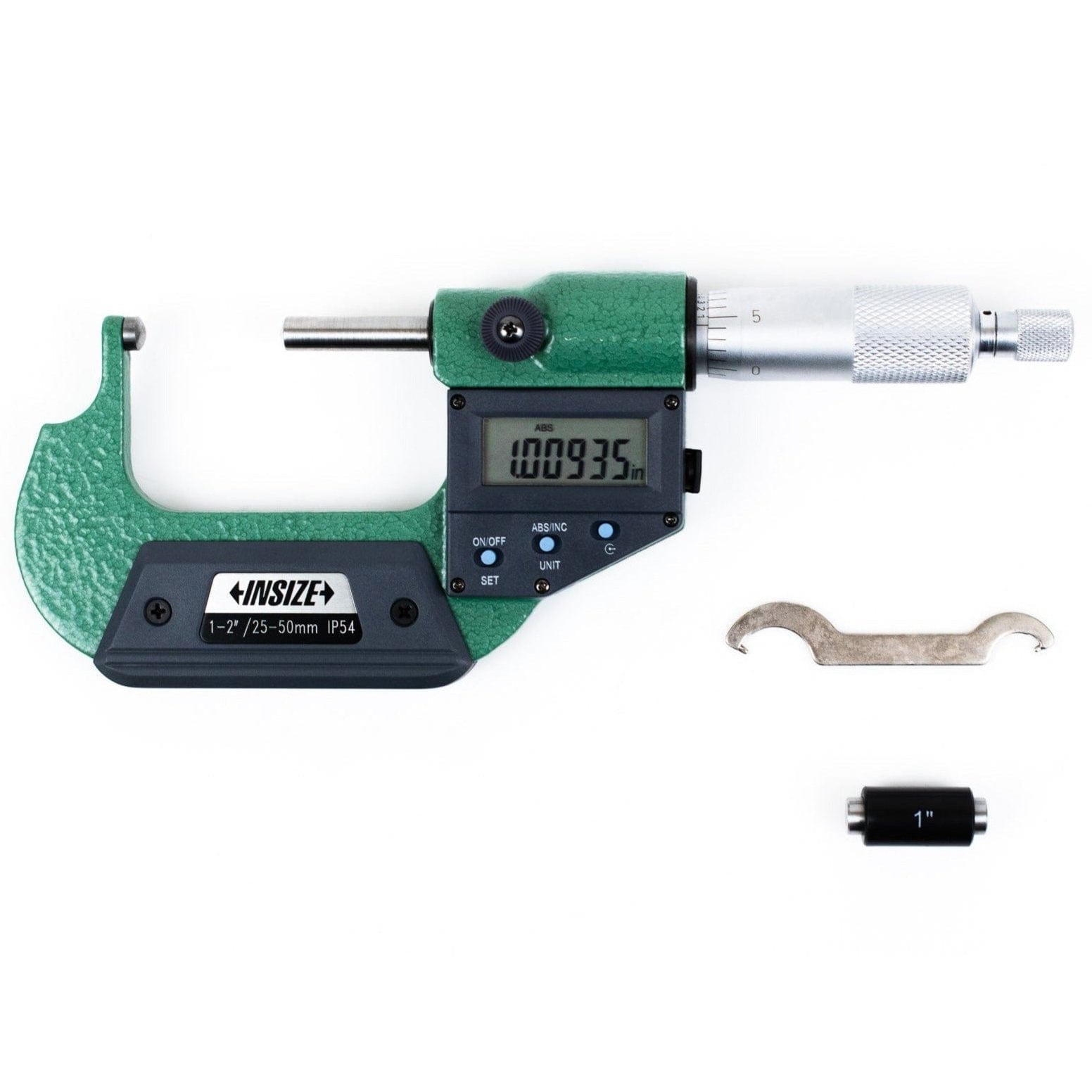

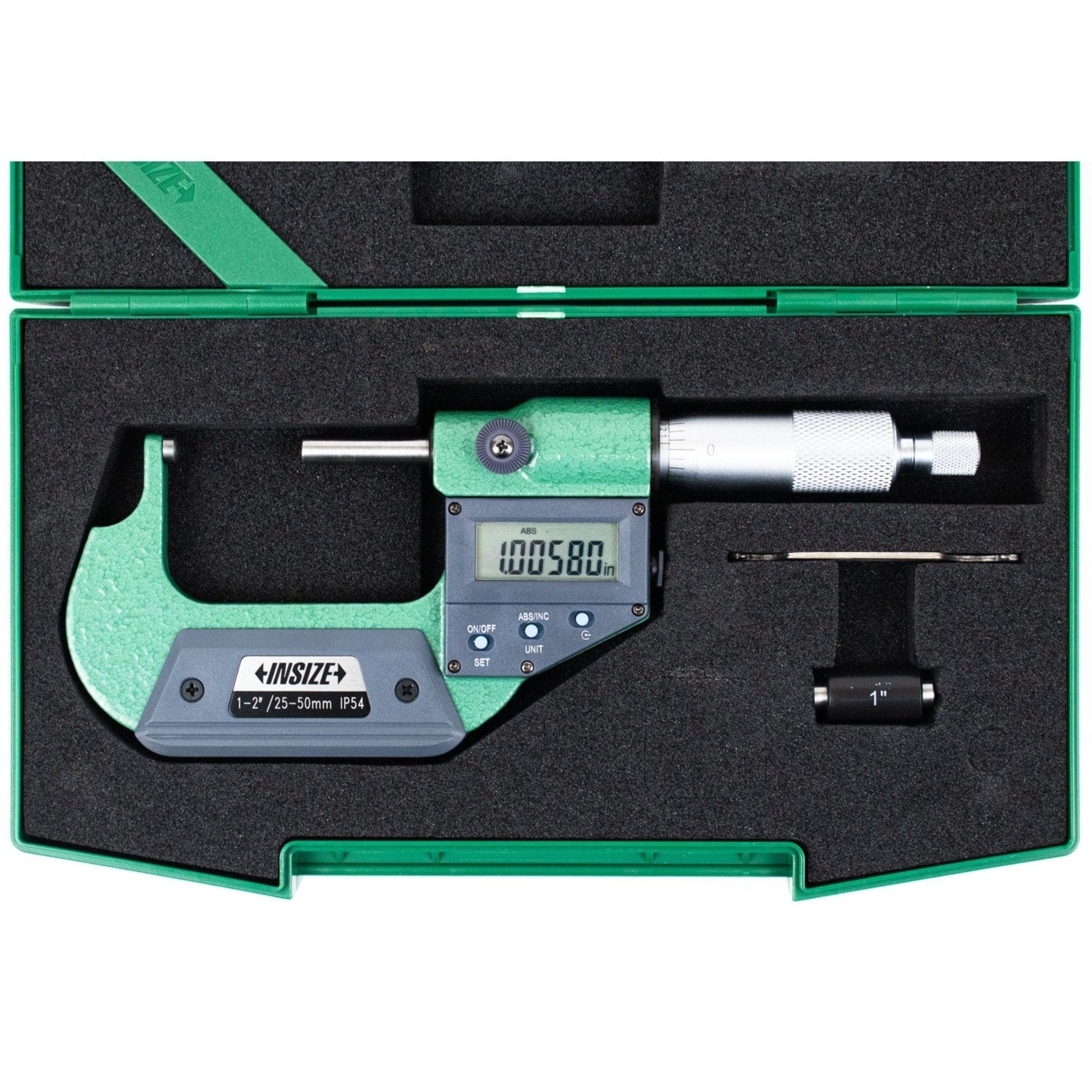

Insize Digital Spherical Anvil Tube Micrometer
The Insize Digital Spherical Anvil Tube Micrometer is designed for accurate measurement of tube and pipe wall thickness. The spherical anvil geometry ensures stable and repeatable contact on curved surfaces, making it ideal for precision measurement in machining, fabrication, inspection, and quality control environments.

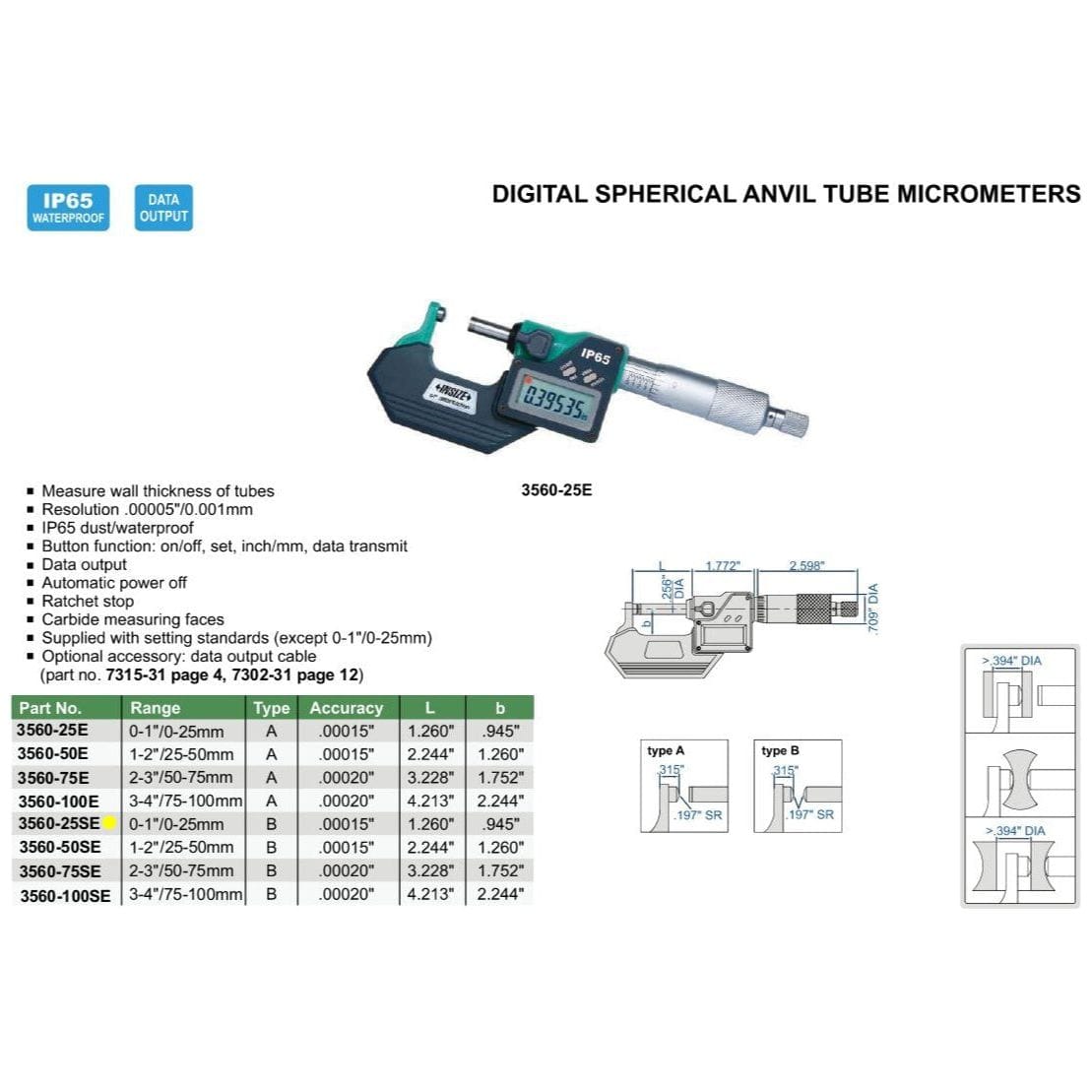

Specifications :
-
Part No: 3560-25SE
-
Measurement Range: 0–25mm / 0–1"
-
Resolution: 0.001mm / 0.00005"
-
Accuracy: 0.00015"
-

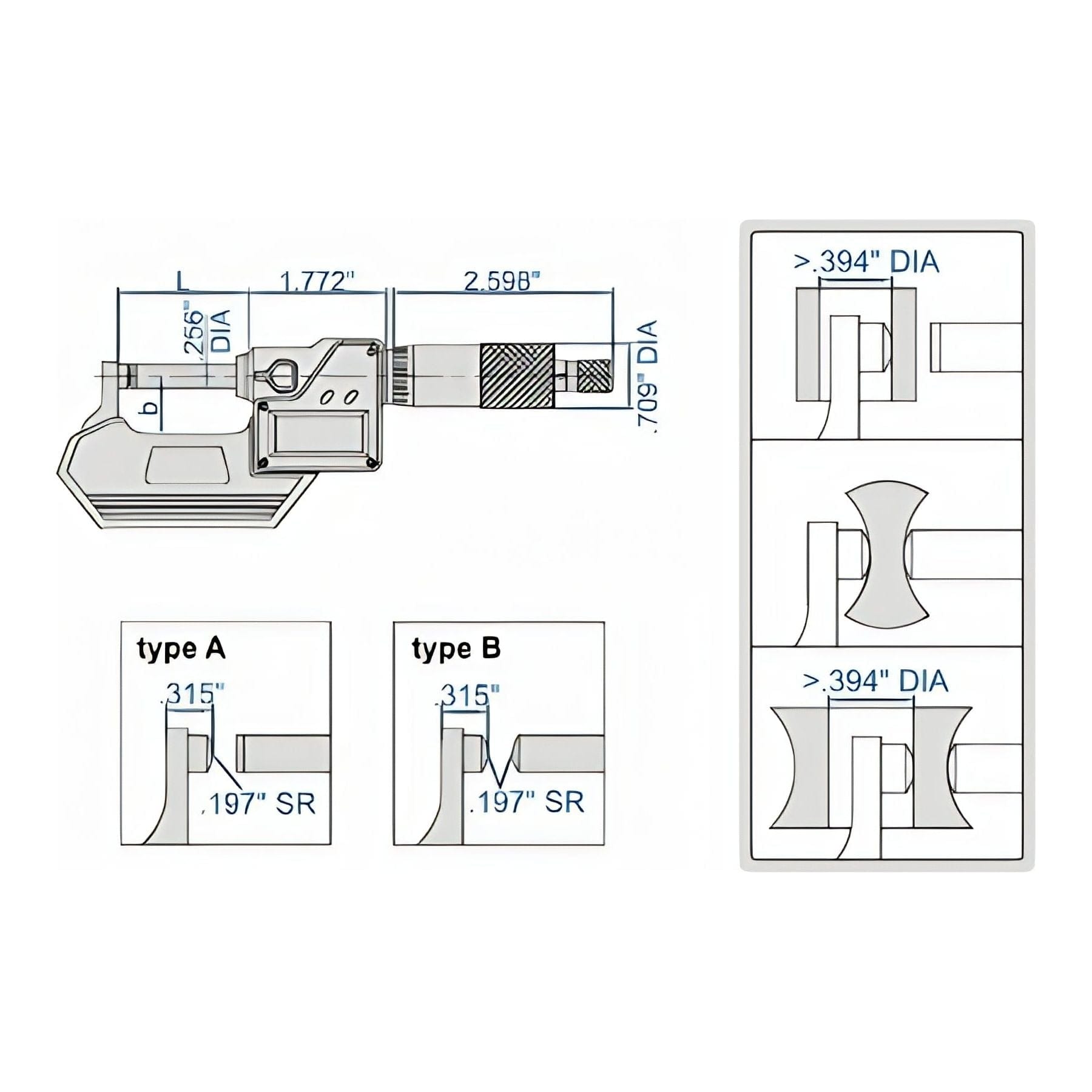

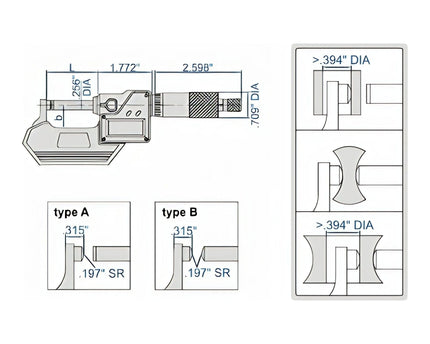

Type: B
-
Dimensions: L: 1.260", b: 0.945"
- IP65 dust and waterproof protection
- Button functions: on/off, set, mm/inch, data transmit
- Ratchet stop for consistent measuring pressure
- Carbide measuring faces for durability and long service life
- Supplied with setting standards (except 0–25mm / 0–1")
- Optional accessories: data output cable (7306-30, 7302-SPC2A, 7305-SPC3)
Well designed and built for durability, Insize digital spherical anvil tube micrometers deliver reliable and repeatable wall thickness measurements. The IP65 protection, clear digital display, and spherical anvil design make this tool well suited to workshop and inspection use.
