Description

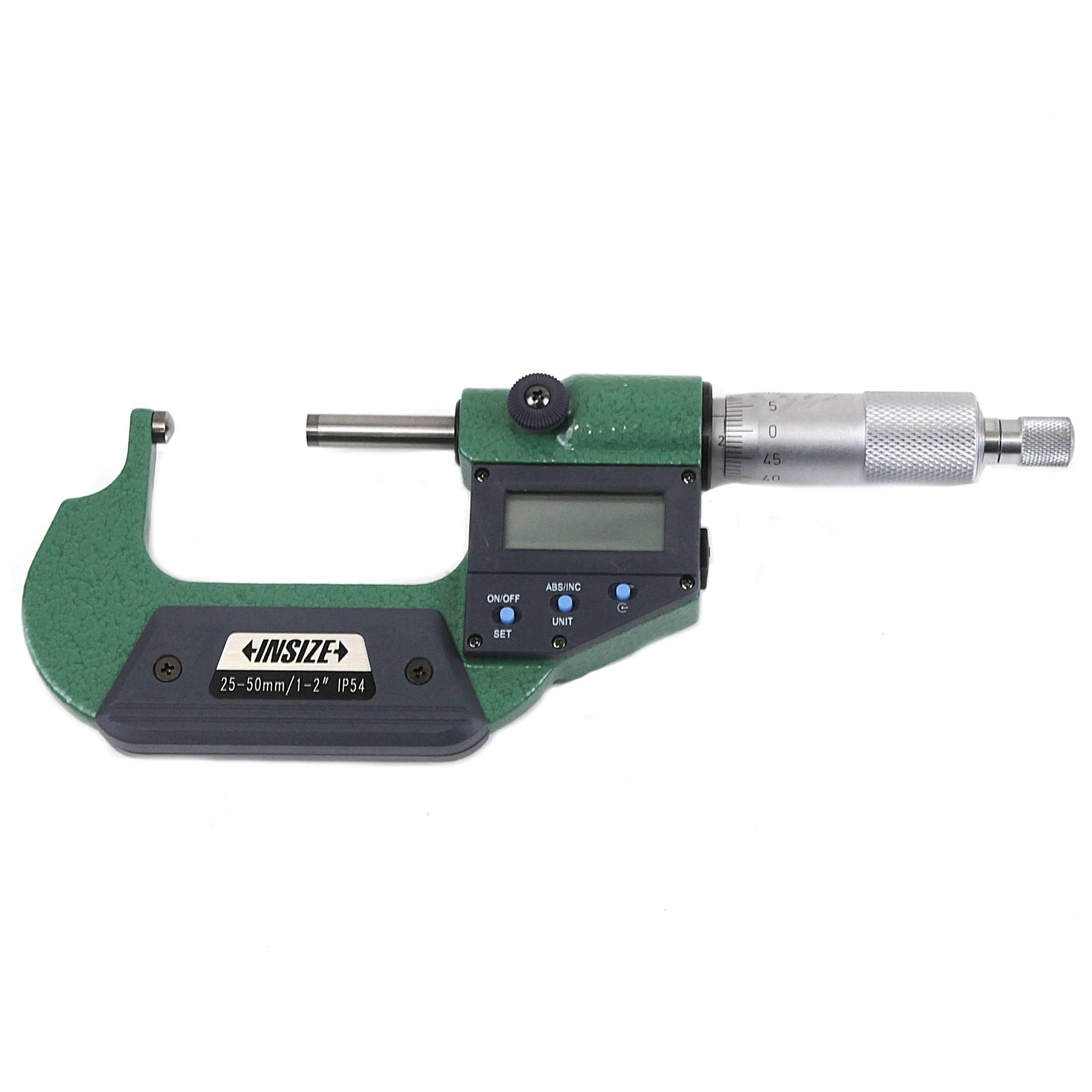

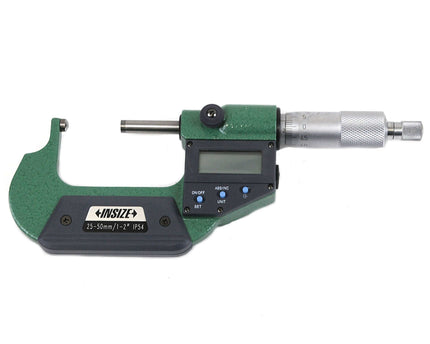

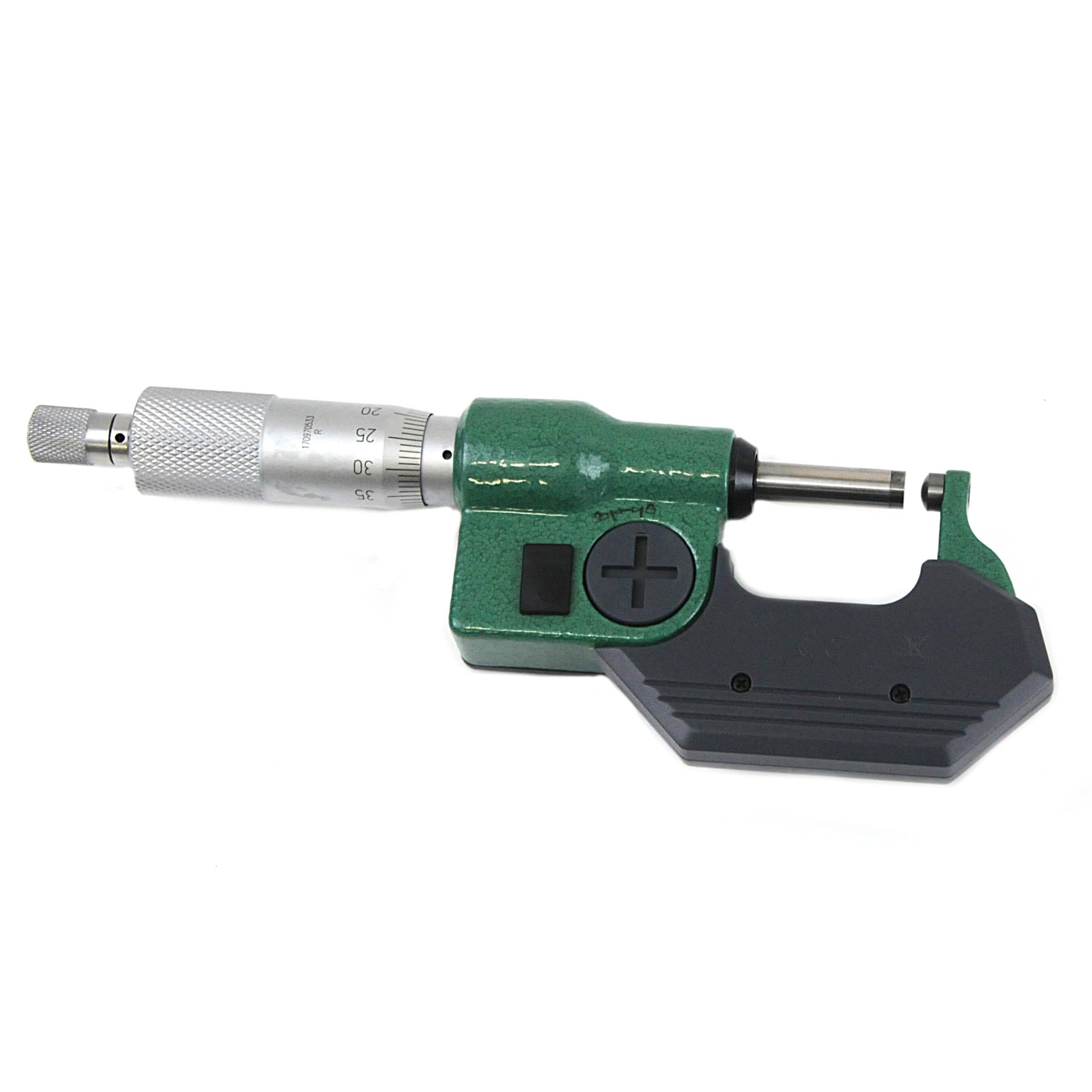

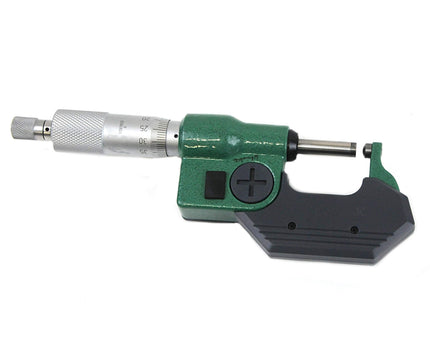

Insize Digital Spherical Anvil Tube Micrometer
The Insize Digital Spherical Anvil Tube Micrometer is a precision measuring instrument designed for accurate wall thickness measurement of tubes and pipes. The spherical anvil geometry provides stable contact on curved surfaces, ensuring reliable and repeatable readings. Combined with a high-resolution digital display and rugged construction, it is well-suited to workshop, inspection, and quality control applications.

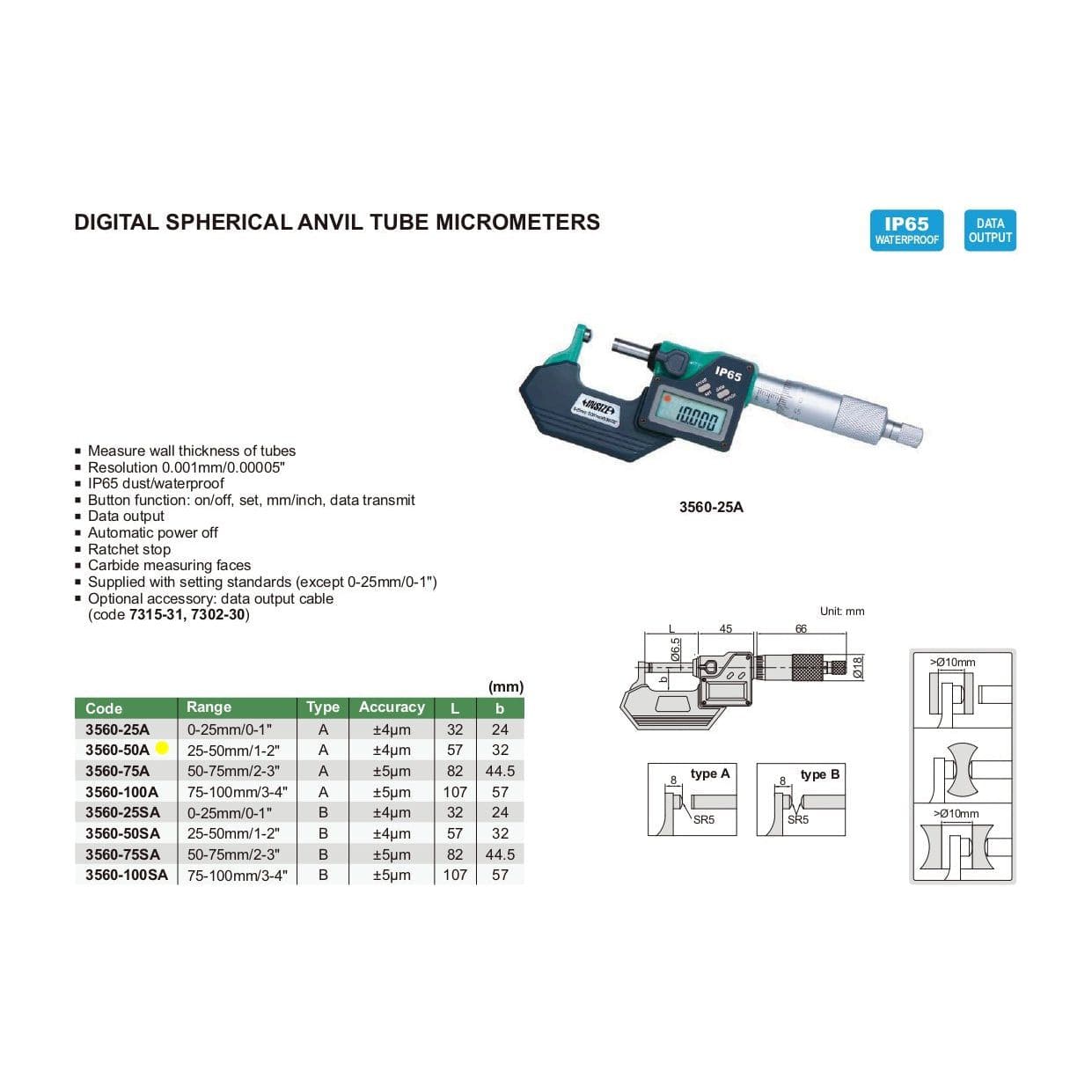

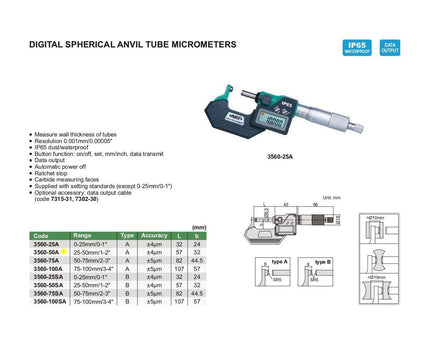

Specifications :
-
Part No: 3560-50A
-
Measuring Range: 25–50mm / 1–2"
-
Resolution: 0.001mm / 0.00005"
-
Type: A
-

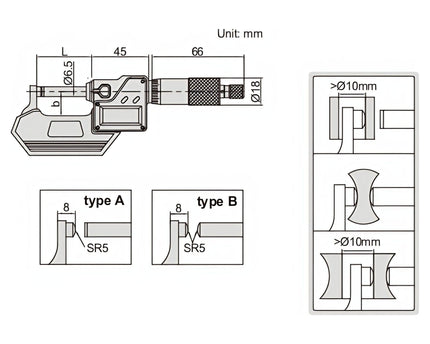

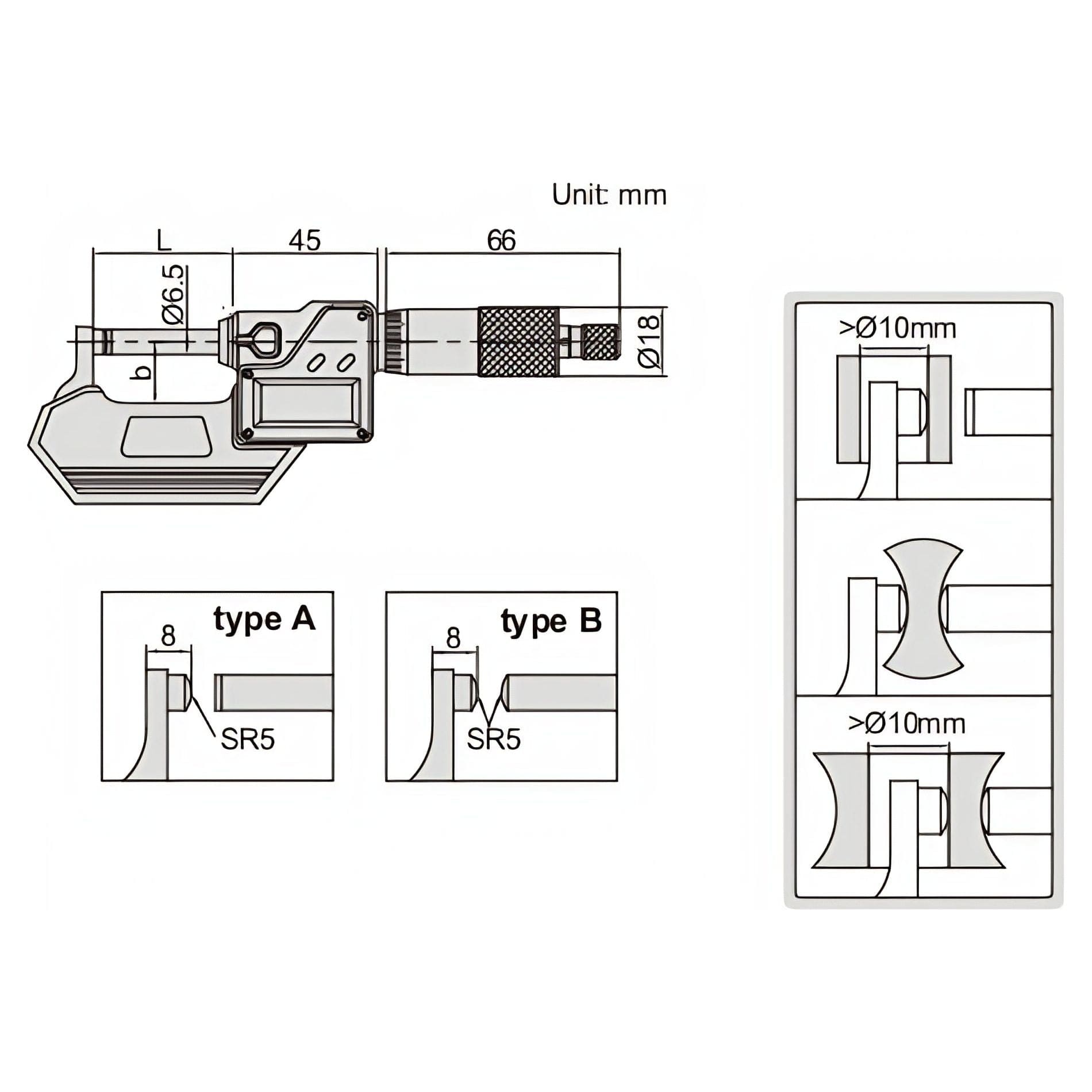

Dimensions: L: 57mm, b: 32mm
-
Ingress Protection: IP65 dust and waterproof
-
Button Functions: on/off, set, mm/inch, data transmit
-
Ratchet Stop: Ensures consistent measuring pressure
-
Measuring Faces: Carbide for durability and long service life
-
Setting Standards: Supplied for calibration and accuracy verification (except 0–25mm / 0–1")
-
Optional Accessories: Data output cable (7306-30, 7302-SPC2A, 7305-SPC3)
Well designed and built for durability, Insize digital spherical anvil tube micrometers provide dependable and repeatable measurements of tube wall thickness. The spherical anvil design and clear digital readout make this micrometer easy to use and highly effective in professional measurement environments.
