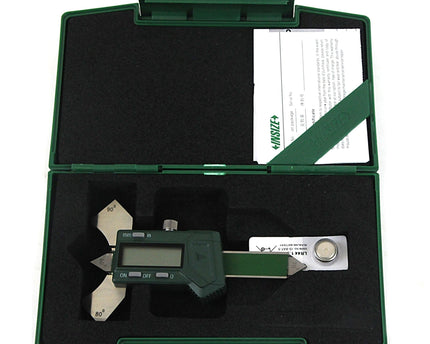

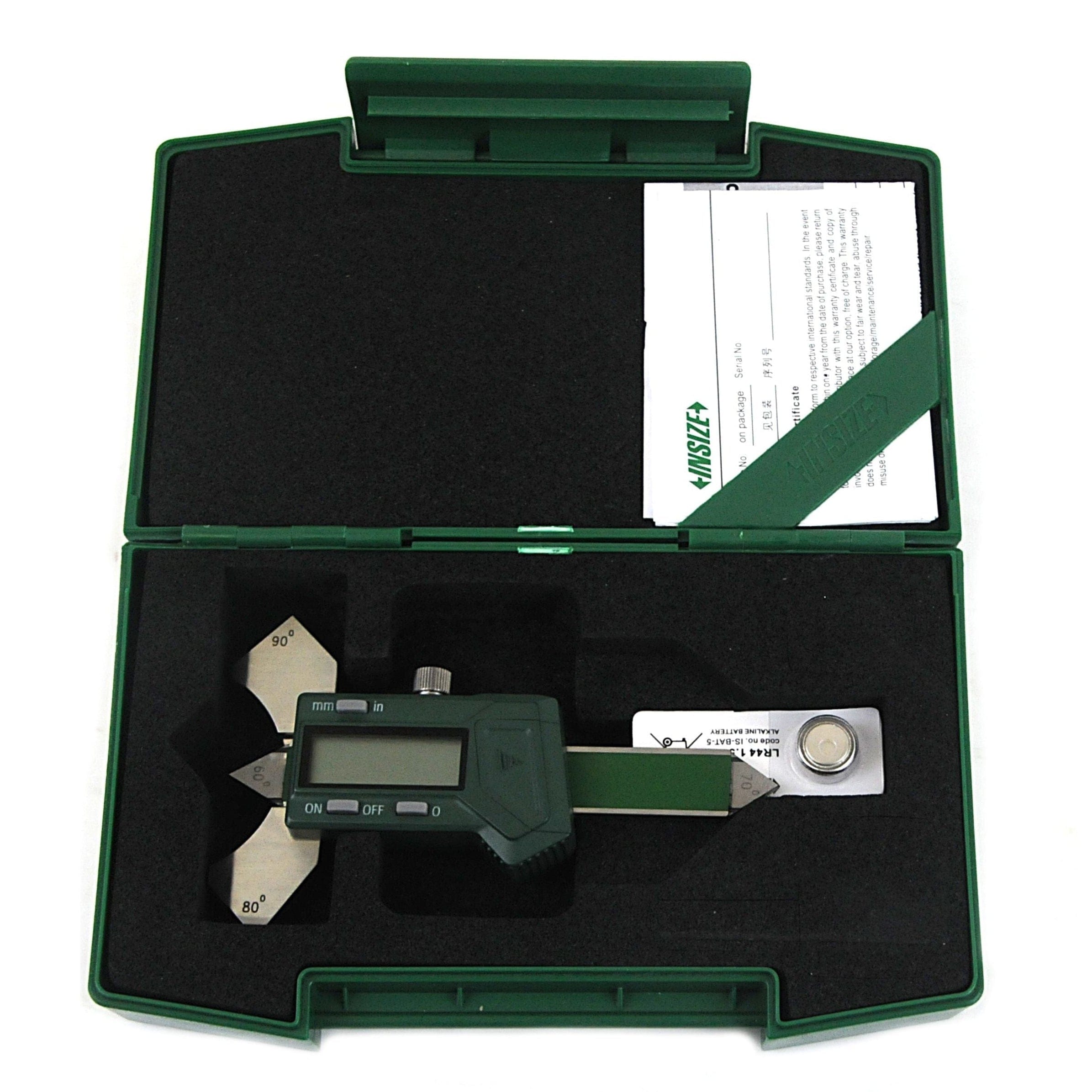

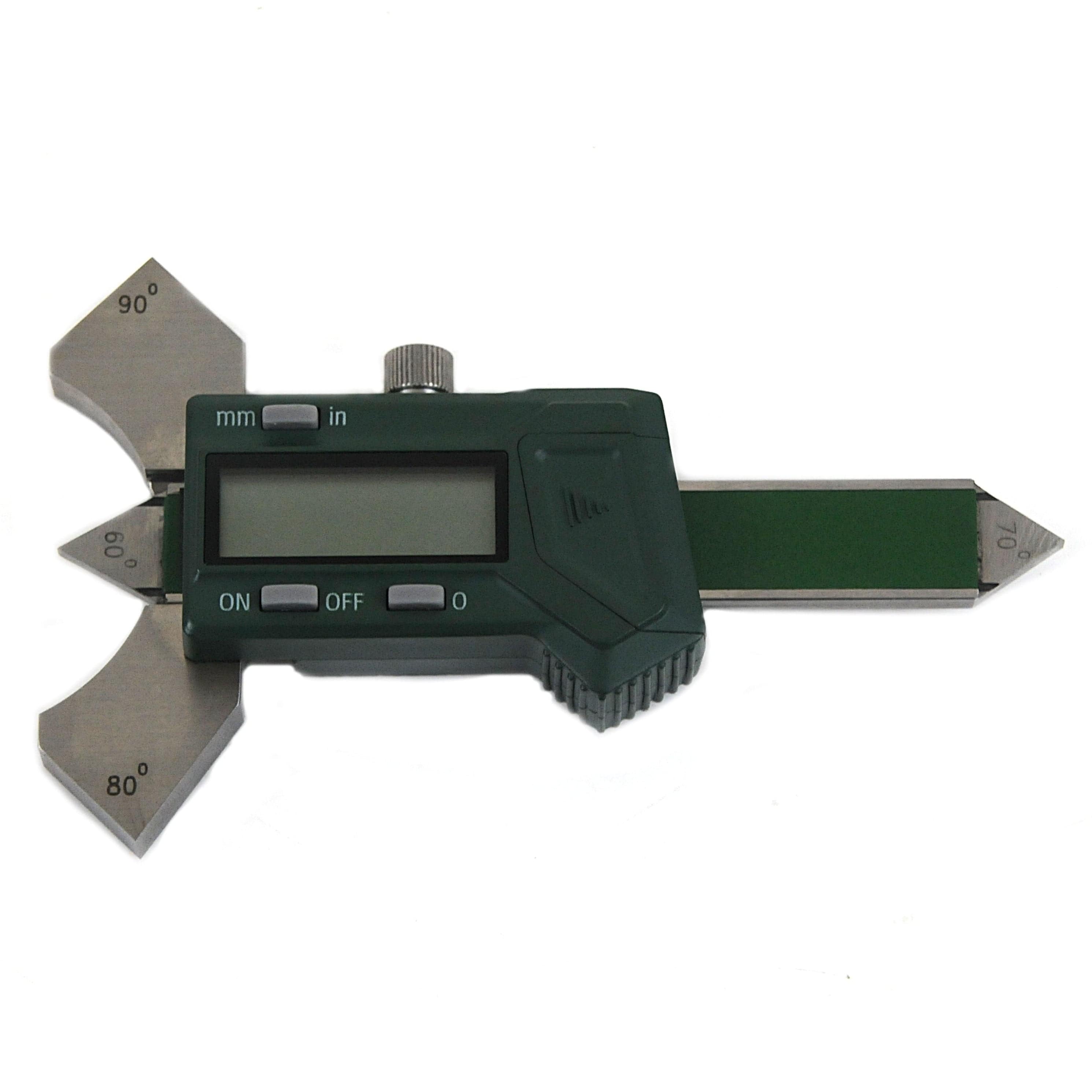

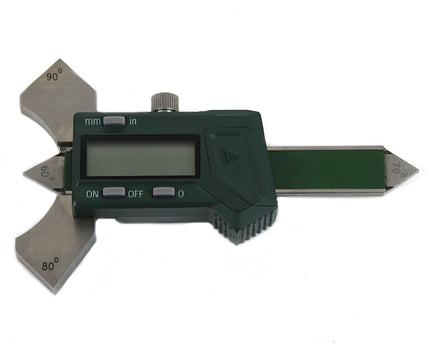

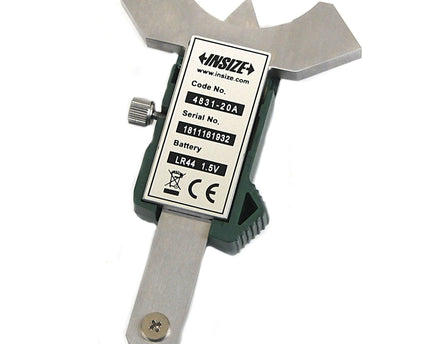

Insize Welding Gauge
The Insize Welding Gauge is a precision measuring instrument designed for accurate inspection of weld dimensions and alignment. Its digital readout allows fast, repeatable measurements of crown height, fillet weld throat size, and weld angles in fabrication and inspection applications.

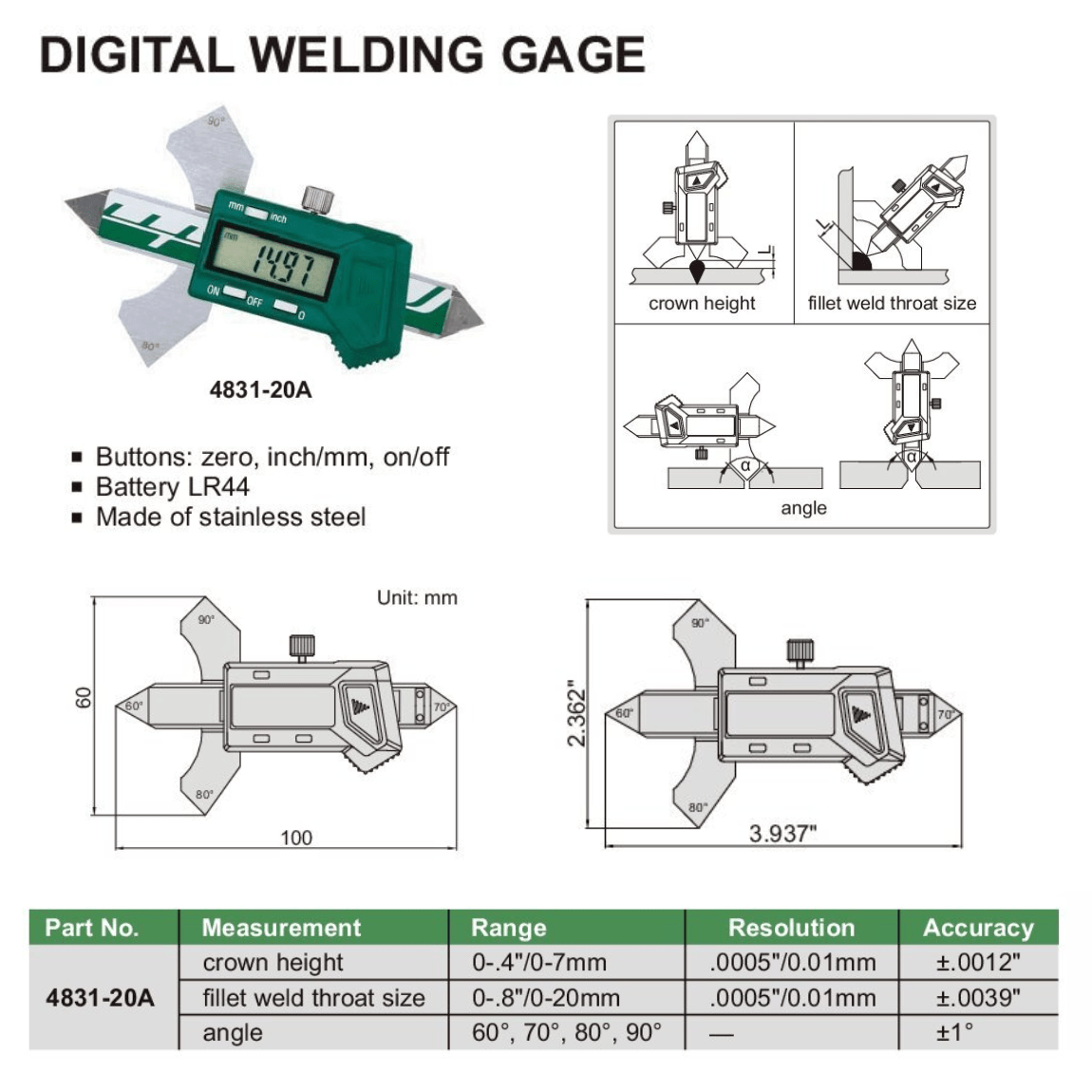

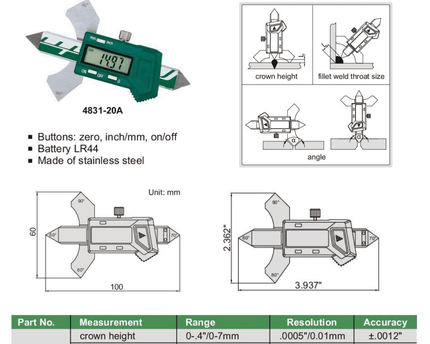

Specifications:
-

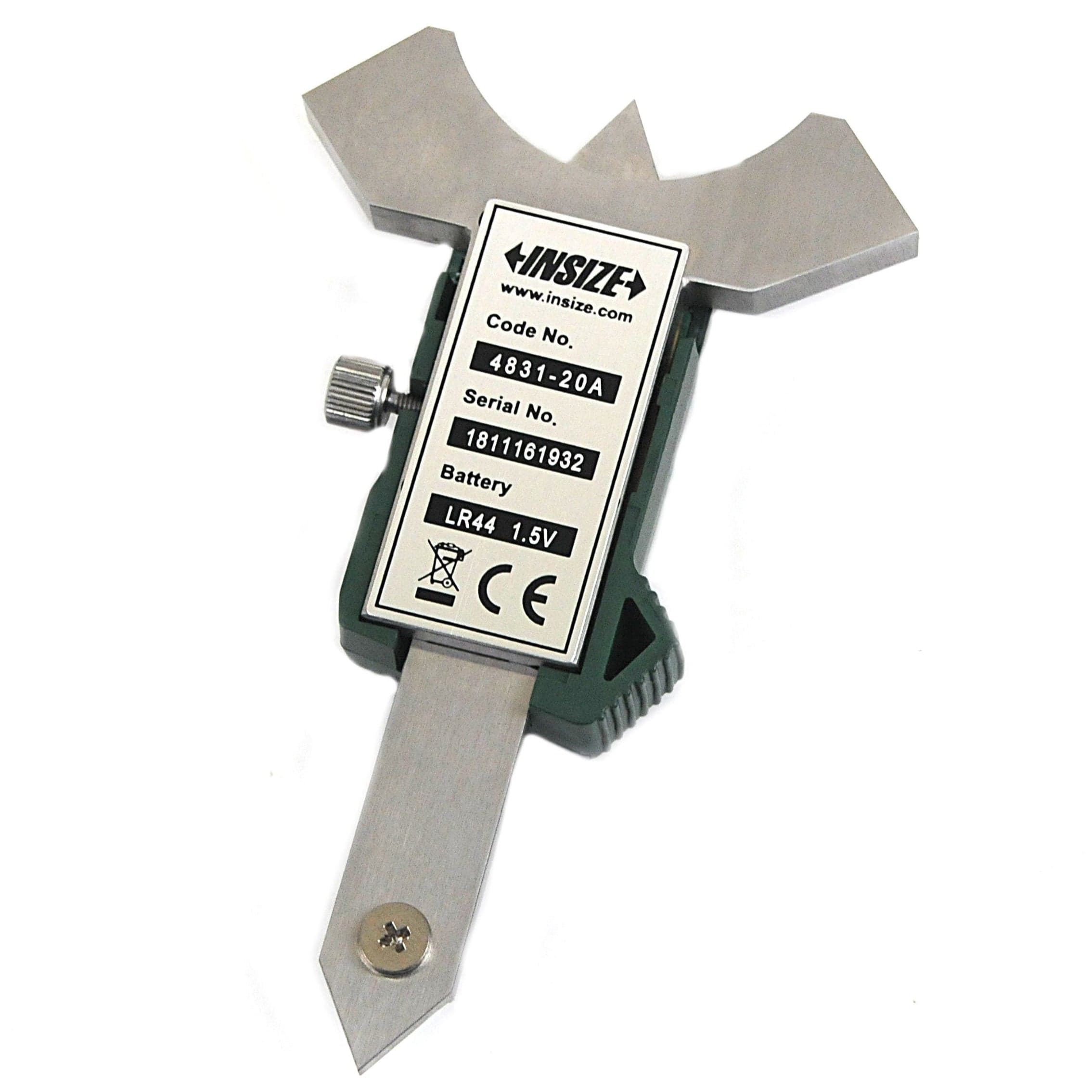

Part No.: 4831-20A
-
Buttons: Zero, mm/inch, on/off
-
Battery: LR44
-
Material: Stainless steel
| Measurement |
Range |
Resolution |
Accuracy |
| Crown height |
0–7 mm / 0–0.4" |
0.01 mm / 0.0005" |
±0.0012" |
| Fillet weld throat size |
0–20 mm / 0–0.8" |
0.01 mm / 0.0005" |
±0.0039" |
| Angle |
60°, 70°, 80°, 90° |
– |
±1° |
Designed for reliable and precise weld inspection, this digital welding gauge supports accurate verification of weld size, throat depth, crown height, and angles in industrial and workshop environments.
