Description
Insize Fillet Welding Gauge

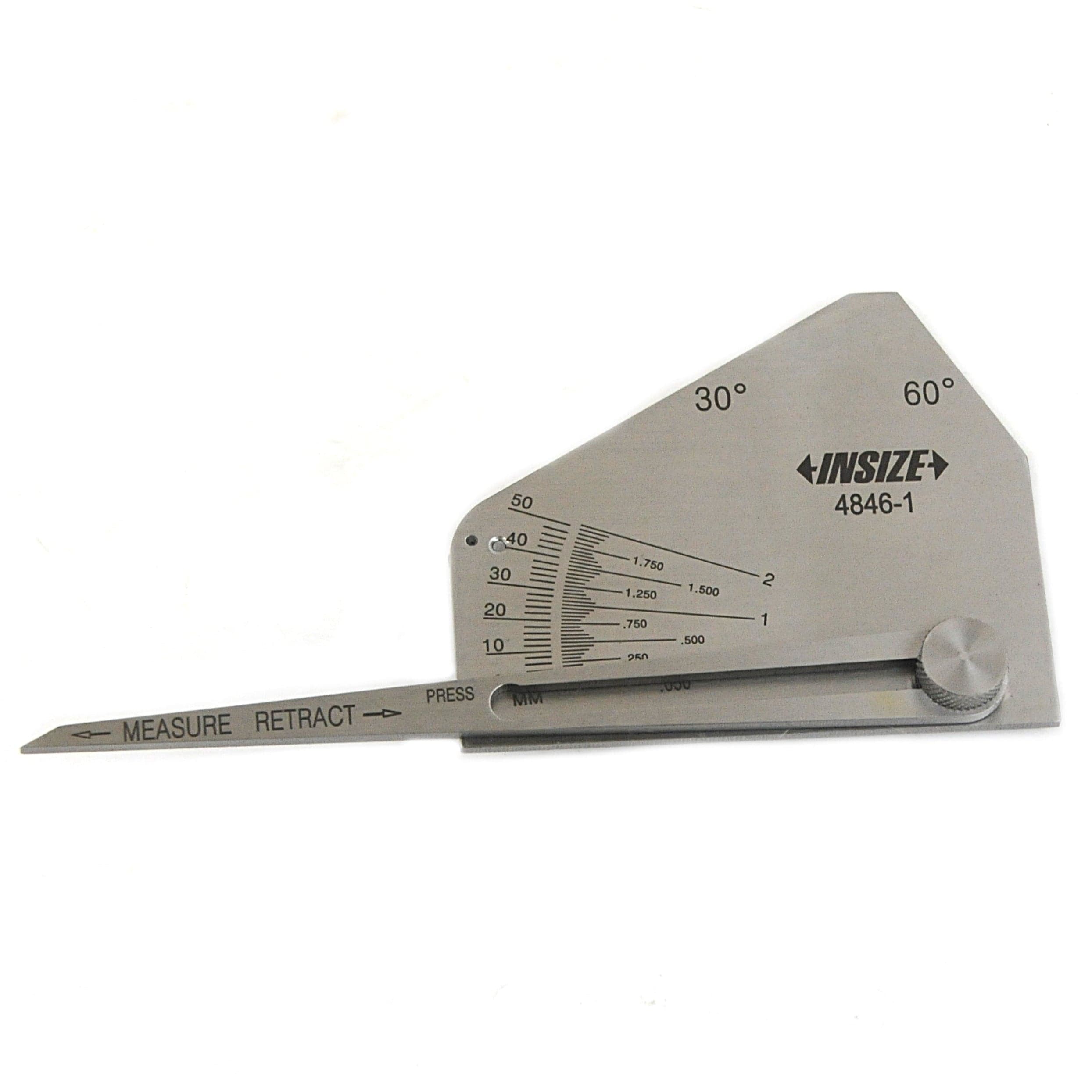

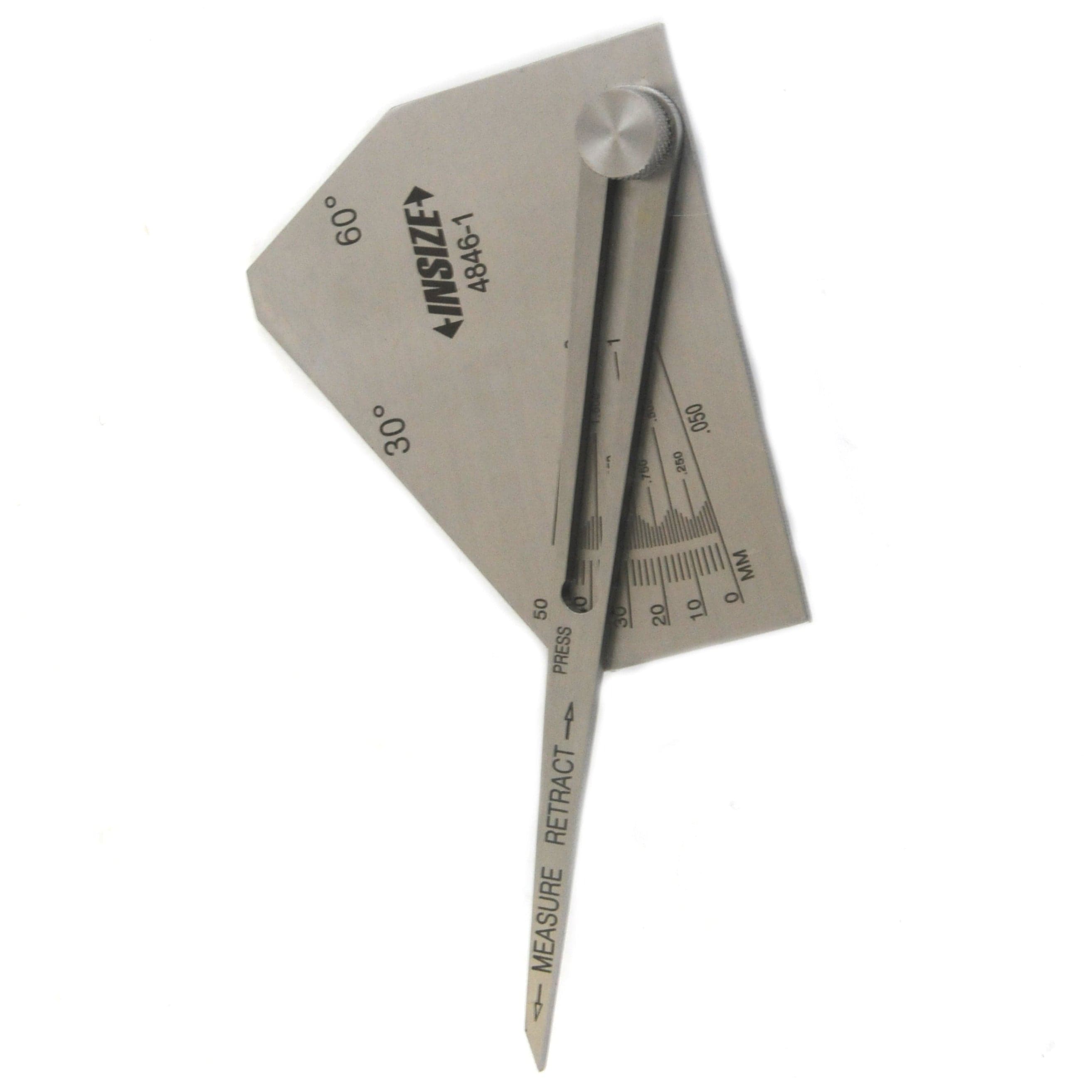

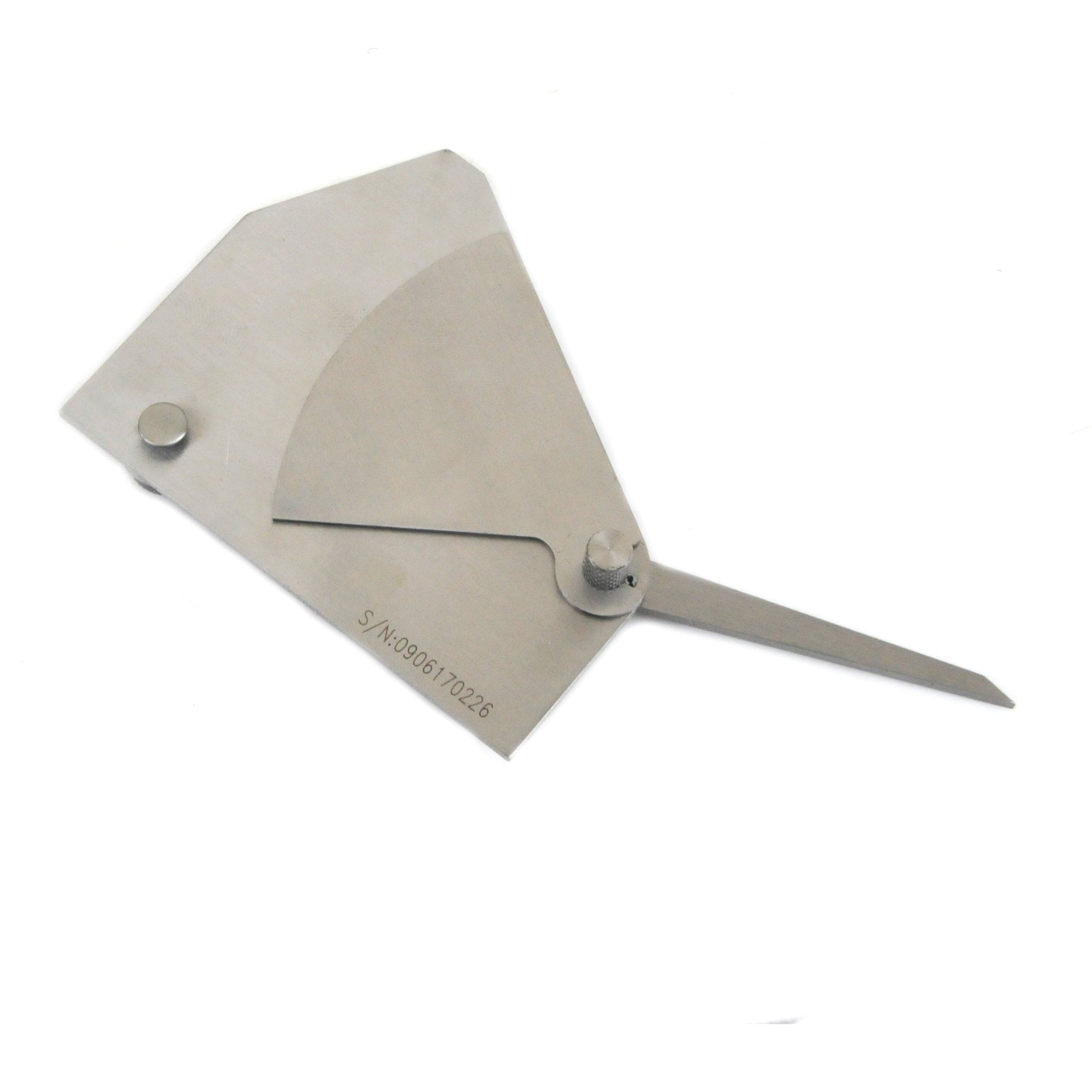

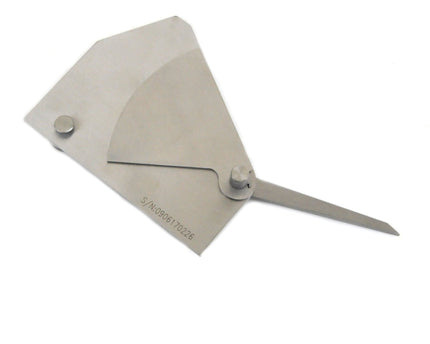

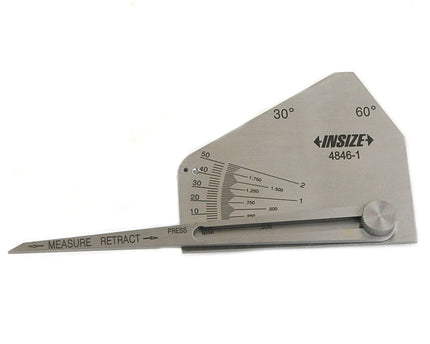

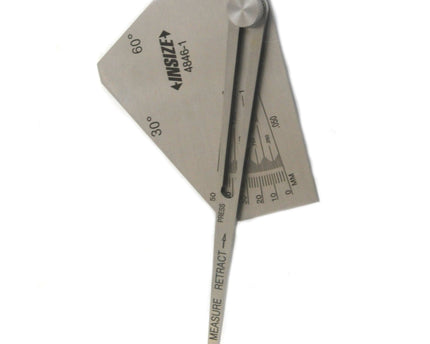

Insize Fillet Welding Gauge is designed for quick and accurate measurement of fillet weld size and throat thickness. Manufactured from durable stainless steel, it provides consistent accuracy and reliable performance for welding inspection and fabrication work.

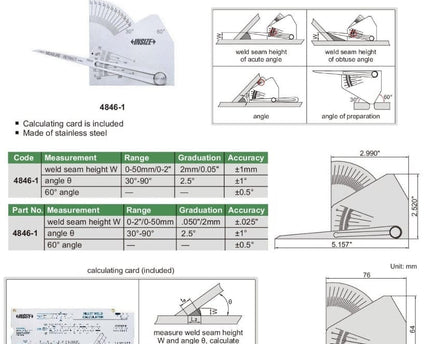

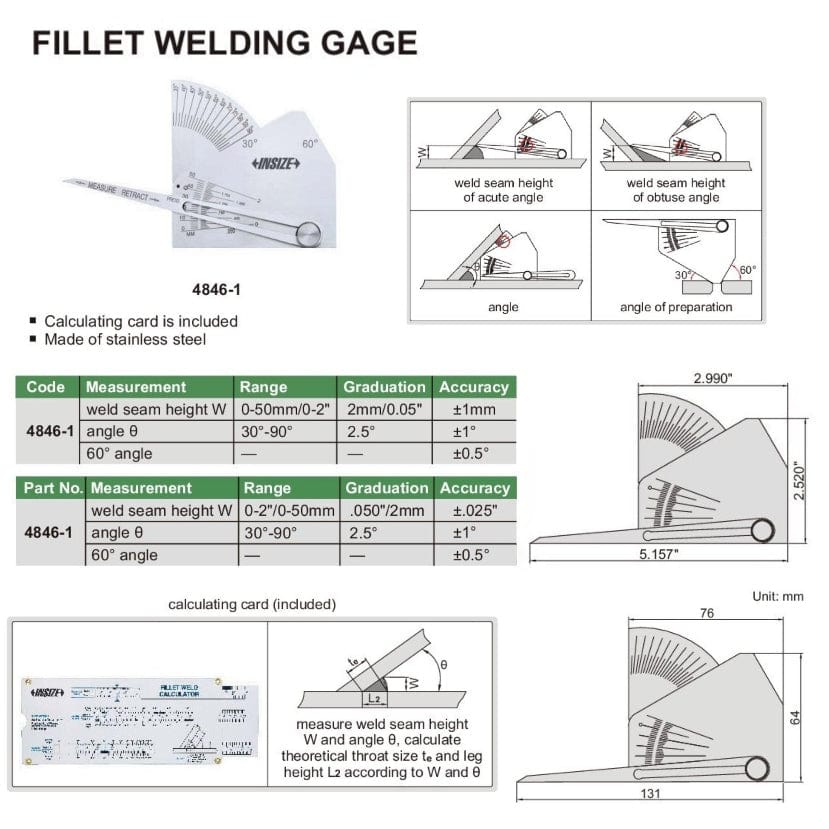

Specifications:
-
Part No.: 4846-1
-
Calculating Card: Included
-
Material: Stainless steel
| Code |
Measurement |
Range |
Graduation |
Accuracy |
| 4846-1 |
Weld Seam Height (W) |
0–50 mm / 0–2" |
2 mm / 0.05" |
±1 mm / ±0.025" |
| Angle (θ) |
30°–90° |
2.5° |
±1° |
| 60° Angle |
– |
– |
±0.5° |
Designed for precision and ease of use, this fillet welding gauge allows accurate evaluation of weld geometry, making it suitable for inspection, quality control, and general welding applications.
