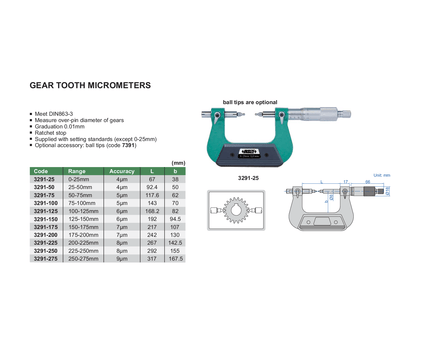

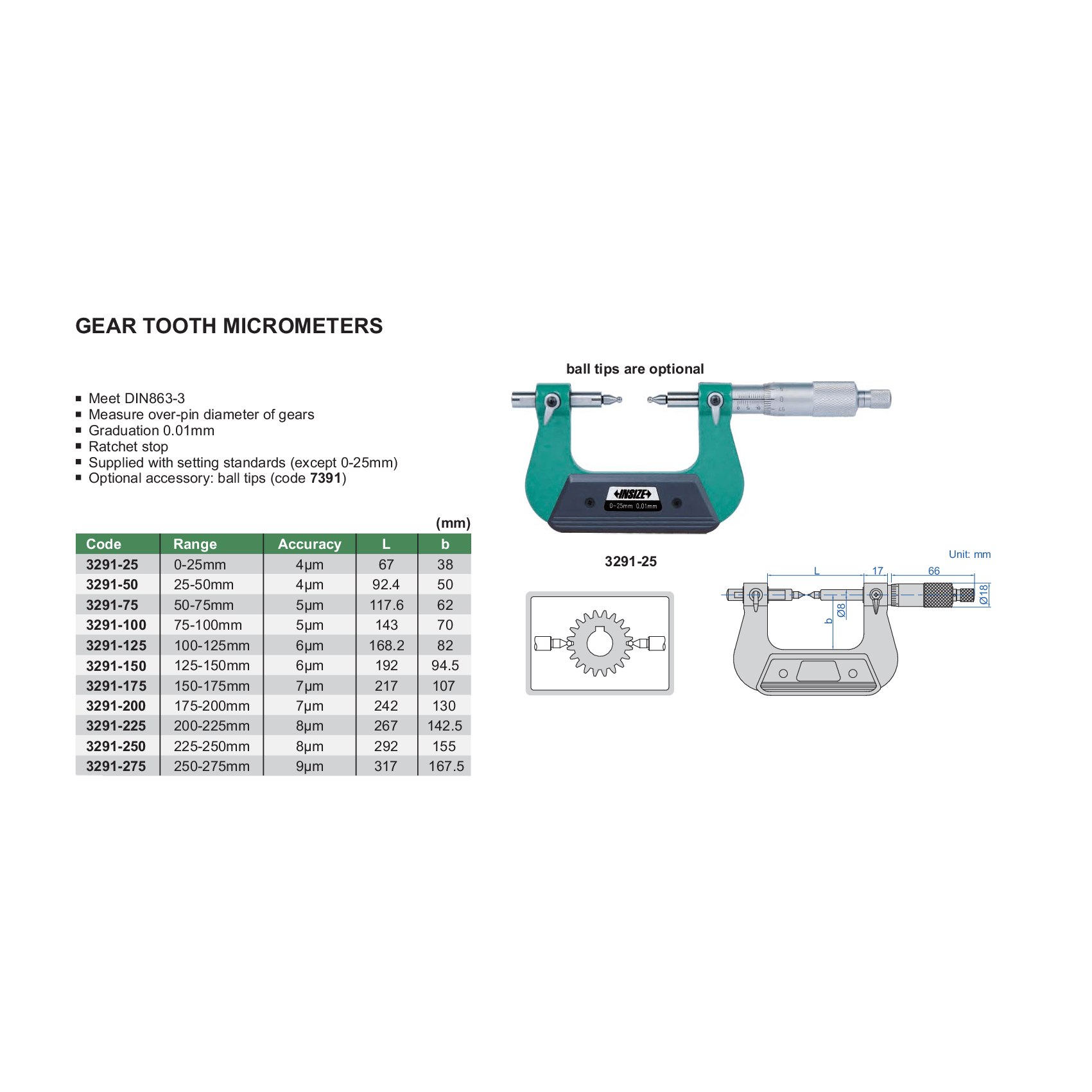

Insize Gear Tooth Micrometer
The Insize 3291-50 Gear Tooth Micrometer is designed for accurate measurement of over-pin diameters of gears within the 25 to 50 mm range. It provides a graduation of 0.01 mm and an accuracy of 4 µm, meeting DIN863-3 standards. The ratchet stop ensures consistent measuring pressure, and the micrometer is supplied with setting standards (except for the 0–25 mm range). Optional ball tips are available for specialized applications.
Specifications :
-
Part No: 3291-50
-
Range: 25–50 mm
-
Graduation: 0.01 mm
-
Accuracy: 4 µm
-
L: 92.4 mm
-
b: 50 mm
-
Features: Ratchet stop, meets DIN863-3
-
Optional Accessories: Ball tips (code 7391)
With robust build and high accuracy, the INSIZE 3291-50 is ideal for precision gear measurement in workshop and inspection environments.
