Insize Gear Tooth Micrometer
The Insize 3291-75 Gear Tooth Micrometer is designed for measuring over-pin diameters of gears in the 50 to 75 mm range. It offers a graduation of 0.01 mm and an accuracy of 5 µm, meeting DIN863-3 standards. The ratchet stop ensures consistent measuring pressure, and the micrometer is supplied with setting standards (except for the 0–25 mm range). Optional ball tips are available for specialized applications.

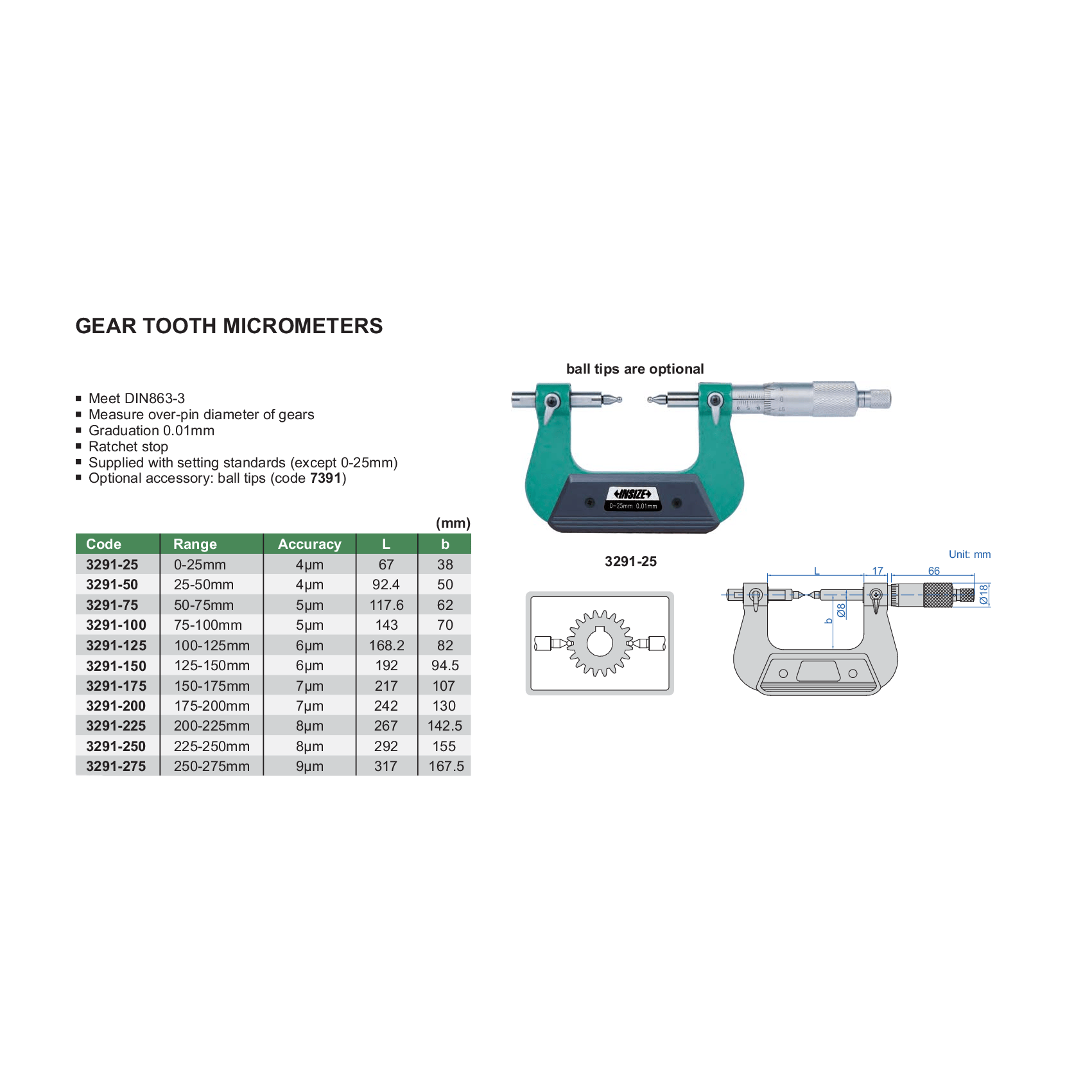

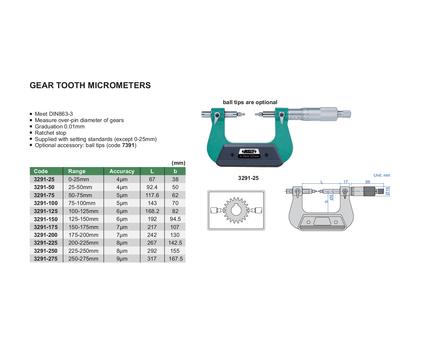

Specifications :
-
Part No: 3291-75
-
Range: 50–75 mm
-
Graduation: 0.01 mm
-
Accuracy: 5 µm
-
L: 117.6 mm
-
b: 62 mm
-
Features: Ratchet stop, meets DIN863-3
-
Optional Accessories: Ball tips (code 7391)
Built for durability and accuracy, the INSIZE 3291-75 ensures reliable gear measurements in both production and inspection settings.
