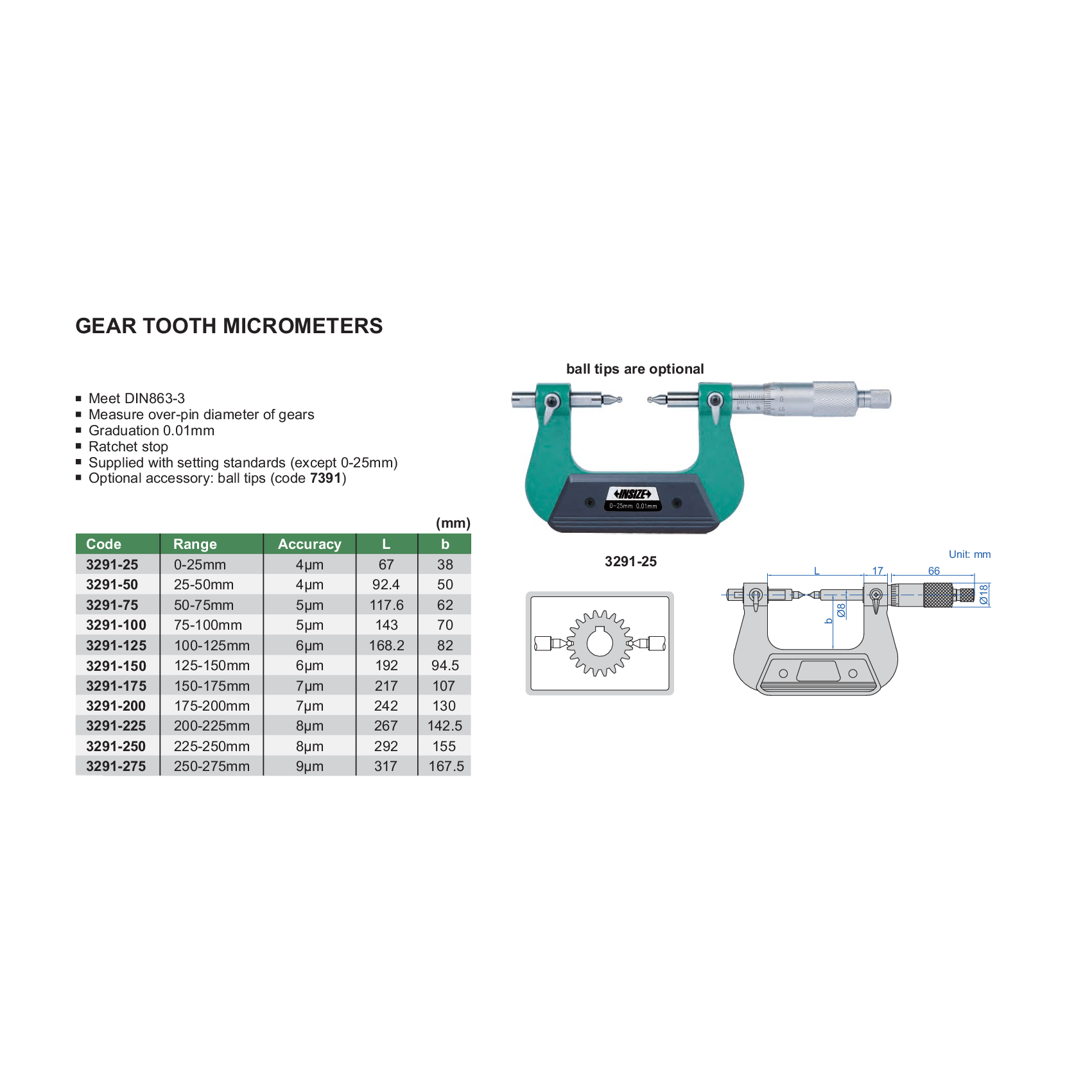

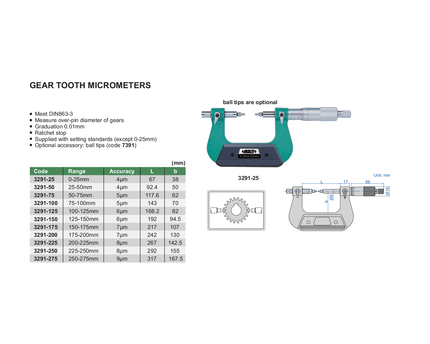

Insize Gear Tooth Micrometer
The Insize 3291-100 Gear Tooth Micrometer is designed for accurate measurement of over-pin diameters of gears in the 75 to 100 mm range. It offers a graduation of 0.01 mm and an accuracy of 5 µm, meeting DIN863-3 standards. The ratchet stop ensures consistent measuring pressure, and the micrometer is supplied with setting standards (except for the 0–25 mm range). Optional ball tips are available for specialized applications.
Specifications :
-
Part No: 3291-100
-
Range: 75–100 mm
-
Graduation: 0.01 mm
-
Accuracy: 5 µm
-
L: 143 mm
-
b: 70 mm
-
Features: Ratchet stop, meets DIN863-3
-
Optional Accessories: Ball tips (code 7391)
Engineered for precision and repeatability, the INSIZE 3291-100 delivers dependable gear measurements in demanding industrial and inspection environments.
